Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh

Export reference
MSRP N/A
Wheelbase:: 1850+3100+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.3×2.525×3.96m
Truck Type:: Concrete mixer truck
Front/rear track width:: 2065/2065/1860/1860mm
Vehicle origin:: Ma'anshan, Anhui
Rated payload: 14.57ton
Drive HN5311GJBB36C1BEV
Fuel Electric
Curb Weight: 16.3ton

Overview

The Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh is a concrete mixer truck featuring 14.57t payload, 16.3ton GVW, HN5311GJBB36C1BEV drive and 10.3×2.525×3.96m cab. On the powertrain side, it comes with Electric fuel.

Electric HN5311GJBB36C1BEV

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.525×3.96m
Drive type: HN5311GJBB36C1BEV
Truck Type: Concrete mixer truck
Wheelbase: 1850+3100+1350mm
Front/rear track width: 2065/2065/1860/1860mm
Vehicle origin: Ma'anshan, Anhui
Curb Weight: 16.3ton
Rated payload: 14.57ton
Max. speed: 85km/h
Front/rear suspension: 1.37/2.63m
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG06
Motor Type: Permanent magnet synchronous motor
total rated power: 220kW
Peak power: 360kW
total rated torque: 1500N·m
total peak torque: 2100N·m
Body Parameters
Mixing drum capacity: 6.67m³
Vehicle certification code: HN5311GJBB36C1BEV
Body Brand: Hualing
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: HualingM5
Chassis Model: HN1311B36C1BEVJ
rear axle description: dual 11T class
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 9Gear
Transmission Model: 9-Speed AMT
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

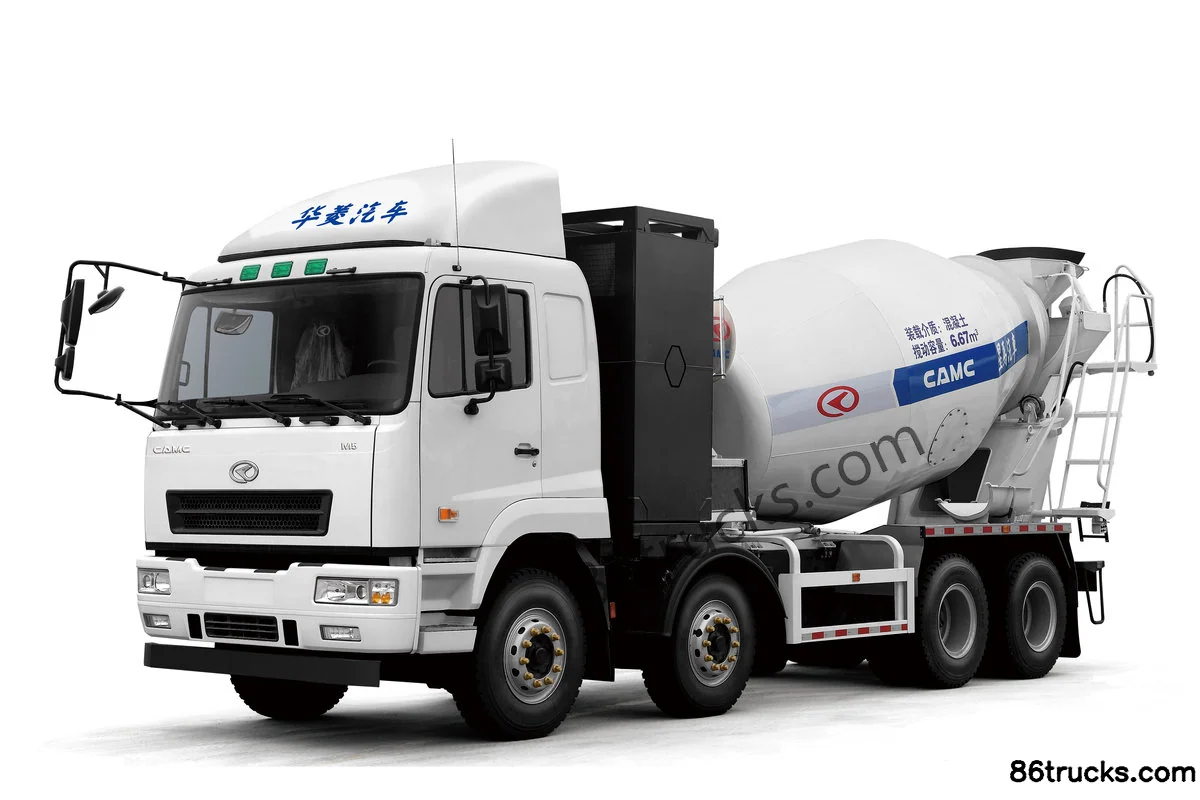

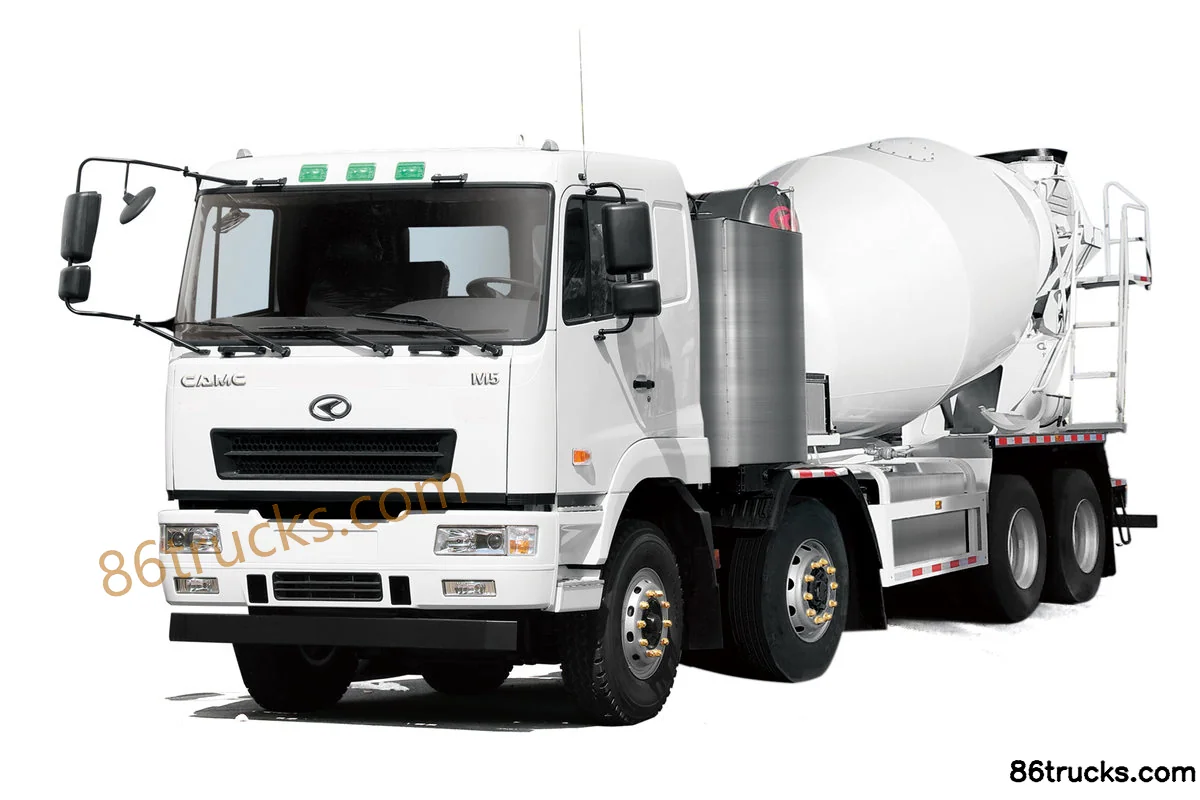

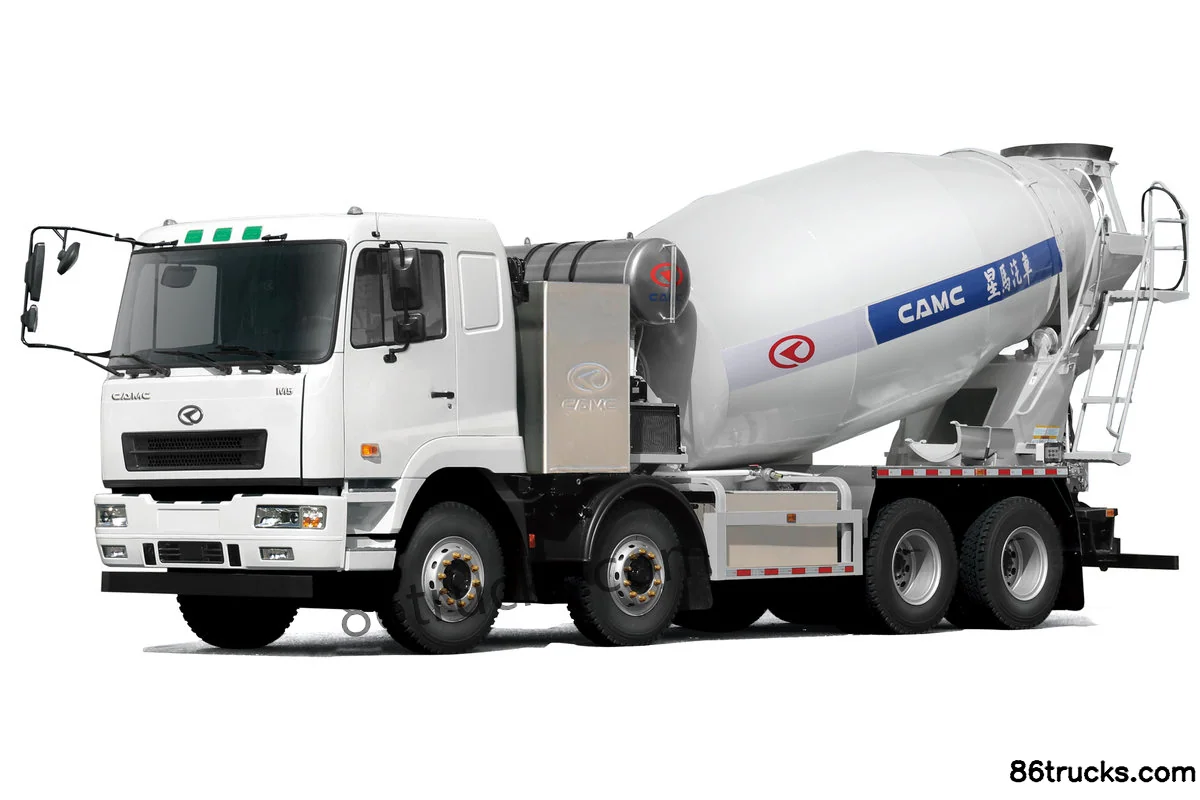

Photos

Exterior3

3 photos

FAQ

What are the key specs of Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh?

Key specs of Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh: Drive: HN5311GJBB36C1BEV; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh suited for?

Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh differ from other variants in the same series?

Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh belongs to Hualing M5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing M5 490 hp 8X4(12 wheels) Battery Swap electric concrete mixer truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
