Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck

Export reference
From $21,528
MSRP ¥15.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2900mm
Tire Size:: 7.00R16LT 14PR/7.00R16LT 14PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 185
Cargo box type: Rear dump

Overview

The Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Rear dump cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.5NQ190E62 engine, 185 hp, China VI emissions and Fast Gear transmission.

China VI 185 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3044C281CFH
Drive type: 4X2
Wheelbase: 2900mm
engine: WeichaiWP2.5NQ190E62
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.833
Cab length: 4.995m
Cab width: 1.9m
Cab height: 2.215m
Front track width: 1605mm
rear track: 1570mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel

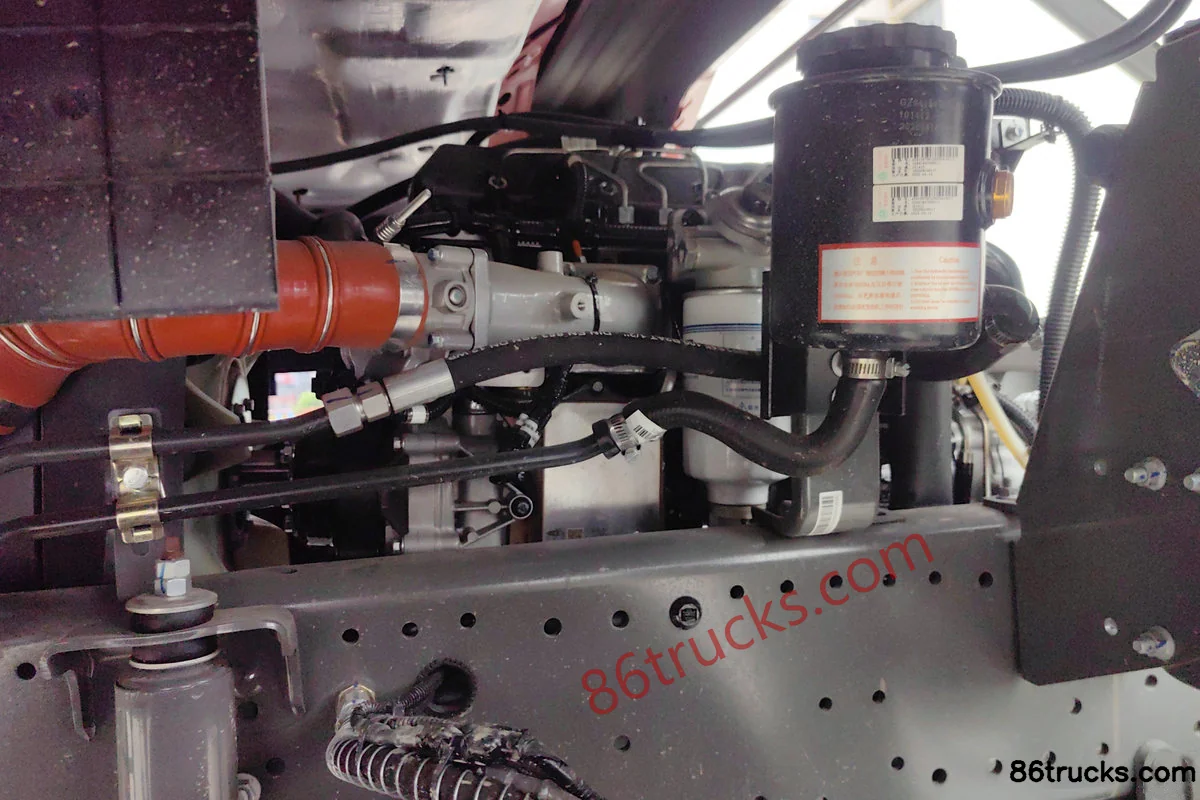

Engine parameters
Engine Brand: Weichai
Engine Model: WP2.5NQ190E62
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.493L
Emission standard: China VI
Max output power: 136kW
Max hp: 185Horsepower
Transmission Parameters
Transmission Model: 10-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Dual straight 90×900
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 3.15m
Cargo box width: 1.8m
Cargo box height: 0.8m
Cab parameters
Cab: V20X
Cab width: 1880mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle description: 2.4T
Front axle allowable load: 1920kg
rear axle description: 7.2T
rear axle allowable load: 2575kg
Axle ratio: 5.833
Leaf spring count: 5/7+5

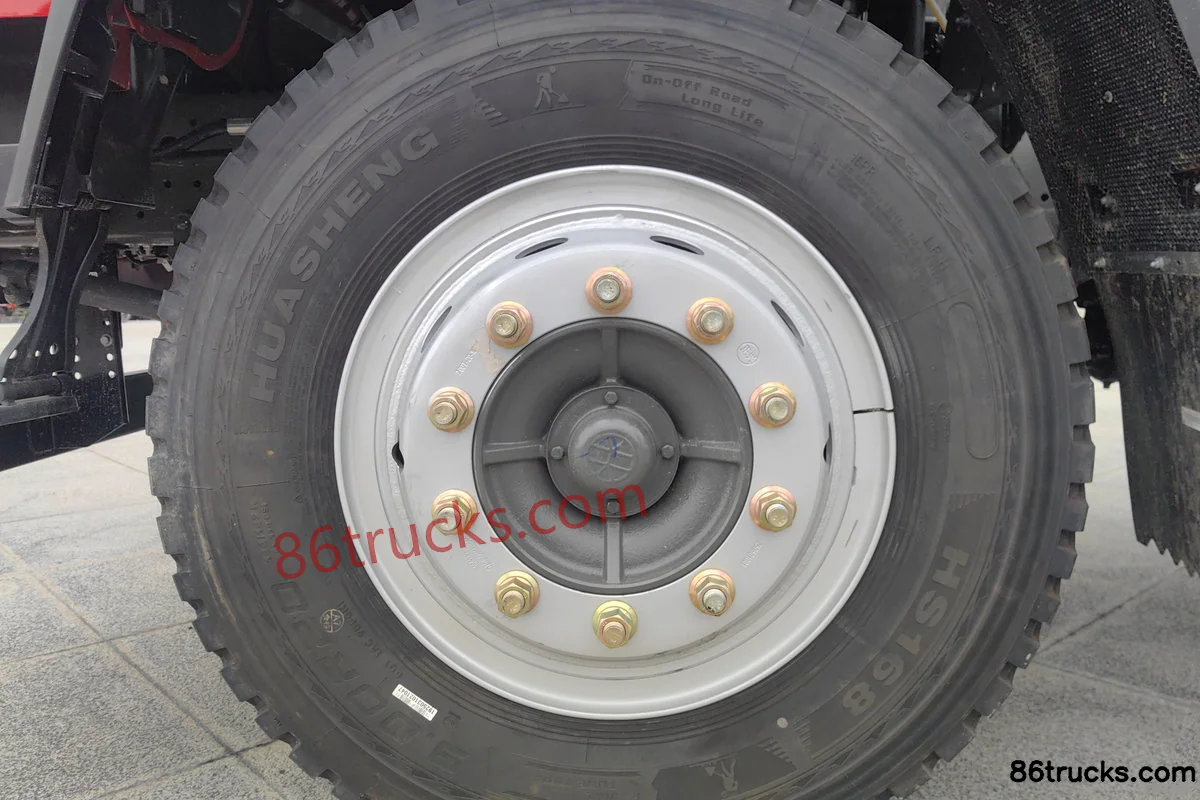

Tire
Tire Size: 7.00R16LT 14PR/7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

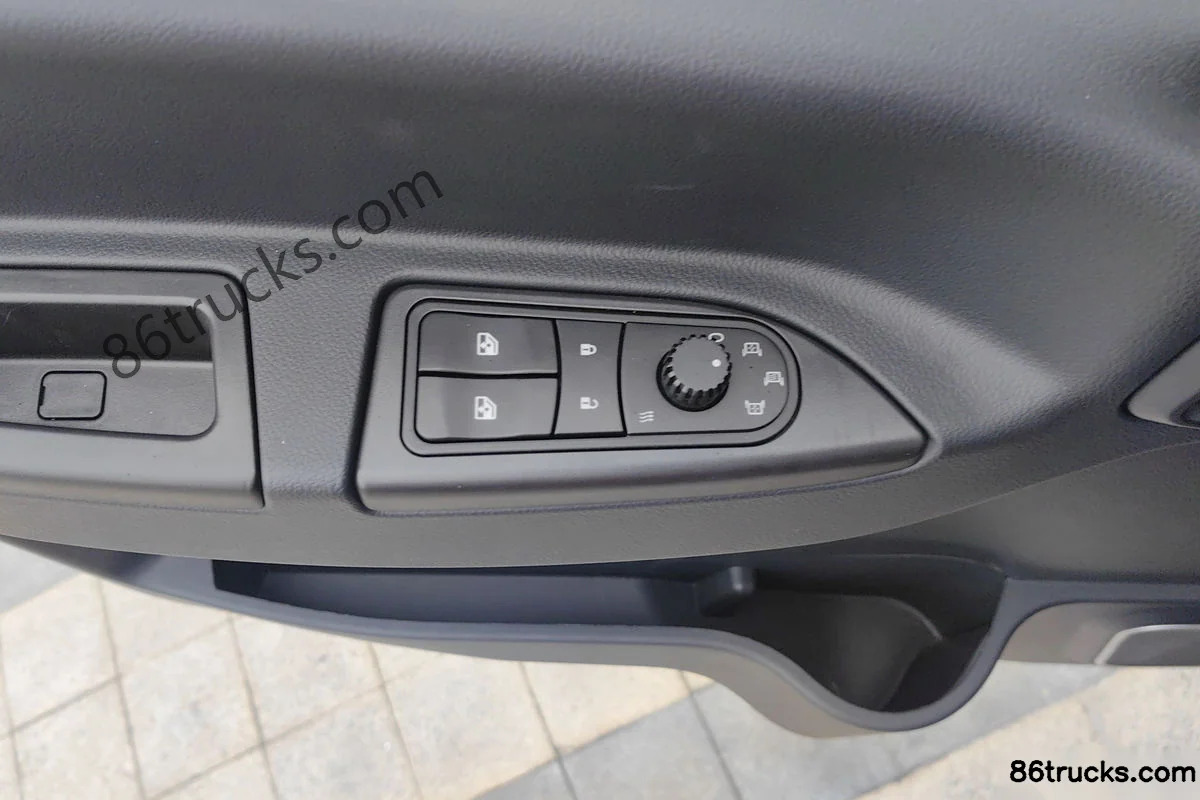

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

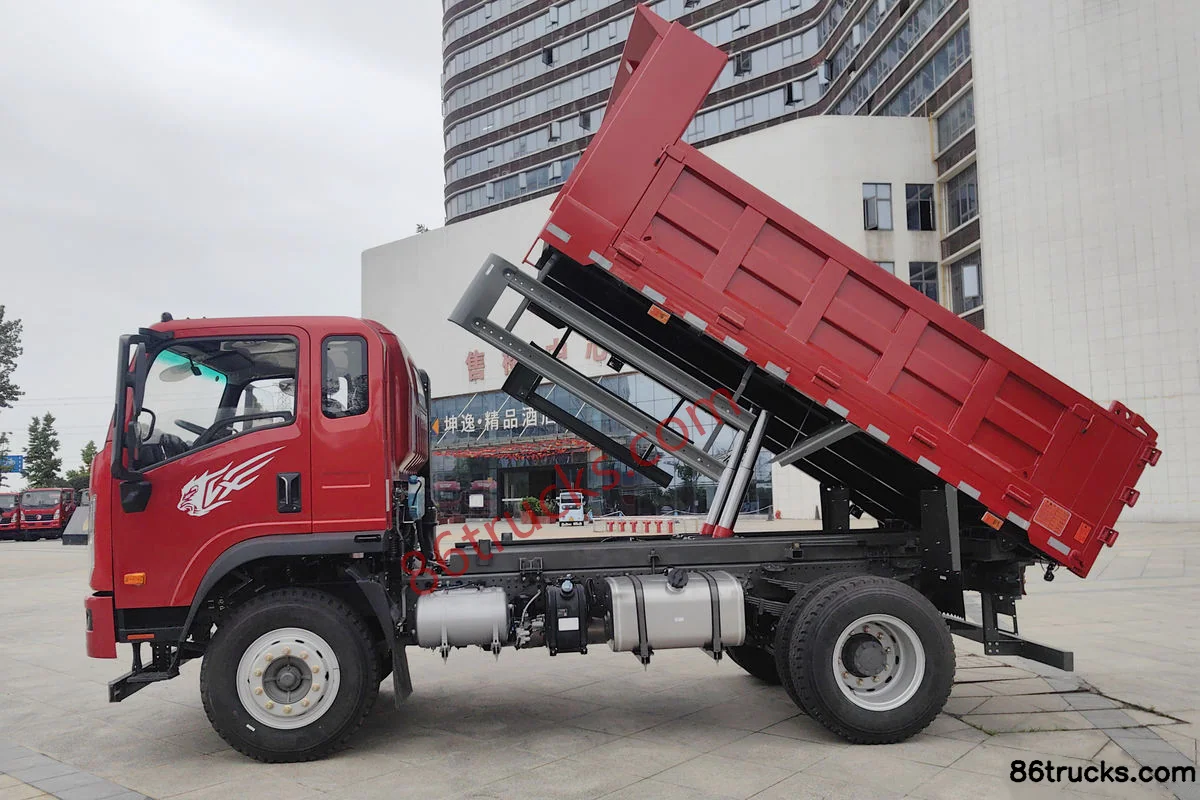

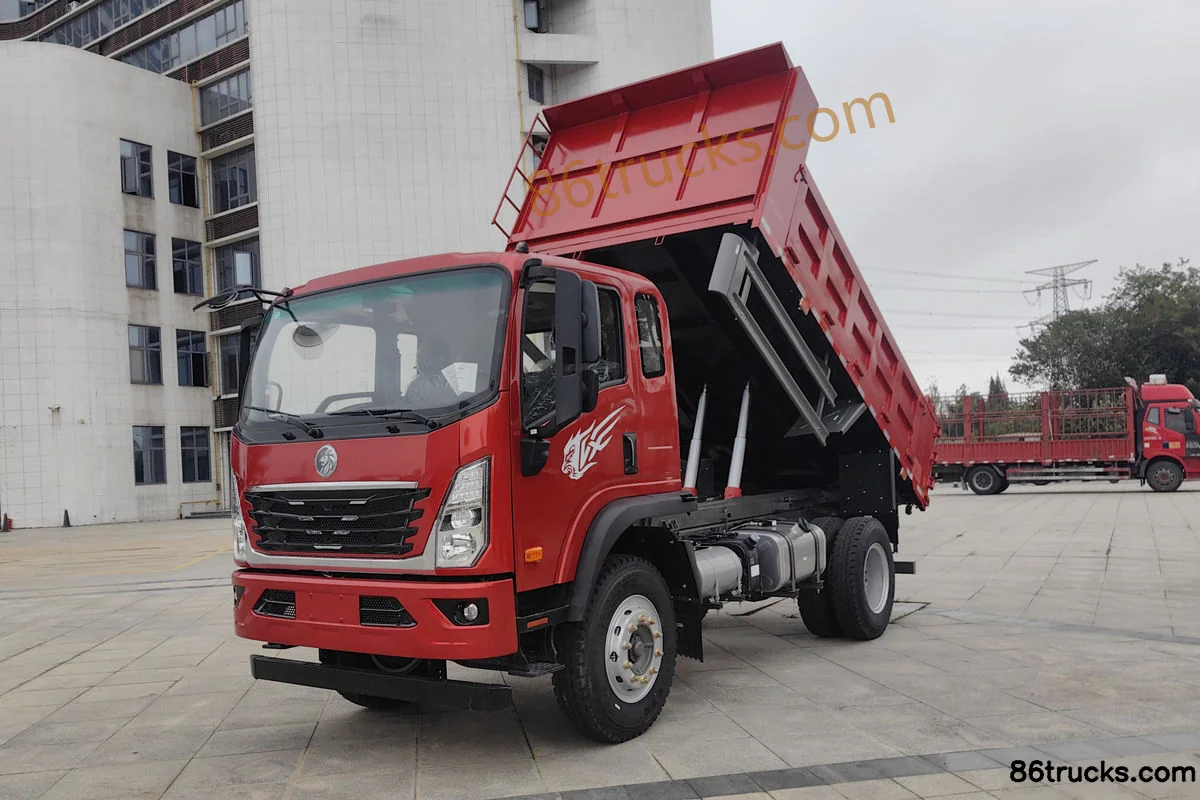

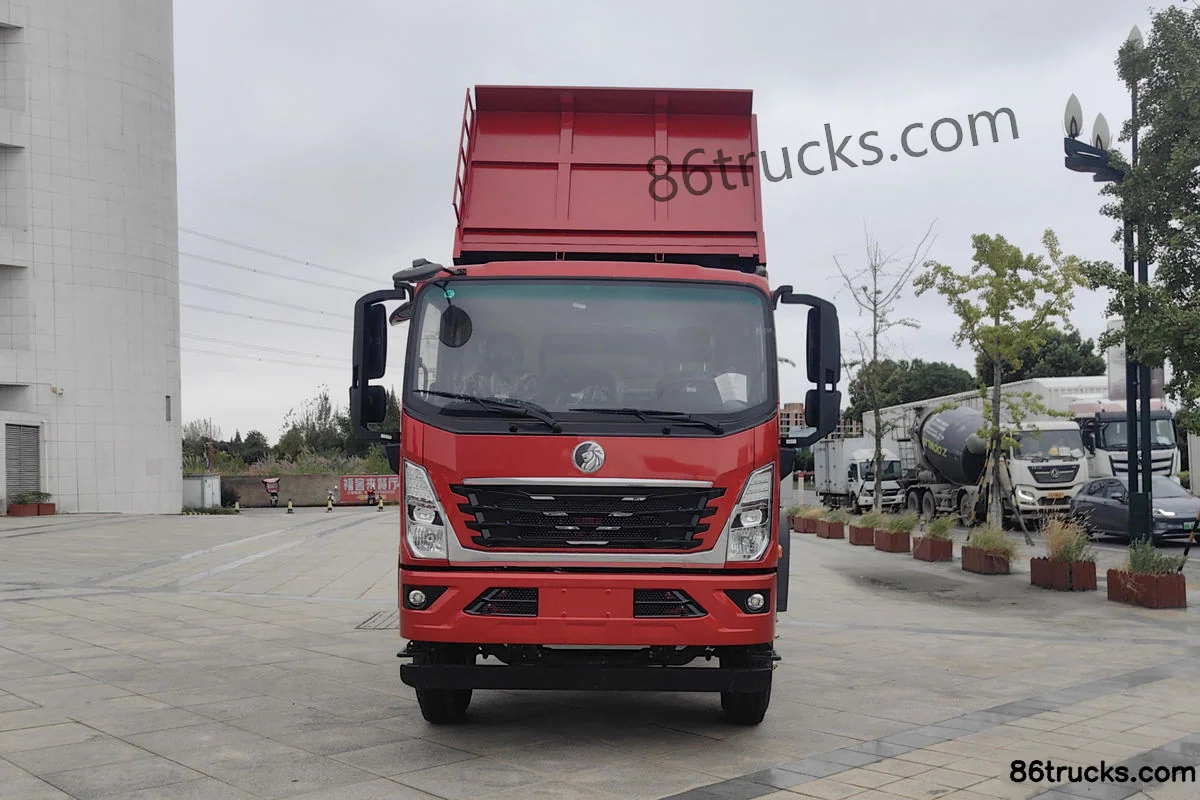

Exterior3

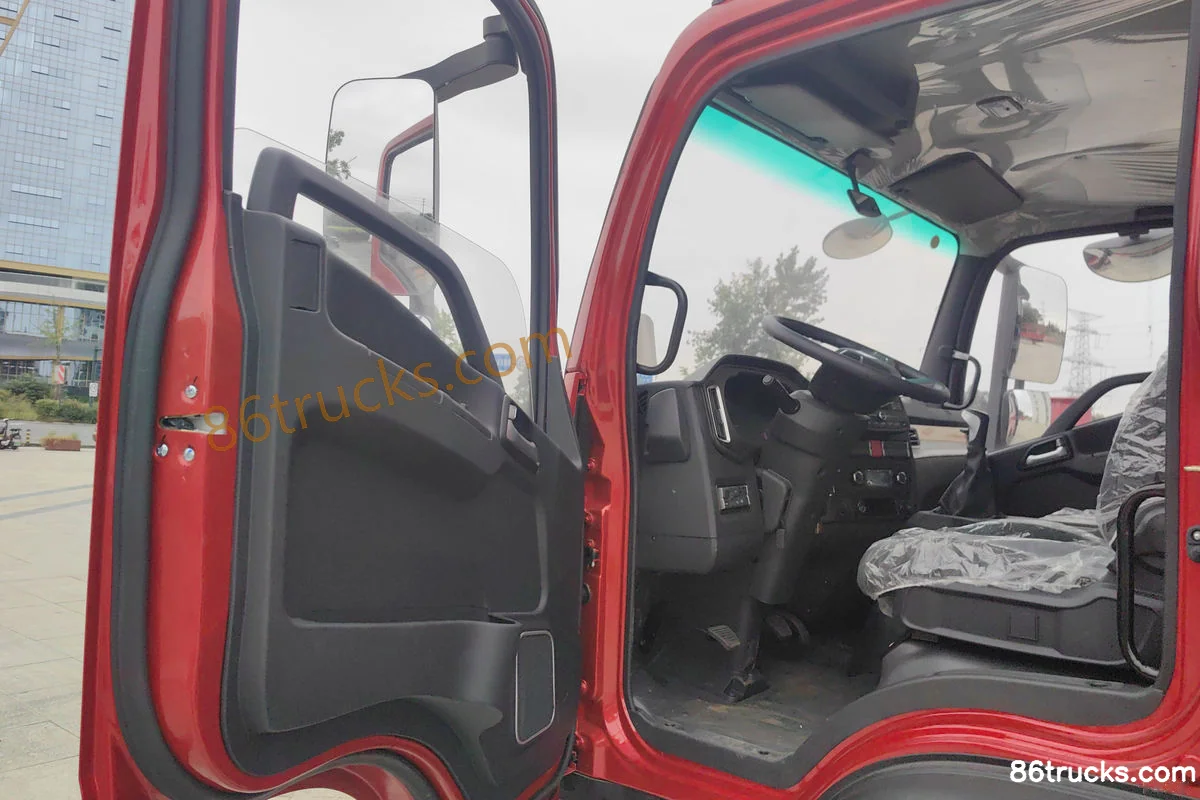

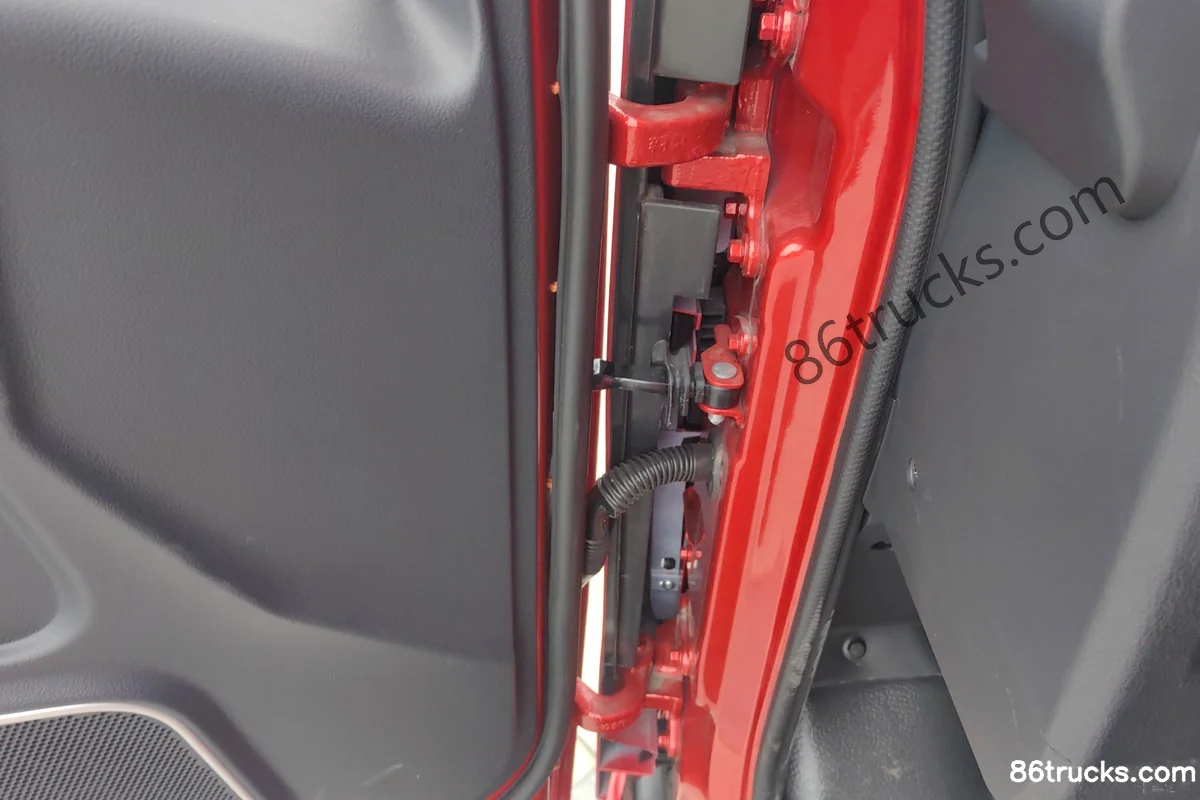

Cab3

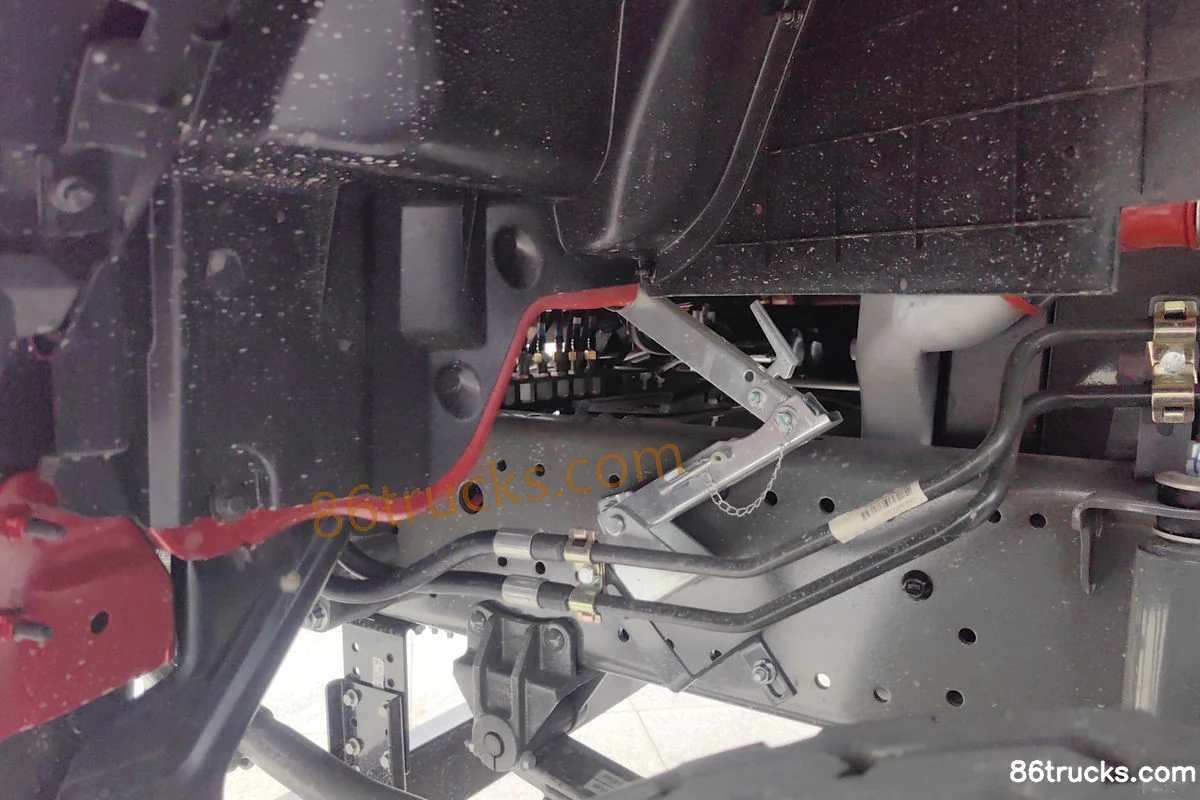

Chassis3

9 photos

FAQ

What is the export price of Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck, and what does it include?

Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck export reference is about From $21,528; MSRP is ¥15.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck?

Key specs of Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck: Drive: 4x2; Horsepower: 185 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck suited for?

Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck differ from other variants in the same series?

Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck belongs to Sinotruk V Series (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V2 2.5L Diesel 185 hp 4X2(6 wheels) Fast Gear 10-speed 3.15m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
