Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand)

Export reference
From $61,806
MSRP ¥44.5M CNY
Fuel: Diesel
Curb Weight:: 31ton
Wheelbase:: 1800+3025+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 9.96x2.52x3.96m
Truck Type:: Concrete mixer truck
Rated payload: 16.37ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China VI

Overview

The Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck featuring 16.37t payload, 31ton GVW, 6X4 (10 wheels) drive and 9.96x2.52x3.96m cab. On the powertrain side, it comes with 340 hp, China VI emissions and Diesel fuel.

China VI 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.96x2.52x3.96m
Drive type: 6X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3025+1400mm
Front/rear track width: Front track: 2035/2030 Rear track: 1850/1850mm
Vehicle origin: Jiangmen, Guangdong
Curb Weight: 31ton
Rated payload: 16.37ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.33m
Body Parameters
Water tank capacity: 450L
Mixing drum capacity: 7.5m³
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.5%
water supply method: Air pressure water supply
Vehicle certification code: ZJV5315GJBJMZZ
Body Brand: CIMC brand
Engine parameters
Engine Model: SinotrukMC07.34-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China VI
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: SinotrukHOWO
Chassis Model: ZZ1317N306GF1
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

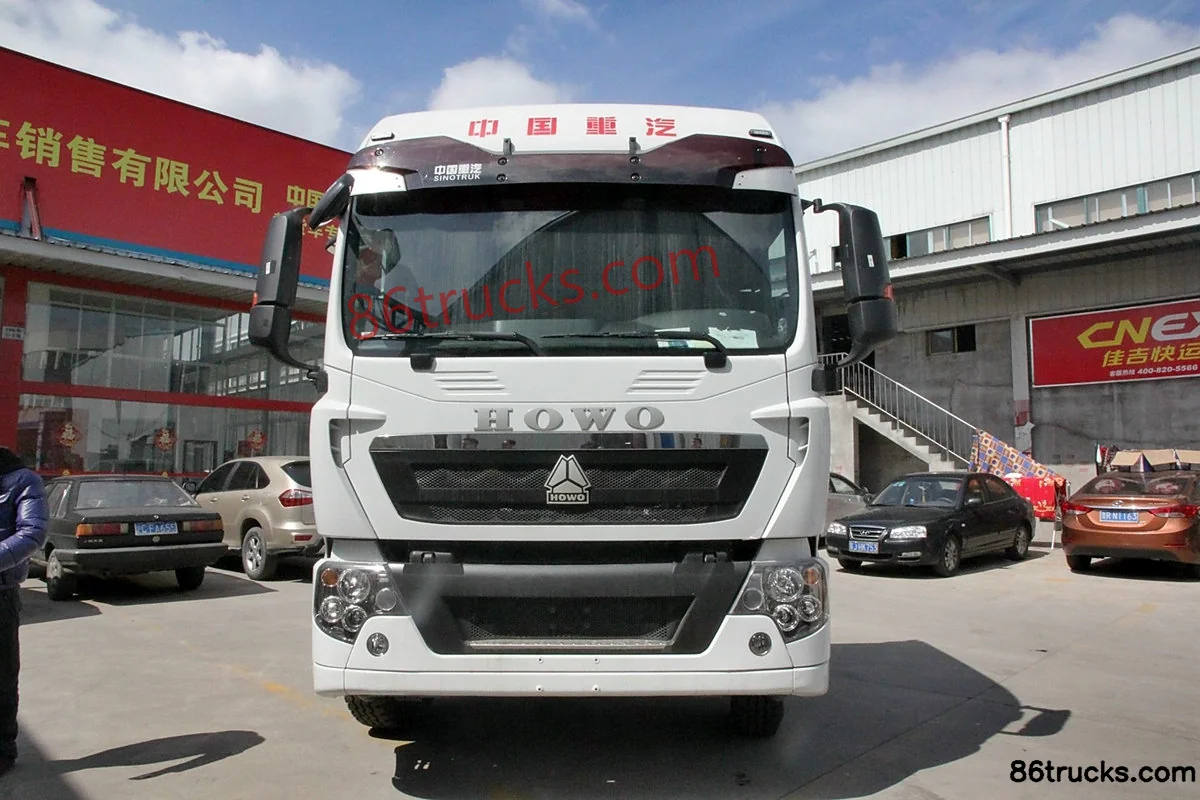

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand), and what does it include?

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) export reference is about From $61,806; MSRP is ¥44.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand)?

Key specs of Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand): Drive: 6x4; Horsepower: 340 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) suited for?

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) differ from other variants in the same series?

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand) belongs to CIMC Sinotruk HOWO chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.5 m³ Concrete Mixer Truck (CIMC Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
