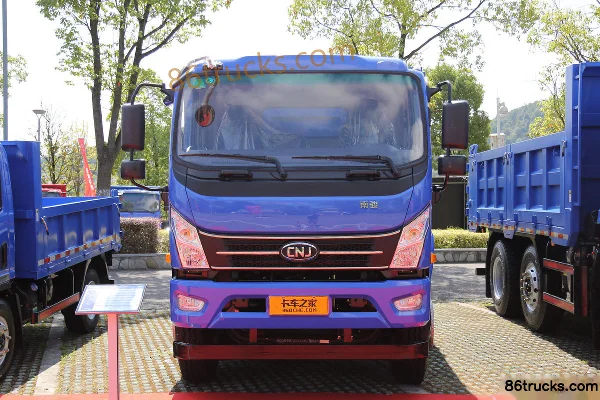

NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI)

Export reference
From $36,361
MSRP ¥26.18M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 9.2ton
Wheelbase:: 2530+1320mm
Tire Size:: 10.00R20 18PR
Model code (announced):: NJA3241QPF38A
Rated payload: 15.105ton
Drive 6X2 (8 wheels)
Horsepower 230
Cargo box thickness: floor 4 side 2 five-door

Overview

The NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) is a Heavy truck featuring 15.105t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCK05230-61 engine, 230 hp, China VI emissions and 10-speed transmission transmission.

China VI 230 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3241QPF38A
Drive type: 6X2
Wheelbase: 2530+1320mm
engine: YuchaiYCK05230-61
transmission: 10-speed transmission
Rear Axle Ratio: 6.73
Cab length: 7.02m
Cab width: 2.46m
Cab height: 2.96m
Front track width: 1740mm
rear track: 1938/1750mm
Curb Weight: 9.2ton
Rated payload: 15.105ton
GVWR: 24.5ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
Approach angle: 35°
departure angle: 15°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05230-61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 169kW
Max hp: 230Horsepower
Max torque: 840N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10-speed transmission
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG-130×3060C
Unloading Type: Dump type
Cargo box thickness: floor 4 side 2 five-door
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 1.2m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab: Sleeper cab
Cab width: 2100mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 6500kg
Frame Dimensions: 280mm
rear axle description: 16T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 6.73
Leaf spring count: 9/-/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI), and what does it include?

NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) export reference is about From $36,361; MSRP is ¥26.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI)?

Key specs of NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI): Drive: 6x2; Horsepower: 230 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) suited for?

NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) differ from other variants in the same series?

NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI) belongs to NanJun Ruijie D50 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D50 Deluxe Edition 230hp 6X2(8 wheels) 6X2R 4.5m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
