Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1850+3500+1350mm
Tire Size:: 12R22.5 18PR
Rated payload: 16.035ton
Drive 8X4 (12 wheels)
Horsepower 310
Cargo box type: Dump type

Overview

The Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) is a Heavy truck featuring 16.035t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6L310-50 engine, 310 hp, China V emissions and Fast Gear transmission.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3310B2
Drive type: 8X4
Wheelbase: 1850+3500+1350mm
engine: YuchaiYC6L310-50
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.143
Cab length: 9.48m
Cab width: 2.55m
Cab height: 3.16m
Front track width: 1960/1960mm
rear track: 1860/1860mm
Curb Weight: 14.77ton
Rated payload: 16.035ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 25°
Remarks: With dual differential locks
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L310-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Vertical, Water-cooled, Four-stroke, Inline six-cylinder
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.135m
Cab parameters
Cab: D530
Driver seat type: air suspension seat
Sunroof: Power Sunroof
fuel tank
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+4)mm
rear axle description: Dongfeng 440 single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.143
Leaf spring count: 8/8/10
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:

Photos

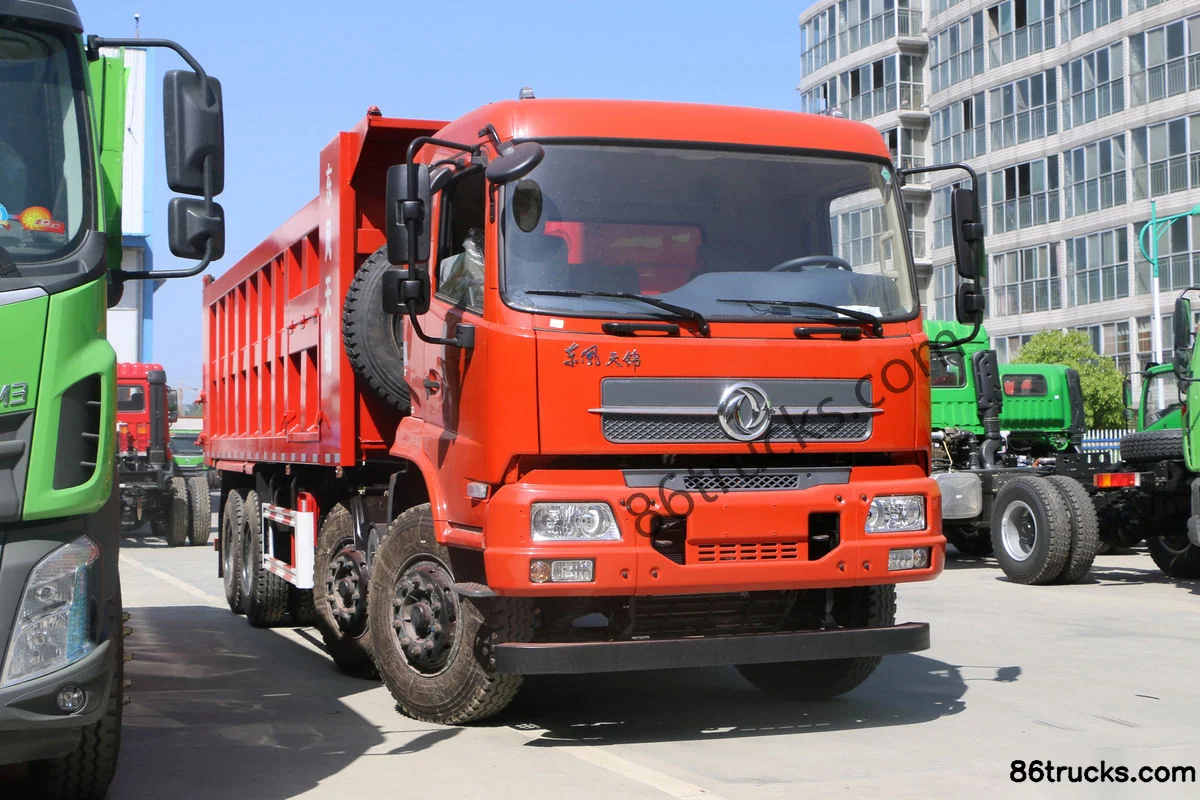

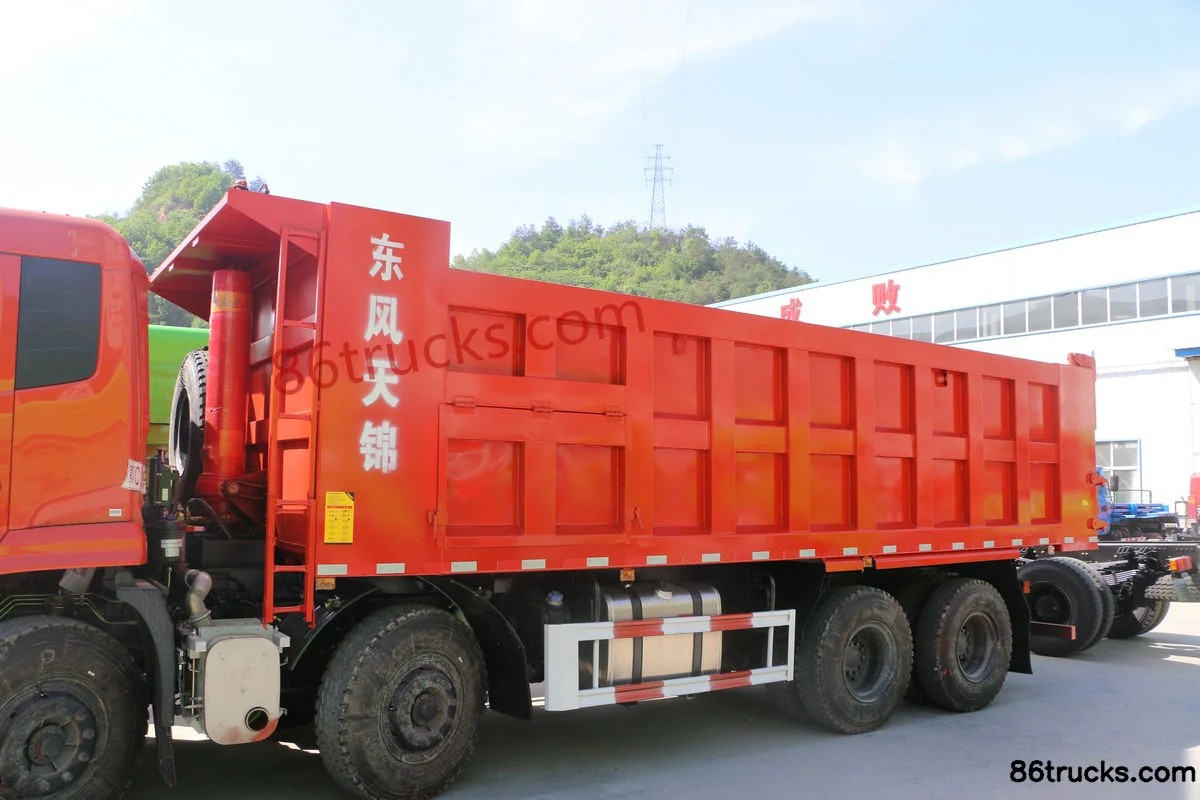

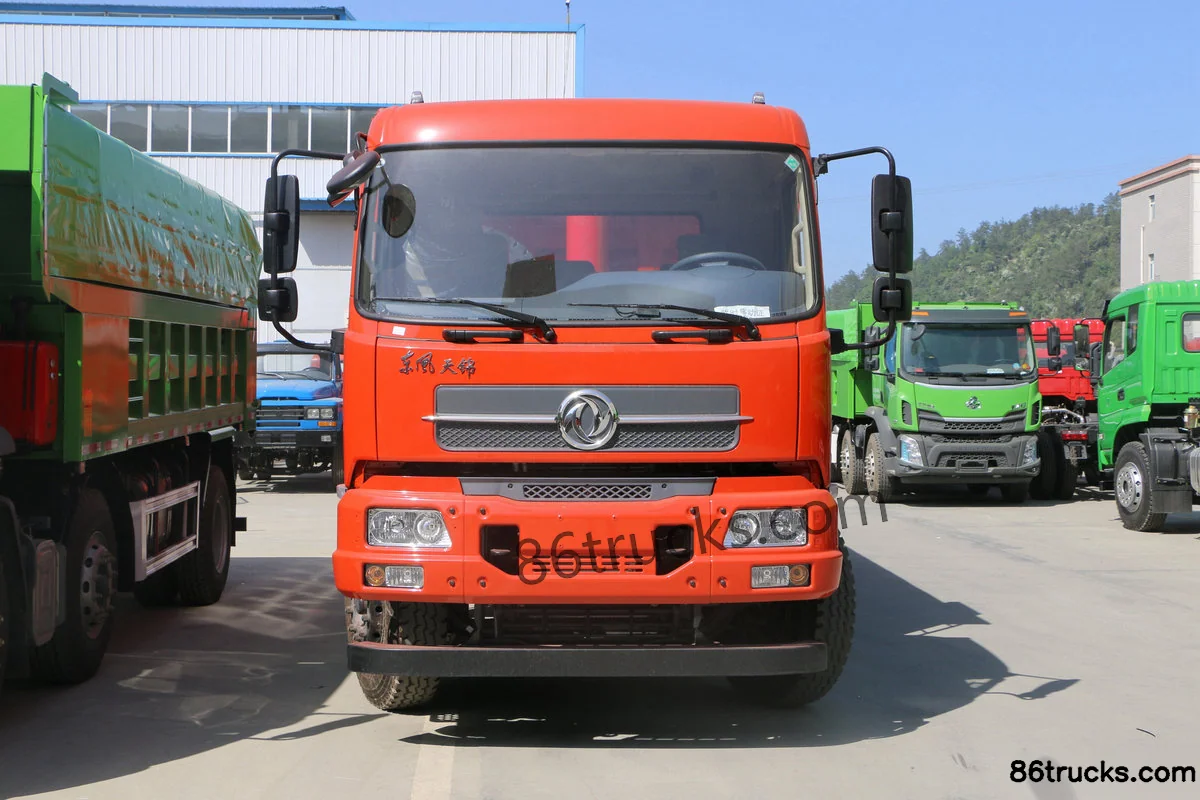

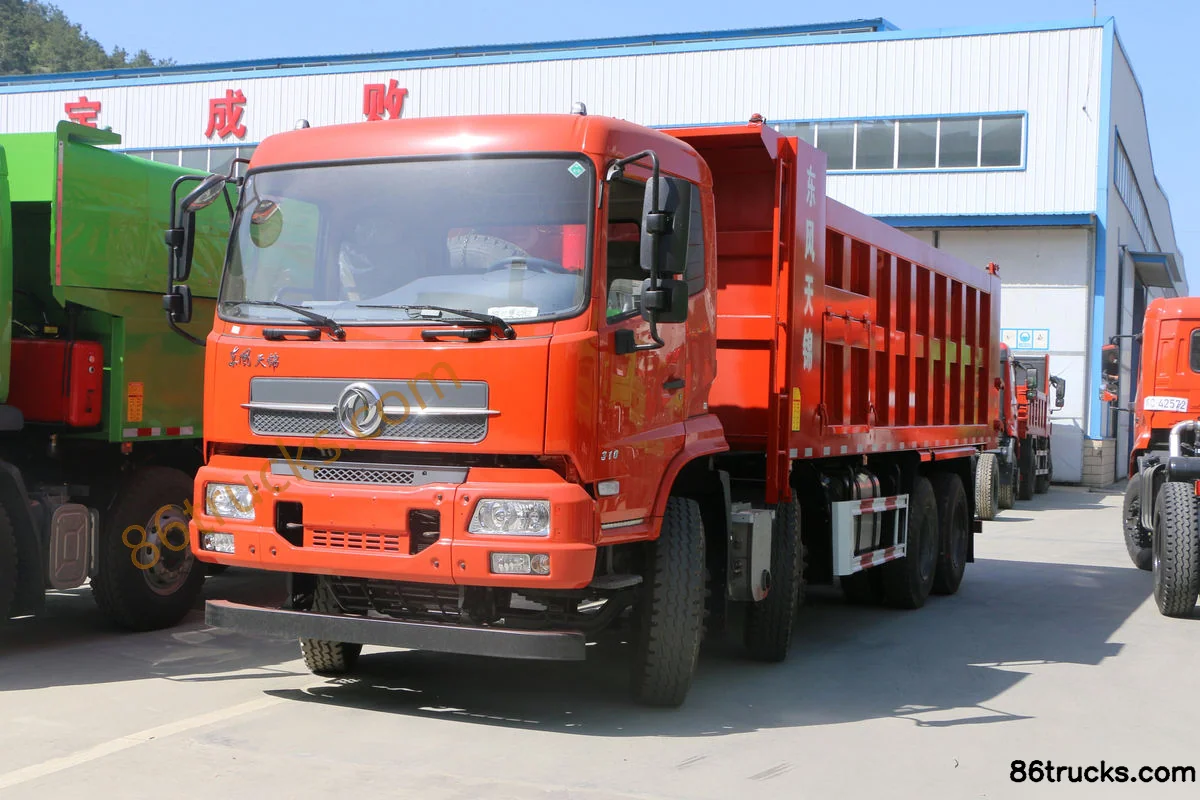

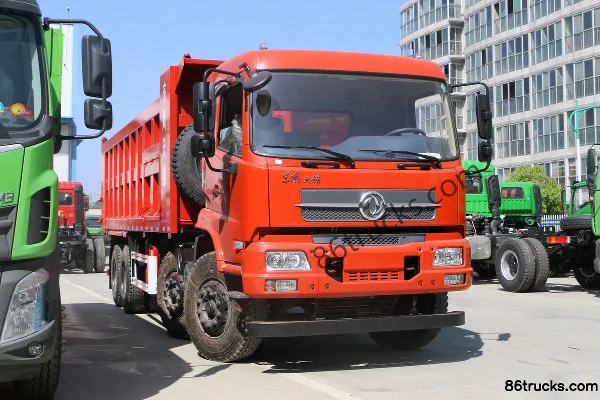

Exterior3

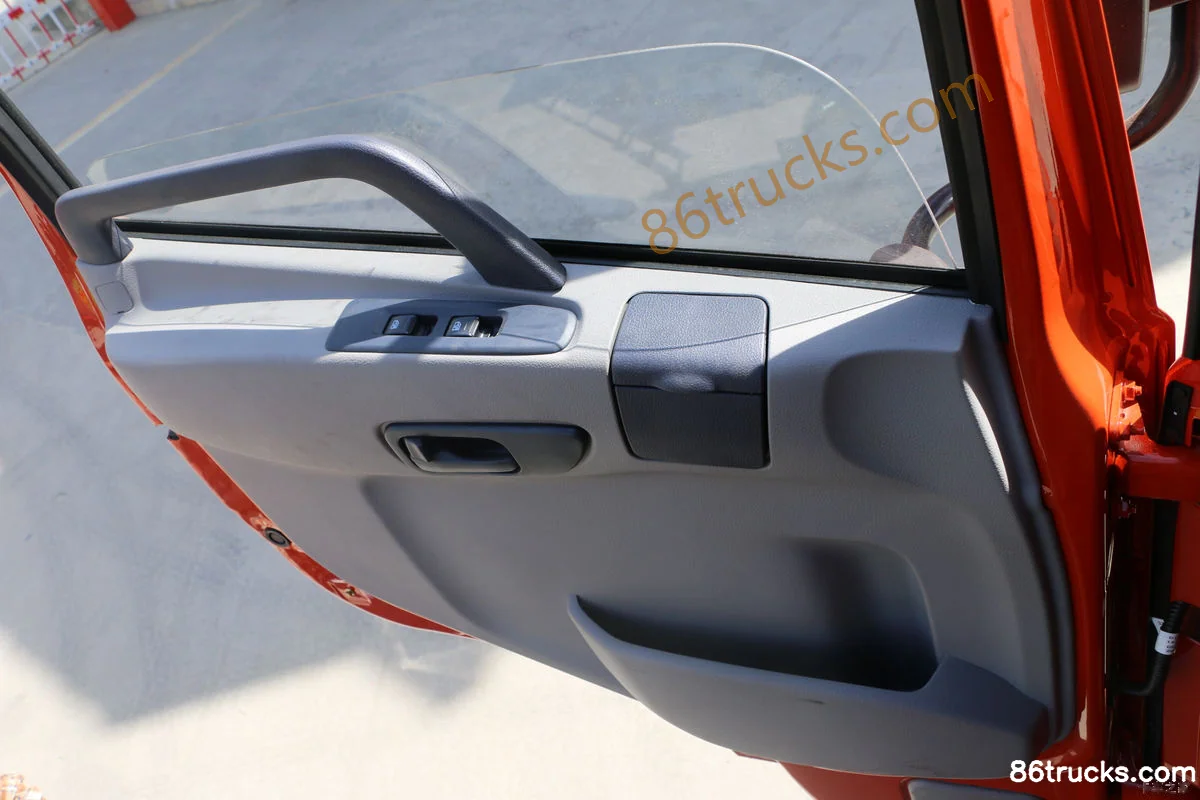

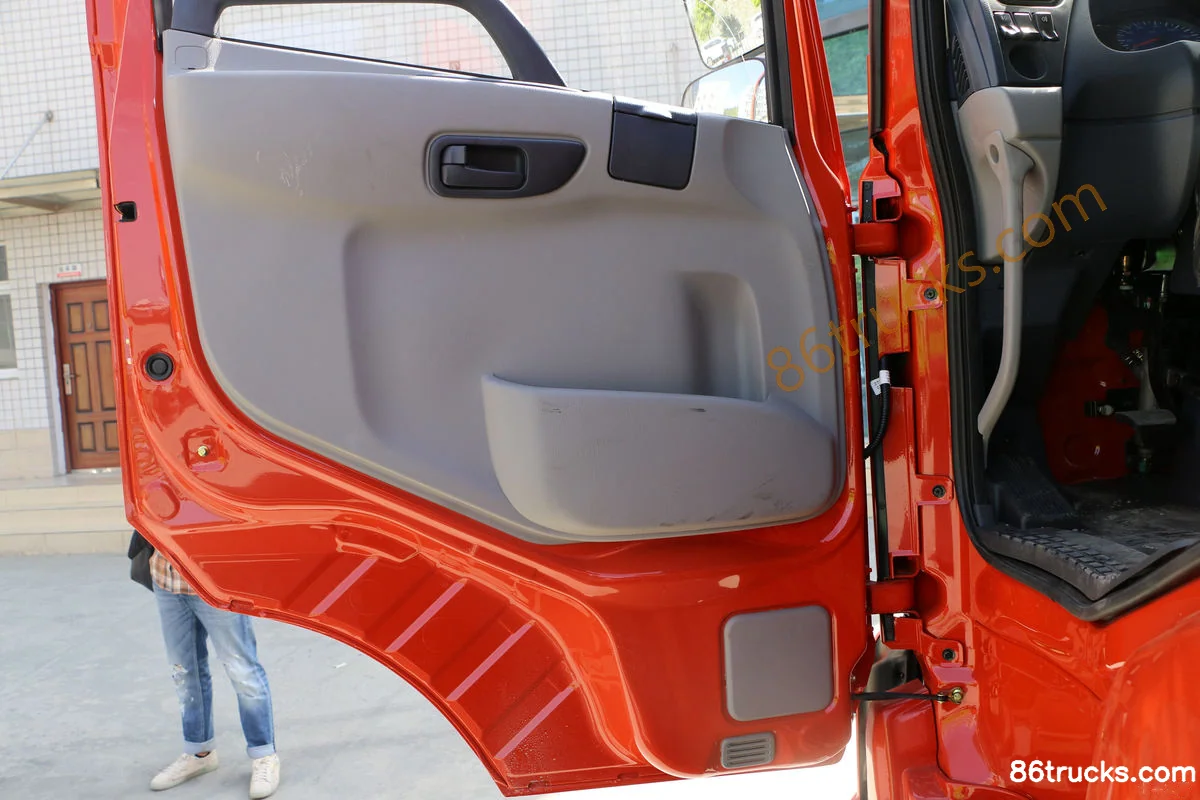

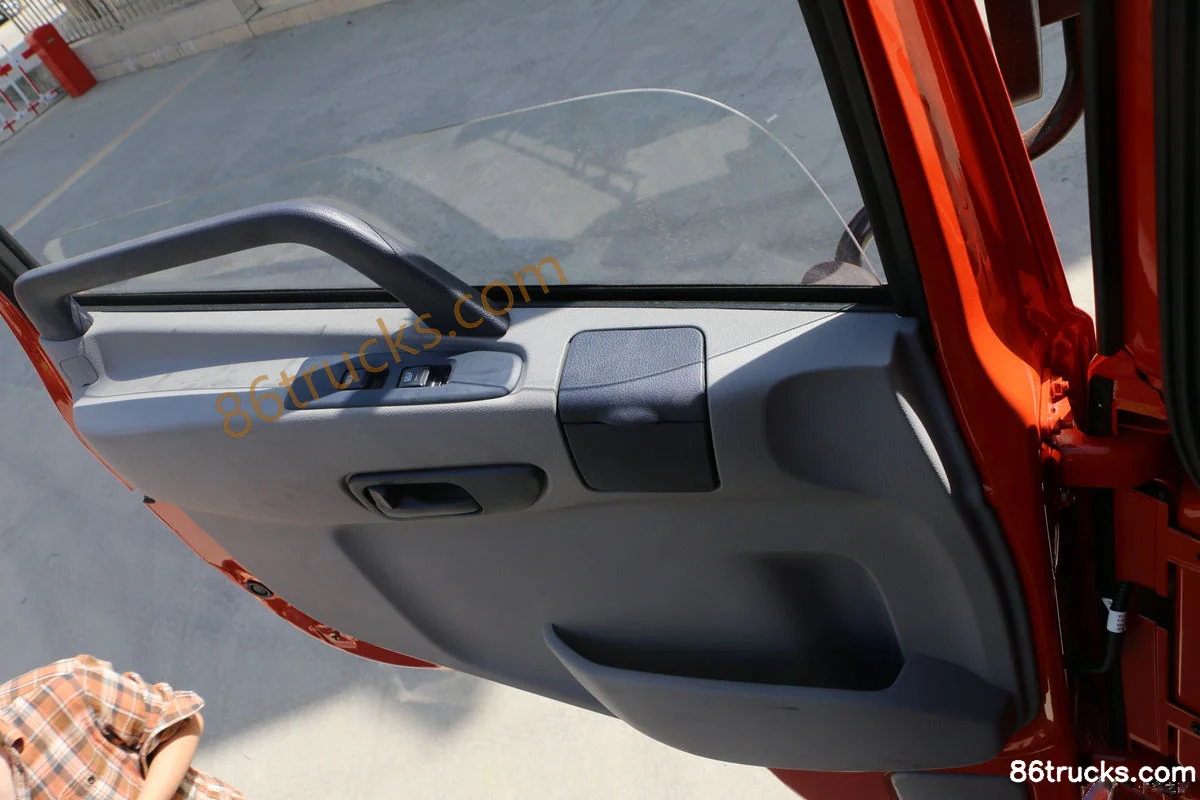

Cab3

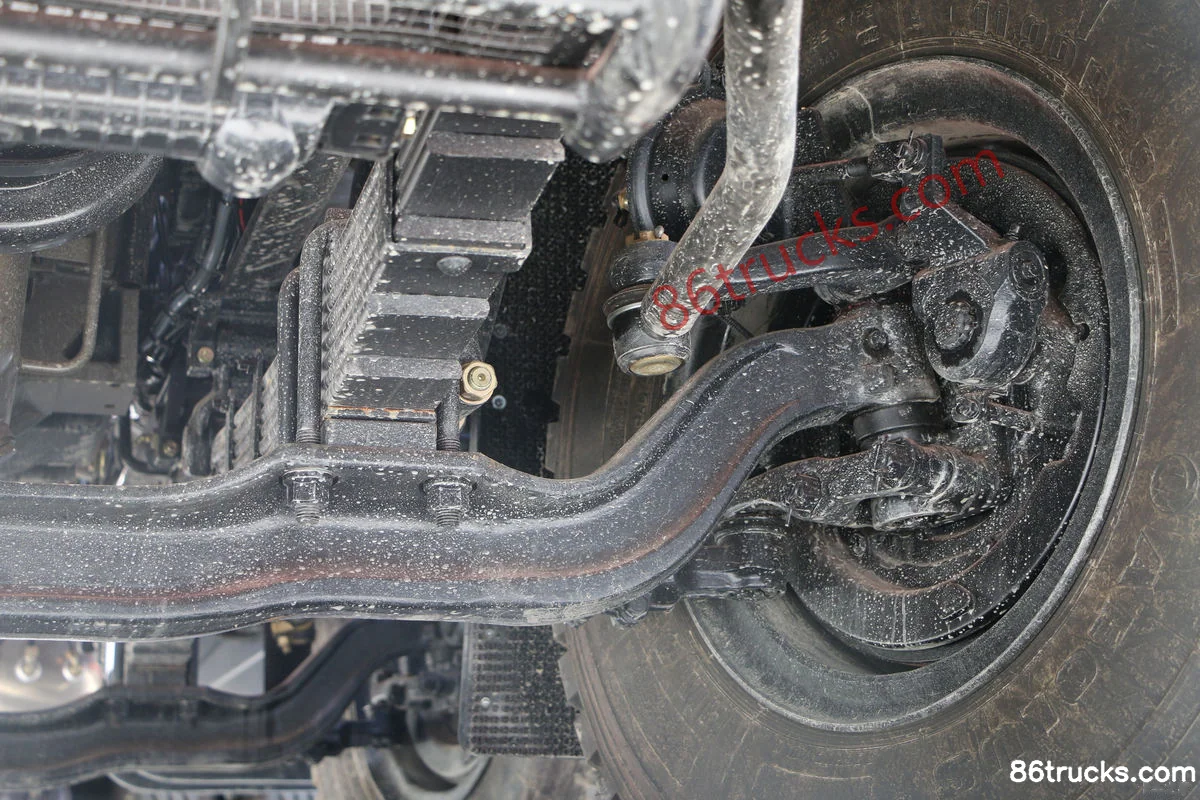

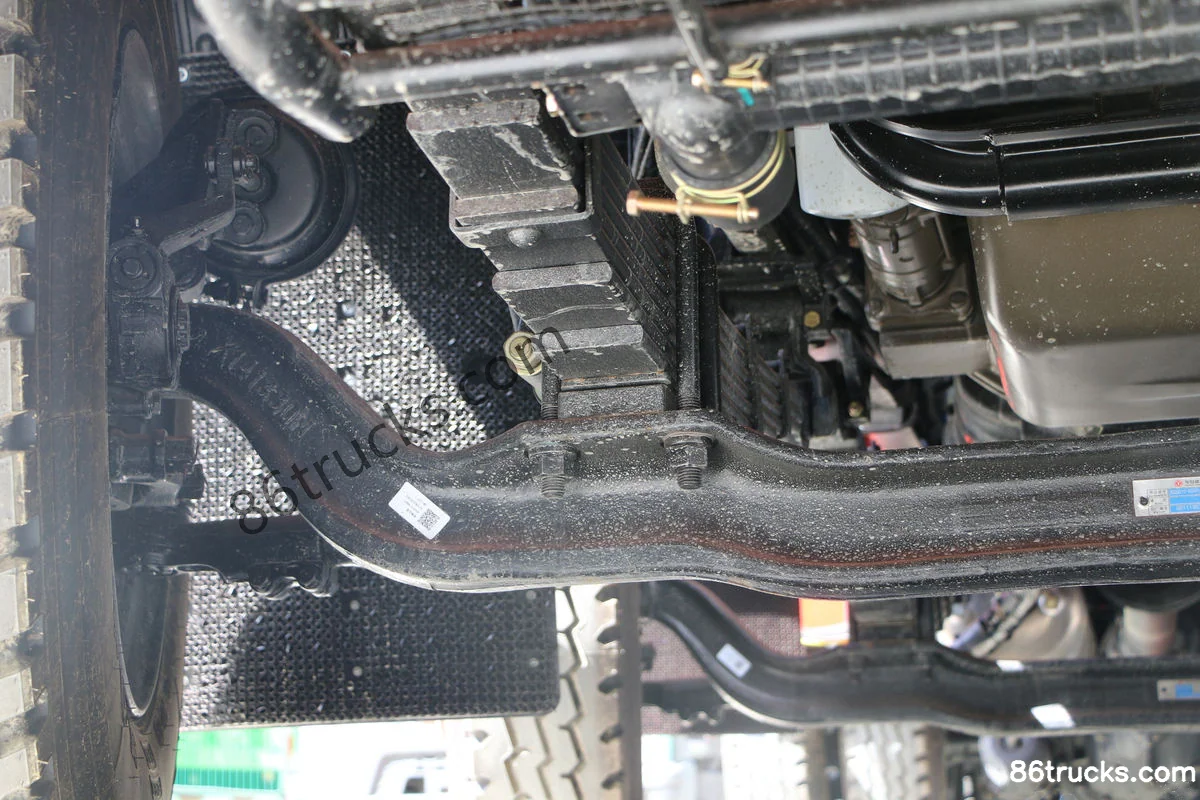

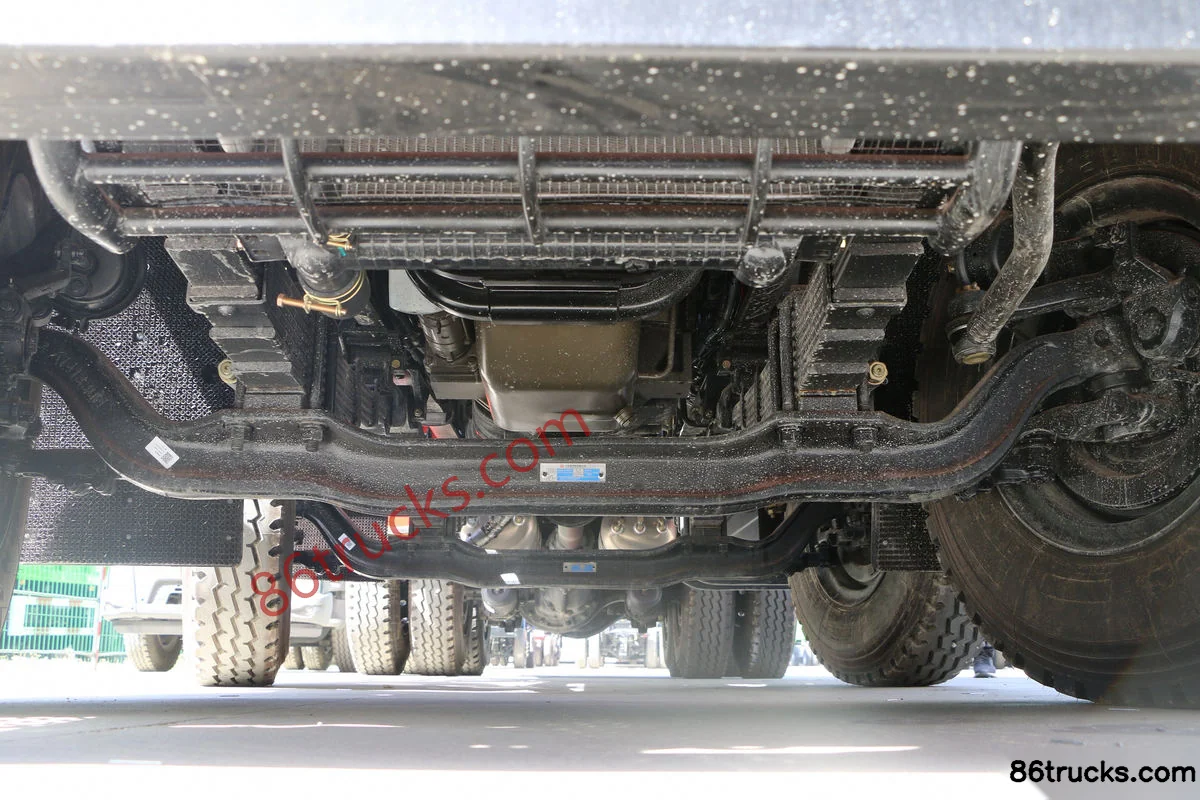

Chassis3

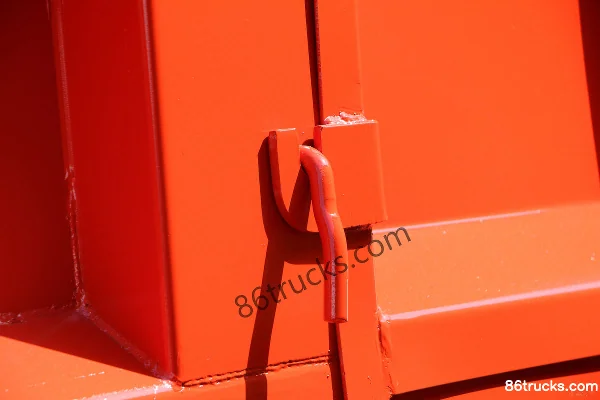

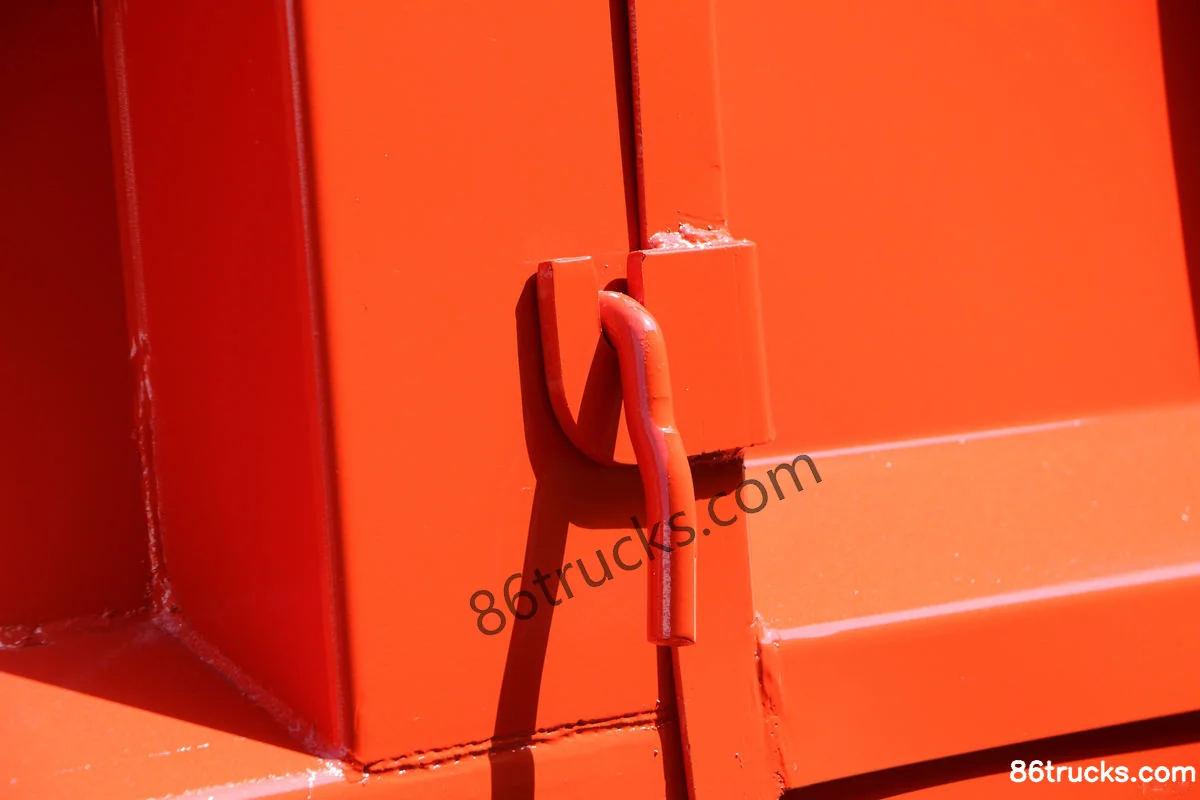

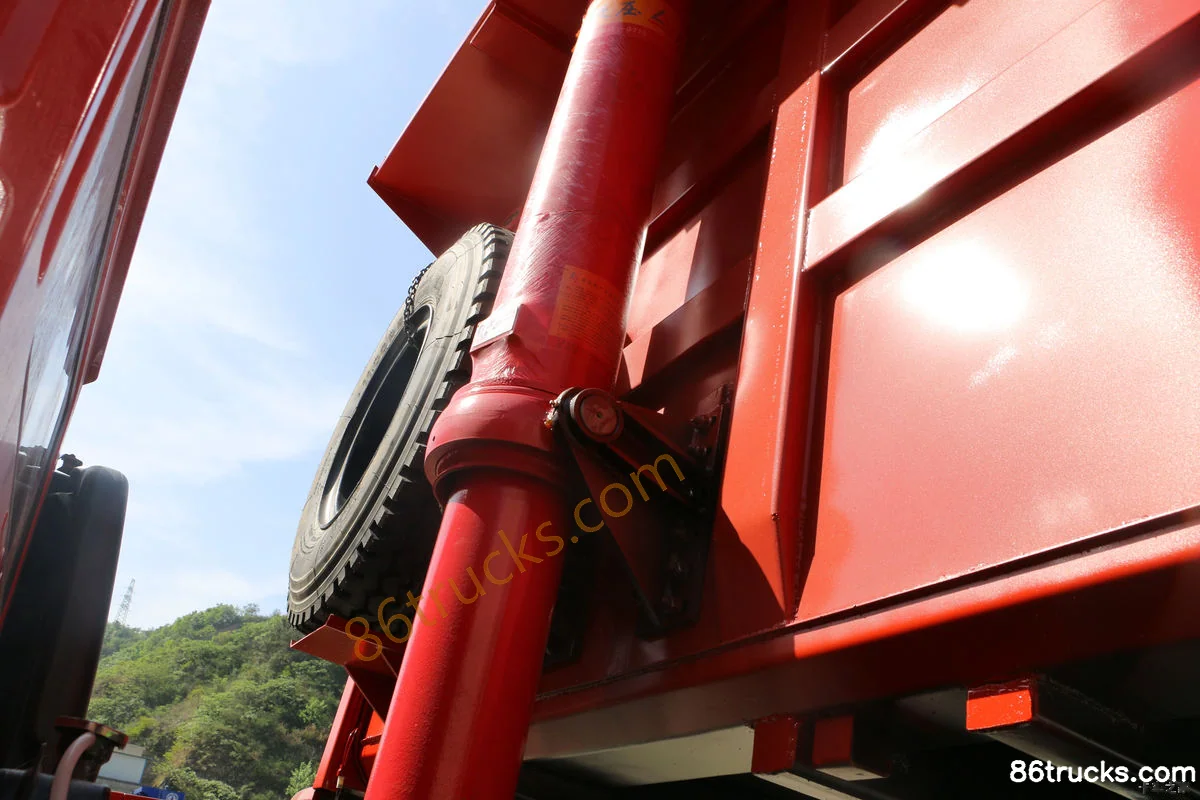

Body3

12 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle)?

Key specs of Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle): Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) suited for?

Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle) belongs to Dongfeng Tianjin Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Heavy Truck 310hp 8X4(12 wheels) 6.5m dump truck (440 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
