Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 16.75ton
Wheelbase:: 4025+1350mm
Tire Size:: 11.00R20 18PR,12.00R20 16PR
Cab dimensions:: 9.995×2.5×3.99m
Truck Type:: concrete mixer truck
Rated payload: 8.12ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China V

Overview

The CIMC Lingyu Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) is a concrete mixer truck featuring 8.12t payload, 16.75ton GVW, 6X4 (10 wheels) drive and 9.995×2.5×3.99m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.995×2.5×3.99m
Truck Type: concrete mixer truck
Drive type: 6X4
Vehicle origin: Luoyang, Henan
Front/rear track width: Front track: 2022mm; Rear track: 1830/1830
Wheelbase: 4025+1350mm
Curb Weight: 16.75ton
Rated payload: 8.12ton
Max. speed: 80km/h
Front/rear suspension: 1.5/3.12m
Body Parameters
Mixing drum capacity: 3.7m³
Vehicle certification code: CLY5257GJB43E1
Body Brand: Lingyu
Engine parameters
Engine Model: SinotrukD10.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 249kW
Max hp: 340Horsepower
Rated speed: 1900rpm
Chassis Specs
Chassis Series: SinotrukHOWO-7
Chassis Model: ZZ1257N4347E1
Axle ratio: 5.73
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 11.00R20 18PR,12.00R20 16PR
Number of tires: 10pcs

Photos

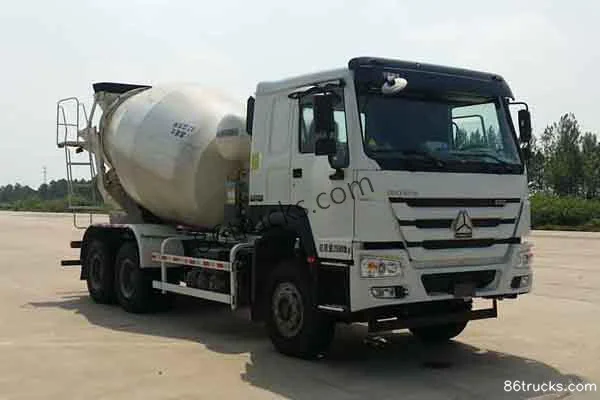

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand)?

Key specs of Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand): Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) suited for?

Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) differ from other variants in the same series?

Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand) belongs to CIMC Lingyu Sinotruk HOWO Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO 340 hp 6X4(10 wheels) 3.7 m³ concrete mixer truck (Lingyu brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
