XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck

Export reference
MSRP N/A
Fuel: Diesel
Drive: 8X4 (12 wheels)
Wheelbase:: 2300+5150+1400mm
Model code (announced):: XZS5465THBN
Overall Dimensions: L×W×H:: 14.16×2.55×4m
Max. travel speed:: 87km/h
Curb Weight: 45.87ton
Horsepower 510
Max output power: 382kW
Emission China VI

Overview

The XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck is a concrete pump truck featuring 45.87ton GVW, 510 hp, 382kW power and 8X4 (12 wheels) drive. On the powertrain side, it comes with China VI emissions and Diesel fuel.

China VI 510 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XZS5465THBN
Drive type: 8X4
Wheelbase: 2300+5150+1400mm
Overall Dimensions: L×W×H: 14.16×2.55×4m
Max. travel speed: 87km/h
Curb Weight: 45.87ton
Chassis Specs
Axle Count: 4
Chassis Series: Hanfeng P5
Chassis Model: XGA5460THBD6WEX
Frame Dimensions: 300×80× (8+4)mm
rear axle description: 13t two-stage (Mercedes-Benz)
Axle ratio: 4.268
Engine parameters
Engine Model: WeichaiWP13.510E62
fuel type: Diesel
Displacement: 12.54L
Emission standard: China VI
Max output power: 382kW
Max hp: 510Horsepower
Rated speed: 1900rpm
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast GearC12JSDQXL240TA
Cab parameters
Cab: Sleeper cab

Photos

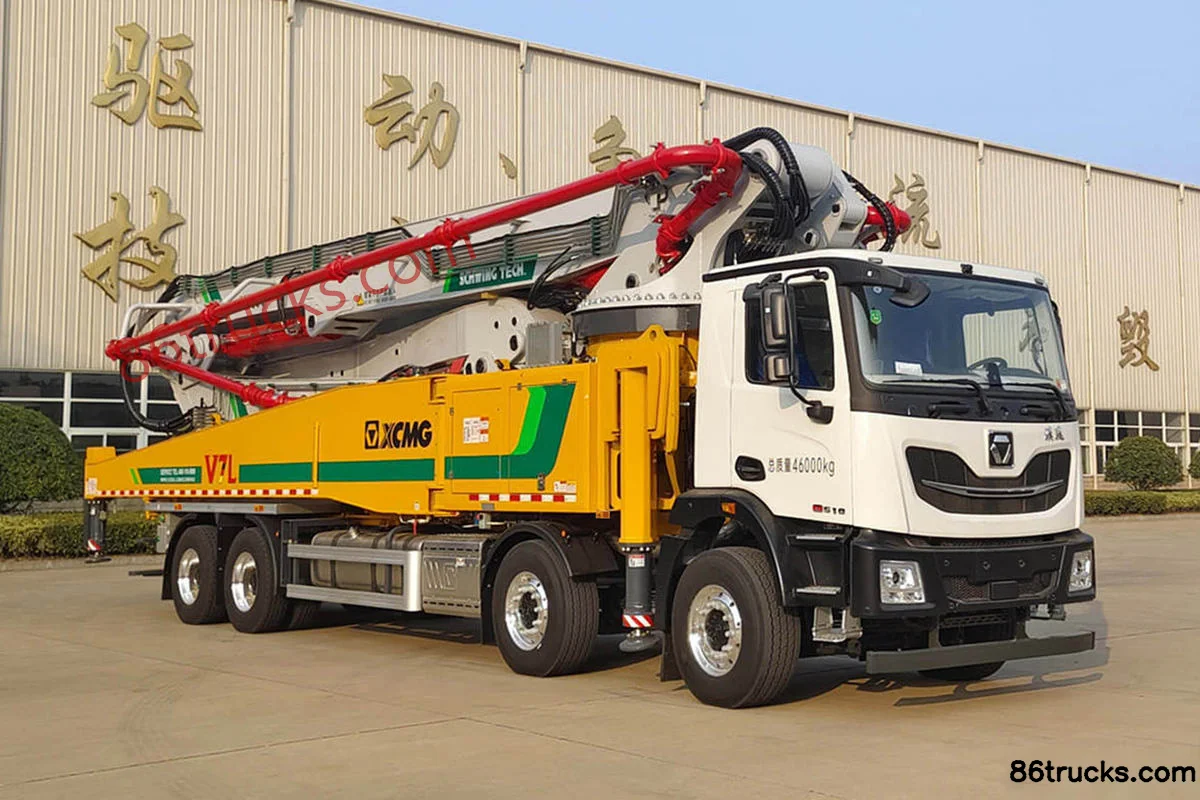

Exterior1

1 photos

FAQ

What emission standard does XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck?

Key specs of XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck: Drive: 8x4; Horsepower: 510 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck suited for?

XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck differ from other variants in the same series?

XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck belongs to XCMG Truck Hanfeng XG2M (formerly Hanfeng P5) (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng P5 510 hp 8X4(12 wheels) Concrete Pump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
