Sinotruk HW12706T 6-Speed Manual Transmission

Export reference
MSRP N/A
Features:: 1. 3-6 gears with synchronizer. 2. Optional shift booster. 3. Can be equipped with eddy current retarder.
Max input torque:: 1200N·m
1st gear ratio:: 9.2

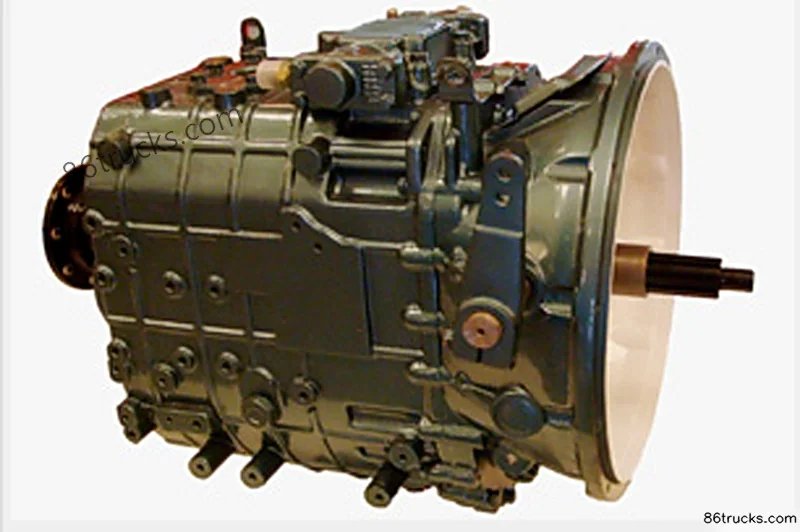

Sinotruk HW12706T 6-Speed Manual Transmission exterior
View more photos (1)
Transmission Model: HW12706T
Transmission Brand: Sinotruk
Matching Range: For large buses with 300-420 hp

Overview

The Sinotruk HW12706T 6-Speed Manual Transmission is a parts product with spec HW12706T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW6 series
Matching Range: For large buses with 300-420 hp
Features: 1. 3-6 gears with synchronizer. 2. Optional shift booster. 3. Can be equipped with eddy current retarder.
Max input torque: 1200N·m
1st gear ratio: 9.2
Main box center distance: 165mm
synchronizer: Yes
2nd gear ratio: 5.2
3rd gear ratio: 3.1
4th gear ratio: 1.98
5th gear ratio: 1.34
6th gear ratio:
Reverse Gear 1 Ratio: 8.72
Transmission weight: 290kg
Transmission oil capacity: 12L
Control type: dual-lever, single-lever and other control methods
Number of gears: 6Gear
shift type: Manual
Transmission Model: HW12706T
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior1

Sinotruk HW12706T 6-Speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Sinotruk HW12706T 6-Speed Manual Transmission suited for?

Match Sinotruk HW12706T 6-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW12706T 6-Speed Manual Transmission differ from other variants in the same series?

Sinotruk HW12706T 6-Speed Manual Transmission belongs to Sinotruk HW6-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW12706T 6-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW12706T 6-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
