Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck

Export reference
From $25,278
MSRP ¥18.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.6ton
Wheelbase:: 3500mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.495ton
Drive 4X4 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D140-50 engine, 140 hp, China V emissions and Fast Gear transmission.

China V 140 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3041A3R5
Drive type: 4X4
Wheelbase: 3500mm
engine: YuchaiYC4D140-50
transmission: Fast Gear8JS85F
Rear Axle Ratio: 6.833
Cab length: 5.995m
Cab width: 2.36m
Cab height: 2.745m
Front track width: 1785,1740mm
rear track: 1725mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 24°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D140-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 450N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.94m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab width: 1880mm
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2590kg
Axle ratio: 6.833
Leaf spring count: 11/11+9
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

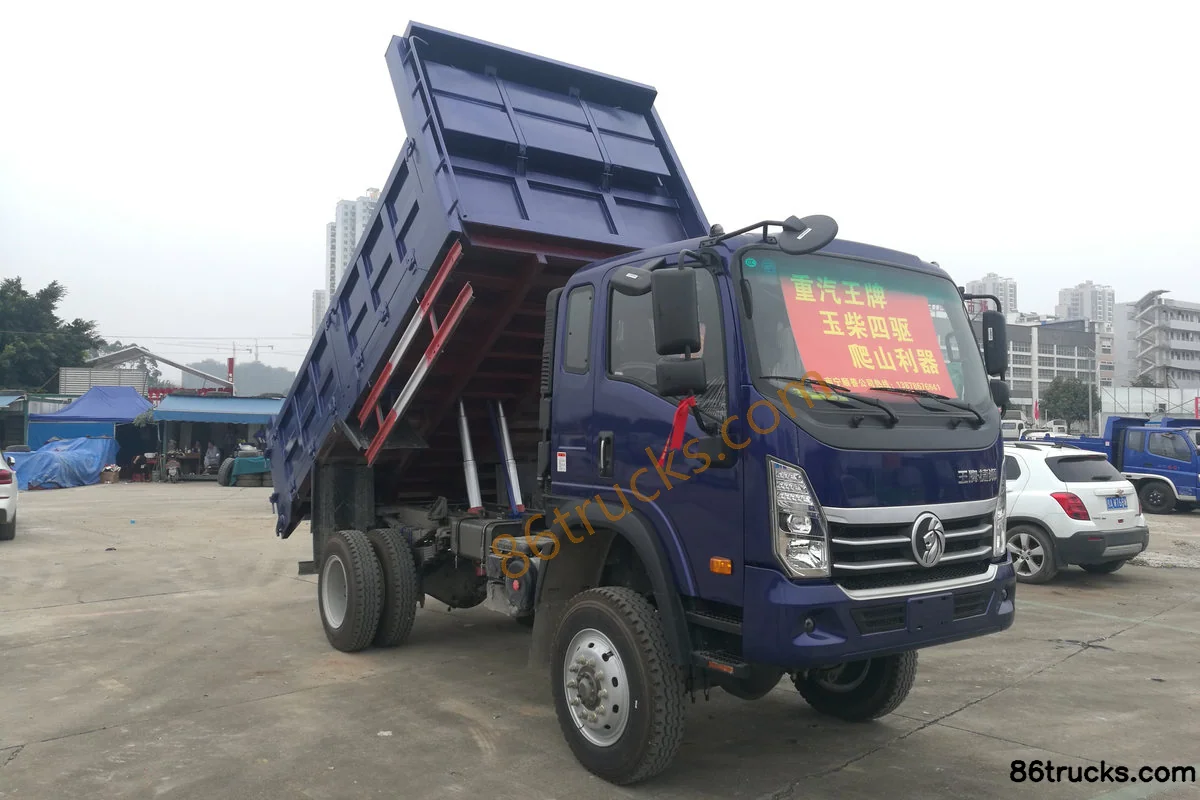

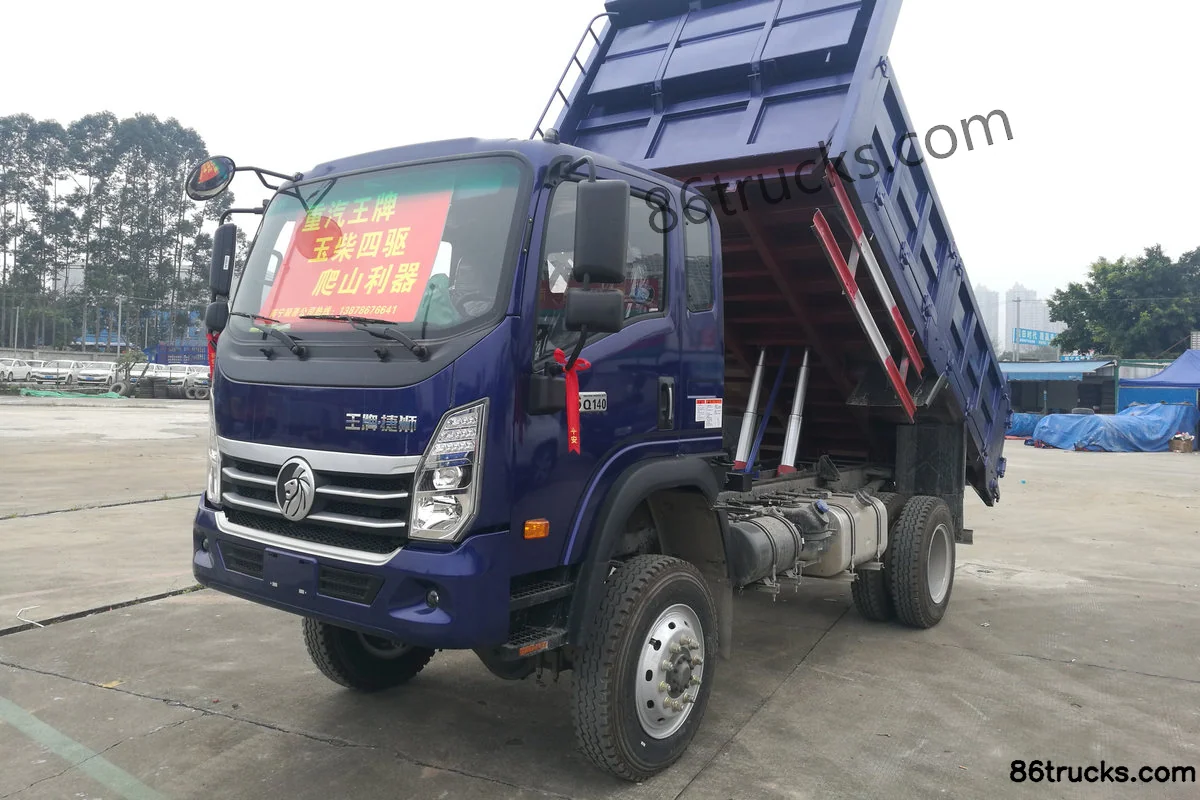

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck, and what does it include?

Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck export reference is about From $25,278; MSRP is ¥18.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck?

Key specs of Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck: Drive: 4x4; Horsepower: 140 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck suited for?

Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck differ from other variants in the same series?

Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck belongs to Sinotruk Jieshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Jieshi 140 hp 4X4(6 wheels) 3.94m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
