Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2ton
Wheelbase:: 2600mm
Tire Size:: 6.00R15LT 10PR
Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck exterior
View more photos (12)
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Horsepower 82
Cargo box type: Dump type

Overview

The Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck is a Light Truck featuring 1.995t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-82C50 engine, 82 hp, China V emissions and WLY transmission.

China V 82 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ2046Y7JBA-FA
Drive type: 4X2
Wheelbase: 2600mm
engine: Quanchai4A2-82C50
transmission: WLYWLY5T26
Cab length: 5.08m
Cab width: 1.735m
Cab height: 2.185m
Front track width: 1345mm
rear track: 1292mm
Curb Weight: 2ton
Rated payload: 1.995ton
GVWR: 4.125ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 16°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-82C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 220N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Longitudinal mounting
Transmission Parameters
Transmission Model: WLYWLY5T26
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.61m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Chassis Specs
Leaf spring count: 7/5+3
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

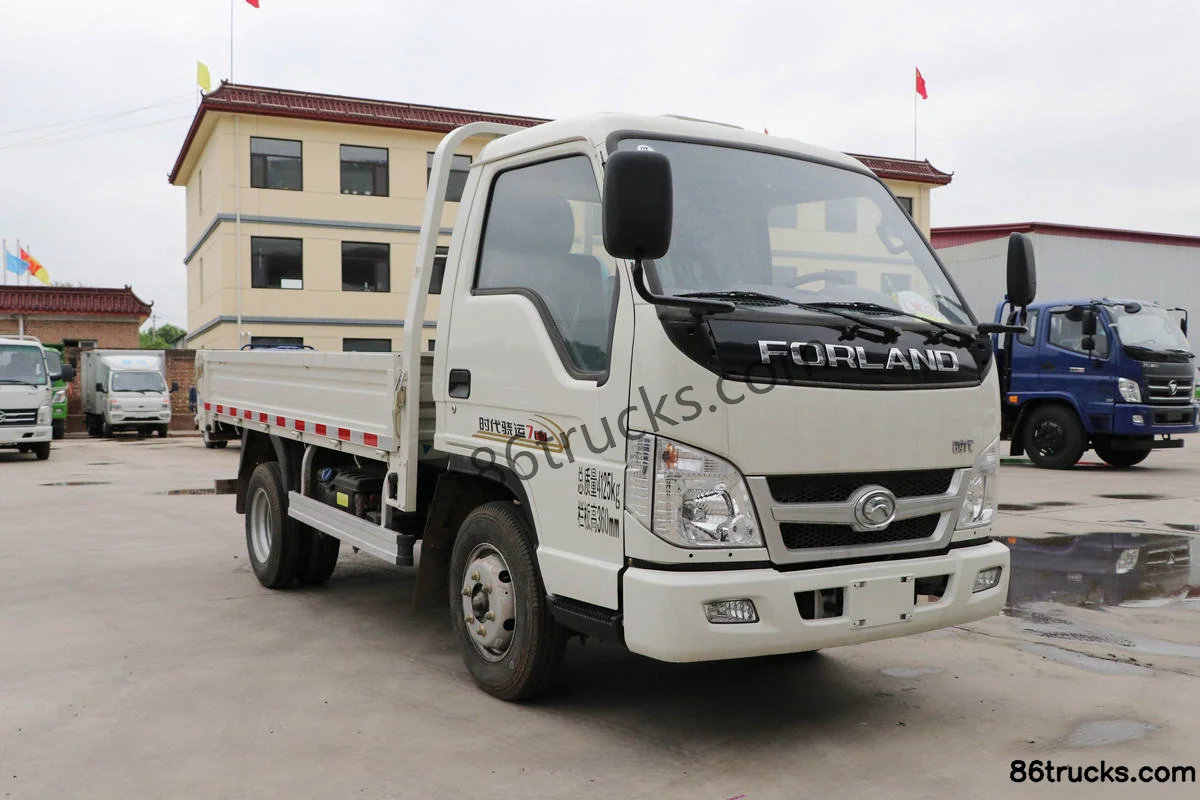

Exterior3

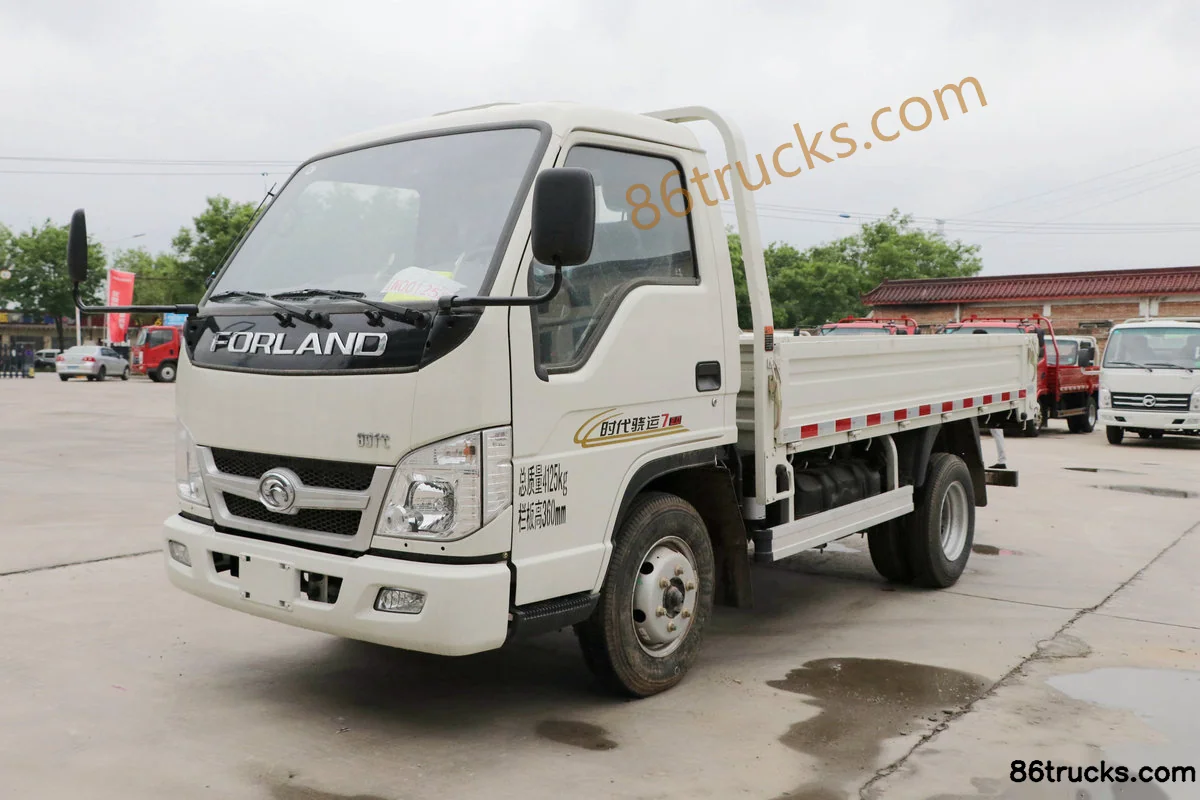

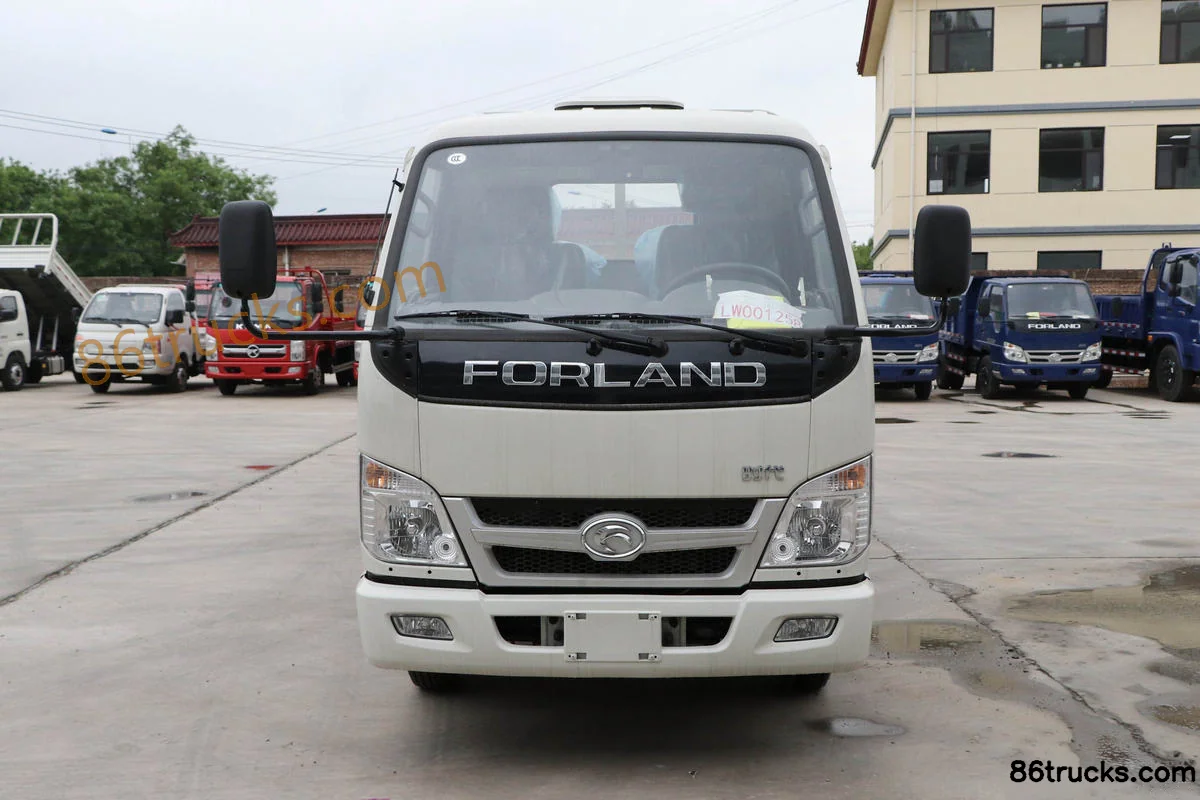

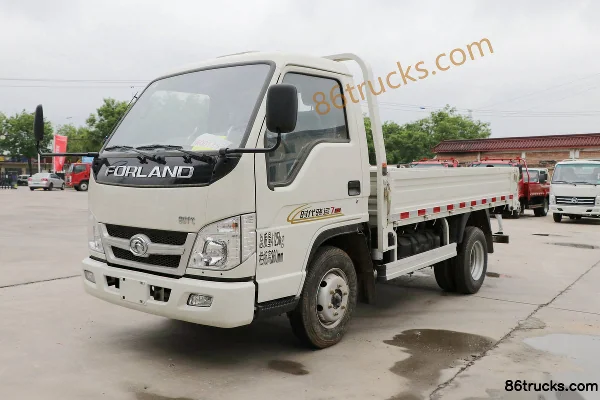

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Exterior (1) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Exterior (2) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Exterior (3) | 86Trucks

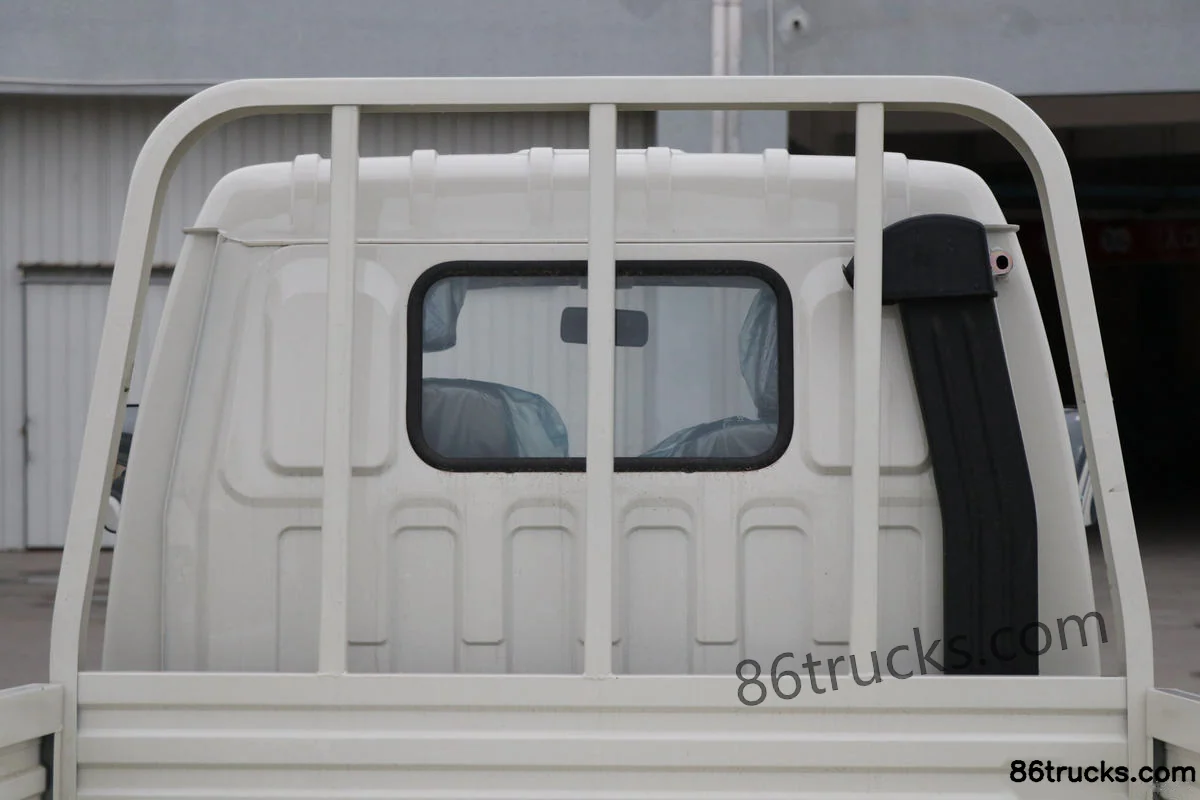

Cab3

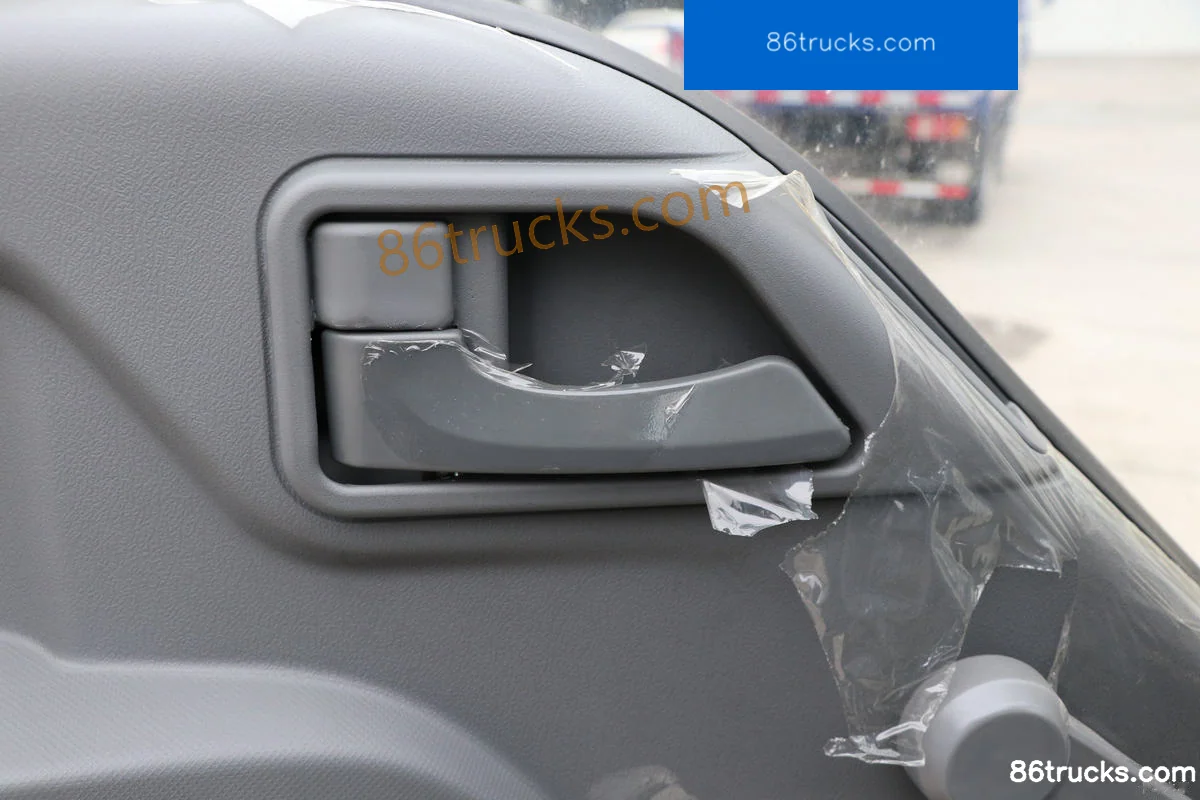

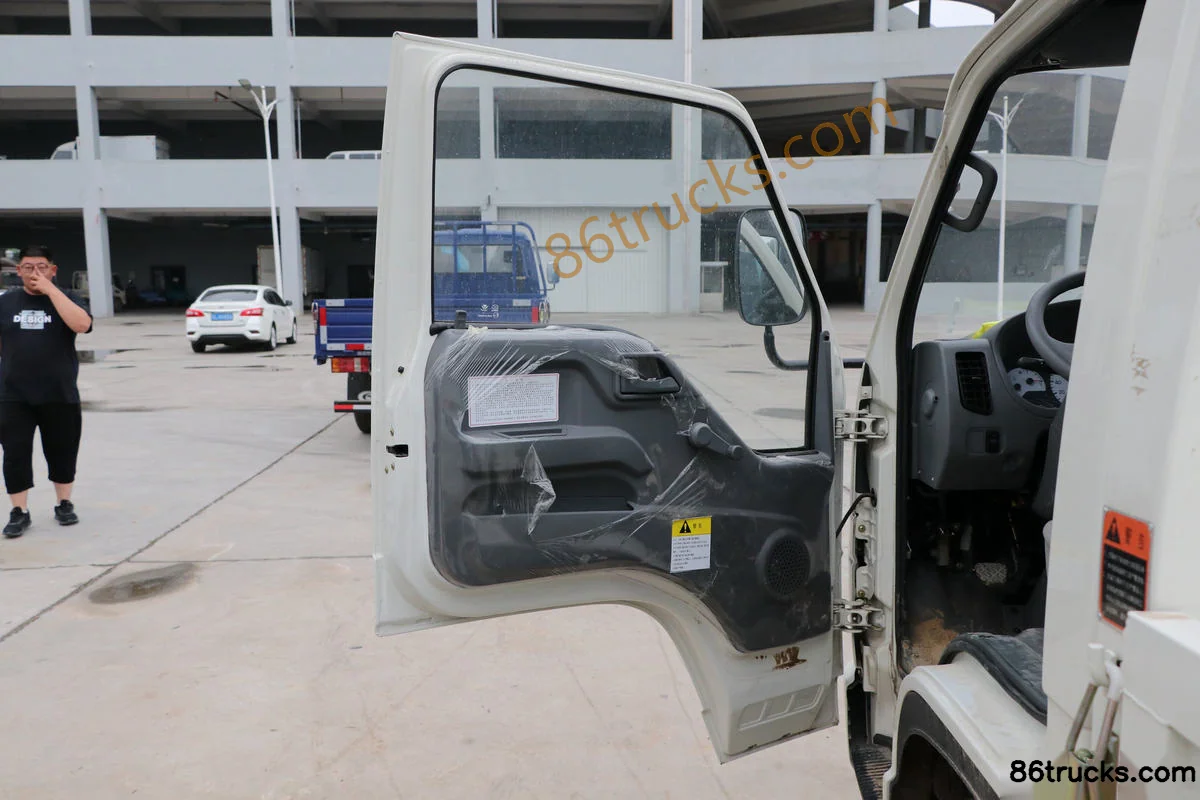

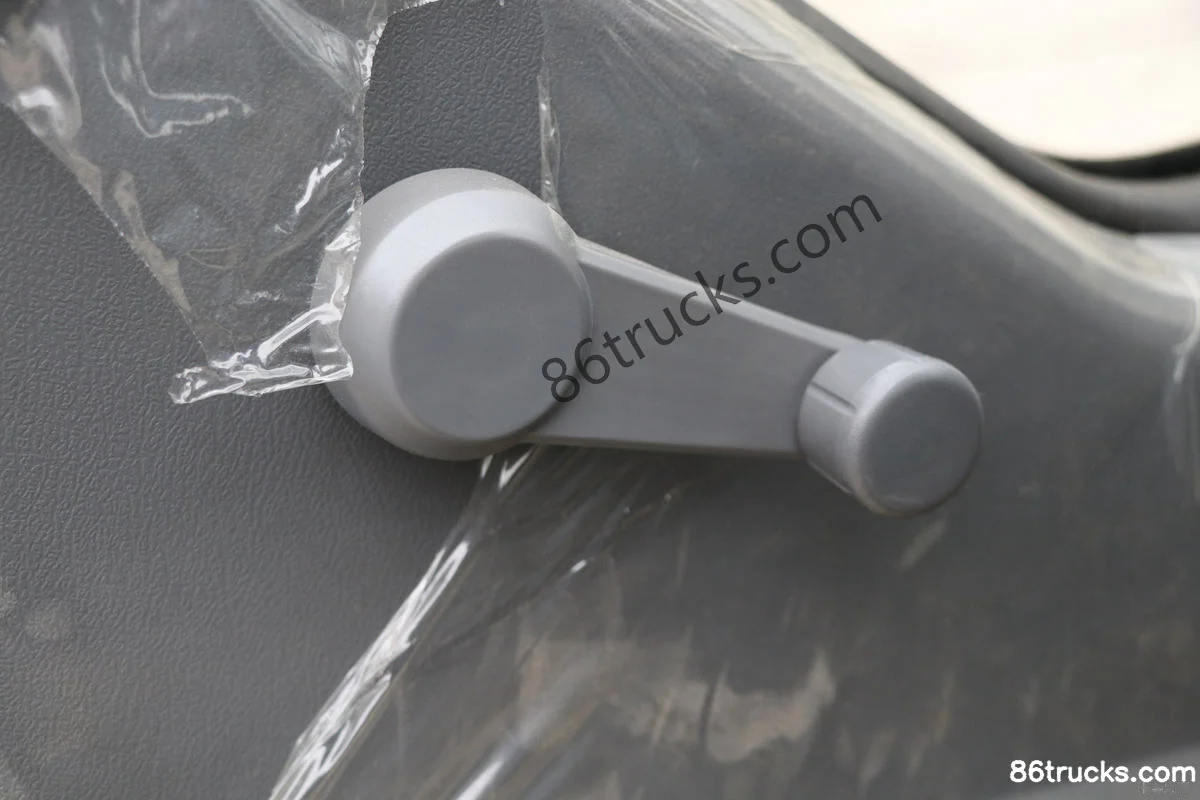

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Cab (1) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Cab (2) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Cab (3) | 86Trucks

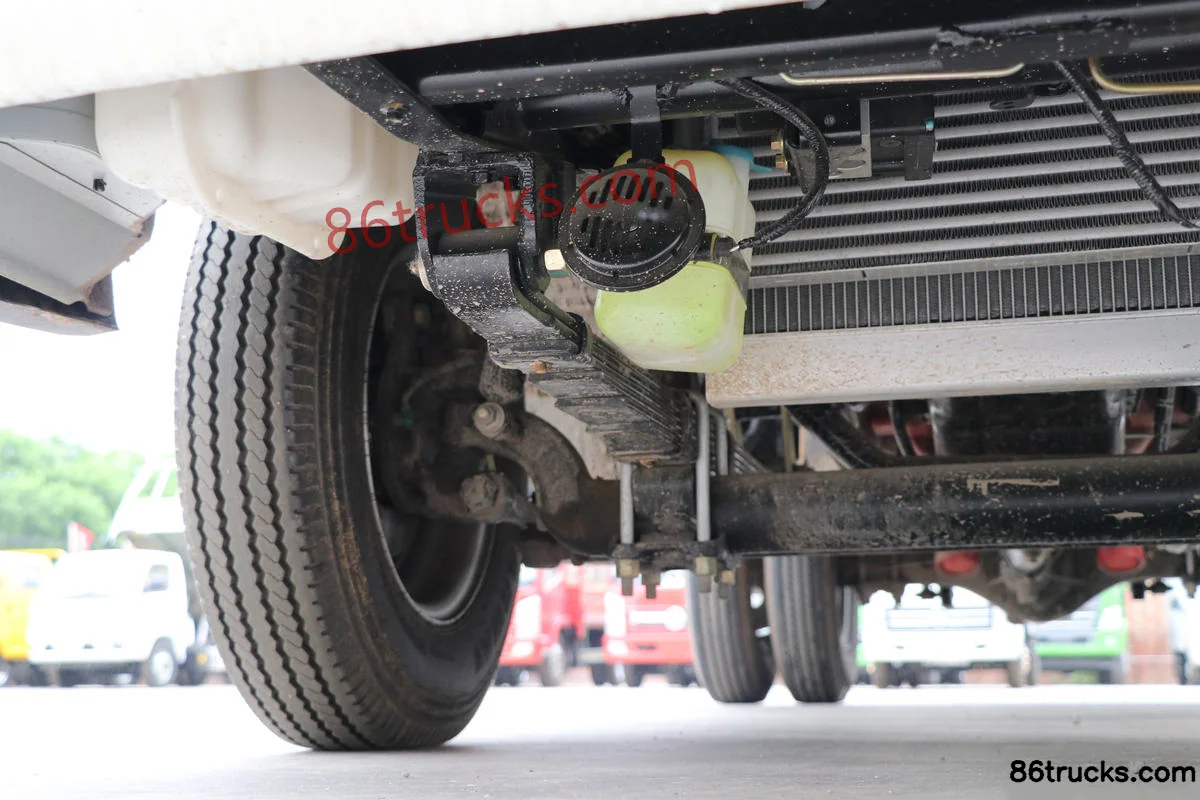

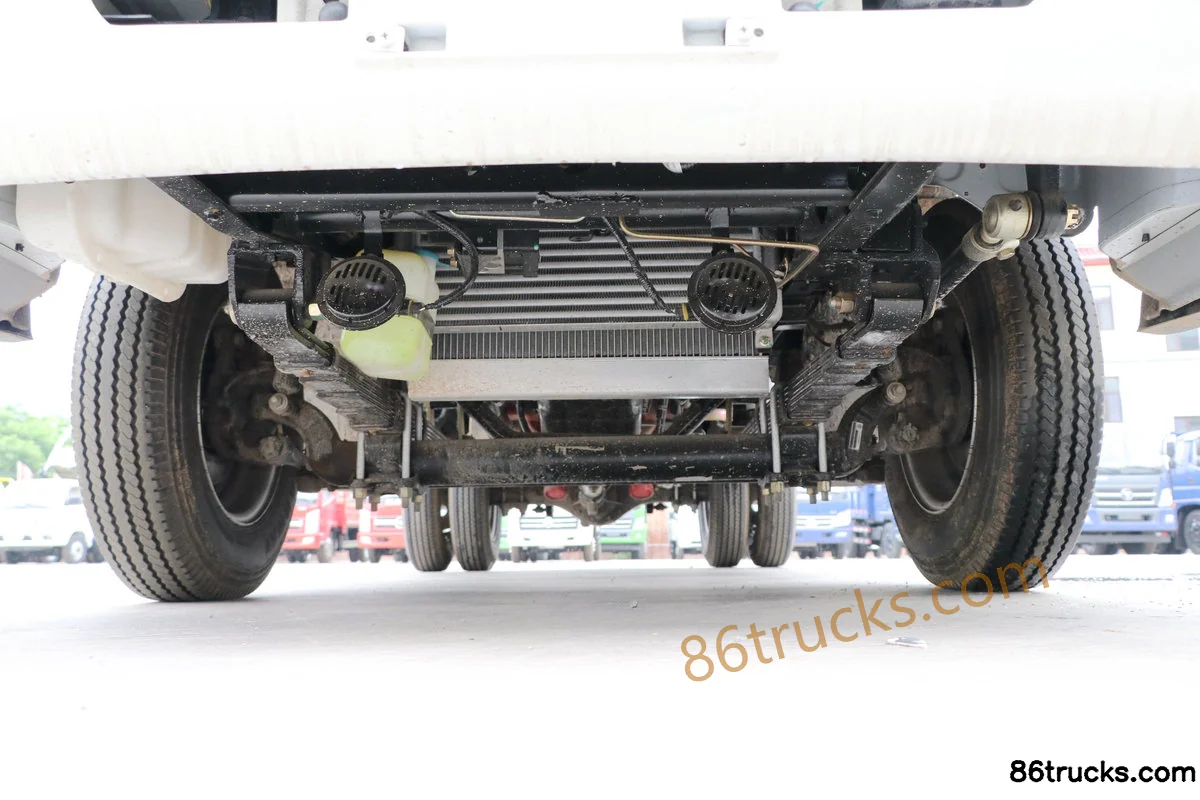

Chassis3

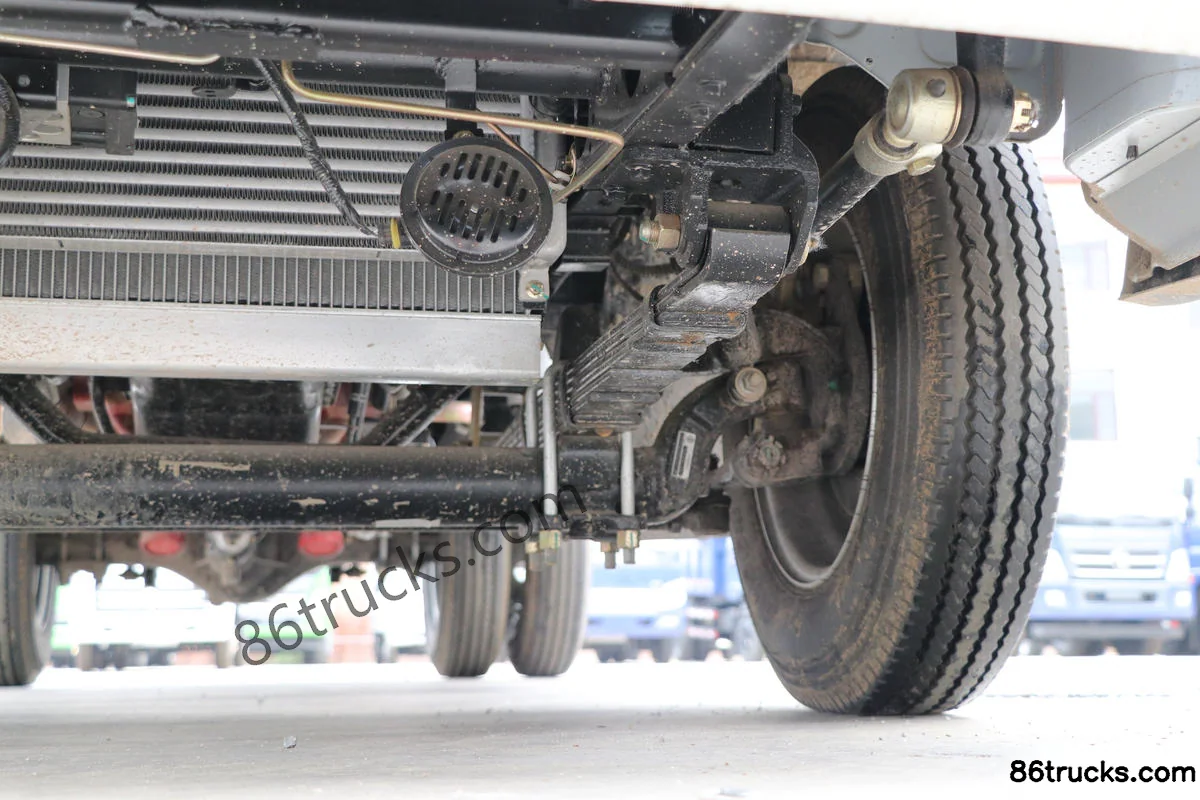

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Chassis (1) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Chassis (2) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Chassis (3) | 86Trucks

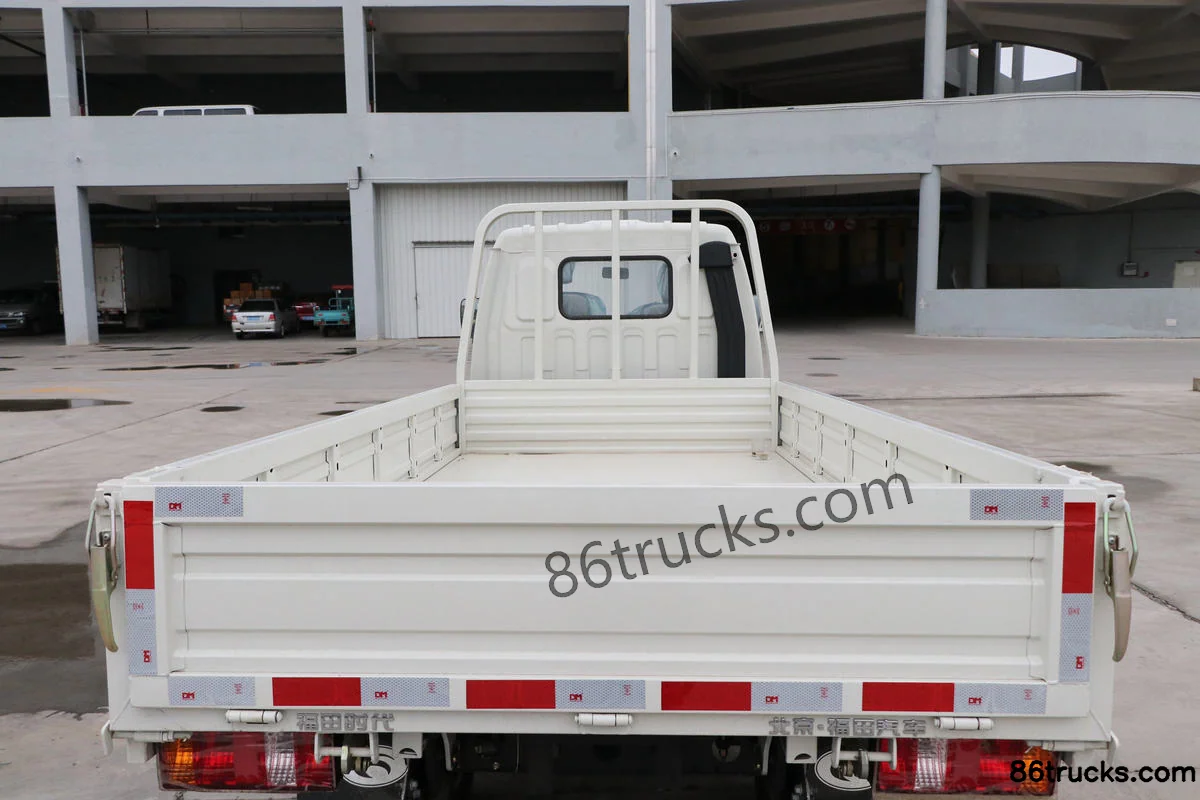

Body3

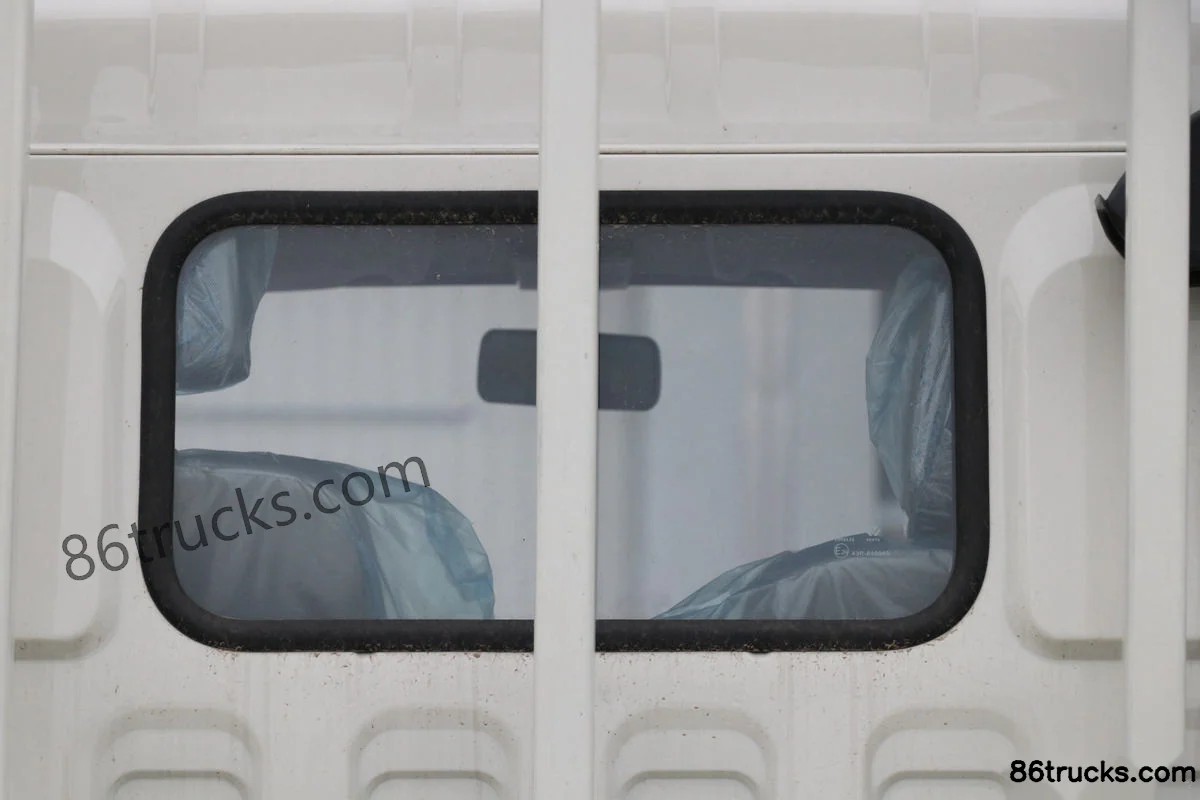

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Body (1) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Body (2) | 86Trucks Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck?

Key specs of Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck: Drive: 4x2; Horsepower: 82 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck suited for?

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck differ from other variants in the same series?

Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck belongs to Foton Times Xiaoyun Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Xiaoyun 7 82hp 4X2(6 wheels) 3.3m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
