NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 6.50-16LT
NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 84
Cargo box type: Dump type

Overview

The NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DW93-84E5 engine, 84 hp, China V emissions and Mengwo transmission.

China V 84 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJA3040EPE31V
Drive type: 4X2
Wheelbase: 2850mm
engine: Xichai4DW93-84E5
transmission: Mengwo5HQ-26CY1KQ
Rear Axle Ratio: 4.875
Cab length: 5.5m
Cab width: 2.1m
Cab height: 2.54m
Front track width: 1520mm
rear track: 1590mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
Remarks: Automatic slack adjuster, hydraulic power steering, pull-cable slide valve, T-type amplification mechanism, Ruijie new exterior, new interior
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 84Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: Mengwo5HQ-26CY1KQ
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.85m
Cargo box height: 0.4m
Cab parameters
Cab: EPF
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle description: 1058
Front axle allowable load: 1570kg
rear axle description: 1059 shortened
rear axle allowable load: 2925kg
Axle ratio: 4.875
Leaf spring count: 9/11+8,3/8+8,9/10+8
Tire
Tire Size: 6.50-16LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

Exterior3

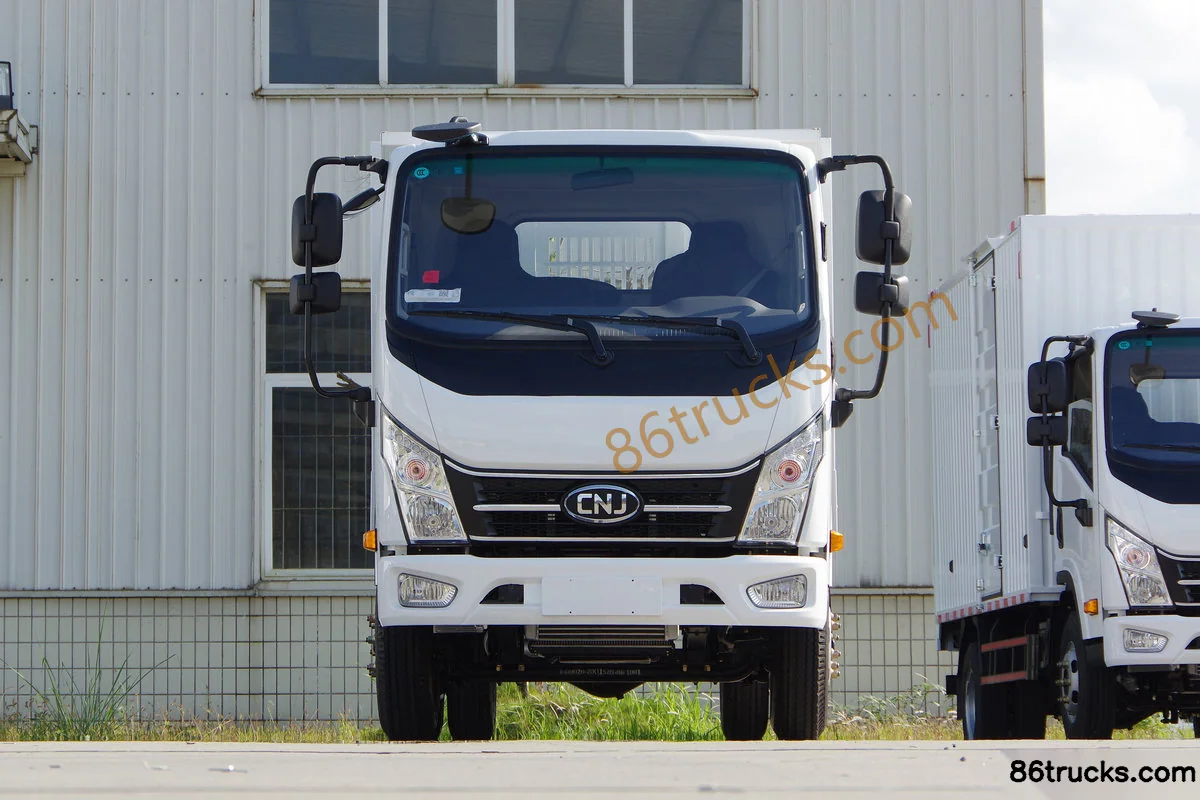

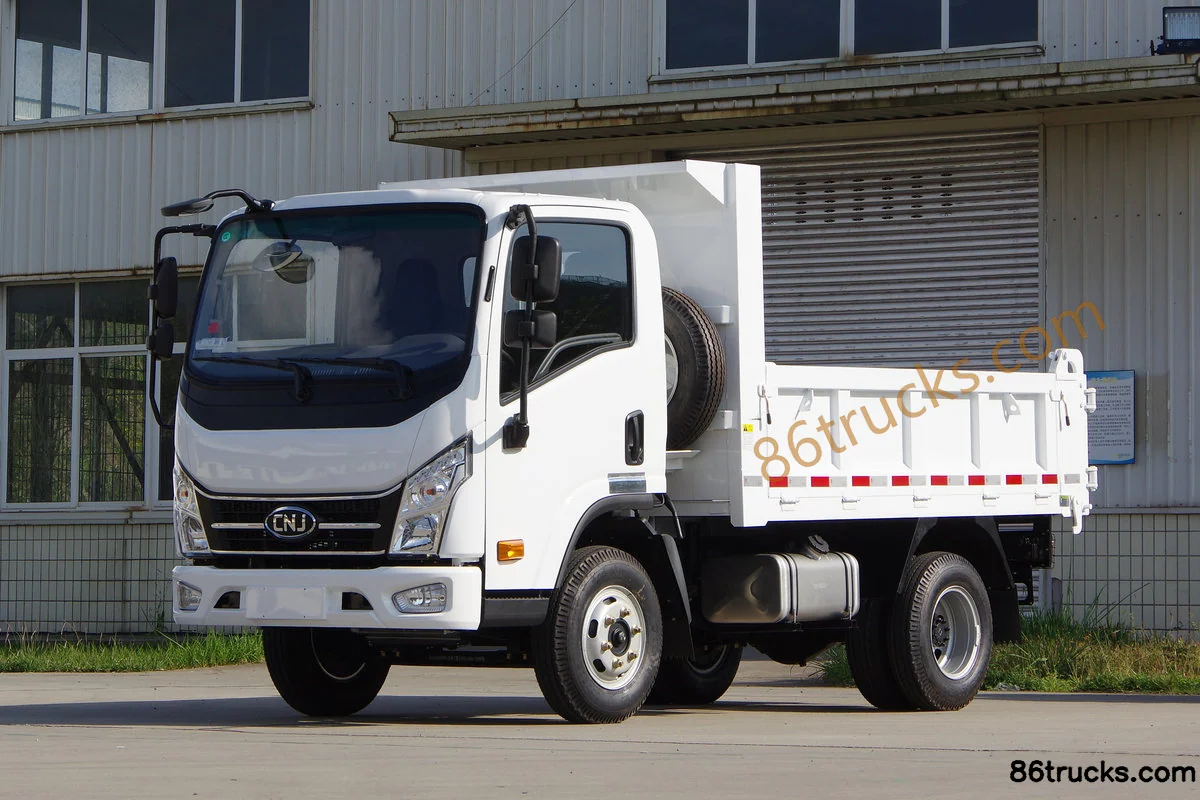

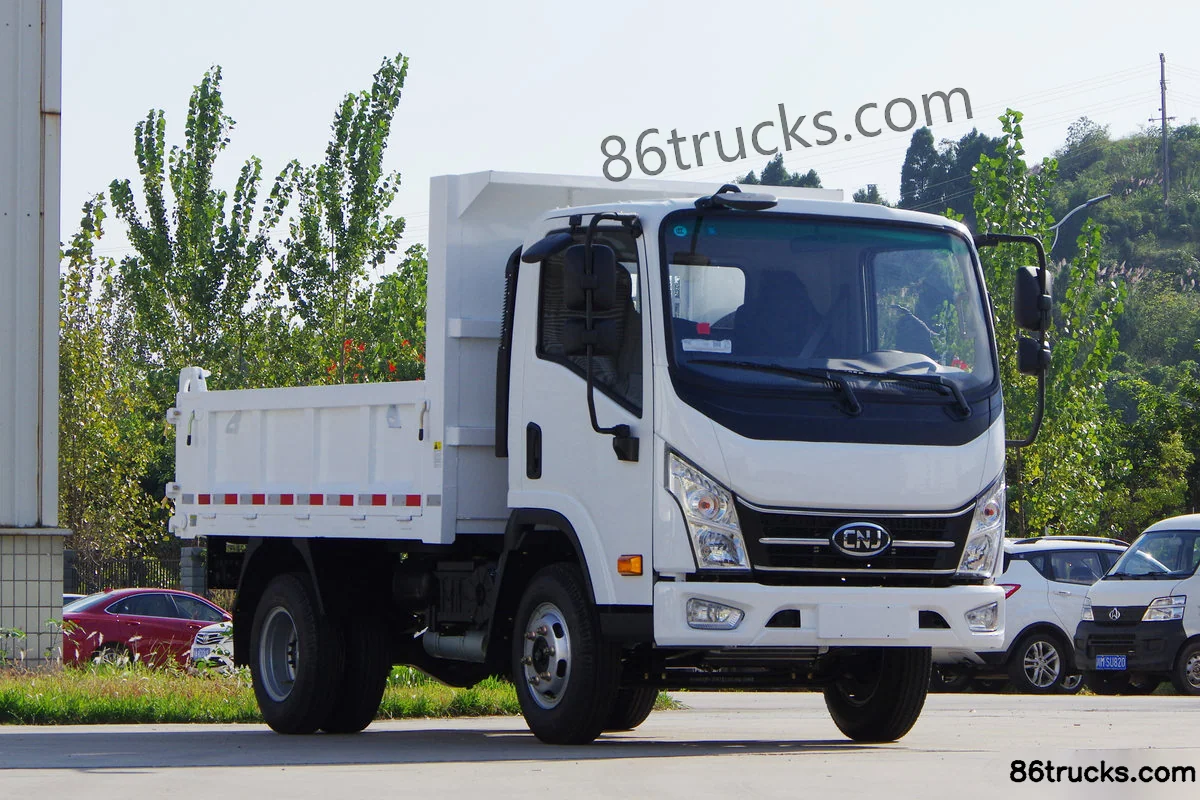

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Exterior (1) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Exterior (2) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Exterior (3) | 86Trucks

Cab3

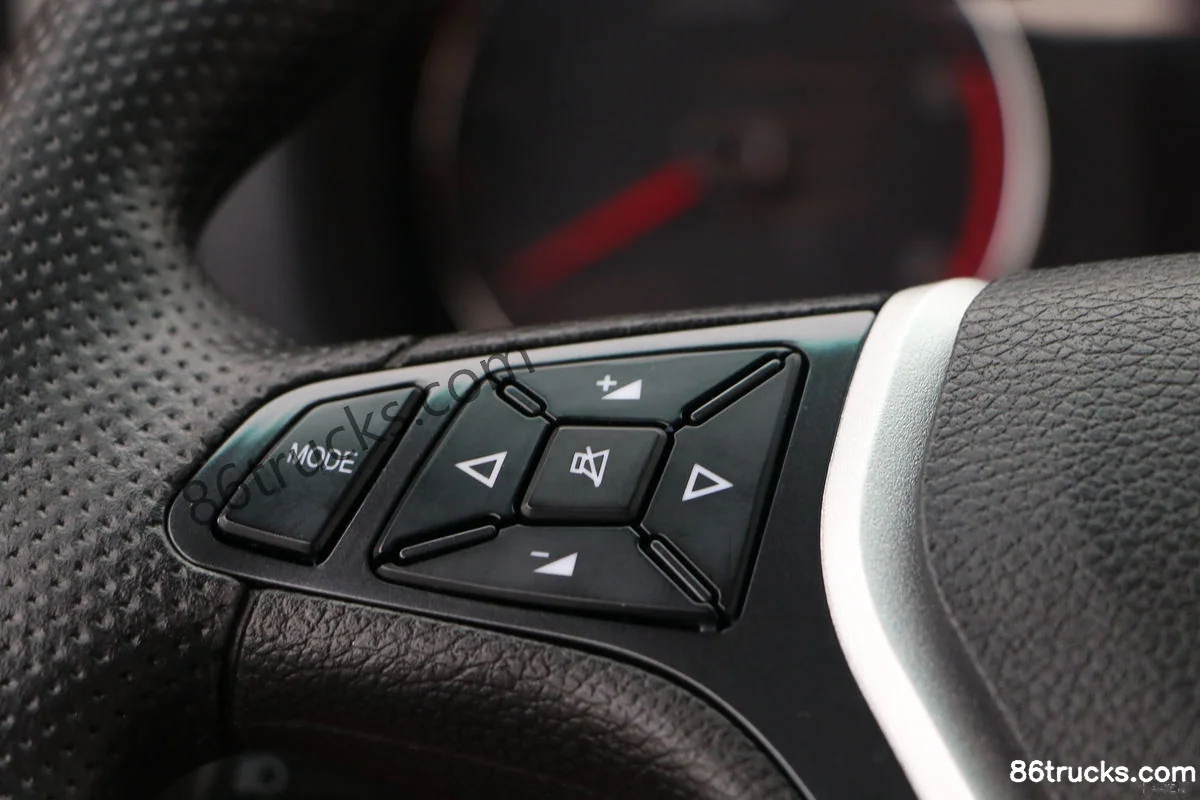

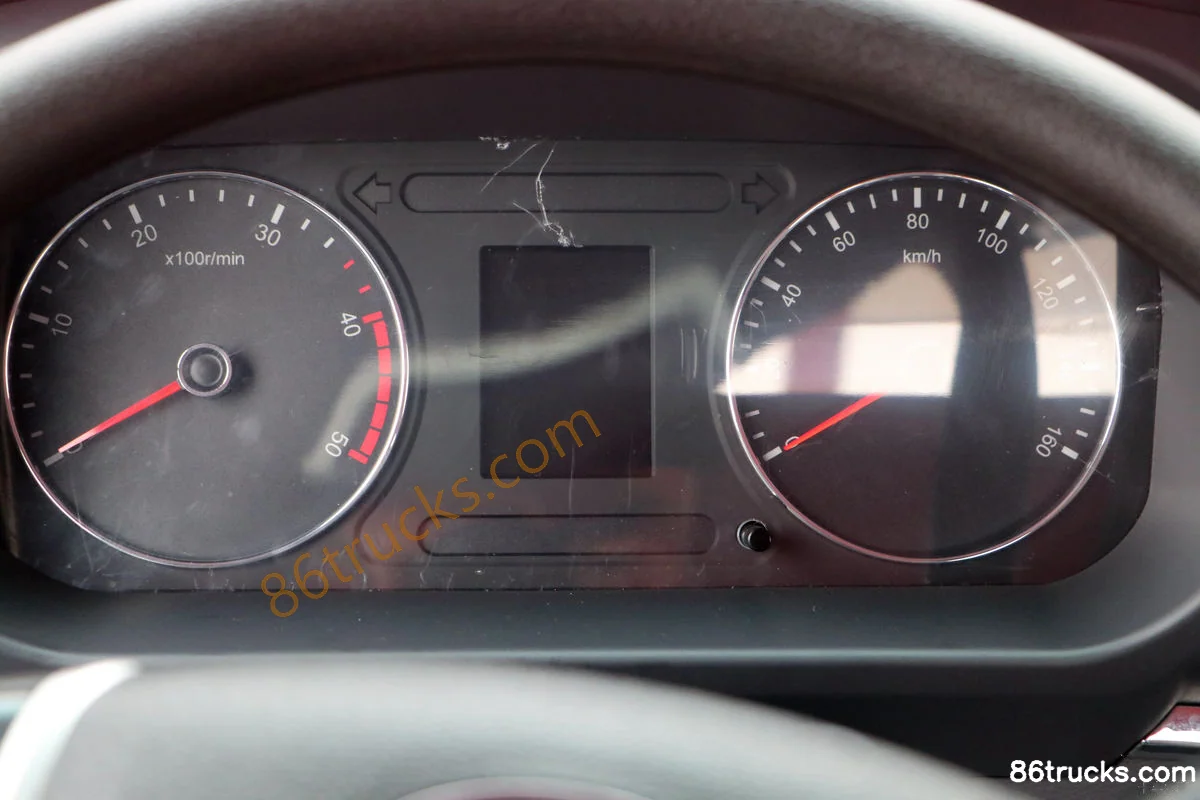

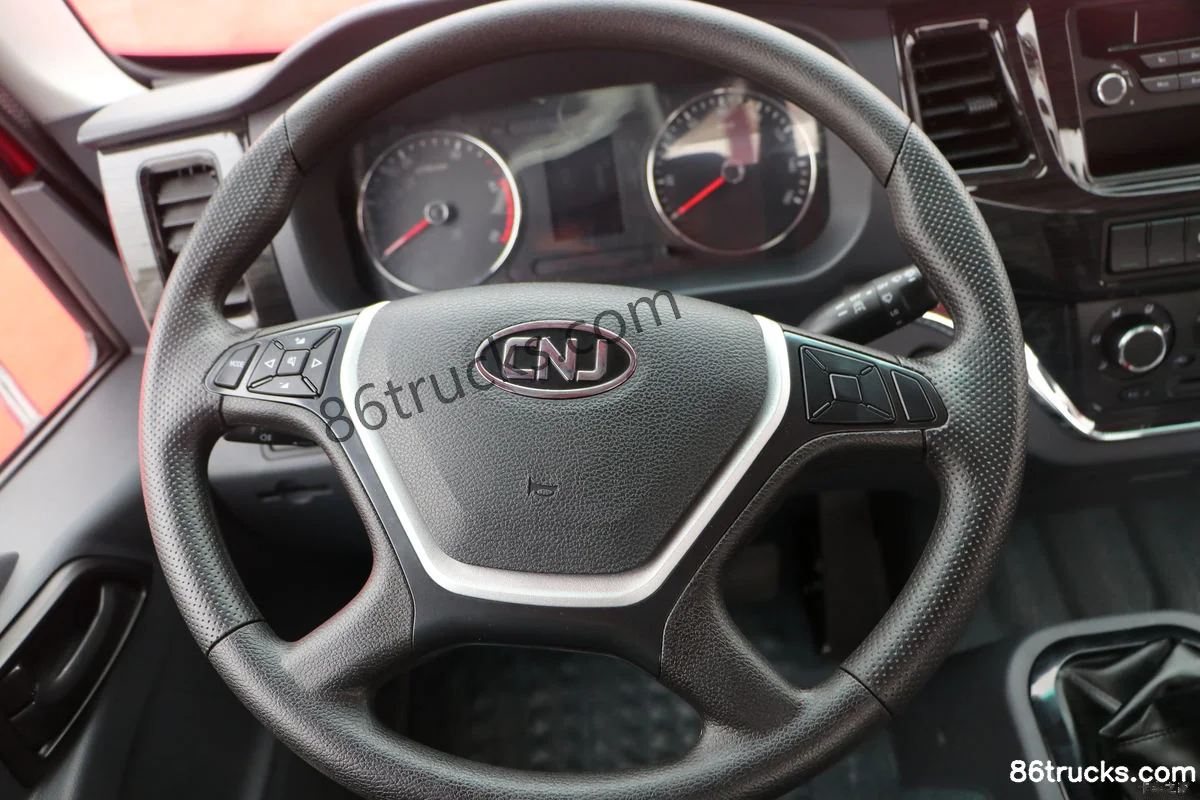

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Cab (1) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Cab (2) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Cab (3) | 86Trucks

Chassis3

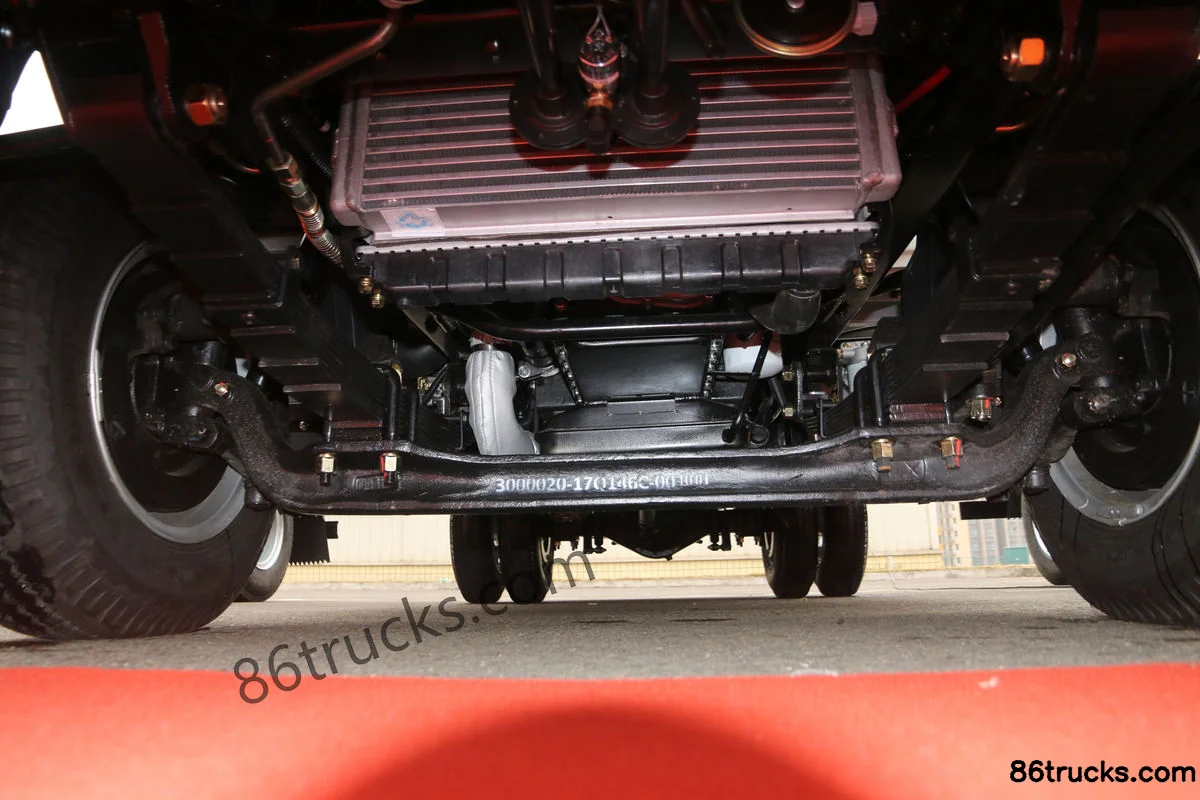

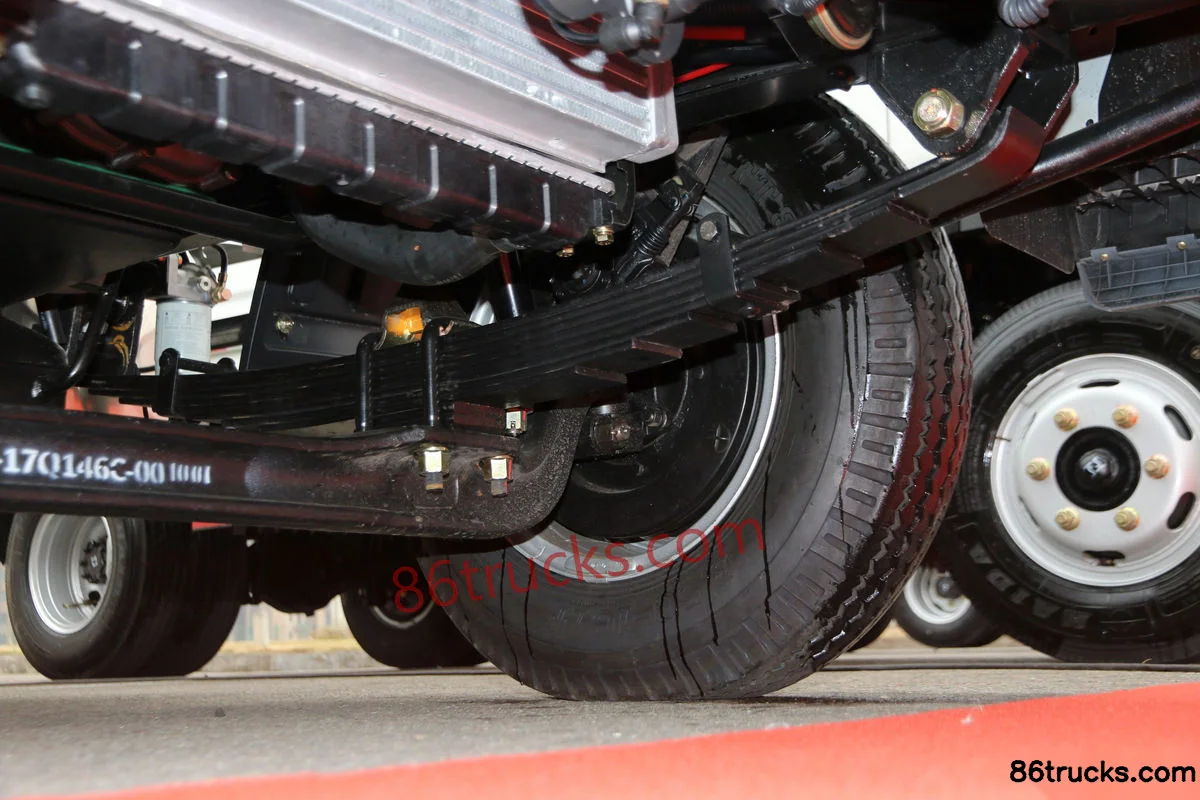

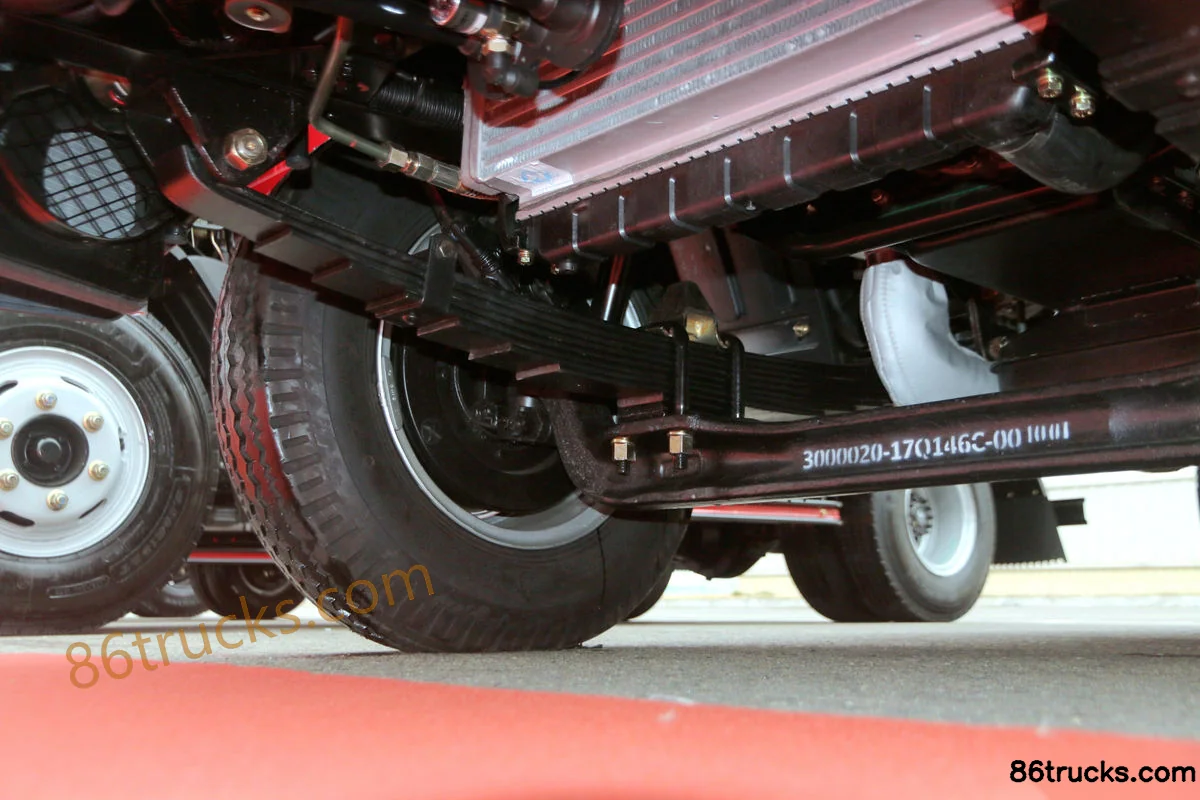

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Chassis (1) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Chassis (2) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Chassis (3) | 86Trucks

Body3

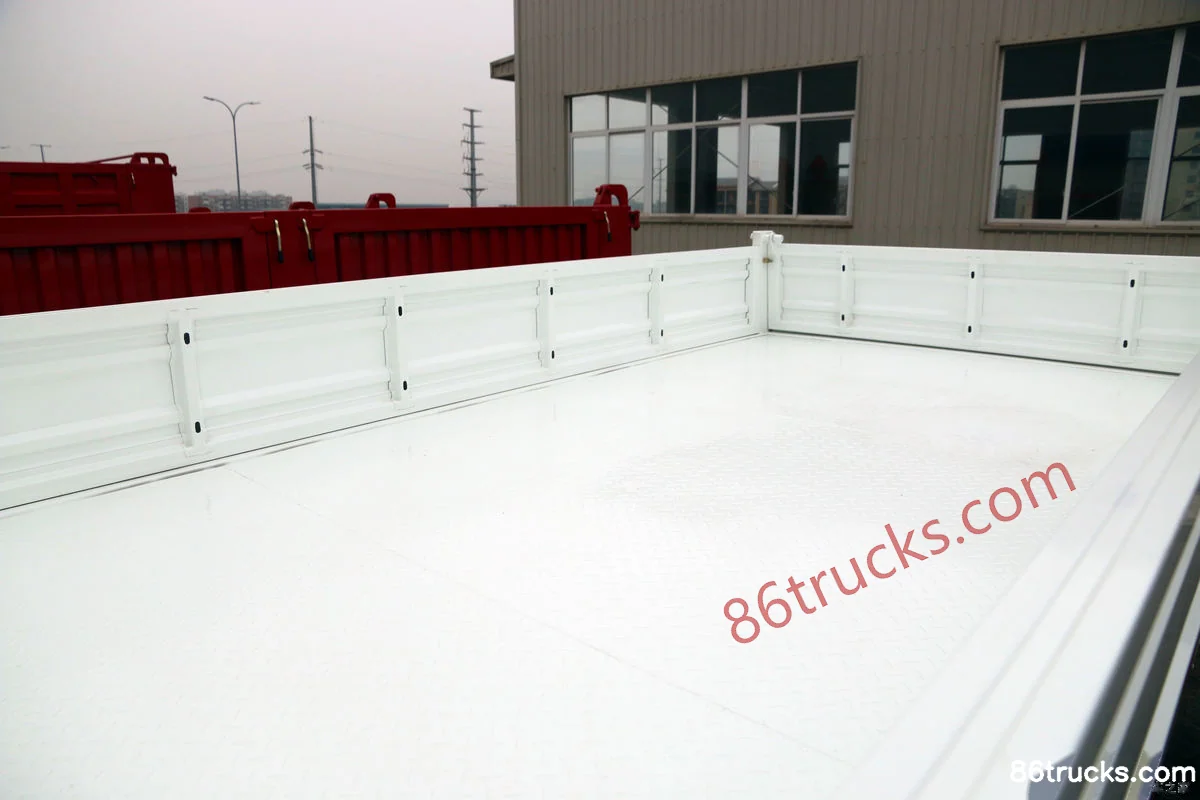

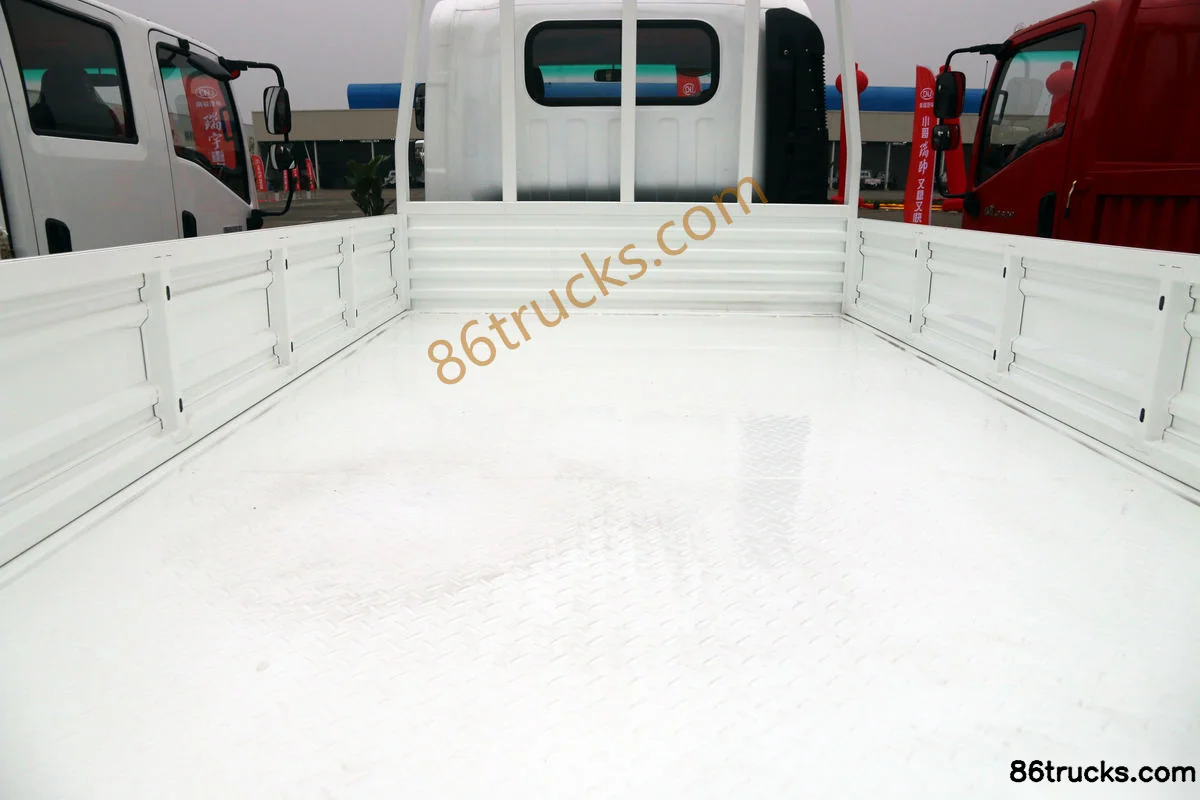

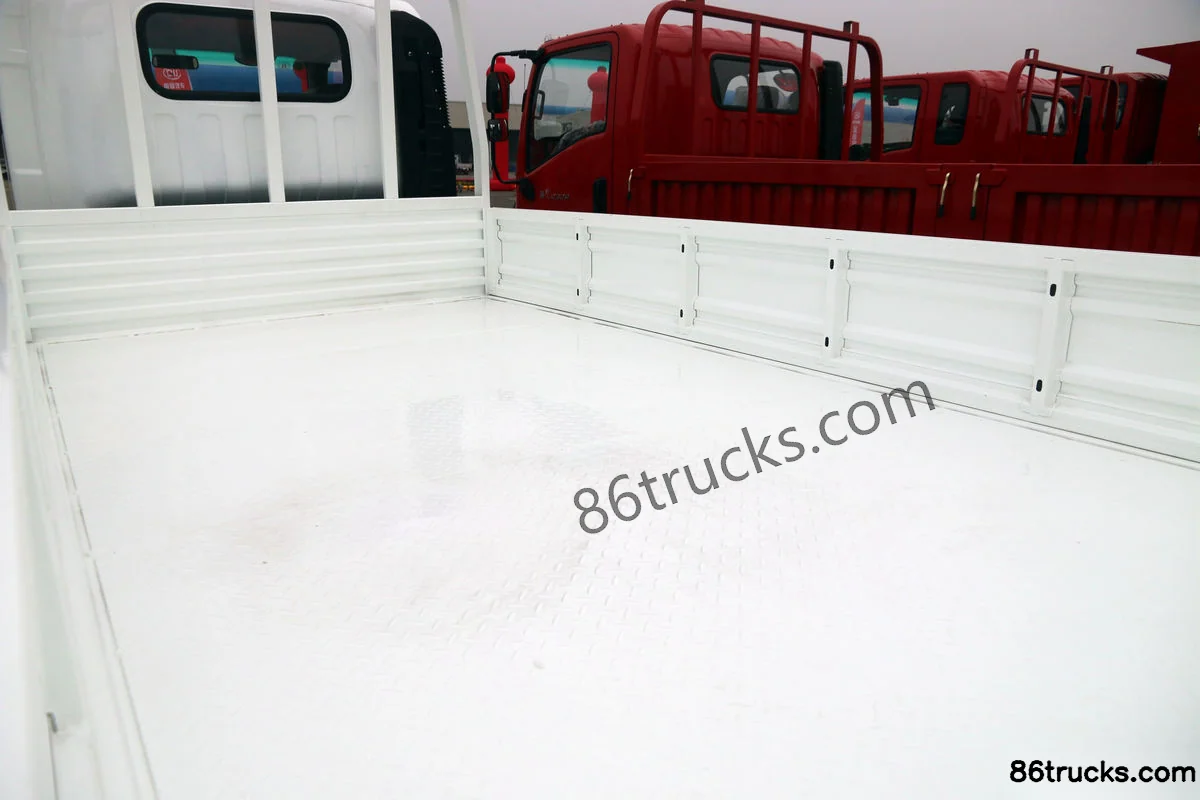

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Body (1) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Body (2) | 86Trucks NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck?

Key specs of NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck: Drive: 4x2; Horsepower: 84 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck suited for?

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck differ from other variants in the same series?

NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck belongs to NanJun Ruijie D20 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D20P 87 hp 4X2(6 wheels) 3.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
