Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Rear auxiliary
Curb Weight:: 2.5ton
Wheelbase:: 2800mm
Tire Size:: 6.50R16LT
Rated payload: 1.865ton
Drive 4X2 (6 wheels)
Horsepower 84
Cargo box type: square box

Overview

The Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck is a Light Truck featuring 1.865t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DW93-84E5 engine, 84 hp, China V emissions and Rear auxiliary transmission.

China V 84 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3041HA28D5
Drive type: 4X2
Wheelbase: 2800mm
engine: Xichai4DW93-84E5
transmission: 530 rear auxiliary
Cab length: 5.46m
Cab width: 1.995m
Cab height: 2.28m
Front track width: 1495mm
rear track: 1490mm
Curb Weight: 2.5ton
Rated payload: 1.865ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 84Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: 530 rear auxiliary
Transmission Brand: Rear auxiliary
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: square box
Cargo box type: Dump type
Cargo box length: 3.6m
Cargo box width: 1.83m
Cargo box height: 0.39m
Cab parameters
Cab suspension: Rigid connection
Cab width: 1680mm
Cab tilting: Manual
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 1610kg
Steering gear: Domestic
rear axle allowable load: 2885kg
Leaf spring count: 9/8+4
Tire
Tire Size: 6.50R16LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

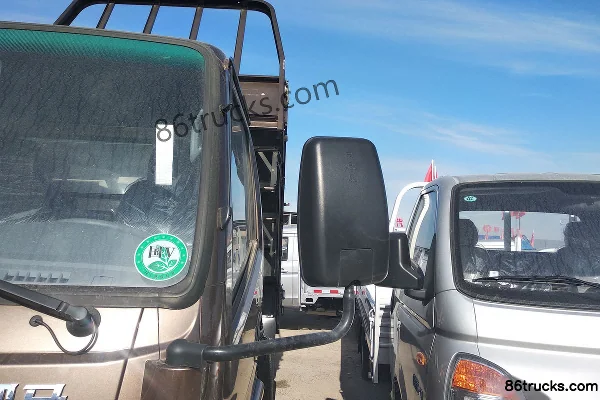

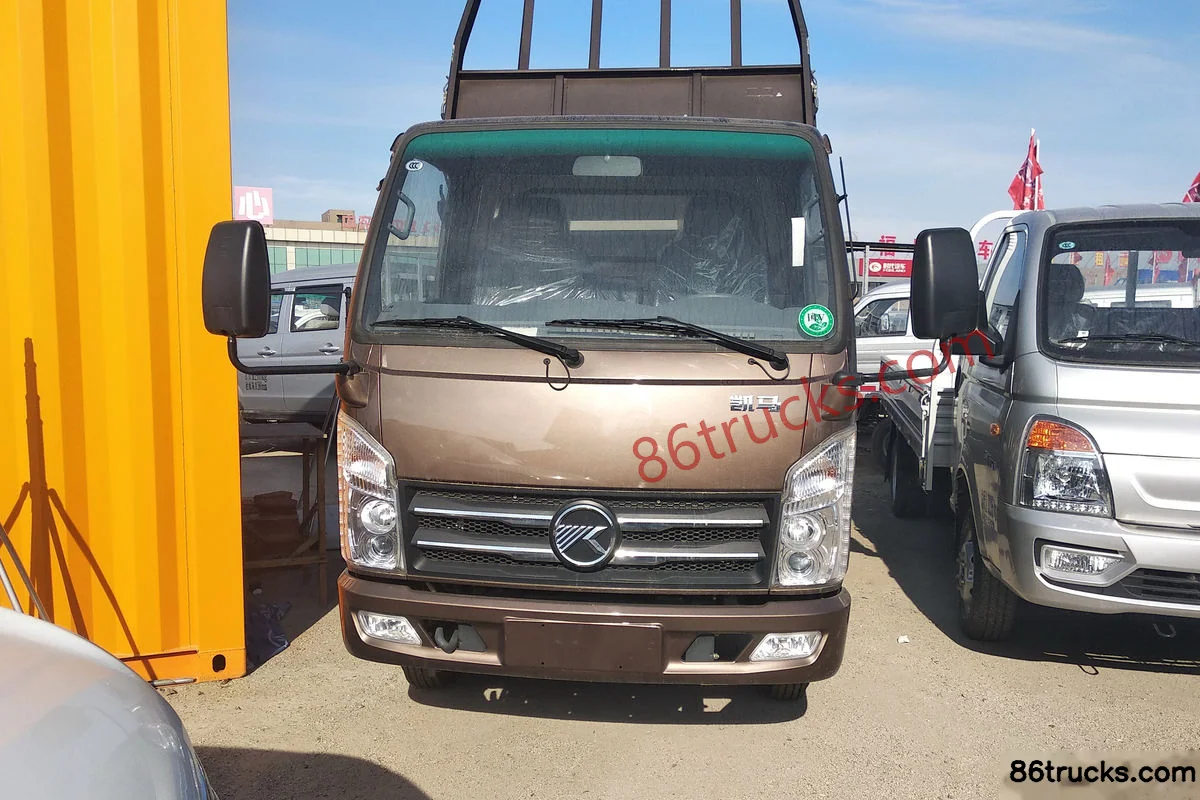

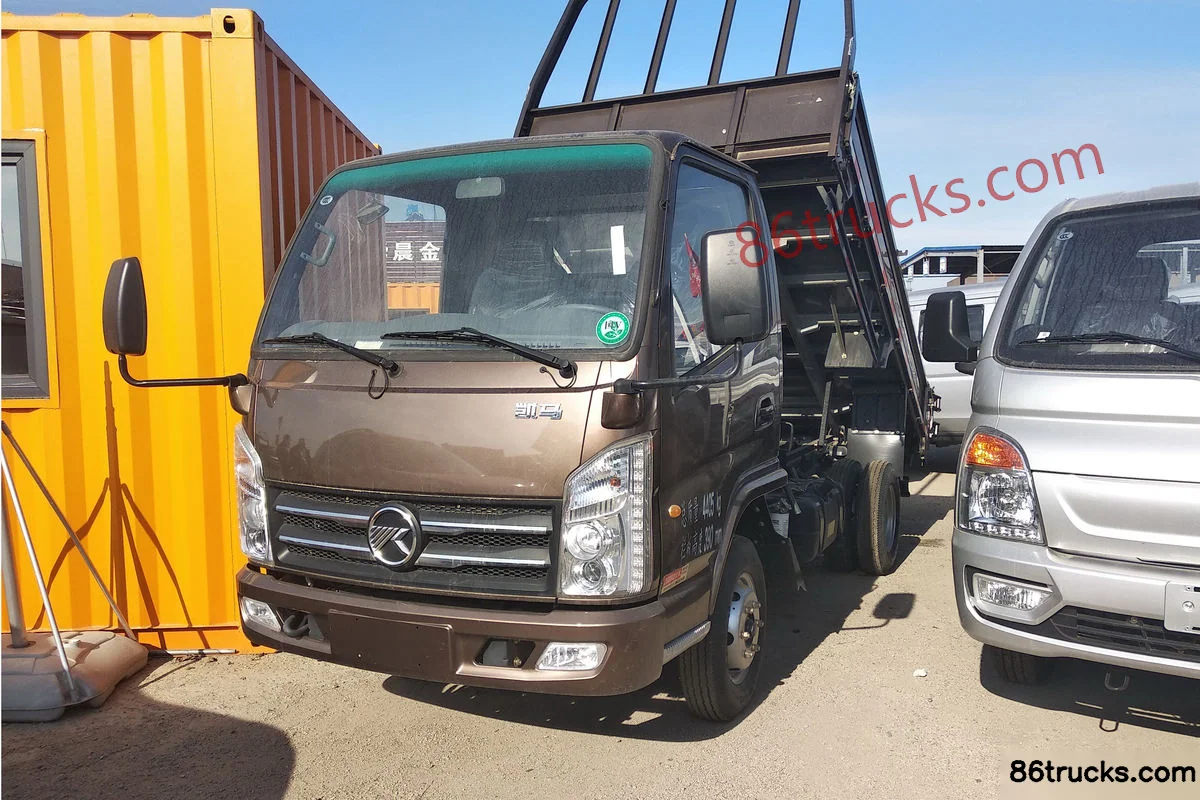

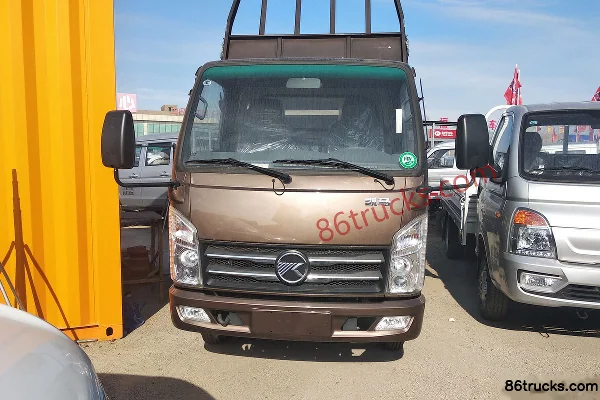

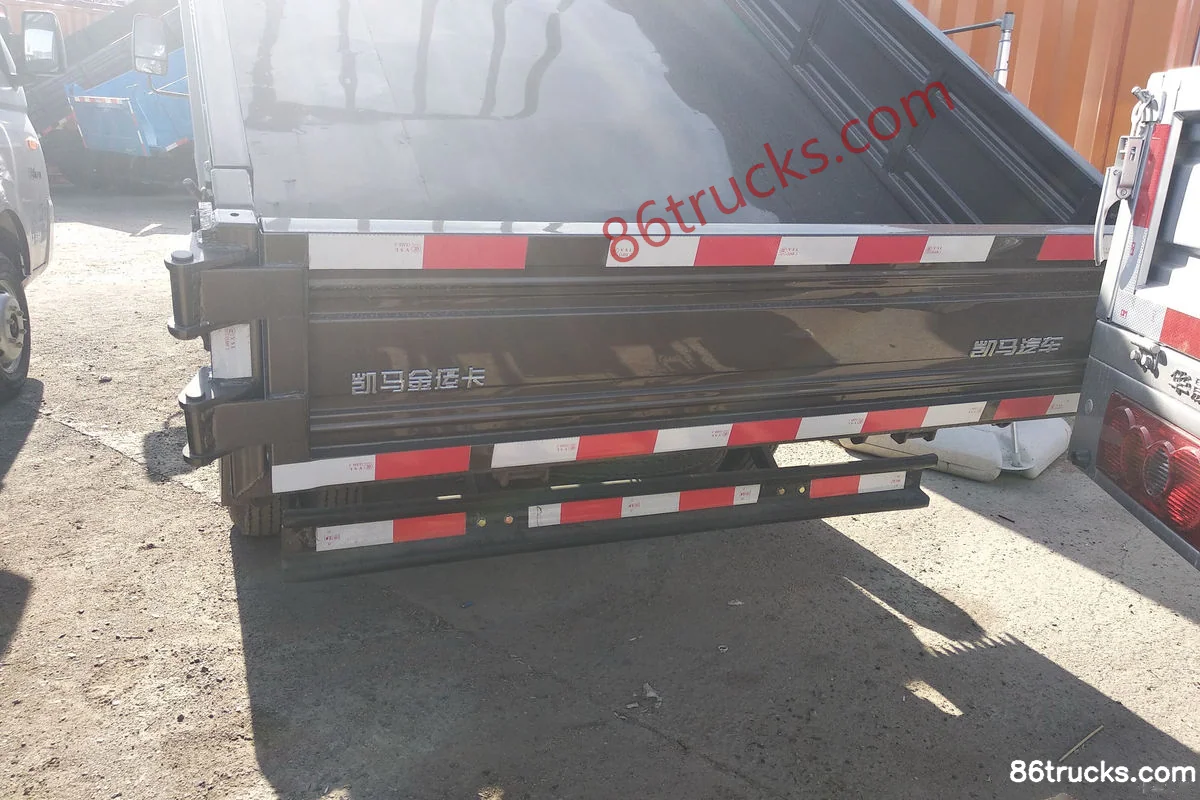

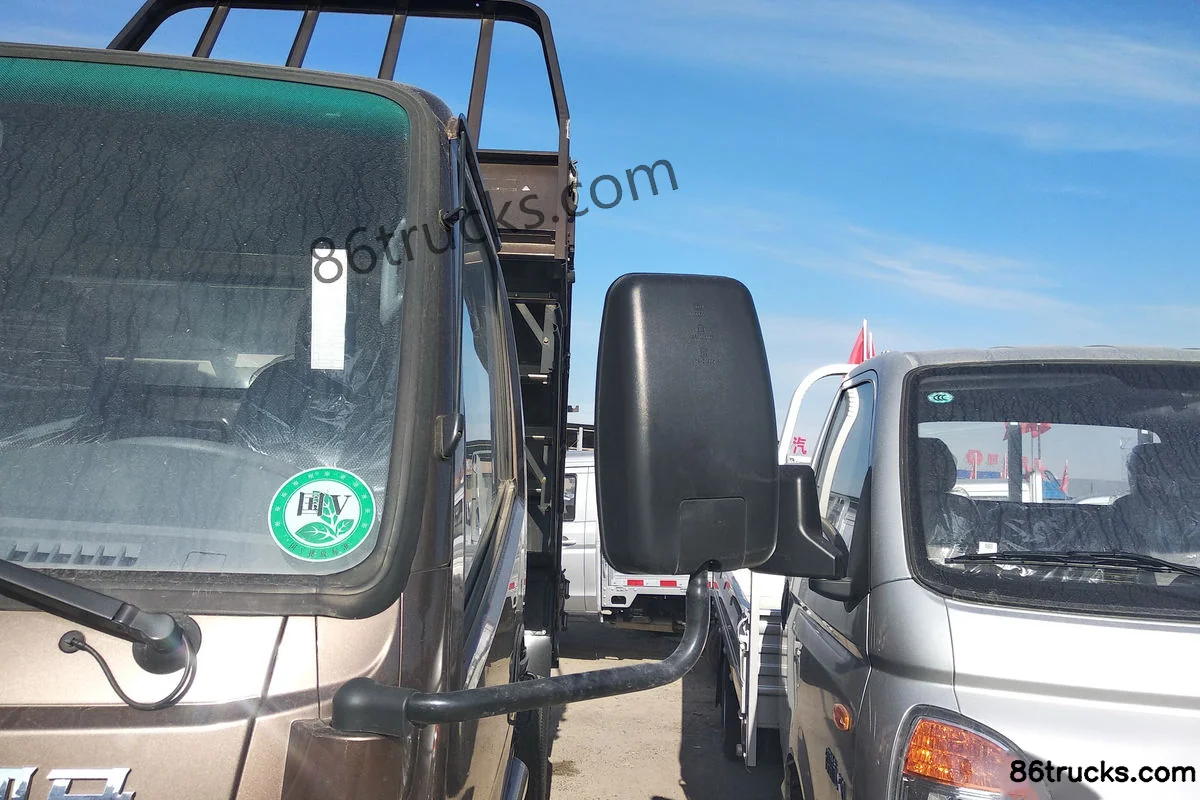

Exterior3

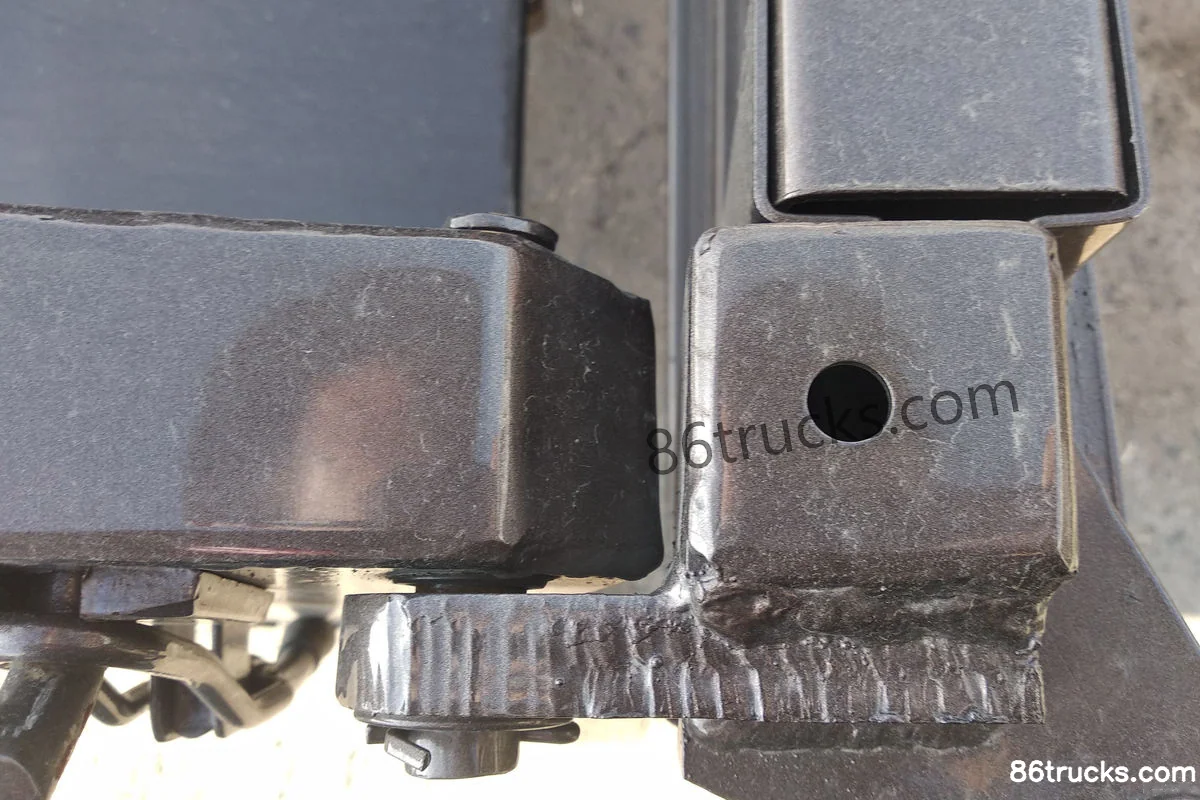

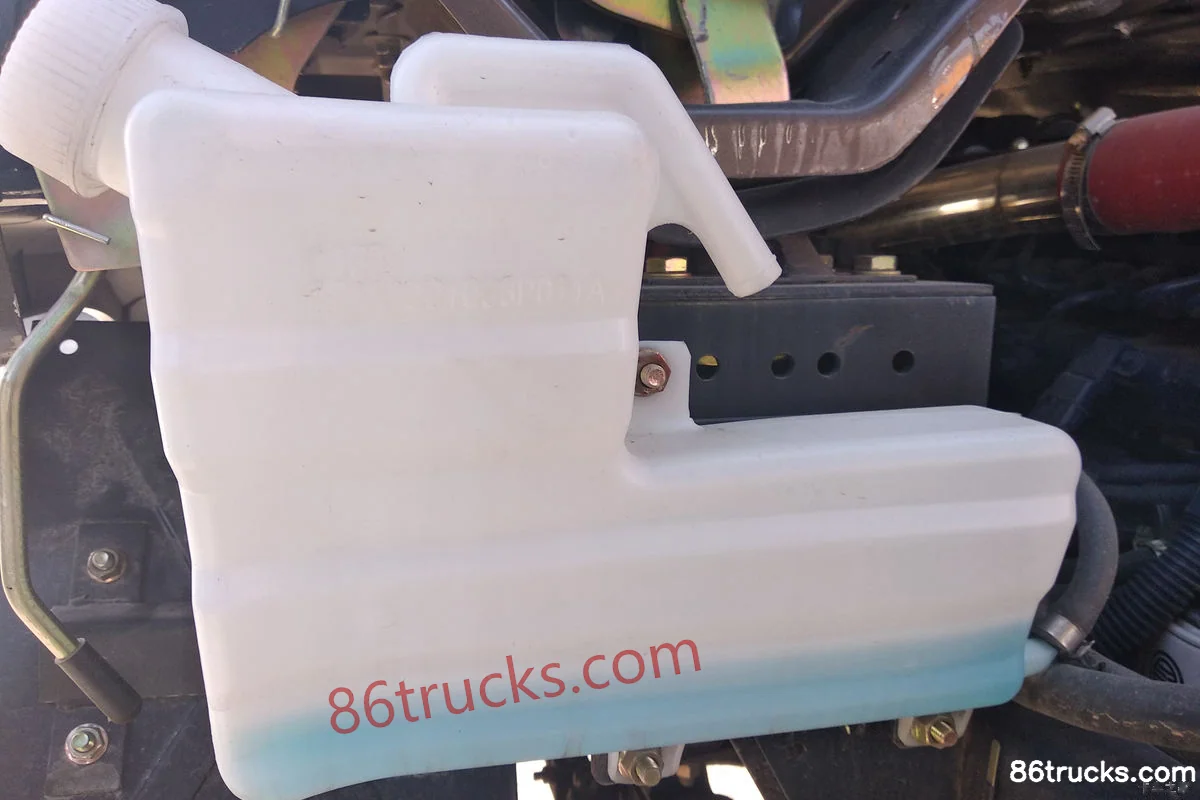

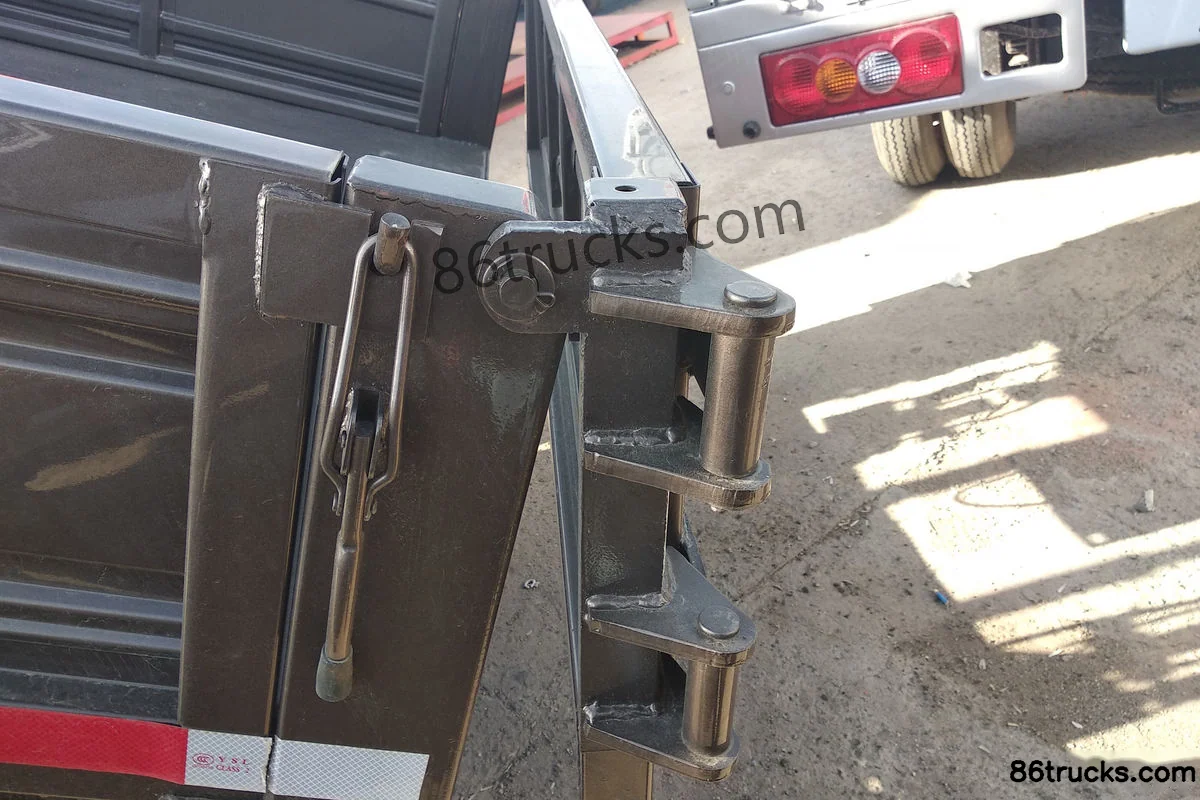

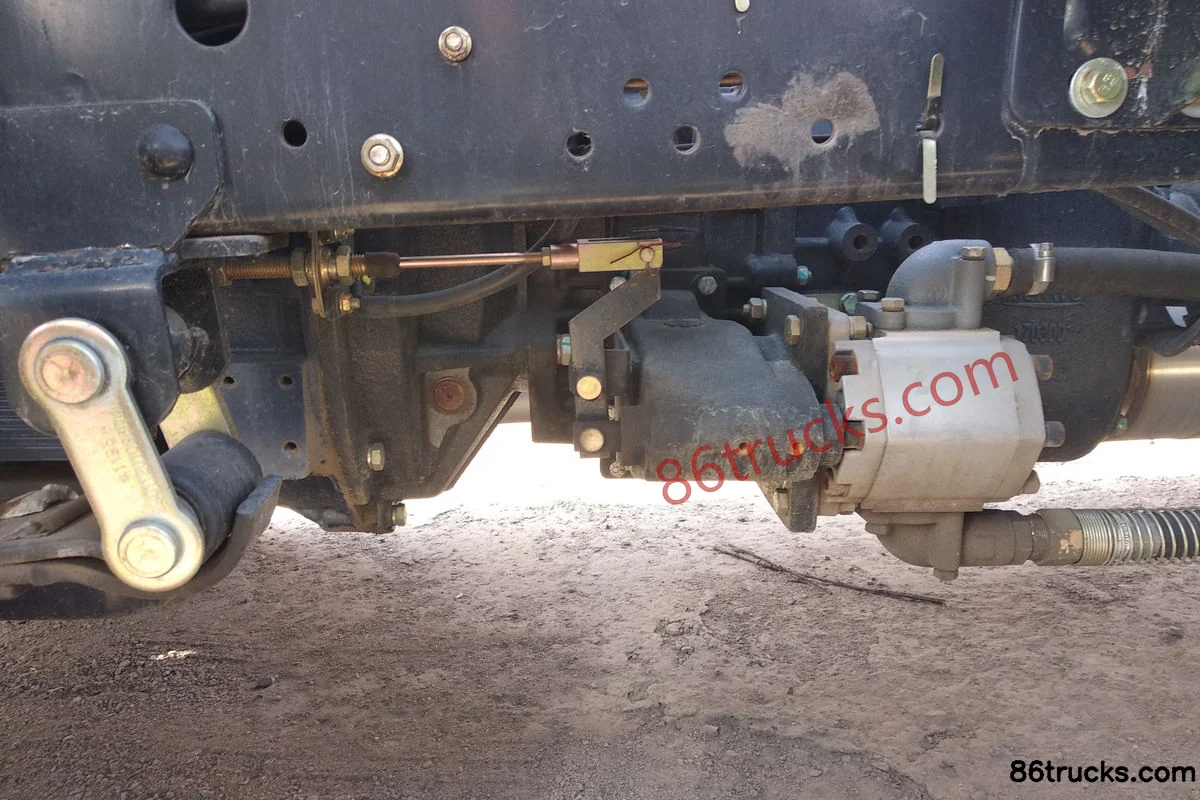

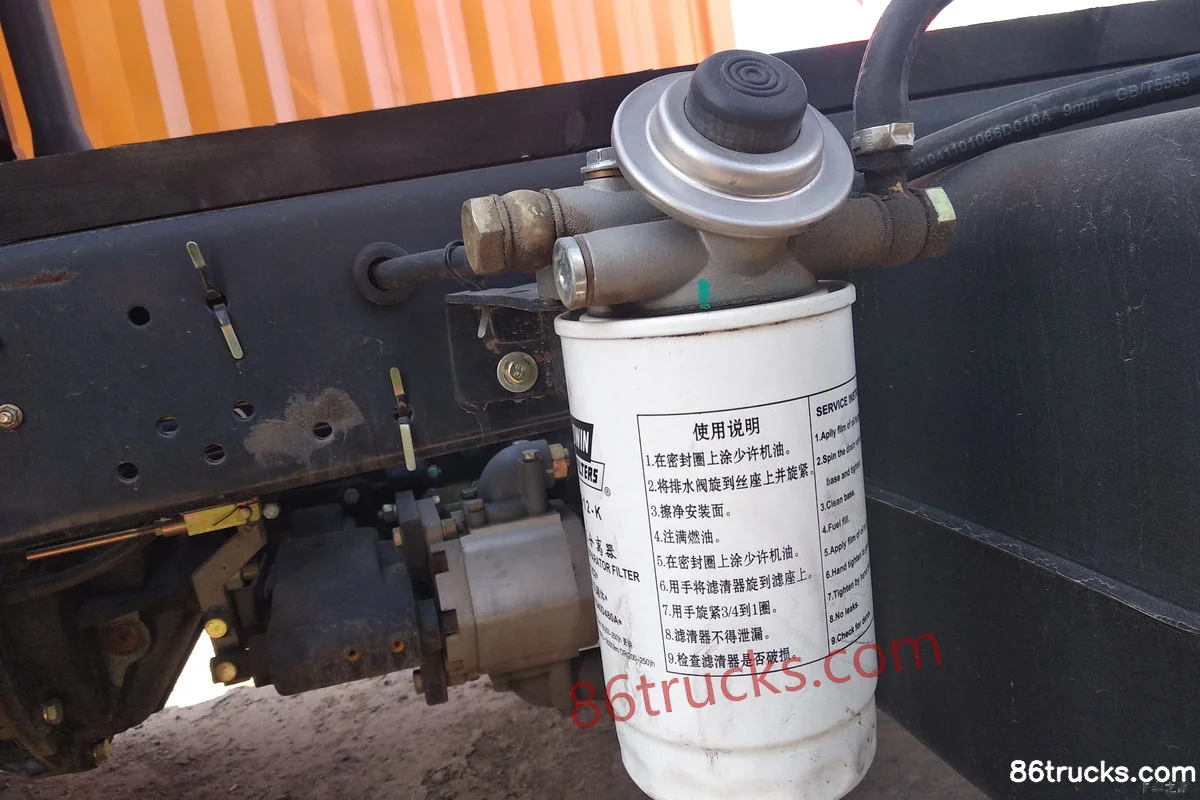

Chassis3

Chassis3

9 photos

FAQ

What emission standard does Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck?

Key specs of Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck: Drive: 4x2; Horsepower: 84 hp; Emission: China V; Fuel: Diesel; Transmission: Rear auxiliary. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck suited for?

Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck differ from other variants in the same series?

Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck belongs to Kama GK3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama GK3 Jinyunka 87 hp 4X2(6 wheels) 3.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
