NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.07ton
Wheelbase:: 1700+2600mm
Tire Size:: 10.00R20
NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck exterior
View more photos (12)
Rated payload: 9.995ton
Drive 6X2 (8 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck is a Light Truck featuring 9.995t payload, 18.26t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CNJ3180RPC43V
Drive type: 6X2
Wheelbase: 1700+2600mm
engine: YuchaiYC6JA180-50
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.333
Cab length: 7.45m
Cab width: 2.44m
Cab height: 3.017m
Front track width: 1780/1780mm
rear track: 1750mm
Curb Weight: 8.07ton
Rated payload: 9.995ton
GVWR: 18.26ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 18°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.7m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
Cab: Ruiyu 180
Chassis Specs
Front axle allowable load: 4480/4480kg
rear axle allowable load: 9300kg
Axle ratio: 6.333
Leaf spring count: 9/9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

Exterior3

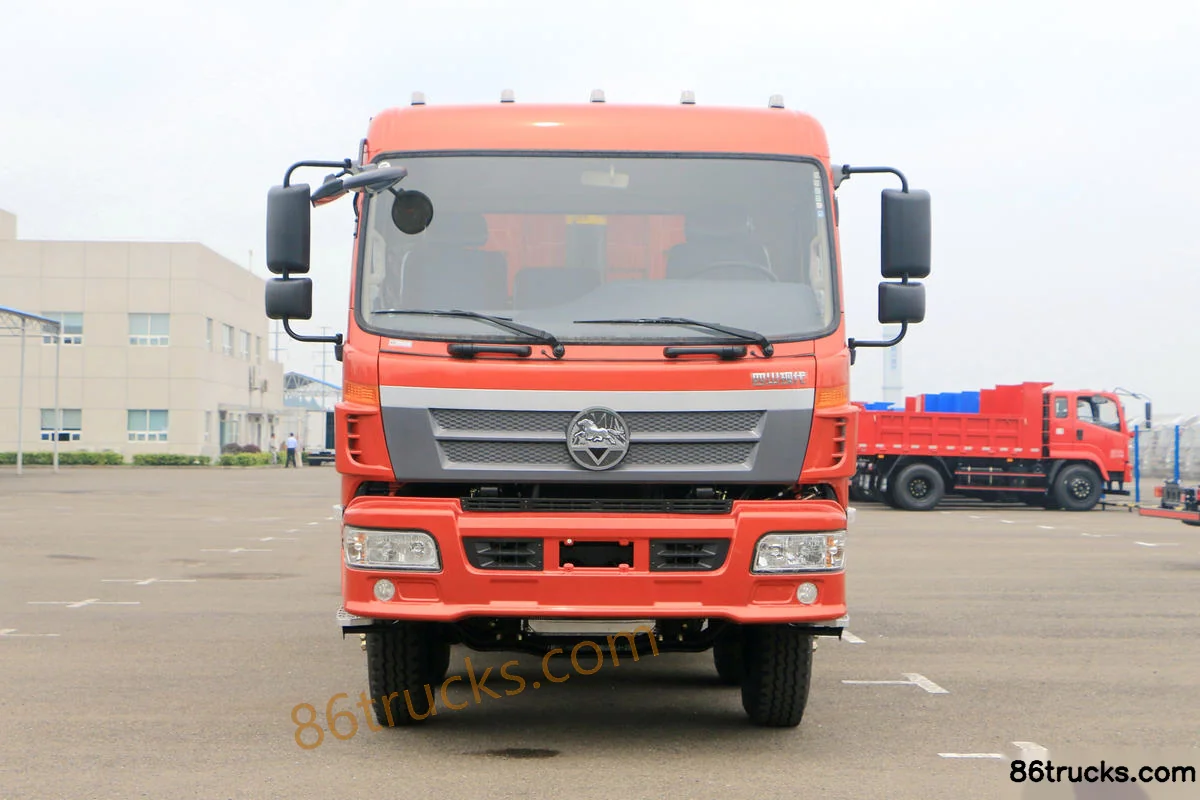

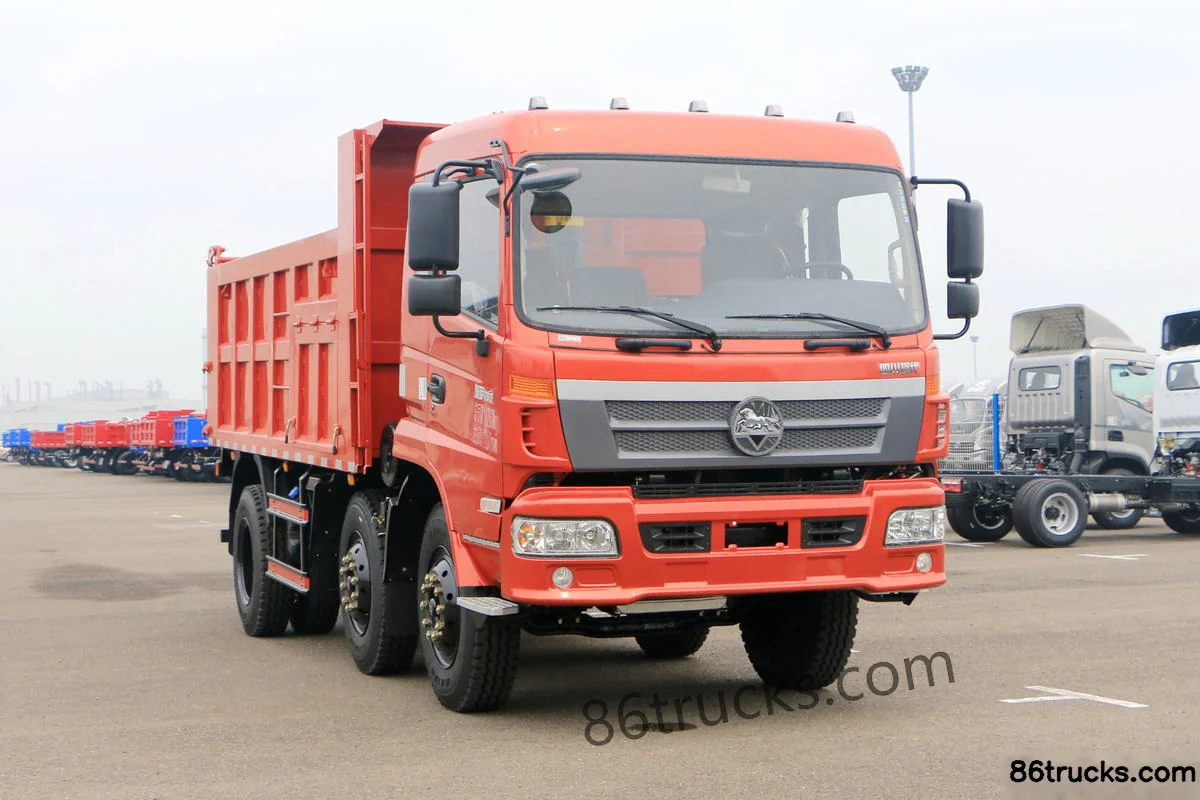

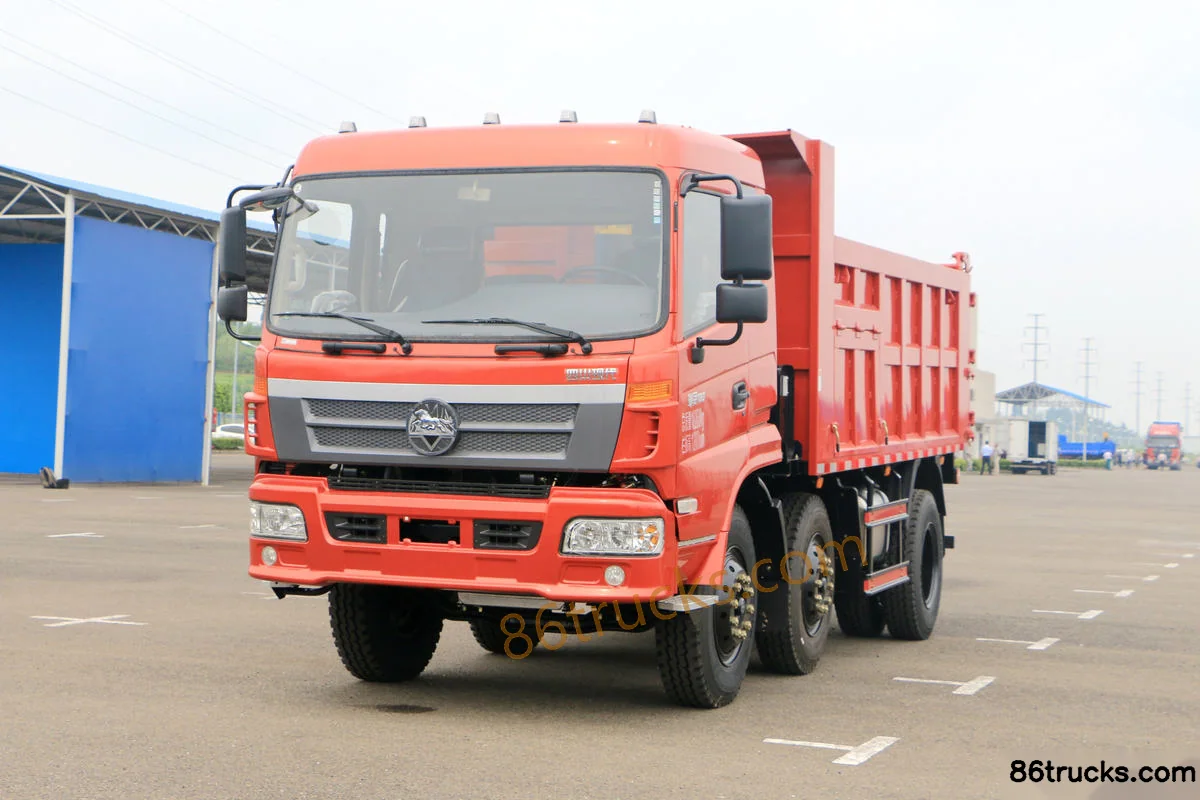

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Exterior (1) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Exterior (2) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Exterior (3) | 86Trucks

Cab3

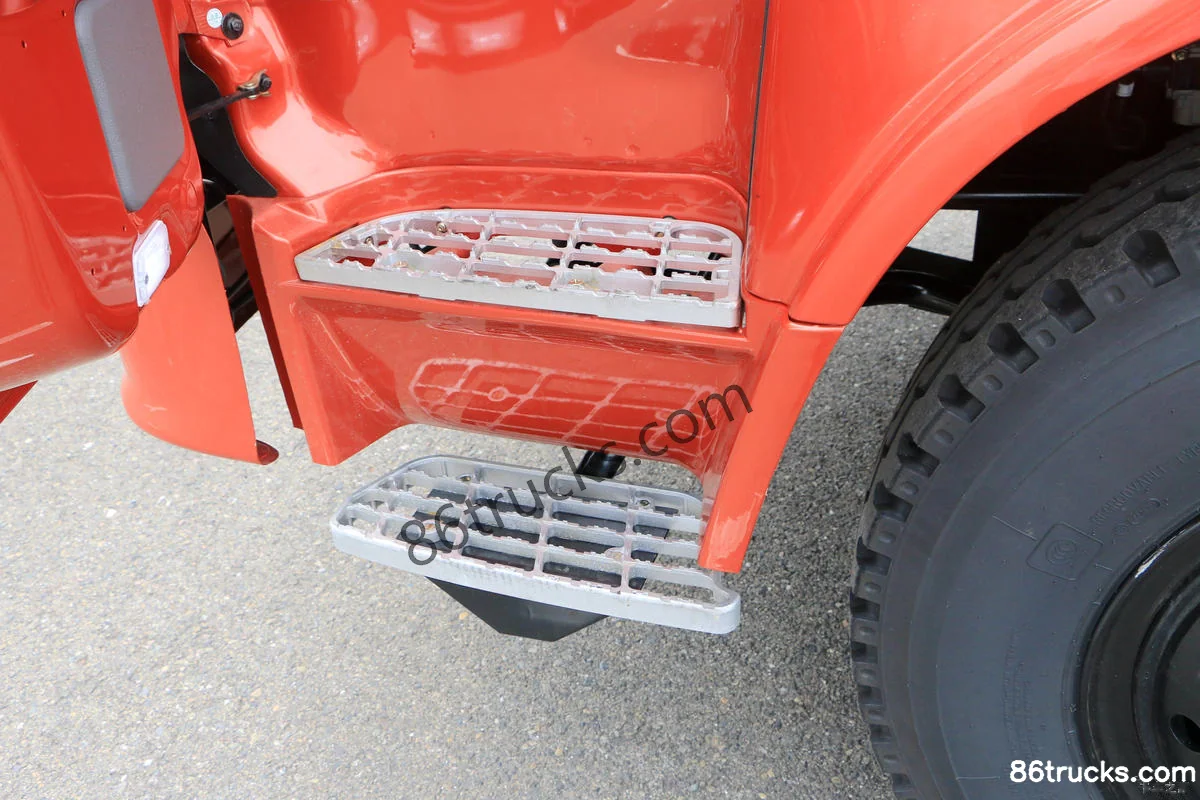

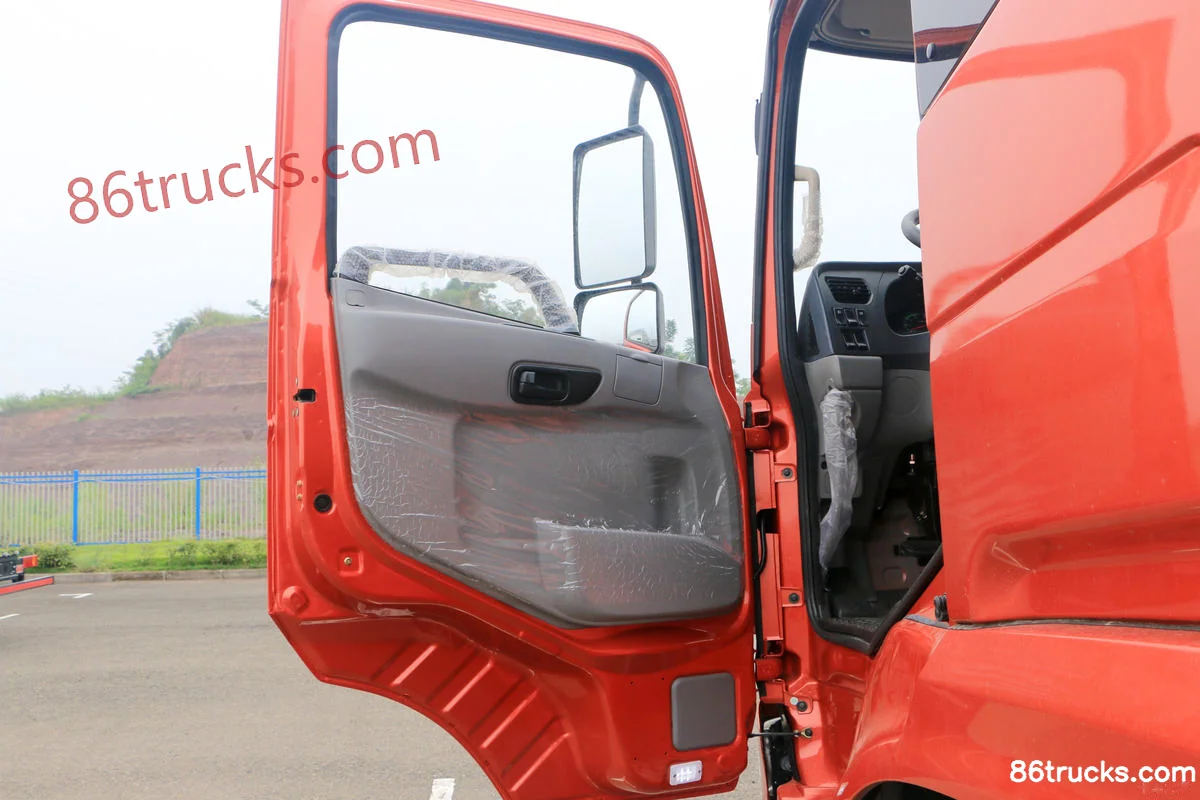

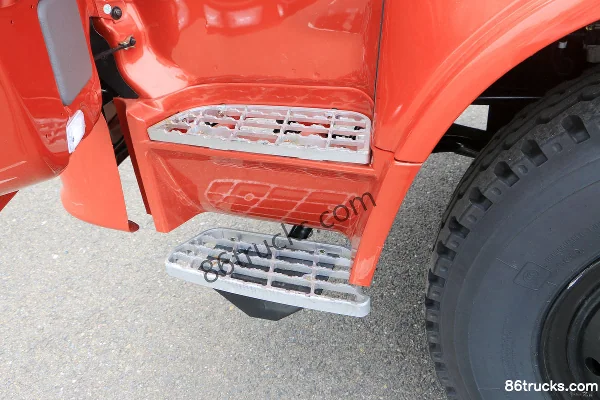

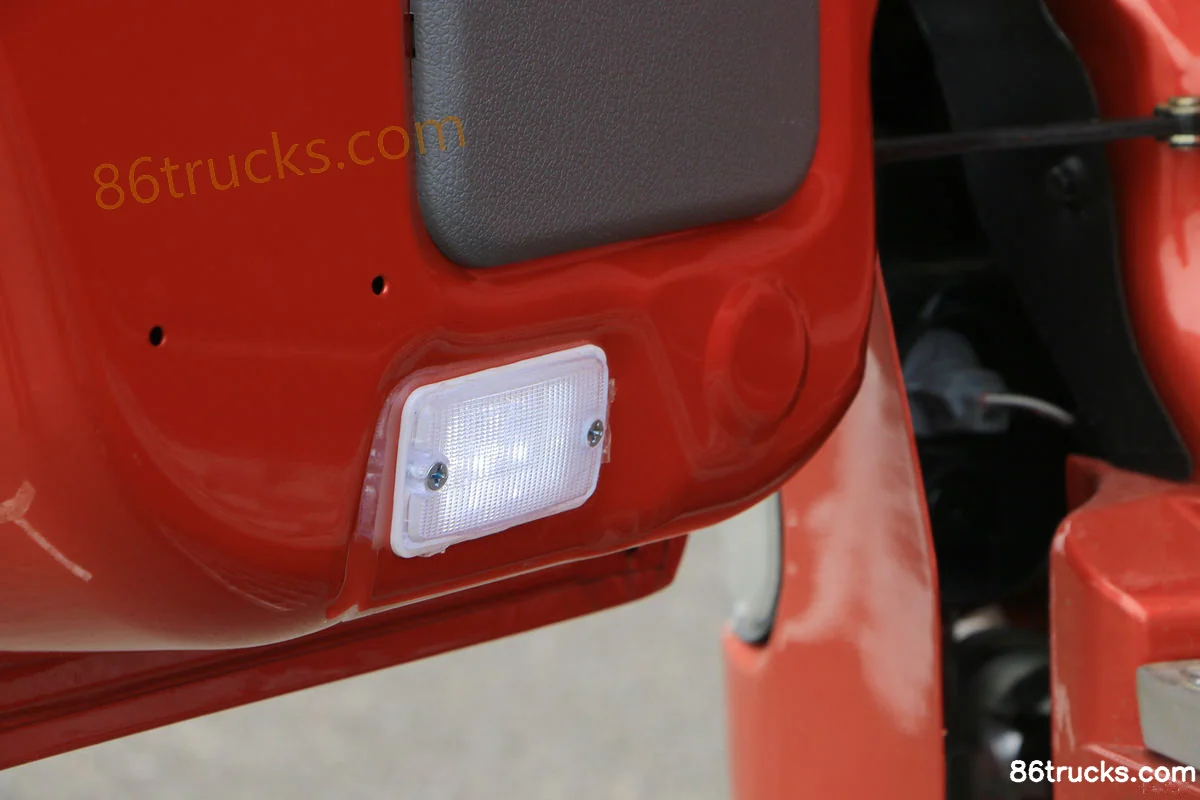

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Cab (1) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Cab (2) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Cab (3) | 86Trucks

Chassis3

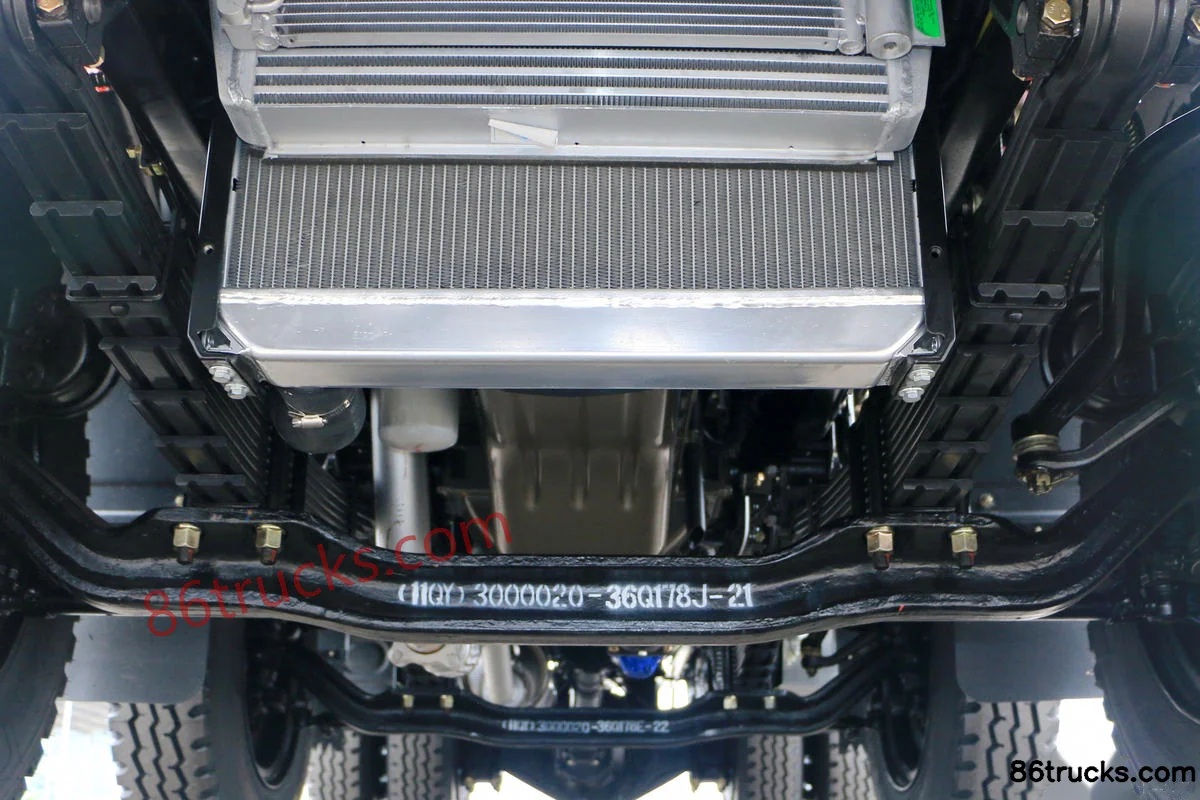

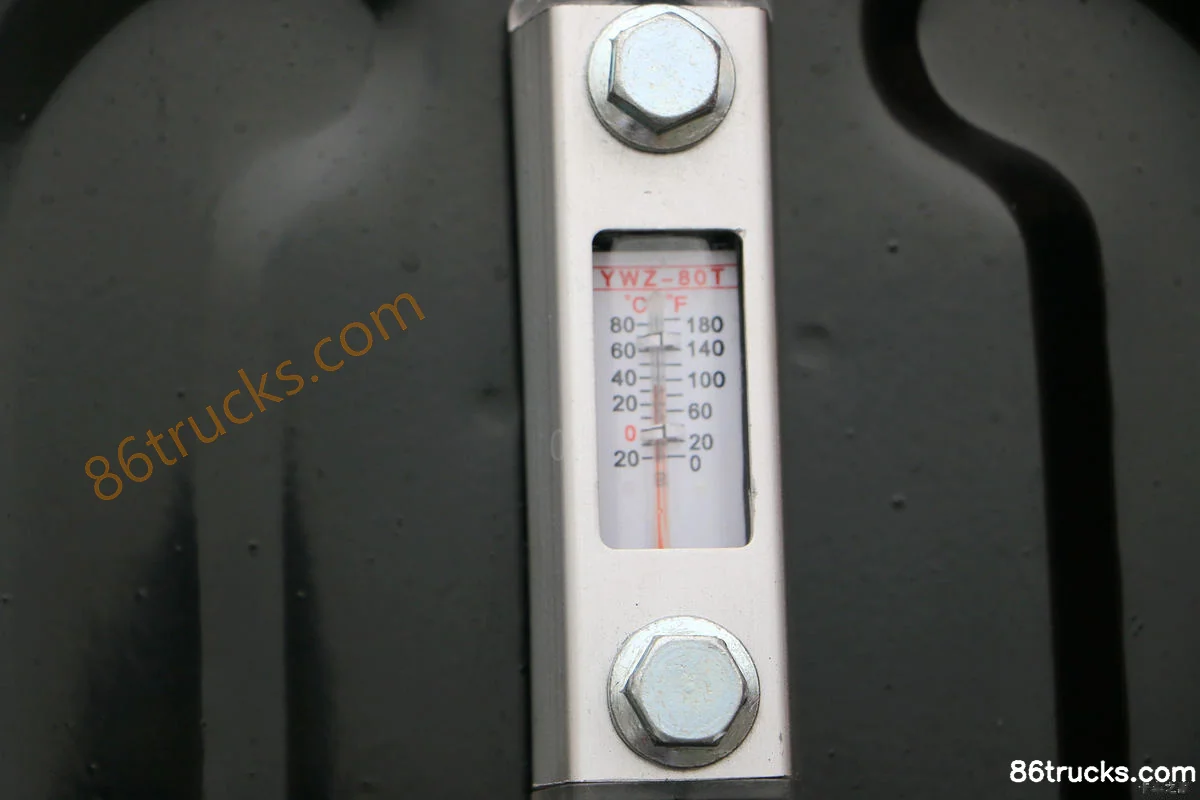

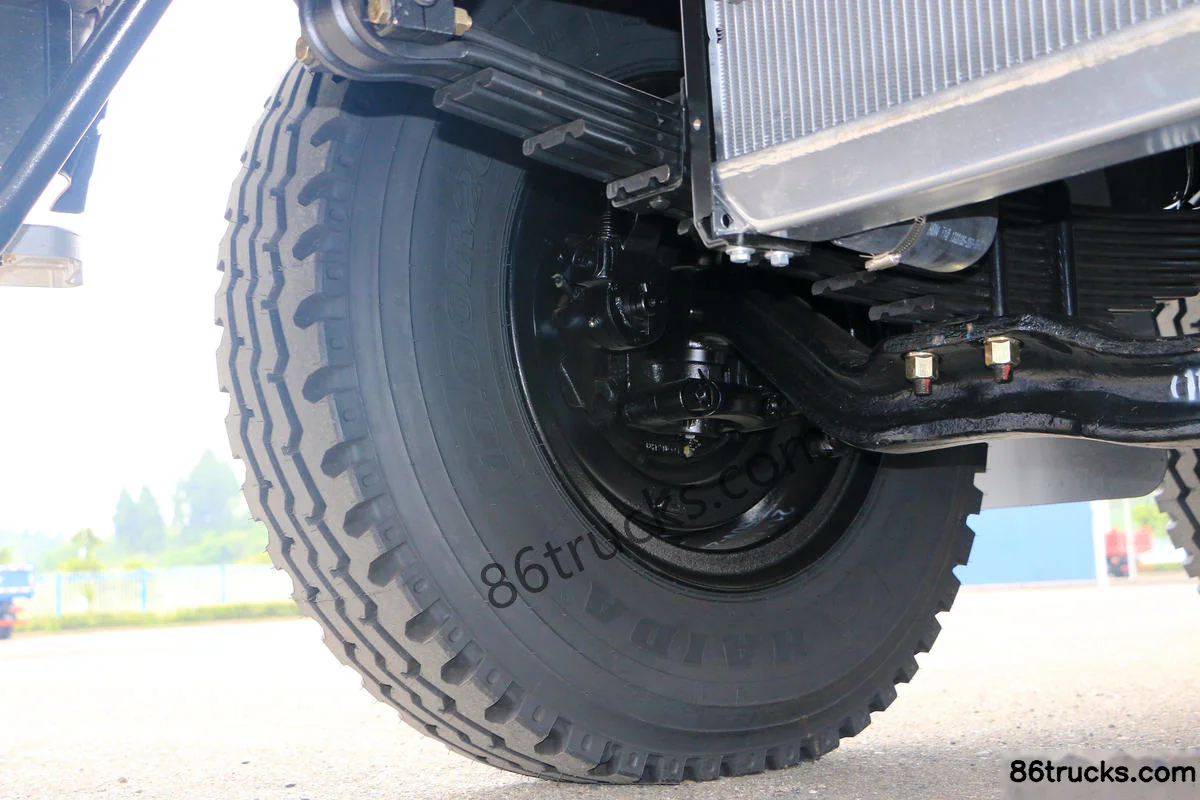

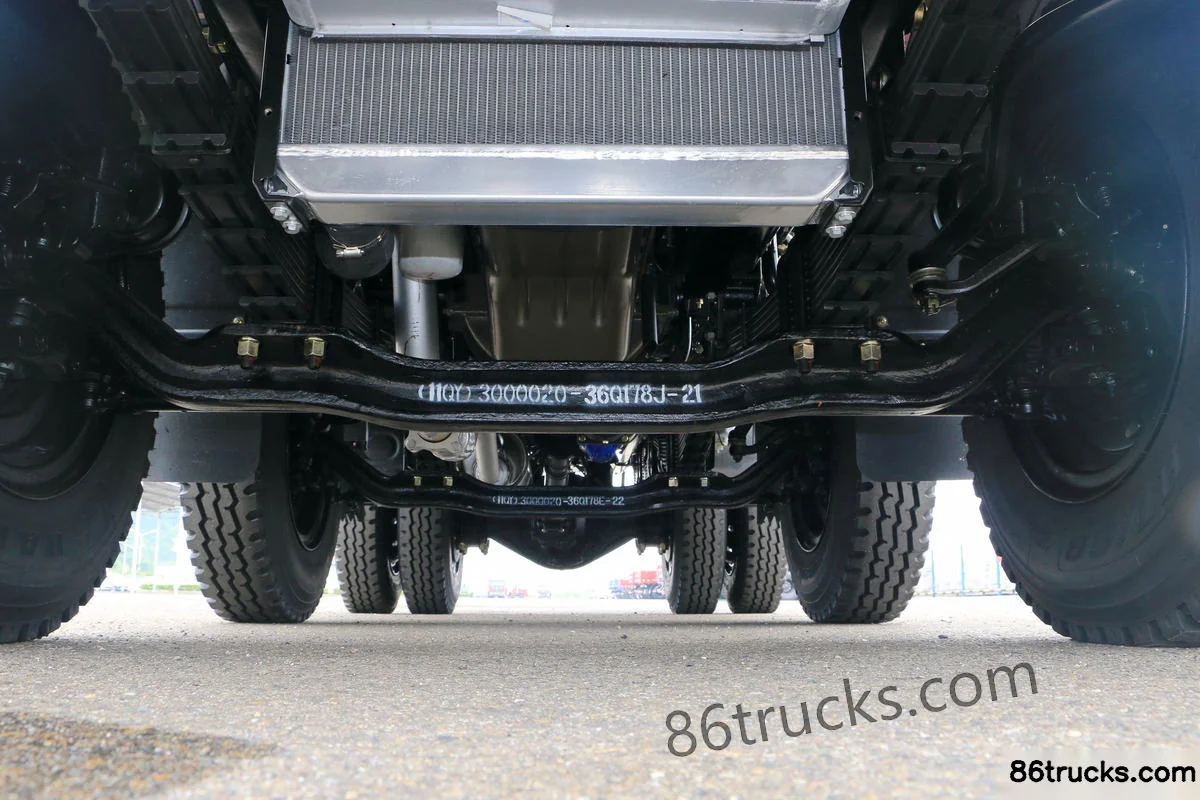

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Chassis (1) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Chassis (2) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Chassis (3) | 86Trucks

Body3

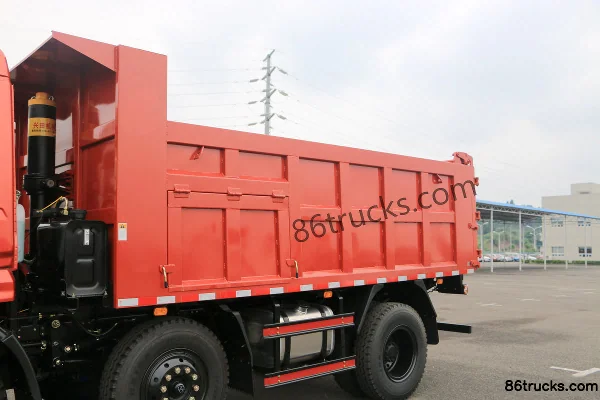

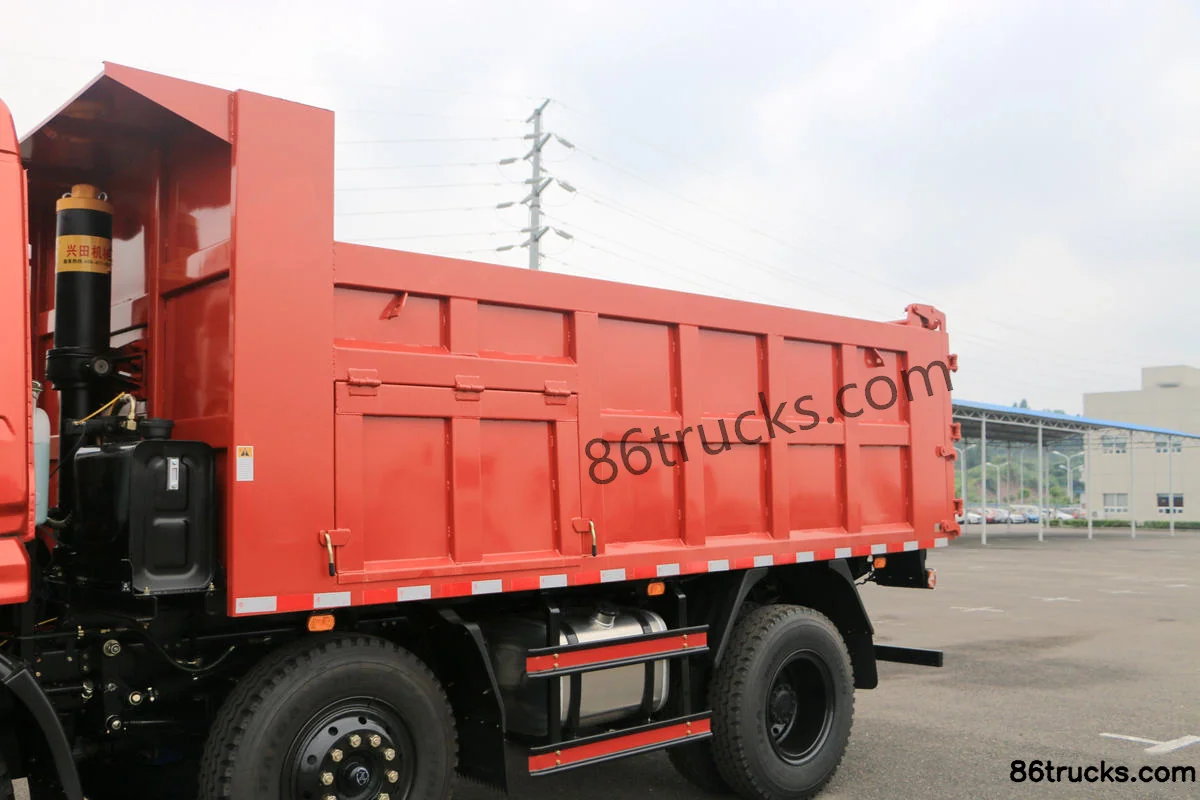

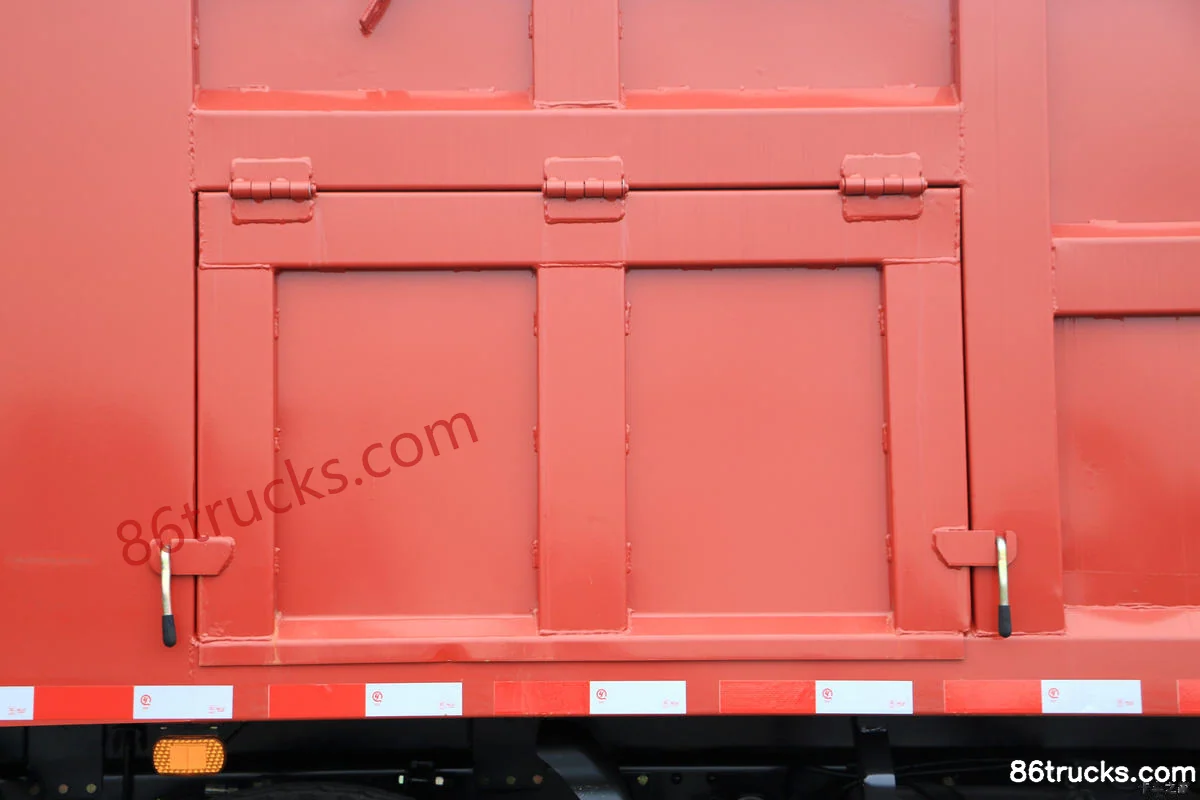

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Body (1) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Body (2) | 86Trucks NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck?

Key specs of NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck: Drive: 6x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck suited for?

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck differ from other variants in the same series?

NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck belongs to NanJun Ruiyu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
