KOMATSU PC60-7 Crawler Excavator

Export reference
MSRP N/A
Model:: PC60-7
Engine Model:: crawler excavator
Tonnage:: 6ton
Bucket capacity:: 0.37cubic meter
boom length:: 3710mm
Arm Length:: 1650mm
KOMATSU PC60-7 Crawler Excavator exterior
View more photos (3)
Operating weight: 6.3ton
Bucket type: backhoe
Fuel Tank Capacity: 130L
Product power: Conventional Power

Overview

The KOMATSU PC60-7 Crawler Excavator is a excavator featuring 6.3ton GVW, backhoe bucket capacity, 130L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: PC60-7
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 6ton
Operating weight: 6.3ton
Bucket capacity: 0.37cubic meter
boom length: 3710mm
Arm Length: 1650mm
Machine dimensions: 6.08×2.225×2.59mm
Track shoe width: 450mm
Track gauge: 1700mm
Counterweight ground clearance: 750mm
Min ground clearance: 350cm
Rear Overhang Radius: 1750mm
hydraulic system
Max flow of main pump: 155L/min
Working hydraulic circuit: 24.5
travel hydraulic circuit: 24.5Mpa
Swing Hydraulic Circuit: 19.1Mpa
Oil capacity
Fuel Tank Capacity: 130L
coolant: 10.3L
hydraulic oil tank: 90L
Engine Oil Capacity: 11L
performance specs
Travel speed: 2.8-4.5km/h
Bucket digging force: 54.8kN
Arm Digging Force: 37.3kN
Max tractive force: 56.37kN
Operating Range
Max digging radius: 6360mm
Max digging depth: 4100mm
Max digging height: 7150mm
Max unloading height: 5015mm
Max vertical digging depth: 3505mm
Engine parameters
Engine Model: KOMATSU 4D95LE
Max output power: 40kW

Photos

Exterior3

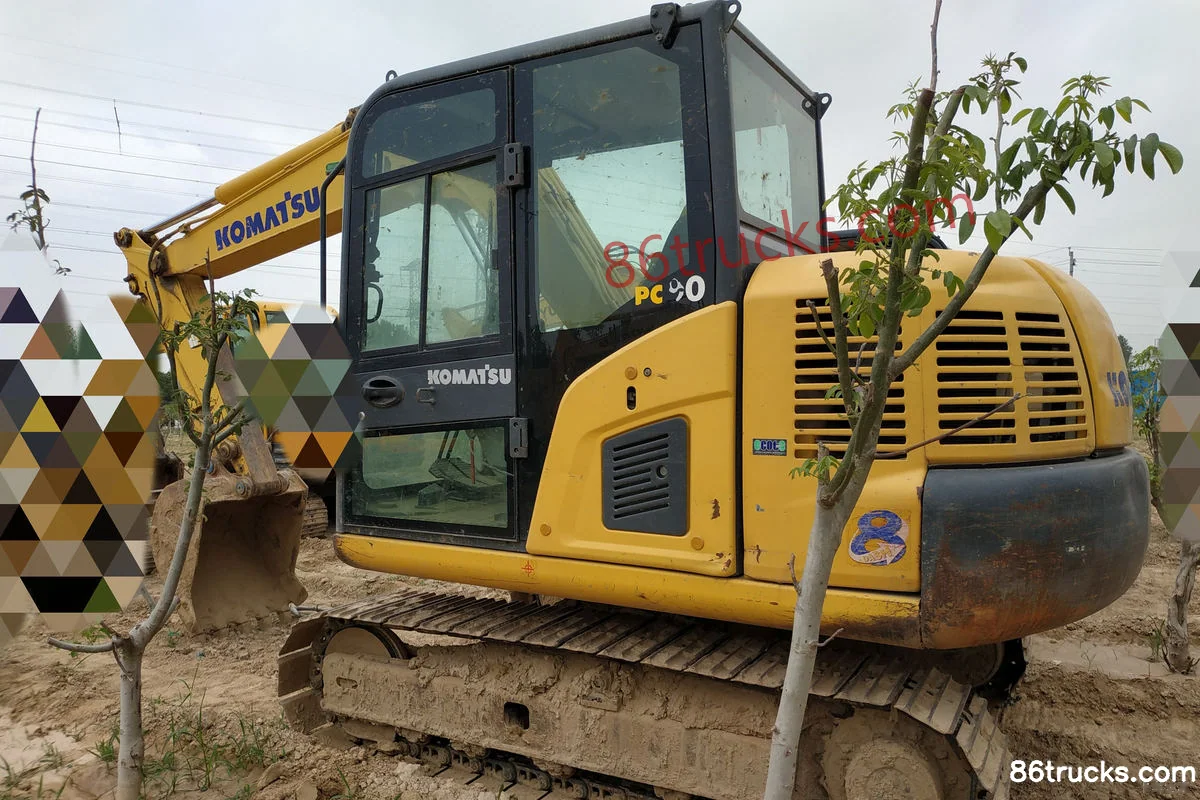

KOMATSU PC60-7 Crawler Excavator Exterior (1) | 86Trucks KOMATSU PC60-7 Crawler Excavator Exterior (2) | 86Trucks KOMATSU PC60-7 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is KOMATSU PC60-7 Crawler Excavator suited for?

KOMATSU PC60-7 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does KOMATSU PC60-7 Crawler Excavator differ from other variants in the same series?

KOMATSU PC60-7 Crawler Excavator belongs to KOMATSU KOMATSU Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for KOMATSU PC60-7 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export KOMATSU PC60-7 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
