Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Jinhua Tangchi
Curb Weight:: 4.81ton
Wheelbase:: 3850mm
Tire Size:: 8.25R16 (with spare tire)
Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck exterior
View more photos (9)
Rated payload: 4.99ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Dump type

Overview

The Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck is a Light Truck featuring 4.99t payload, 9.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and Jinhua Tangchi transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3103DEPED-1
Drive type: 4X2
Wheelbase: 3850mm
engine: Yunnei PowerYN38CRD1
transmission: Jinhua Tangchi 545ZHF
Rear Axle Ratio: 5.286
Cab length: 7.15m
Cab width: 2.29m
Cab height: 2.57m
Front track width: 1759mm
rear track: 1669mm
Curb Weight: 4.81ton
Rated payload: 4.99ton
GVWR: 9.995ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 26°
departure angle: 16°
Remarks: A/C Optional
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: Jinhua Tangchi 545ZHF
Transmission Brand: Jinhua Tangchi
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.75m
Cargo box width: 2.1m
Cargo box height: 0.6m
Body Parameters
Lifting type: Construction cylinder
Chassis Specs
Front axle allowable load: 3500kg
rear axle description: 1093Z
rear axle allowable load: 6495kg
Axle ratio: 5.286
Leaf spring count: 10/12+9
Cab parameters
Sunroof: Manual sunroof
Tire
Tire Size: 8.25R16 (with spare tire)
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

Exterior3

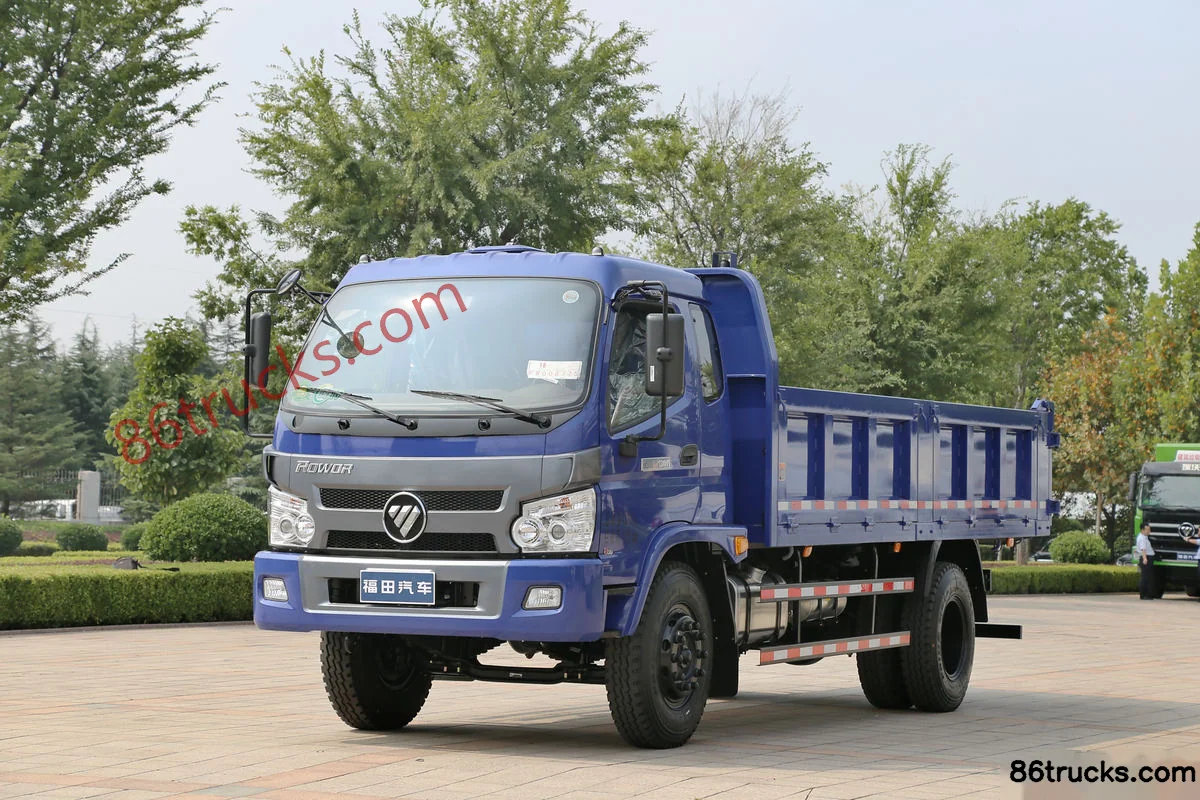

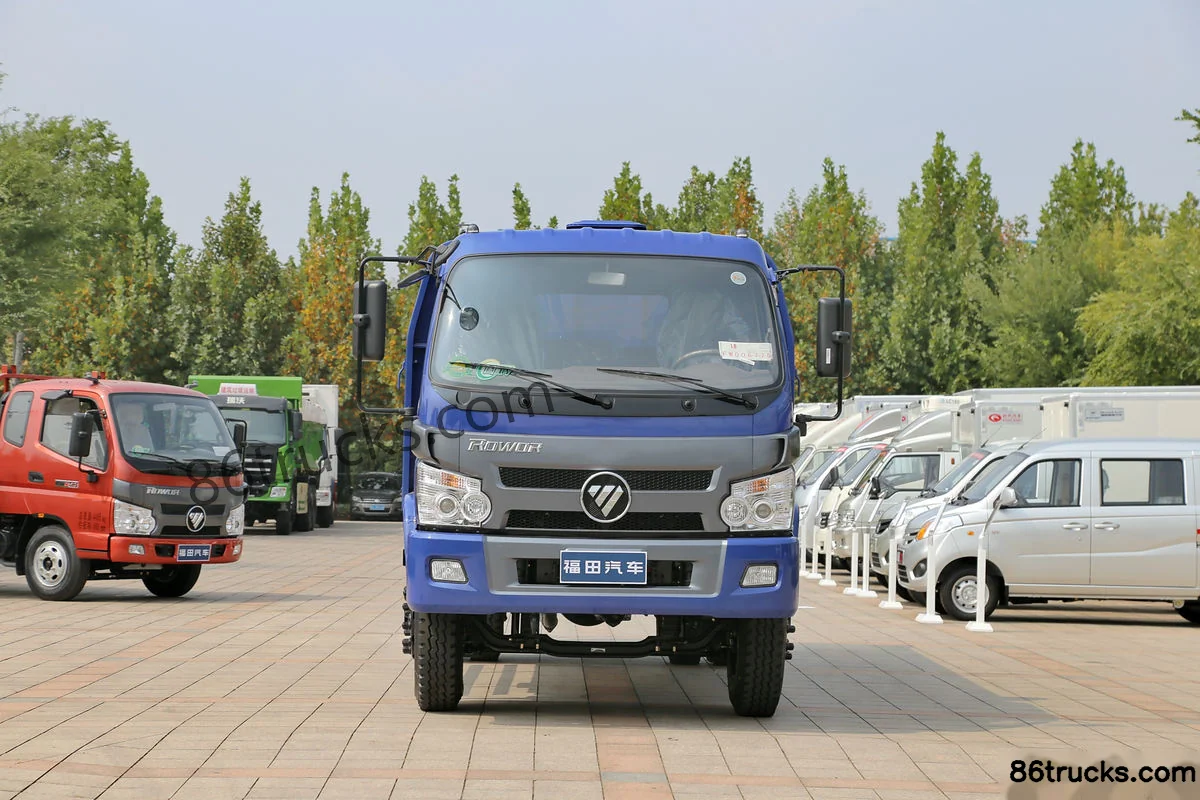

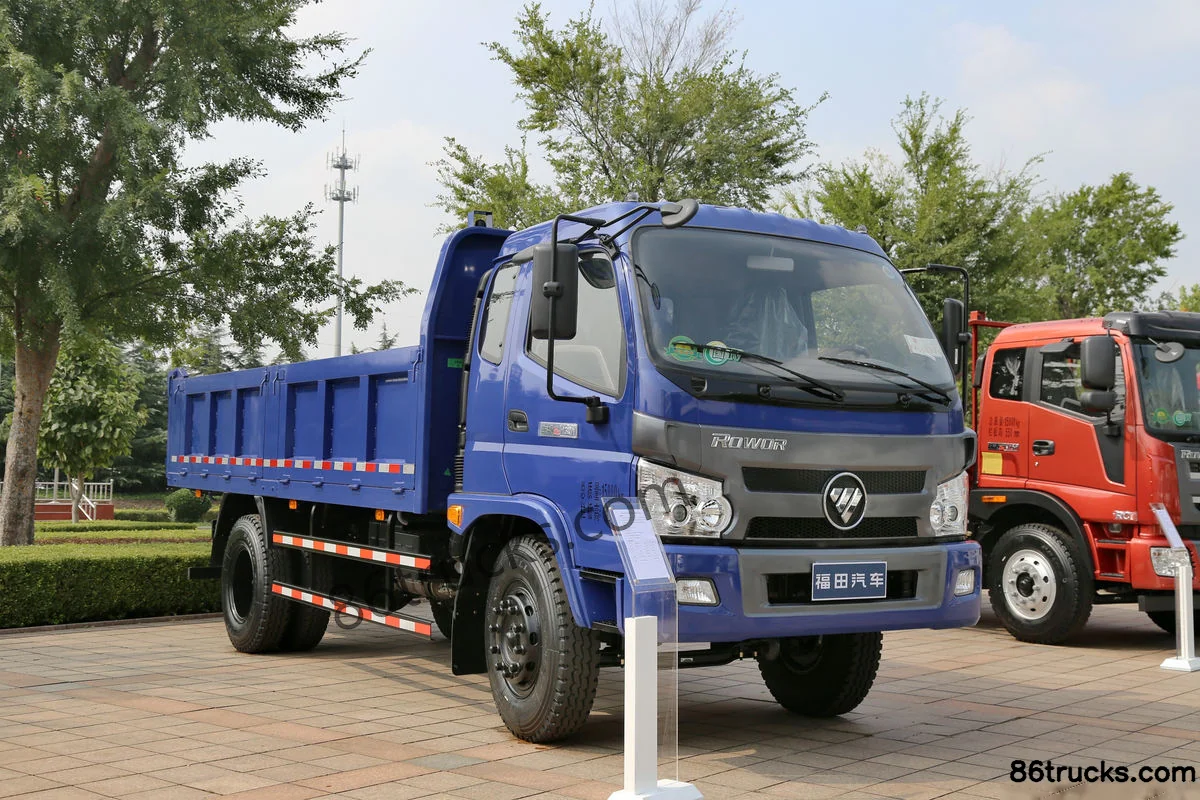

Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Exterior (1) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Exterior (2) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Exterior (3) | 86Trucks

Cab3

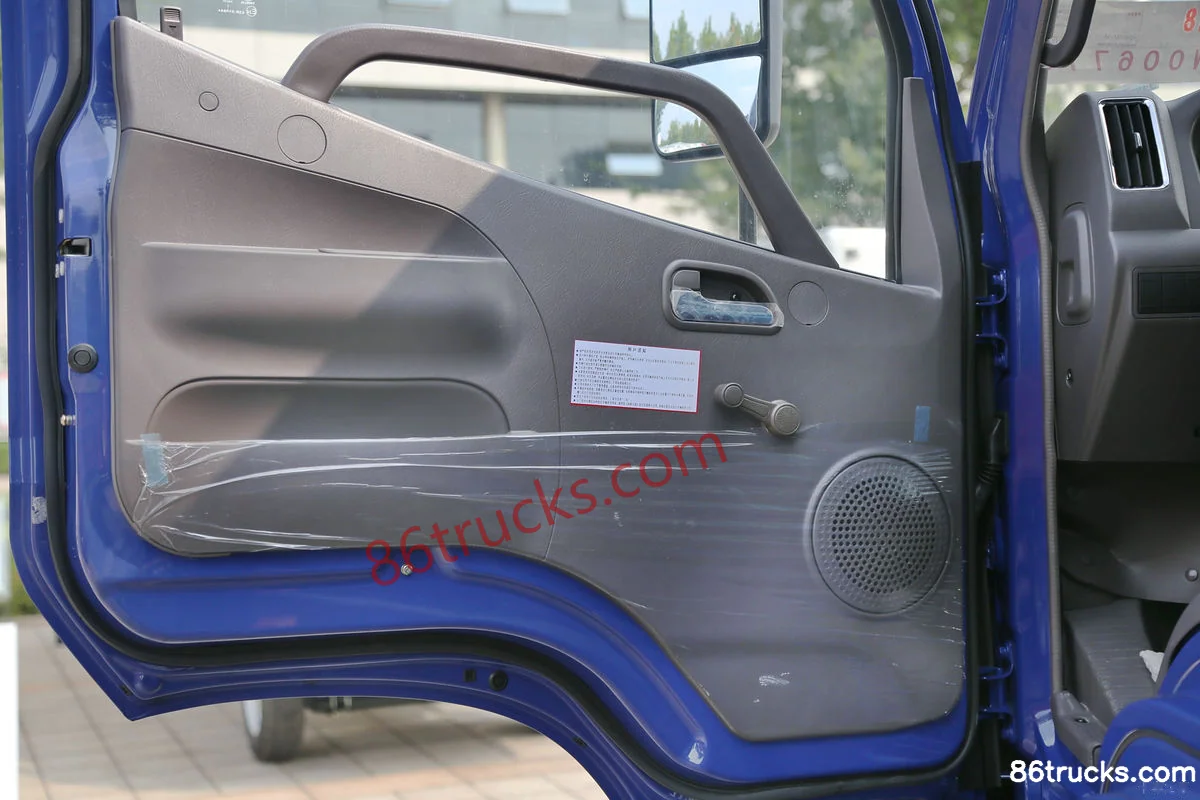

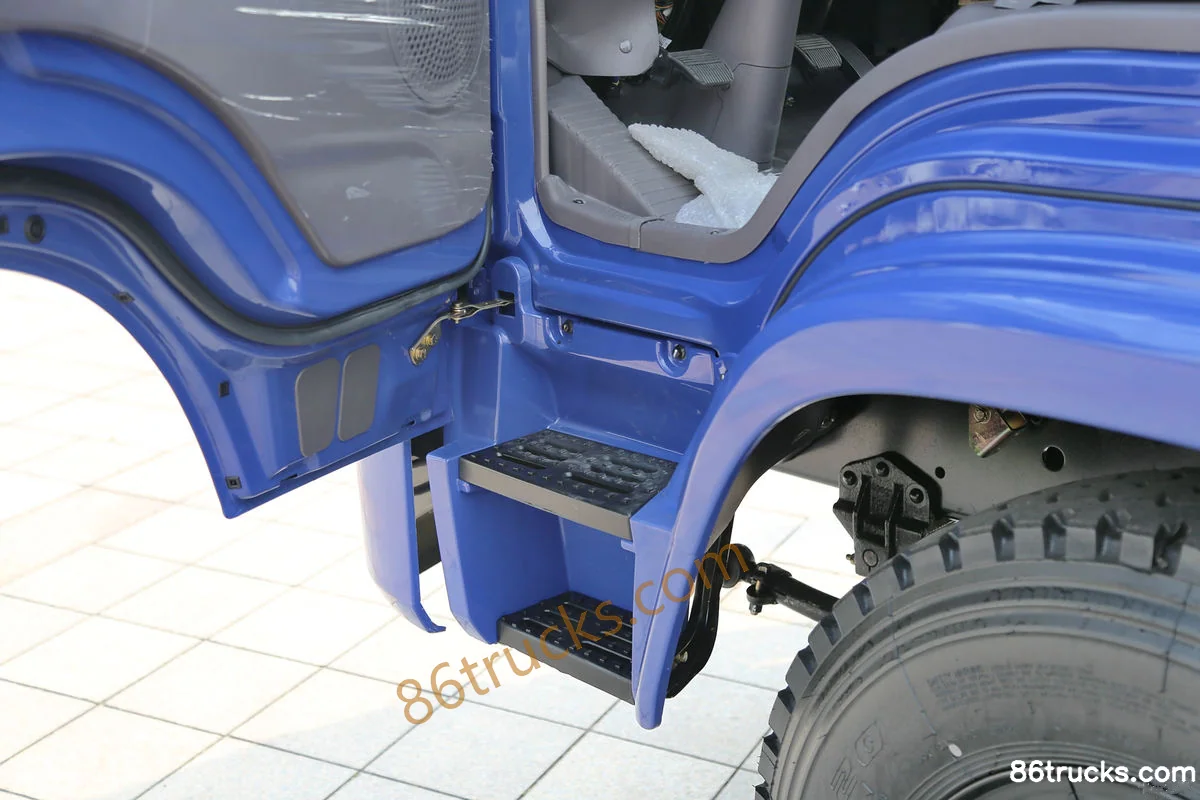

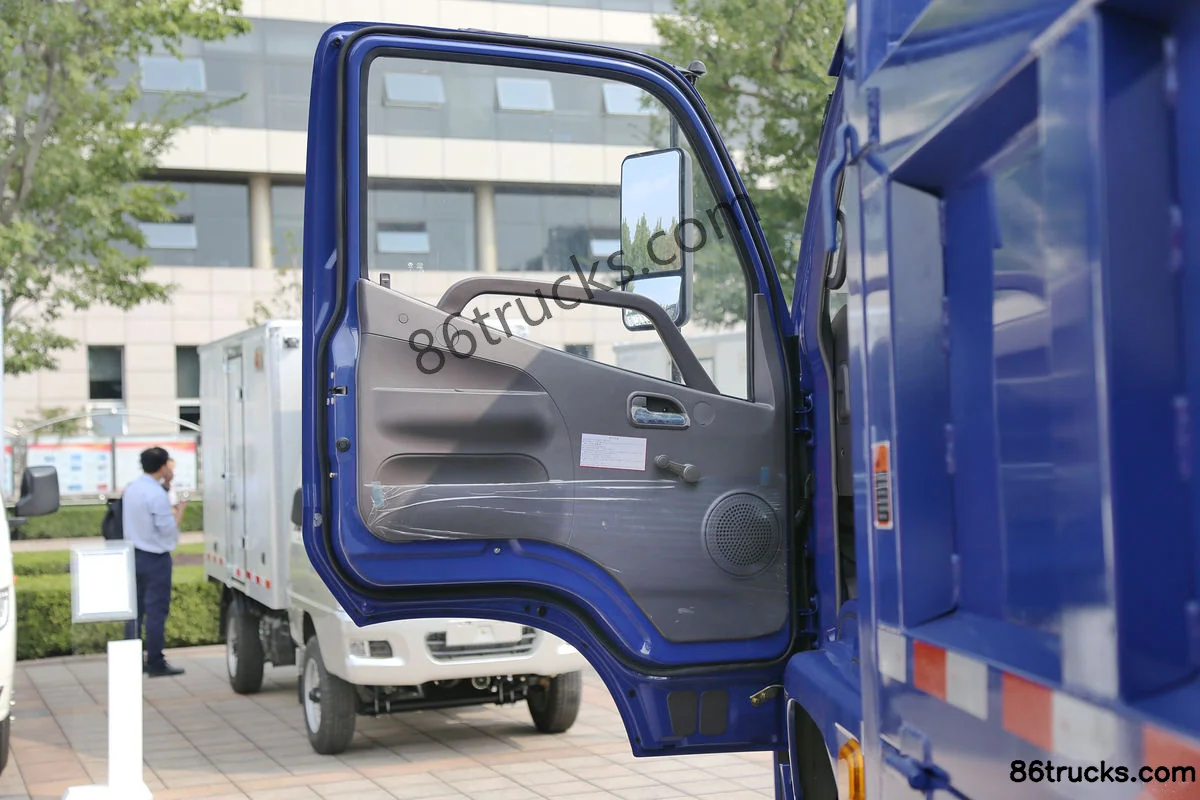

Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Cab (1) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Cab (2) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Cab (3) | 86Trucks

Chassis3

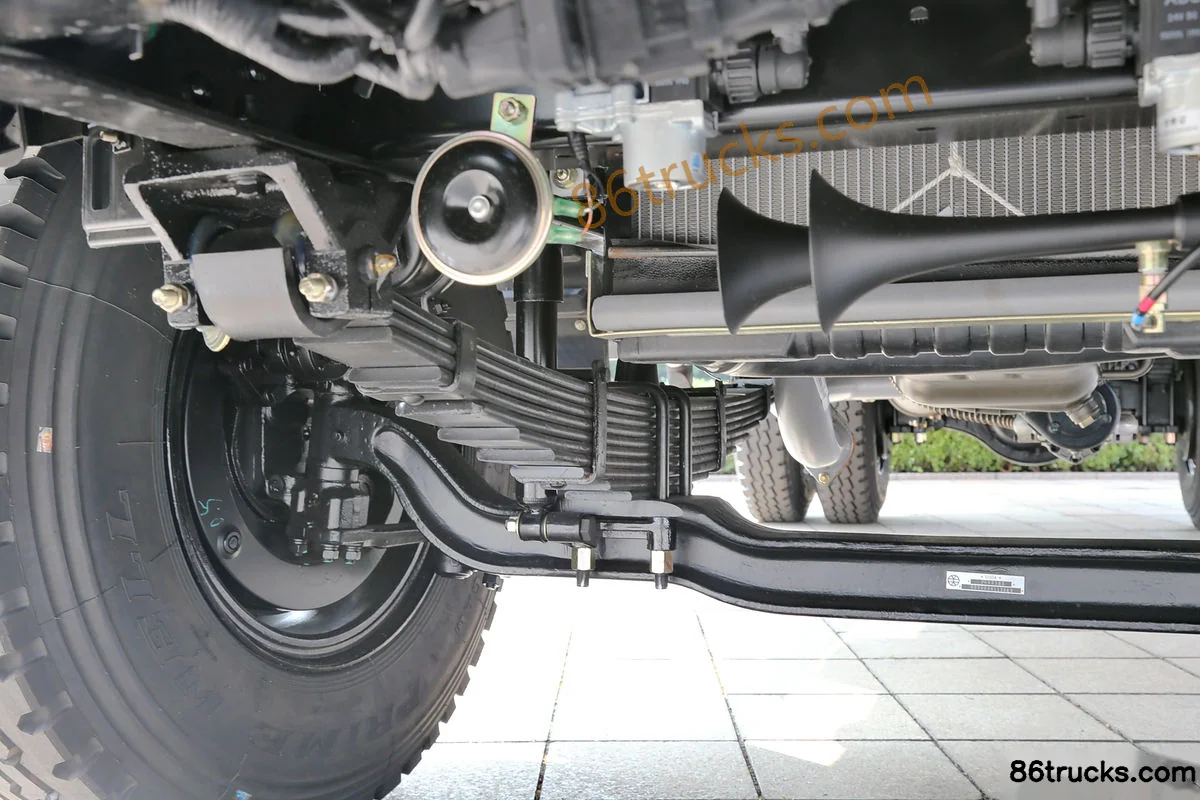

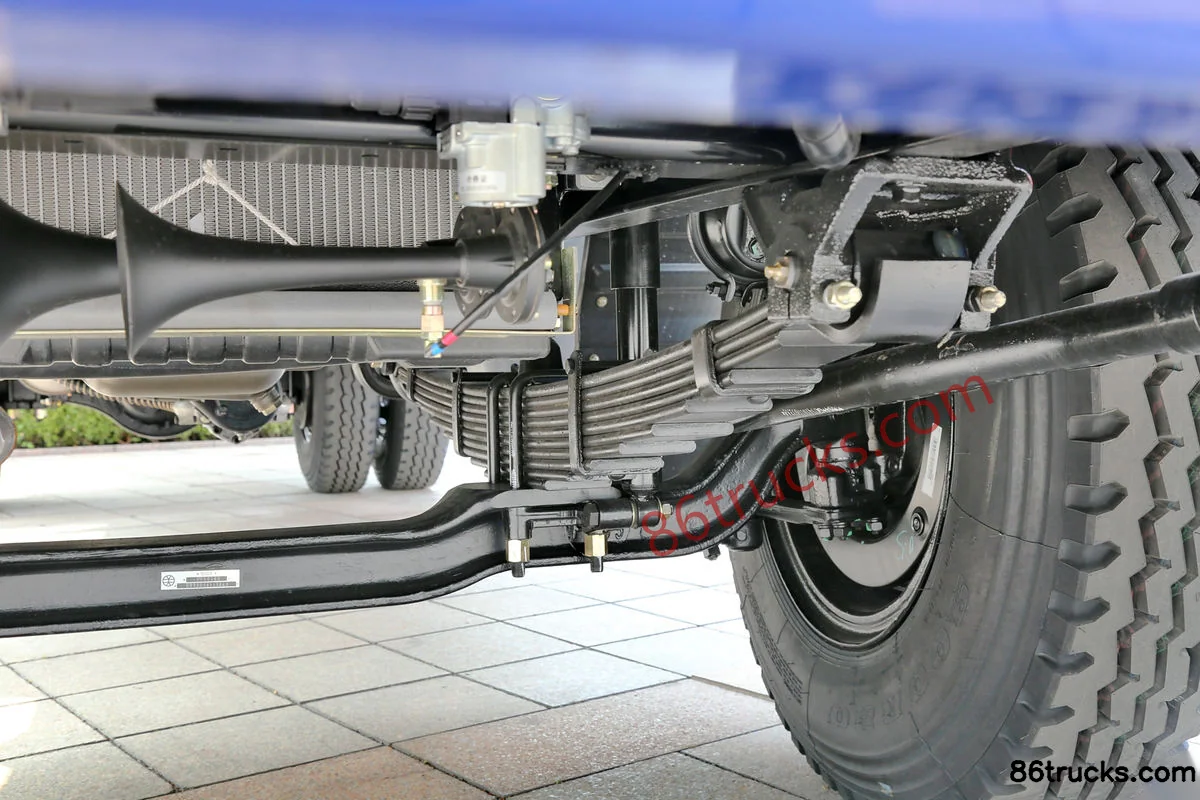

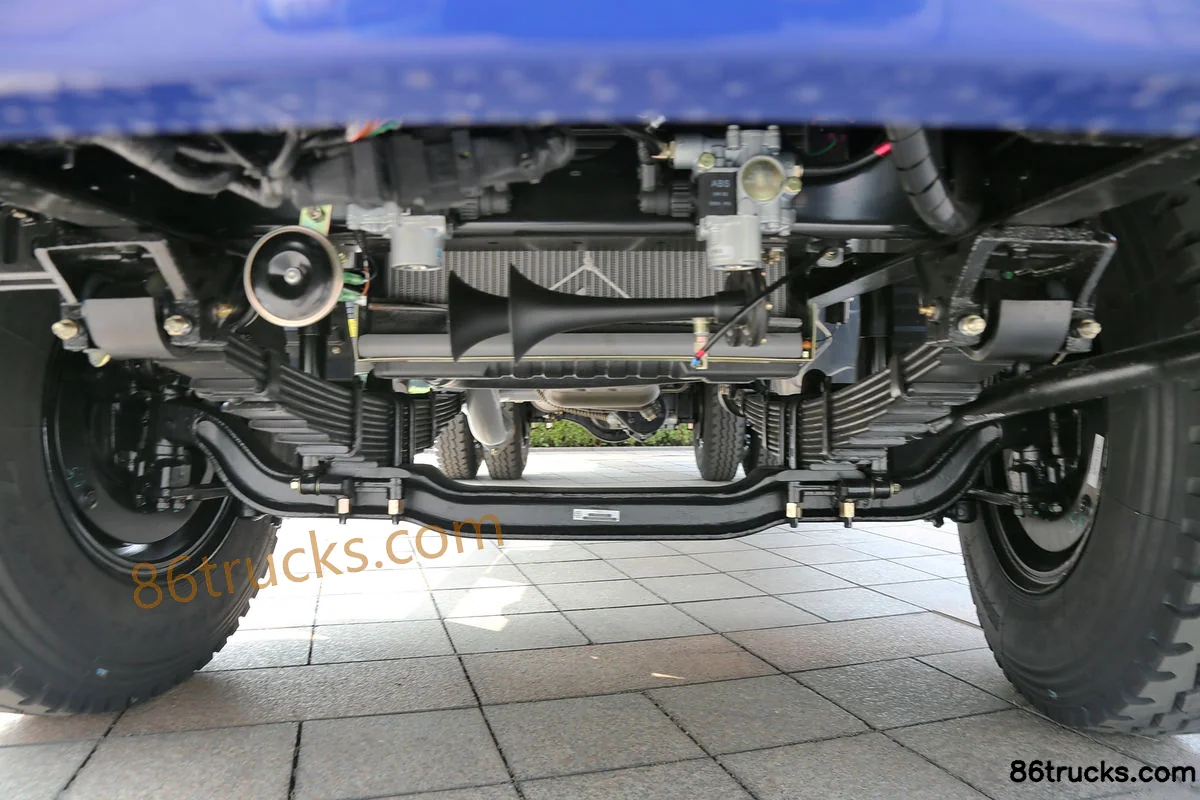

Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Chassis (1) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Chassis (2) | 86Trucks Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck?

Key specs of Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: Jinhua Tangchi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck suited for?

Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck differ from other variants in the same series?

Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck belongs to Foton King Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton KingKong Transport Type 129hp 4X2(6 wheels) 4.75m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
