NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck

Export reference
From $14,694
MSRP ¥10.58M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3300mm
Tire Size:: 7.00R16 10PR,7.50R16 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-13E5 engine, 130 hp, China V emissions and WLY transmission.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040ED32V
Drive type: 4X2
Wheelbase: 3300mm
engine: XichaiCA4DB1-13E5
transmission: WLY5HQ-41DY1KO
Rear Axle Ratio: 6.833
Cab length: 5.79m
Cab width: 2.03m
Cab height: 2.18m
Front track width: 1660mm
rear track: 1586mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-13E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.21L
Emission standard: China V
Max output power: 95kW
Max hp: 130Horsepower
Max torque: 350N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR DOC DPF
Transmission Parameters
Transmission Model: WLY5HQ-41DY1KO
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 1.9m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle description: 1080
rear axle allowable load: 2925kg
Axle ratio: 6.833
Leaf spring count: 3/8+8,9/11+8,9/10+8
Tire
Tire Size: 7.00R16 10PR,7.50R16 8PR
Number of tires: 6pcs
Control configuration
ABS:

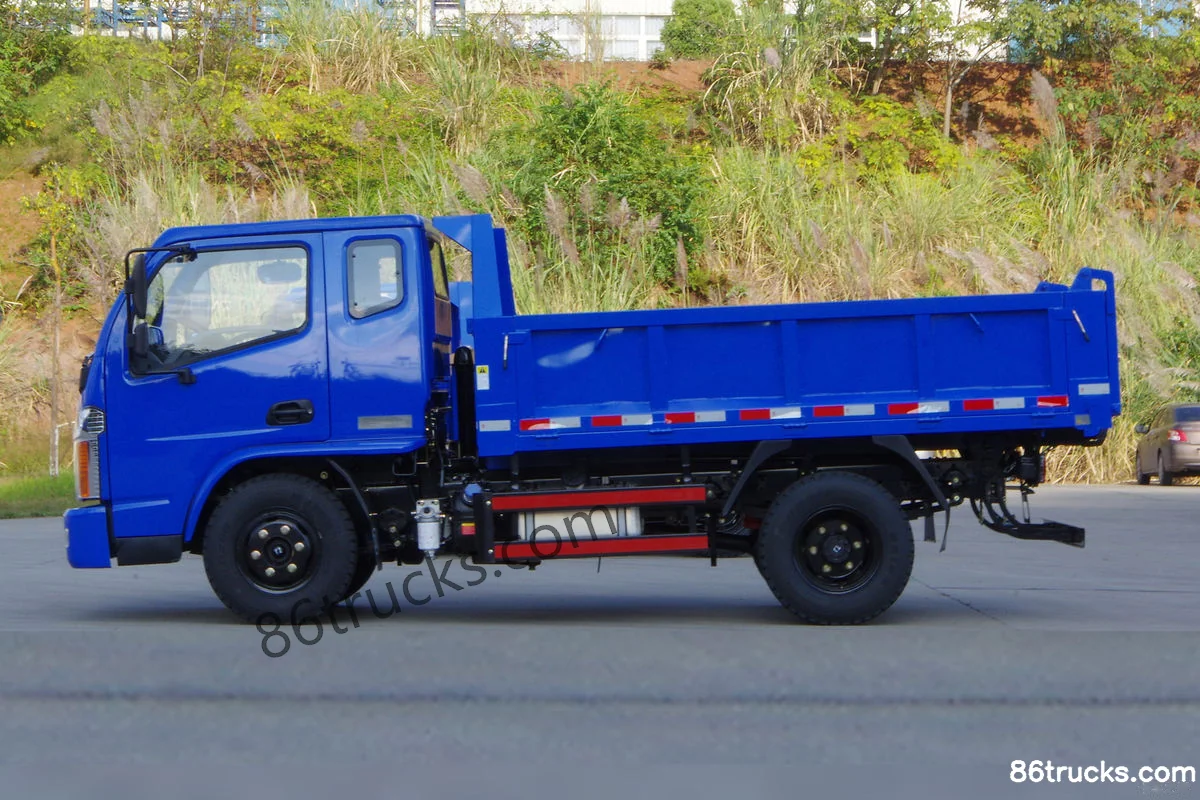

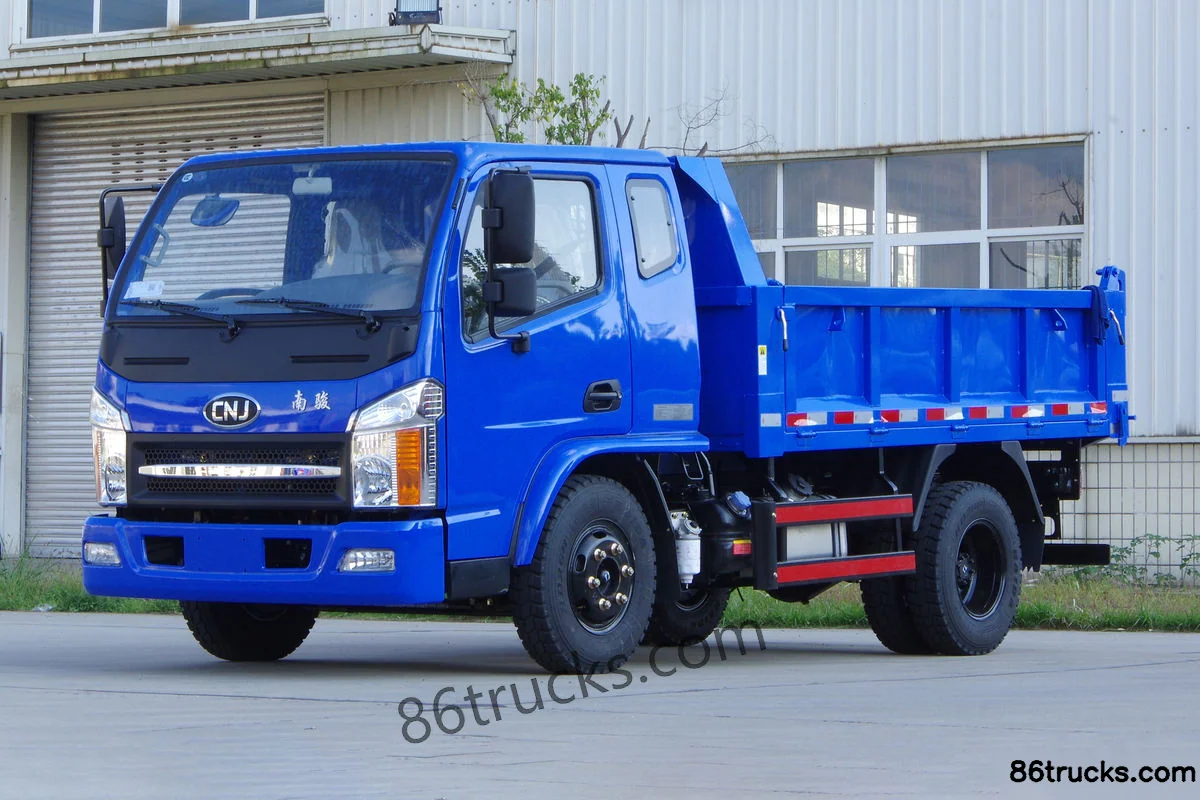

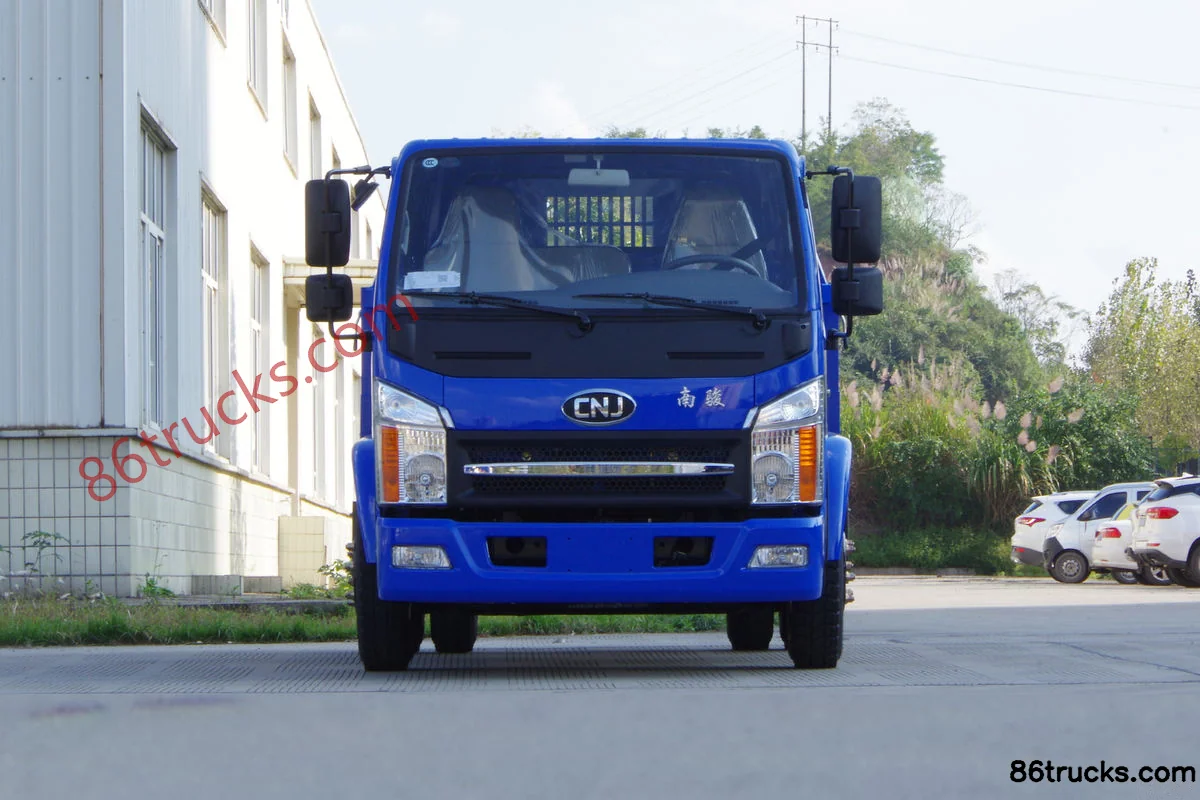

Photos

Exterior3

3 photos

FAQ

What is the export price of NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck, and what does it include?

NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck export reference is about From $14,694; MSRP is ¥10.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck?

Key specs of NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck suited for?

NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck differ from other variants in the same series?

NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck belongs to NanJun Xiangkang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Xiangkang 130 hp 4X2(6 wheels) 3.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
