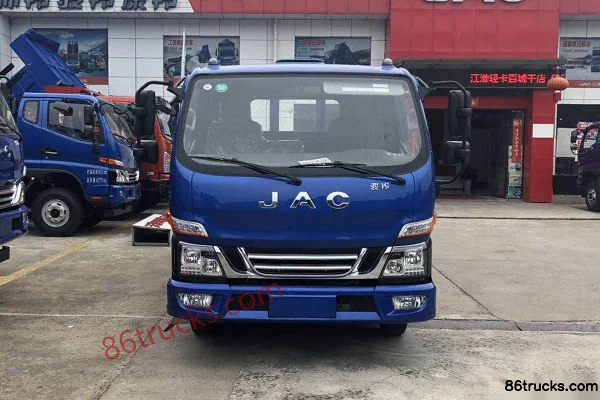

JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck

Export reference
From $17,222
MSRP ¥12.4M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3400mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 156
Cargo box type: Dump type

Overview

The JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIE1 engine, 156 hp, China V emissions and WLY transmission.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046P91K2C9V
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerD30TCIE1
transmission: WLYWLY10H46
Rear Axle Ratio: 5.83
Cab length: 5.995m
Cab width: 2.285m
Cab height: 2.4m
Front track width: 1695mm
rear track: 1705mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
Remarks: Fuel tank optional aluminum
Version: Transport type
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.15m
Cargo box width: 2.11m
Cargo box height: 0.55m
Cab parameters
Cab: G6
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1540kg
rear axle allowable load: 2750kg
Axle ratio: 5.83
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck, and what does it include?

JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck export reference is about From $17,222; MSRP is ¥12.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck?

Key specs of JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck suited for?

JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck differ from other variants in the same series?

JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G Series V6 Transport 156 hp 4X2(6 wheels) 4.15m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
