Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis

Export reference
From $25,694
MSRP ¥18.5M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3650mm
Tire Size:: 7.50-16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4S130-50 engine, 130 hp, China V emissions and WLY transmission.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3041L2Y1N5
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYC4S130-50
transmission: WLYWLY653H
Rear Axle Ratio: 6.833
Cab length: 5.995m
Cab width: 2.39m
Cab height: 2.75m
Front track width: 1670mm
rear track: 1585mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 30°
departure angle: 17°
Remarks: Power steering, clutch booster, air dryer, front/rear axle M30 large bolts
Version: Construction version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S130-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 430N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY653H
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift cylinder
Cab parameters
Cab: T3 Sleeper Standard
Cab width: 1995mm
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle description: 151 single front
Front axle allowable load: 1850kg
rear axle description: 153 shortened
rear axle allowable load: 2440kg
Axle ratio: 6.833
Leaf spring count: 8/11+8
clutch: Φ350
Tire
Tire Size: 7.50-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

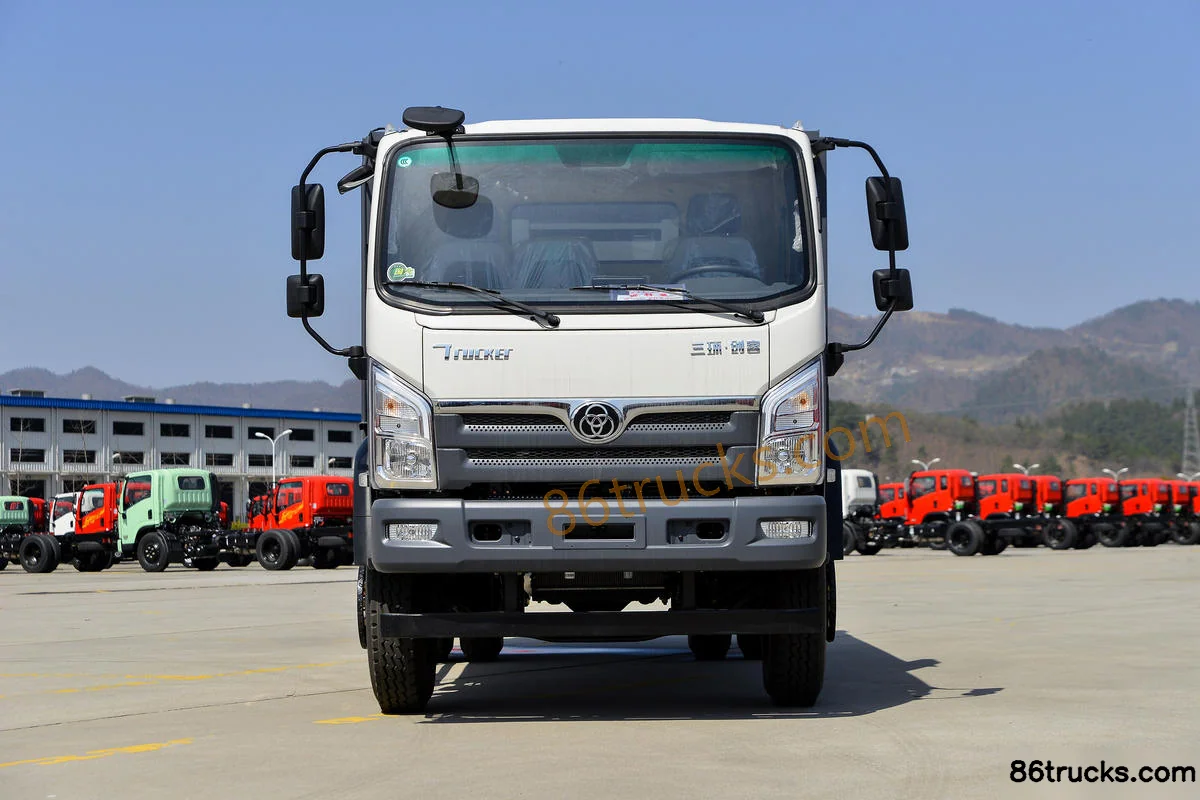

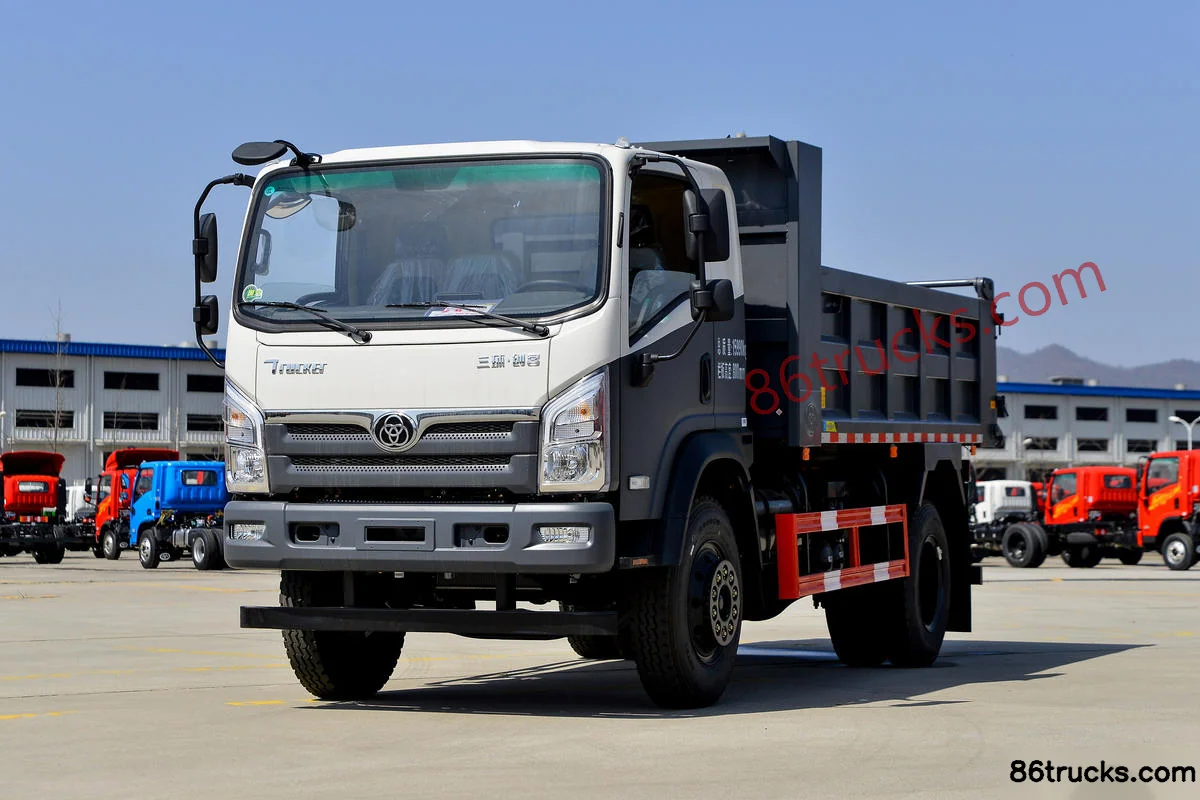

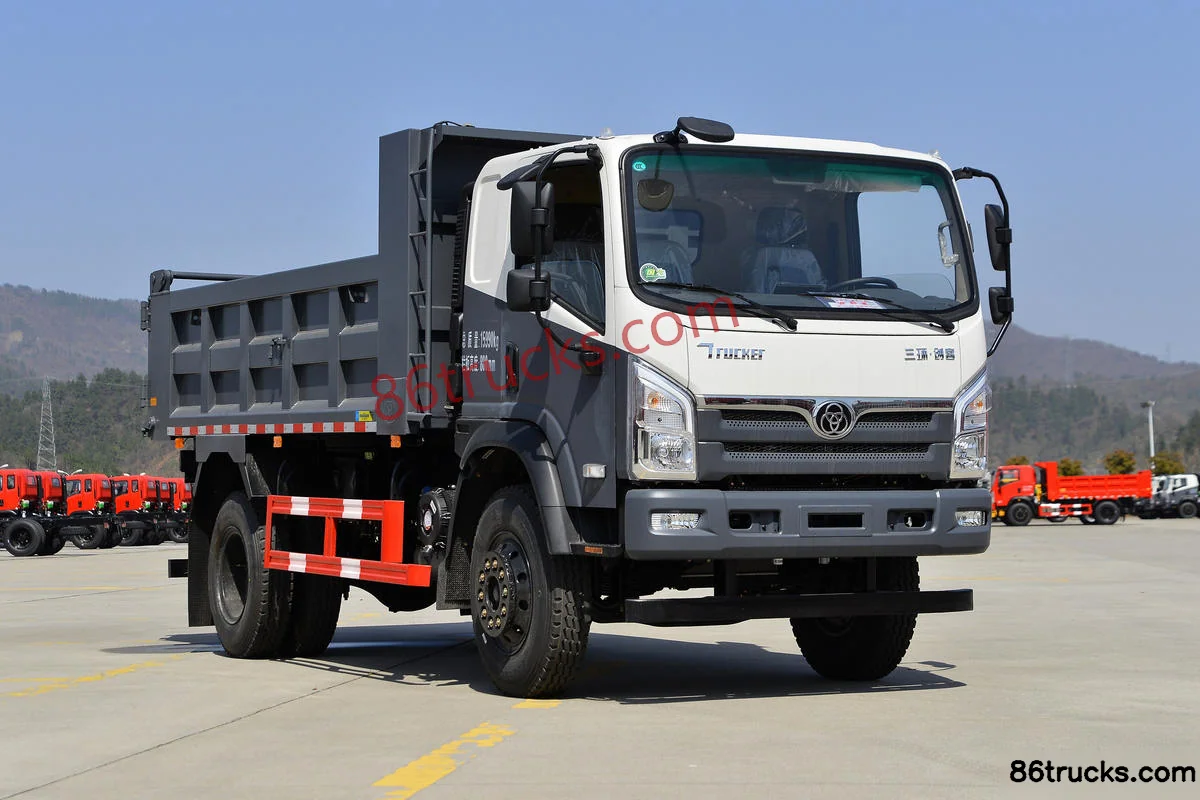

Exterior3

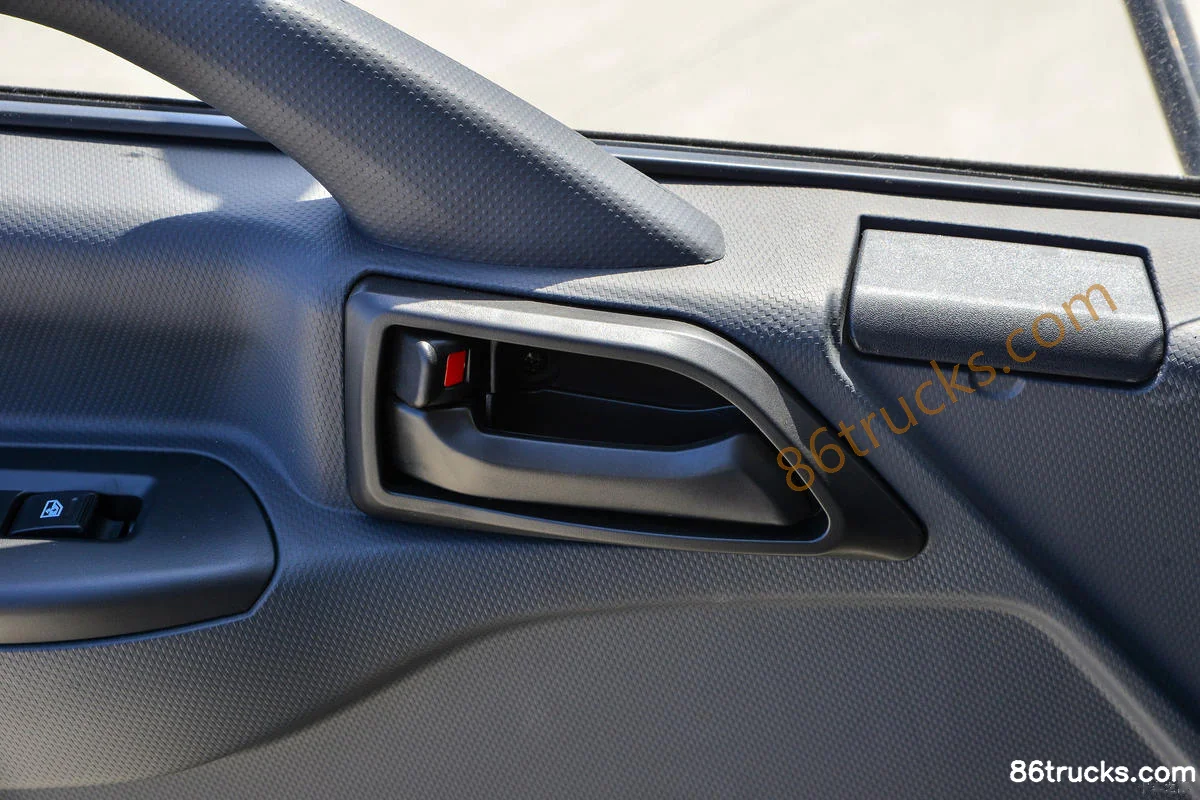

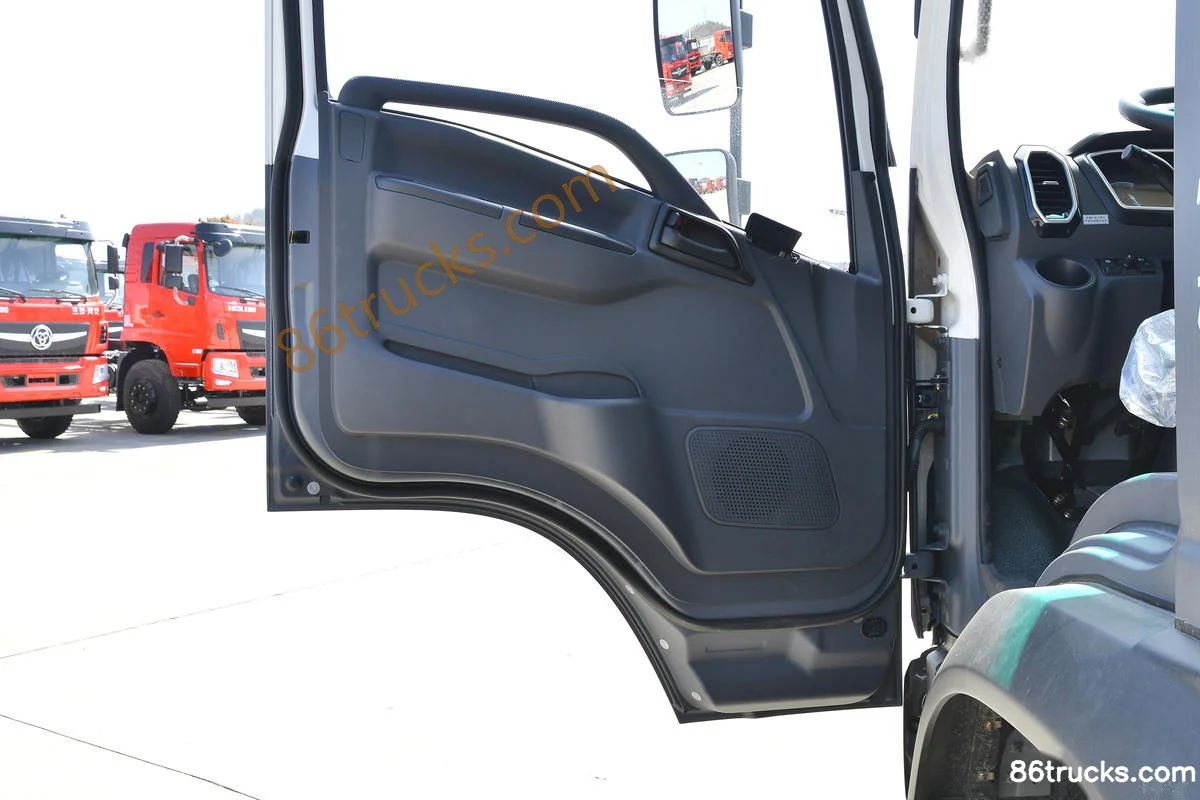

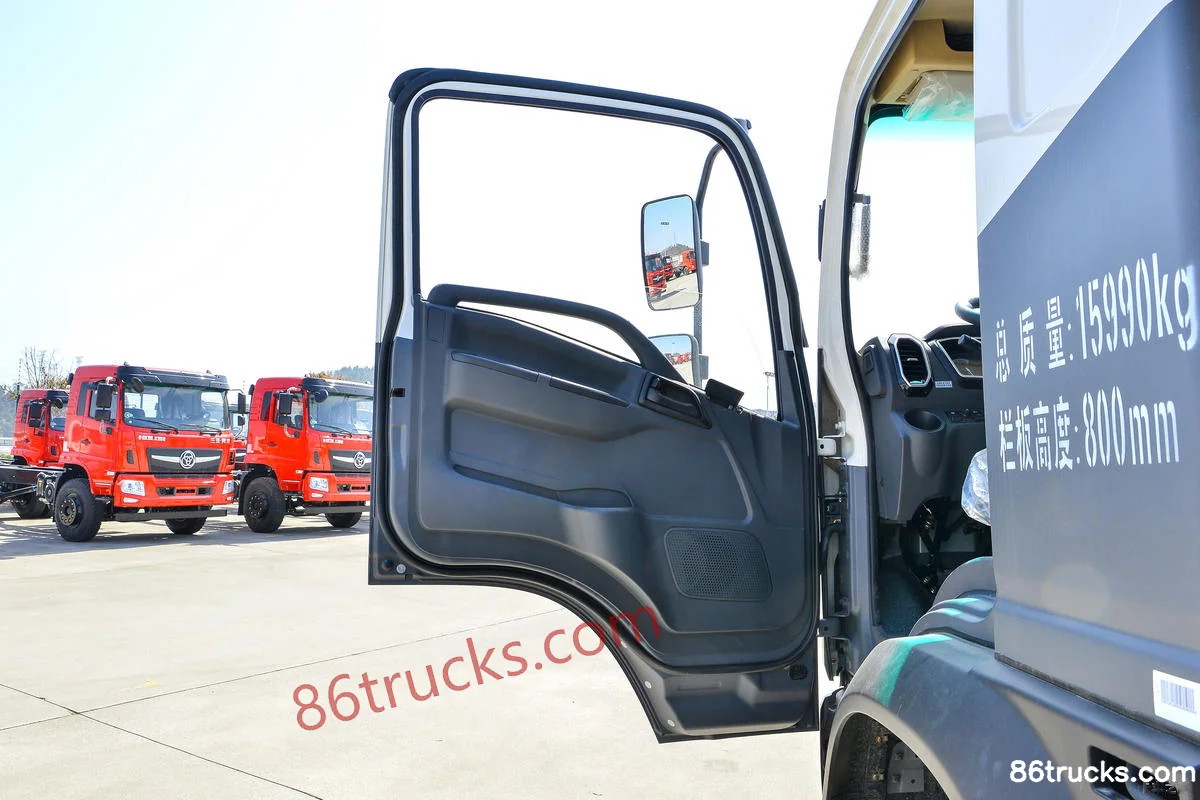

Cab3

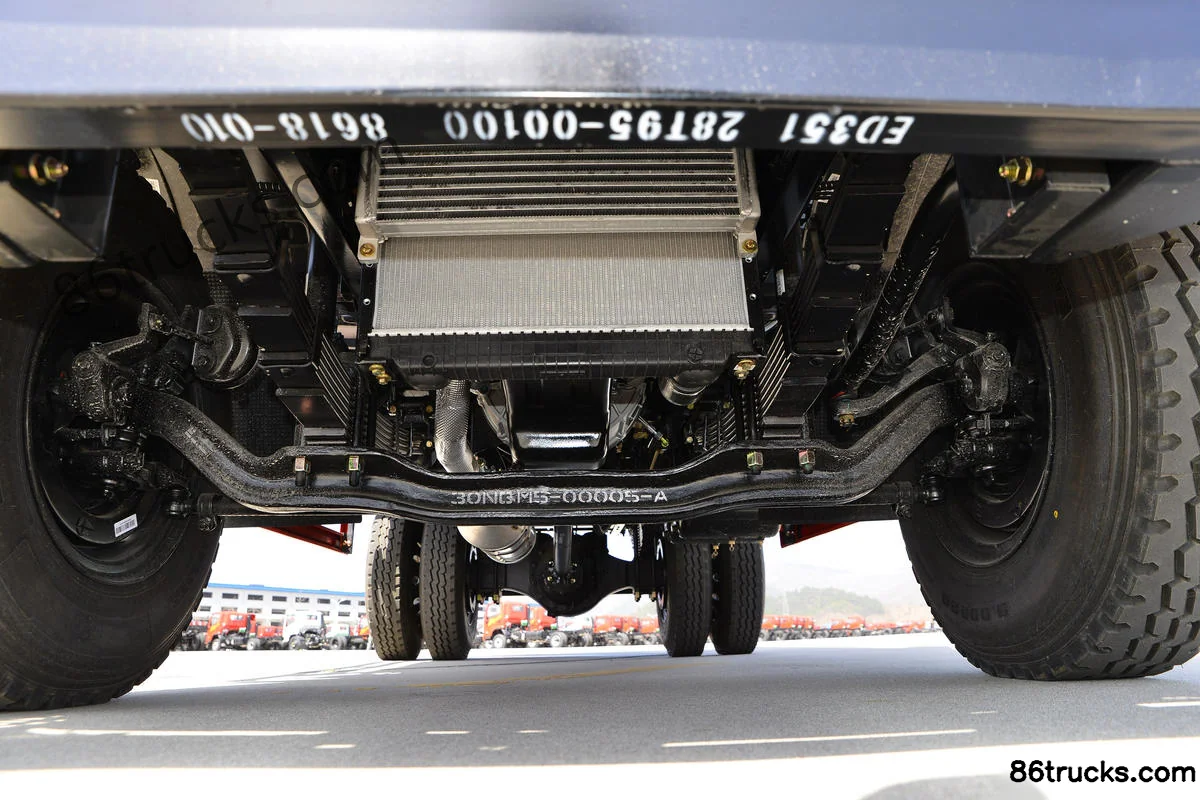

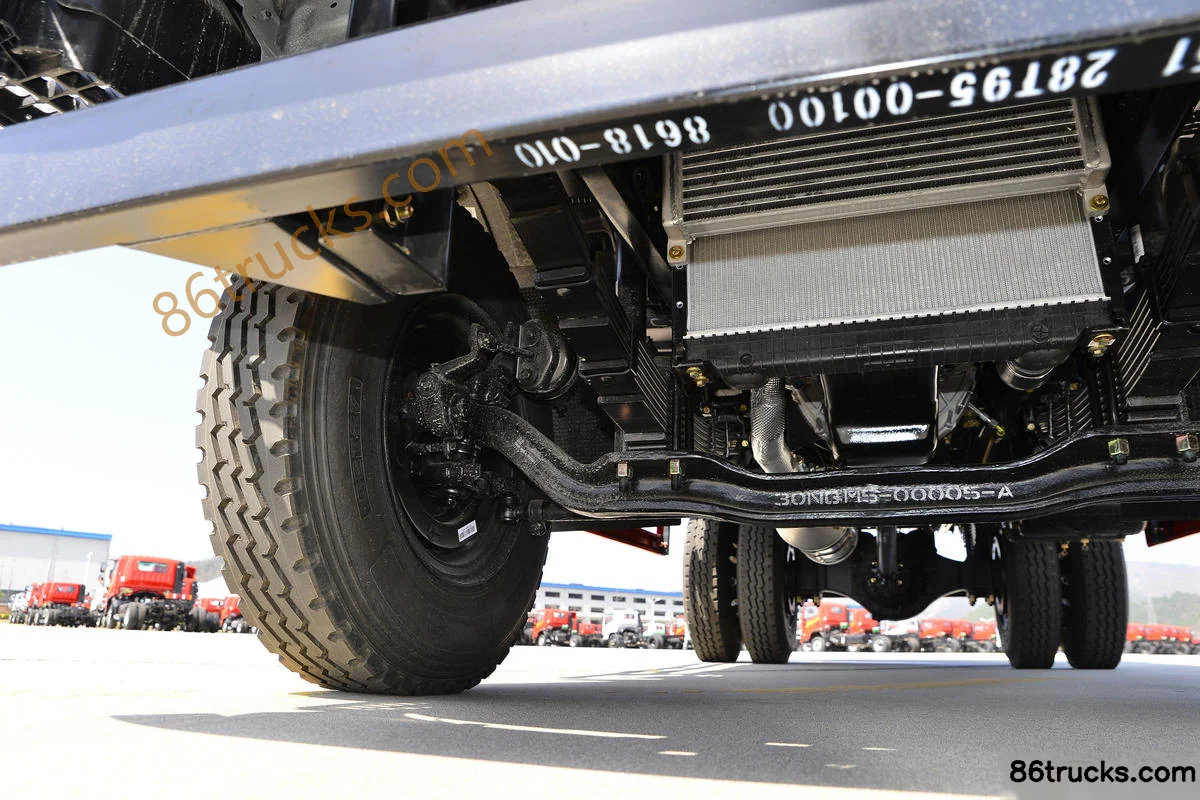

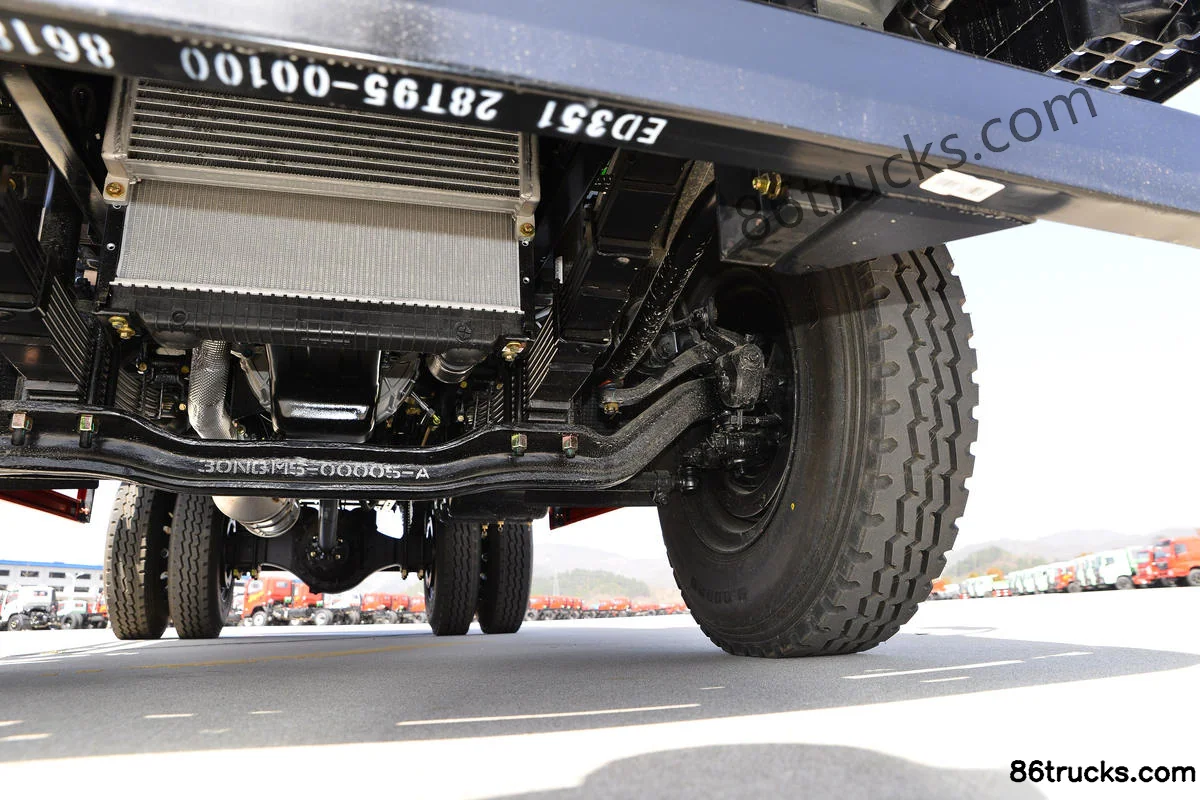

Chassis3

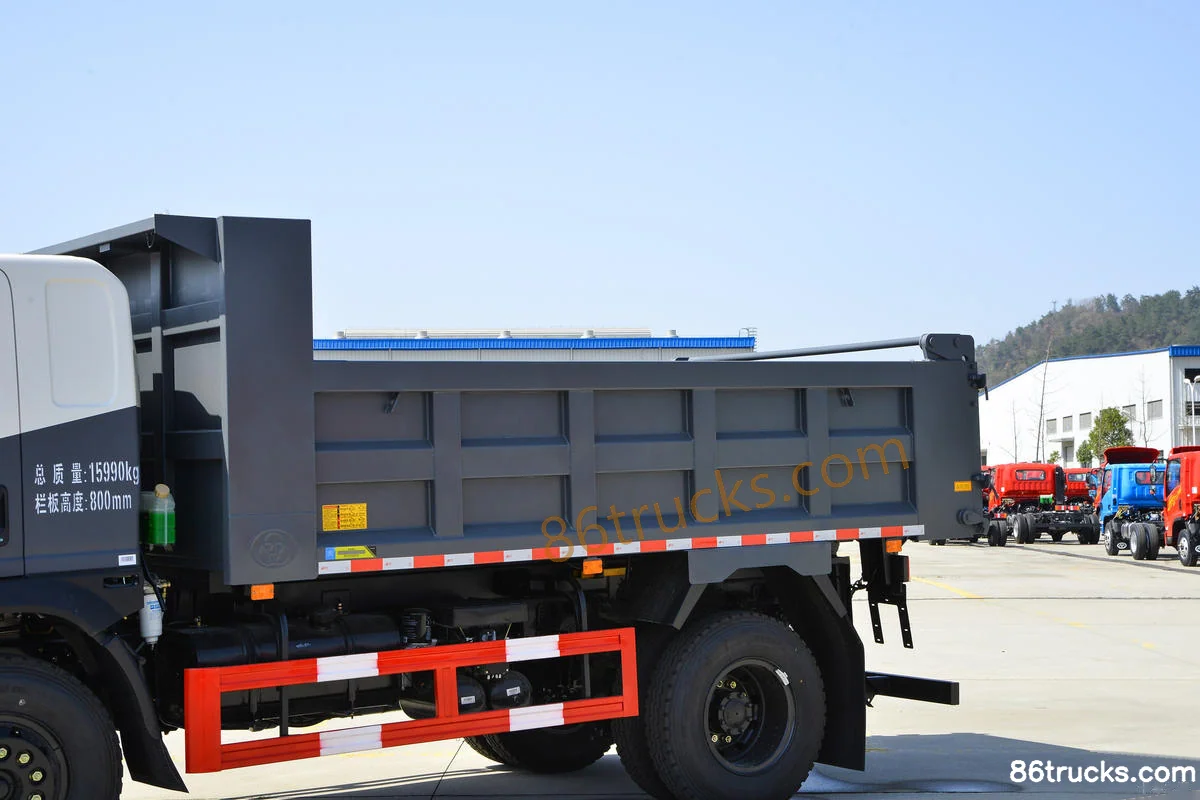

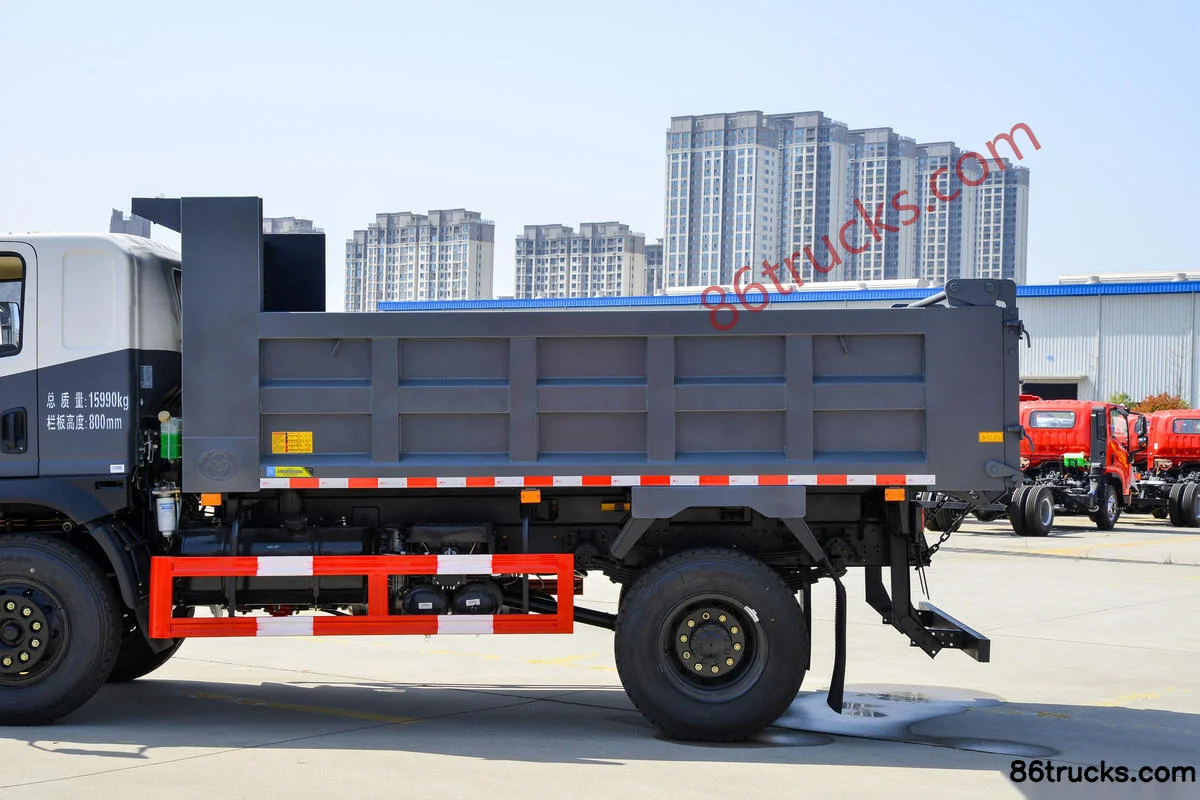

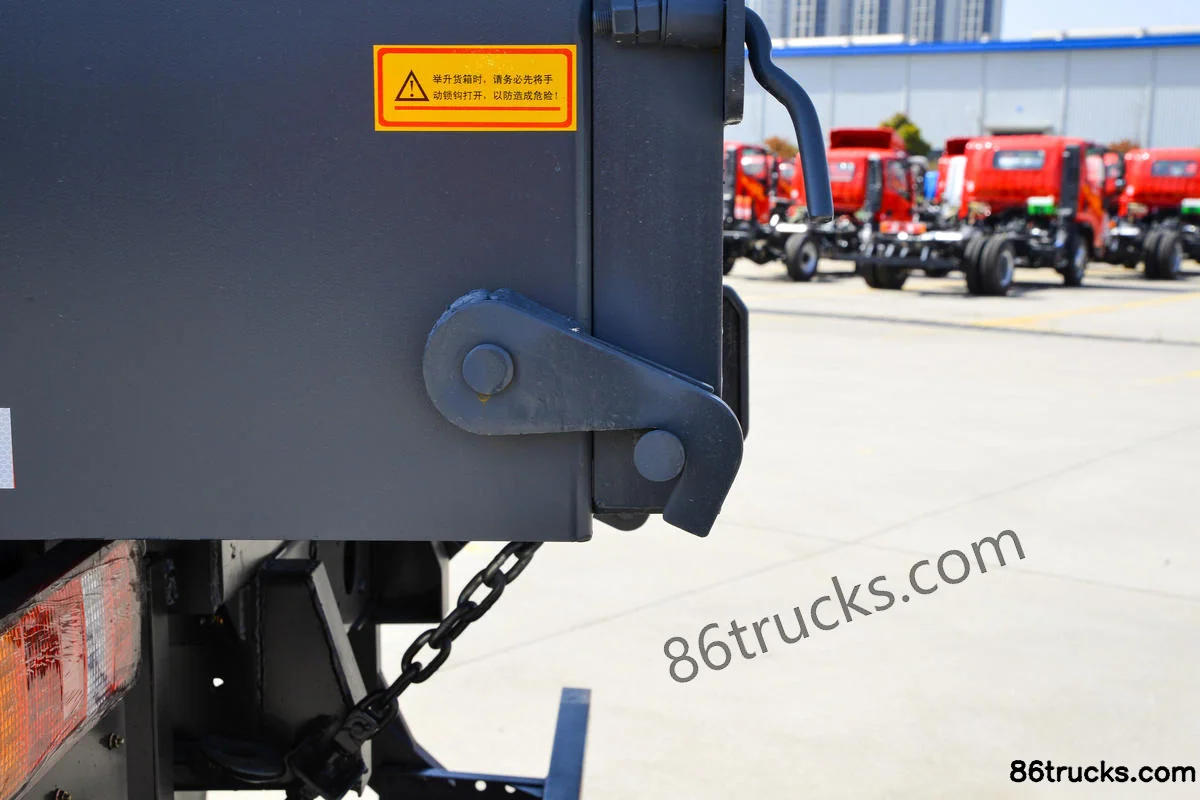

Body3

12 photos

FAQ

What is the export price of Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis, and what does it include?

Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis export reference is about From $25,694; MSRP is ¥18.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis?

Key specs of Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis suited for?

Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke Engineering Edition 130hp 4X2(6 wheels) 4.2m Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
