Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 3600mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 156
Cargo box type: Dump type

Overview

The Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E2 engine, 156 hp, China V emissions and Fast Gear transmission.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3040G16C6M5
Drive type: 4X2
Wheelbase: 3600mm
engine: Yunnei PowerYNF40E2
transmission: Fast Gear8JS85E-C
Rear Axle Ratio: 5.286
Cab length: 5.995m
Cab width: 2.45m
Cab height: 2.8m
Front track width: 1770mm
rear track: 1706mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ma'anshan, Anhui
tonnage class: Light Truck
Approach angle: 20°
departure angle: 33°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2000rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear8JS85E-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.85m
Cargo box width: 2.3m
Cargo box height: 0.5m
Chassis Specs
Front axle description: HL145Q
Front axle allowable load: 1995kg
rear axle description: HL145Z
rear axle allowable load: 2500kg
Axle ratio: 5.286
Leaf spring count: 3/5+3
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

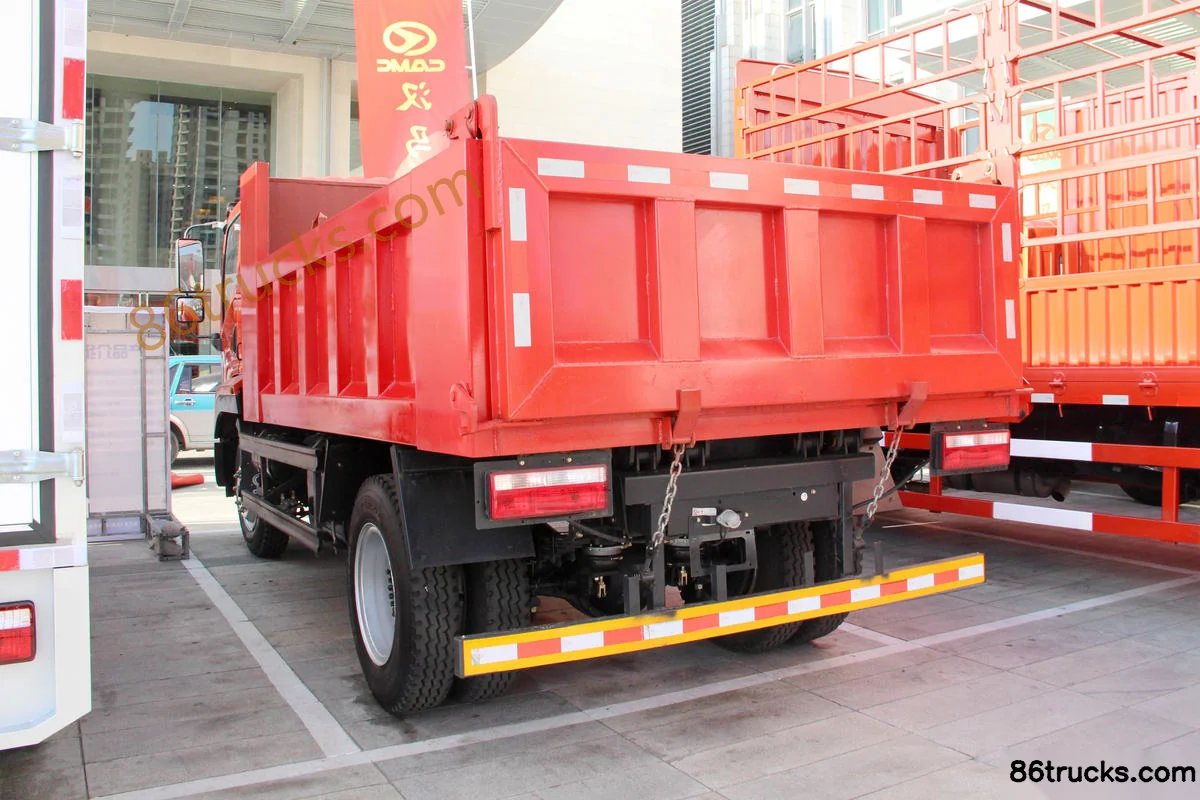

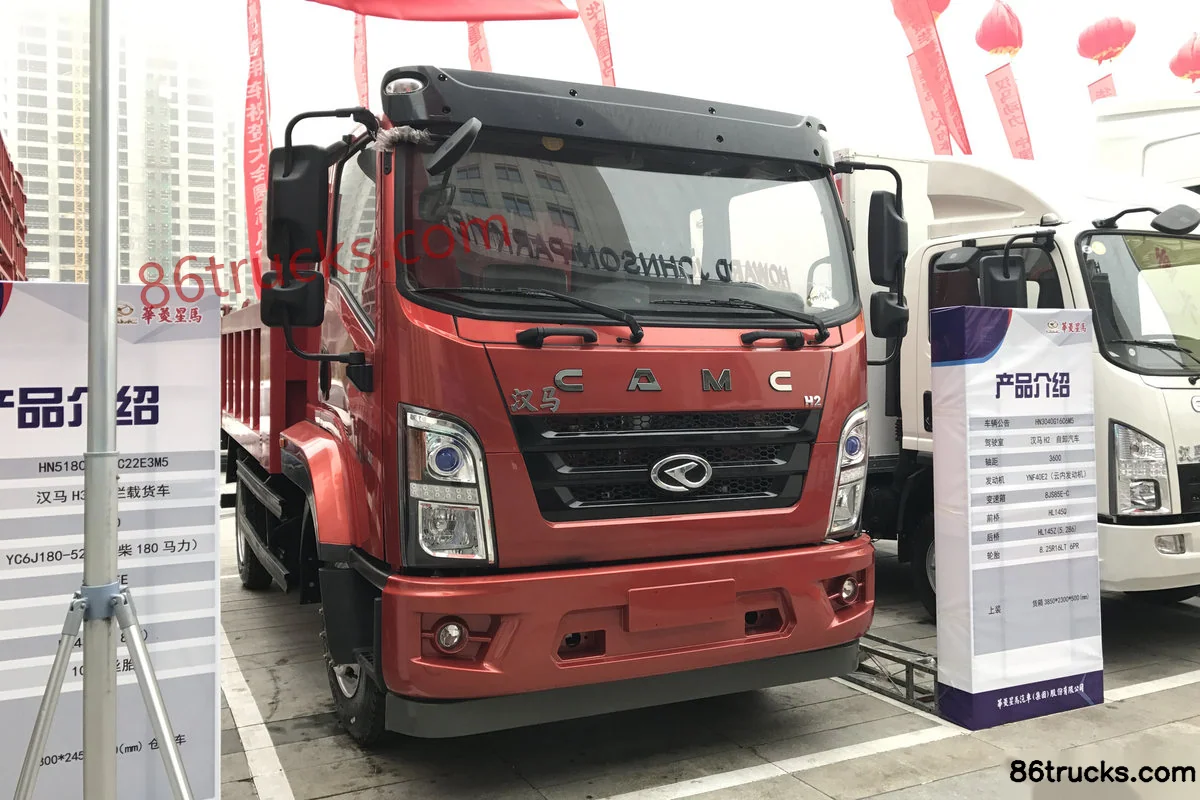

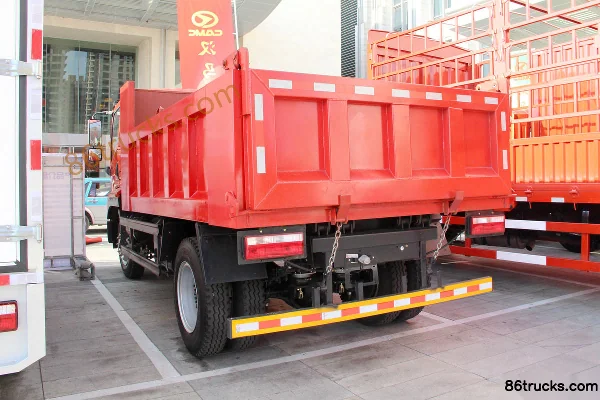

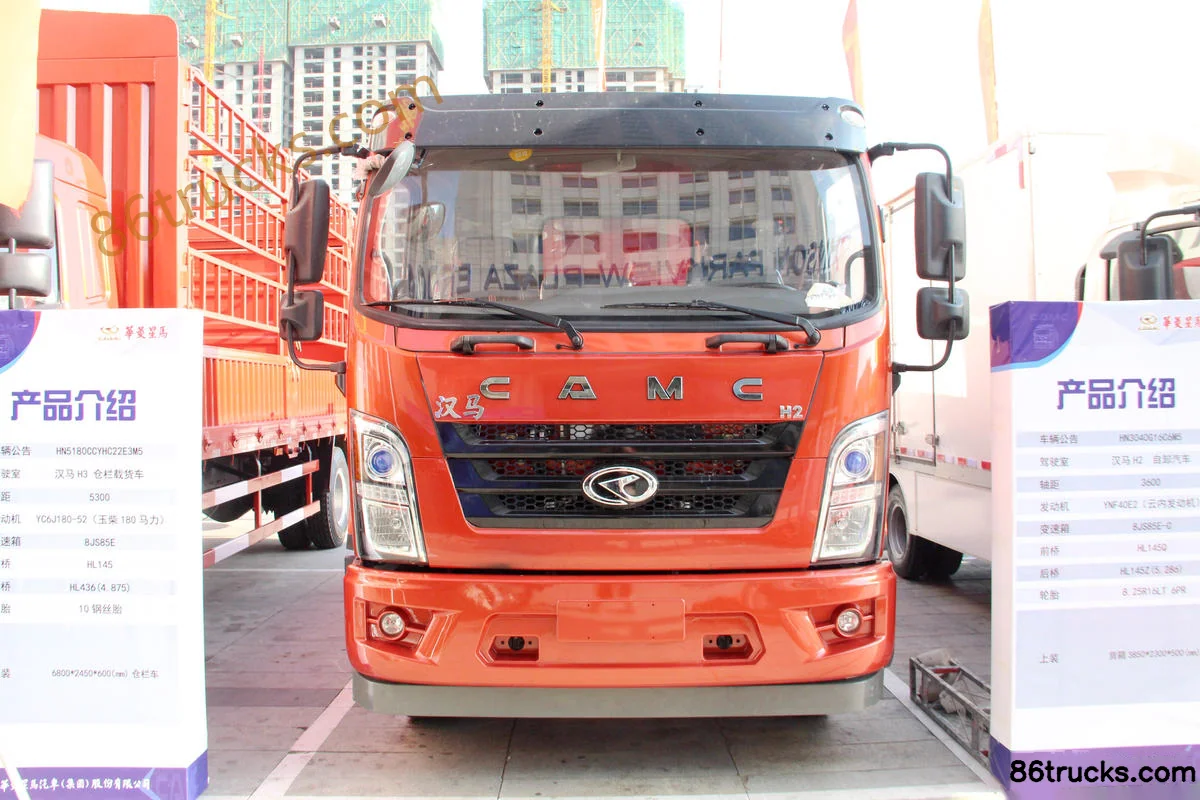

Exterior3

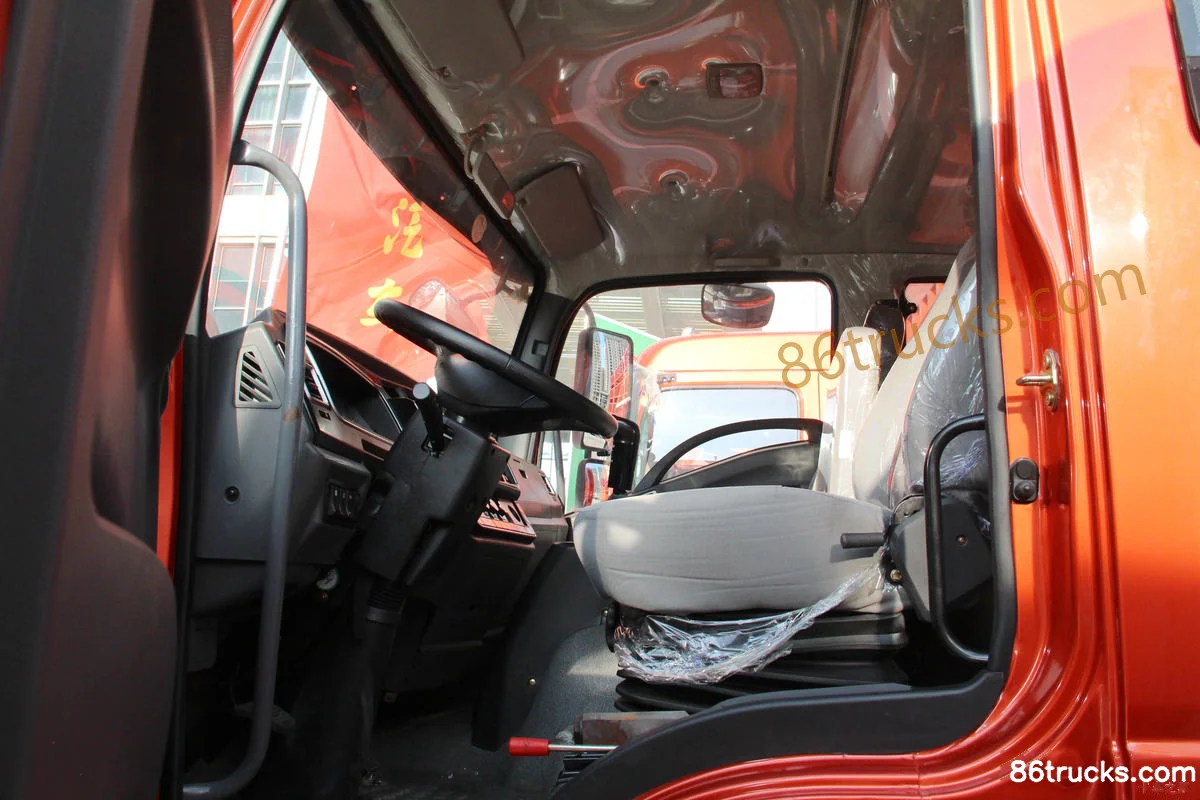

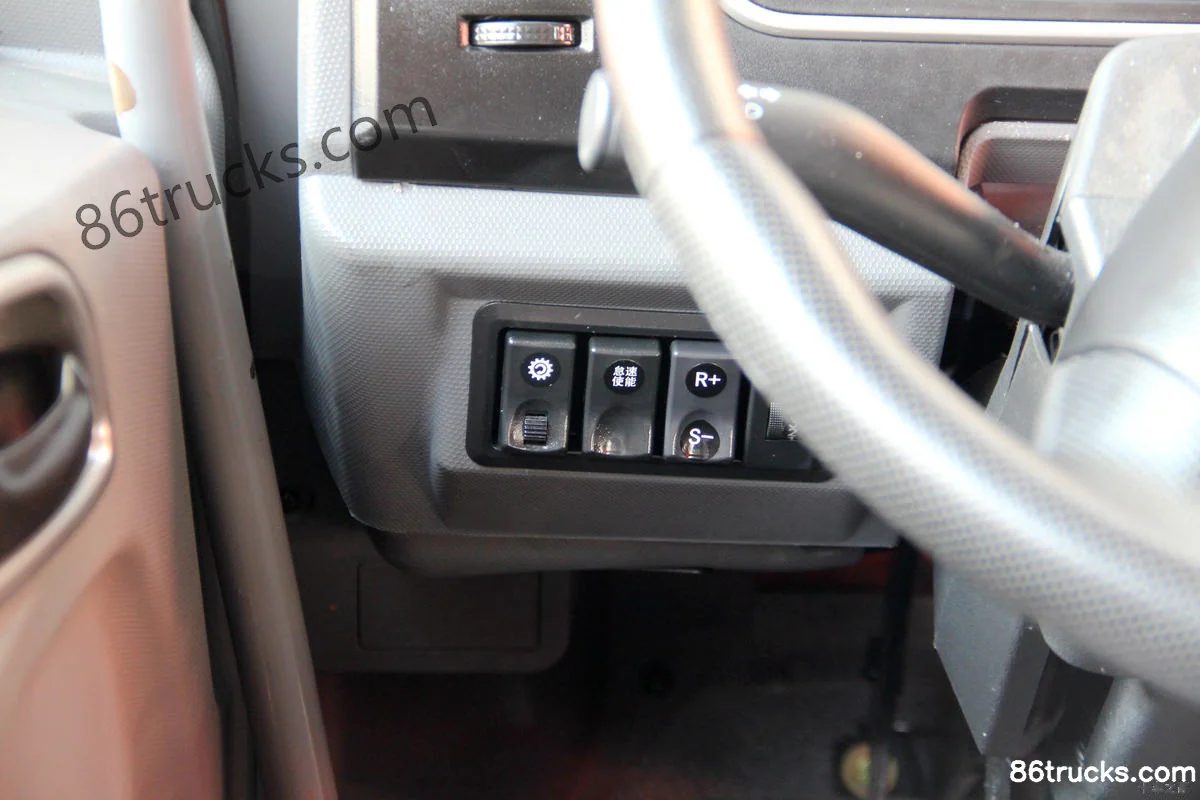

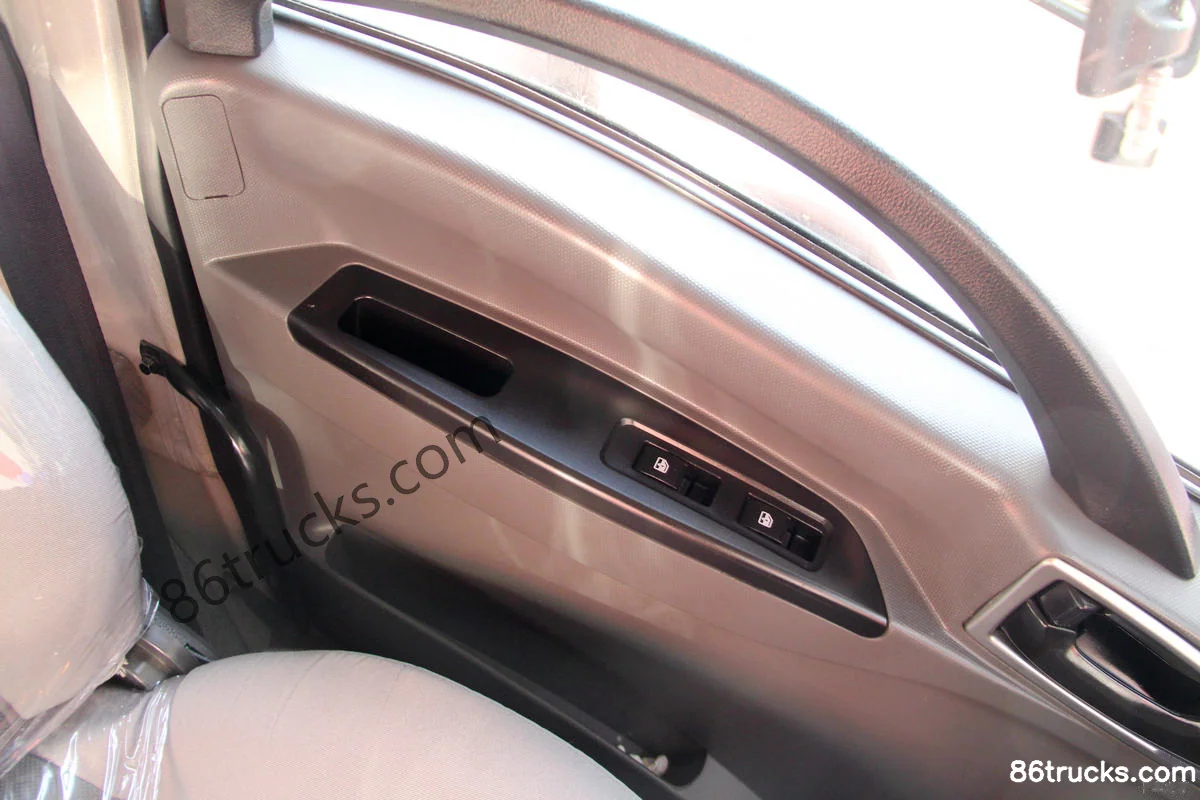

Cab3

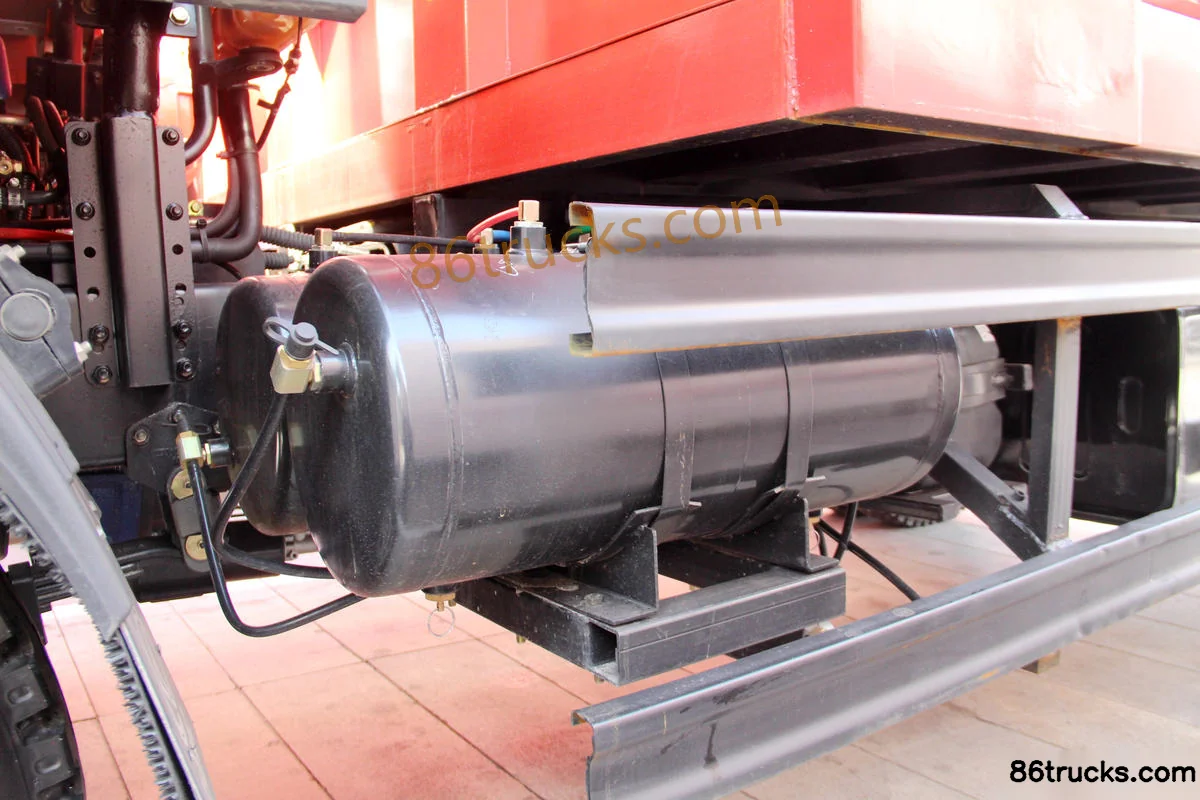

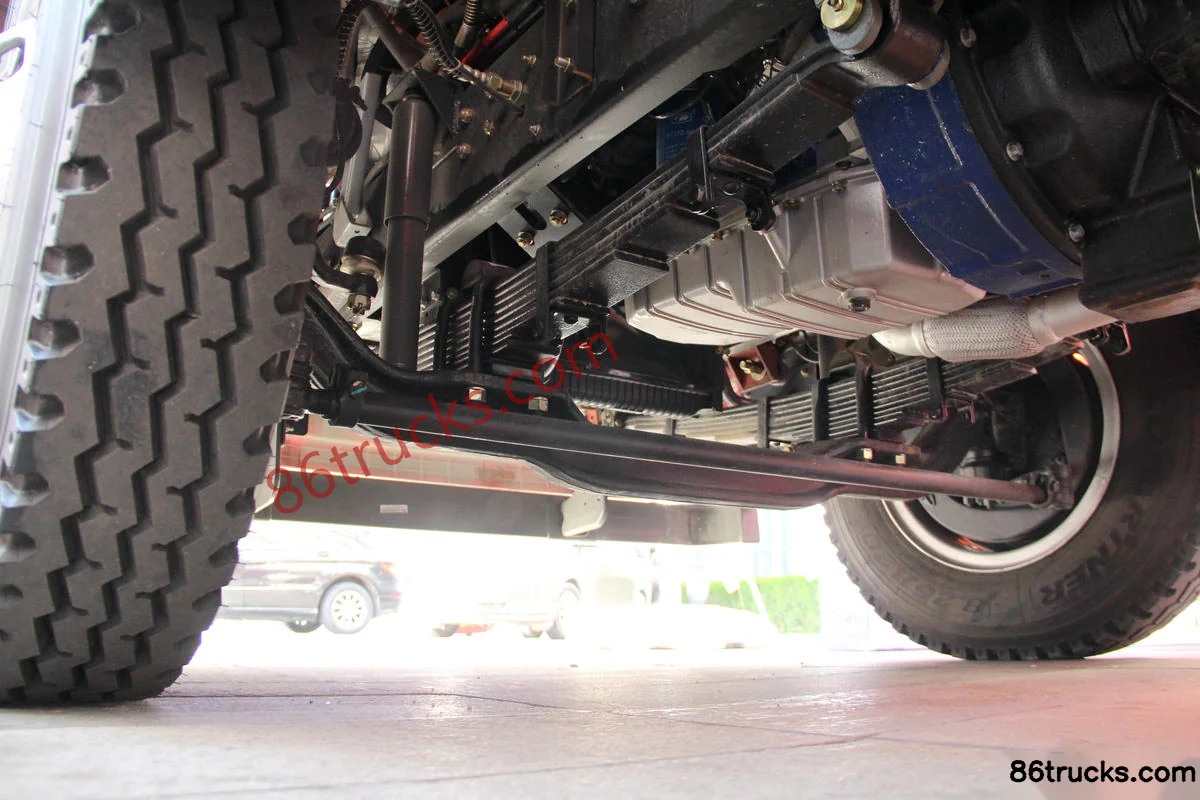

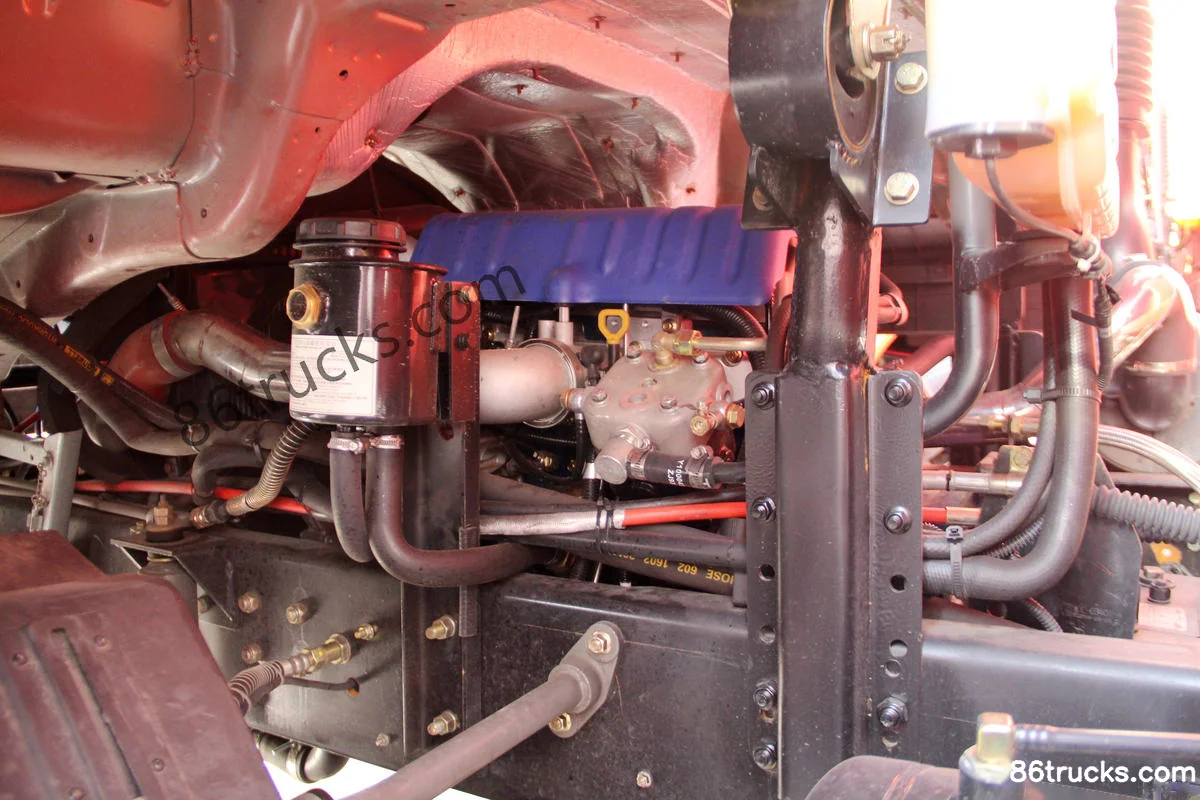

Chassis3

9 photos

FAQ

What emission standard does Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck?

Key specs of Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck suited for?

Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck differ from other variants in the same series?

Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck belongs to Hualing Lingma H2 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Lingma H2 156hp 4X2(6 wheels) 3.85m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
