Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 4800mm
Model code (announced):: BJ5185THB-FA
Overall Dimensions: L×W×H:: 10.01×2.37×3.61m
Curb Weight: 18.3ton
Water tank capacity: 570L
Horsepower 200
Max output power: 147kW

Overview

The Loxa Heavy Machinery Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) is a concrete pump truck featuring 18.3ton GVW, 570L tank capacity, 200 hp and 147kW power. On the powertrain side, it comes with 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5185THB-FA
Drive type: 4X2
Wheelbase: 4800mm
Overall Dimensions: L×W×H: 10.01×2.37×3.61m
Max. travel speed: 80km/h
Curb Weight: 18.3ton
Body Parameters
Water tank capacity: 570L
Chassis Specs
Axle Count: 2
Chassis Model: BJ5185THB-FA
rear axle description: 13t AnkaiMercedes-Benz
clutch: Φ395
Pumping system
Pumping strokes (low/high): 22Times/min
Oil pressure: 32Mpa
Delivery cylinder: bore × stroke: φ230×1400mm
Boom Outriggers
Boom Vertical Height: 29.2m
Boom Horizontal Length: 25m
Boom Vertical Depth: 17.8m
Boom Section Count: 4Z
Turntable Rotation Angle: 360°
Min unfolded length: 7.1m
Outrigger spread width: front/rear: 5560/4360mm
Boom Section 1 - Length: 7575mm
first arm section angle: 90°
Boom Section 2 - Length: 5945mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 6025mm
Boom Section 3 - Angle: 230°
4th arm section length: 6120mm
Boom Section 4 - Angle: 210°
Engine parameters
Engine Model: YuchaiYC6J200-52
fuel type: Diesel
Displacement: 6.494L
Emission standard: China V
Max output power: 147kW
Max hp: 200Horsepower
Rated speed: 2300rpm
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Tire
Tire Size: 10.00R20

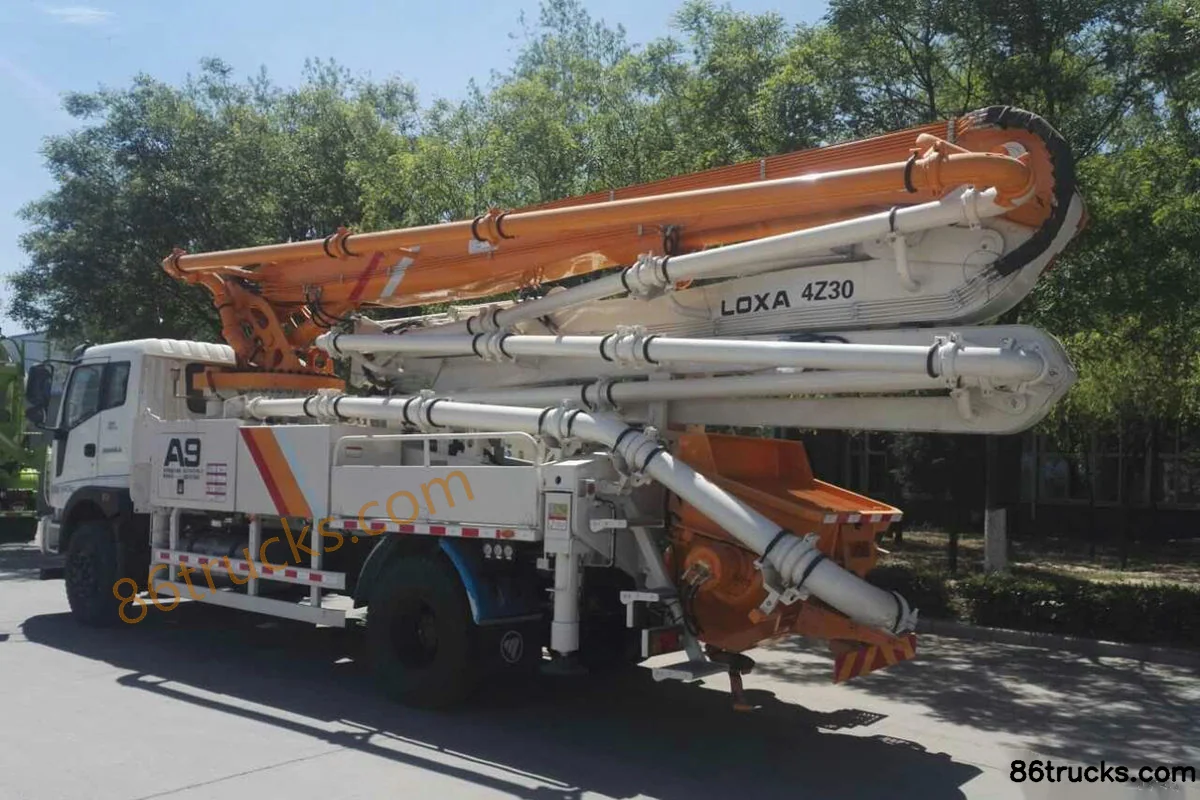

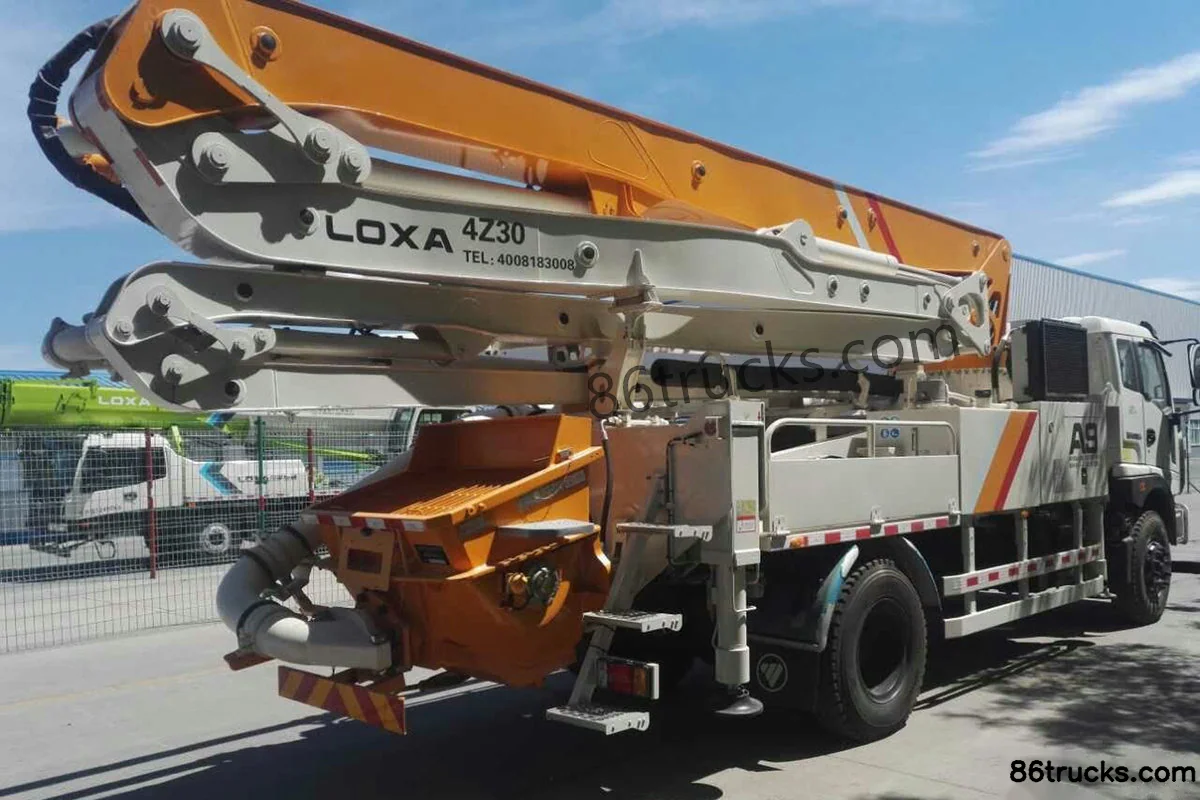

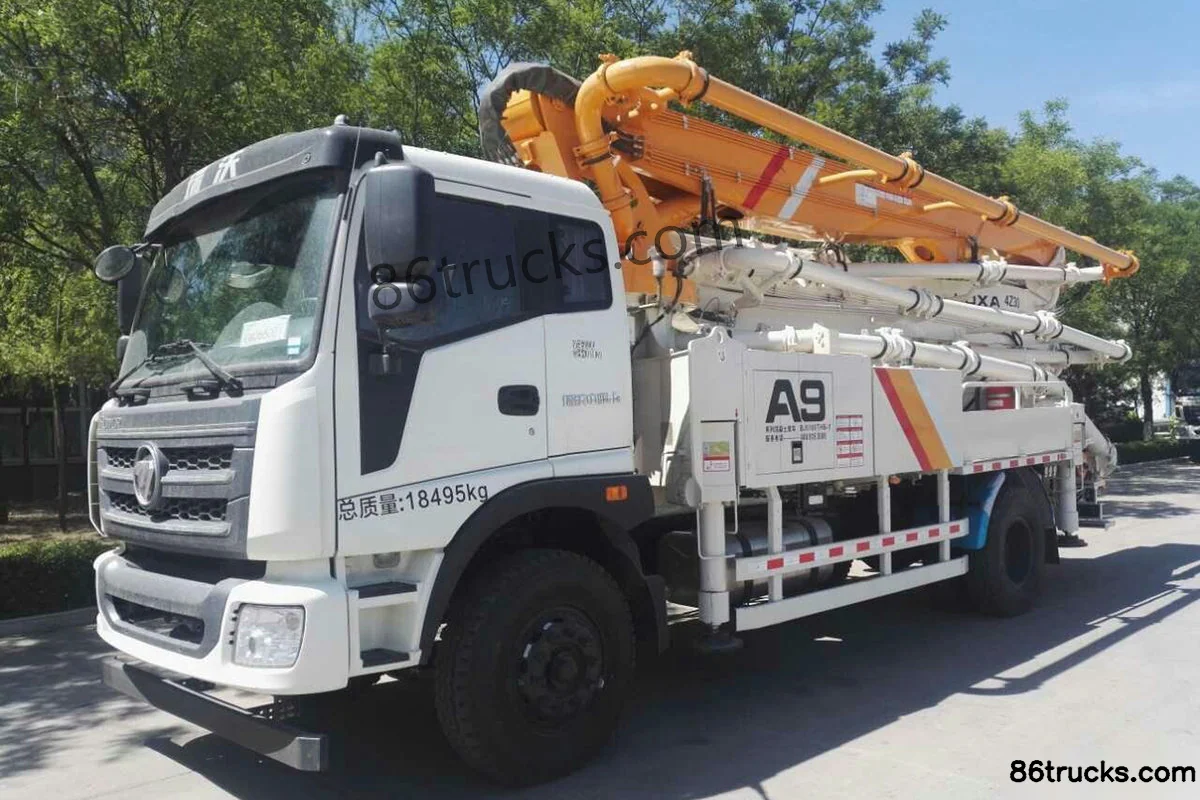

Photos

Exterior3

3 photos

FAQ

What emission standard does Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis)?

Key specs of Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis): Drive: 4x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) suited for?

Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) differ from other variants in the same series?

Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis) belongs to Loxa Heavy Machinery Loxa (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton LESA A9 200 hp 4X2(6 wheels) 30m concrete pump truck (Foton chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
