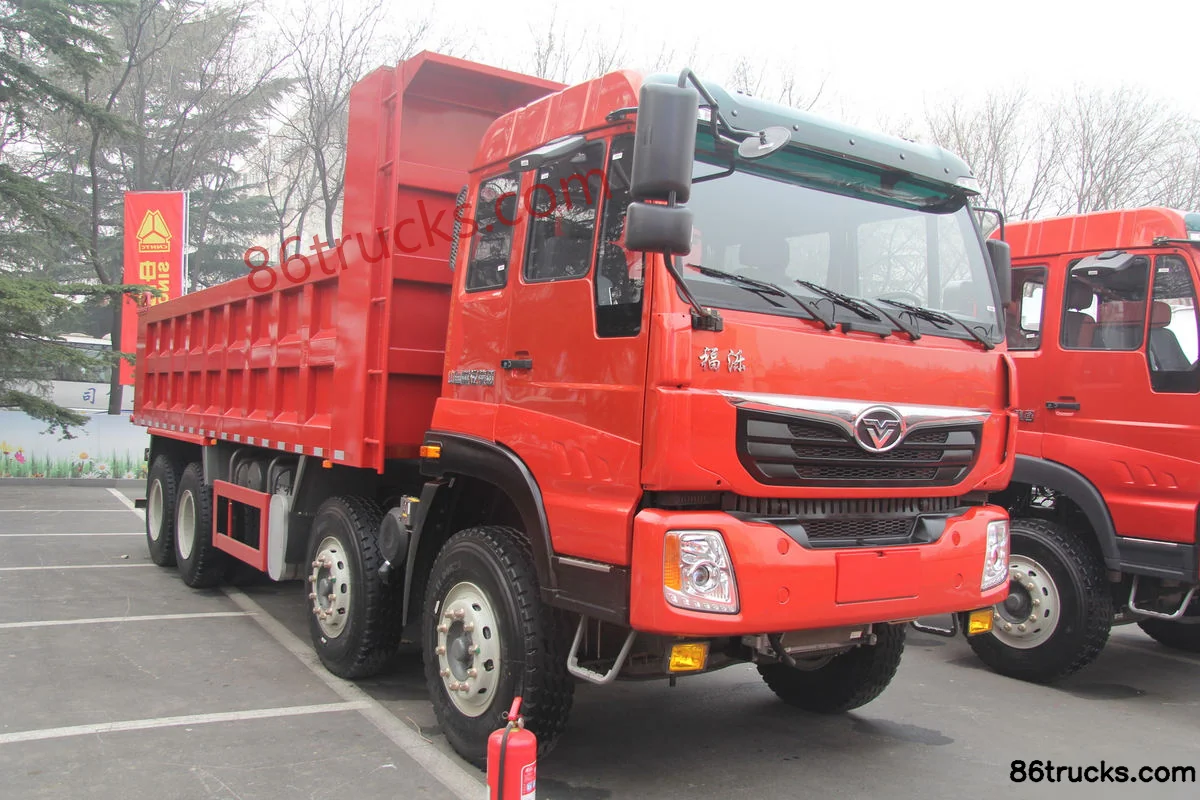

Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.82ton
Wheelbase:: 1800+3400+1350mm
Tire Size:: 11.00R20
Rated payload: 16.05ton
Drive 8X4 (12 wheels)
Horsepower 280
Cargo box type: Rear-dump body

Overview

The Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck is a Heavy truck featuring 16.05t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with 280 hp, China IV emissions, Sinotruk transmission and Diesel fuel.

China IV 280 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3318M60DB0
Drive type: 8X4
Wheelbase: 1800+3400+1350mm
transmission: SinotrukHW13710
Cab length: 10.3m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 14.82ton
Rated payload: 16.05ton
GVWR: 31ton
Origin: Fujian Haixi
tonnage class: Heavy truck
Approach angle: 18.5°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China IV
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.4m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 380L
Chassis Specs
rear axle allowable load: 17950kg
Leaf spring count: 12/12/10,12/12/-
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

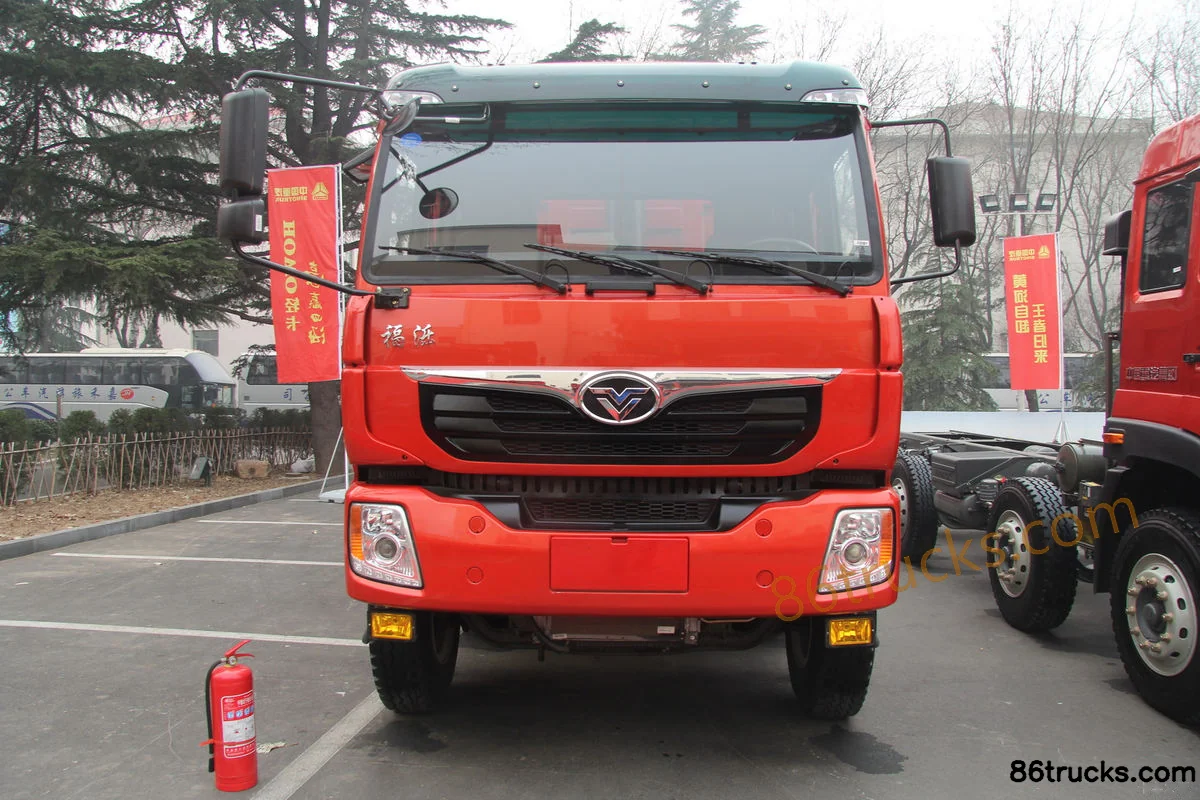

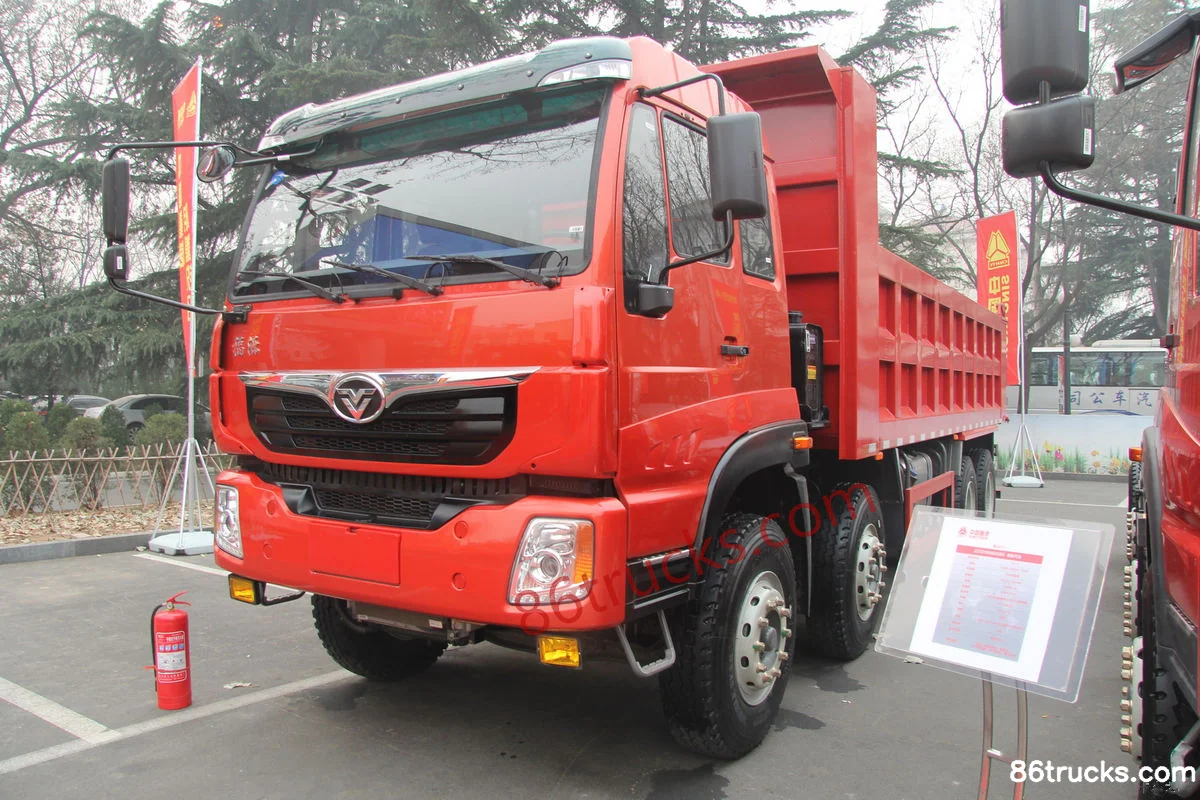

Exterior3

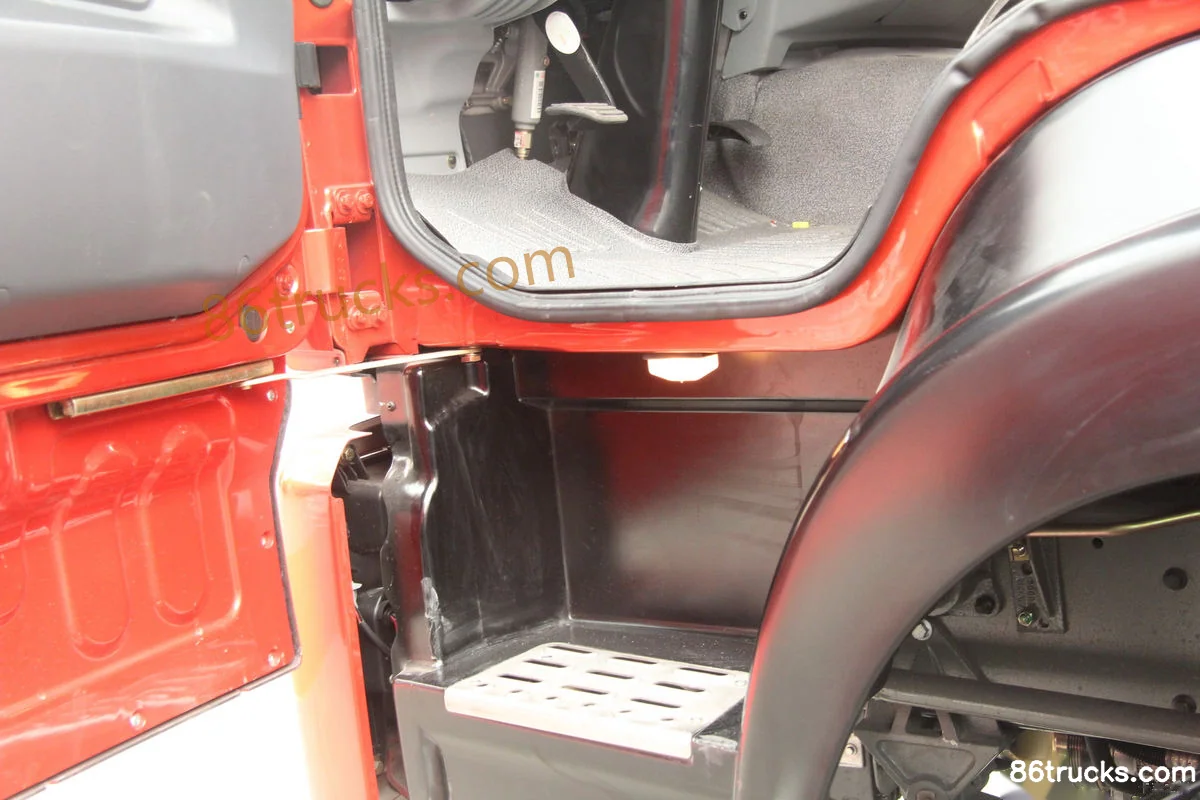

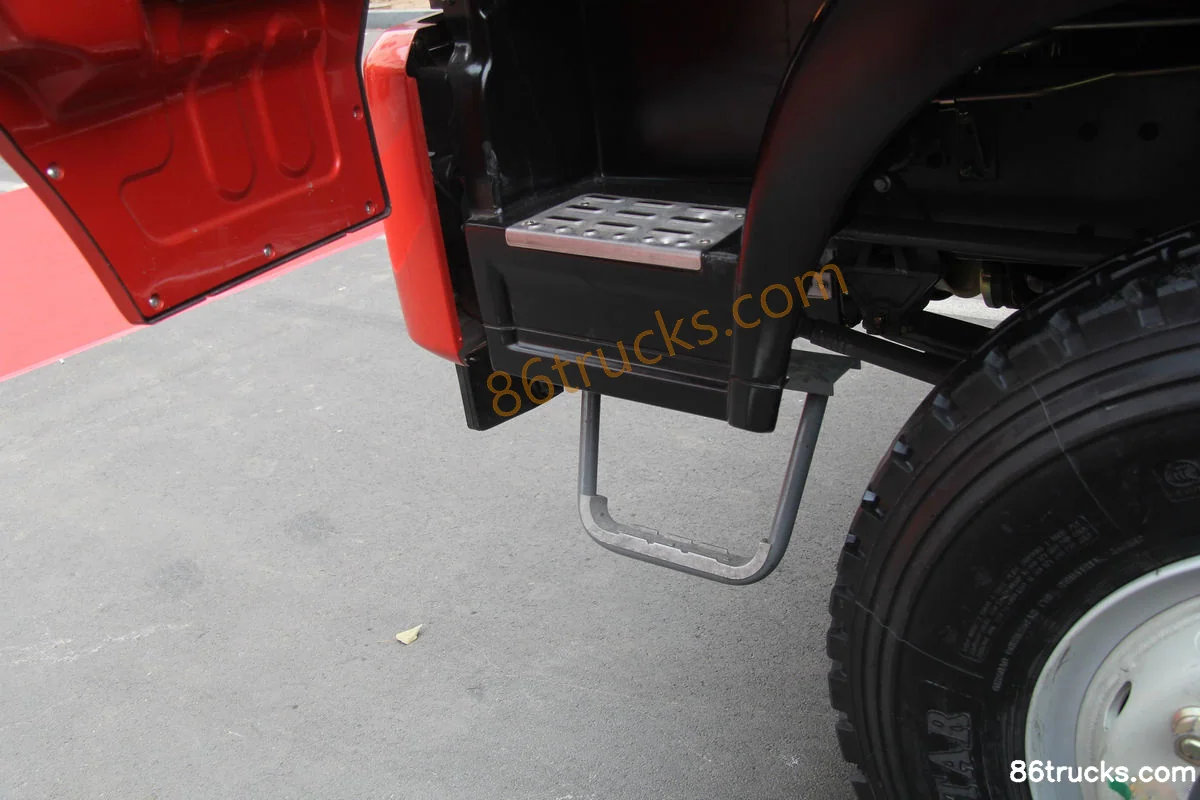

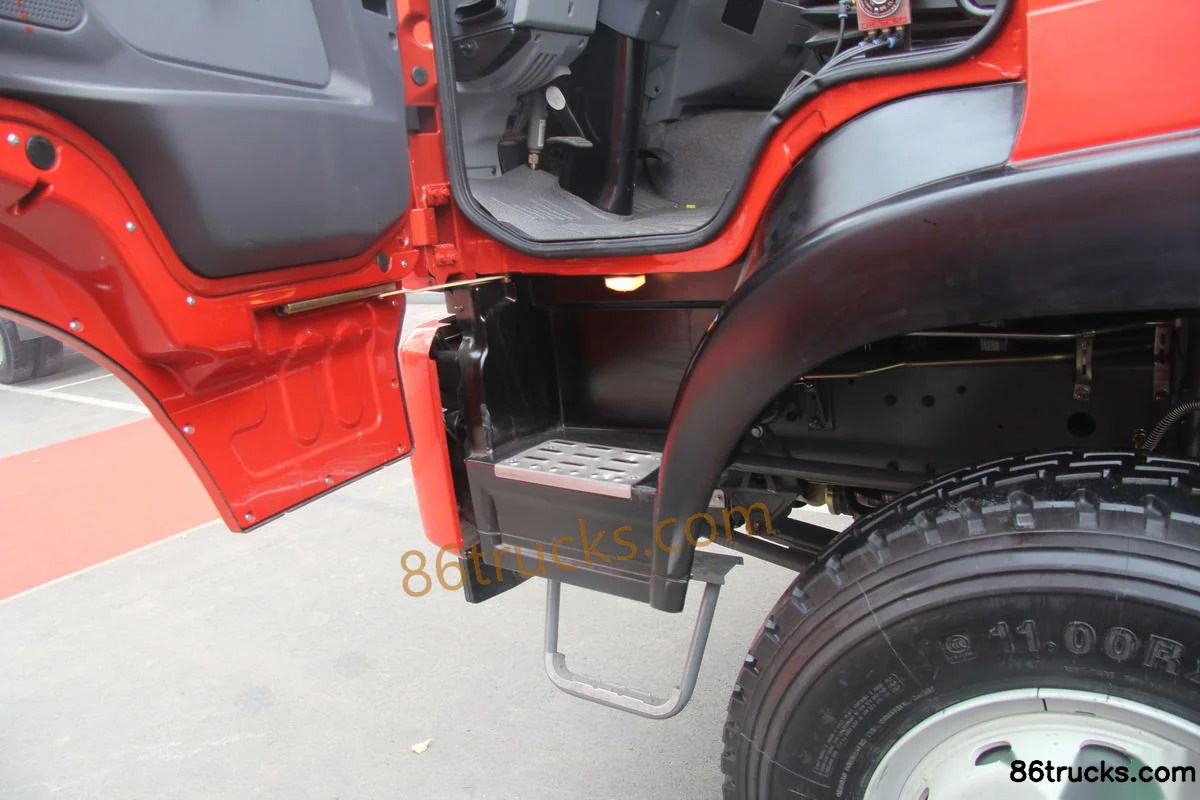

Cab3

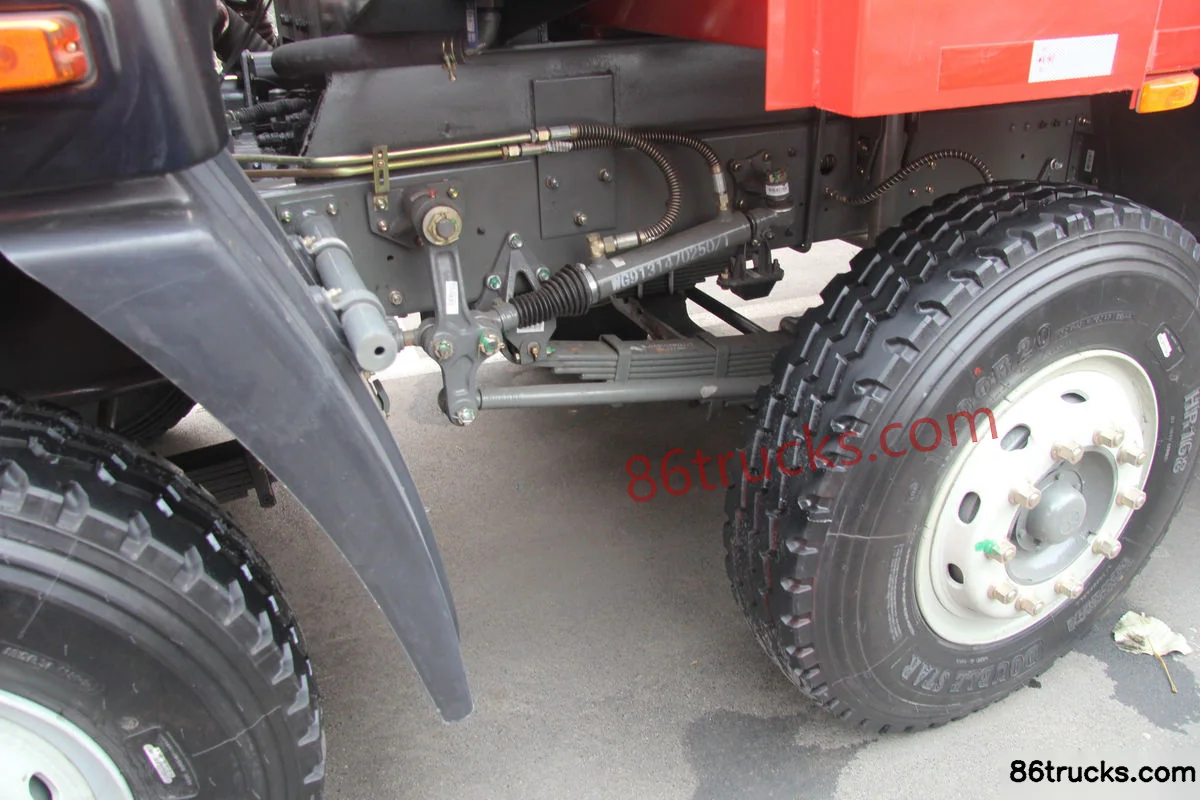

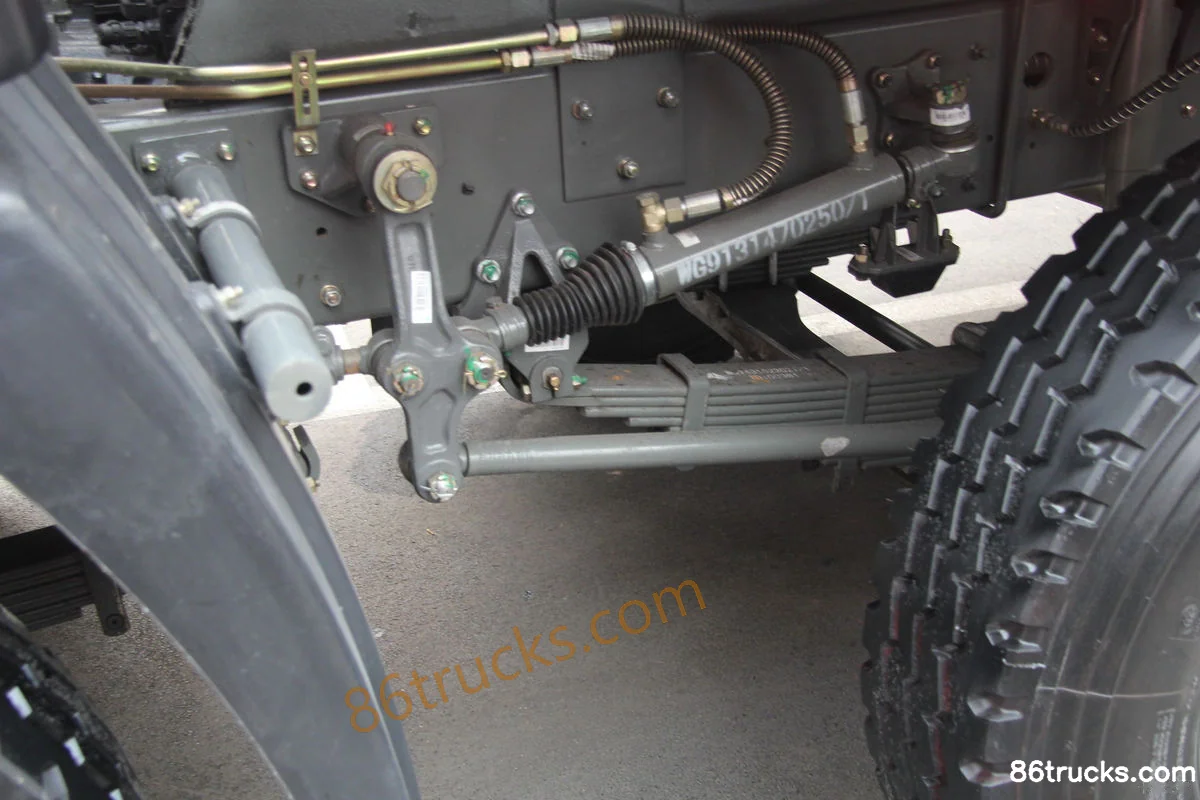

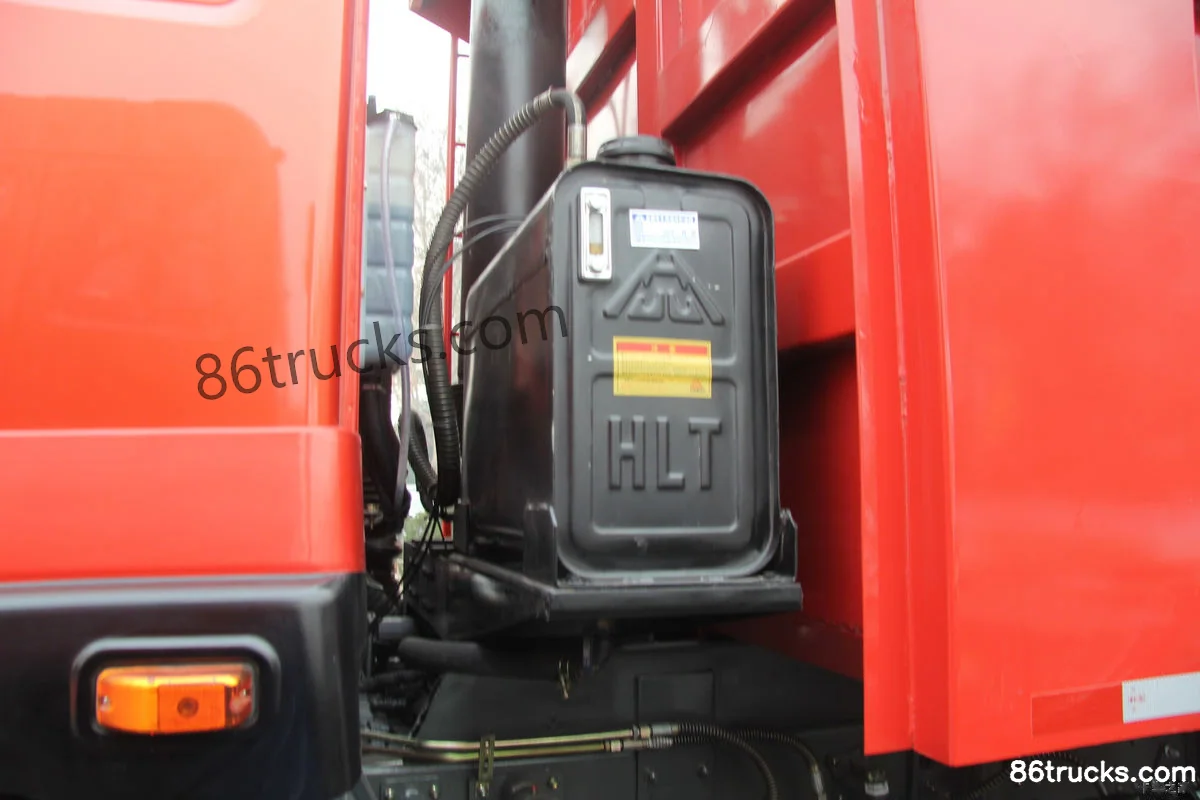

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck?

Key specs of Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck: Drive: 8x4; Horsepower: 280 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck suited for?

Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck differ from other variants in the same series?

Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck belongs to Sinotruk Fulou H5 Quasi-Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Fulong H5 Heavy Truck 280 hp 8X4(12 wheels) 7.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
