Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.5ton
Wheelbase:: 1950+4025+1350mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 500
Cargo box type: Dump type

Overview

The Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC13.50-61 engine, 500 hp, China VI emissions and Sinotruk transmission.

China VI 500 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317V406HF1
Drive type: 8X4
Wheelbase: 1950+4025+1350mm
engine: SinotrukMC13.50-61
transmission: SinotrukHW25712XSCJ
Rear Axle Ratio: 5.92
Cab length: 10.845m
Cab width: 2.55m
Cab height: 3.49m
Front track width: 2022/2022mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Jinan
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 19°
Remarks: HW50 direct-connected PTO, four-way camera, with hydraulic retarder
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.50-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.419L
Emission standard: China VI
Max output power: 371kW
Max hp: 500Horsepower
Max torque: 2400N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW25712XSCJ
Transmission Brand: Sinotruk
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: TH7-W cab illuminated emblem
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: VGD95 self-adjusting arm front axle
Front axle allowable load: 6500/7000kg
Frame Dimensions: Double-layer frame (8+8+8 local reinforcement/300)mm
rear axle description: MCP16ZG self-adjusting dual rear axle
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 5.92
Leaf spring count: 11/11/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

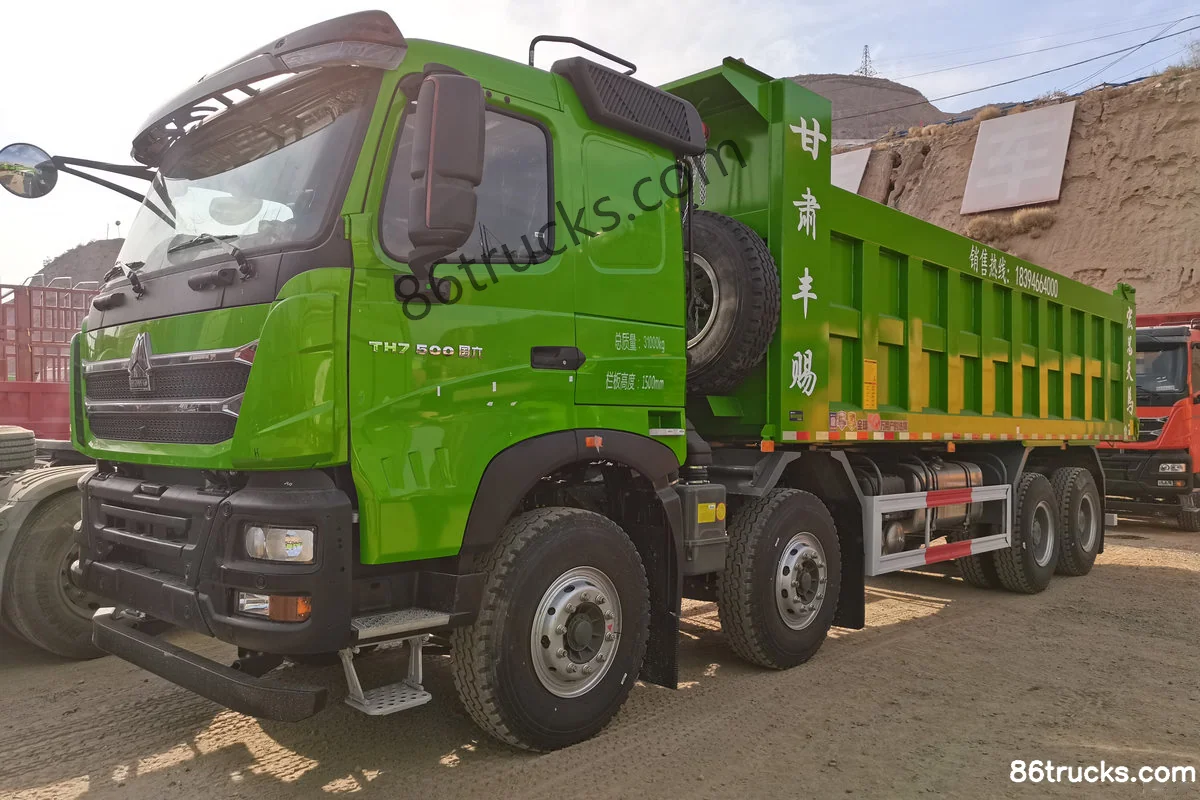

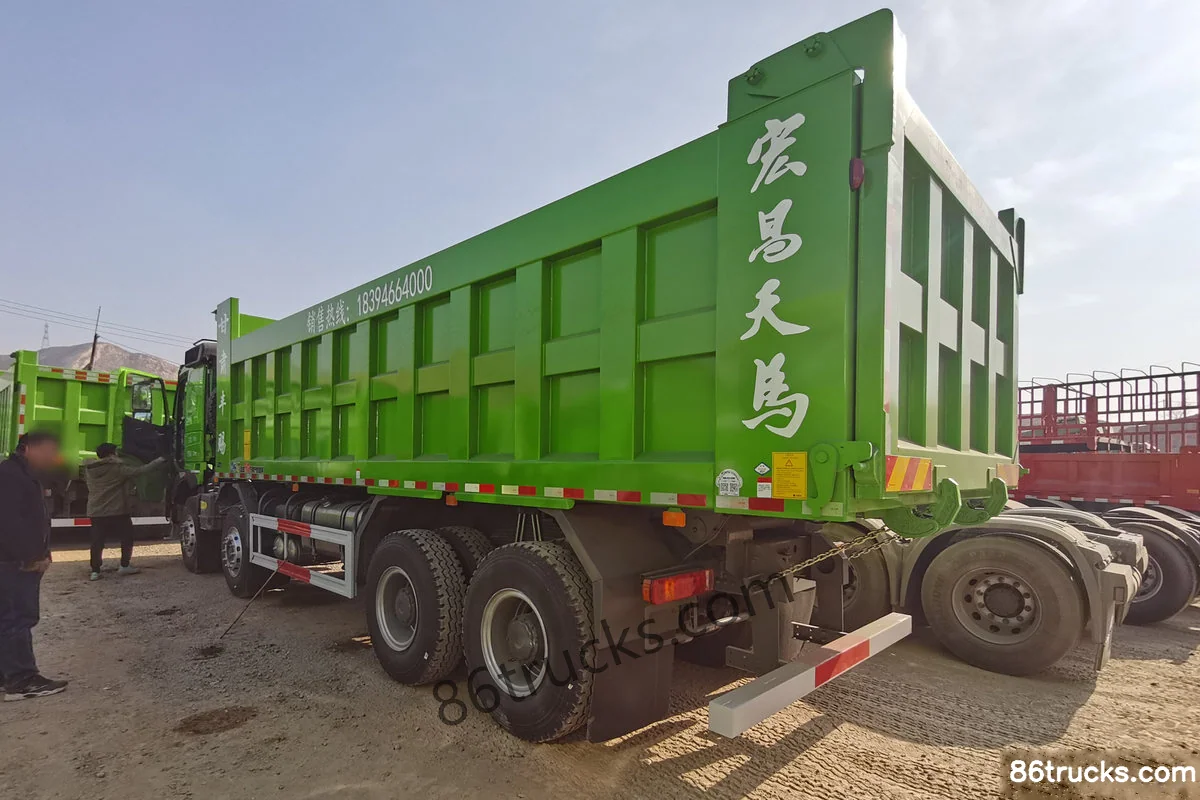

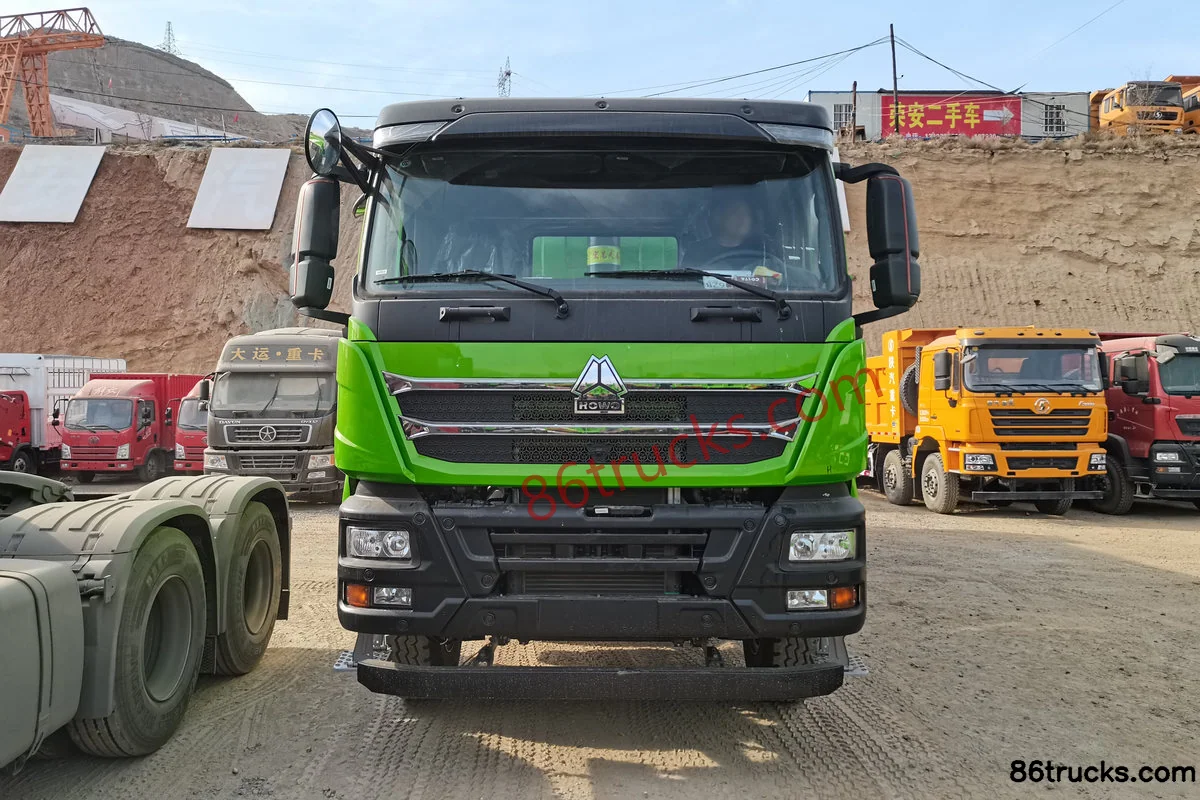

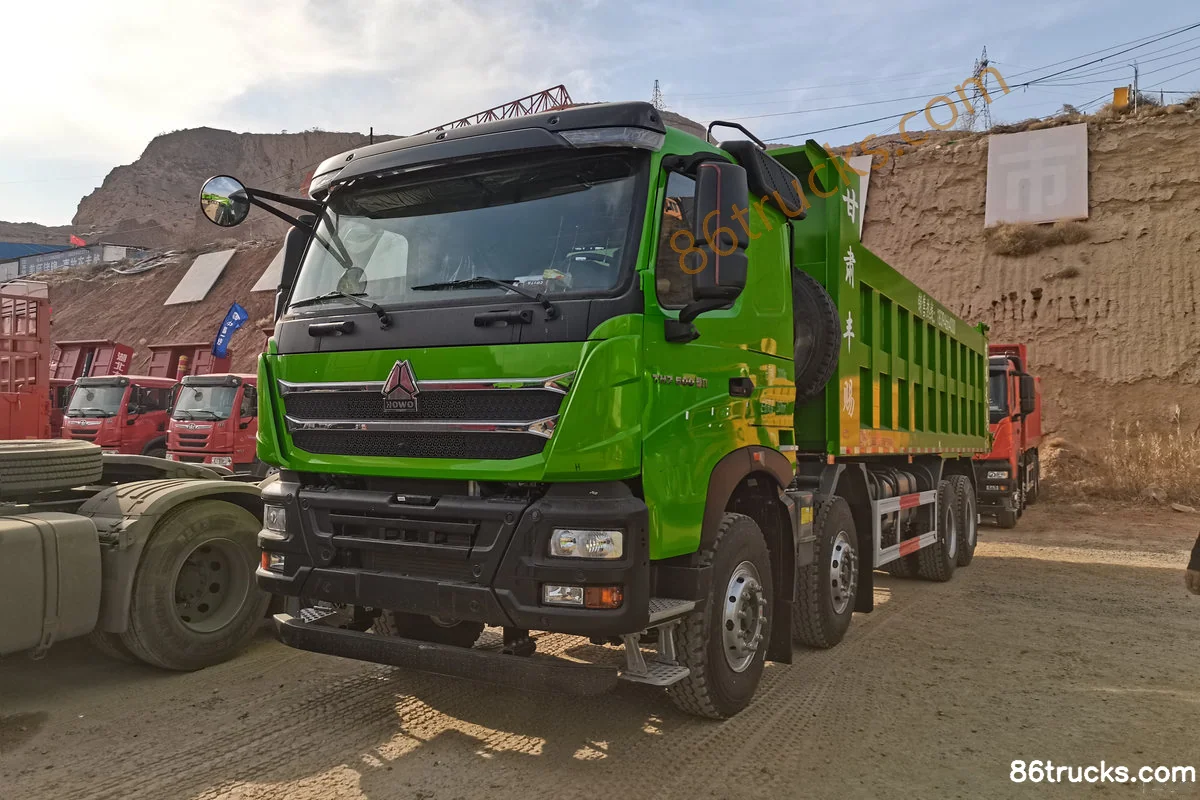

Exterior3

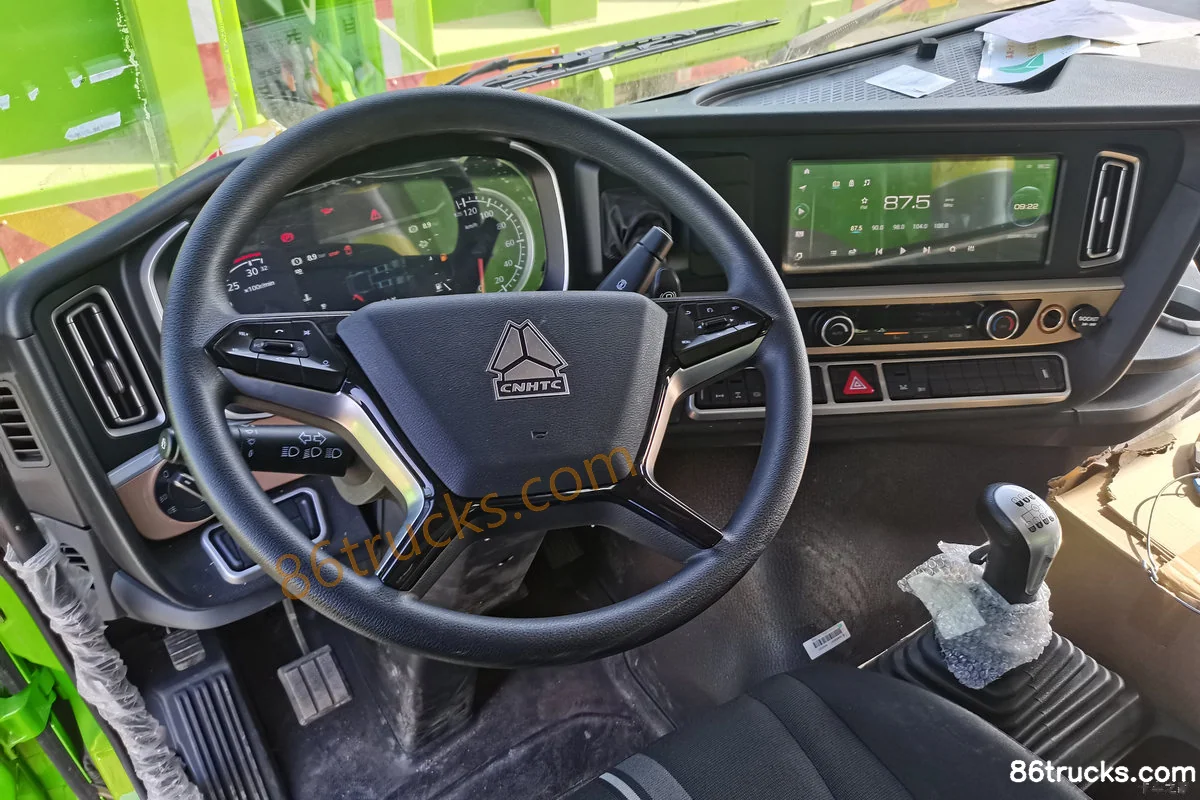

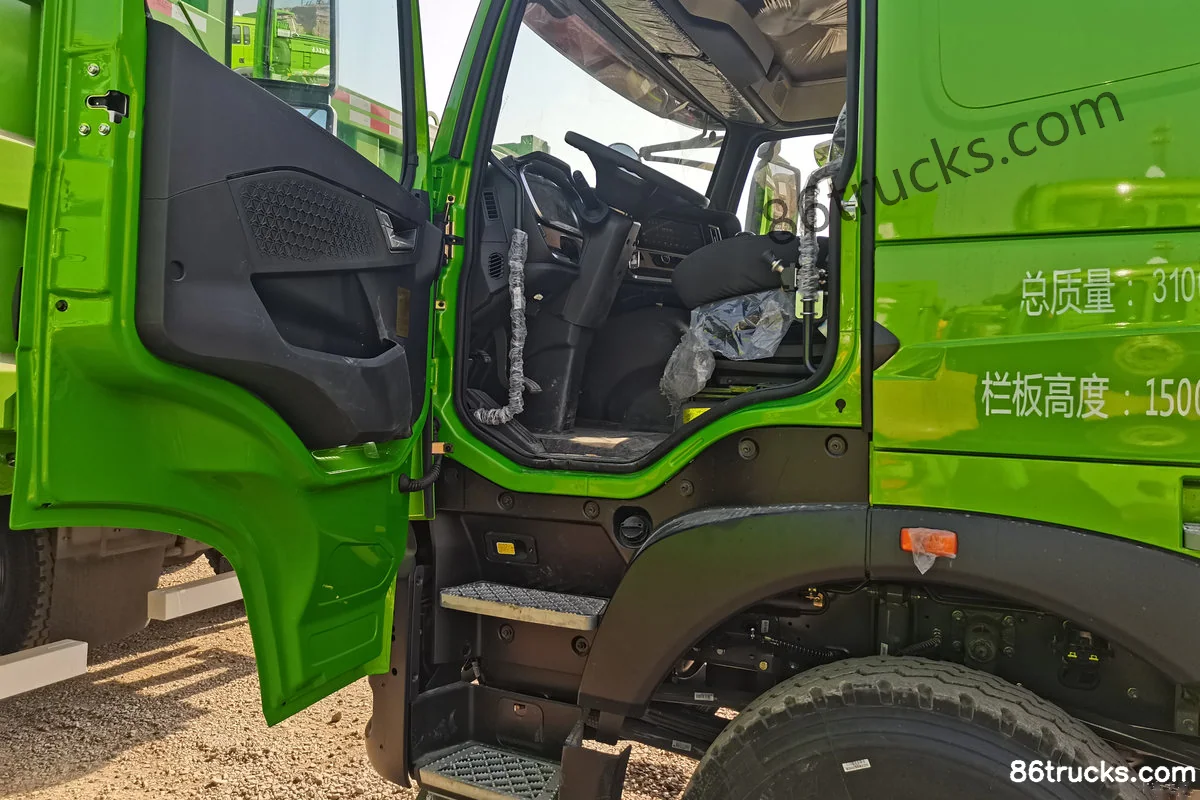

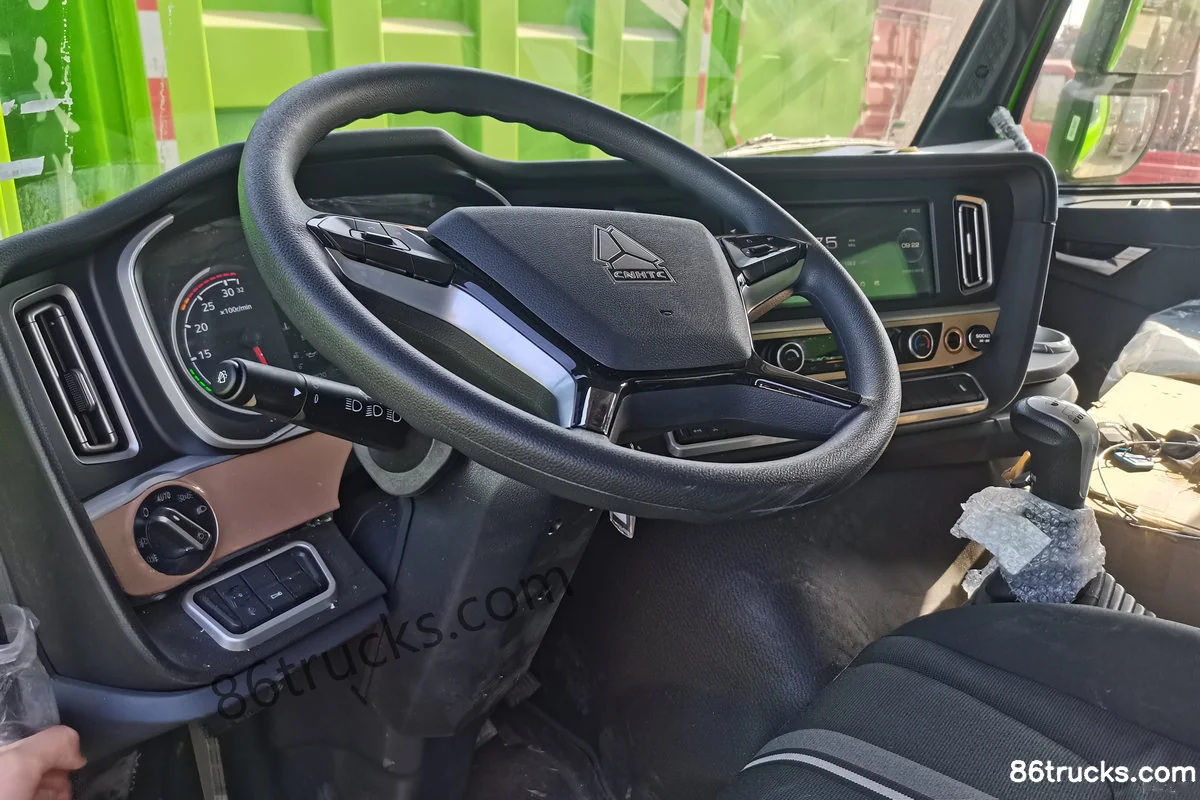

Cab3

Chassis1

7 photos

FAQ

What emission standard does Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder)?

Key specs of Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder): Drive: 8x4; Horsepower: 500 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) suited for?

Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) differ from other variants in the same series?

Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder) belongs to Sinotruk HOWO TH7 heavy-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TH7 Flagship Edition Mountain Area Version 500hp 8X4(12 wheels) 7.6m Dump Truck (China VI) (with Hydraulic Retarder)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
