Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y)
EXW
Export quote
Sinotruk Yellow River Shaoshuai Heavy Truck Dump
Main model photos
32 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) | 8x4 / 240hp / China III / Euro III | ||
| Sinotruk Yellow River Junior Medium Truck 220 hp 4X2(6 wheels) 5.8m Dump Truck | 4x2 / 220hp / China III / Euro III |

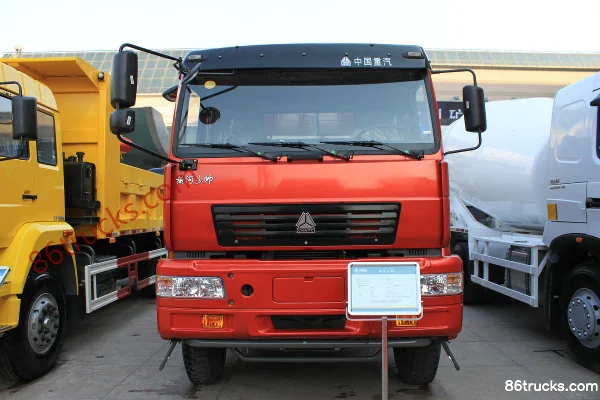

Sinotruk Yellow River Junior Medium Truck 220 hp 4X2(6 wheels) 5.8m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3314665C1/K1F7Y / ZZ3164K5015C1
Drive type: 8X4 / 4X2
Wheelbase: 5000mm
Engine Model: YuchaiYC6A240-33 / YuchaiYC6J220-30
Transmission Model: SinotrukHW12706T / SinotrukHW95706T
Cab length: 7.1 / 8.3m
Cab width: 2.3 / 2.49m
Cab height: 1.15 / 3.45m
Front track width: 1986mm
rear track: 1830mm
Curb Weight: 8ton
Rated payload: 7.87ton
GVWR: 16ton
Origin: Jinan, Shandong
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 20.5°
departure angle: 22°
Remarks: Lightweight superstructure, bottom 4mm side 3mm, four longitudinal beams, superstructure weight under 4.5 tons, chassis curb weight 9.1 tons, total vehicle curb weight 13.6 tons
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6cylinder
Displacement: 7.255 / 6.494L
Emission standard: China III / Euro III
Max output power: 177 / 162kW
Max hp: 240 / 220Horsepower
Max torque: 900 / 800N·m
Max torque speed: 1400-1600 / 1200-1700rpm
Rated speed: 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection / Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 0.8m
Chassis Specs
rear axle description: HC16
rear axle allowable load: 10000kg
Leaf spring count: 12.00R20
FAQ
What kind of truck is Sinotruk Sinotruk Yellow River Shaoshuai Heavy Truck Dump Trucks?
Sinotruk Sinotruk Yellow River Shaoshuai Heavy Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk Yellow River Shaoshuai Heavy Truck Dump cover?
Sinotruk Yellow River Shaoshuai Heavy Truck Dump mainly covers: Drive: 4x2 / 8x4; Horsepower: 220 hp / 240 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Yellow River Shaoshuai Heavy Truck Dump?
For Sinotruk Yellow River Shaoshuai Heavy Truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Yellow River Shaoshuai Heavy Truck Dump include?
Sinotruk Yellow River Shaoshuai Heavy Truck Dump currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Yellow River Shaoshuai Heavy Truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
