Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y)

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Sinotruk
Number of tires:: 12pcs
Model code (announced):: ZZ3314665C1/K1F7Y
engine:: YuchaiYC6A240-33
Cab length:: 7.1m
Drive 8X4 (12 wheels)
Horsepower 240
Cargo box type: Rear-dump body
Emission China III / Euro III

Overview

The Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) is a Heavy truck featuring Rear-dump body cargo body, 8X4 (12 wheels) drive and 7.1m cab. On the powertrain side, it comes with a YuchaiYC6A240-33 engine, 240 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 240 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3314665C1/K1F7Y
Drive type: 8X4
engine: YuchaiYC6A240-33
transmission: SinotrukHW12706T
Cab length: 7.1m
Cab width: 2.3m
Cab height: 1.15m
Origin: Jinan, Shandong
tonnage class: Heavy truck
Remarks: Lightweight superstructure, bottom 4mm side 3mm, four longitudinal beams, superstructure weight under 4.5 tons, chassis curb weight 9.1 tons, total vehicle curb weight 13.6 tons
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A240-33
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.255L
Emission standard: China III / Euro III
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
Transmission Parameters
Transmission Model: SinotrukHW12706T
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Tire
Number of tires: 12pcs

Photos

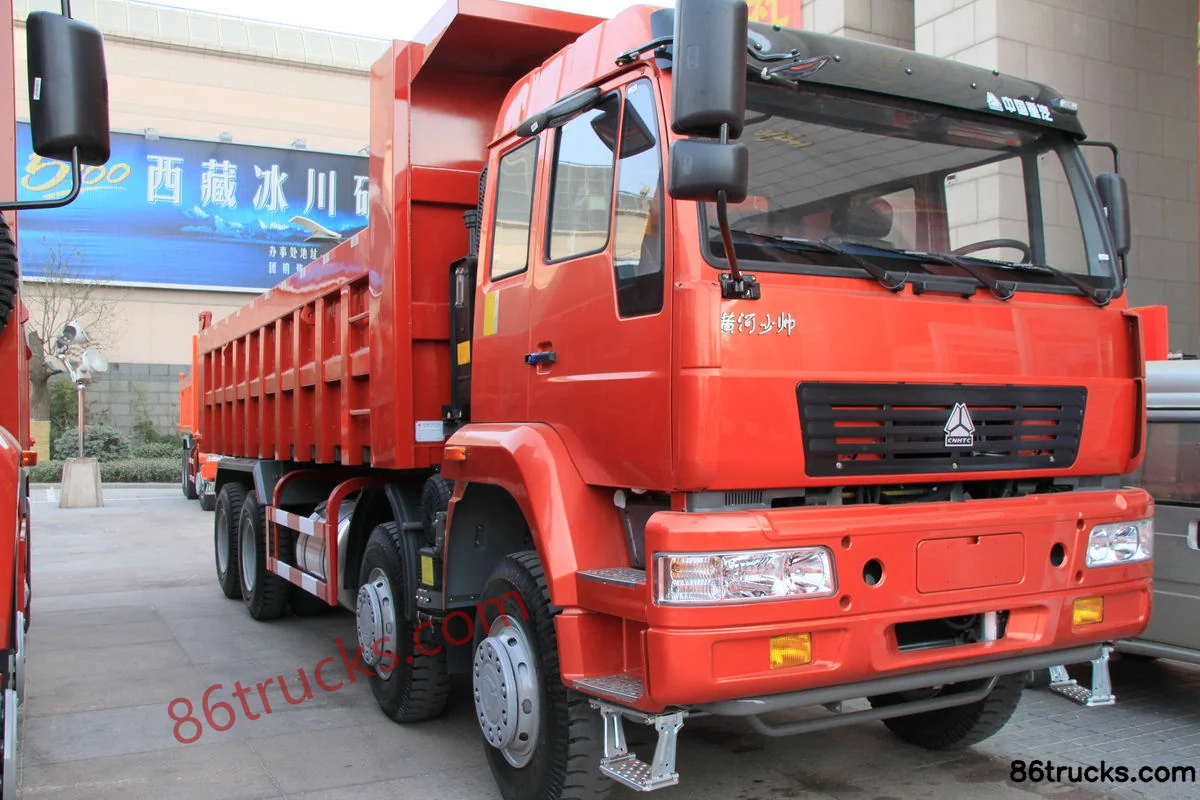

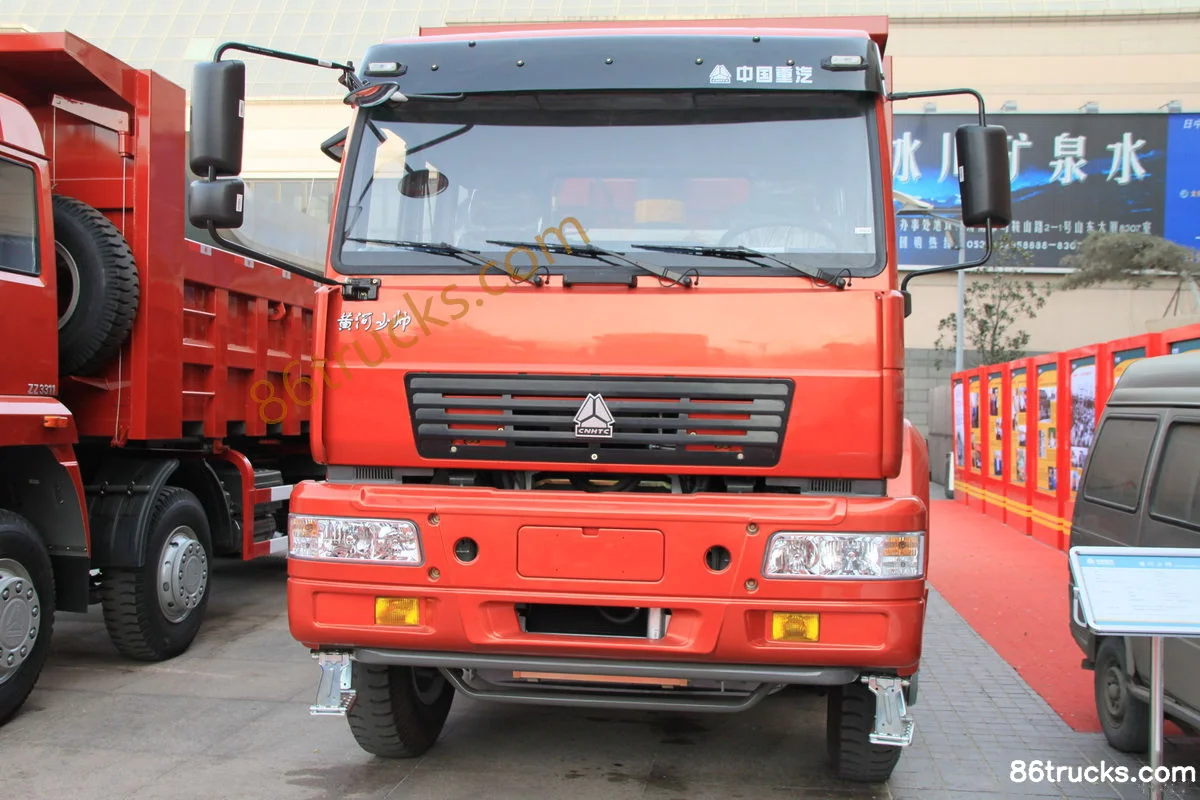

Exterior2

Cab3

5 photos

FAQ

What emission standard does Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y)?

Key specs of Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y): Drive: 8x4; Horsepower: 240 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) suited for?

Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) differ from other variants in the same series?

Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y) belongs to Sinotruk Yellow River Shaoshuai Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Yellow Boy Heavy Truck 240hp 8X4(12 wheels) Dump Truck (ZZ3314665C1/K1F7Y)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
