Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh
EXW
Export quote
ZOOMLION Sinotruk Chengdu commercial vehicle
Main model photos
15 photos
Models
On sale
Sinotruk (formerly Sinotruk Wangpai) Wangpai 7 Series 170hp 4X2(6 wheels) 3.6m³ concrete mixer truck
EXW
Export quote
Sinotruk (formerly Sinotruk Wangpai) Wangpai 7 Series 180hp 4X2(6 wheels) 3.6m³ concrete mixer truck
EXW
Export quote

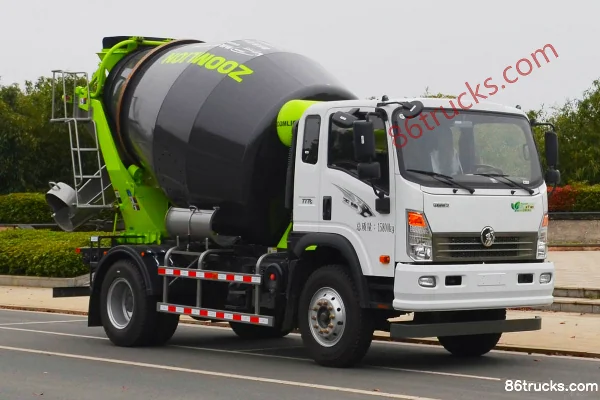

Sinotruk (formerly Sinotruk Wangpai) Wangpai 7 Series 185hp 4X2(6 wheels) 3.6m³ concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.96×2.52×3.83 / 7.1×2.35×3.77m
Drive type: 8X4 / 4X2
Truck Type: Concrete mixer truck
Front/rear track width: Front: 2022/2022mm; Rear: 1850/1850 / Front: 1780mm, Rear: 1700
Vehicle origin: Yiyang, Hunan / Yuanjiang, Hunan
Wheelbase: 1800+3025+1350 / 3500mm
Curb Weight: 13.9 / 7.55ton
Rated payload: 16.97 / 8.055ton
Max. speed: 80km/h
Front/rear suspension: 1.5/2.26 / 1.28/2.17m
electric motor
Motor 1 Brand: Sinotruk Group Chengdu Wangpai Commercial Vehicle
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
total peak torque: 2500N·m
total rated torque: 1400N·m
Body Parameters
Mixing drum capacity: 7.77 / 3.6m³
Vehicle certification code: ZLJ5318GJBCBEVH / ZLJ5163GJBCE
Body Brand: ZOOMLION
Engine parameters
Engine Model: YuchaiYCD4P4S-170 / YuchaiYC6JA180-50 / YuchaiYC4EG185-50
Number of cylinders: 6 / 4cylinder
fuel type: Diesel
Displacement: 6.87 / 4.73L
Emission standard: China V
Max output power: 132 / 136kW
Max hp: 180 / 185Horsepower
Rated speed: 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Chassis Specs
Chassis Series: V7-X / 7 series
Chassis Model: ZZ1312V3567Z11SEV / CDW3160HA3R5
Front axle description: 5.5T
Frame Dimensions: Double-layer frame (7+4/280)mm
rear axle description: 13T
Leaf spring count: 4/4/- / 11/11+9
Transmission Parameters
Number of gears: 4 / 8Gear
Transmission Model: 4-speed transmission / Fast Gear8JS85F
Cab parameters
Cab: Wangpai 7 Series
Tire
Tire Size: 11R22.5 18PR / 10.00R20
Number of tires: 12 / 6pcs
FAQ
What kind of truck is ZOOMLION ZOOMLION Sinotruk Chengdu commercial vehicle chassis concrete mixer truck?
ZOOMLION ZOOMLION Sinotruk Chengdu commercial vehicle chassis is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Sinotruk Chengdu commercial vehicle cover?
ZOOMLION Sinotruk Chengdu commercial vehicle mainly covers: Drive: 4x2 / 8x4; Horsepower: 180 hp / 185 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Sinotruk Chengdu commercial vehicle?
For ZOOMLION Sinotruk Chengdu commercial vehicle: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ZOOMLION Sinotruk Chengdu commercial vehicle include?
ZOOMLION Sinotruk Chengdu commercial vehicle currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Sinotruk Chengdu commercial vehicle?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
