Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh

Export reference
MSRP N/A
Tire Size:: 11R22.5 18PR
Cab dimensions:: 9.96×2.52×3.83m
Truck Type:: Concrete mixer truck
Front/rear track width:: Front: 2022/2022mm; Rear: 1850/1850
Vehicle origin:: Yiyang, Hunan
Max. speed:: 80km/h
Rated payload: 16.97ton
Drive 8X4 (12 wheels)
Curb Weight: 13.9ton
Wheelbase: 1800+3025+1350mm

Overview

The ZOOMLION Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh is a concrete mixer truck featuring 16.97t payload, 13.9ton GVW, 8X4 (12 wheels) drive and 9.96×2.52×3.83m cab.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.96×2.52×3.83m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3025+1350mm
Front/rear track width: Front: 2022/2022mm; Rear: 1850/1850
Vehicle origin: Yiyang, Hunan
Curb Weight: 13.9ton
Rated payload: 16.97ton
Max. speed: 80km/h
Front/rear suspension: 1.5/2.26m
electric motor
Motor 1 Brand: Sinotruk Group Chengdu Wangpai Commercial Vehicle
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
total peak torque: 2500N·m
total rated torque: 1400N·m
Body Parameters
Mixing drum capacity: 7.77m³
Vehicle certification code: ZLJ5318GJBCBEVH
Body Brand: ZOOMLION
Chassis Specs
Chassis Series: V7-X
Chassis Model: ZZ1312V3567Z11SEV
Front axle description: 5.5T
Frame Dimensions: Double-layer frame (7+4/280)mm
rear axle description: 13T
Leaf spring count: 4/4/-
Transmission Parameters
Number of gears: 4Gear
Transmission Model: 4-speed transmission
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs

Photos

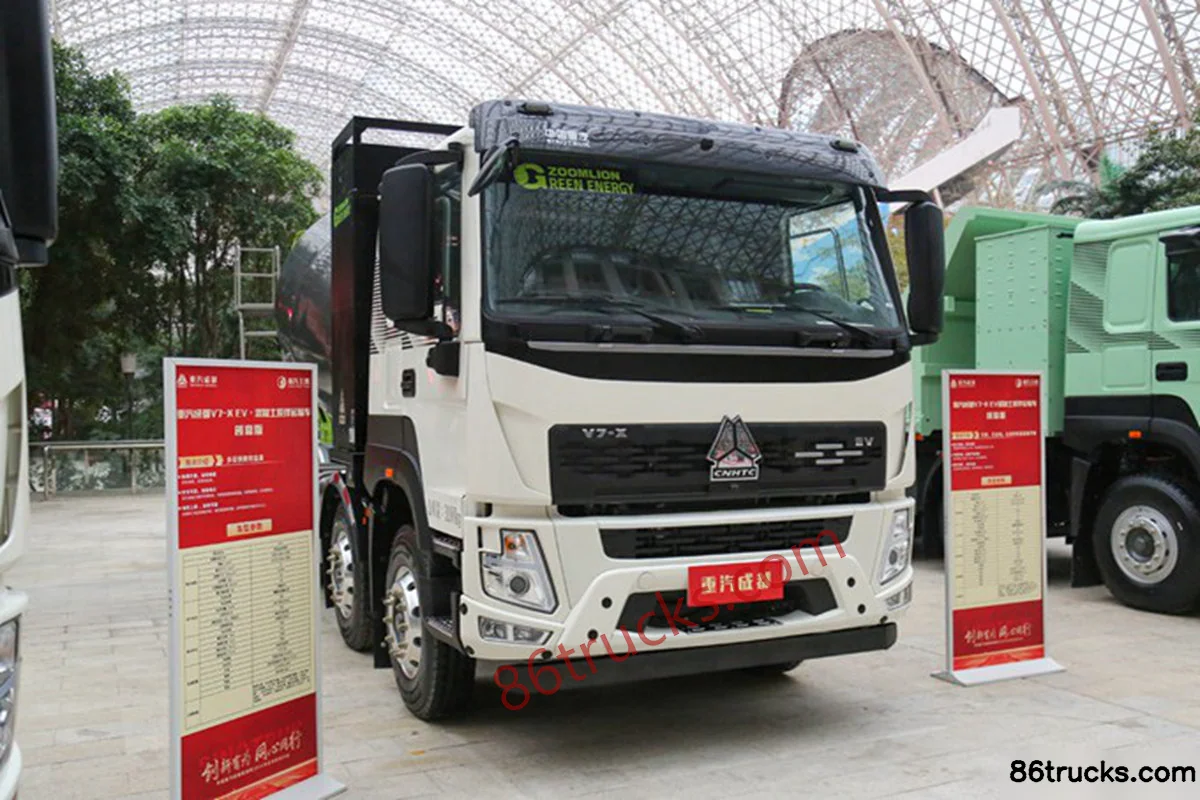

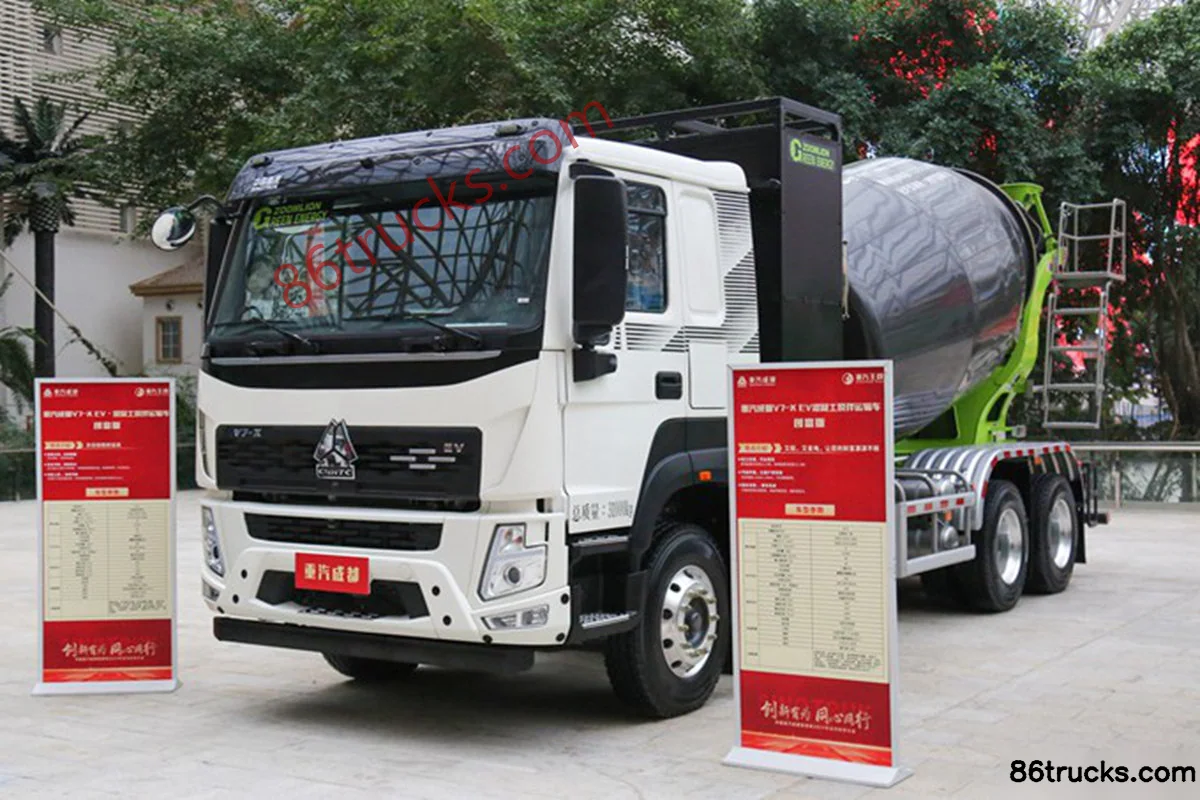

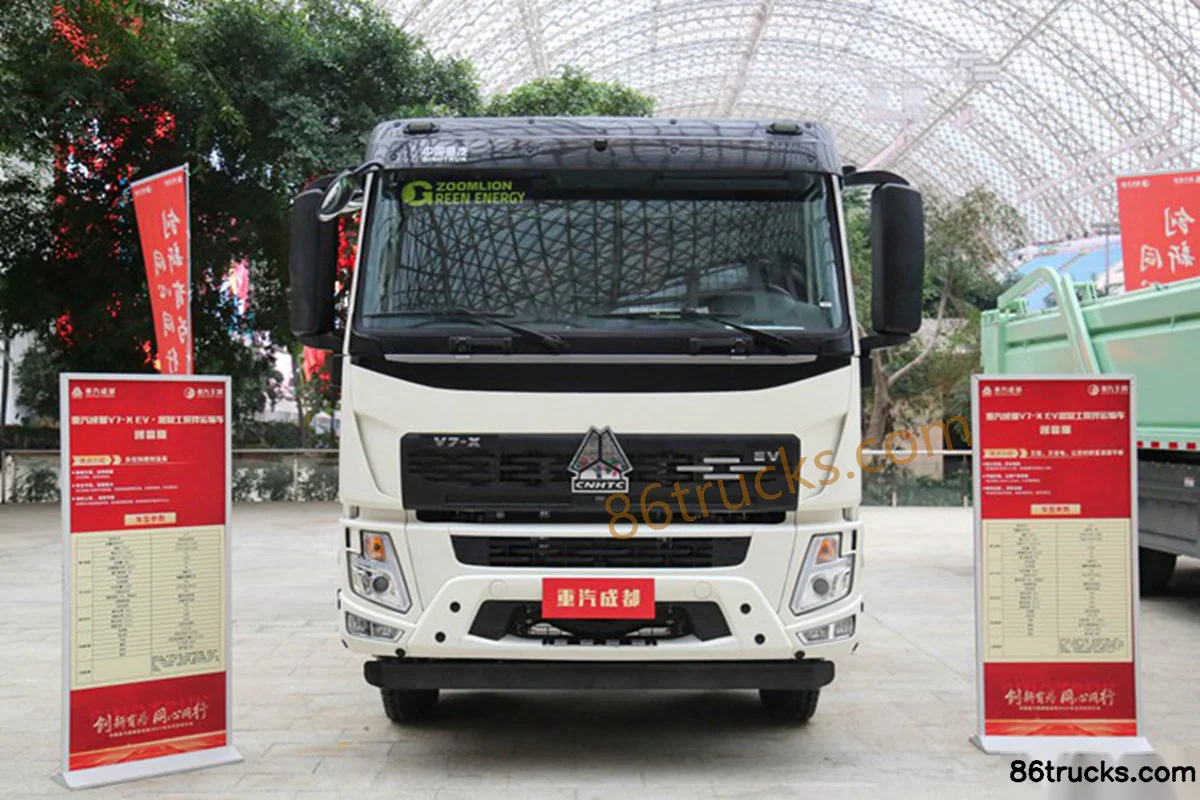

Exterior3

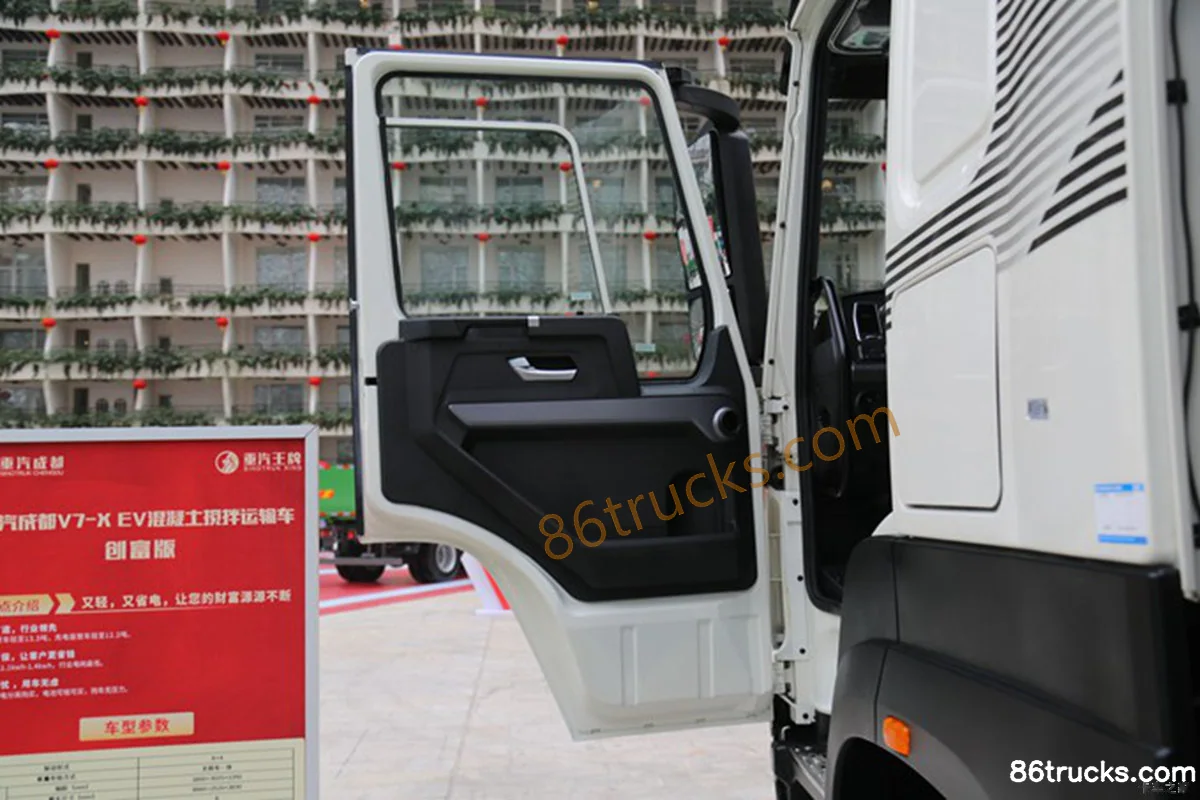

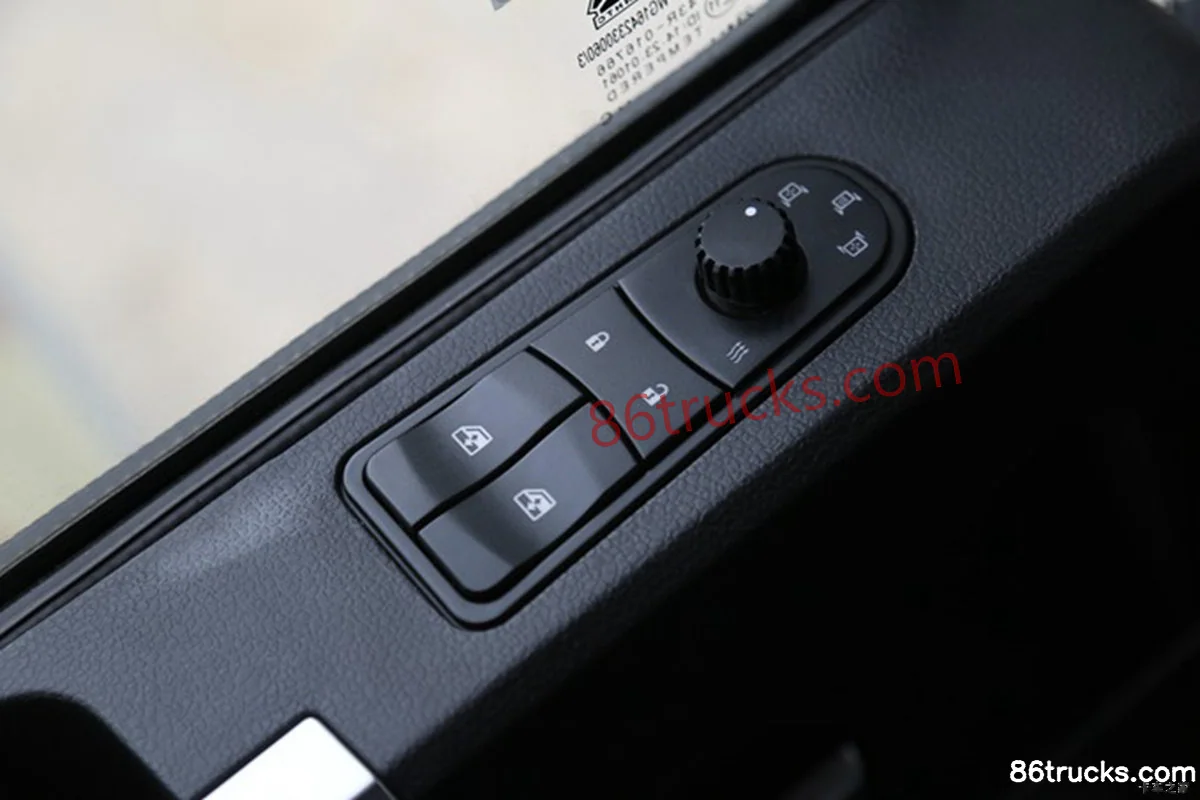

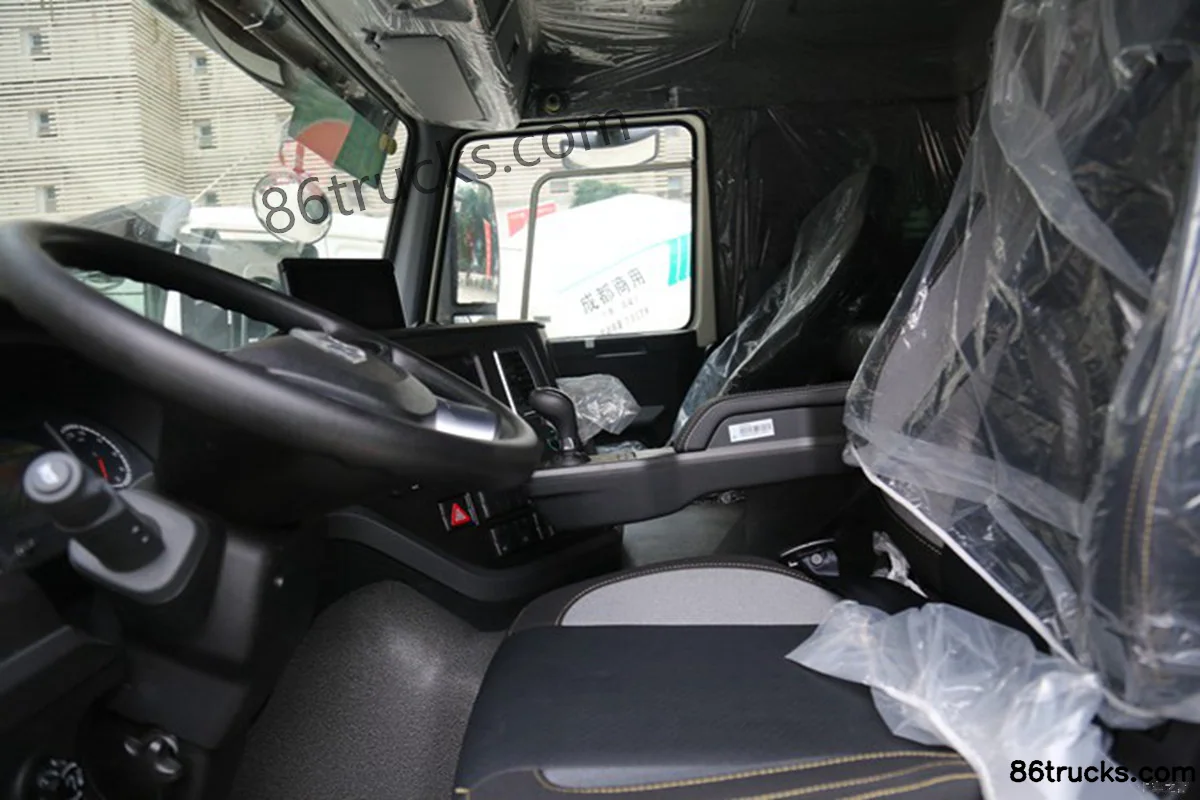

Cab3

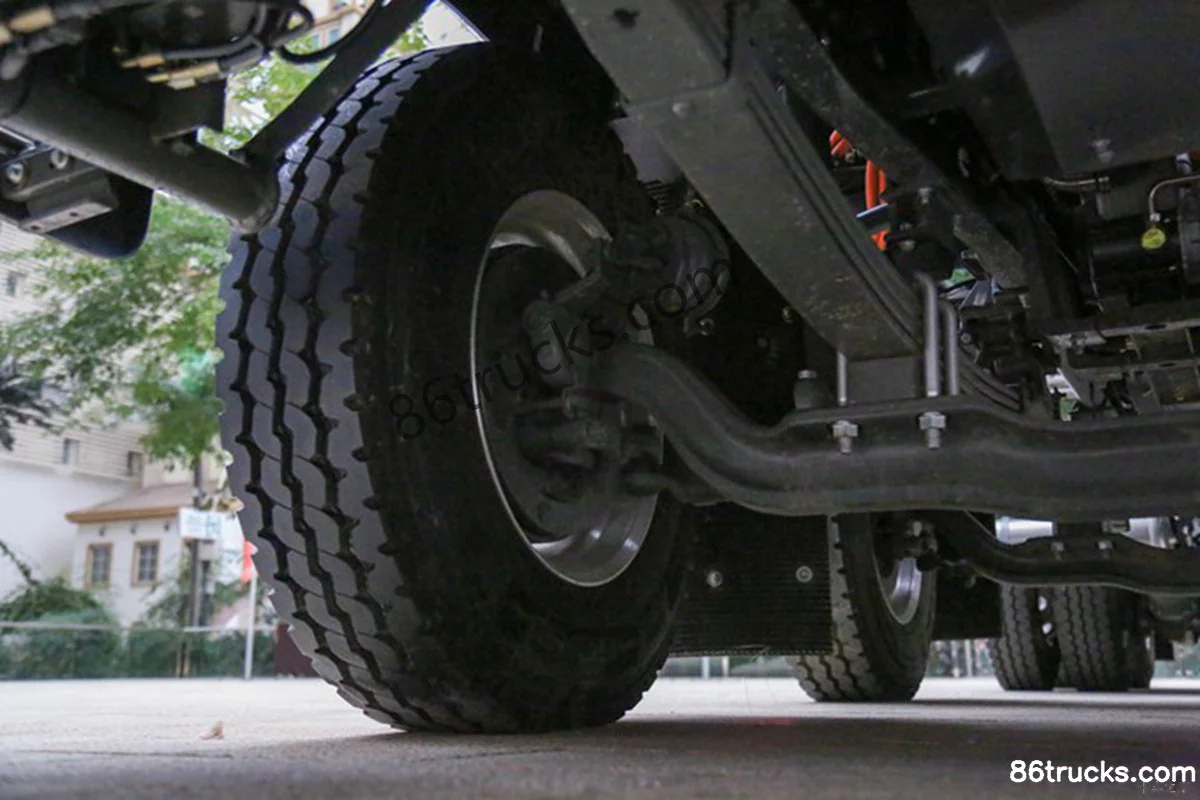

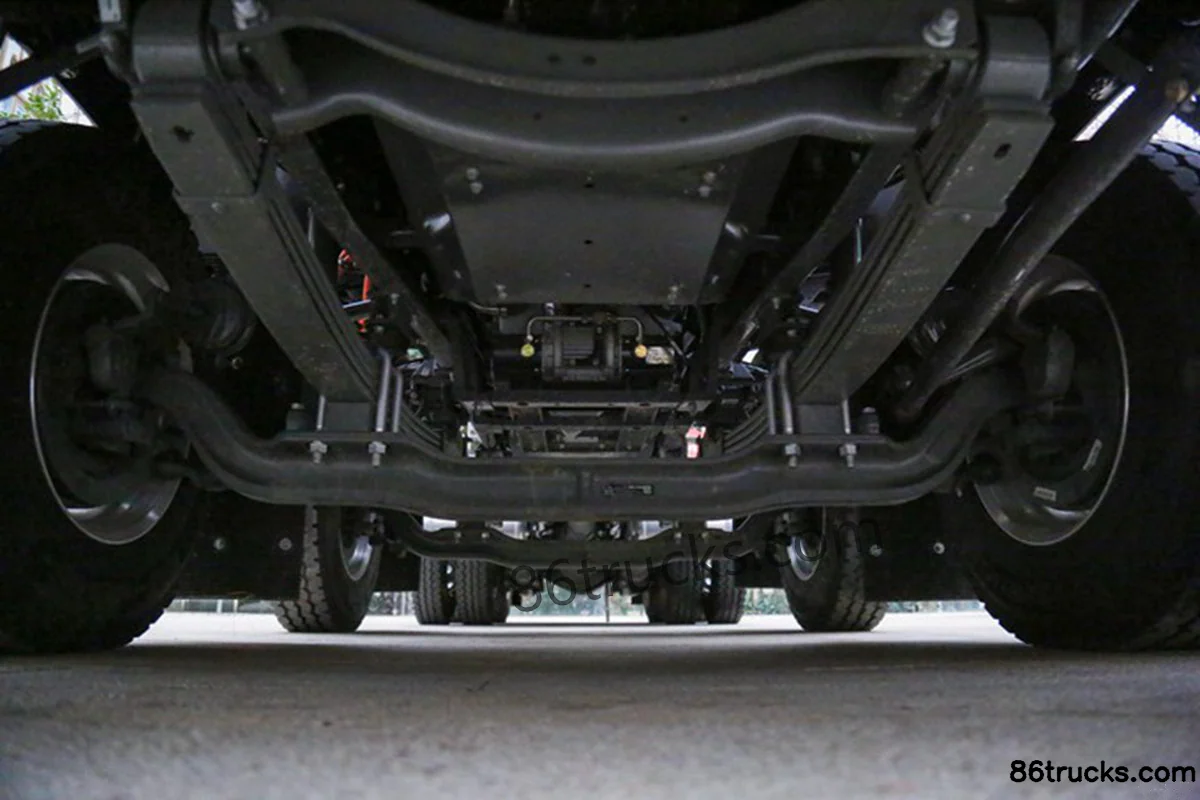

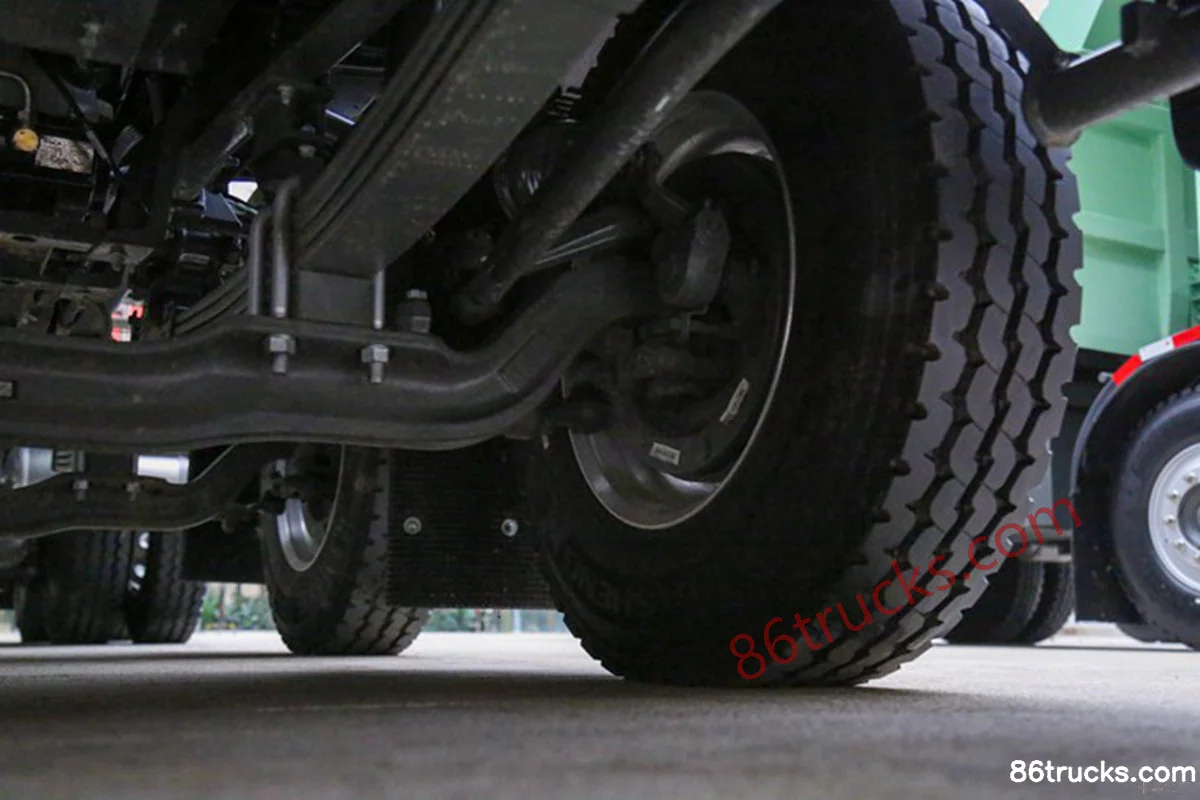

Chassis3

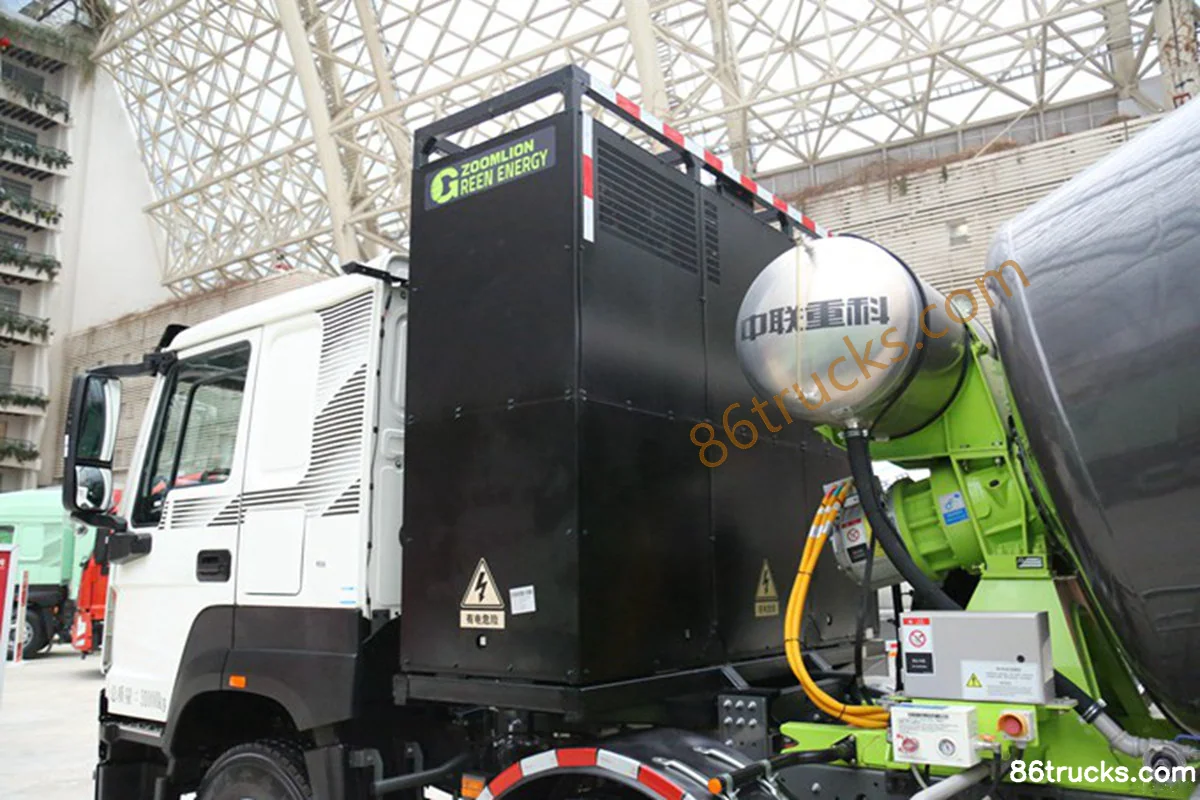

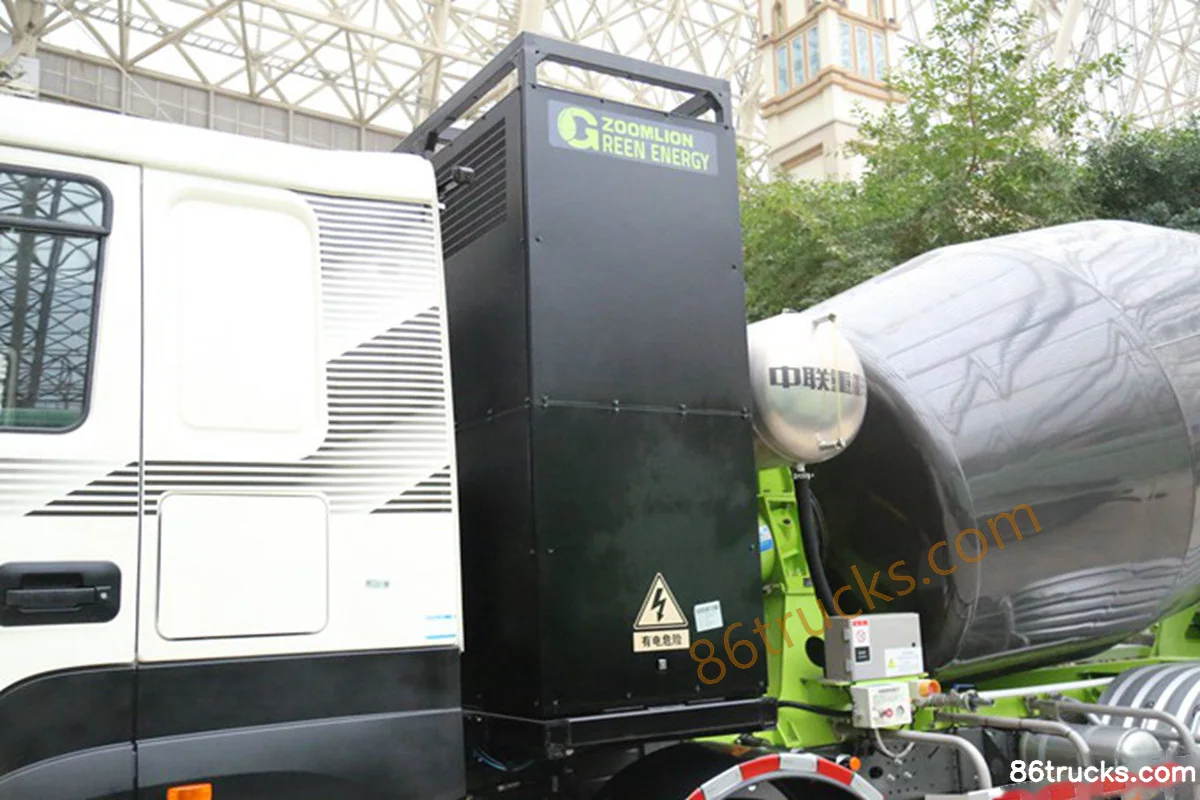

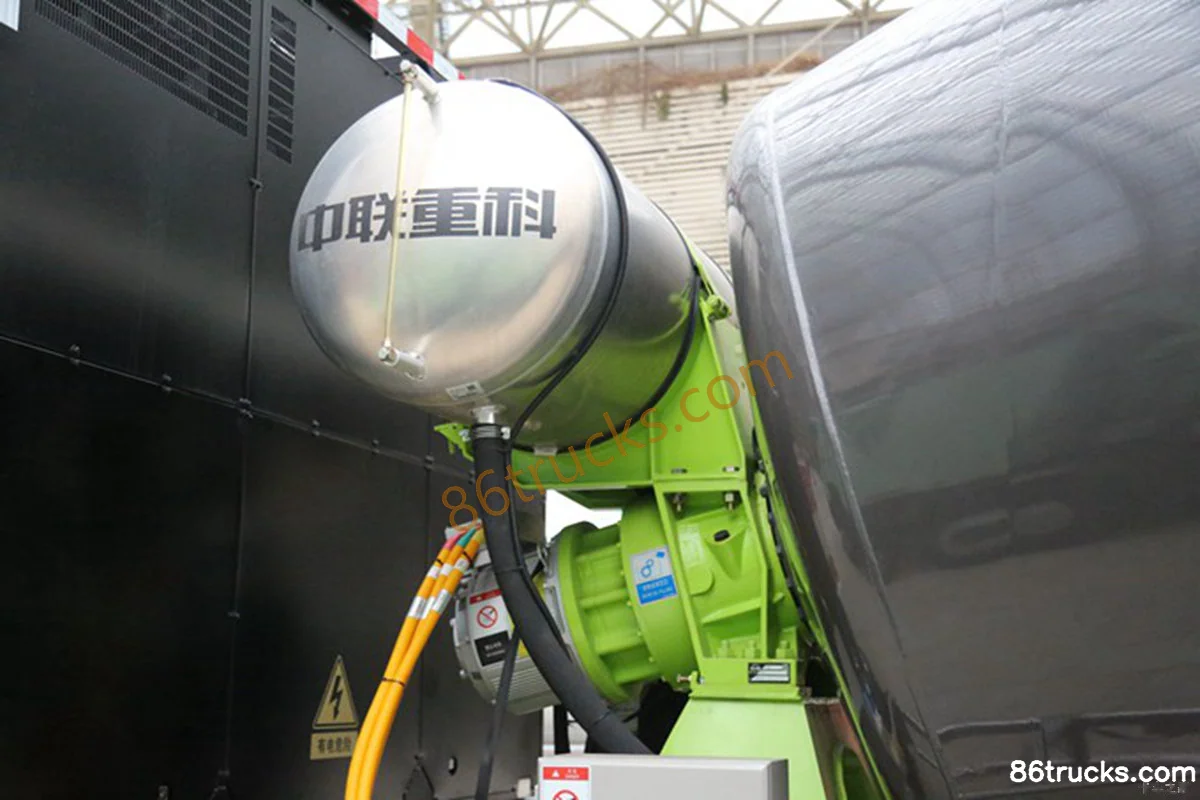

Body3

12 photos

FAQ

What are the key specs of Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh?

Key specs of Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh suited for?

Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh differ from other variants in the same series?

Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh belongs to ZOOMLION Sinotruk Chengdu commercial vehicle chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X Wealth Creation Edition 8X4(12 wheels) 7.77m³ Battery Swap Pure Electric Concrete Mixer Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
