Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI)

Export reference
From $15,694
MSRP ¥11.3M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box length: 3.2m

Overview

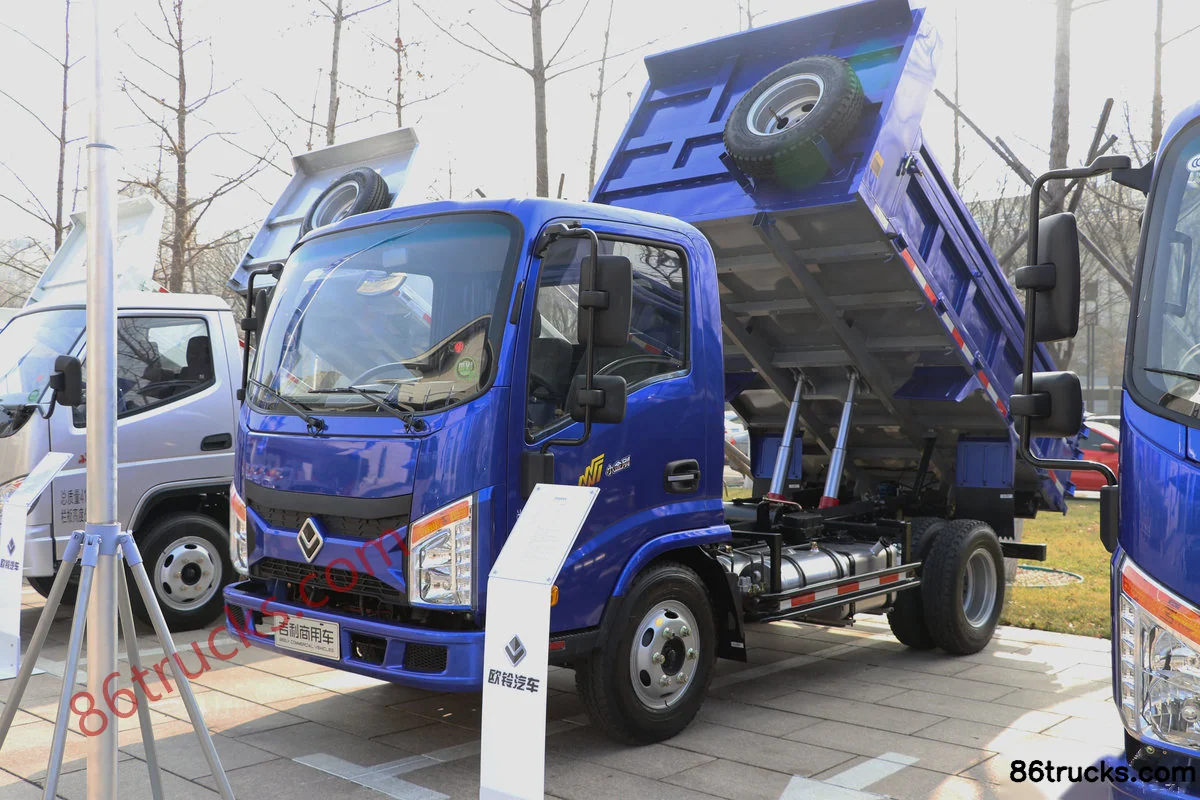

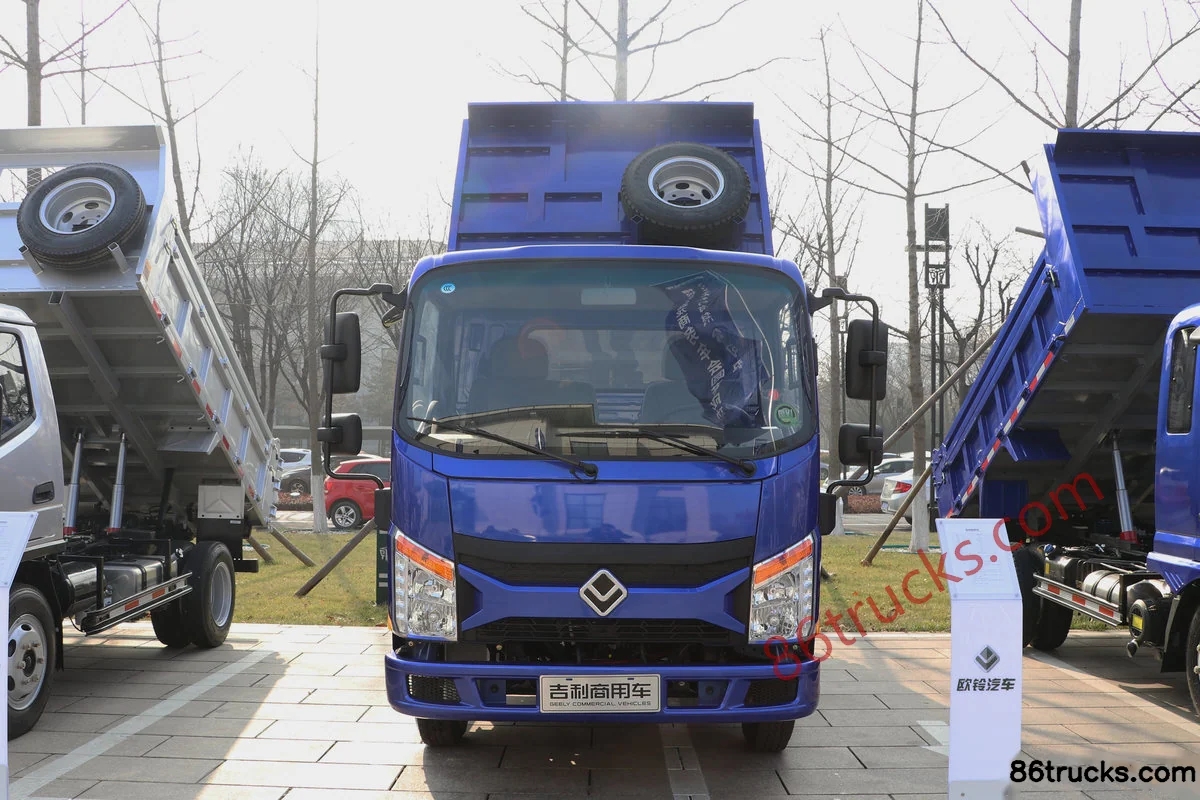

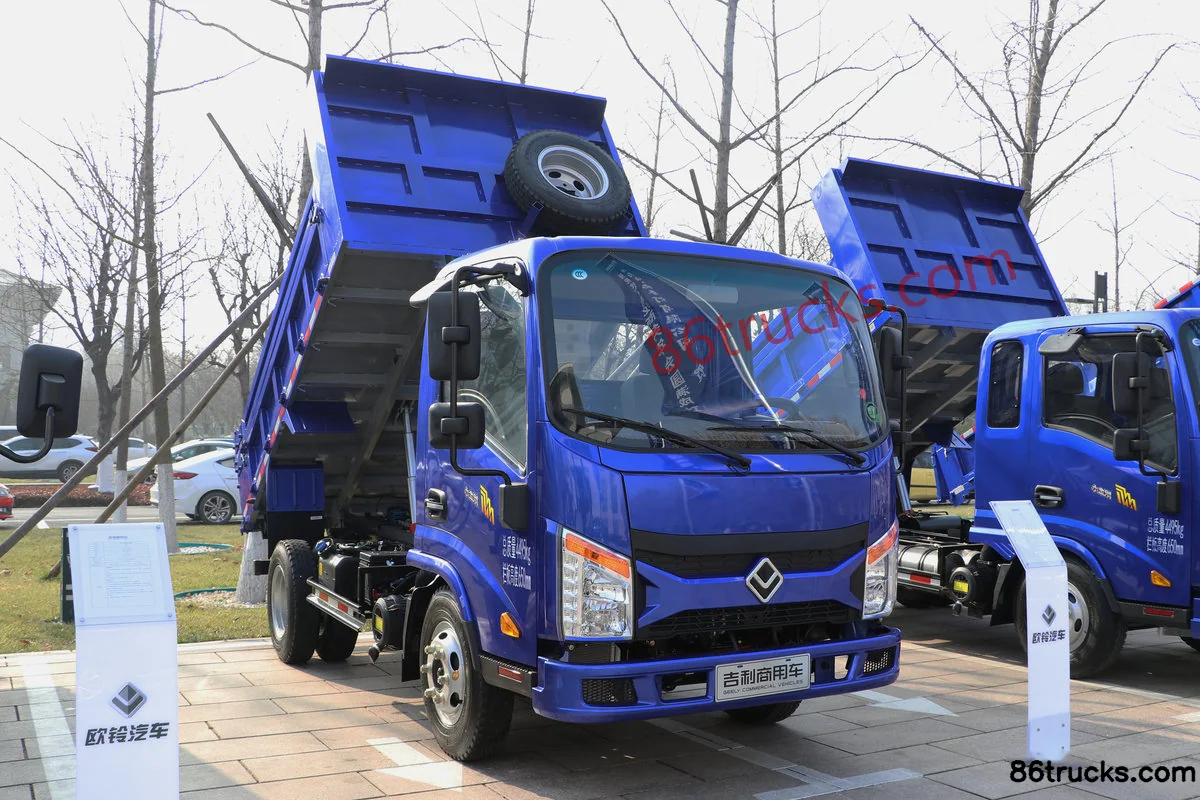

The Tangjun Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and Fast Gear transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040KDC2L
Drive type: 4X2
Wheelbase: 2850mm
engine: QuanchaiQ23-115E60
transmission: WLYWLY7TS40
Cab length: 5.165m
Cab width: 1.97m
Cab height: 2.23m
Front track width: 1545mm
rear track: 1530mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY7TS40
Transmission Brand: Fast Gear
Forward gears: 7Gear
Number of Reverse Gears:

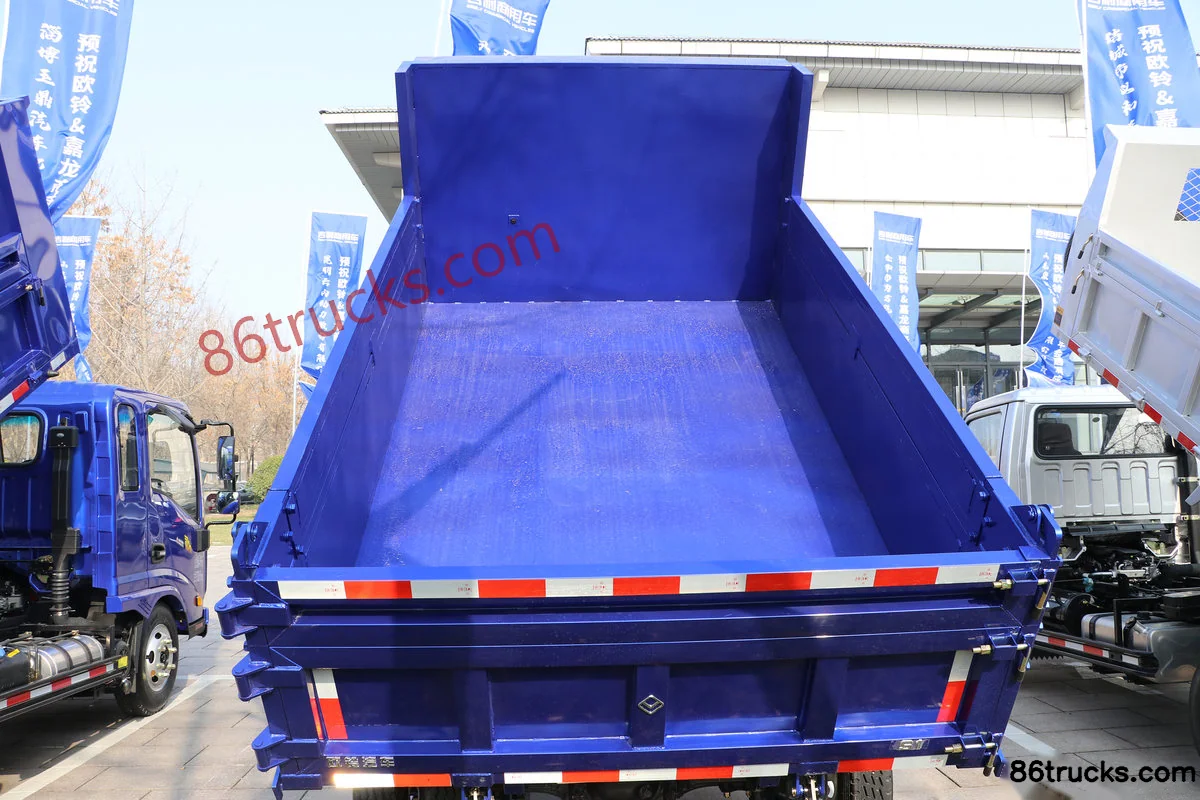

Cargo box parameters
Cargo box length: 3.2m
Cargo box width: 1.82m
Cargo box height: 0.65m
Cab parameters
Cab width: 1780mm
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Leaf spring count: 3/5+5

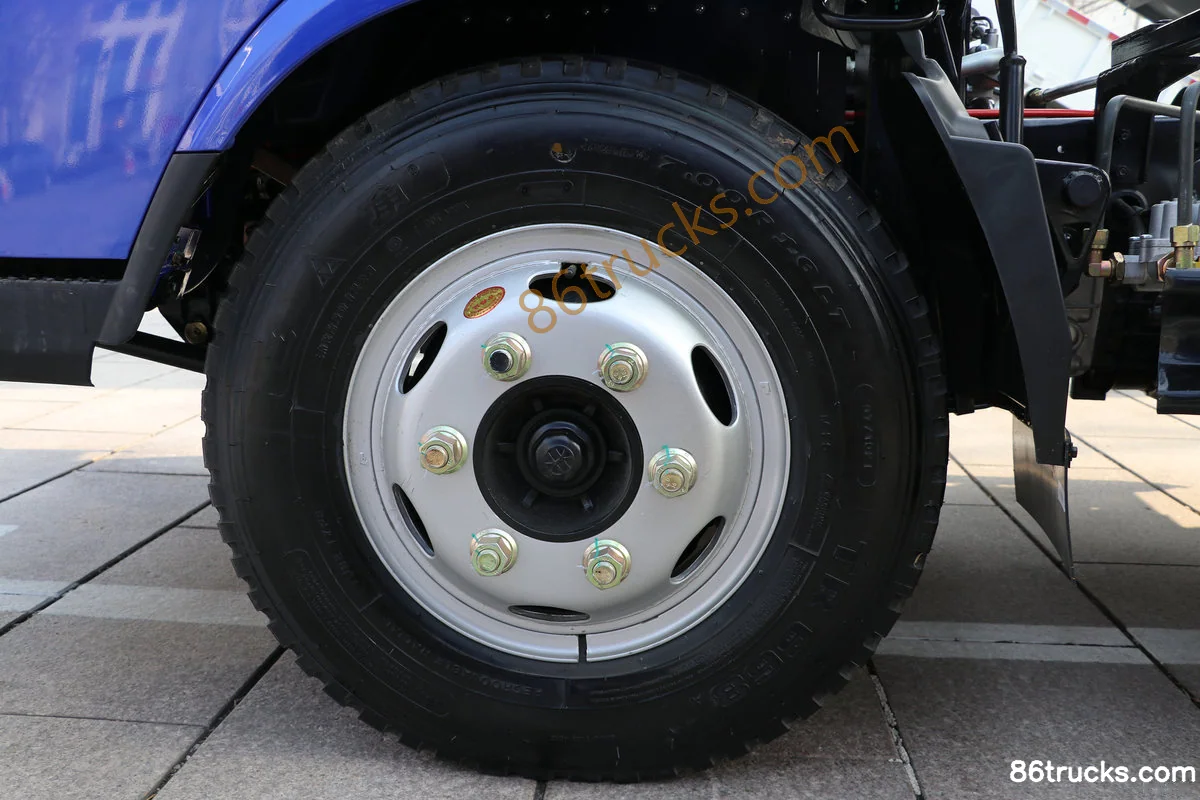

Tire

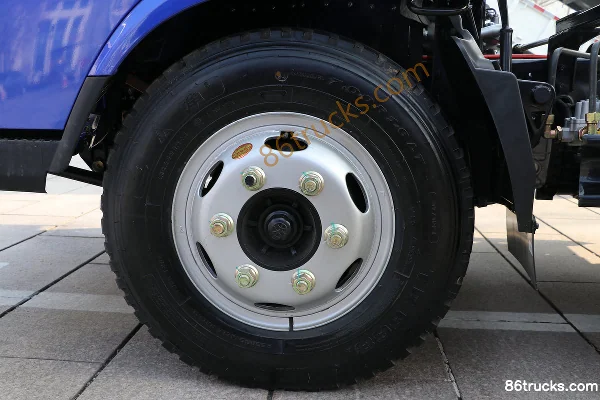

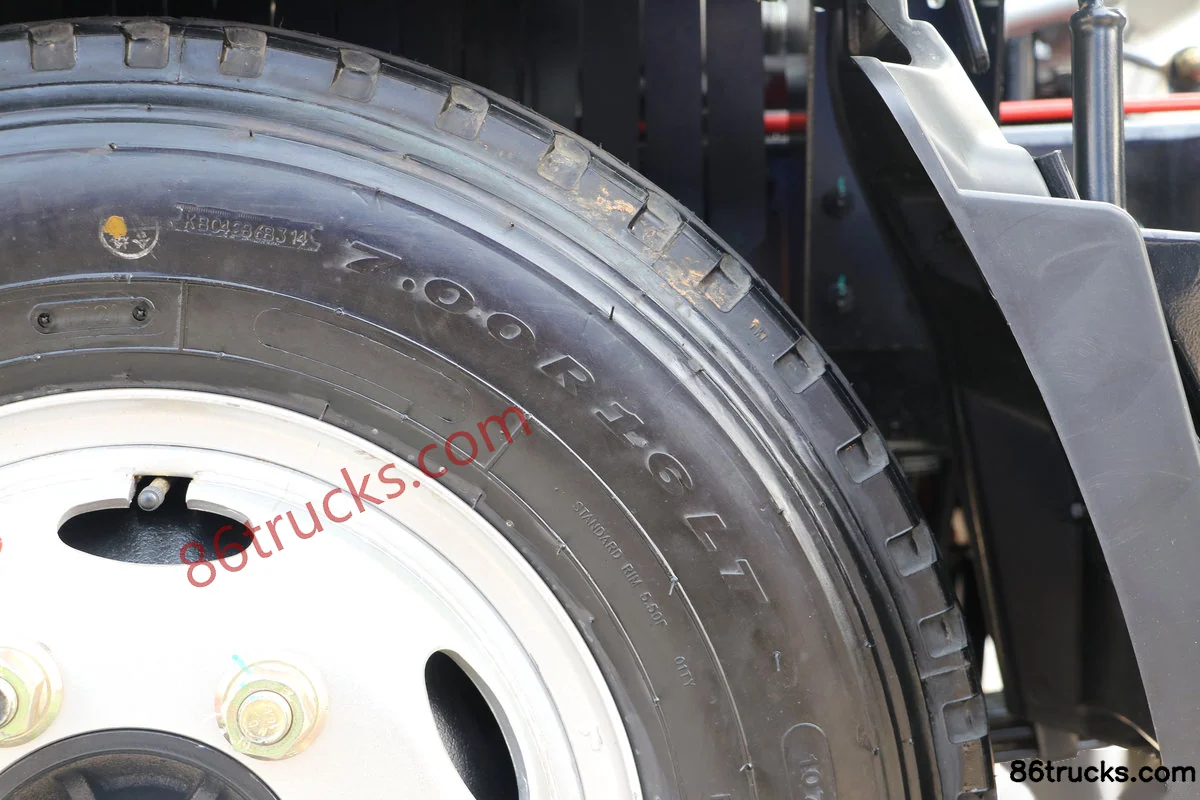

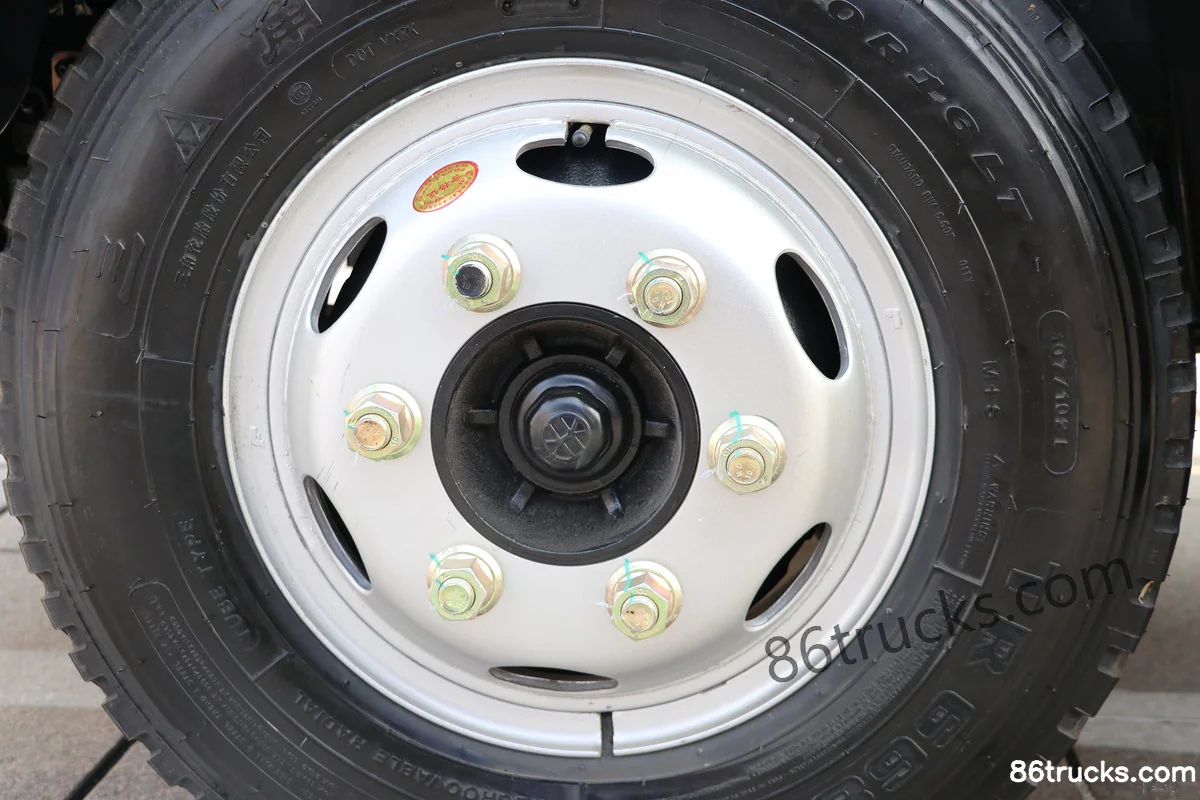

Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

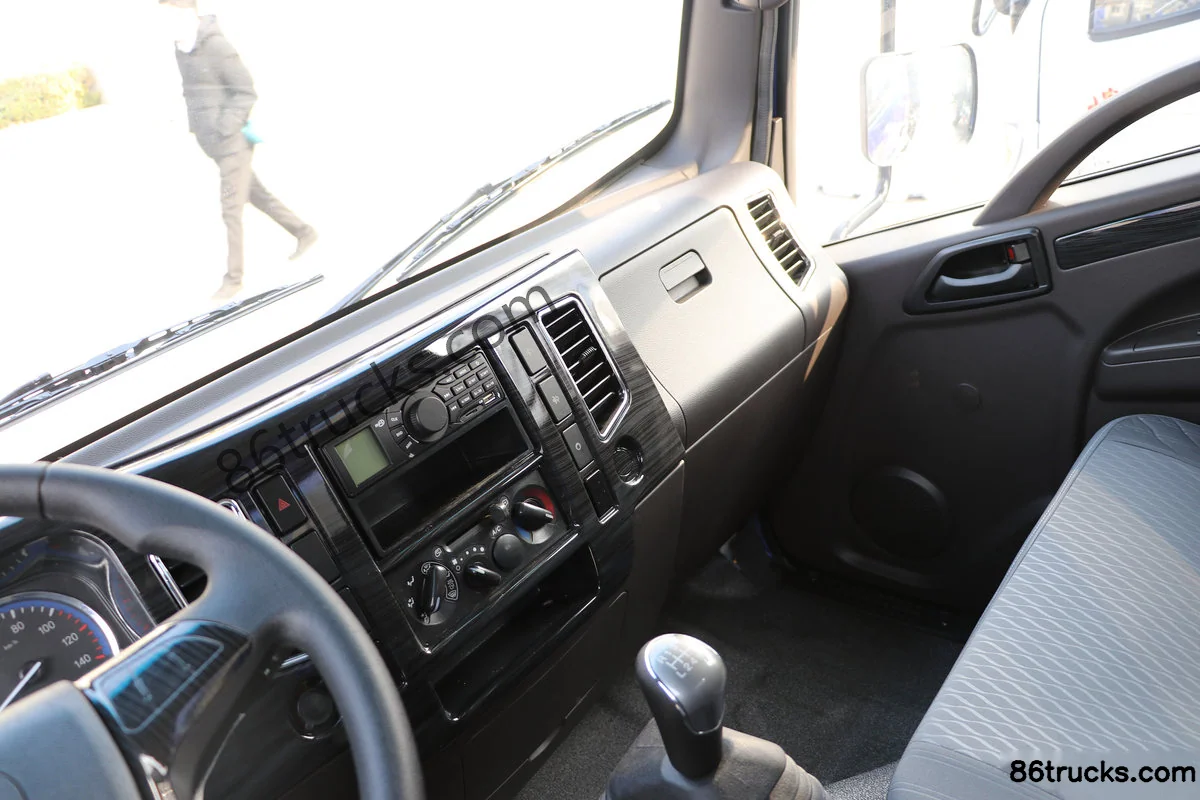

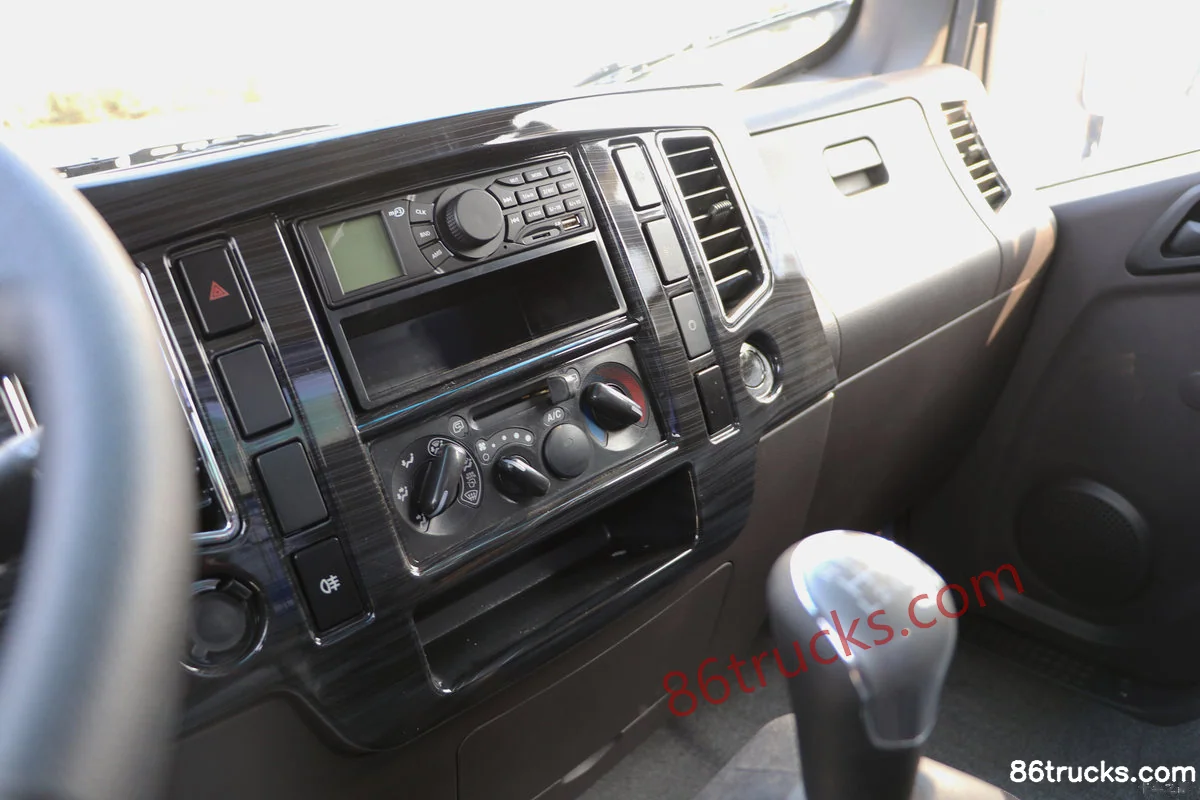

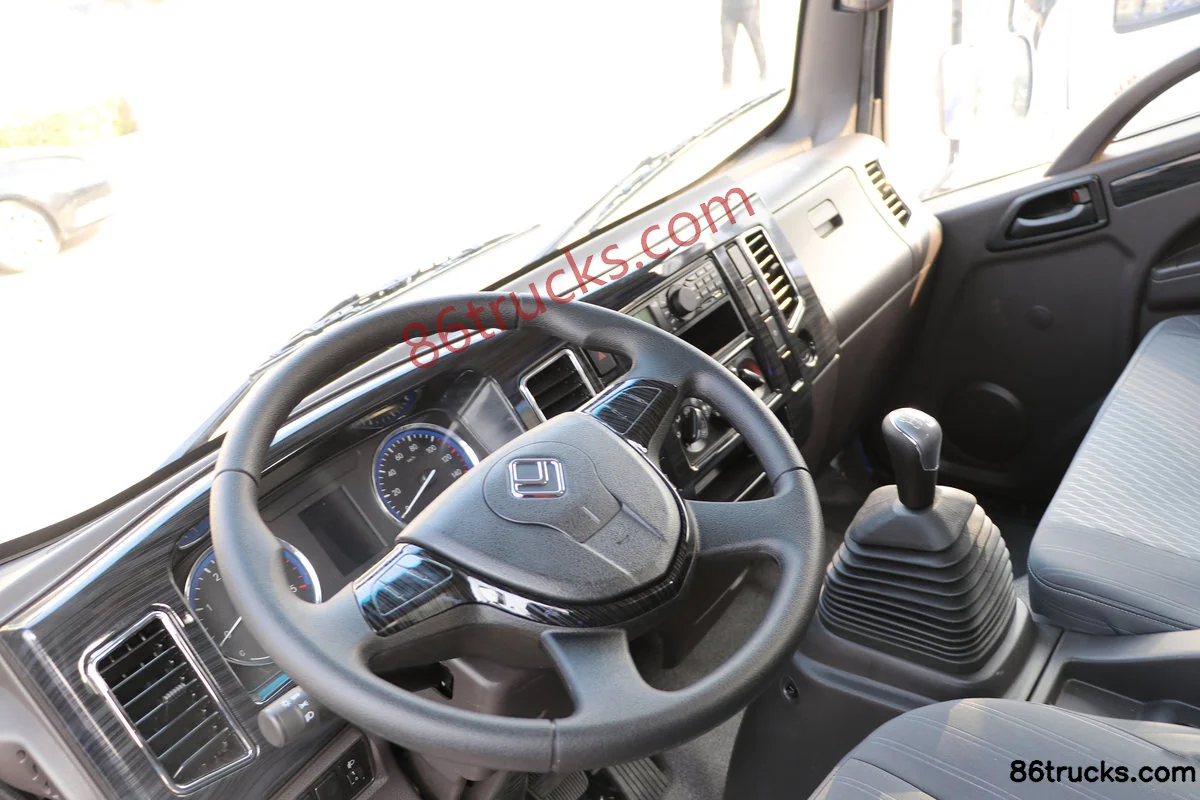

Cab3

Chassis3

Body1

10 photos

FAQ

What is the export price of Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI), and what does it include?

Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) export reference is about From $15,694; MSRP is ¥11.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Key specs of Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) suited for?

Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) differ from other variants in the same series?

Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI) belongs to Tangjun New Little King Kong Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
