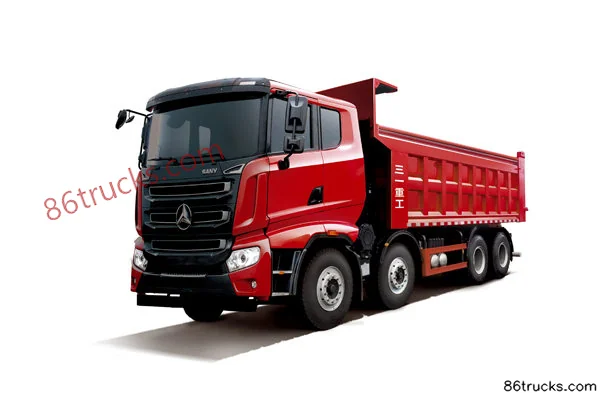

SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1800+2500+1350mm
Tire Size:: 11.00R20,12R22.5
Rated payload: 16.1ton
Drive 8X4 (12 wheels)
Horsepower 320
Cargo box type: Dump type

Overview

The SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck is a Heavy truck featuring 16.1t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SANYD09C5-320E0 engine, 320 hp, China V emissions and Fast Gear transmission.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM3318ZZX1E
Drive type: 8X4
Wheelbase: 1800+2500+1350mm
engine: SANYD09C5-320E0
transmission: Fast Gear10JSD120B
Cab length: 8.9m
Cab width: 2.54m
Cab height: 3.58m
Front track width: 2048/2048mm
rear track: 1860/1860mm
Curb Weight: 14.77ton
Rated payload: 16.1ton
GVWR: 31ton
Origin: Changsha, Hunan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 24°
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: SANY
Engine Model: SANYD09C5-320E0
fuel type: Diesel
Displacement: 8.7L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Max torque: 1379N·m
Max torque speed: 1000-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.4m
Cargo box height: 1.5m
Cab parameters
Cab: 318 flat top
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5.5T Hande
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×(8+4)mm
rear axle description: 11.5T 440
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/3/4,8/8/12
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior1

1 photos

FAQ

What emission standard does SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck?

Key specs of SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck: Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck suited for?

SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck differ from other variants in the same series?

SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck belongs to SANY dump truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Group Standard Load Version 320hp 8X4(12 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
