Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.815ton
Wheelbase:: 5400mm
Tire Size:: 10.00R20 18PR
Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck exterior
View more photos (12)
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck is a Medium-duty truck featuring 9.99t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ3185L10Y2N5
Drive type: 4X2
Wheelbase: 5400mm
engine: YuchaiYC4E160-56
transmission: Fast Gear 8-speed
Rear Axle Ratio: 5.571
Cab length: 9m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 7.815ton
Rated payload: 9.99ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.7m
Cargo box width: 2.35m
Cargo box height: 0.6m
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.571
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

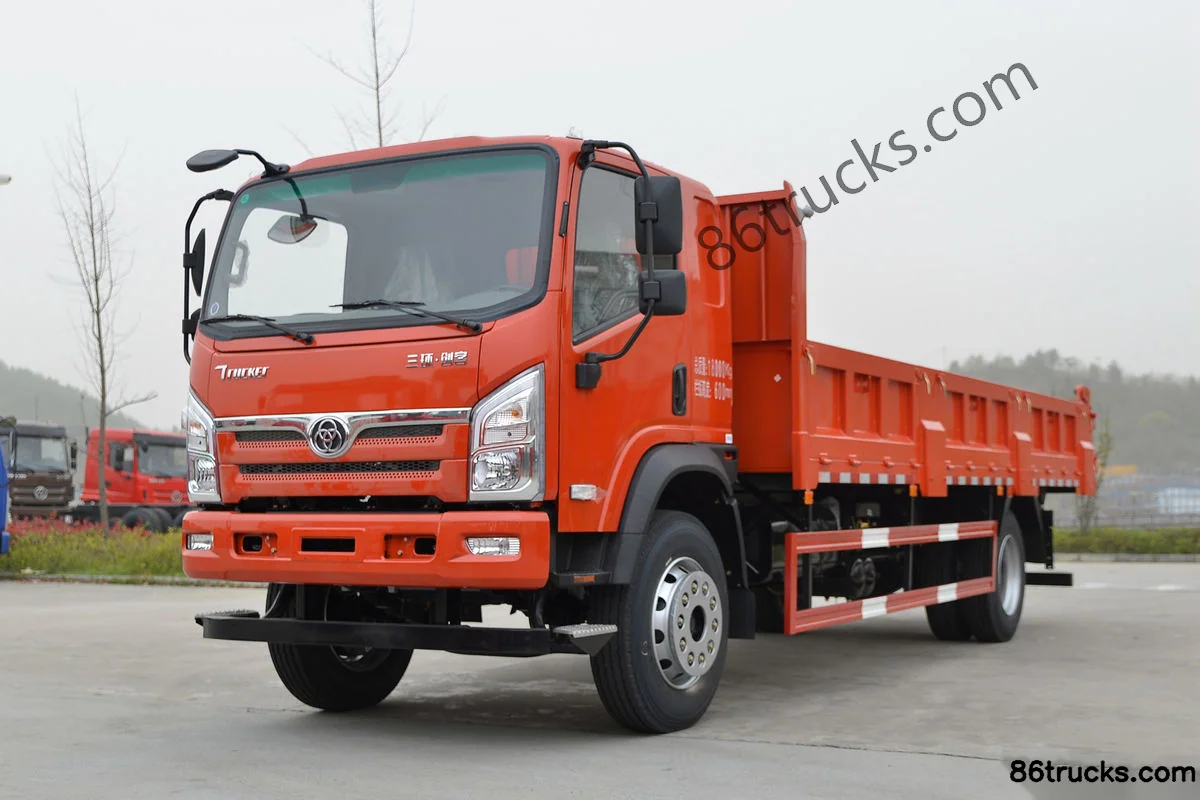

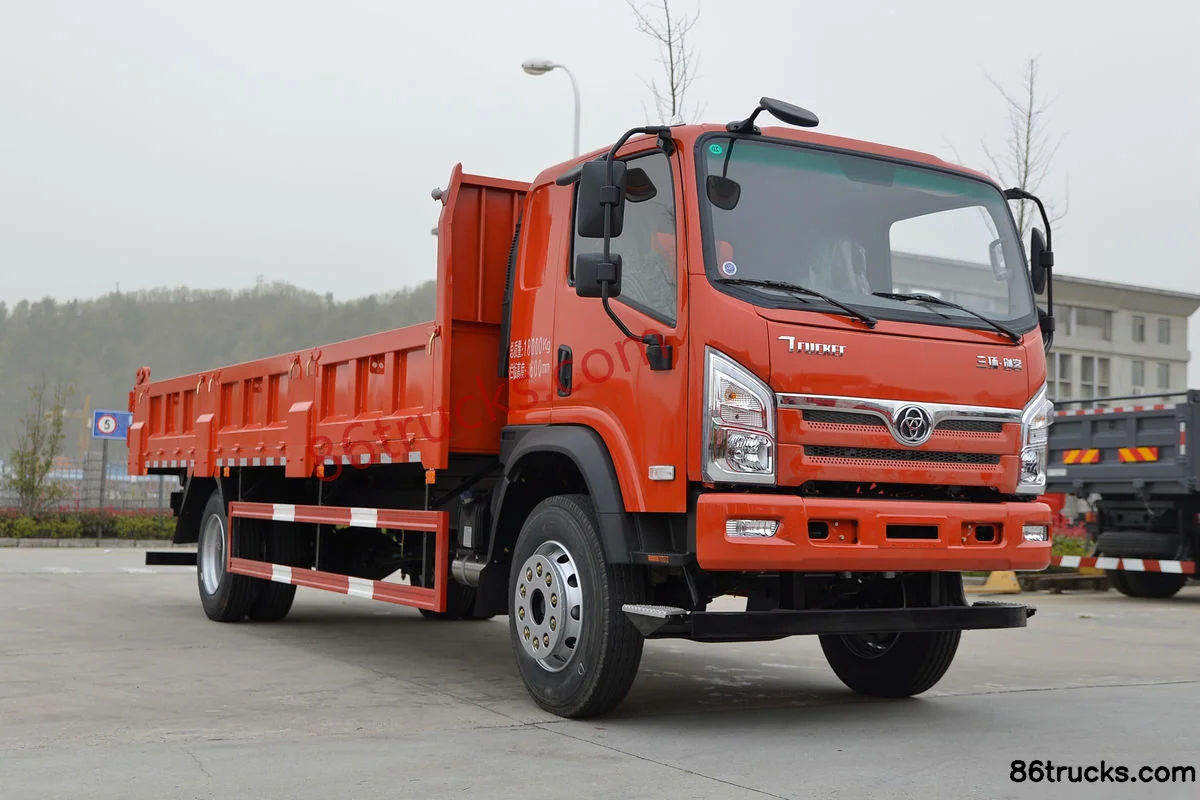

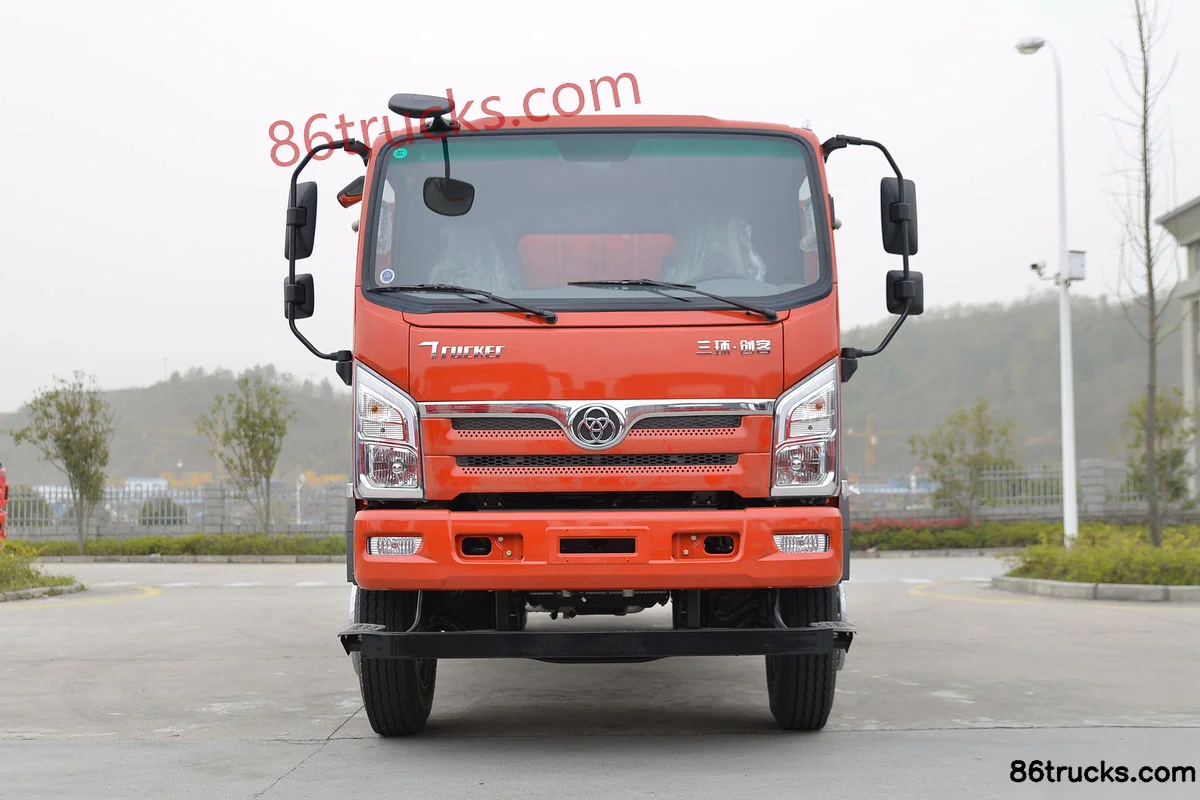

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Exterior (1) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Exterior (2) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Exterior (3) | 86Trucks

Cab3

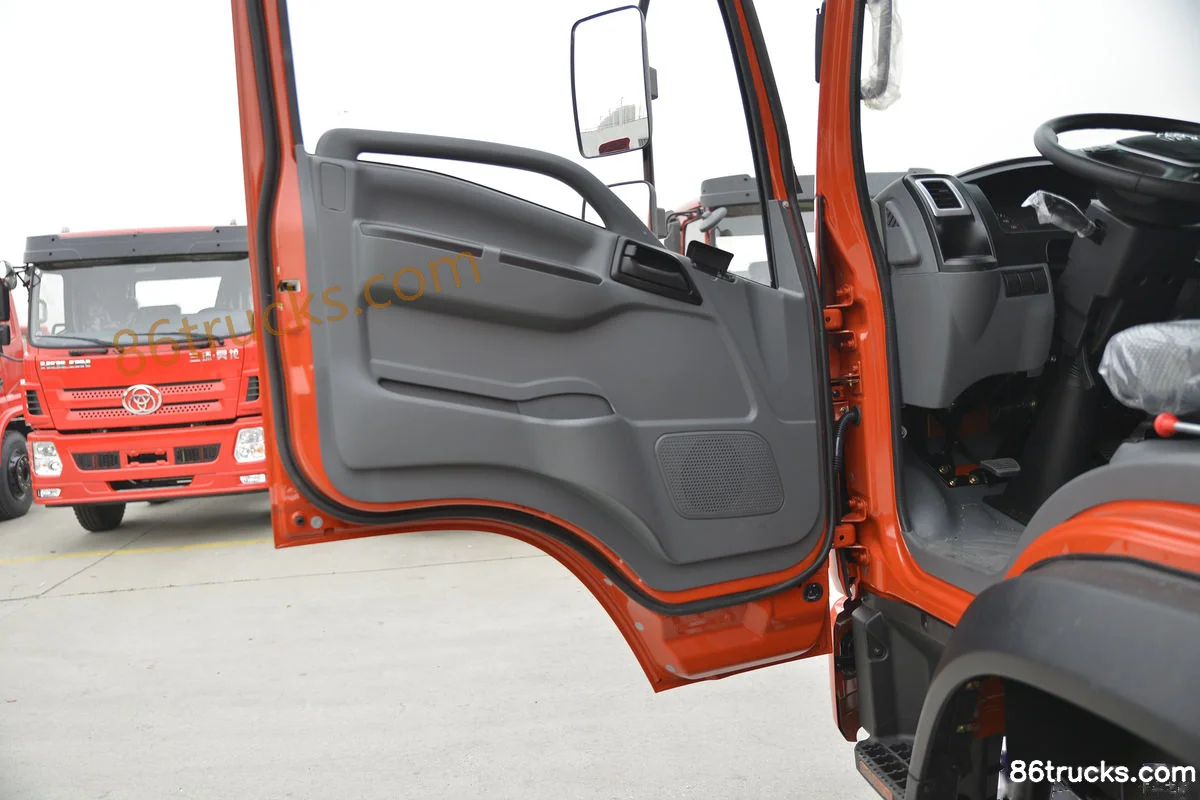

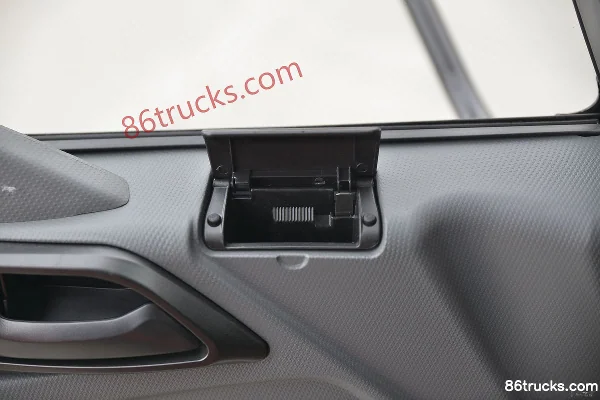

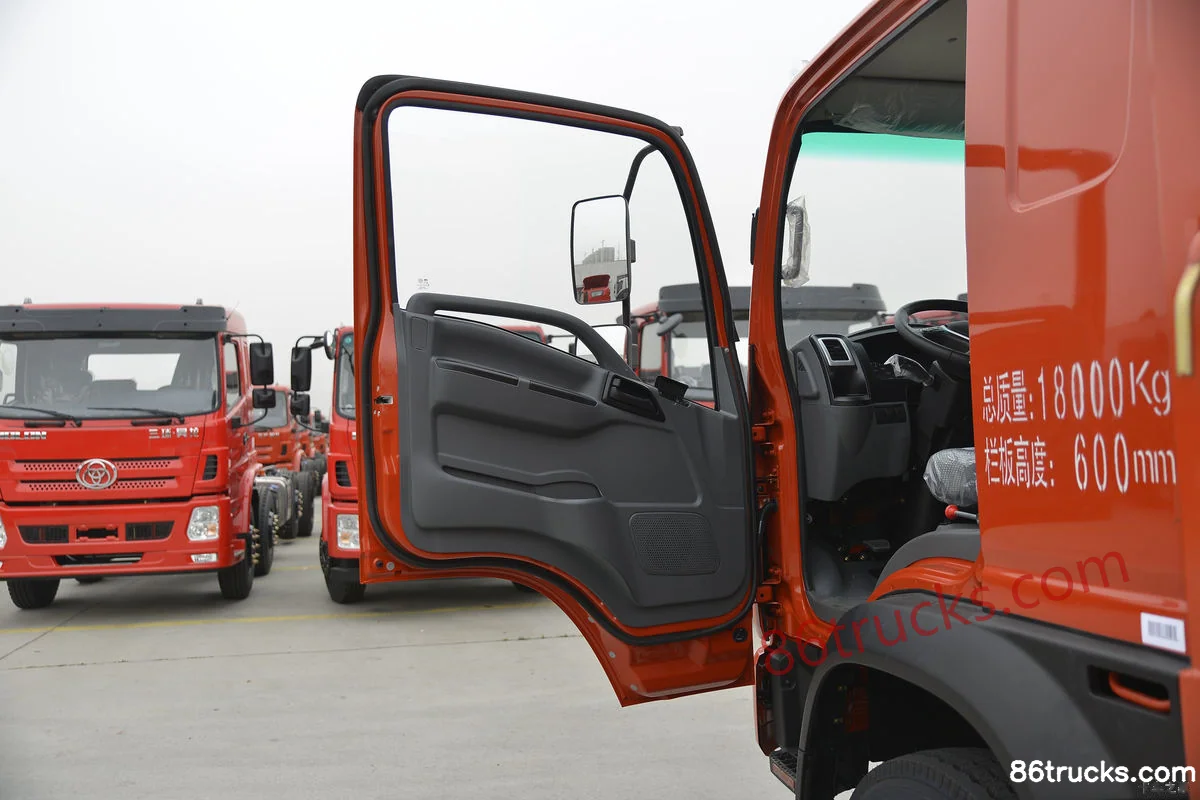

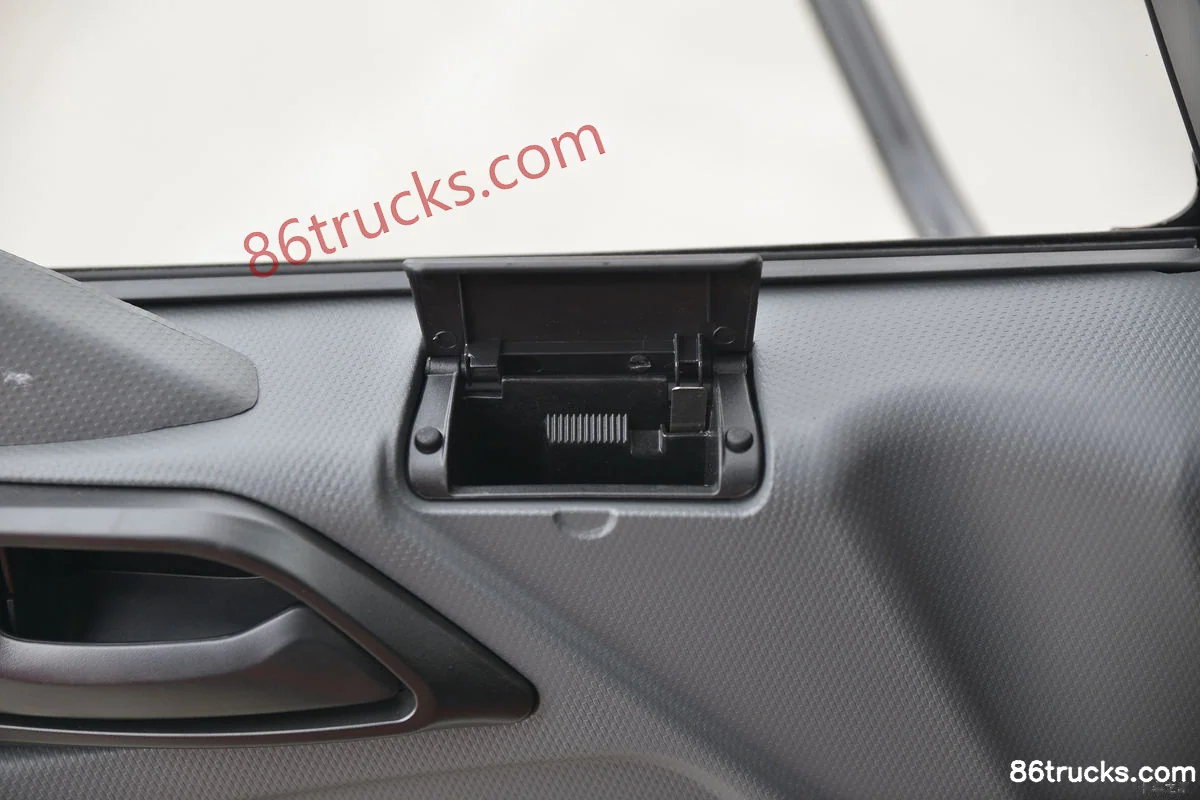

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Cab (1) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Cab (2) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Cab (3) | 86Trucks

Chassis3

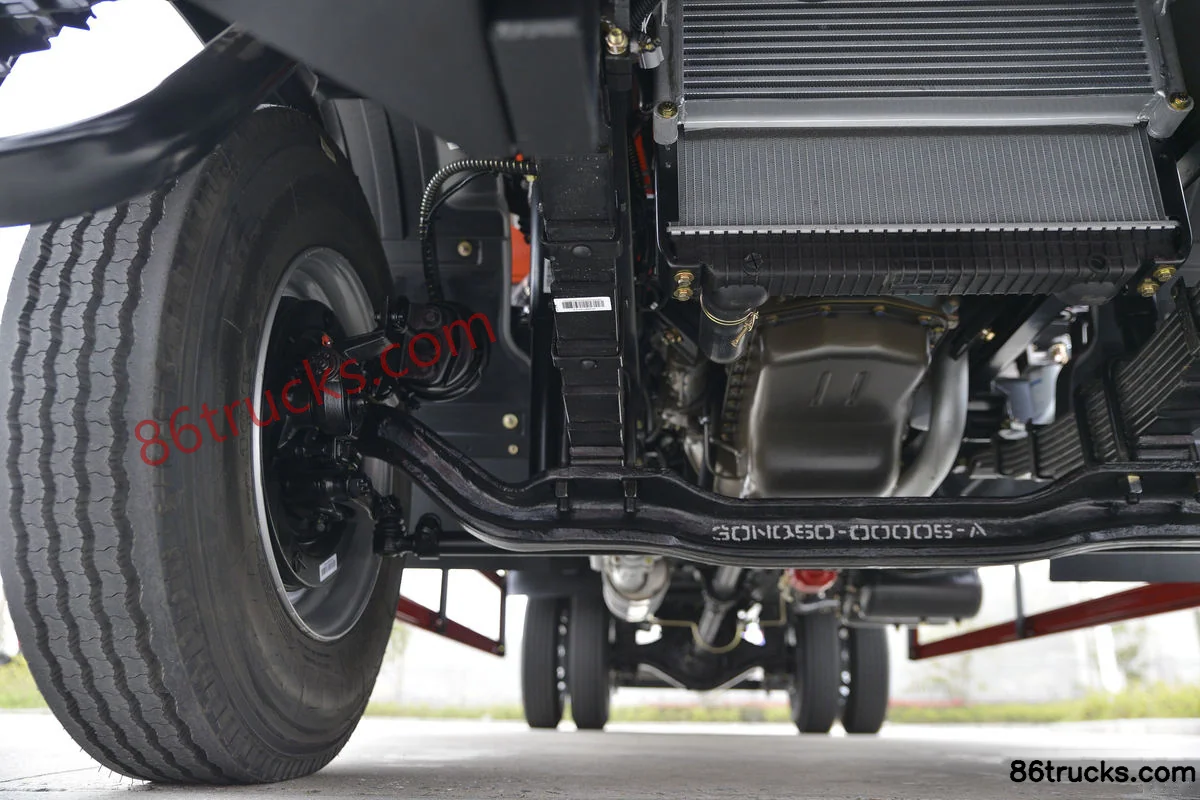

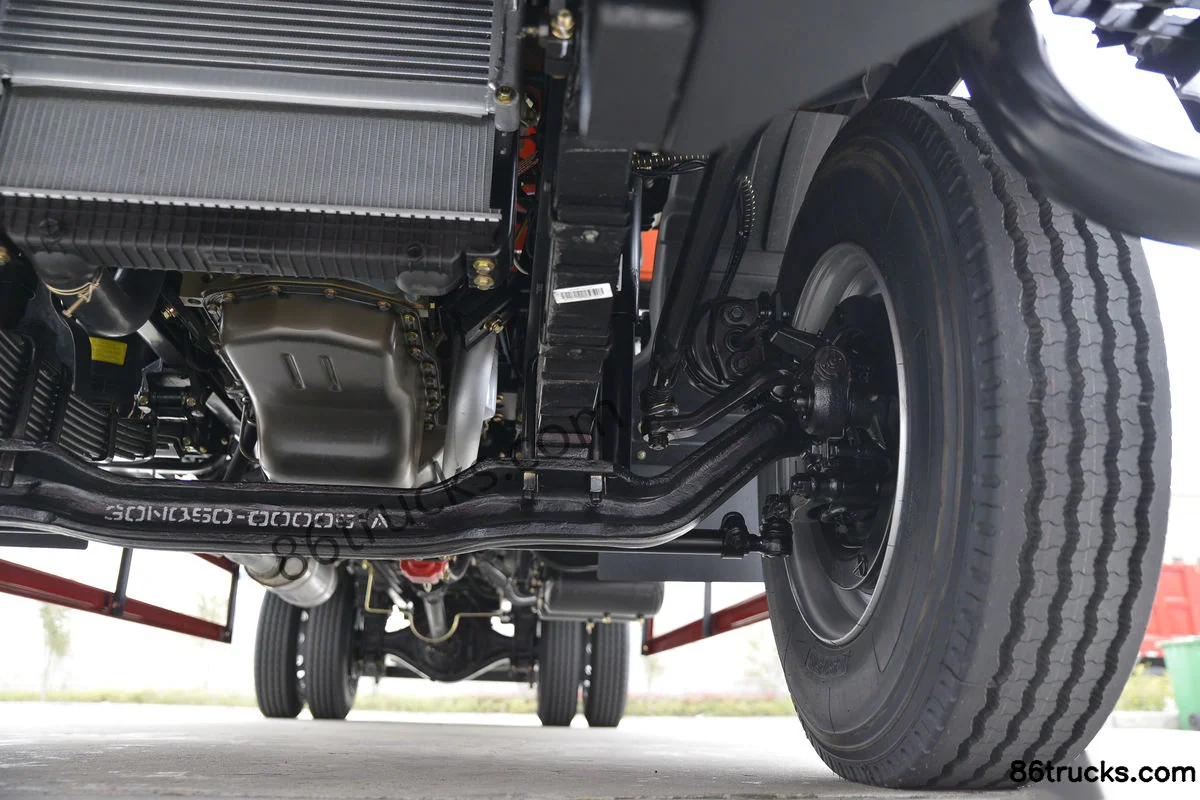

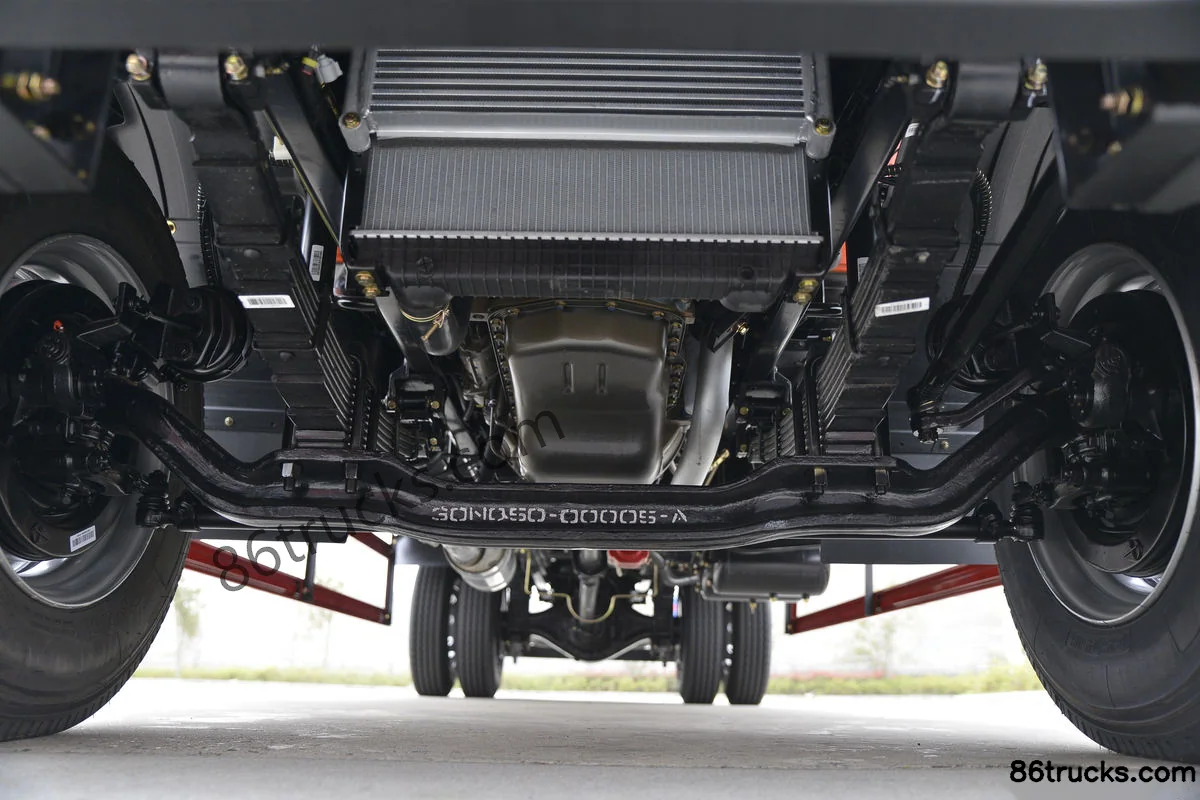

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Chassis (1) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Chassis (2) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Chassis (3) | 86Trucks

Body3

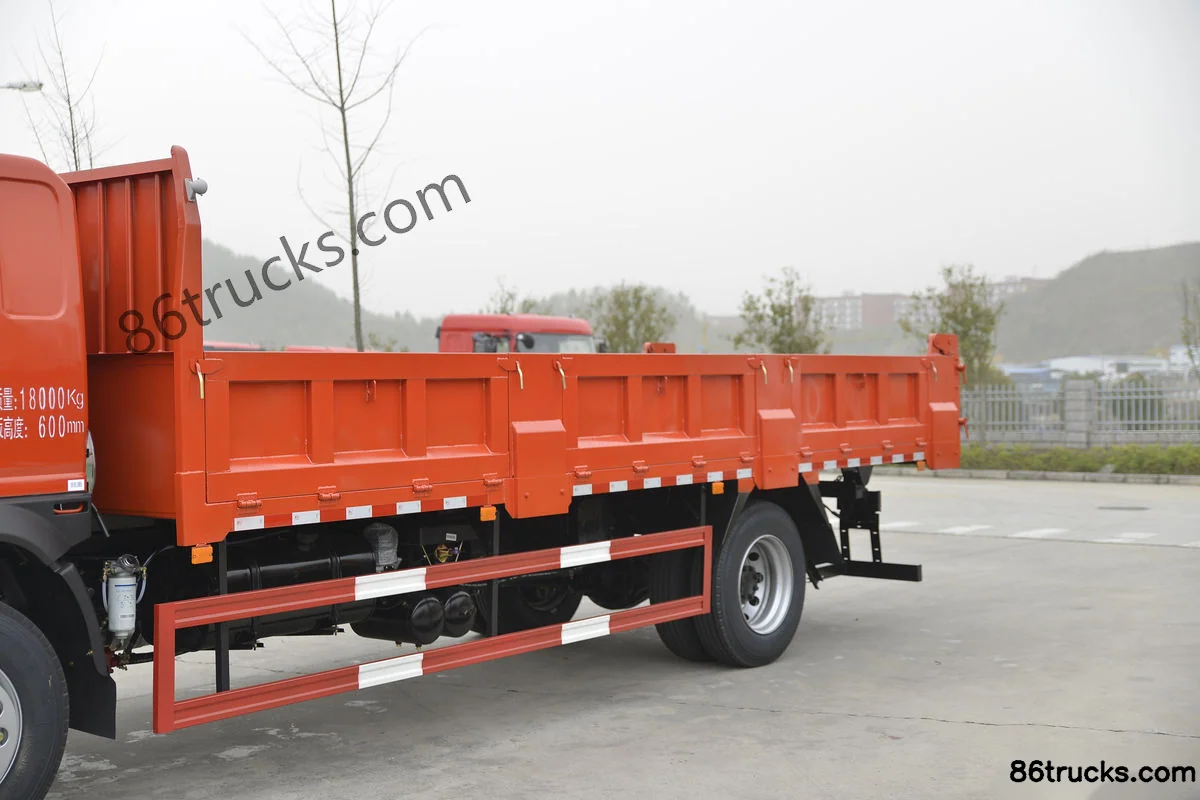

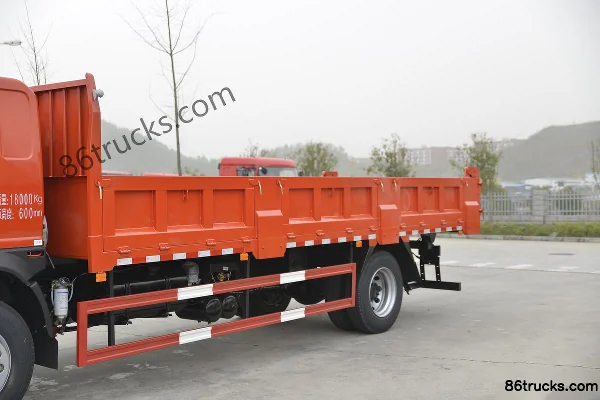

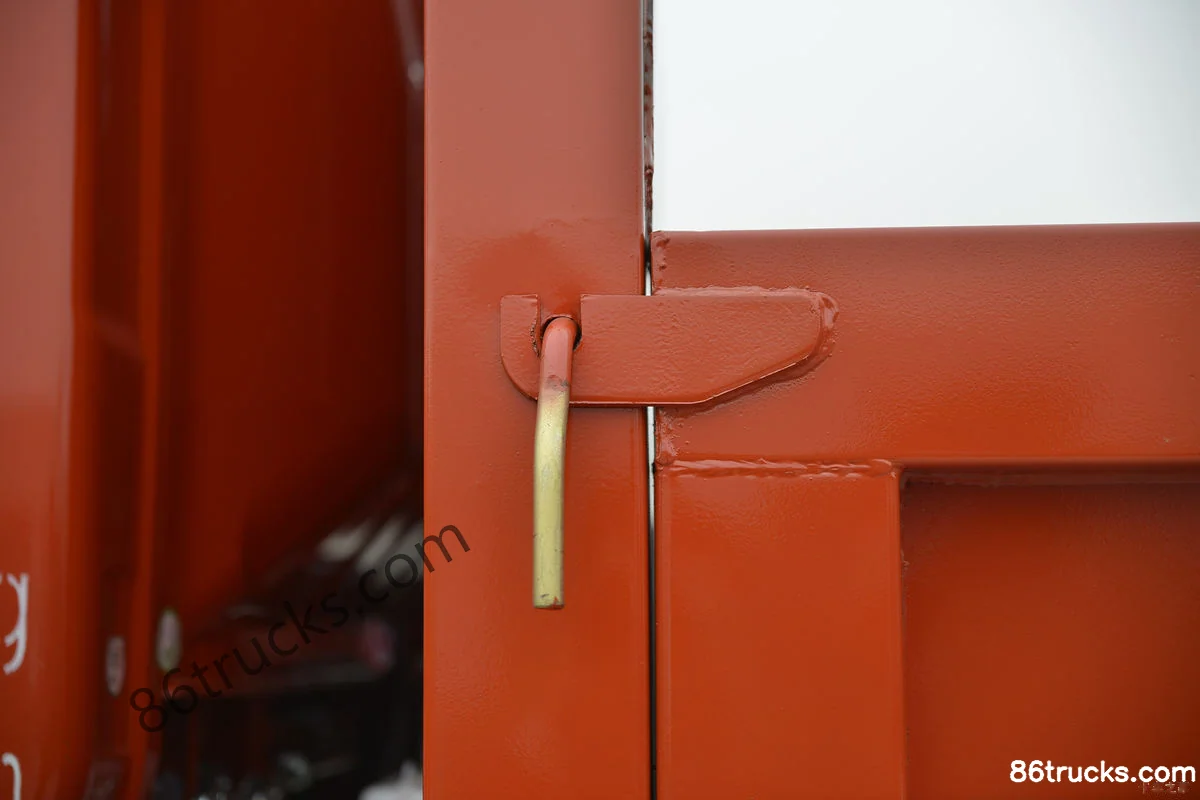

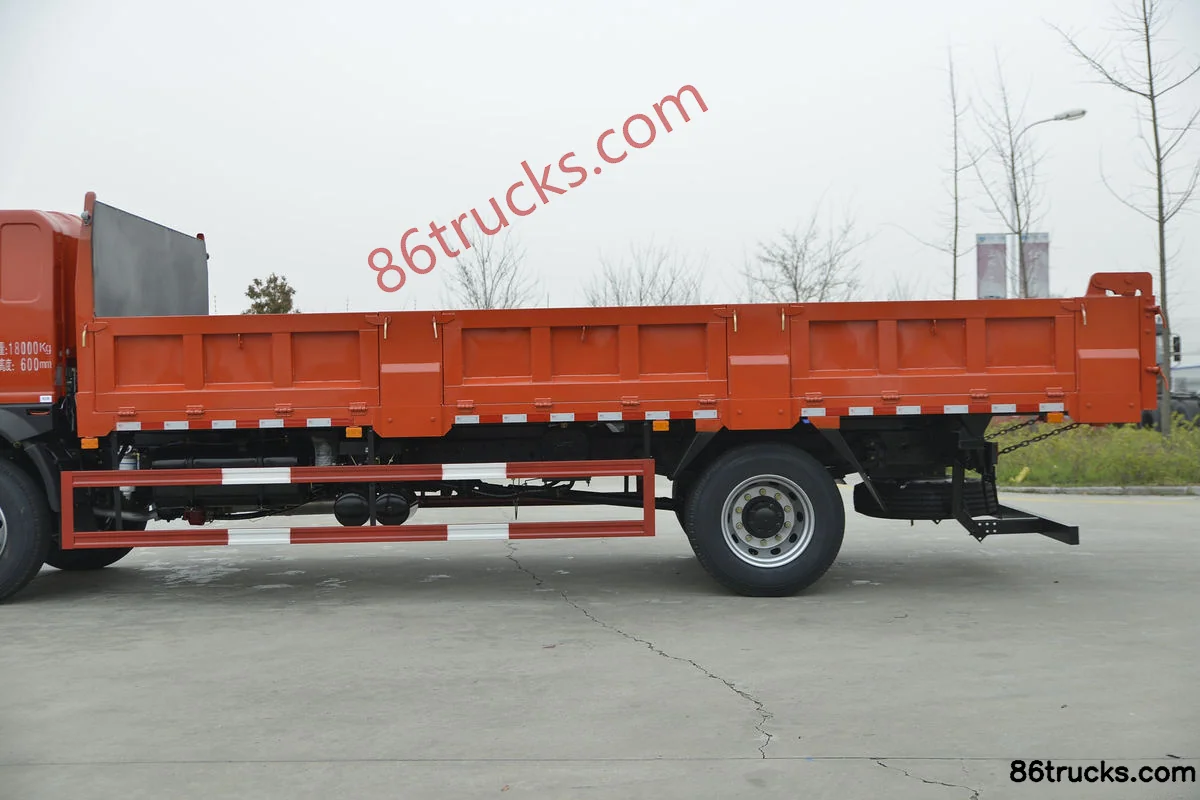

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Body (1) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Body (2) | 86Trucks Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck?

Key specs of Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck suited for?

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 160hp 4X2(6 wheels) 6.7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
