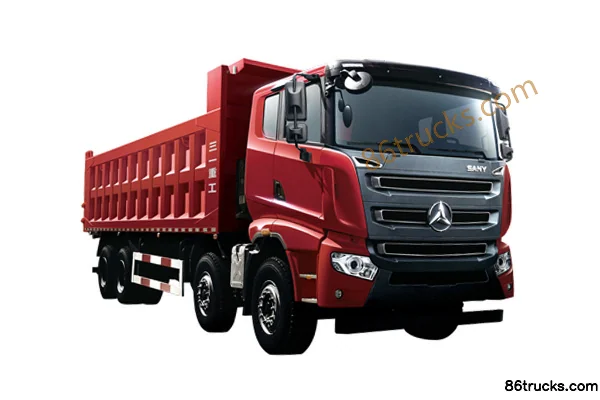

SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2000+4200+1400mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 560
Cargo box length: 8m

Overview

The SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) is a Heavy truck featuring 15.37t payload, 31t GVW, 8m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SANYD13C6-560E0 engine, 560 hp, China VI emissions and Fast Gear transmission.

China VI 560 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM3315ZZX1F
Drive type: 8X4
Wheelbase: 2000+4200+1400mm
engine: SANYD13C6-560E0
transmission: Fast Gear12JSDX240T-B
Cab length: 11m
Cab width: 2.54m
Cab height: 3.65m
Front track width: 2048/2048mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Changsha, Hunan
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 22°
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: SANY
Engine Model: SANYD13C6-560E0
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.94L
Emission standard: China VI
Max output power: 412kW
Max hp: 560Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSDX240T-B
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 9T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 316/8+8mm
rear axle description: 16T
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/10/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI)?

Key specs of SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI): Drive: 8x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) suited for?

SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) differ from other variants in the same series?

SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI) belongs to SANY dump truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Group Heavy Load Edition 560hp 8X4(12 wheels) 8m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
