JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck

Export reference
From $15,000
MSRP ¥10.8M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3360mm
Tire Size:: 8.25R16
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Rear-dump body

Overview

The JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046KZ
Drive type: 4X2
Wheelbase: 3360mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY10H41-17-10
Rear Axle Ratio: 5.83
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.36m
Front track width: 1560mm
rear track: 1530mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 25°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: WLYWLY10H41-17-10
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.15m
Cargo box width: 2m
Cargo box height: 0.55m
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Frame Dimensions: 800×200×65×(5+5)mm
rear axle description: 7.2T rear axle
rear axle allowable load: 2380kg
Axle ratio: 5.83
Leaf spring count: 8/10+8
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:

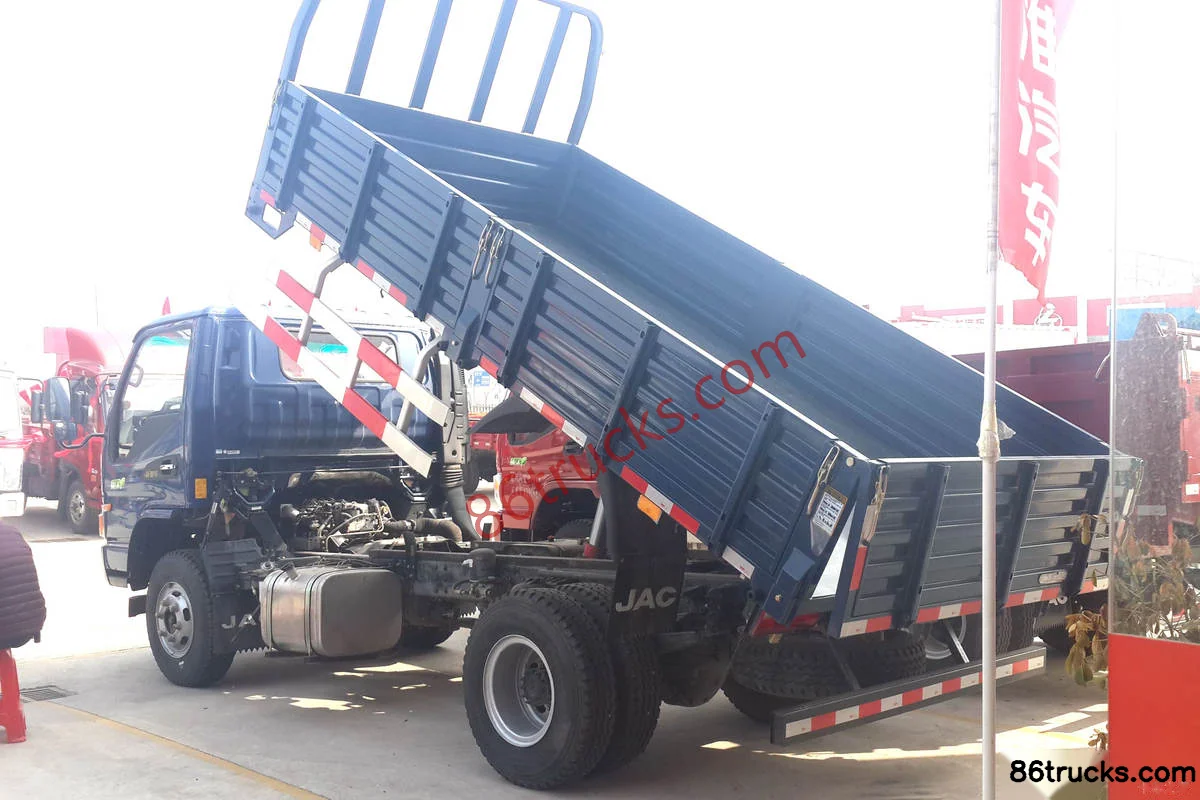

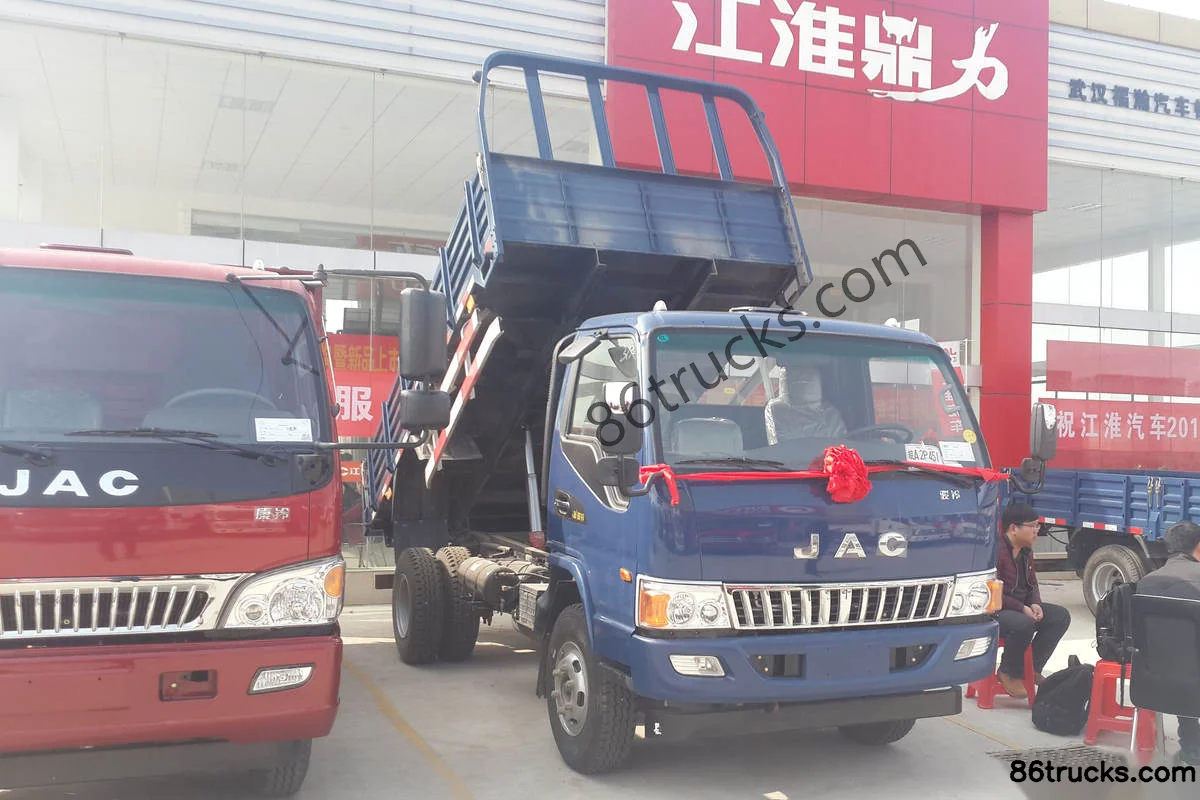

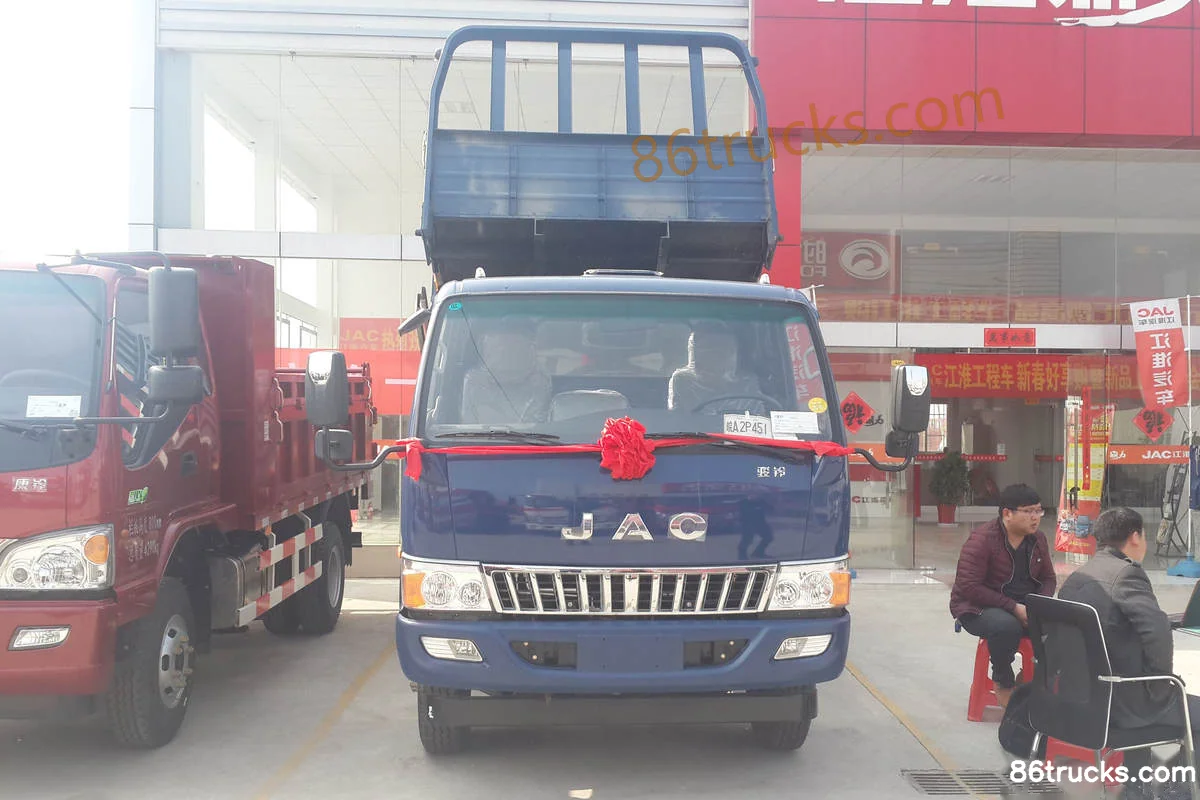

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck, and what does it include?

JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck export reference is about From $15,000; MSRP is ¥10.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck?

Key specs of JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck suited for?

JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck differ from other variants in the same series?

JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G 129 hp 4X2(6 wheels) 4.15m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
