Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck

Export reference
From $11,292
MSRP ¥8.13M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.54ton
Wheelbase:: 2400mm
Tire Size:: 6.50R16LT 10PR/245/70R17.5 18PR
Rated payload: 1.825ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Dump type

Overview

The Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck is a Light Truck featuring 1.825t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD20TCIF14 engine, 102 hp, China VI emissions and WLY transmission.

China VI 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3040K3A240D6
Drive type: 4X2
Wheelbase: 2400mm
engine: Yunnei PowerD20TCIF14
transmission: WLY 5-speed
Rear Axle Ratio: 6.143
Cab length: 4.48m
Cab width: 1.96m
Cab height: 2.15m
Front track width: 1405mm
rear track: 1435mm
Curb Weight: 2.54ton
Rated payload: 1.825ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: D20TCIF14
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.65m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
Cab: Single Row
Cab width: 1680mm
seating capacity: 2Personnel
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Axle ratio: 6.143
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16LT 10PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
Radio:

Photos

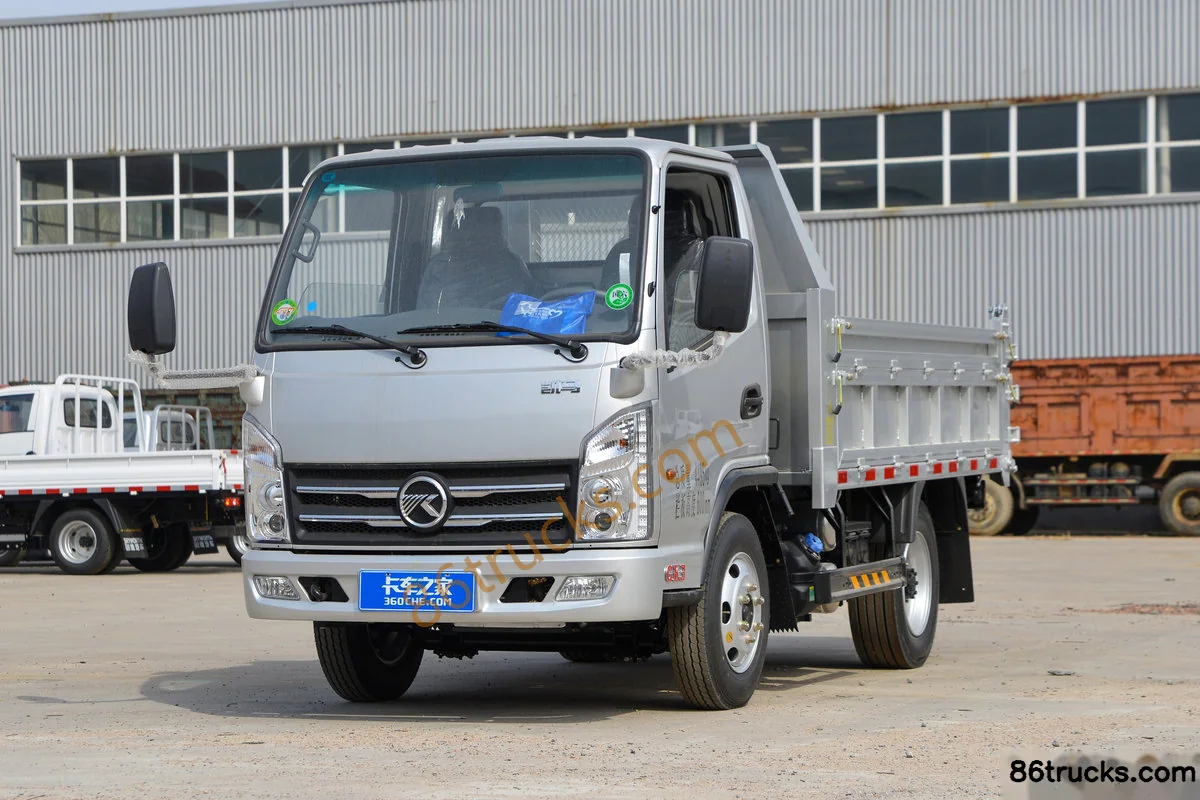

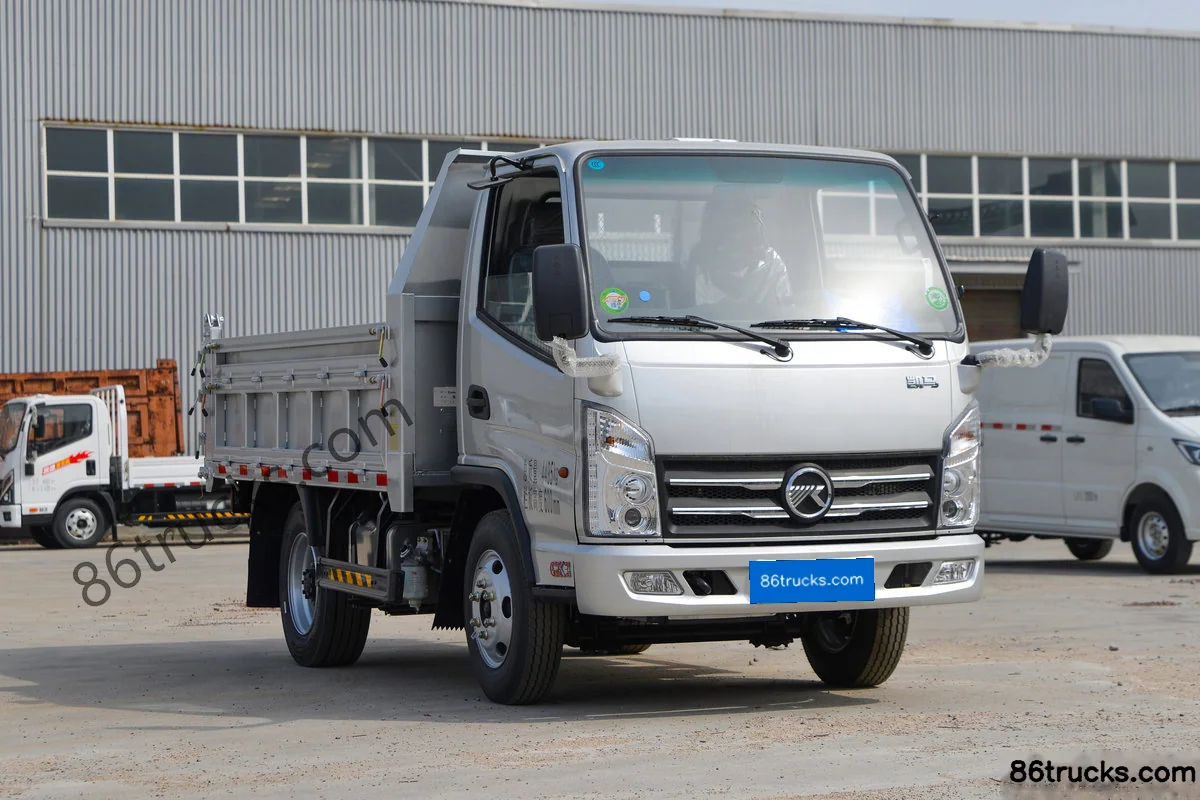

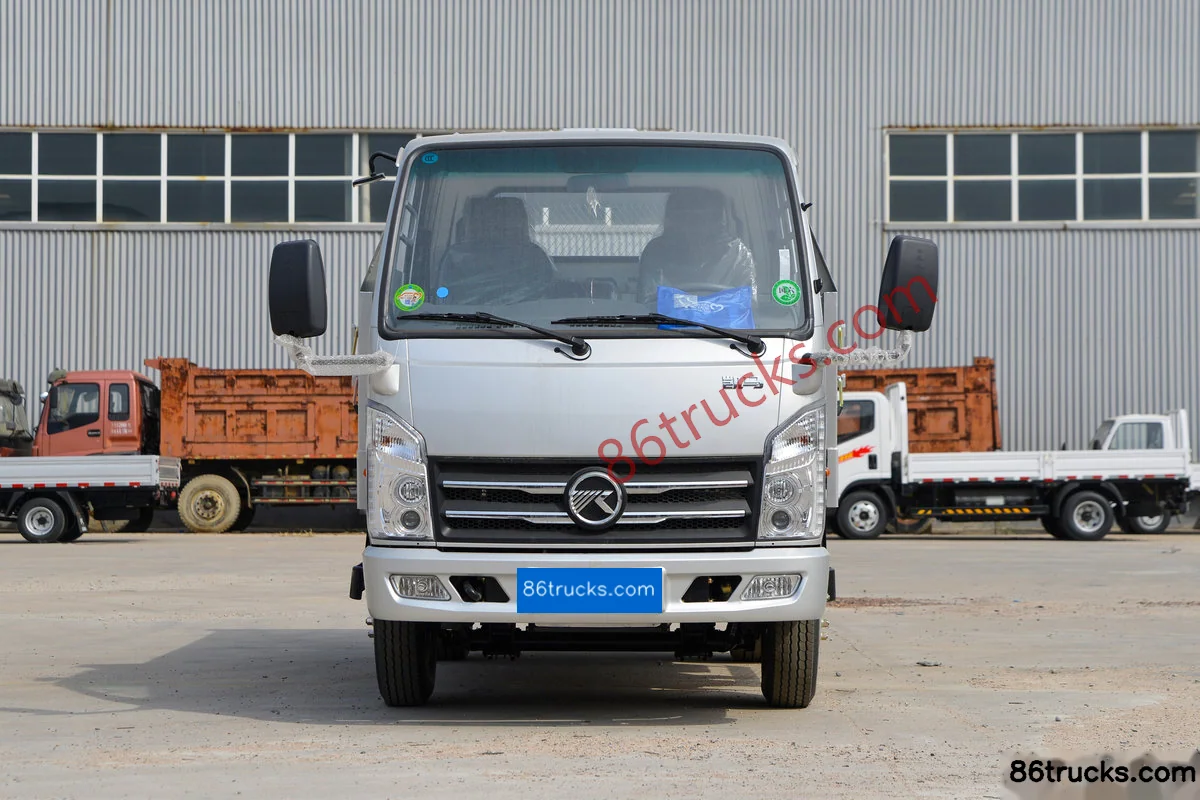

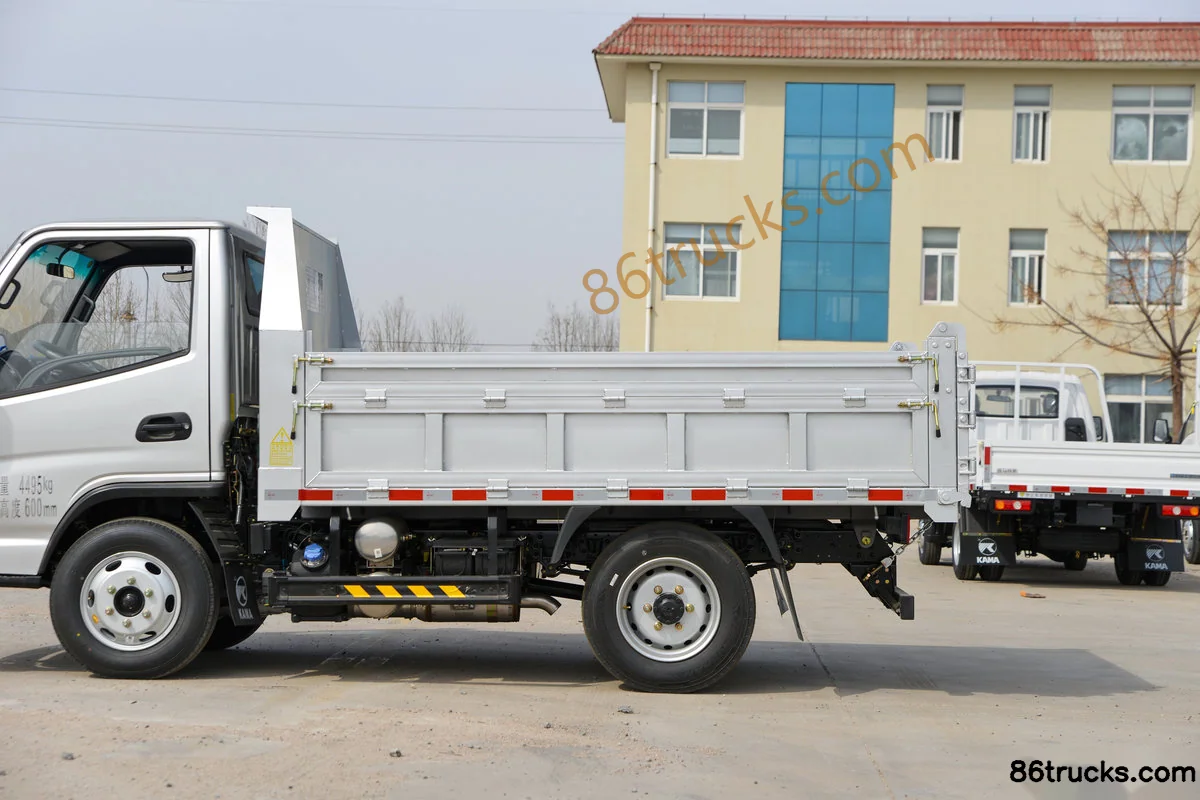

Exterior3

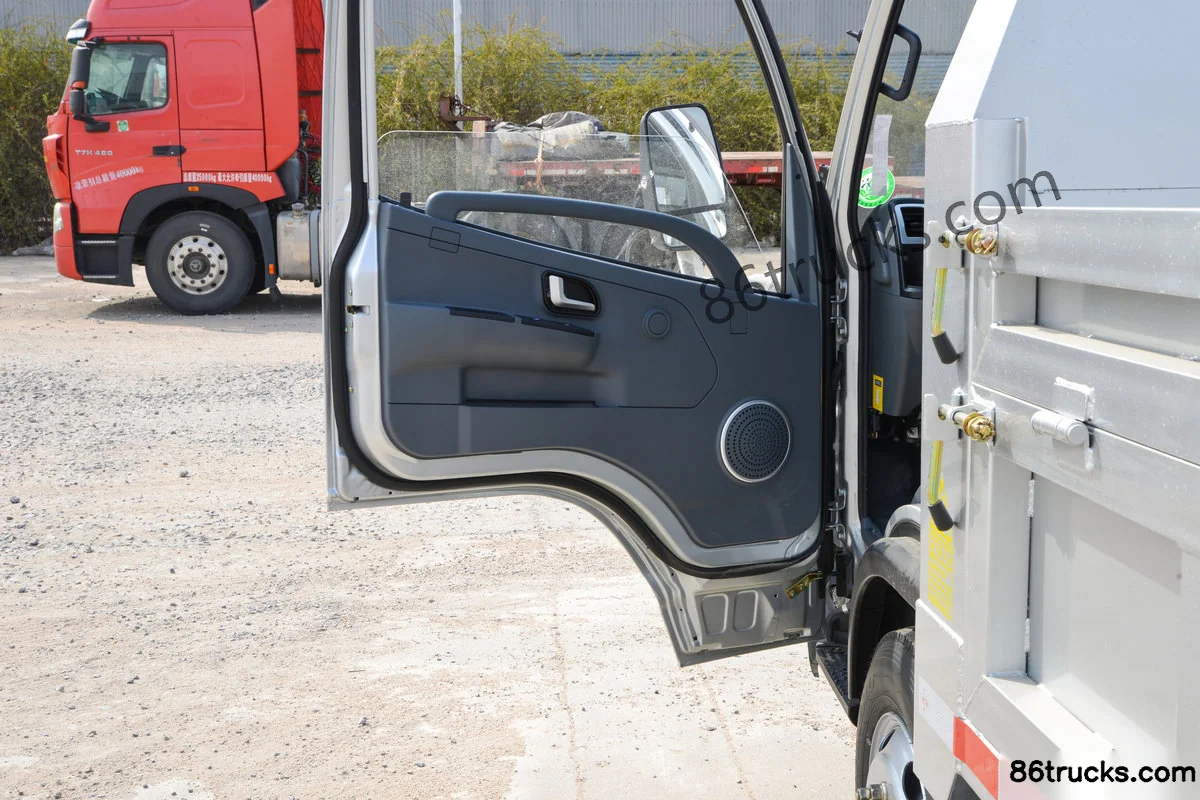

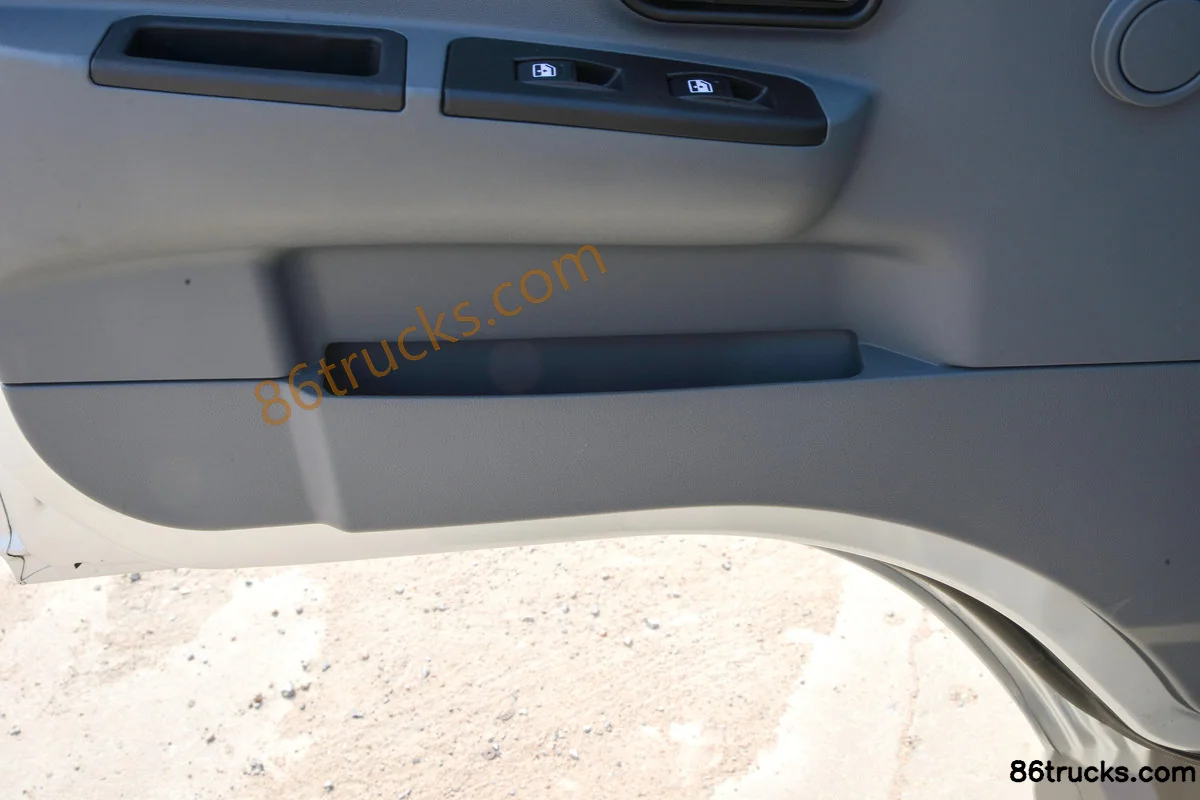

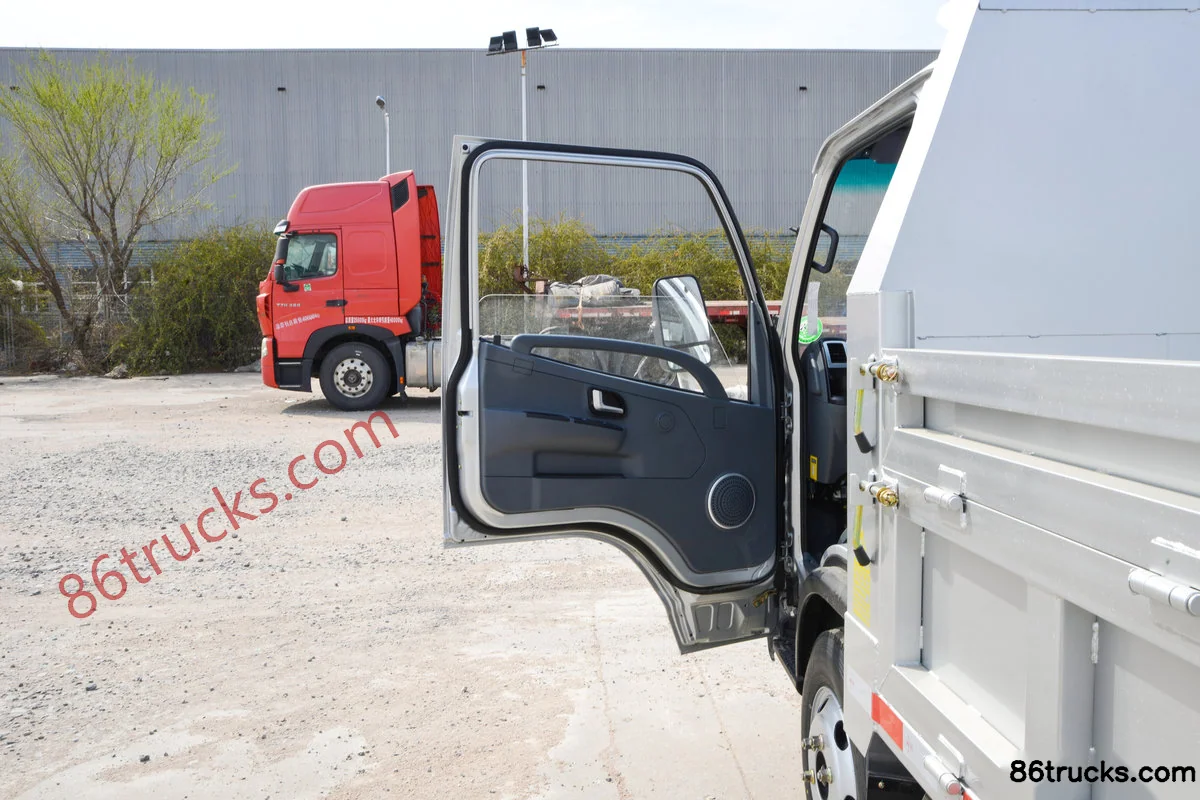

Cab3

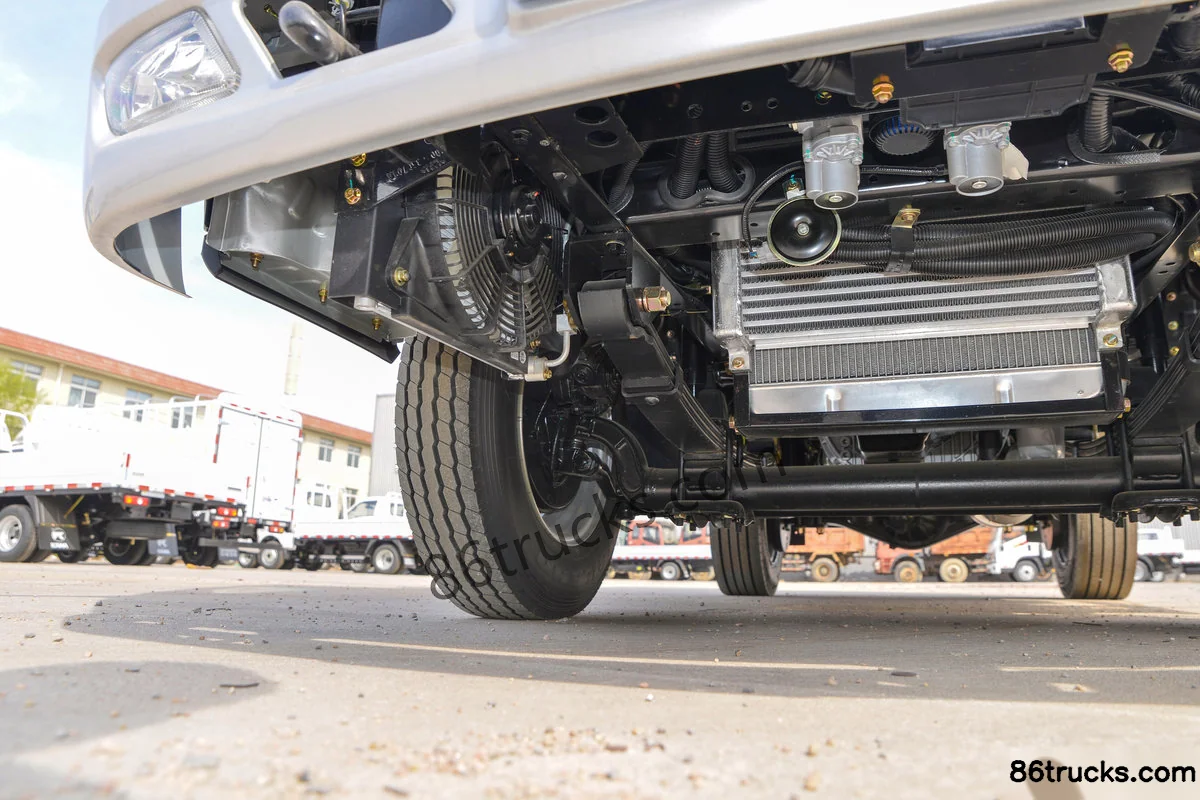

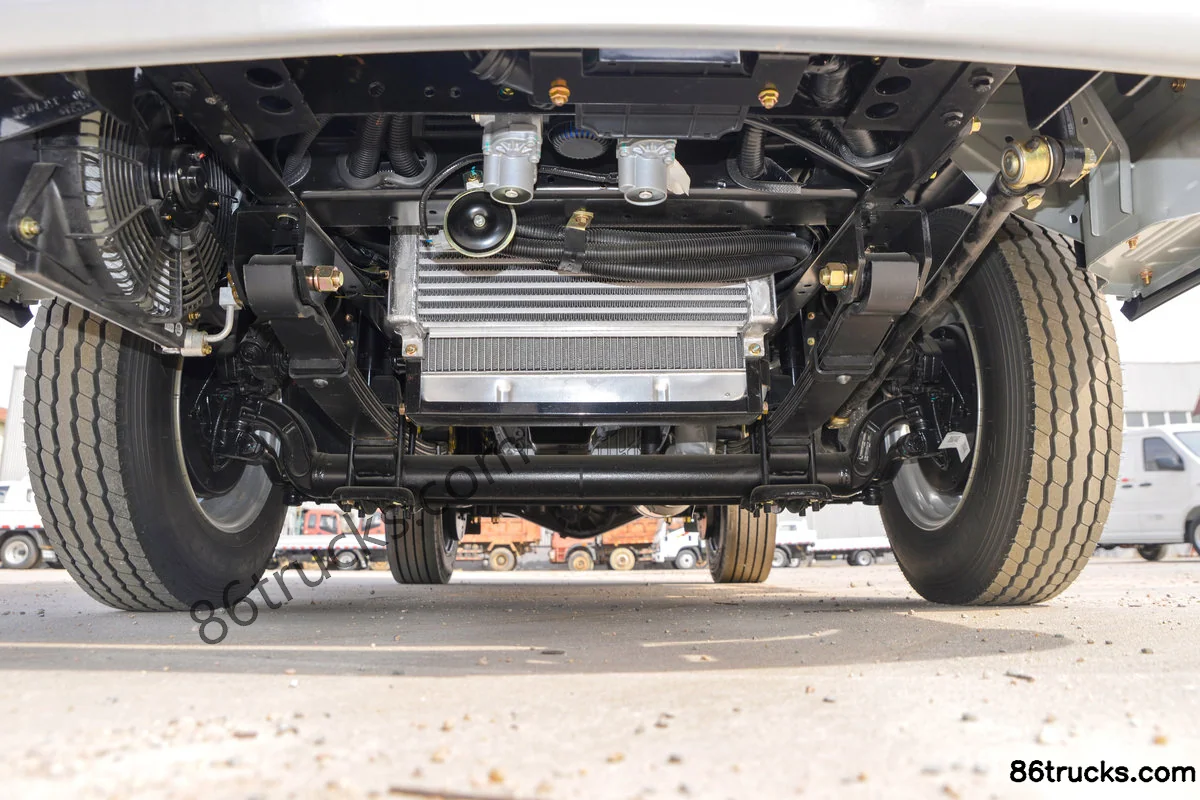

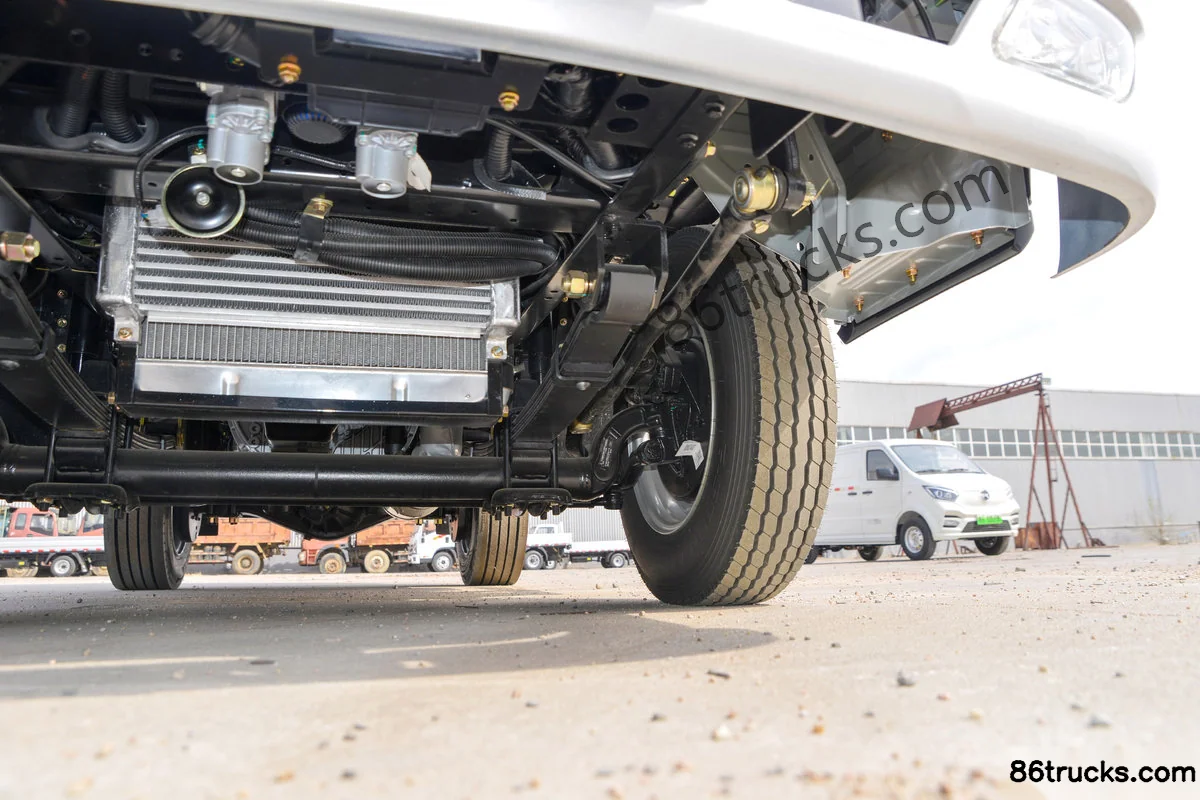

Chassis3

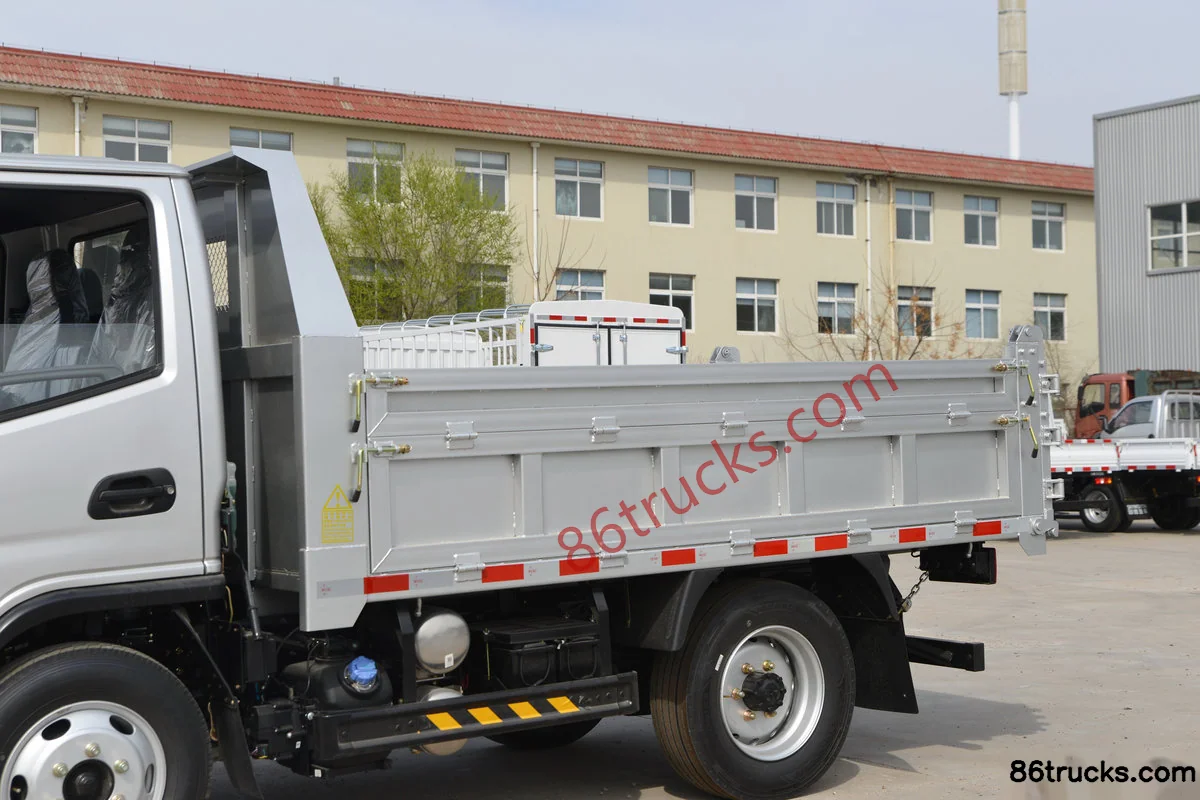

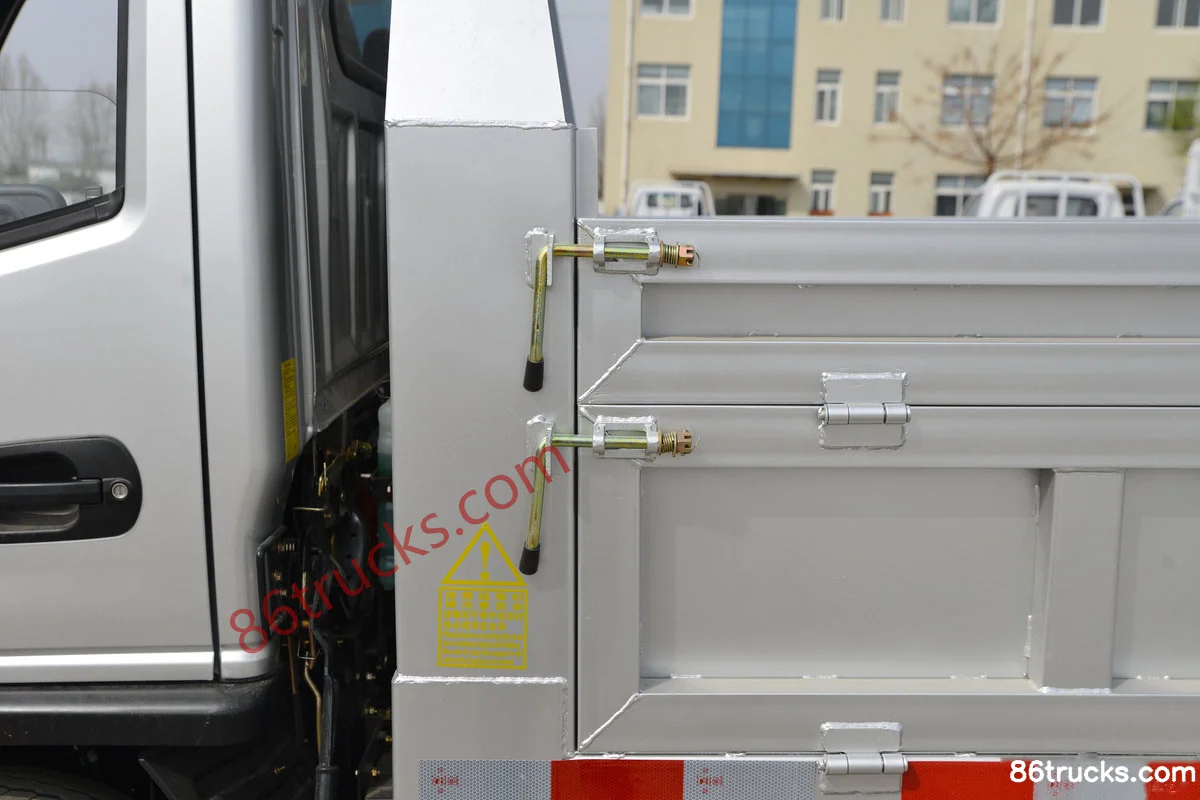

Body3

12 photos

FAQ

What is the export price of Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck, and what does it include?

Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck export reference is about From $11,292; MSRP is ¥8.13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck?

Key specs of Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck suited for?

Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck differ from other variants in the same series?

Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck belongs to Kama GK3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama GK3 2L Diesel 102 hp 4X2(6 wheels) WLY 5-speed 2.65m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
