Sanhuan Shitong Haolong 300hp 8X4(12 wheels) 6.5m Dump Truck (China VI)(Fast Gear 12-speed)

Export reference
From $36,667
MSRP ¥26.4M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 13.82ton
Wheelbase:: 1850+2900+1350mm
Tire Size:: 11.00R20-18
Rated payload: 16.985ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong 300hp 8X4(12 wheels) 6.5m Dump Truck (China VI)(Fast Gear 12-speed) is a Heavy truck featuring 16.985t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08300-60 engine, 300 hp, China VI emissions and Fast Gear transmission.

China VI 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3311L16Y6B6
Drive type: 8X4
Wheelbase: 1850+2900+1350mm
engine: YuchaiYCK08300-60
transmission: Fast Gear 12-speed
Rear Axle Ratio: 5.26
Cab length: 9.34m
Cab width: 2.55m
Cab height: 3.1m
Front track width: 1880/1880mm
rear track: 1750/1750mm
Curb Weight: 13.82ton
Rated payload: 16.985ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08300-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1180N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: T280C semi-high roof comfort version
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 153 dual front
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280 (8+4) outer high-strength platemm
rear axle description: 457 shortened dual
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.26
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20-18
Number of tires: 12pcs
Control configuration
ABS:

Photos

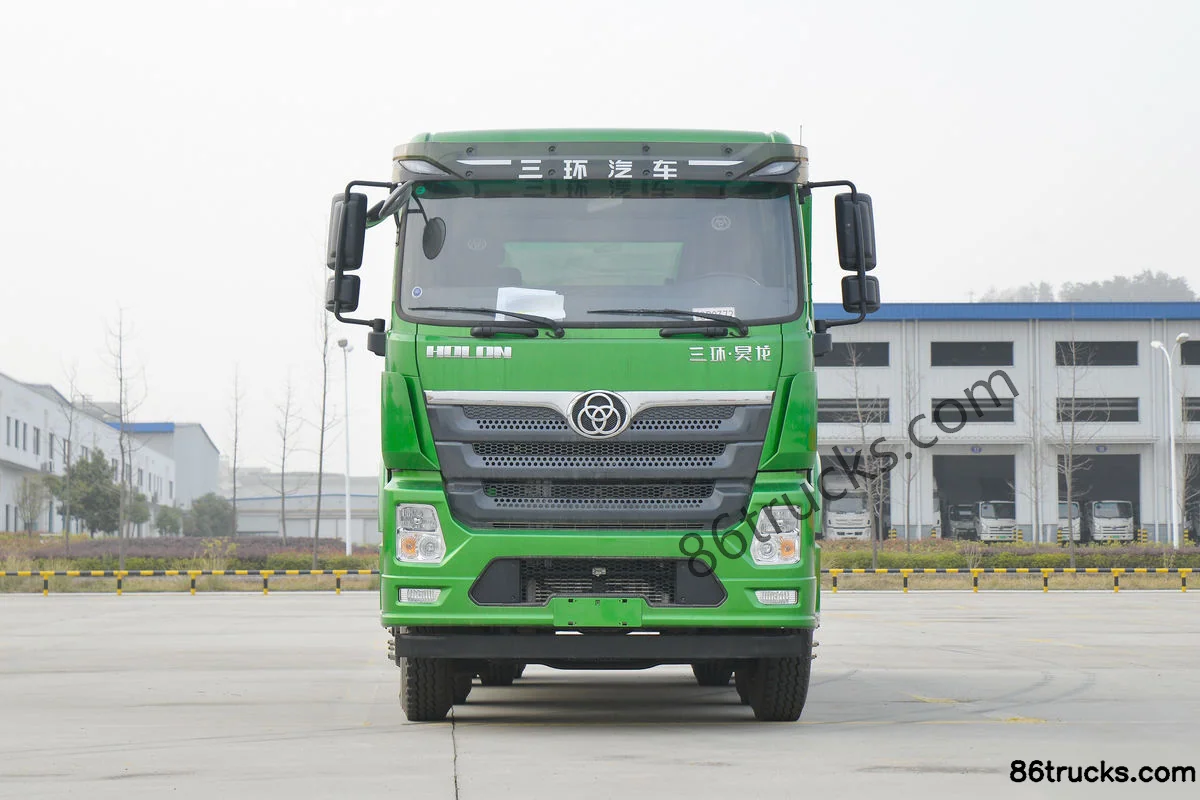

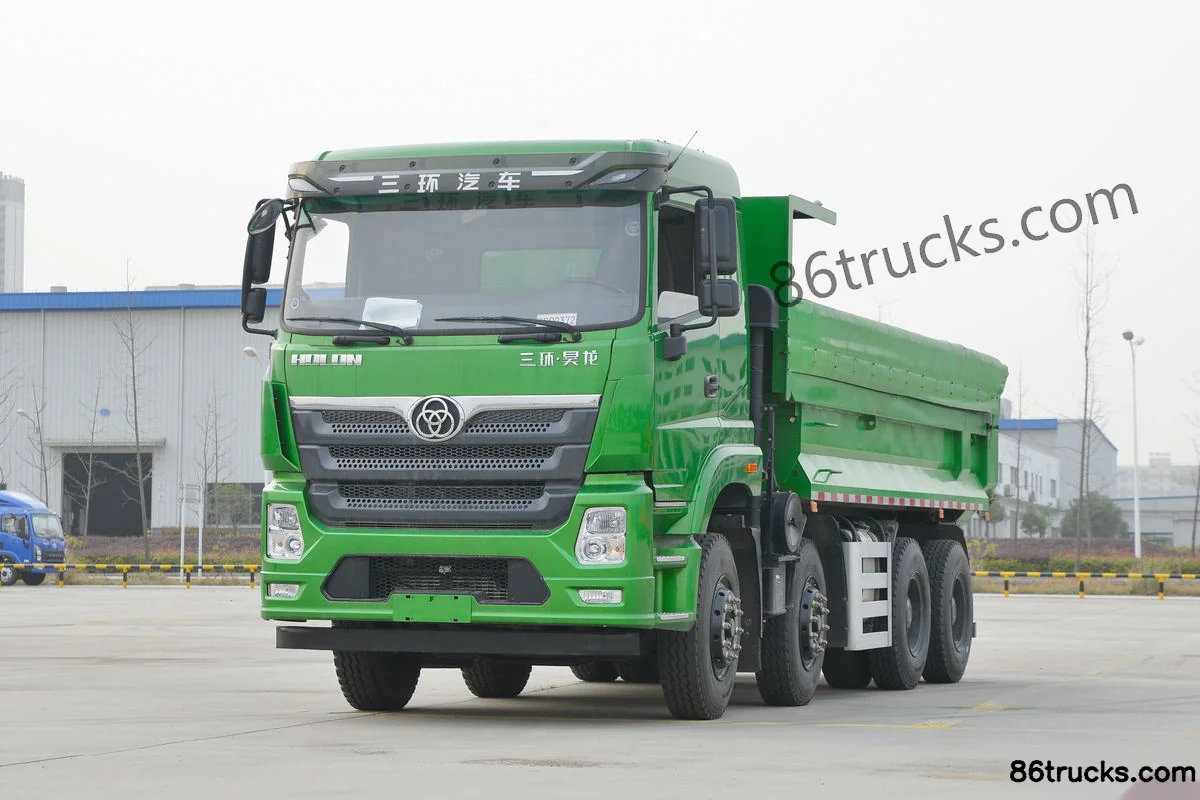

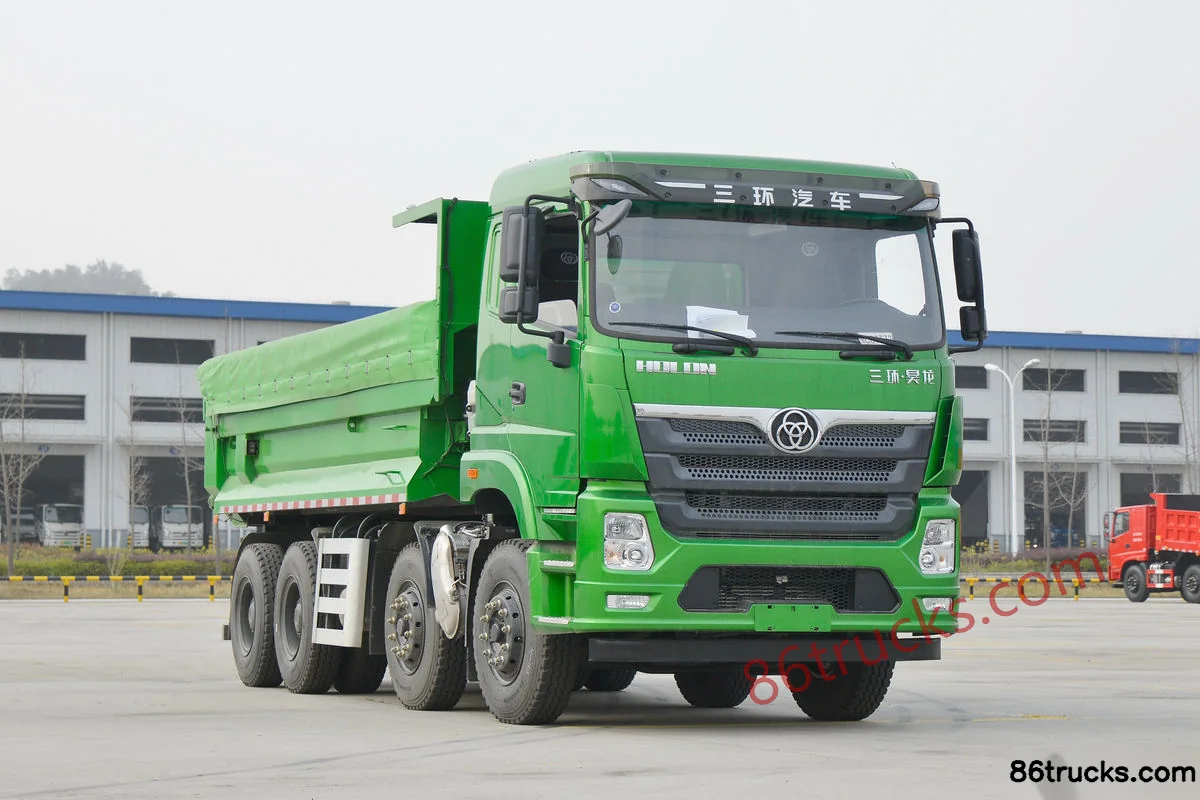

Exterior3

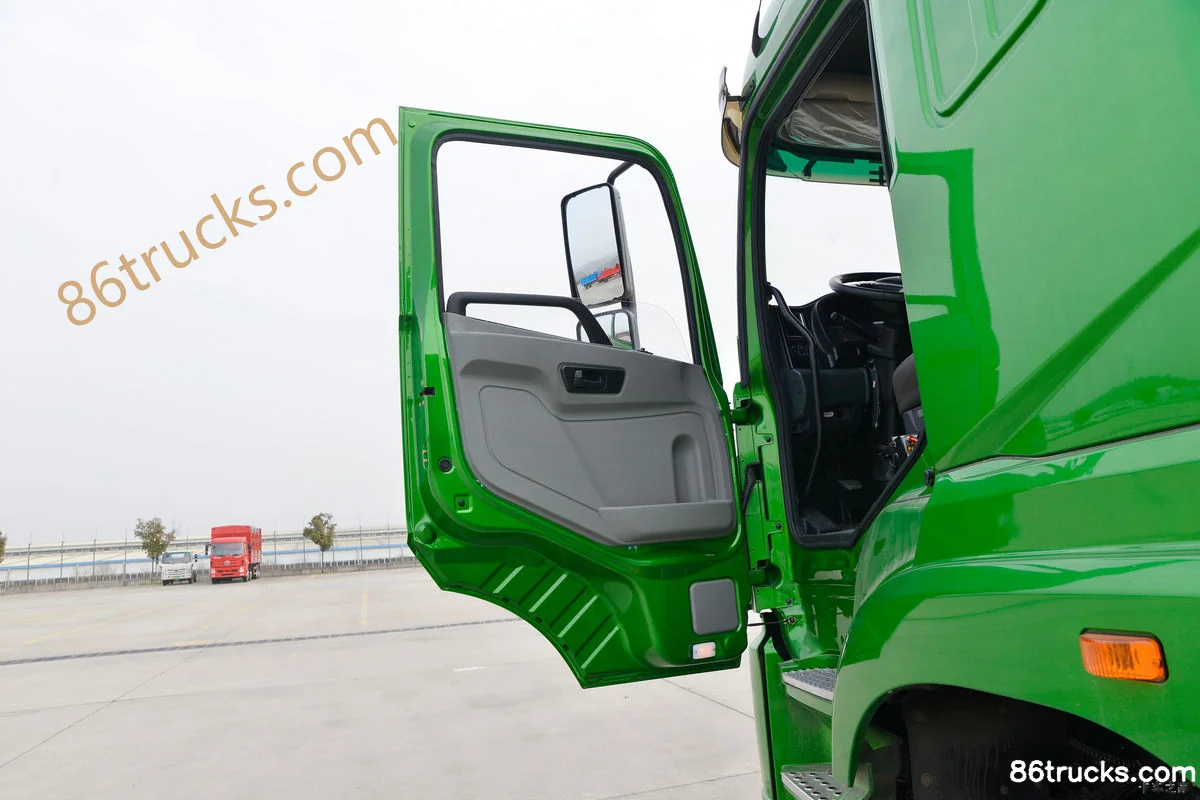

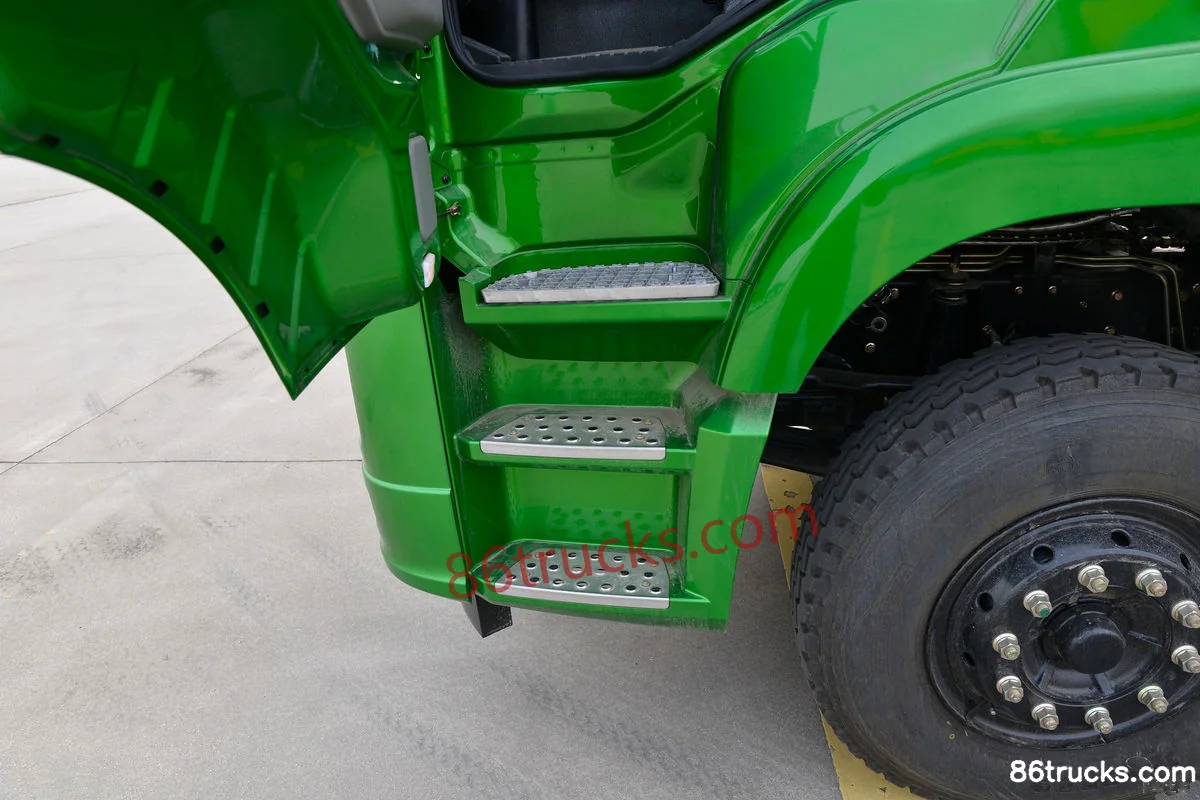

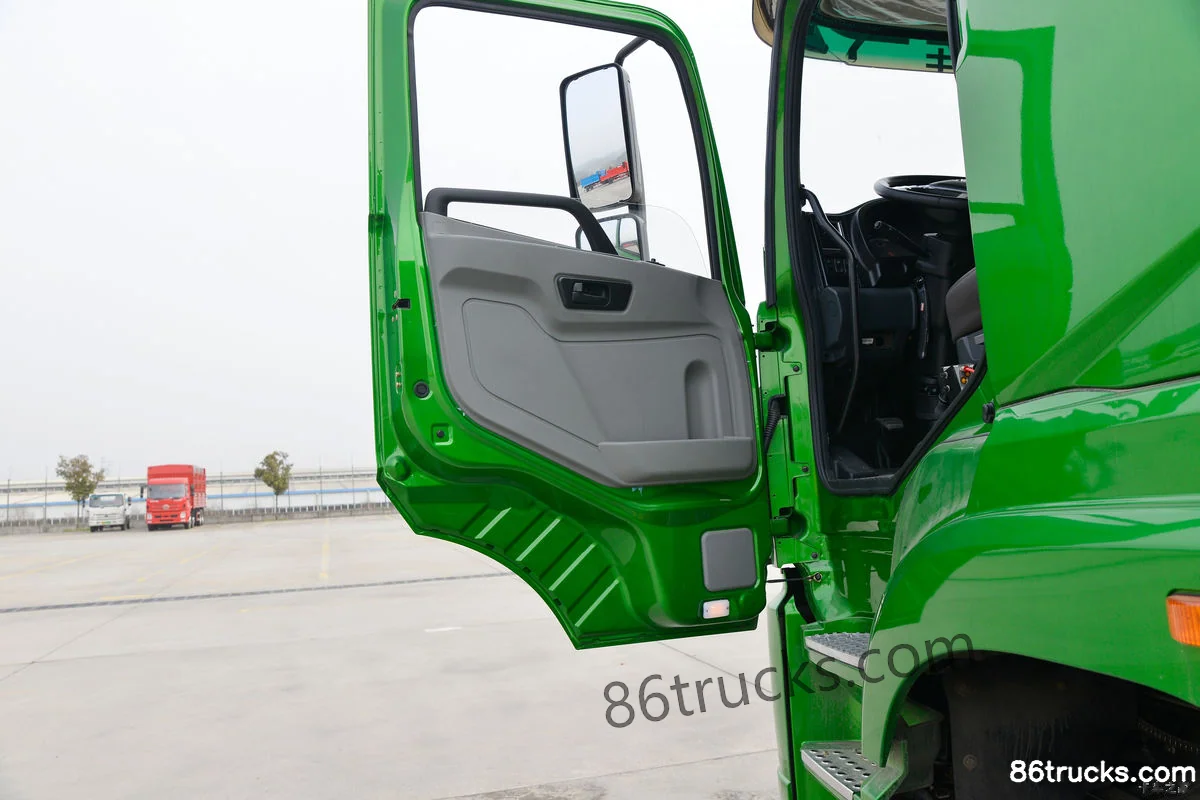

Cab3

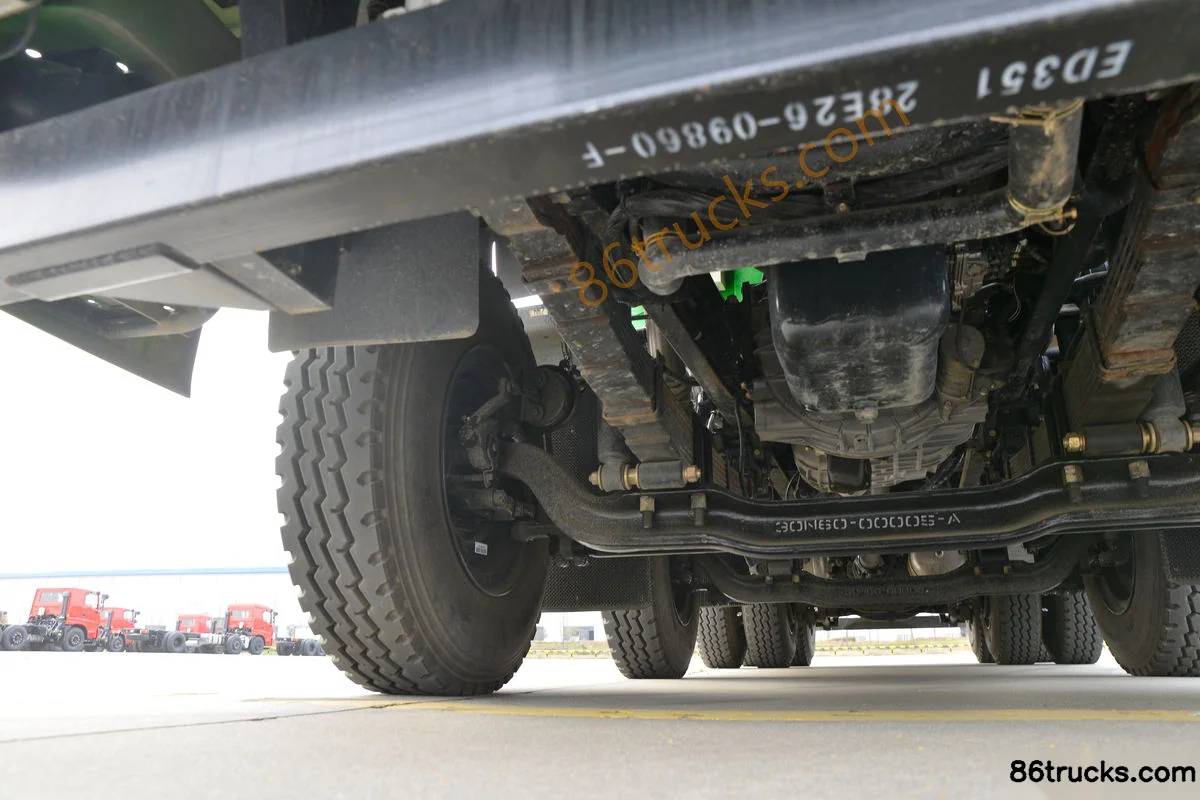

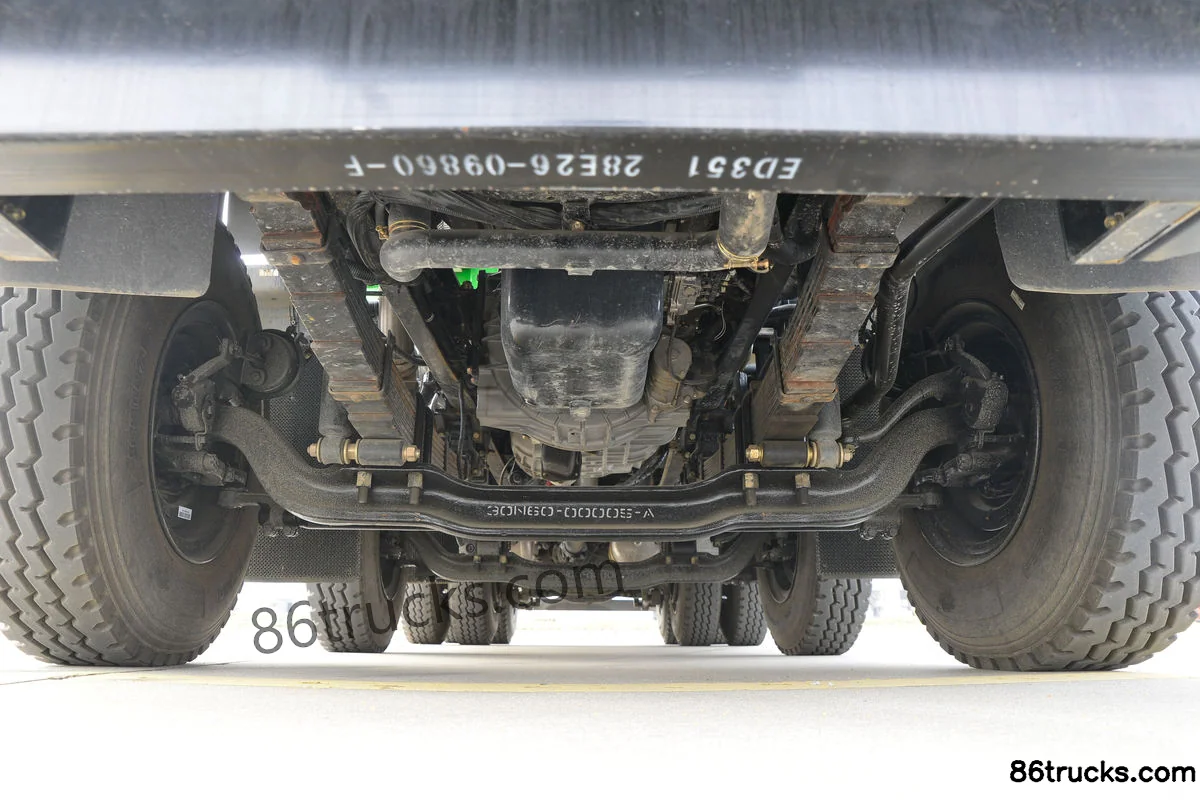

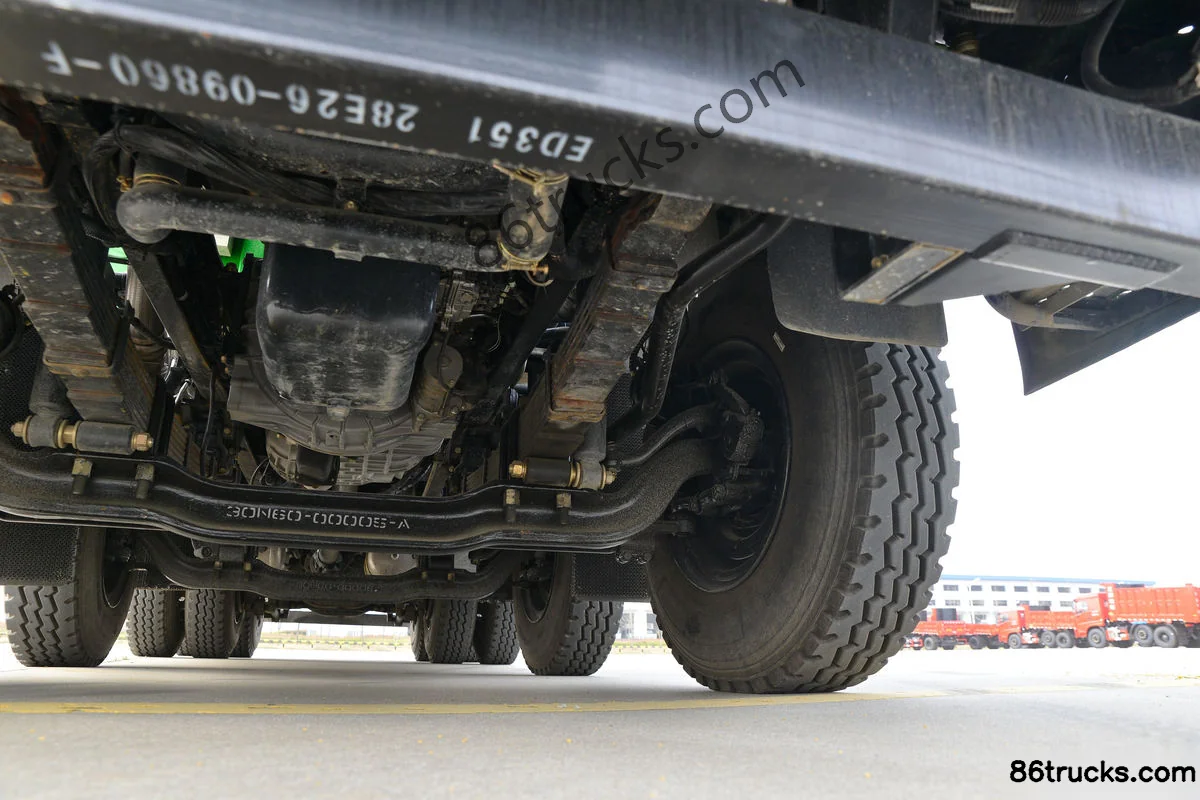

Chassis3

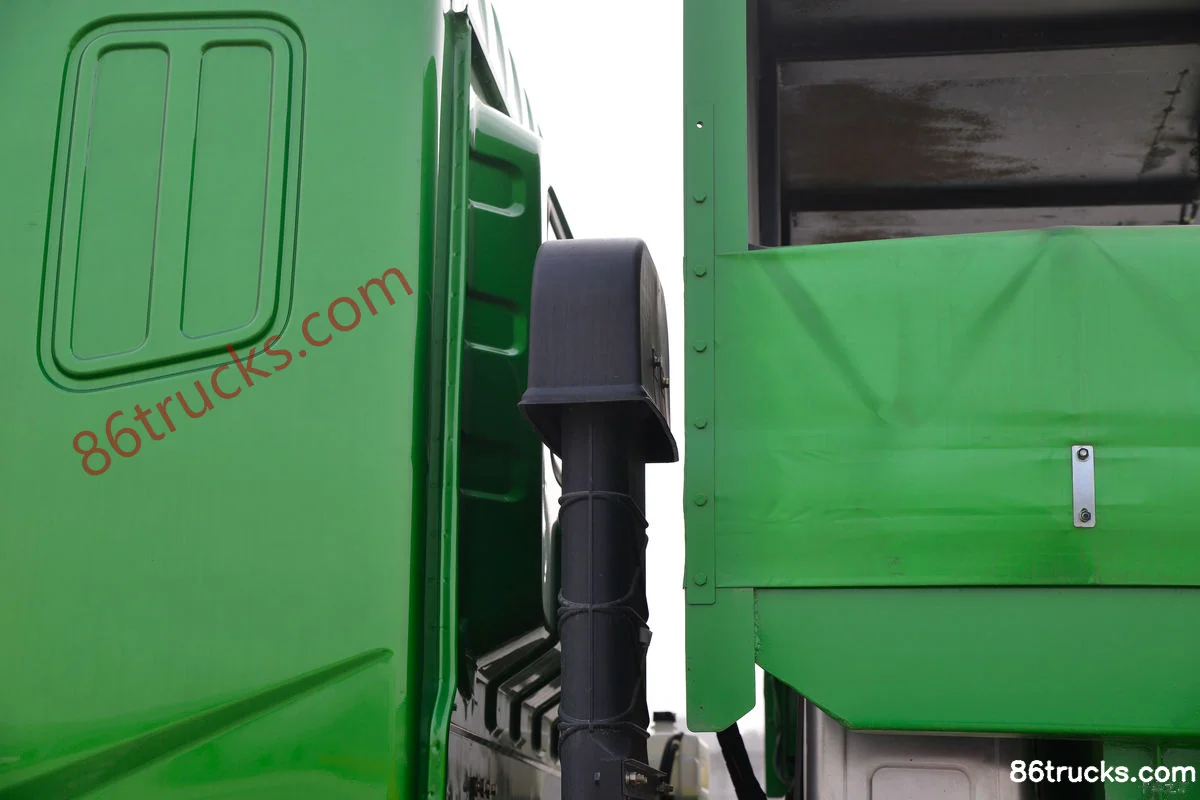

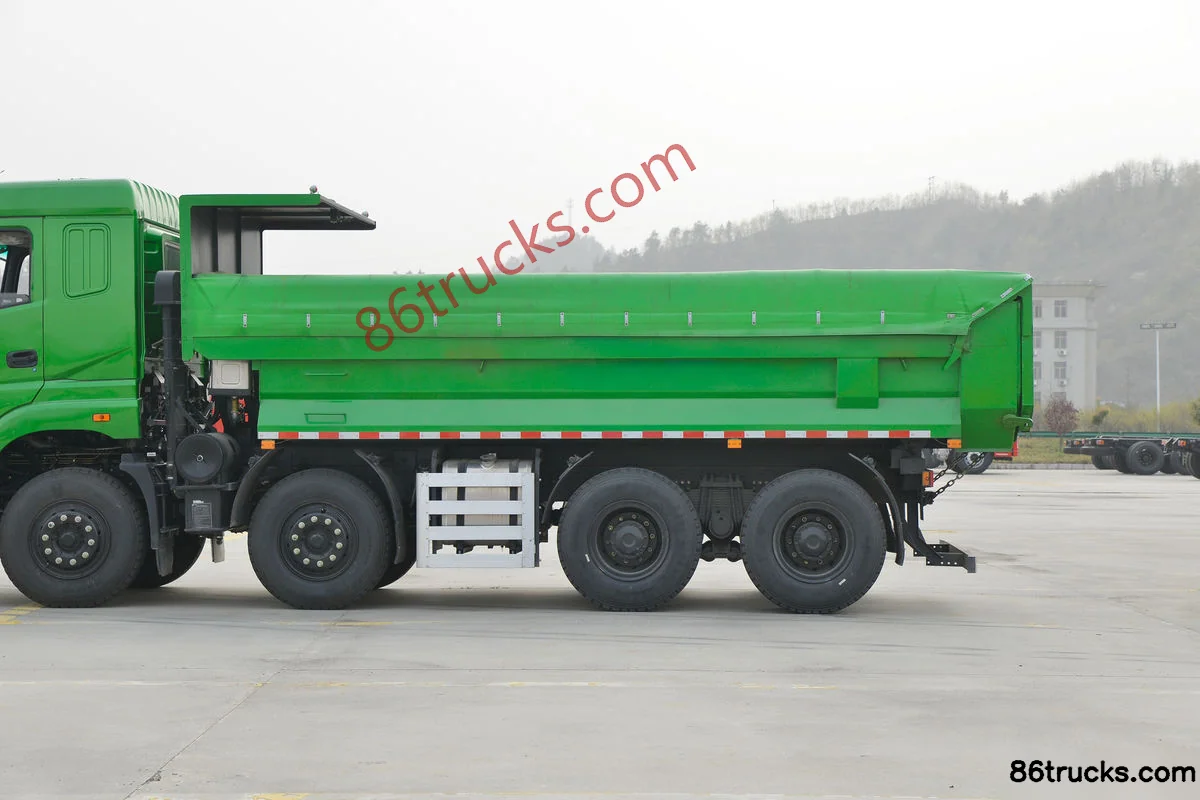

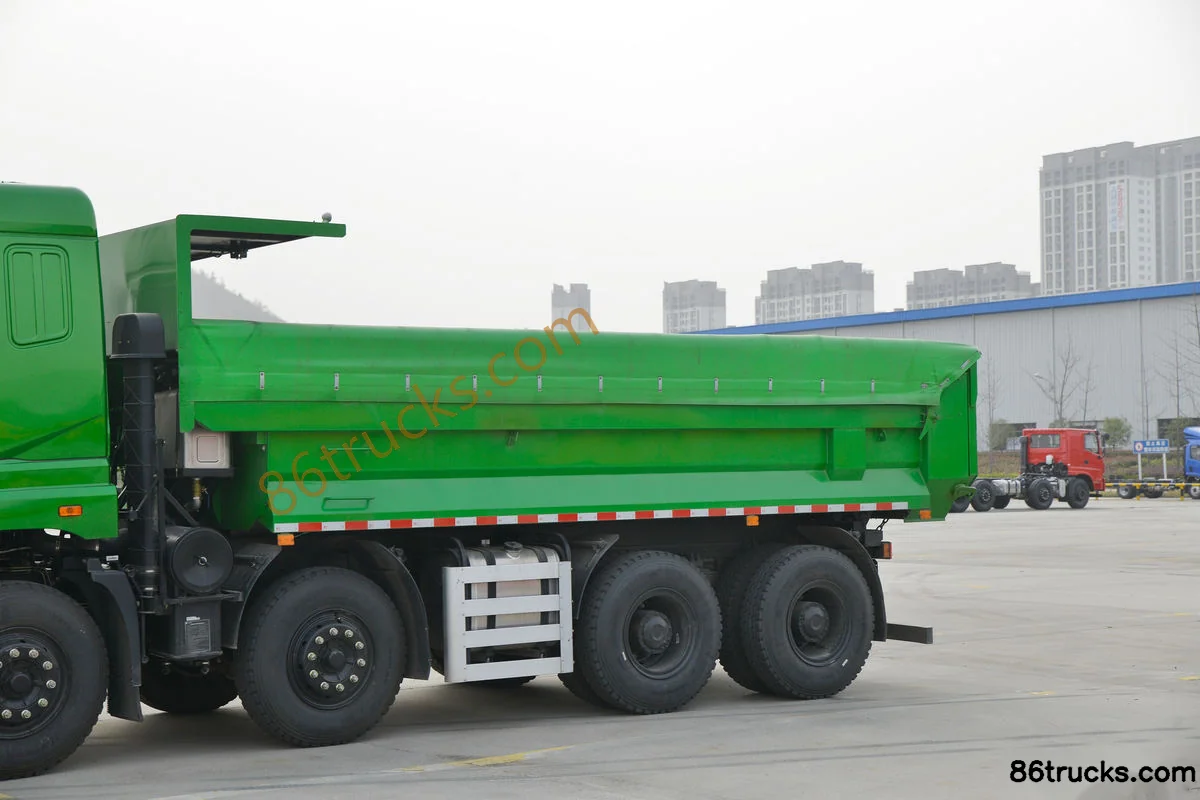

Body3
