Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.58ton
Wheelbase:: 3600mm
Tire Size:: 7.00-16LT 8PR,7.00R16LT 8PR,8.25-16LT 6PR,8.25R16LT 6PR
Model code (announced):: LH3040K5P
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck is a Light Truck featuring 1.49t payload, 4.265t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and 10-speed transmission transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LH3040K5P
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC4E160-56
transmission: 10-speed transmission
Rear Axle Ratio: 6.833
Cab length: 5.995m
Cab width: 2.29m
Cab height: 2.8m
Front track width: 1750,1765,1765mm
rear track: 1586,1750,1650mm
Curb Weight: 2.58ton
Rated payload: 1.49ton
GVWR: 4.265ton
Origin: Lingyuan, Liaoning
tonnage class: Light Truck
Approach angle: 23°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: 10-speed transmission
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 1725kg
rear axle allowable load: 2540kg
Axle ratio: 6.833
Leaf spring count: 8/10+8,9/10+8,6/6+5,8/9+5
Tire
Tire Size: 7.00-16LT 8PR,7.00R16LT 8PR,8.25-16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
lighting configuration
daytime running lights:

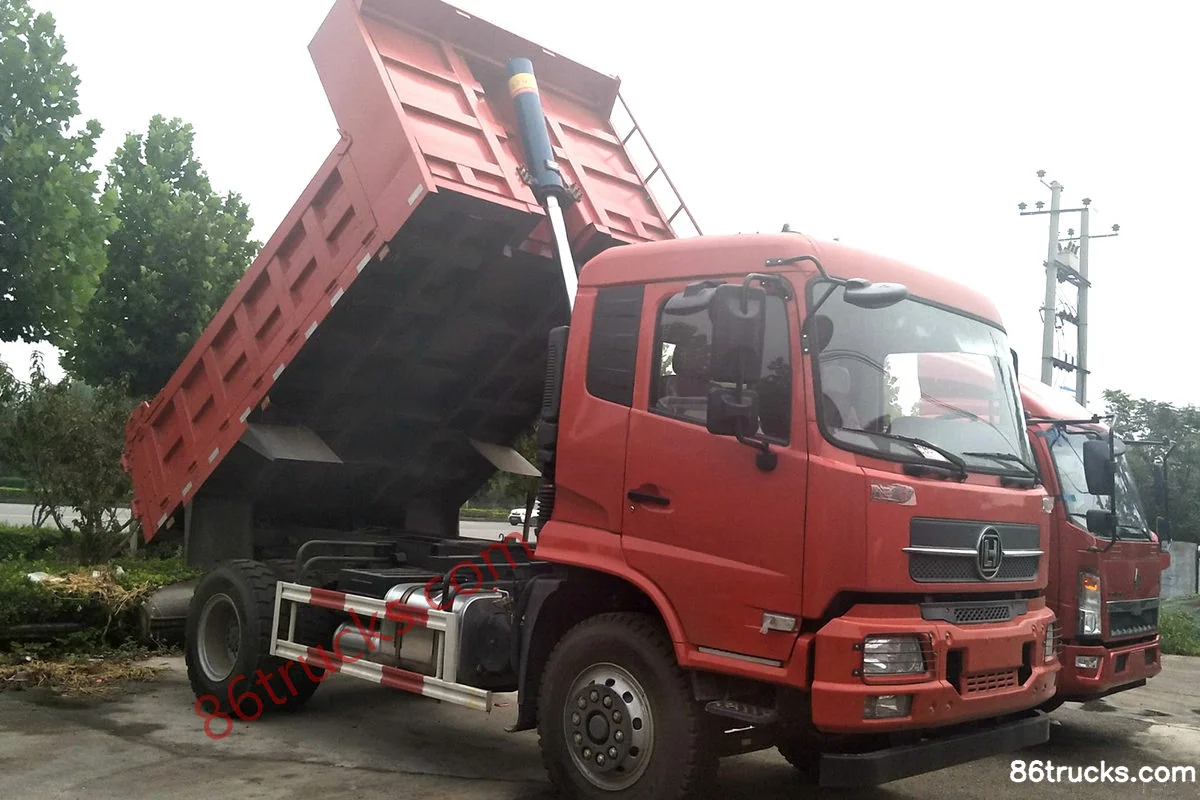

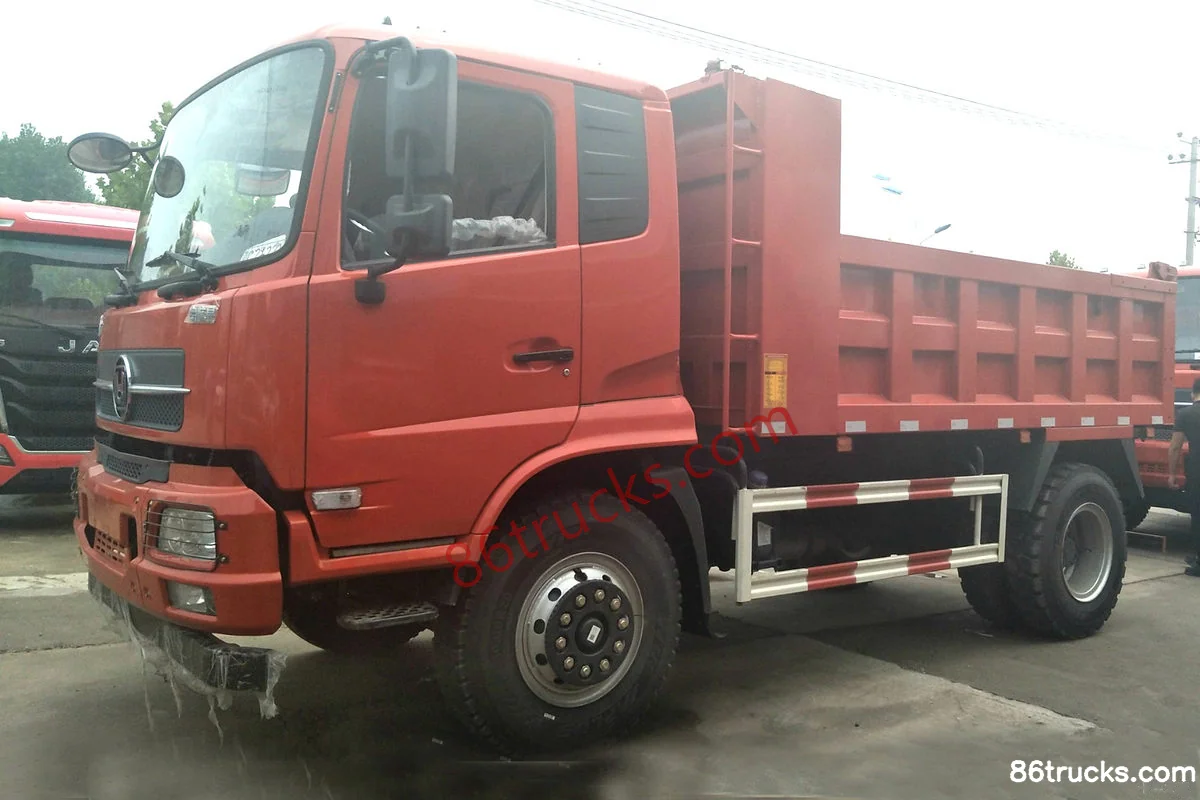

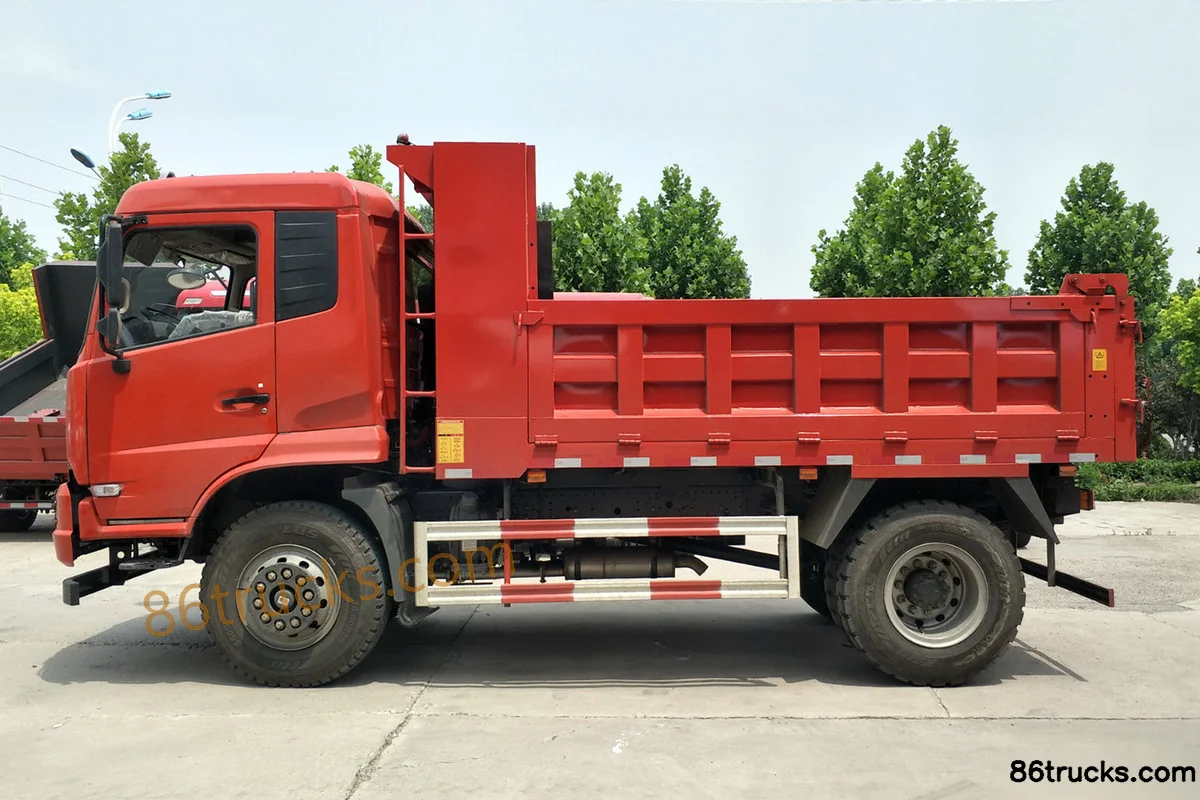

Photos

Exterior3

3 photos

FAQ

What is the export price of Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck, and what does it include?

Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck suited for?

Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck belongs to Aerospace Linghe Qihang Star light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Aerospace Linghe Qihangxing 160hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
