Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane

Export reference
MSRP N/A
Wheelbase:: 2240+5410mm
Cab dimensions:: 11.8x2.495x3.3m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.45/2.7m
Engine Model:: Hanma engine CM6D10.270 50
Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane exterior
View more photos (11)
Drive 6X2 (8 wheels)
Horsepower 270
Emission China V
Fuel Diesel

Overview

The Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane is a truck-mounted crane featuring 25t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with a Hanma engine CM6D10.270 50 engine, 270 hp, China V emissions and Diesel fuel.

China V 270 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.8x2.495x3.3m
Type: truck-mounted crane
Drive type: 6X2
Wheelbase: 2240+5410mm
GVWR: 25ton
Front/rear suspension: 1.45/2.7m
Energy Type: Diesel
Engine parameters
Engine Model: Hanma engine CM6D10.270 50
fuel type: Diesel
Displacement: 7.8L
Emission standard: China V
Max output power: 202kW
Max hp: 270Horsepower
Body Parameters
Body Brand: Hualing
Chassis Specs
Chassis Brand: Hualing
Chassis Series: Hualing Star
Chassis Model: HN1250HC24E8M5J
rear axle description: HL460
Axle ratio: 4.875
Leaf spring count: 9/9/9+6
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS119TA
Tire
Tire Size: 11.00R20
Number of tires: 8pcs

Photos

Exterior3

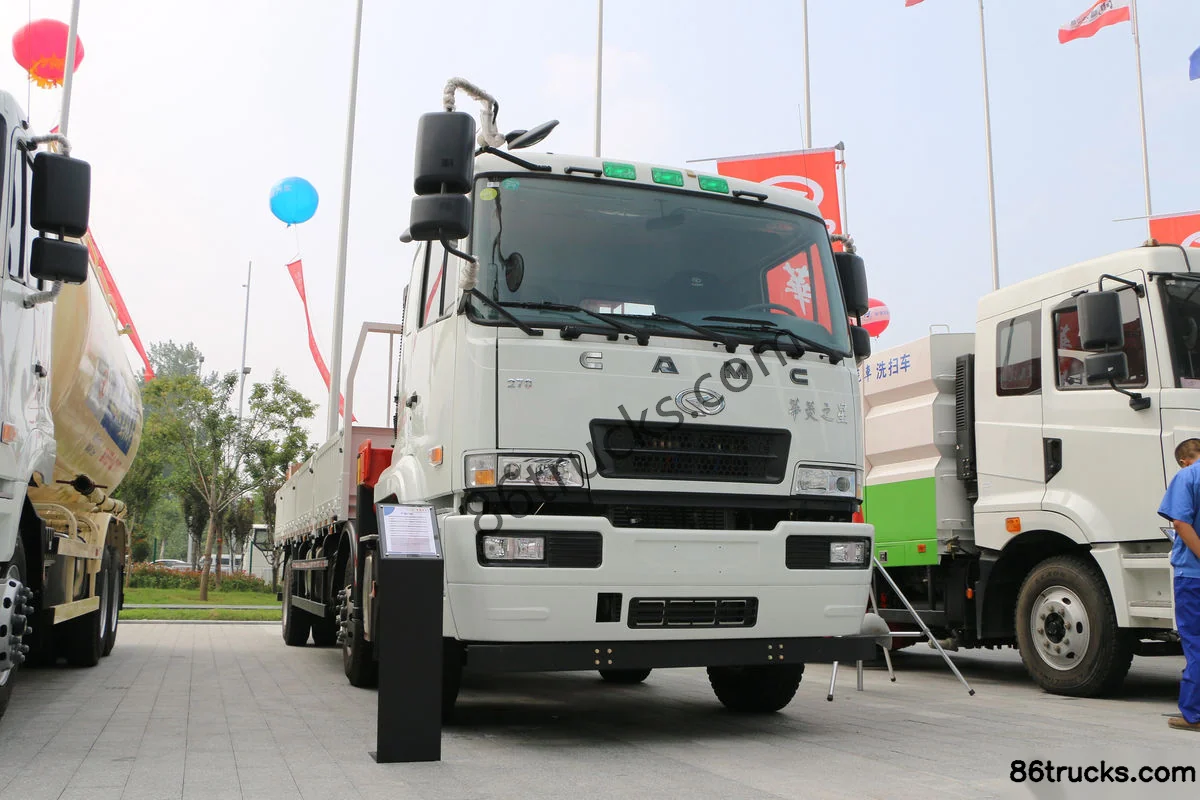

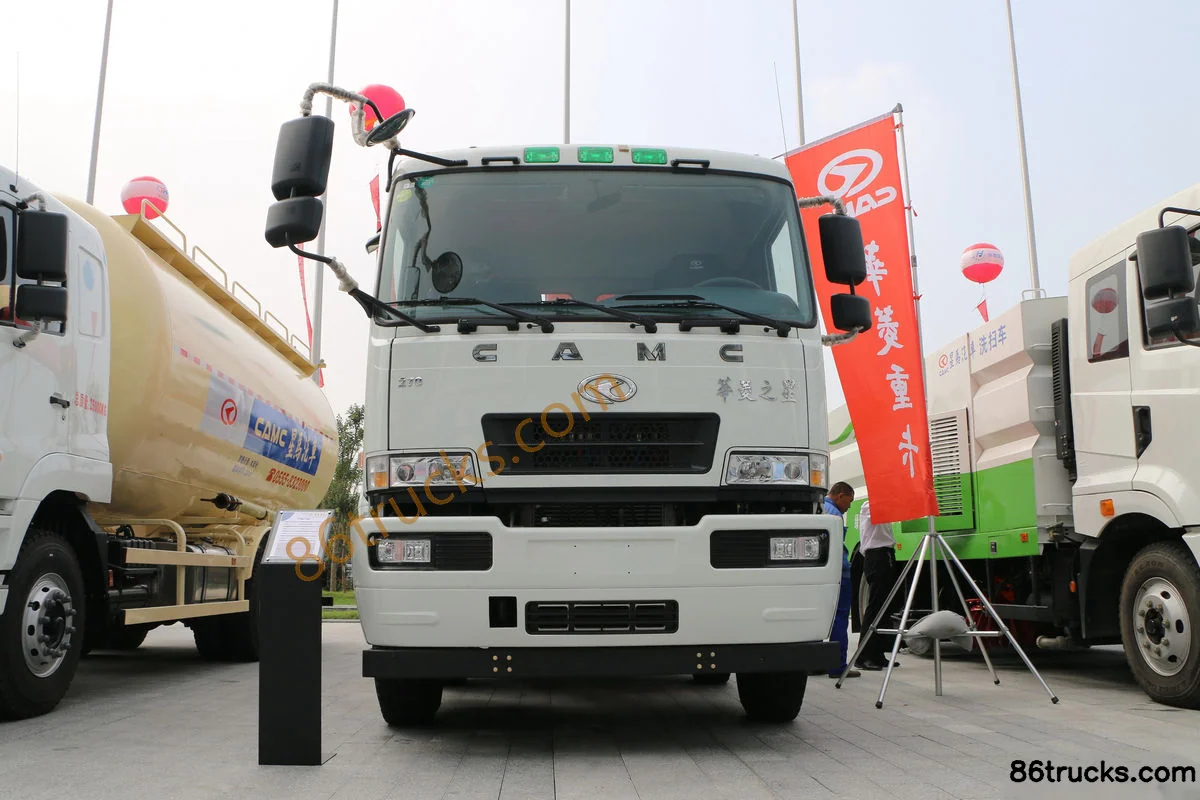

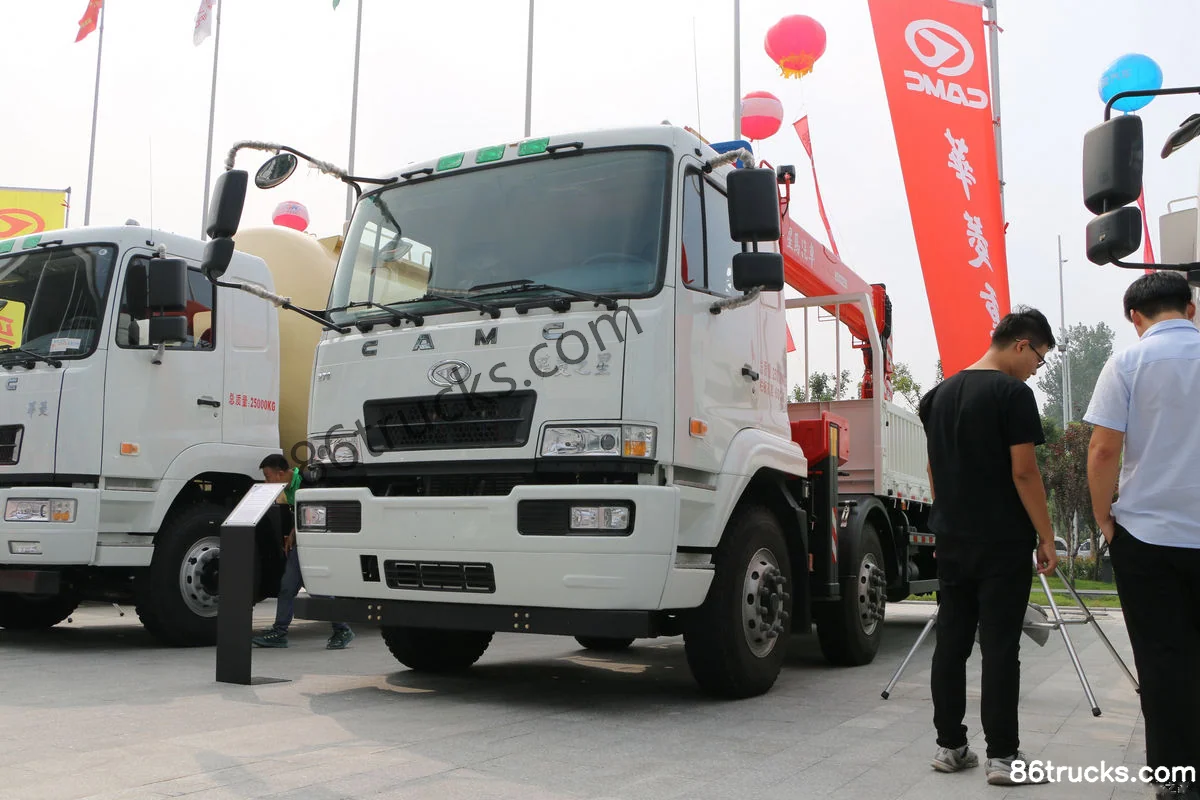

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Exterior (1) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Exterior (2) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Exterior (3) | 86Trucks

Cab2

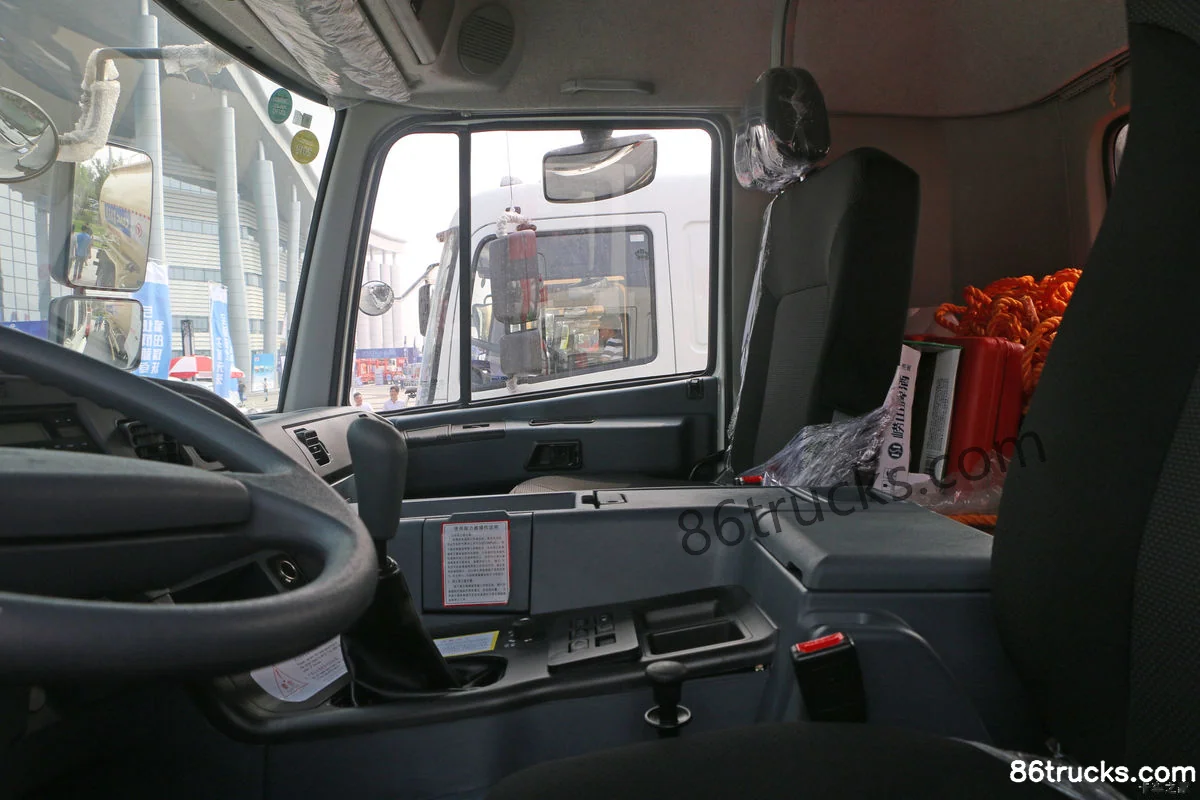

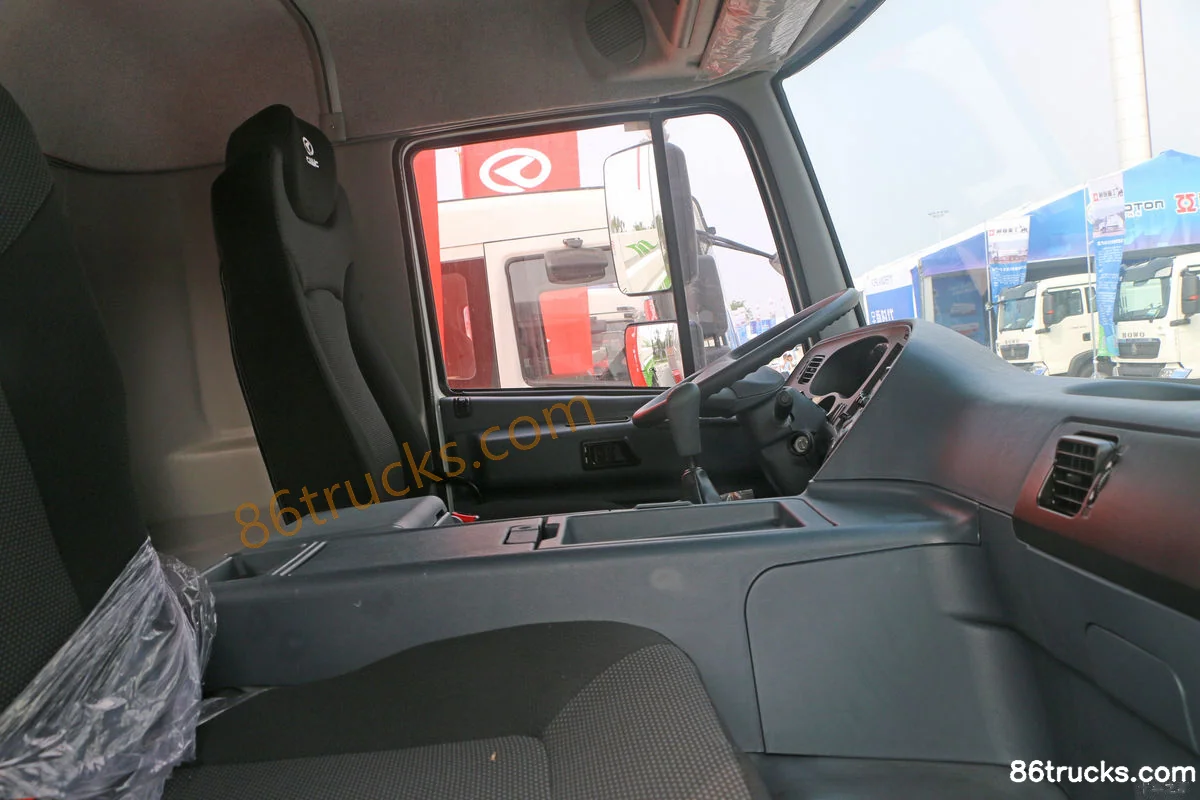

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Cab (1) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Cab (2) | 86Trucks

Chassis3

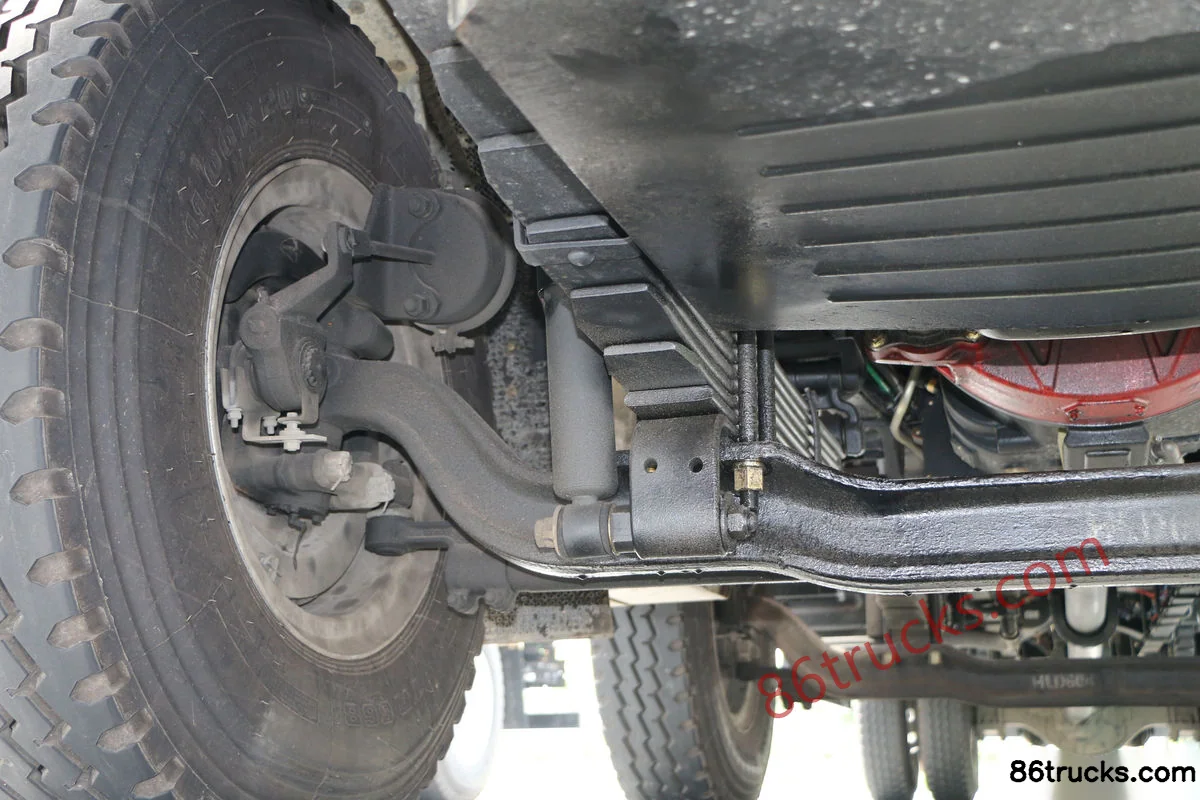

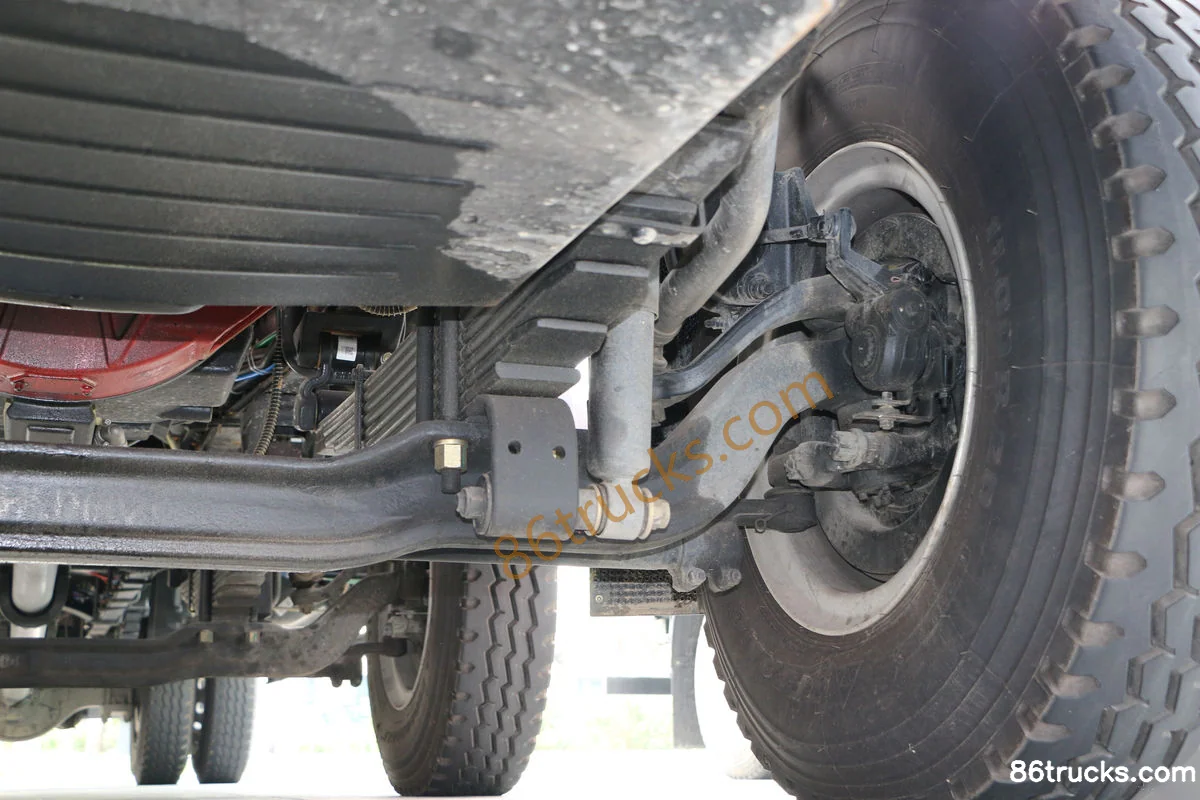

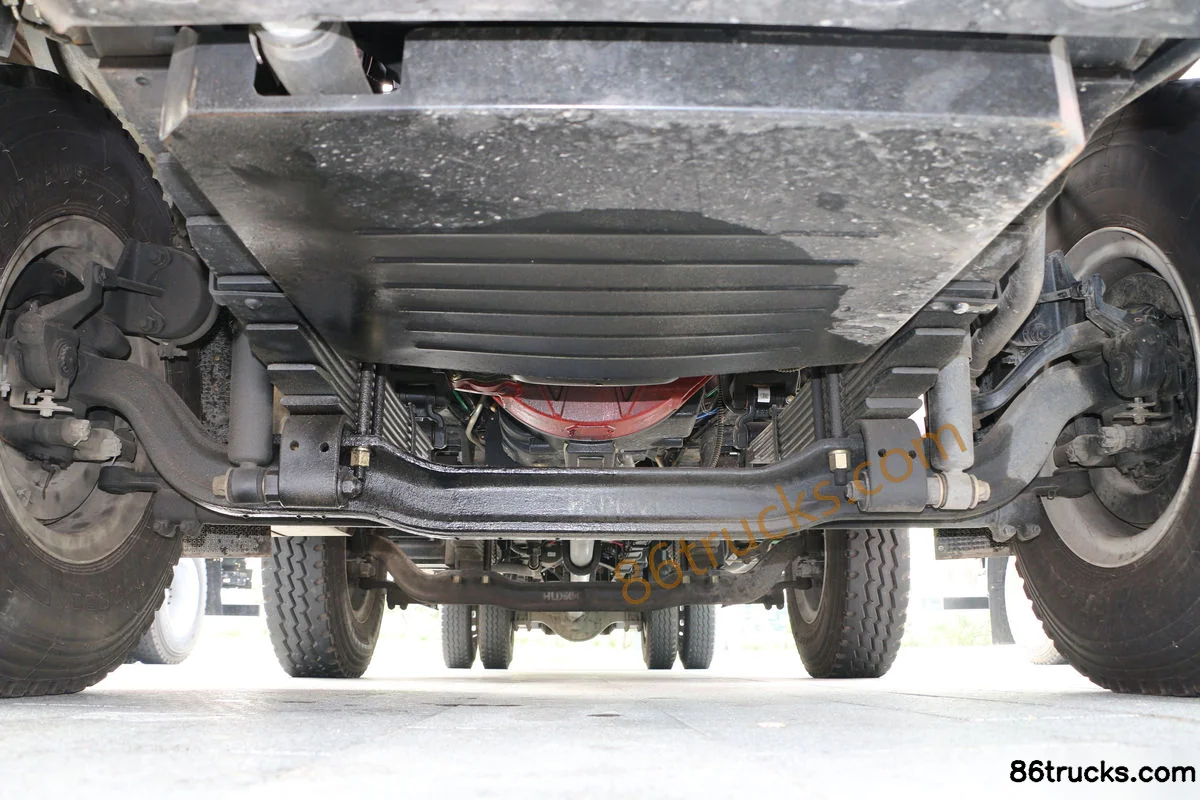

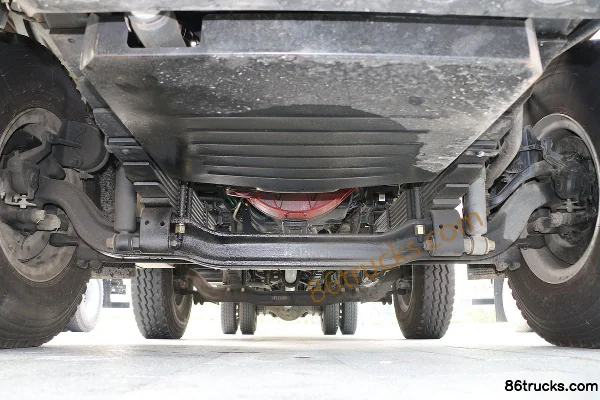

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Chassis (1) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Chassis (2) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Chassis (3) | 86Trucks

Body3

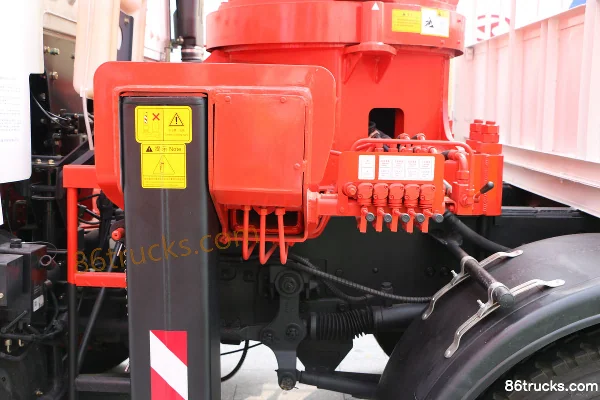

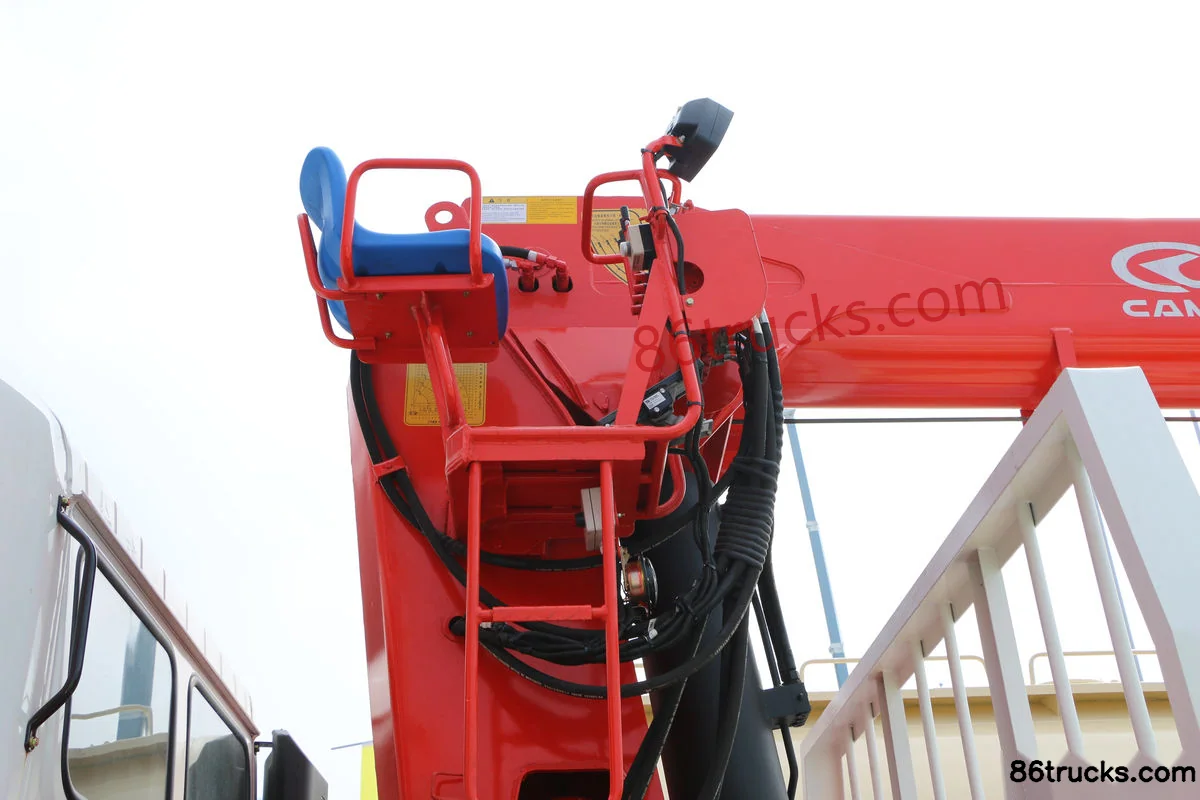

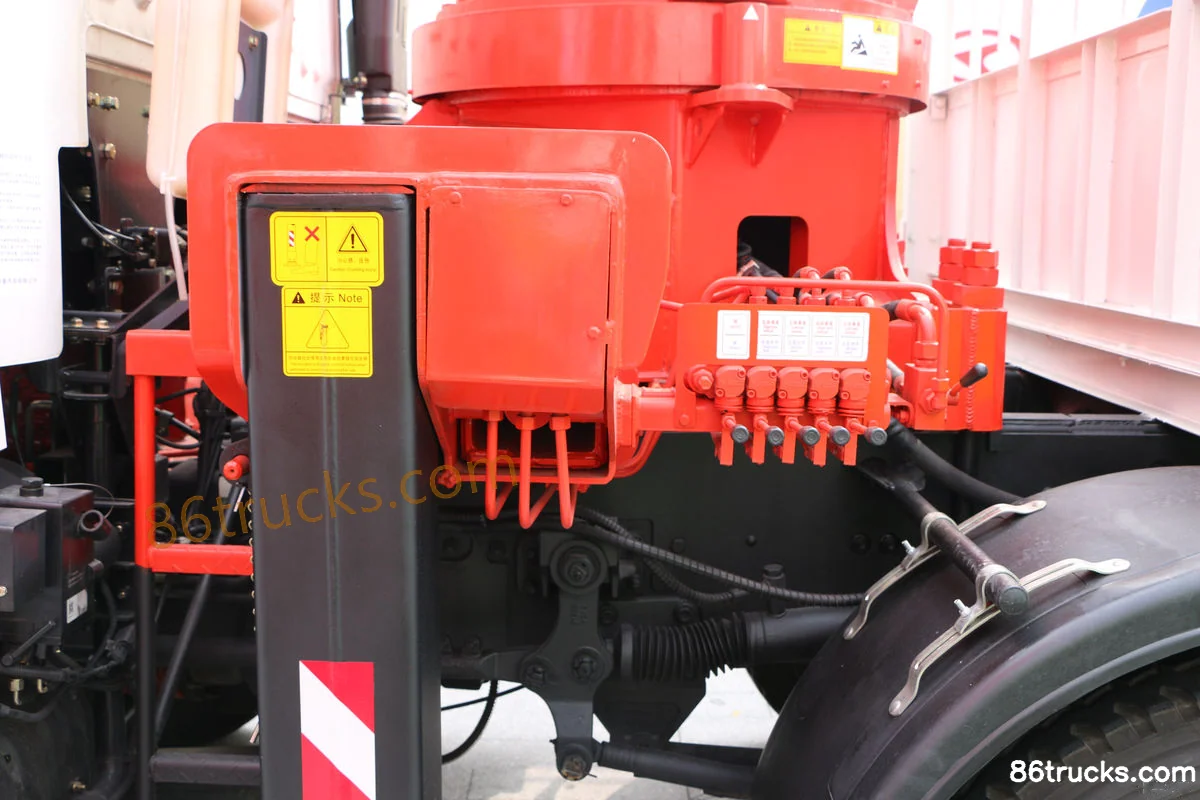

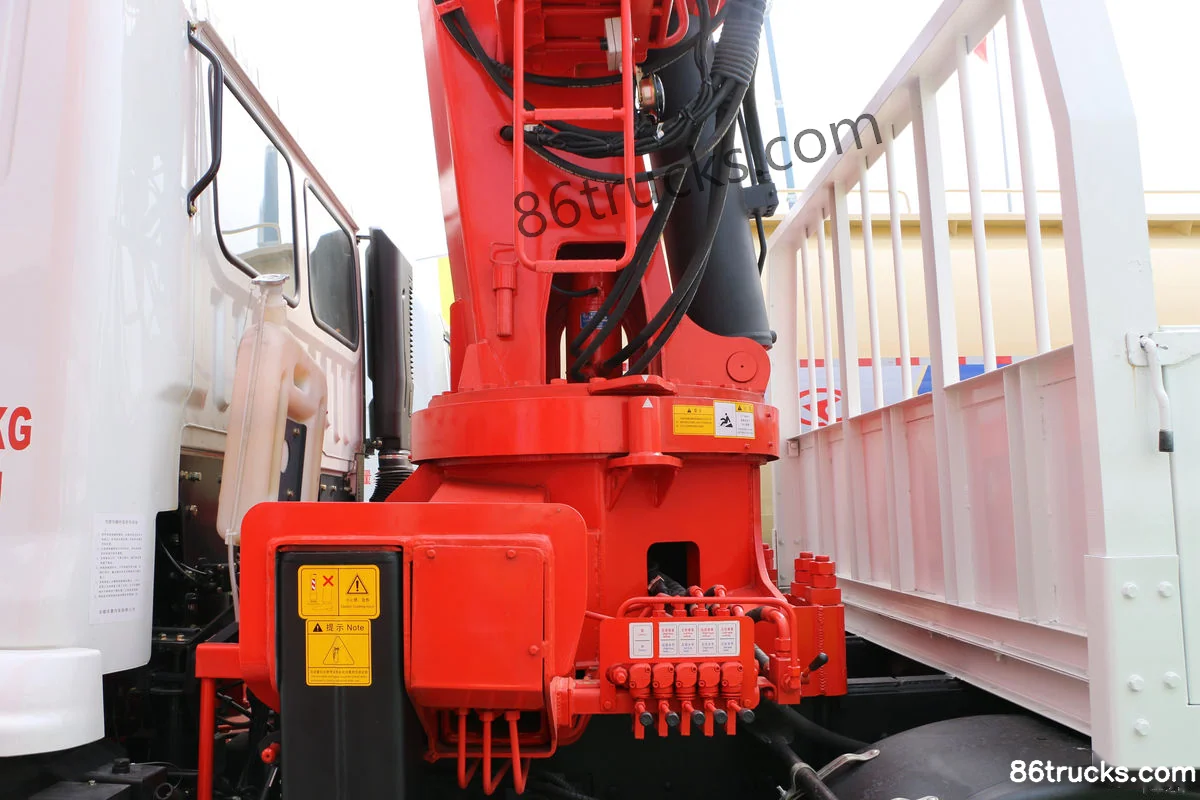

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Body (1) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Body (2) | 86Trucks Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane Body (3) | 86Trucks

11 photos

FAQ

What emission standard does Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane?

Key specs of Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane: Drive: 6x2; Horsepower: 270 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane suited for?

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane differ from other variants in the same series?

Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane belongs to Hualing Star Medium-heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Star 270 hp 6X2(8 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
