Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Xingrui
Curb Weight:: 2.6ton
Wheelbase:: 2860mm
Tire Size:: 195/70R15LT 10PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 95
Cargo box type: Dump type

Overview

The Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck is a mini truck featuring 1.495t payload, 4.42t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD19TCIE1 engine, 95 hp, China V emissions and Xingrui transmission.

China V 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3041R66K5-1
Drive type: 4X2
Wheelbase: 2860mm
engine: Yunnei PowerD19TCIE1
transmission: Xingrui 531
Cab length: 5.465m
Cab width: 1.86m
Cab height: 2.15m
Front track width: 1487mm
rear track: 1332mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.42ton
Origin: Rizhao, Shandong
tonnage class: mini truck
Approach angle: 19°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE10
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 1.91L
Emission standard: China V
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 190N·m
Max torque speed: 1800-2600rpm
Rated speed: 3600rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: Xingrui 531
Transmission Brand: Xingrui
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.5m
Cargo box width: 1.78m
Cargo box height: 0.38m
Cab parameters
Cab: Ditu Double Row
Chassis Specs
Front axle allowable load: 1780kg
Frame Dimensions: 760×160×55×4mm
rear axle description: 1030 welded hydraulic brake
rear axle allowable load: 2640kg
Leaf spring count: 3/6+4
Tire
Tire Size: 195/70R15LT 10PR
Tire Type: vacuum radial tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

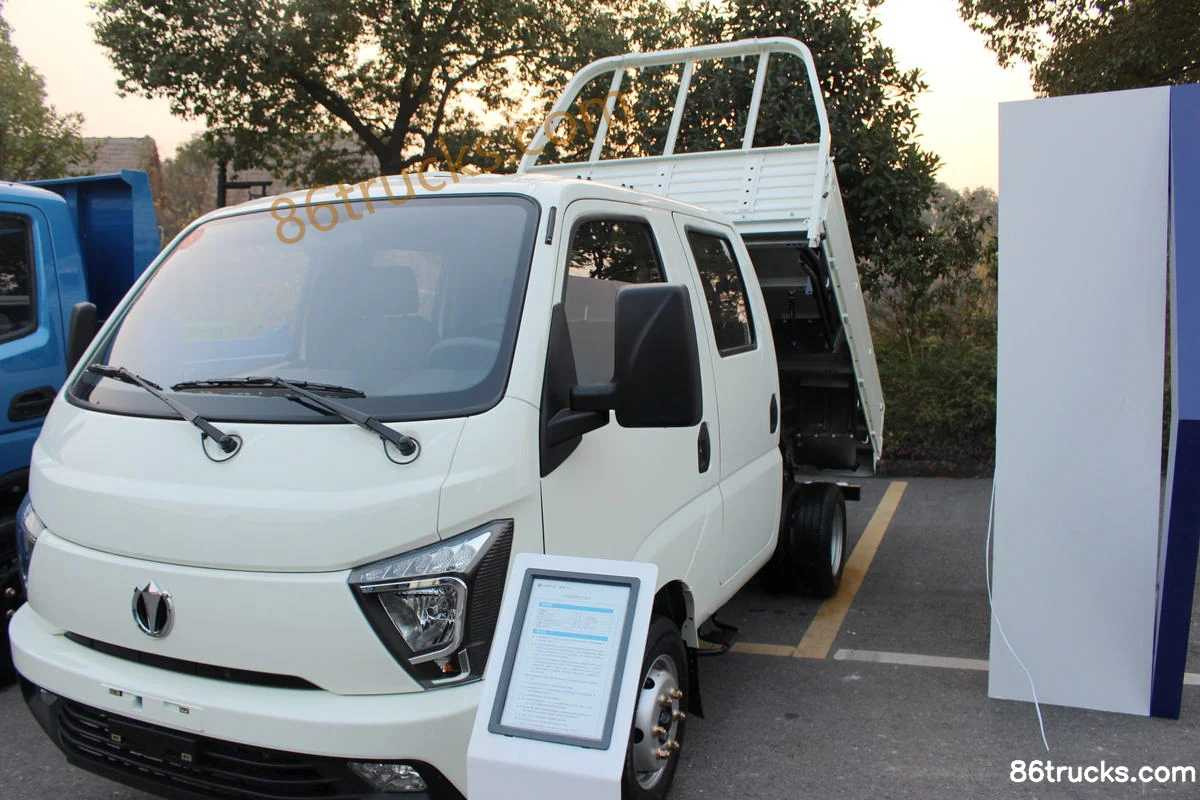

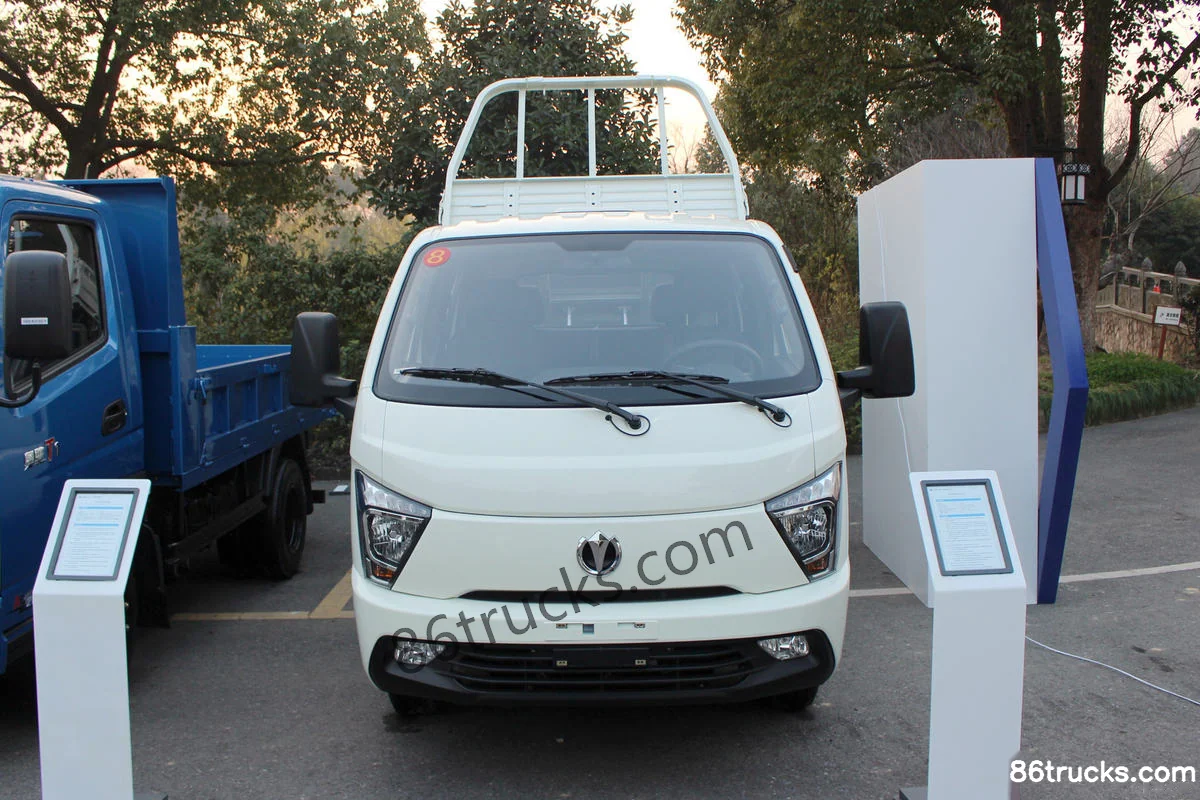

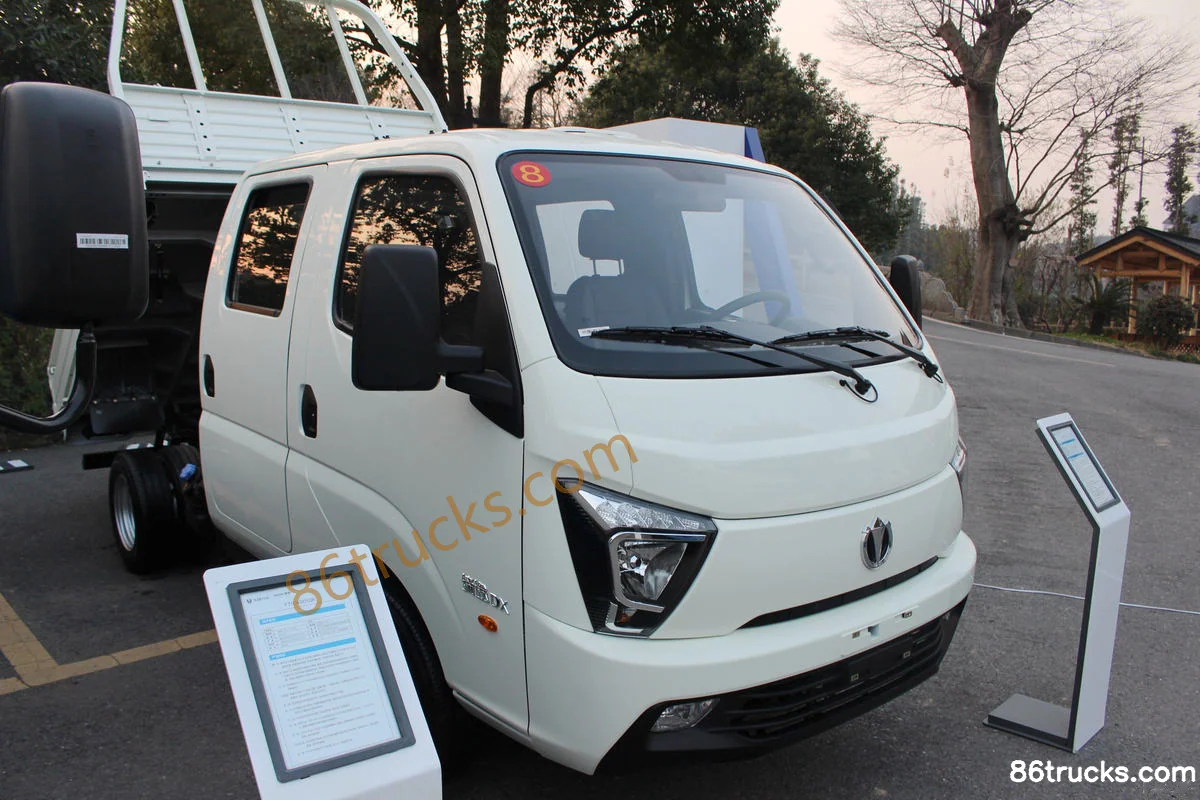

Exterior3

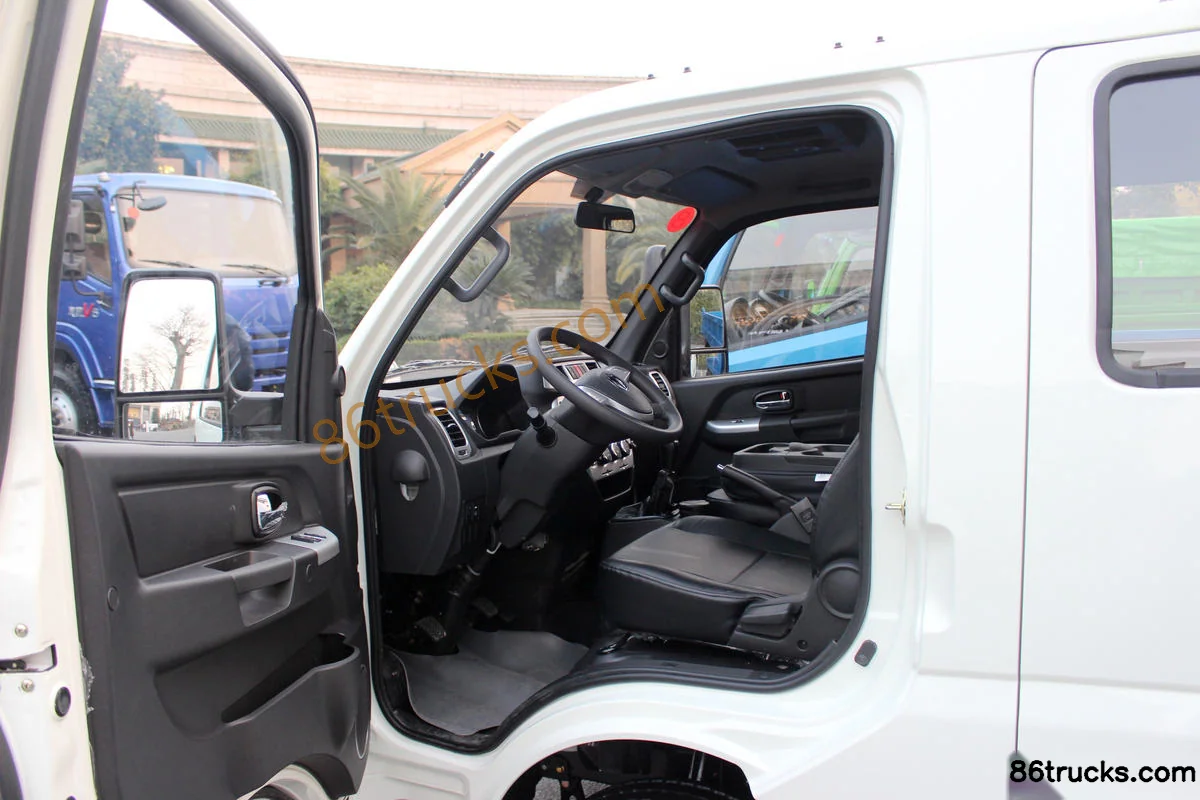

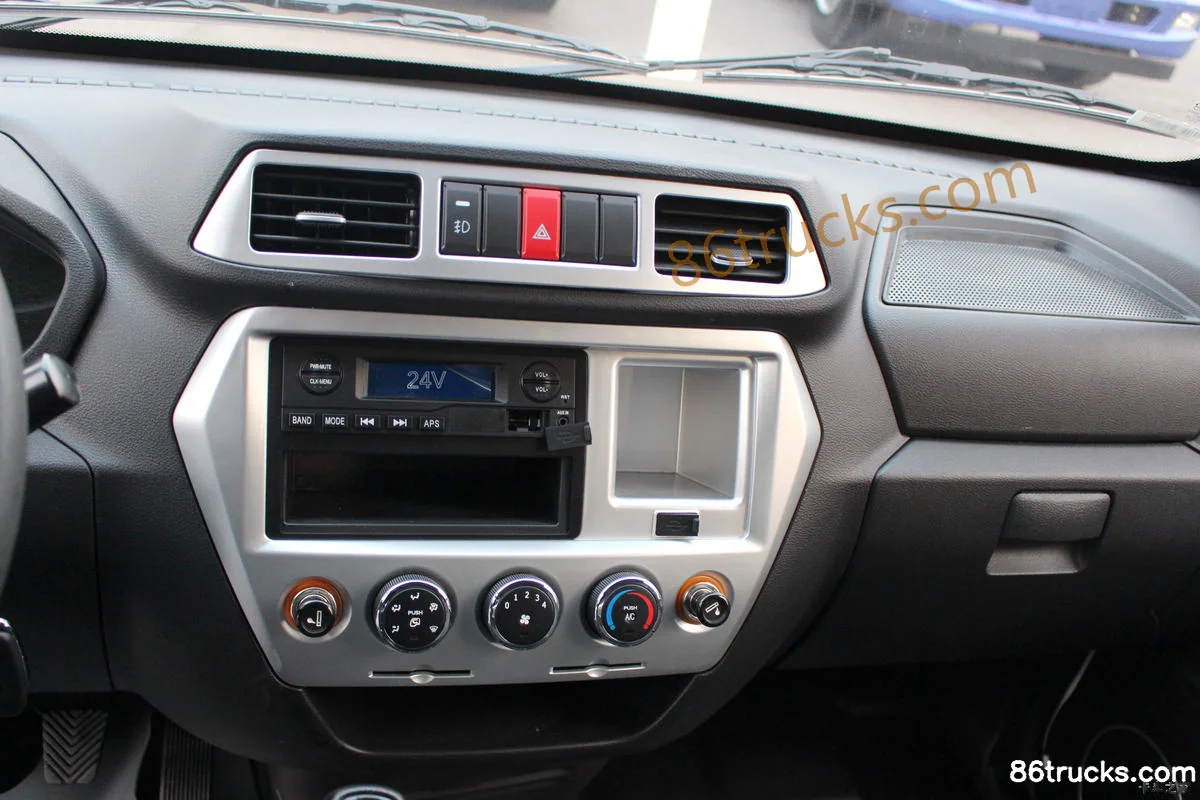

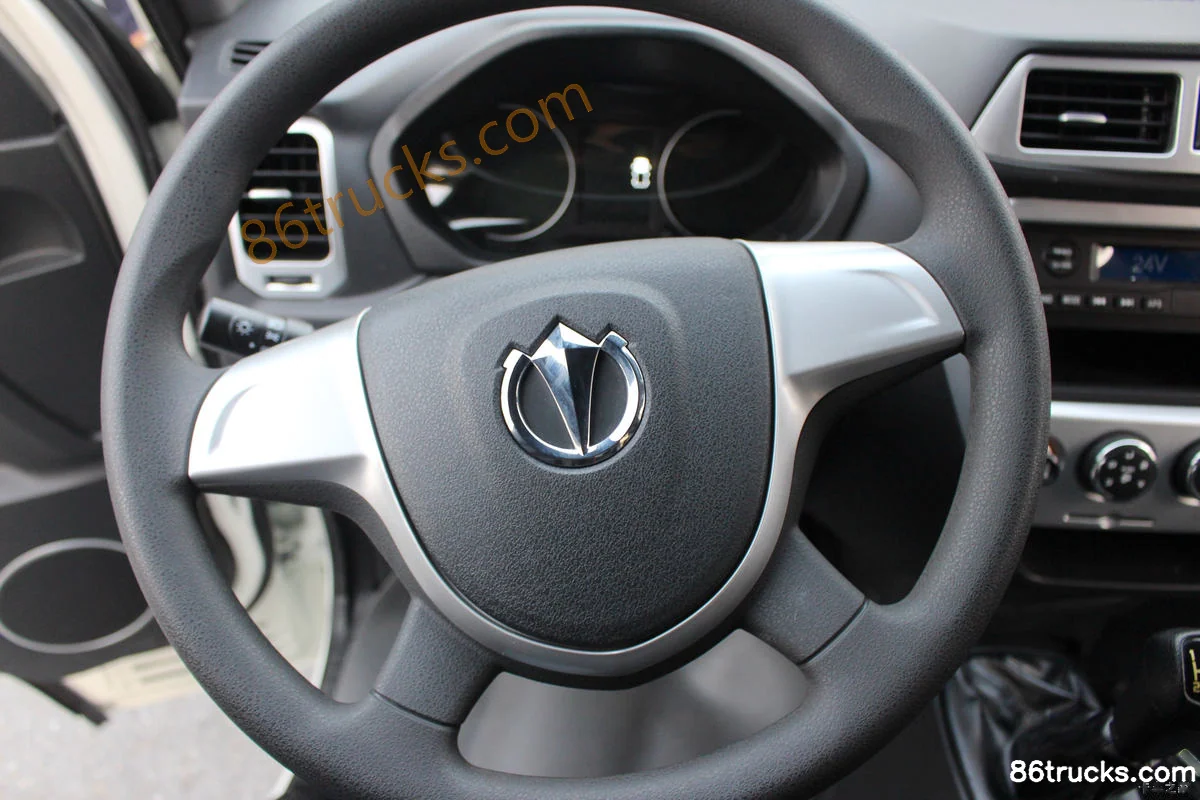

Cab3

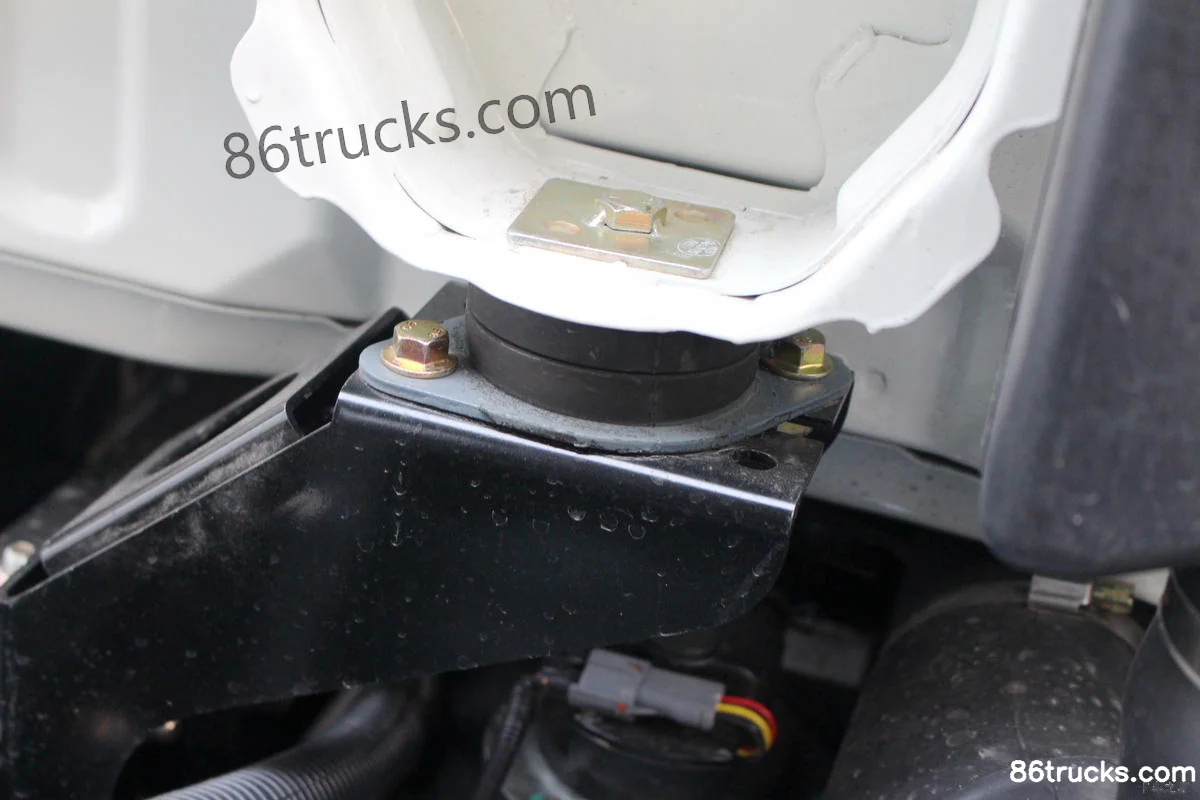

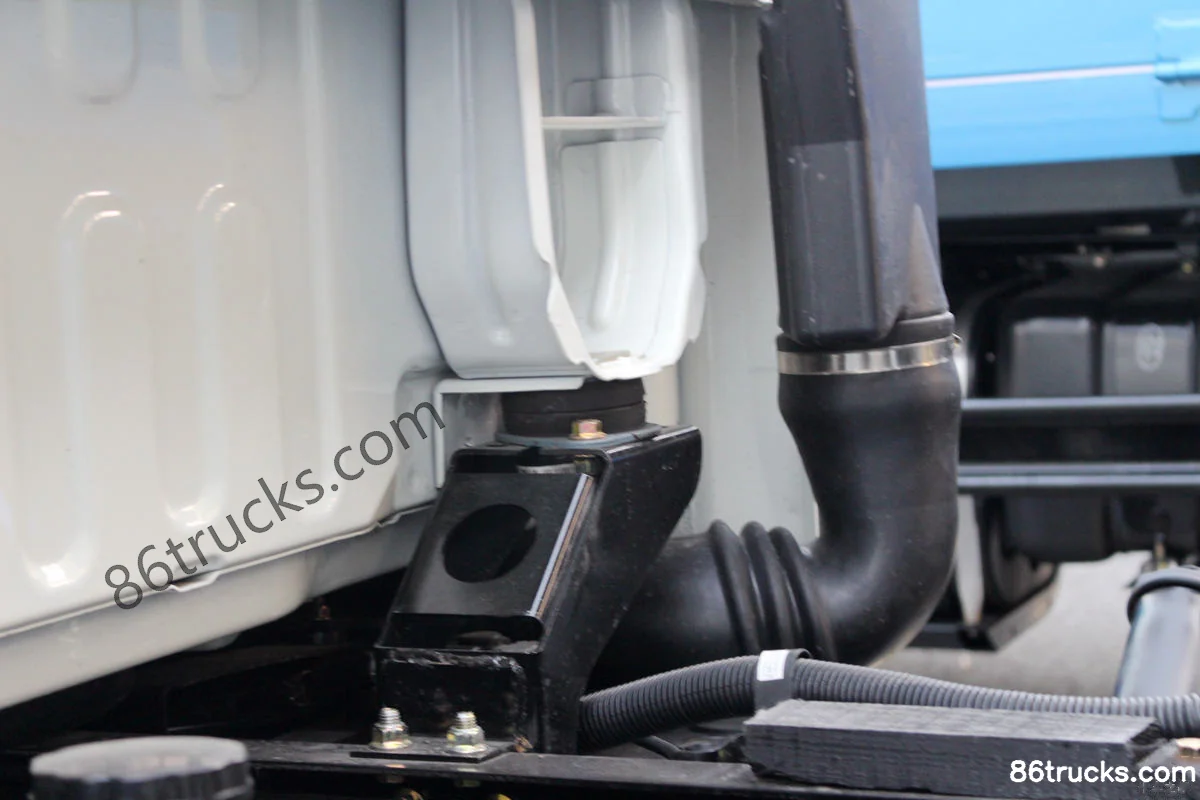

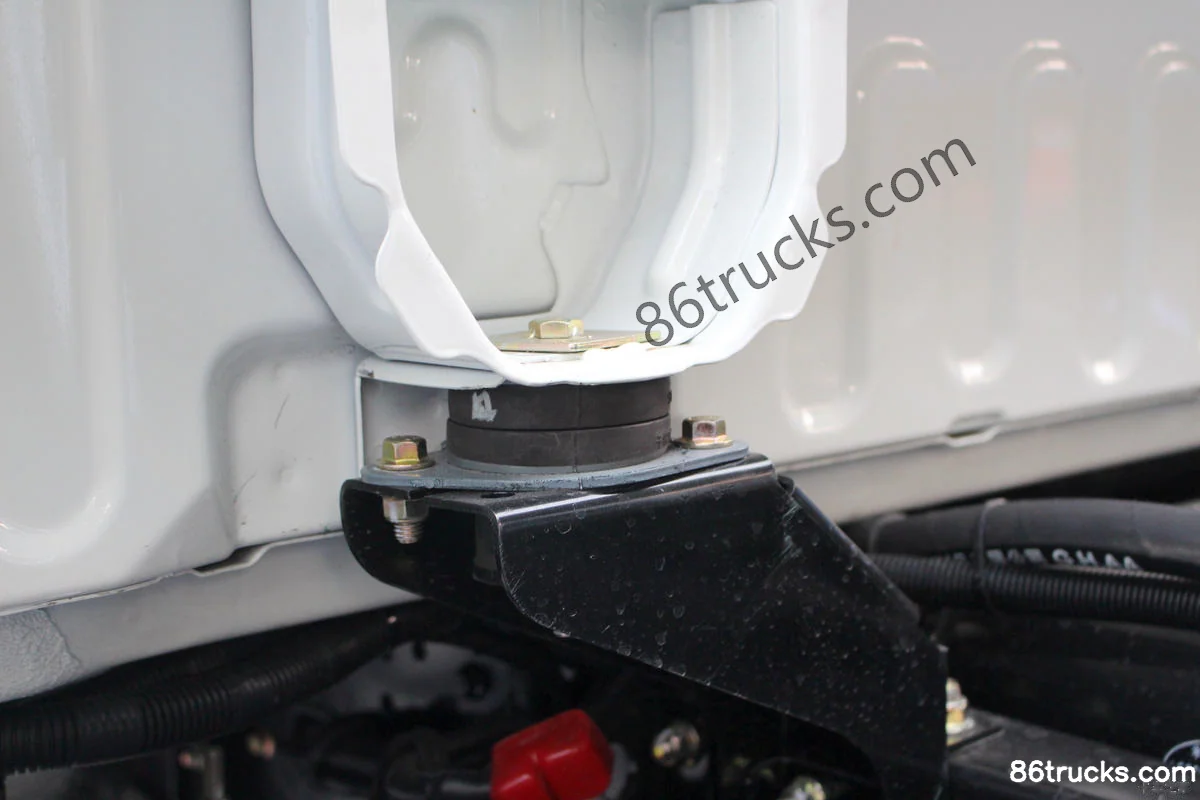

Chassis3

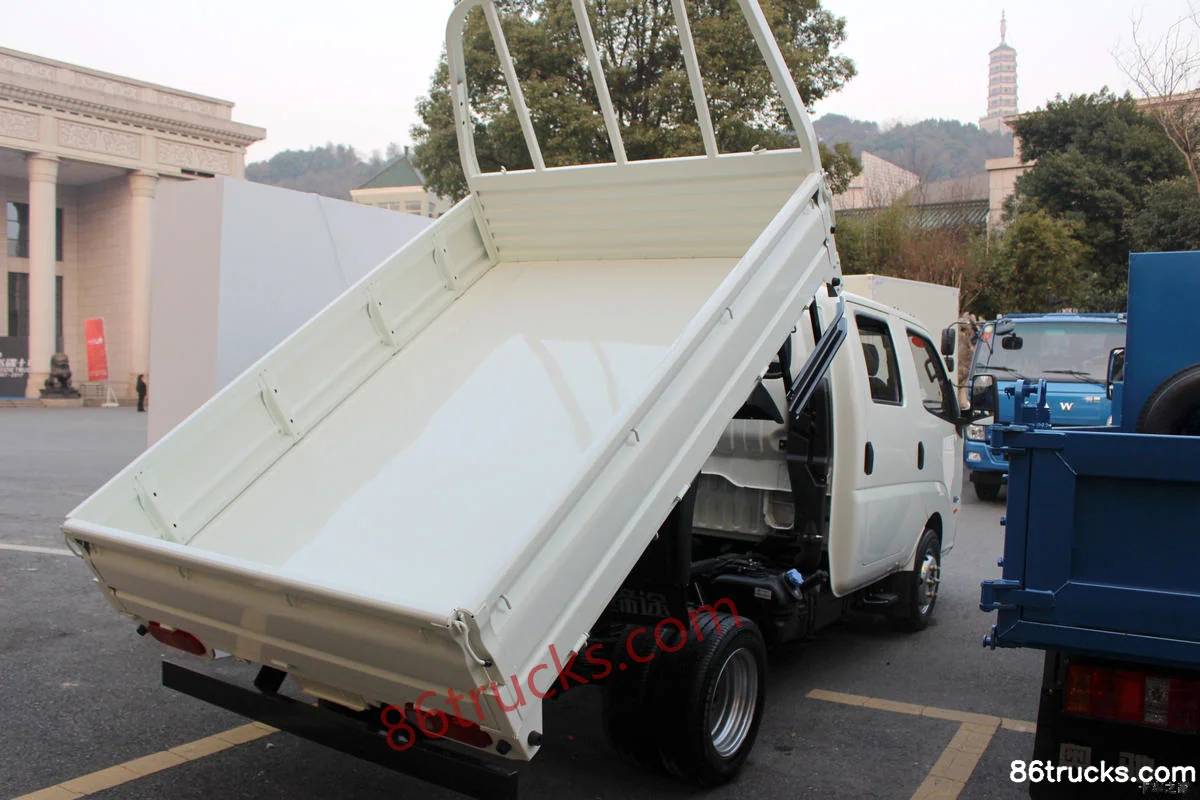

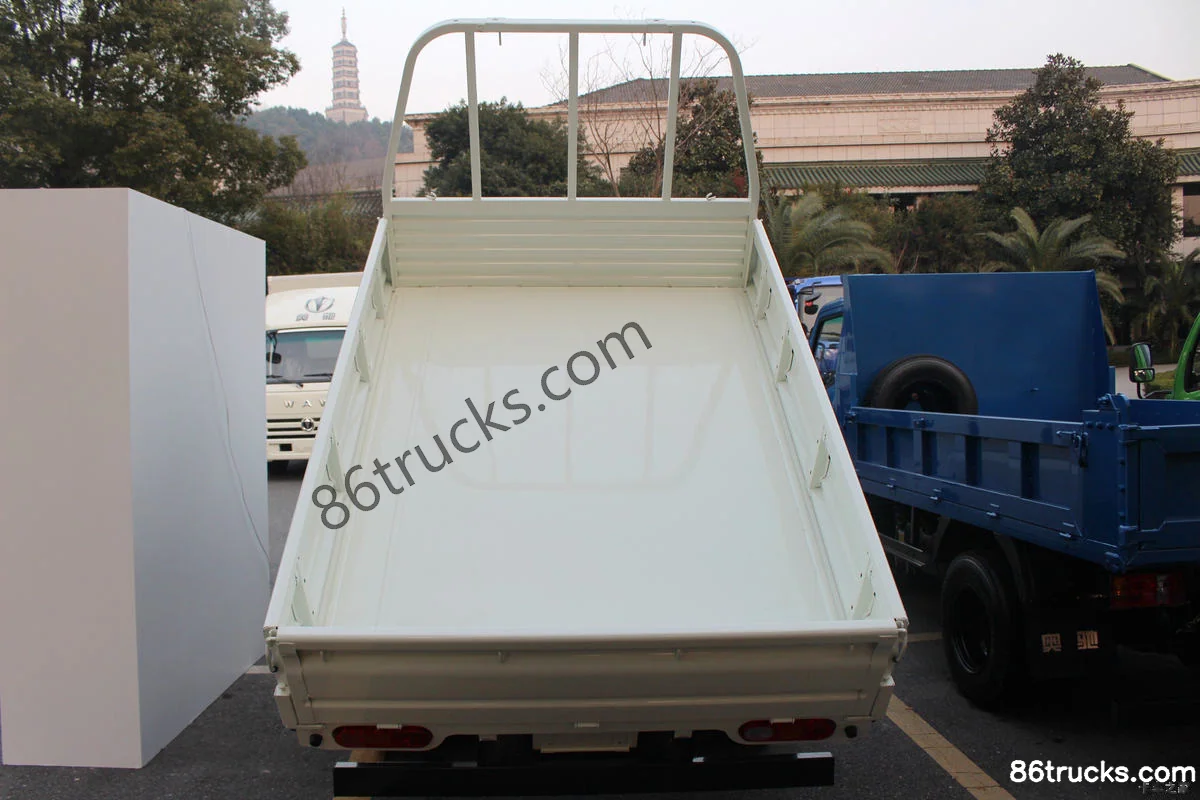

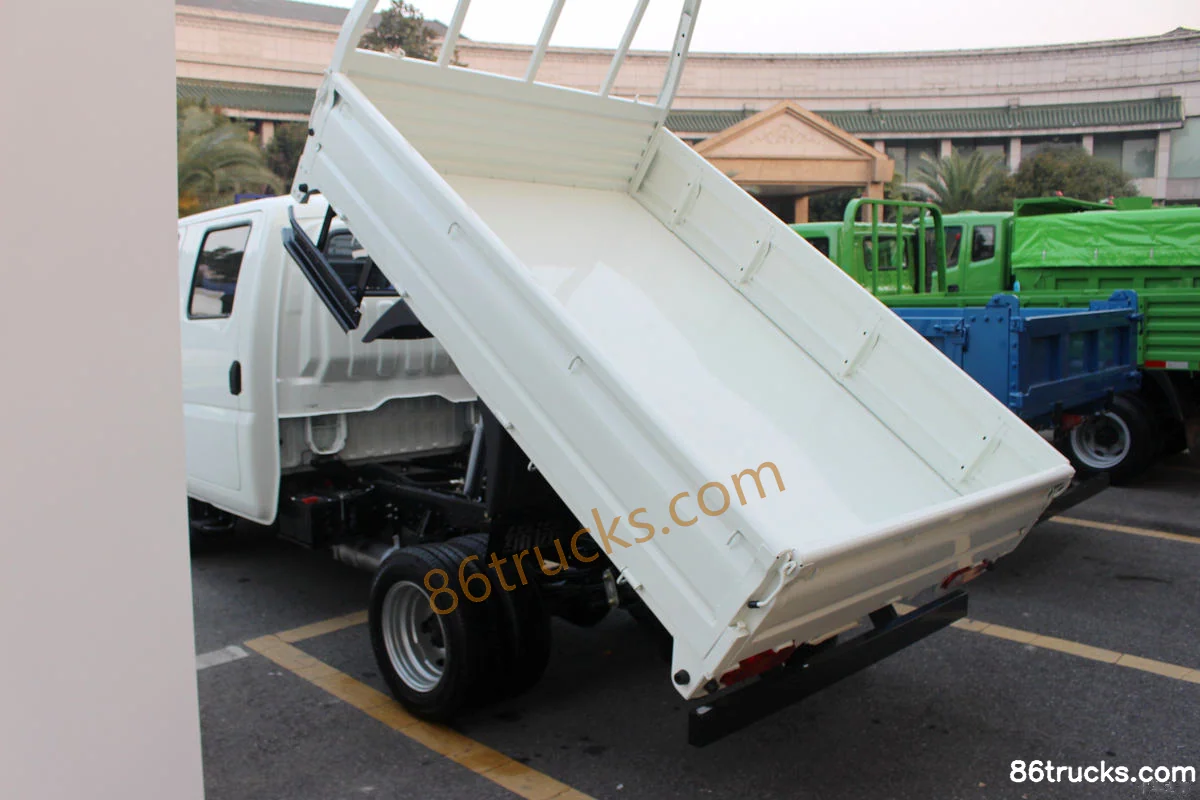

Body3

12 photos

FAQ

What emission standard does Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck?

Key specs of Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck: Drive: 4x2; Horsepower: 95 hp; Emission: China V; Fuel: Diesel; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck suited for?

Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck differ from other variants in the same series?

Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck belongs to Feidi Jinniu X1 (formerly Ditu DX) mini truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi DX 1.9L 102hp 4X2(6 wheels) 2.5m Double Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
