Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.8ton
Wheelbase:: 3200mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 7.27ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck is a Light Truck featuring 7.27t payload, 11.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3NQ130E61 engine, 130 hp, China VI emissions and WLY transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3114G321BFA
Drive type: 4X2
Wheelbase: 3200mm
engine: WeichaiWP2.3NQ130E61
transmission: WLYWLY10H46
Cab length: 5.76m
Cab width: 2.125m
Cab height: 2.195m
Front track width: 1585mm
rear track: 1644mm
Curb Weight: 3.8ton
Rated payload: 7.27ton
GVWR: 11.2ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
Remarks: Transmission optional: 10H46. CZ1060BU/CZ1081CU
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2m
Cargo box height: 0.8m
Cab parameters
Cab width: 1730mm
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 90L
Chassis Specs
Front axle description: 131D
Front axle allowable load: 4000kg
Frame Dimensions: 200×8mm
rear axle description: 149D
rear axle allowable load: 7200kg
Leaf spring count: 11/11+9
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Remote key:
Electronic Central Lock:

Photos

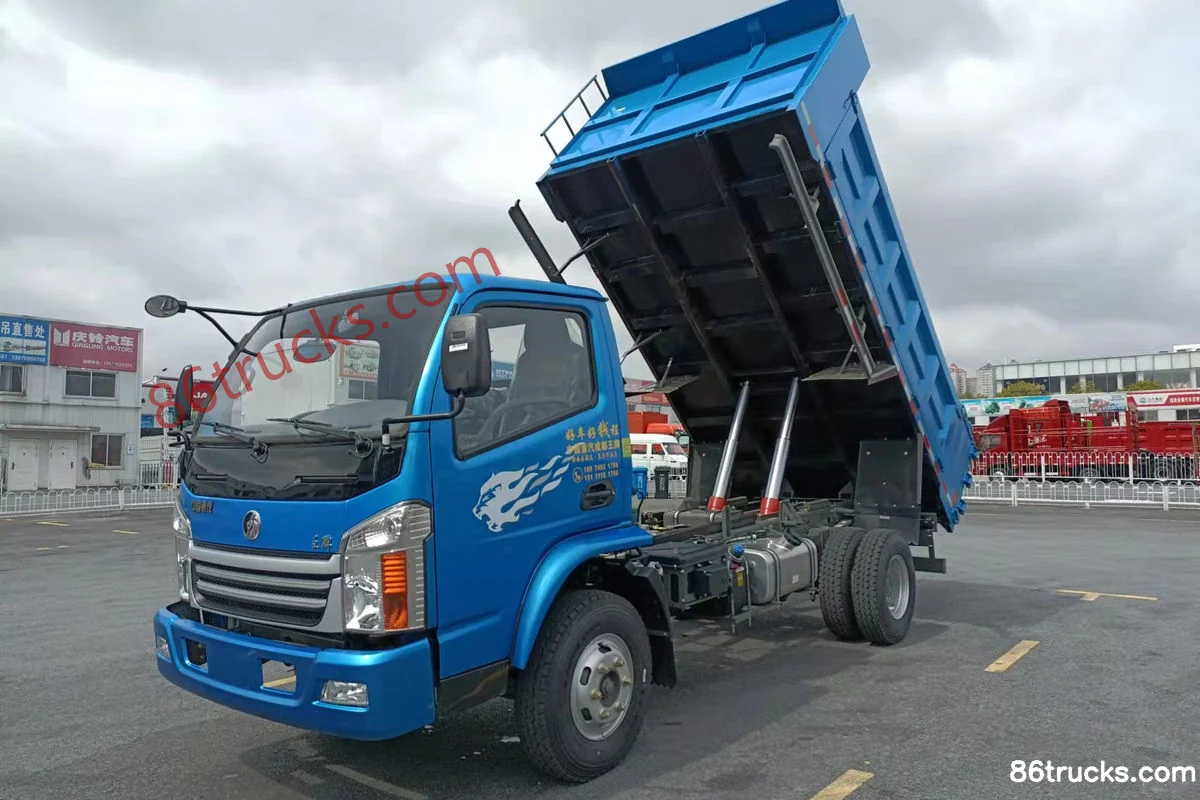

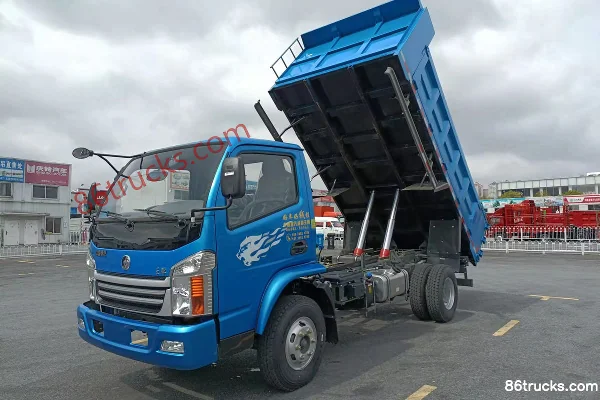

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck suited for?

Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck belongs to Sinotruk Tengshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Tengshi 130 hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
