SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Curb Weight:: 13.17ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00-20
Cab dimensions:: 9.135×2.49×3.81m
Truck Type:: concrete mixer truck
Vehicle origin:: Xi'an, Shaanxi
Rated payload: 11.7ton
Drive 6X4 (10 wheels)
Horsepower 308
Emission China III / Euro III

Overview

The SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 11.7t payload, 13.17ton GVW, 6X4 (10 wheels) drive and 9.135×2.49×3.81m cab. On the powertrain side, it comes with 308 hp and China III / Euro III emissions.

China III / Euro III 308 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.135×2.49×3.81m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3800+1350mm
Vehicle origin: Xi'an, Shaanxi
Front/rear track width: Front track: 1939mm; Rear track: 1850mm
Curb Weight: 13.17ton
Rated payload: 11.7ton
Max. speed: 77km/h
Front/rear suspension: 1.525/2.46m
Engine parameters
Engine Model: CumminsISME308 30
Number of cylinders: 6cylinder
Displacement: 10.8L
Emission standard: China III / Euro III
Max output power: 226kW
Max hp: 308Horsepower
Engine Type: Inline 6-cylinder, electronic control system
Body Parameters
Vehicle certification code: SX5255GJBDR384
Body Brand: SHACMAN
Chassis Specs
Chassis Series: Delong FC
Chassis Model: SX5255GJBDR384
rear axle description: STR double reduction, tandem axle
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS135
Tire
Tire Size: 12.00-20
Number of tires: 10pcs

Photos

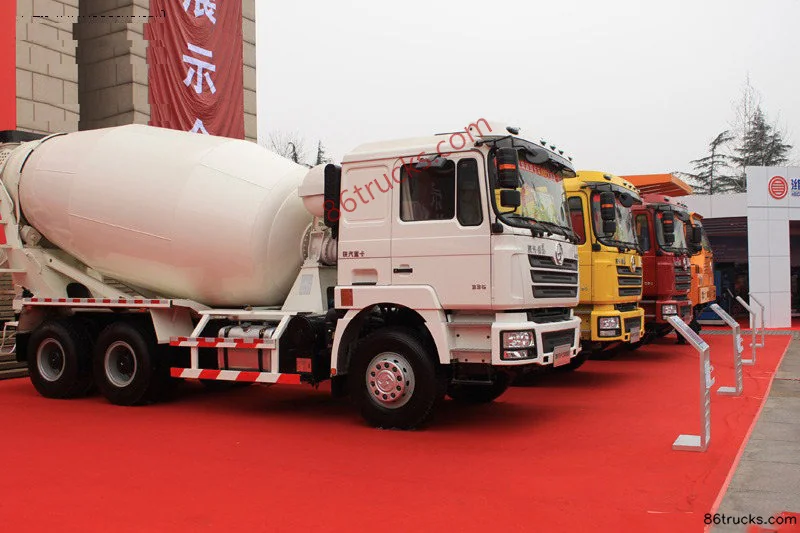

Exterior1

1 photos

FAQ

What emission standard does SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 308 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck suited for?

SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck belongs to SHACMAN Delong FC Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong FC 308 hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
