SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2000+3800+1400mm
Tire Size:: 11.00R20
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 440
Cargo box type: Rear-dump body

Overview

The SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) is a Heavy truck featuring 15.37t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a FotonX12NS6B440 engine, 440 hp, China VI emissions and Fast Gear transmission.

China VI 440 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3317HK12386
Drive type: 8X4
Wheelbase: 2000+3800+1400mm
engine: FotonX12NS6B440
transmission: Fast Gear12JSDX220TA-B
Cab length: 10.685m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2020/2020,2040/2040mm
rear track: 1858/1858mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 13°
Remarks: Electric pump, 8.5 steel rim, steel air tank
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX12NS6B440
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.8L
Emission standard: China VI
Max output power: 324kW
Max hp: 440Horsepower
Max torque: 2200N·m
Max torque speed: 900-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Sleeper cab
Cab suspension: 4-point mechanical suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500/6500kg
rear axle description: HY485
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/3/6,8/8/12,9/9/12,10/10/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Remote key:
Electronic Central Lock:

Photos

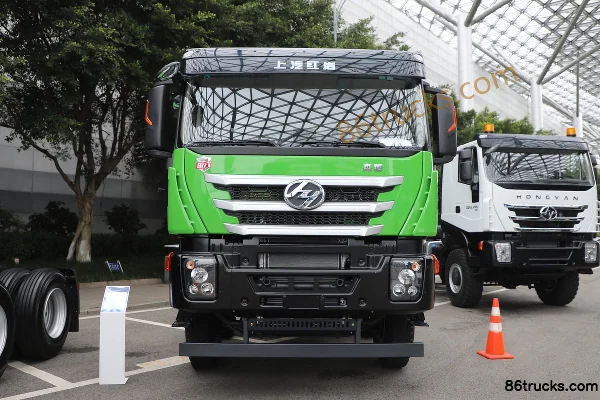

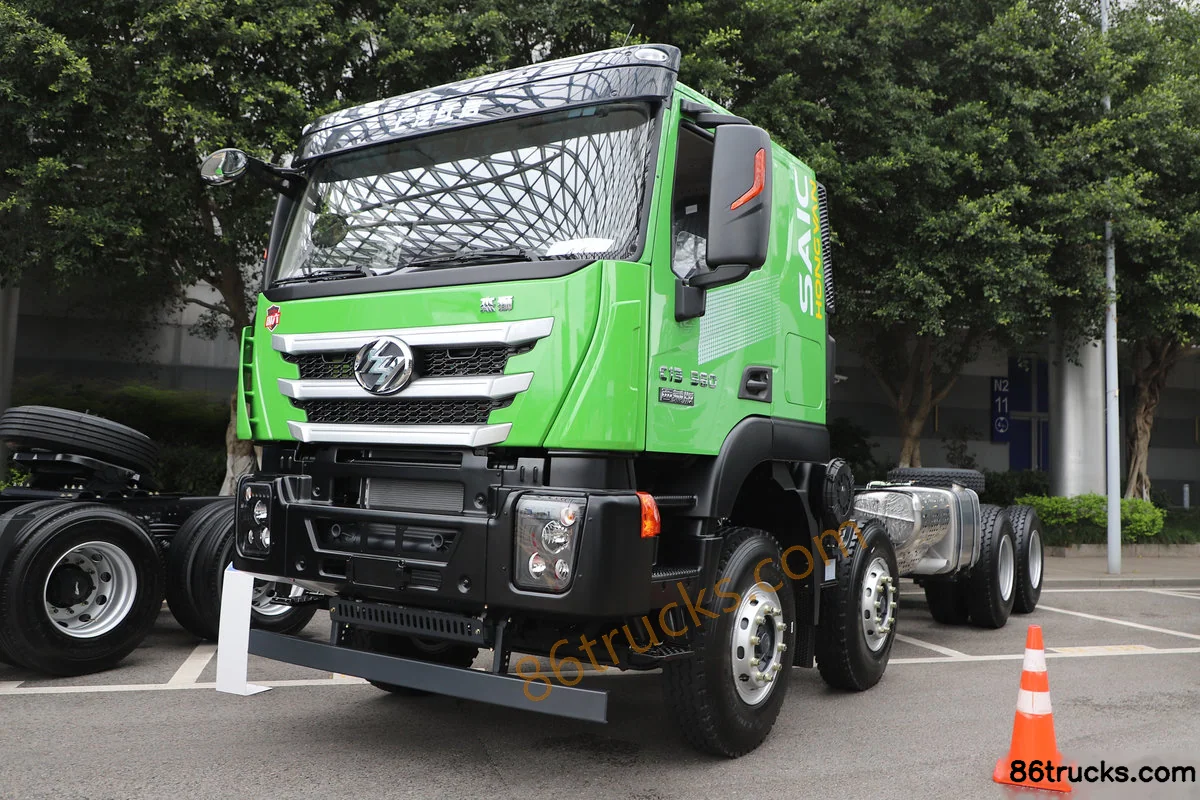

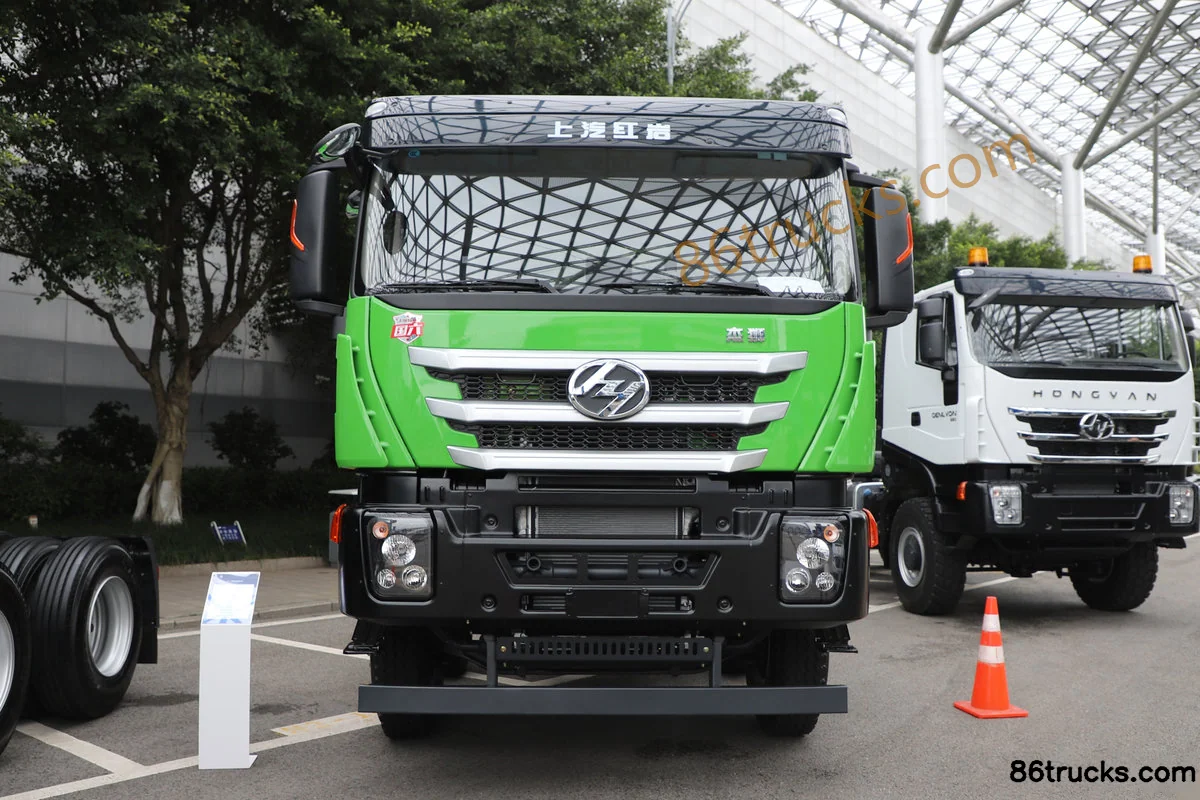

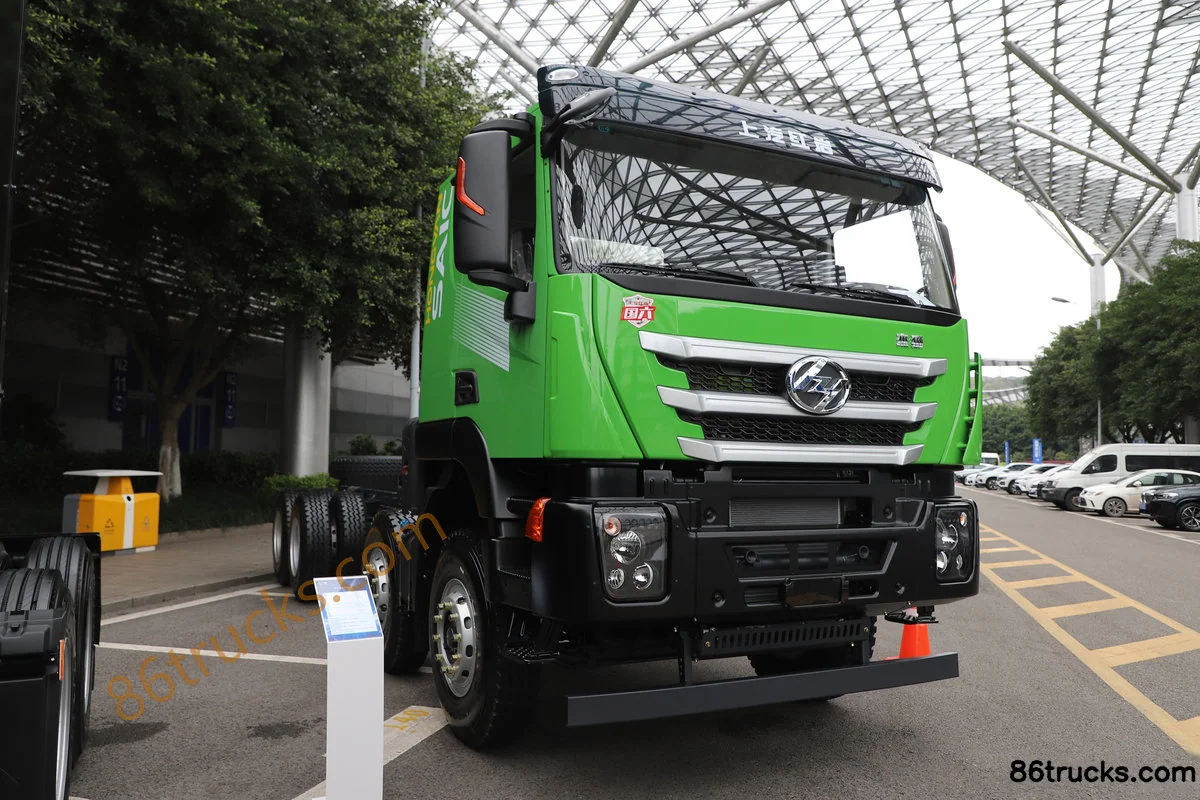

Exterior3

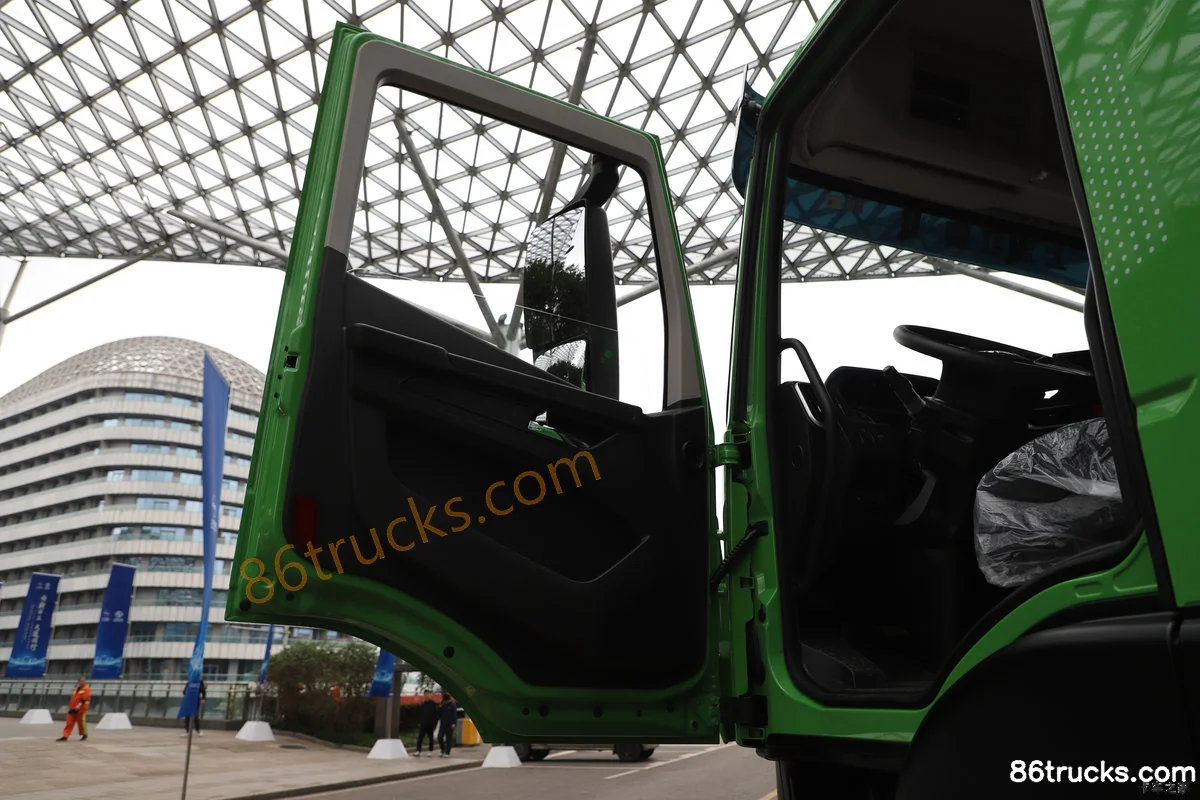

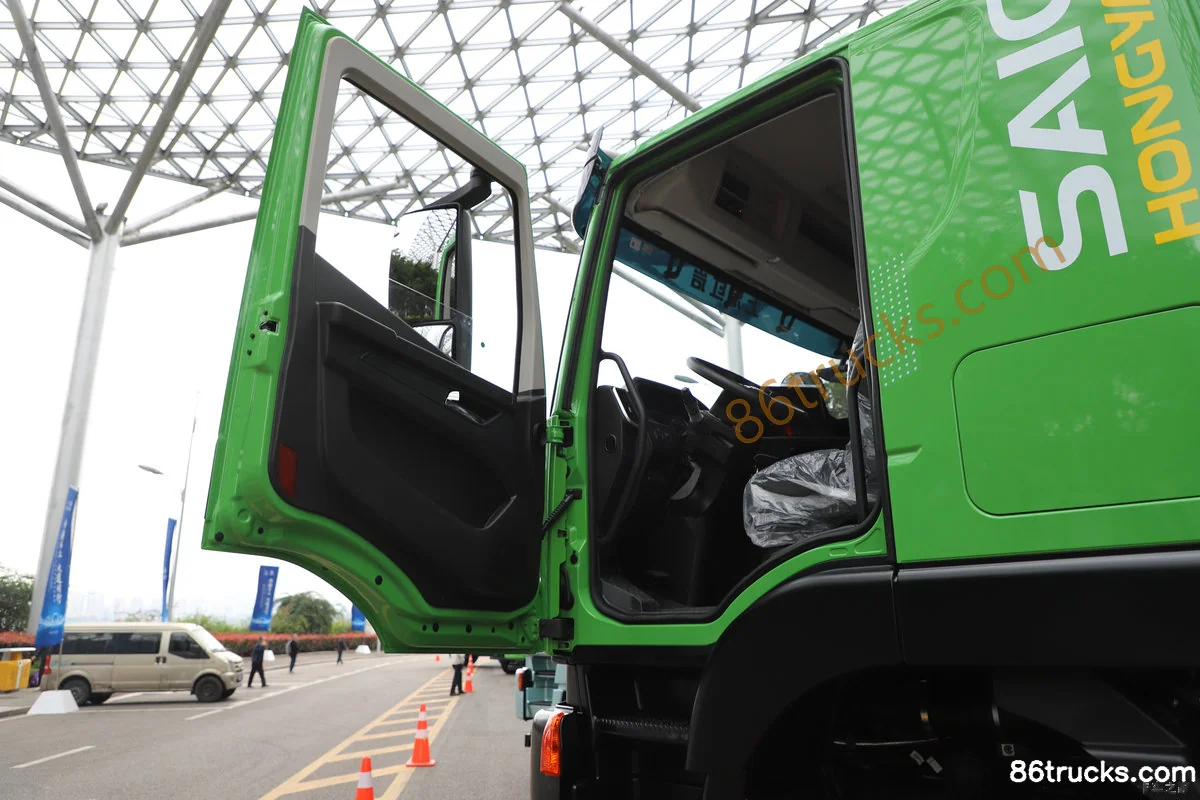

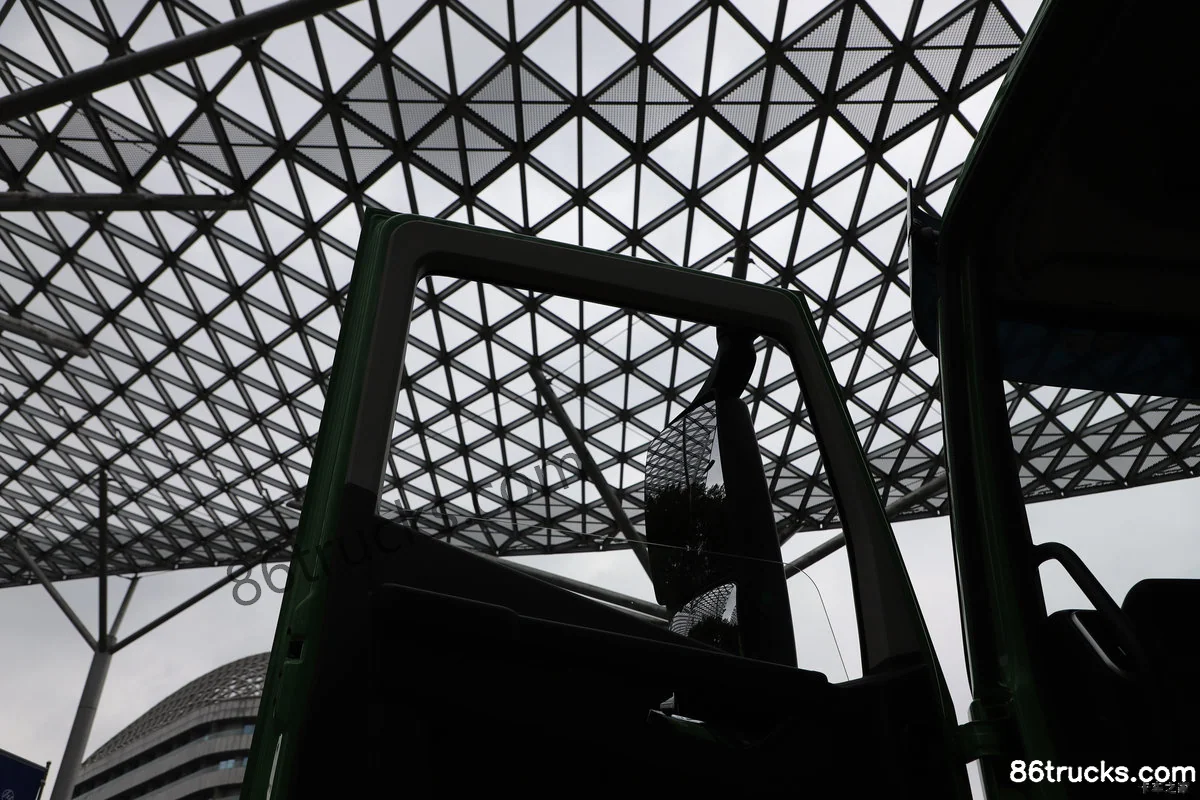

Cab3

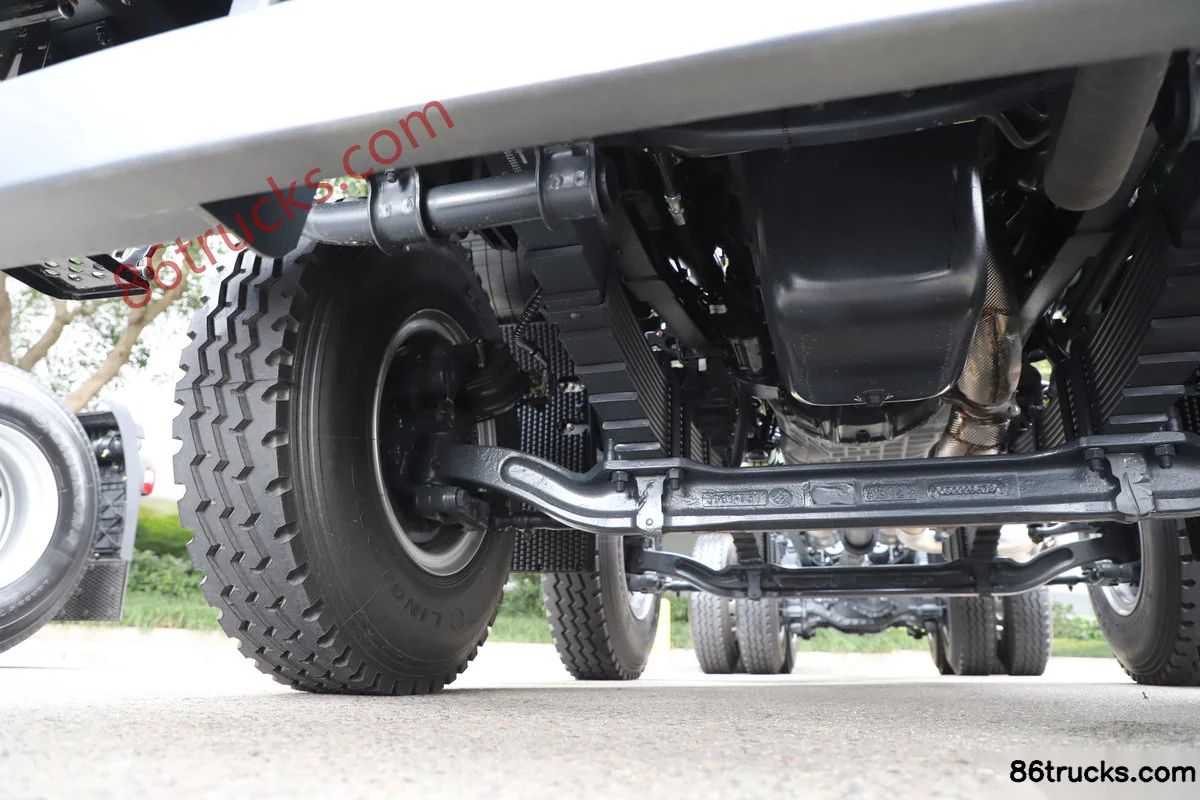

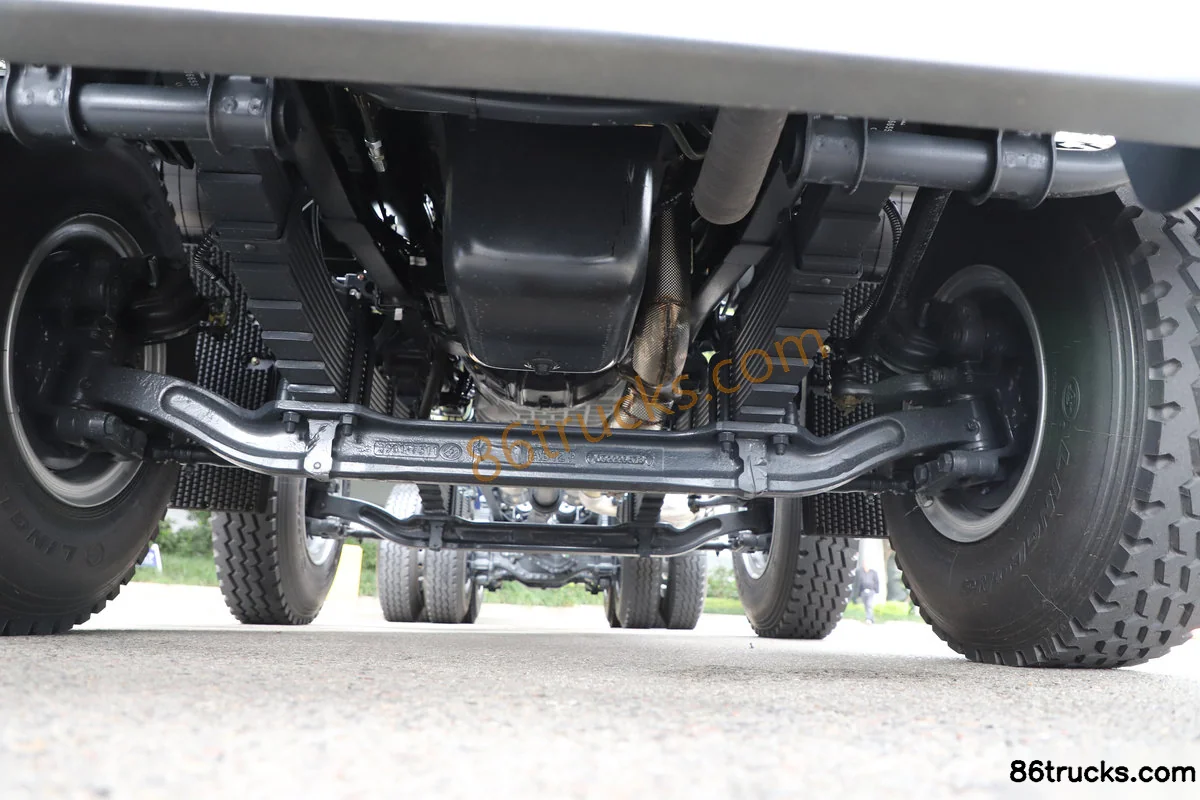

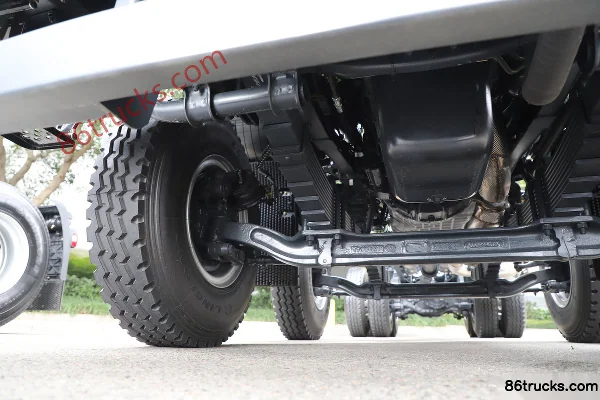

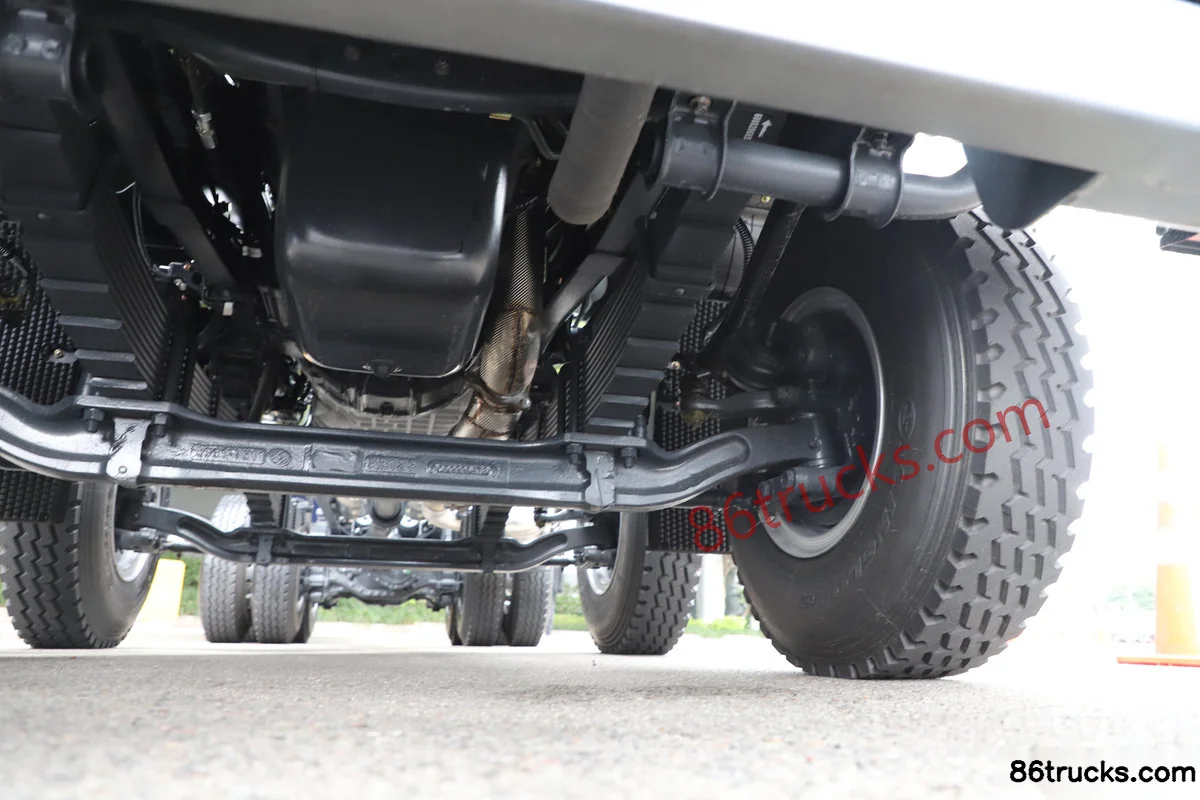

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI)?

Key specs of SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI): Drive: 8x4; Horsepower: 440 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) suited for?

SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) differ from other variants in the same series?

SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI) belongs to SAIC Hongyan Genlyon Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C6 440 hp 8X4(12 wheels) 7.8m Dump Truck (High Roof) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
