Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck

Export reference
From $44,444
MSRP ¥32M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.38ton
Wheelbase:: 4200+1350mm
Tire Size:: 12.00R20-WJ (20-ply) steel radial tire
Rated payload: 12.49ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck is a Heavy truck featuring 12.49t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukWD615.95E engine, 336 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3253N4241C1
Drive type: 6X4
Wheelbase: 4200+1350mm
engine: SinotrukWD615.95E
transmission: SinotrukHW19710
Rear Axle Ratio: 5.73
Cab length: 9.025m
Cab width: 2.496m
Cab height: 3.5m
Front track width: 2020,1939mm
rear track: 1850/1850mm
Curb Weight: 12.38ton
Rated payload: 12.49ton
GVWR: 25ton
Origin: Jinan, China
tonnage class: Heavy truck
Approach angle: 29°
departure angle: 32°
Remarks: Front lift, high-strength plate, embedded, five longitudinal beams, 8+8 frame, oil-bath air filter, 430B clutch, 400mm sub-plate
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1350N·m
Max torque speed: 1100-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Transmission Parameters
Transmission Model: SinotrukHW19710
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: HC16 axle
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20-WJ (20-ply) steel radial tire
Number of tires: 10pcs

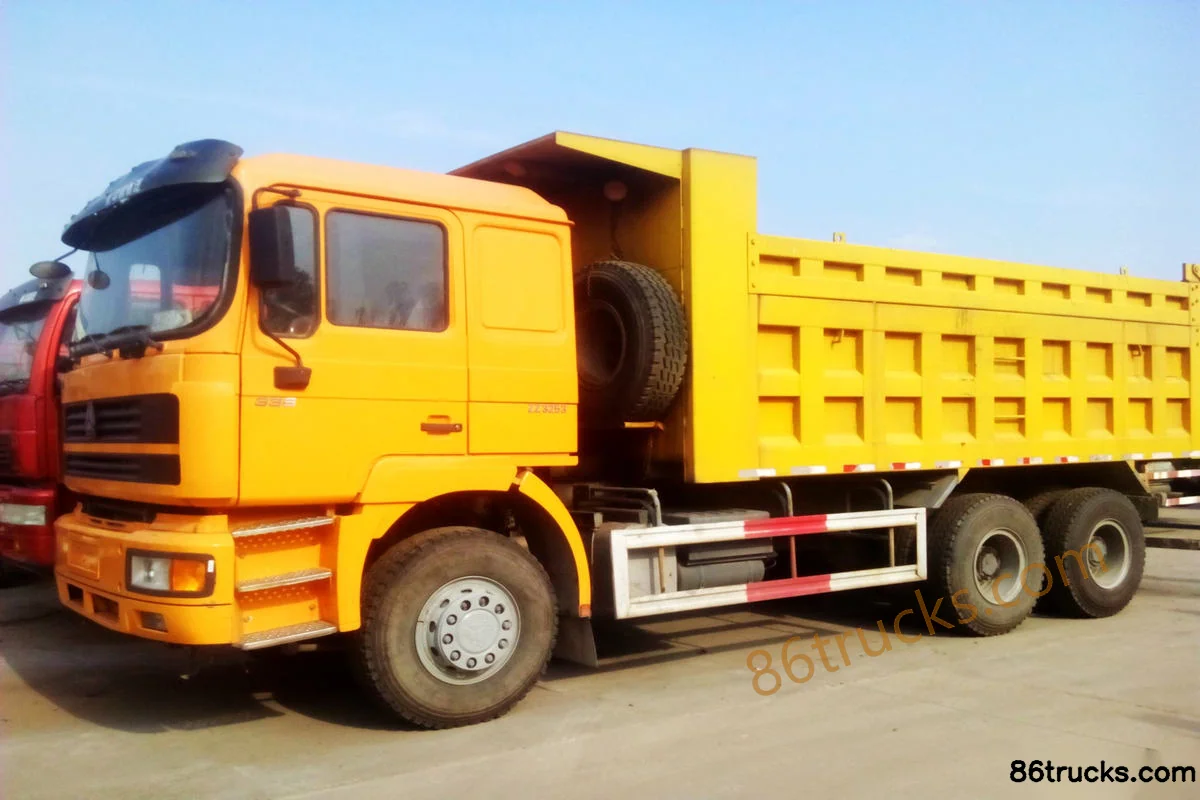

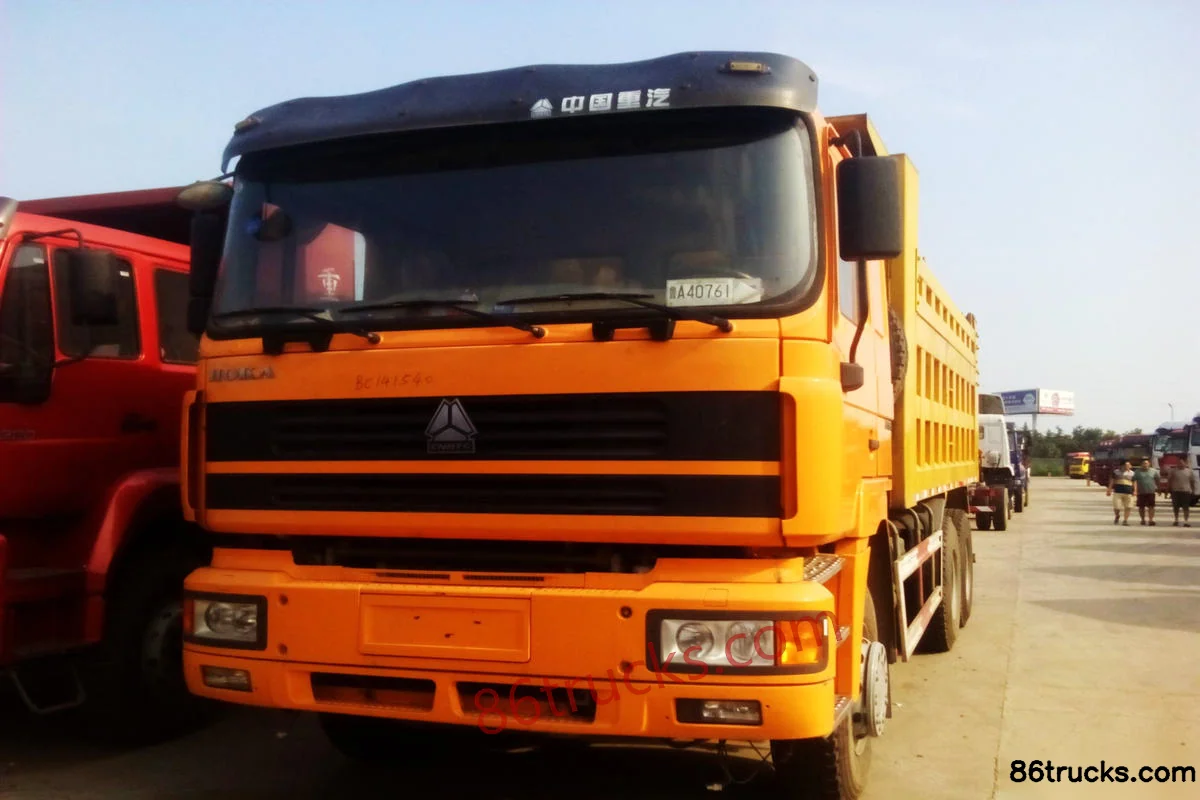

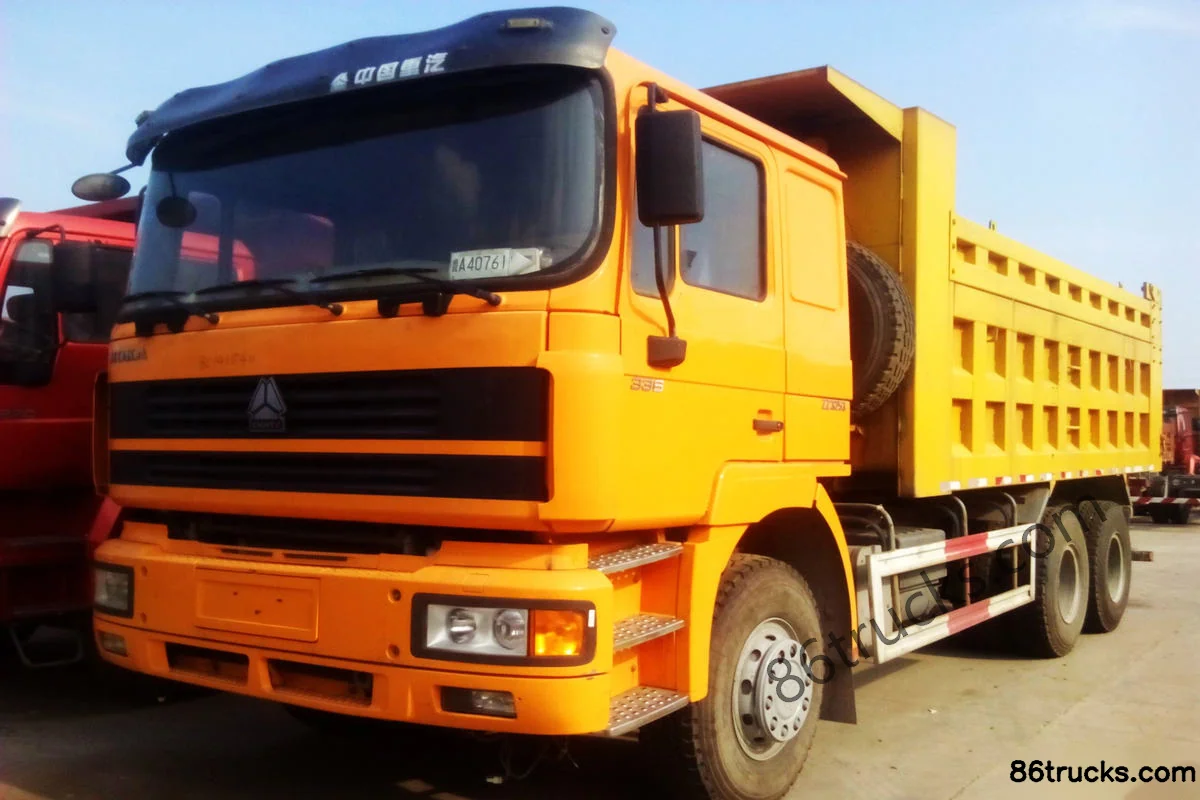

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck, and what does it include?

Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck export reference is about From $44,444; MSRP is ¥32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck?

Key specs of Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck suited for?

Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck differ from other variants in the same series?

Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck belongs to Sinotruk HOKA Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOKA Heavy Truck 336 hp 6X4(10 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
