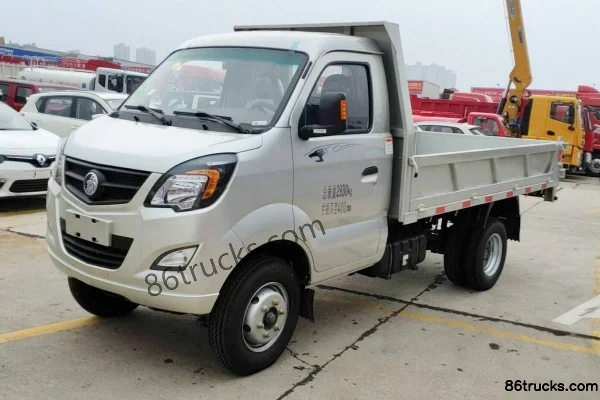

Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY)

Export reference
From $9,375
MSRP ¥6.75M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.37ton
Wheelbase:: 3050mm
Tire Size:: 6.00-15LT 10PR
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Horsepower 88
Cargo box length: 3.1m

Overview

The Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) is a mini truck featuring 1.995t payload, 4.495t GVW, 3.1m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-88C50 engine, 88 hp, China V emissions and WLY transmission.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3040N1M5
Drive type: 4X2
Wheelbase: 3050mm
engine: Quanchai4A2-88C50
transmission: WLY 6-speed
Rear Axle Ratio: 4.44
Cab length: 5.165m
Cab width: 1.75m
Cab height: 2.12m
Front track width: 1380mm
rear track: 1310mm
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 34°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-88C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: WLY 6-speed
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.1m
Cargo box width: 1.75m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Cab width: 1650mm
Chassis Specs
Front axle allowable load: 1650kg
rear axle allowable load: 2845kg
Axle ratio: 4.44
Leaf spring count: 5/7,5/8+5,5/5+3
Tire
Tire Size: 6.00-15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY), and what does it include?

Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) export reference is about From $9,375; MSRP is ¥6.75M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY)?

Key specs of Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY): Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) suited for?

Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) differ from other variants in the same series?

Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY) belongs to Sinotruk Wangpai W1 micro truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W1 88 hp 4X2(6 wheels) 3.1m Dump Truck (WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
