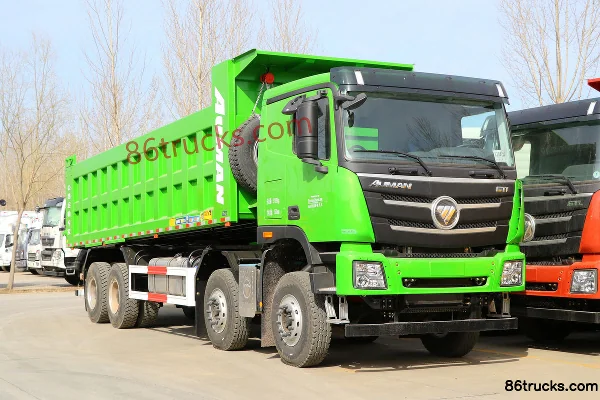

Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder)

Export reference
From $63,222
MSRP ¥45.52M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2100+4600+1400mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 580
Cargo box type: Dump type

Overview

The Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a FotonX13NS6B580 engine, 580 hp, China VI emissions and Fast Gear transmission.

China VI 580 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3319Y6GRL-59
Drive type: 8X4
Wheelbase: 2100+4600+1400mm
engine: FotonX13NS6B580
transmission: ZF12TX2621TD
Rear Axle Ratio: 5.26
Cab length: 11.45m
Cab width: 2.55m
Cab height: 3.65m
Front track width: 2080/2080mm
rear track: 1830/1830mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Huairou, Beijing
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 16°
Remarks: Standard: triple-layer frame, full-floating rear air suspension, MP5, 1000W power supply.
Version:
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS6B580
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.9L
Emission standard: China VI
Max output power: 426kW
Max hp: 580Horsepower
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.4m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: GTL Flat Roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 9T
Front axle allowable load: 6500/6500kg
rear axle description: 16TMercedes-Benz
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.26
Leaf spring count: 11/11/14
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

Photos

0 photos

FAQ

What is the export price of Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder), and what does it include?

Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) export reference is about From $63,222; MSRP is ¥45.52M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder)?

Key specs of Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder): Drive: 8x4; Horsepower: 580 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) suited for?

Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) differ from other variants in the same series?

Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder) belongs to Foton Auman GTL Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanGTL 580hp 8X4(12 wheels) 8.4m AMT automatic dump truck (China VI) (with retarder)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
