FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1900+3200+1350mm
Tire Size:: 11.00-20 18PR
Rated payload: 16.1ton
Drive 8X4 (12 wheels)
Horsepower 310
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis is a Heavy truck featuring 16.1t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310E53 engine, 310 hp, China V emissions and Fast Gear transmission.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5310ZLJP1K2L3T4E5A80
Drive type: 8X4
Wheelbase: 1900+3200+1350mm
engine: WeichaiWP10.310E53
transmission: Fast Gear10JSD160B
Rear Axle Ratio: 5.73
Cab length: 9.76m
Cab width: 2.5m
Cab height: 3.25m
Front track width: 1950/1950mm
rear track: 1847/1847mm
Curb Weight: 14.77ton
Rated payload: 16.1ton
GVWR: 31ton
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 42°
Remarks: Internal spline PTO, front underrun protection, coolant heater, desert air filter, straight-bar rear suspension
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1500N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD160B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.225m
Cab parameters
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: LB reinforced ten-ton welded axle
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: 12/12/10
Suspension (front/rear): Leaf spring
Tire
Tire Size: 11.00-20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

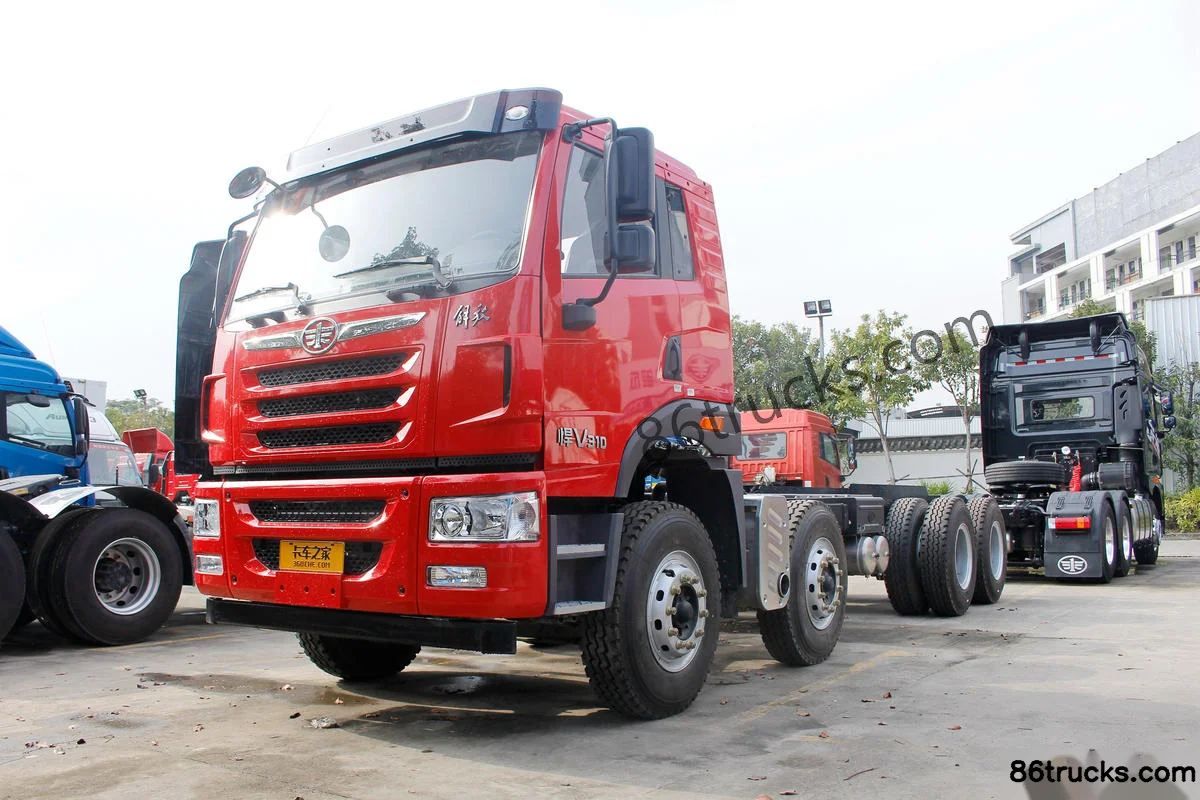

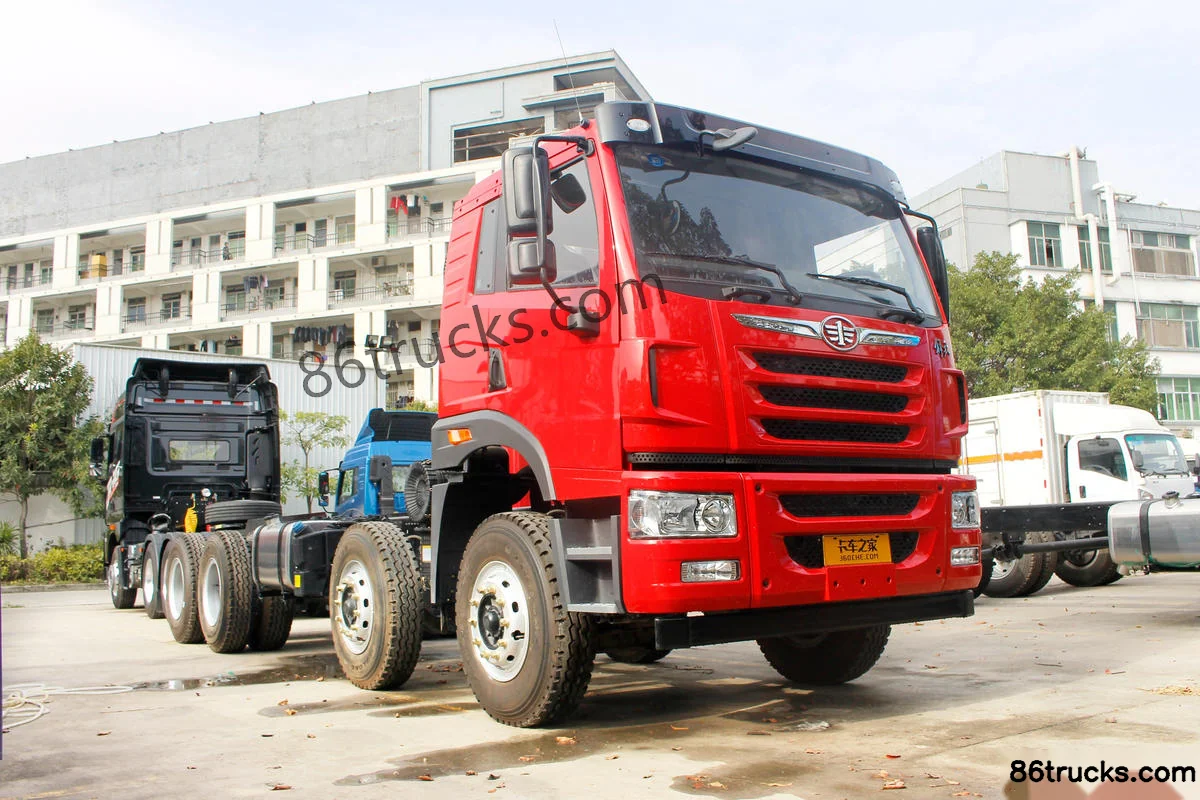

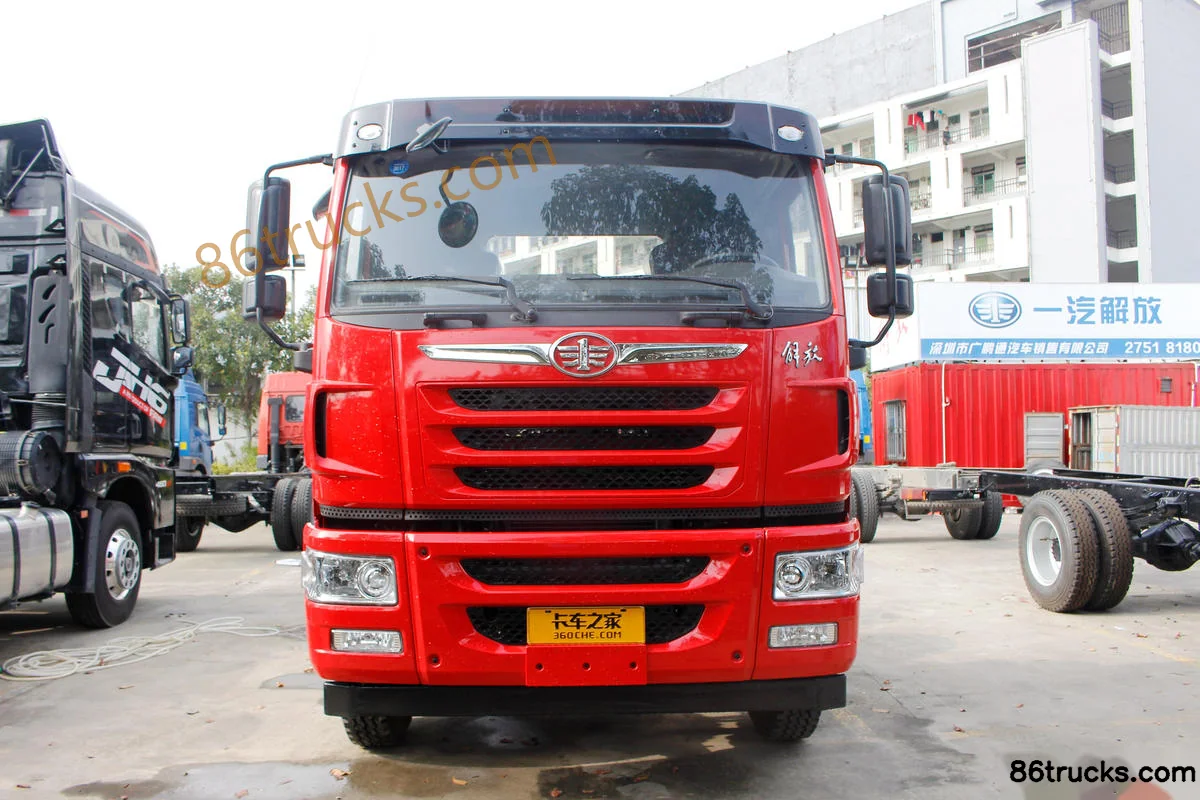

Exterior3

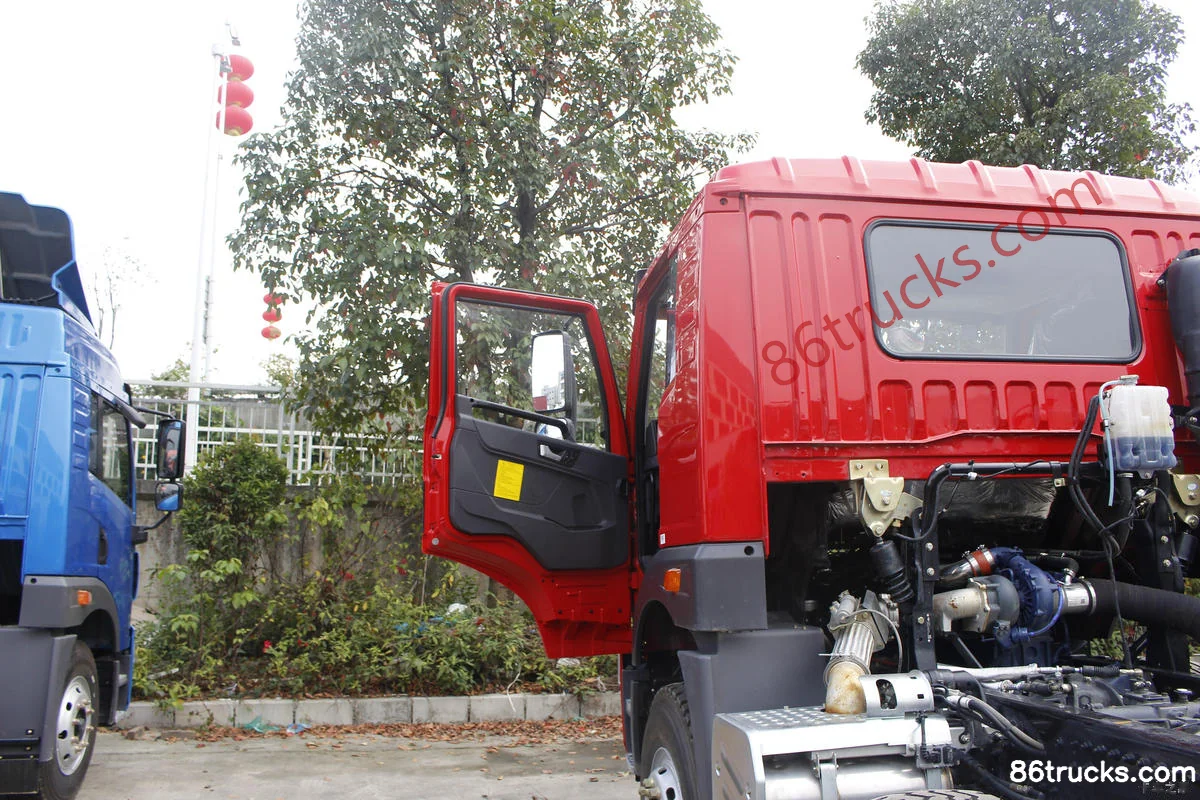

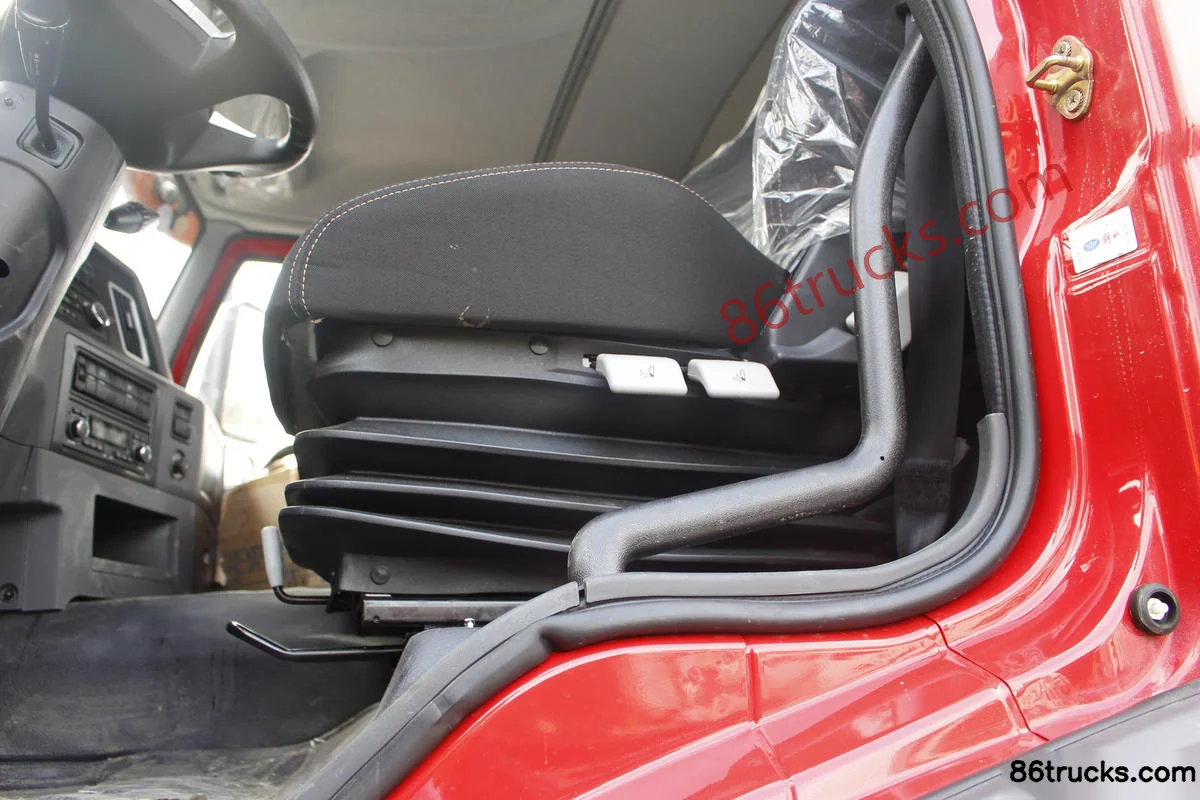

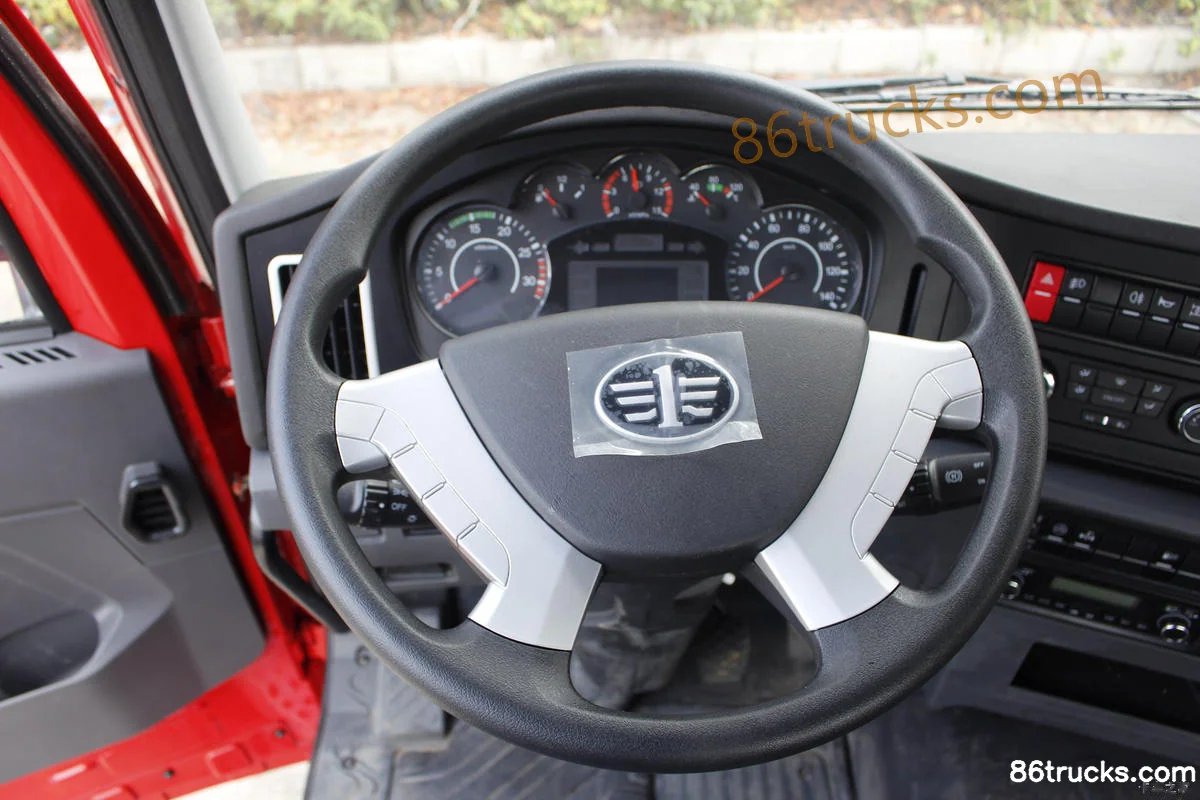

Cab3

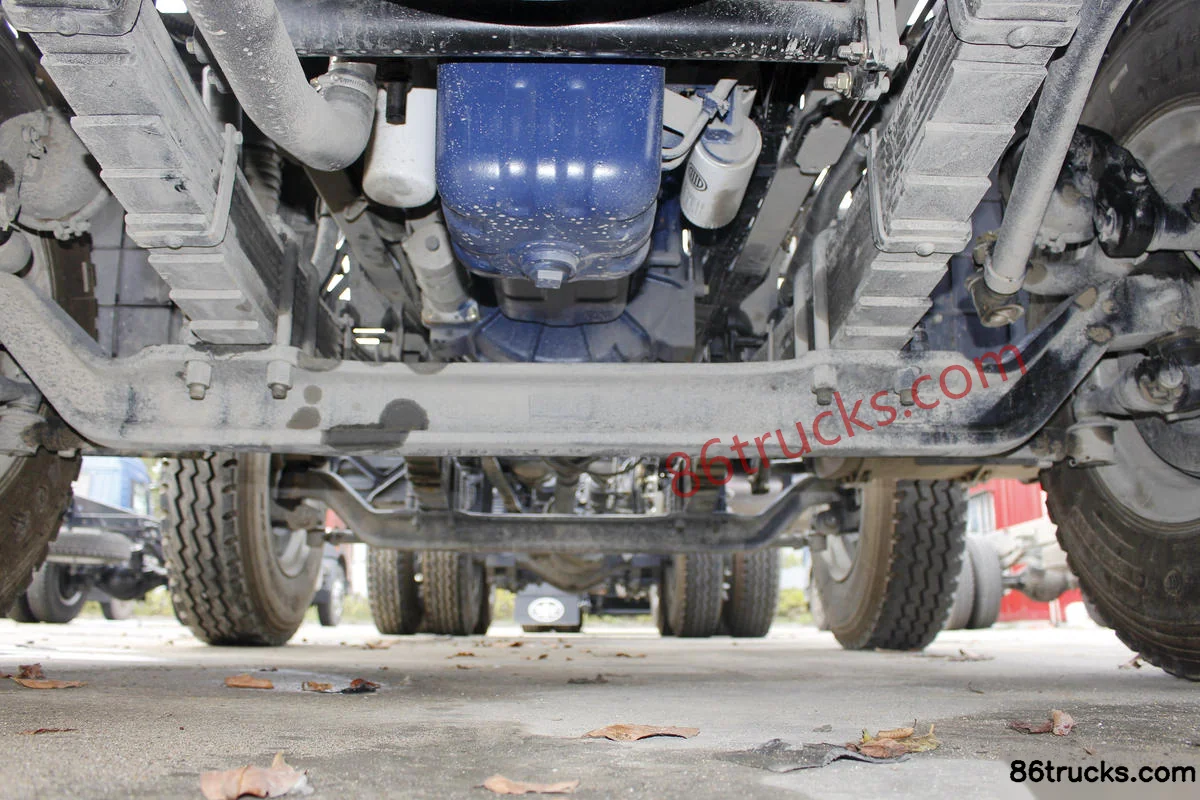

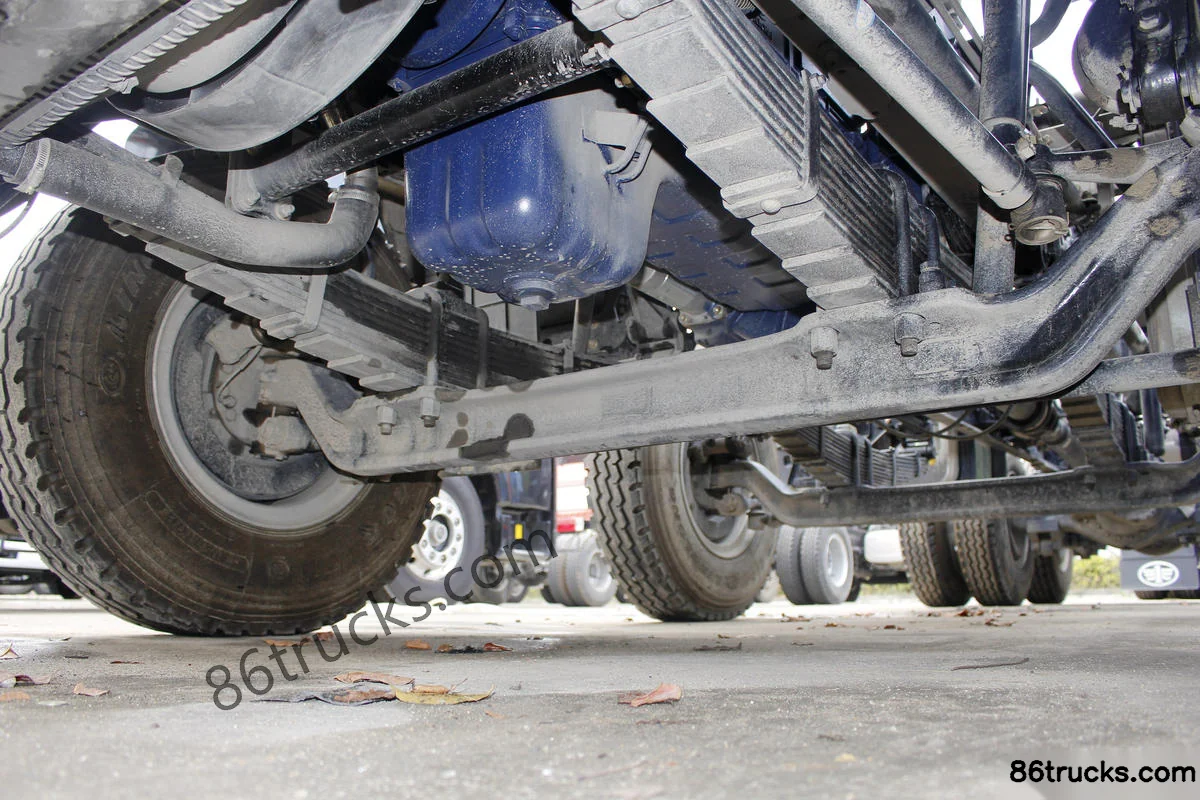

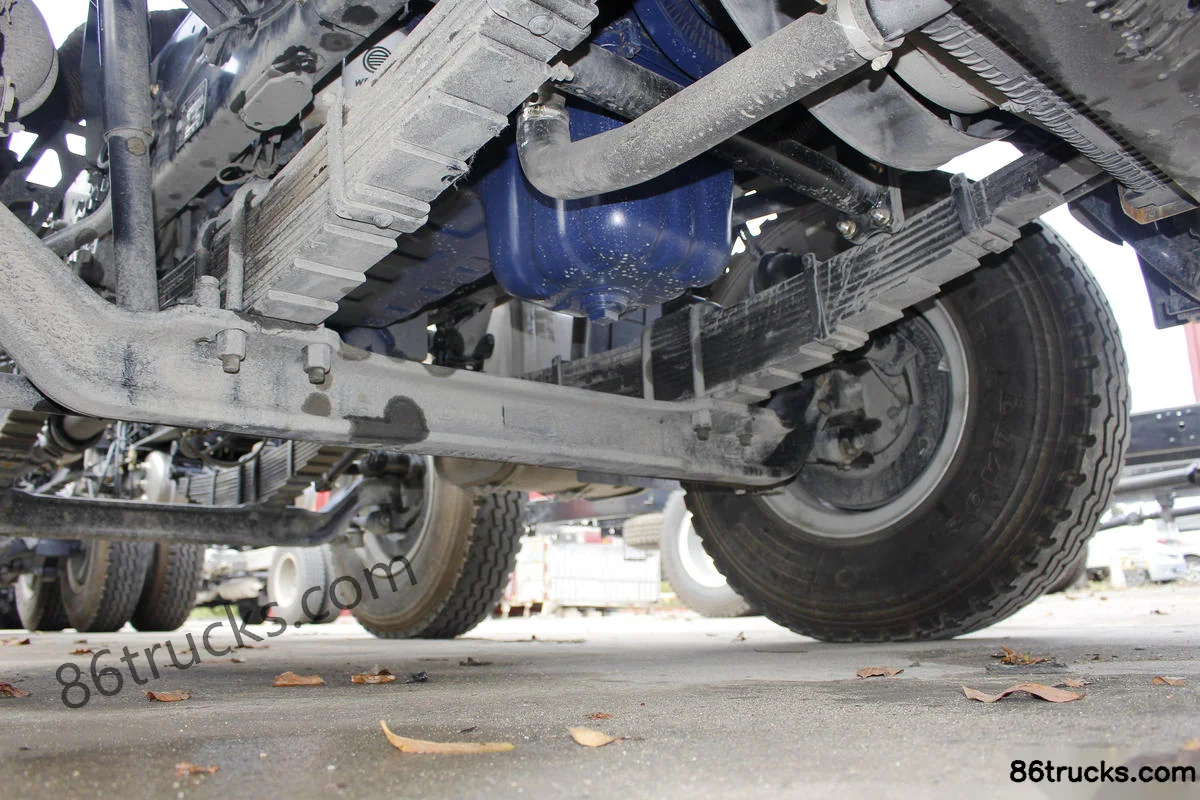

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis?

Key specs of FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis: Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis suited for?

FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis differ from other variants in the same series?

FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis belongs to FAW Jiefang Qingdao HanV heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
