JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
From $39,861
MSRP ¥28.7M CNY
Fuel: Diesel
Transmission: Fast Gear
Wheelbase:: 3490+1350mm
Tire Size:: 11.00-20 (standard); 12.00R20 (optional)
Model code (announced):: HFC3251P1K5E39
engine:: WeichaiWP10.300E40
Drive 6X4 (10 wheels)
Horsepower 300
Cargo box type: Rear-dump body
Emission China IV

Overview

The JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.300E40 engine, 300 hp, China IV emissions and Fast Gear transmission.

China IV 300 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3251P1K5E39
Drive type: 6X4
Wheelbase: 3490+1350mm
engine: WeichaiWP10.300E40
transmission: Fast Gear10JSD140
Rear Axle Ratio: 4.8
Front track width: 2040,2080mm
rear track: 1860/1860mm
Origin: Hefei, Anhui
tonnage class: Heavy truck
Remarks: Rear axle: optional Anben, ratio: 4.76/4.2
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.300E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD140
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.1m
Chassis Specs
rear axle description: Steyr
Axle ratio: 4.8
Leaf spring count: 10/12

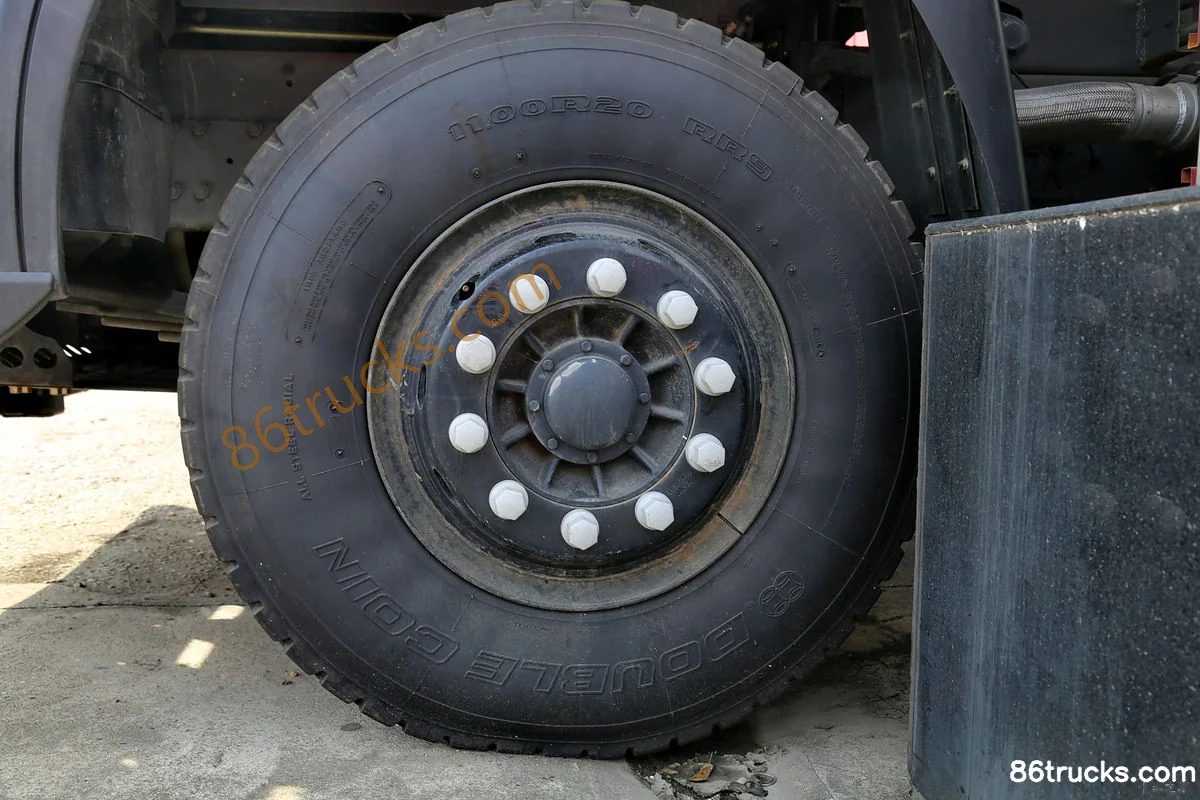

Tire
Tire Size: 11.00-20 (standard); 12.00R20 (optional)
Number of tires: 10pcs

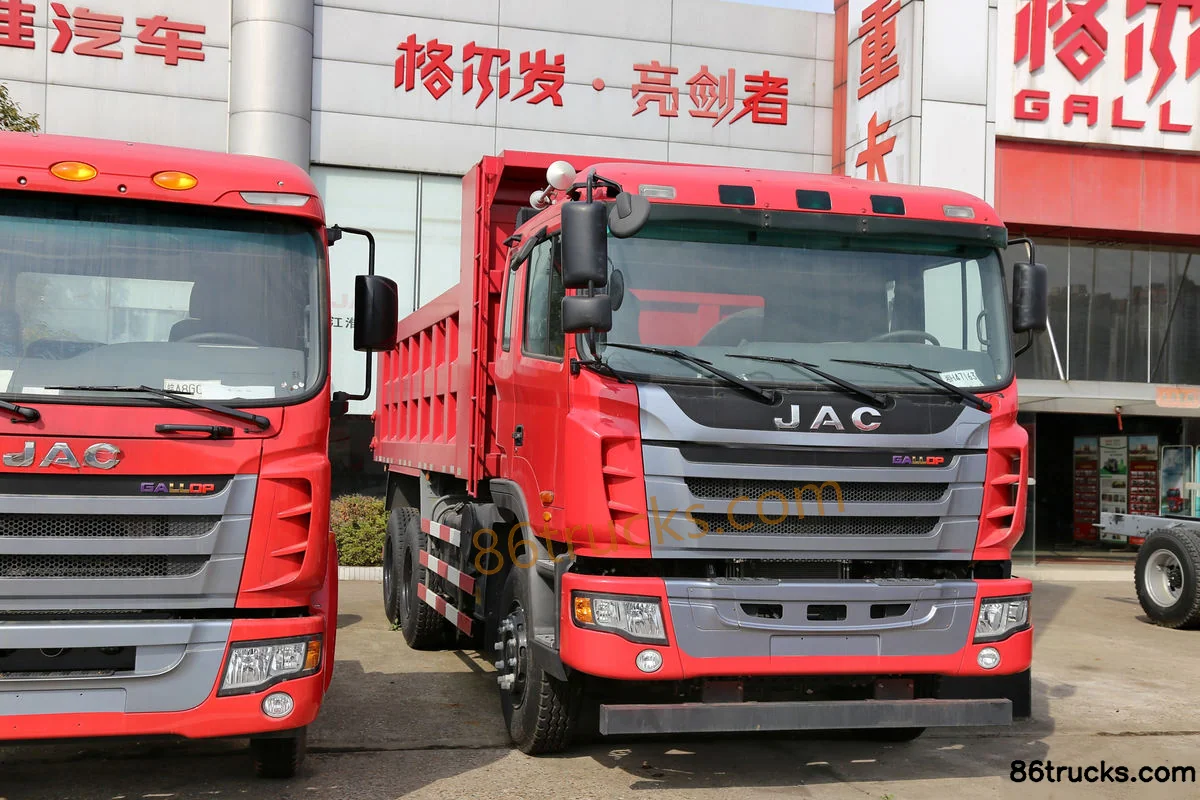

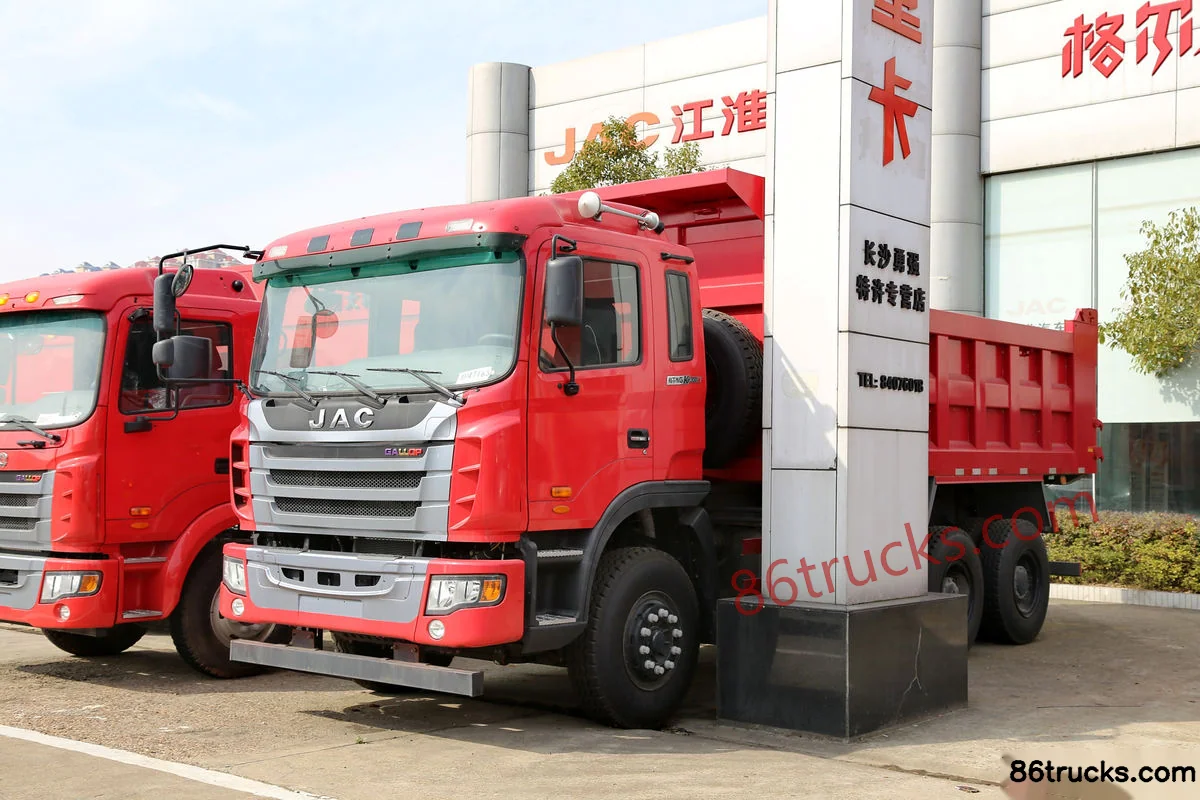

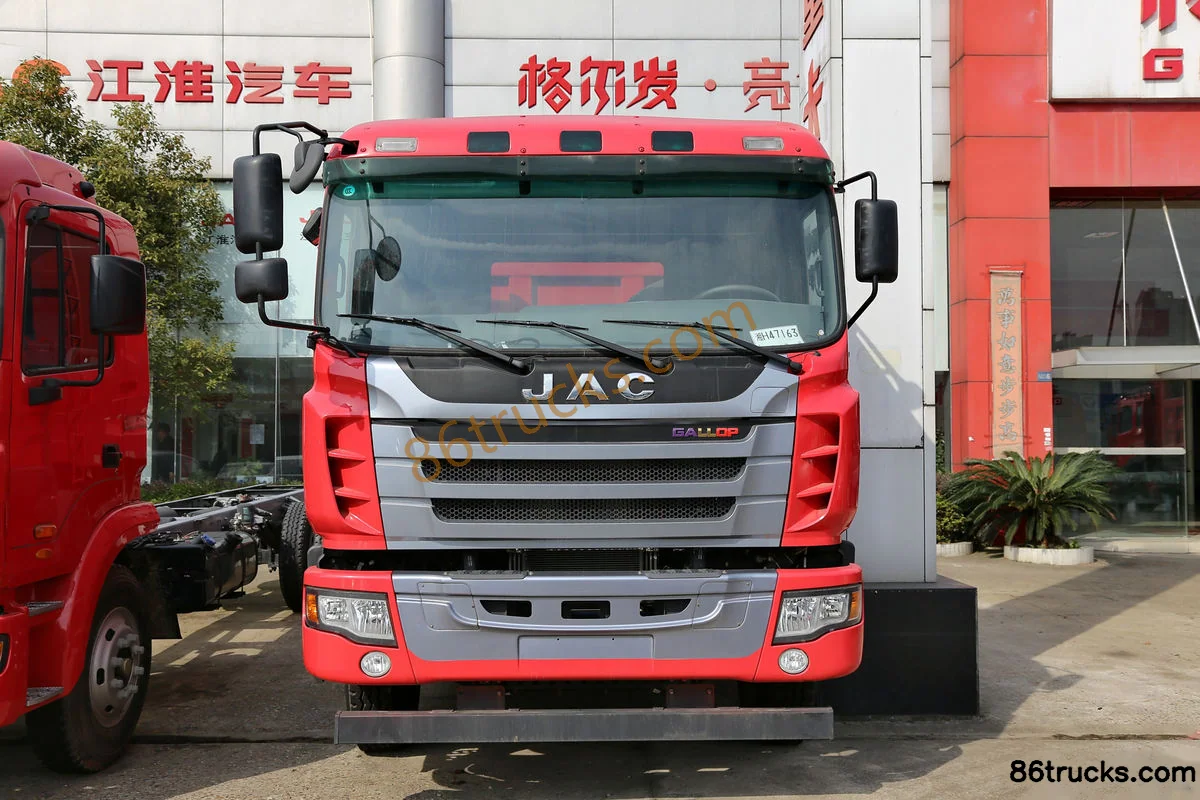

Photos

Exterior3

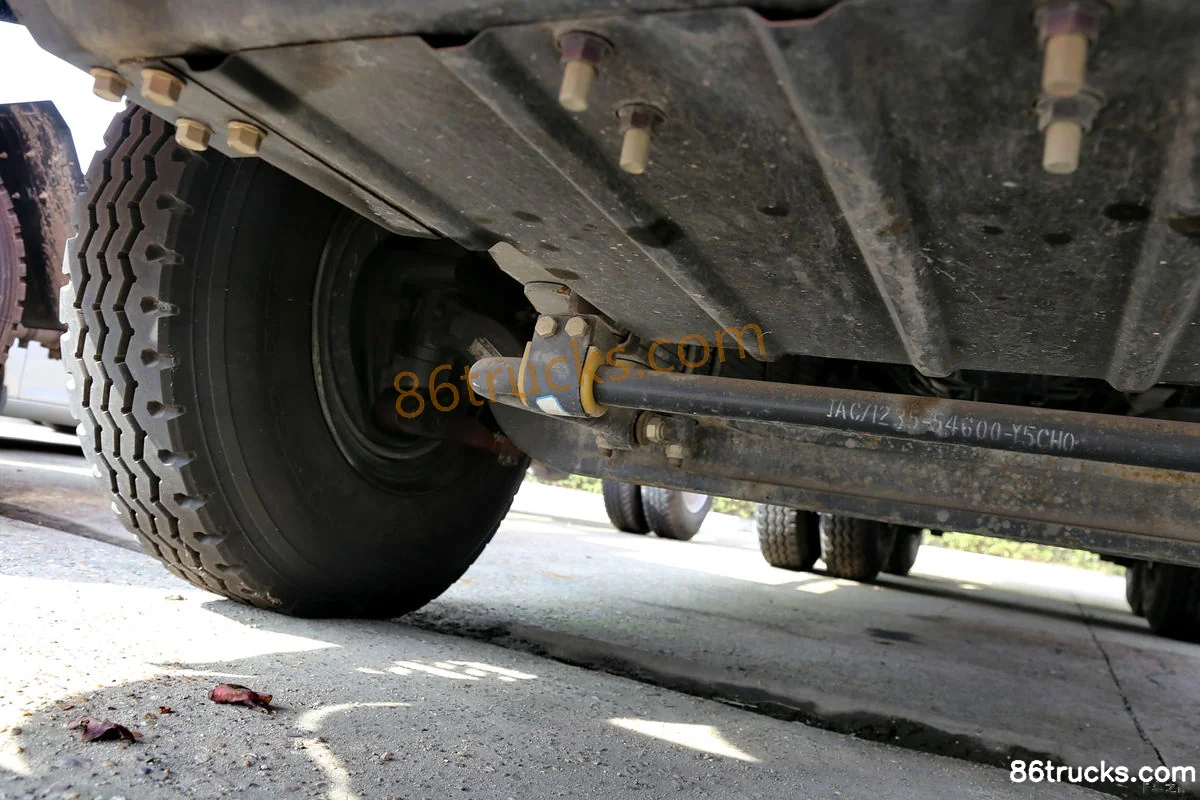

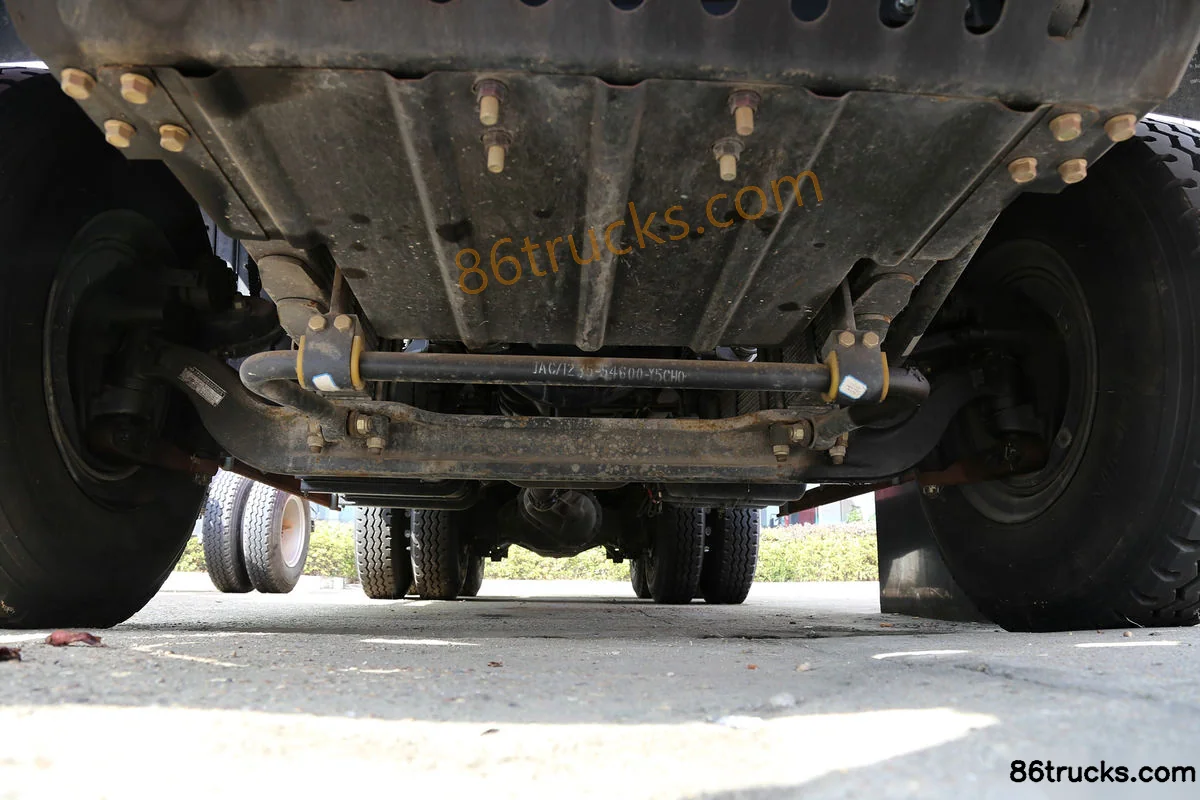

Chassis3

6 photos

FAQ

What is the export price of JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck, and what does it include?

JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck export reference is about From $39,861; MSRP is ¥28.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck suited for?

JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck belongs to JAC Gallop K3 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 Heavy Truck 300 hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
