Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle)

Export reference
From $36,097
MSRP ¥25.99M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.2ton
Wheelbase:: 2550+1350mm
Tire Size:: 10.00R20 18PR
Rated payload: 15.105ton
Drive 6X2 (8 wheels)
Horsepower 245
Cargo box type: Dump type

Overview

The Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) is a Medium-duty truck featuring 15.105t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3240M3CC1
Drive type: 6X2
Wheelbase: 2550+1350mm
engine: YuchaiYCS06245-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.833
Cab length: 7.61m
Cab width: 2.42m
Cab height: 3.2m
Front track width: 1920mm
rear track: 1925/1790mm
Curb Weight: 9.2ton
Rated payload: 15.105ton
GVWR: 24.5ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 18°
Remarks: Desert air filter, on-board terminal, automatic adjuster arm, 110 steering gear, LCD instrument cluster, lift axle
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.35m
Cargo box height: 1.3m
Cab parameters
Cab: M3V
Cab width: 2100mm
seating capacity: 3Personnel
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 264(6+4)mm
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.833
Leaf spring count: 11/2+-/12+9
clutch: Φ395
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Lane change assist (ALC):
AEB automatic emergency braking system:

Photos

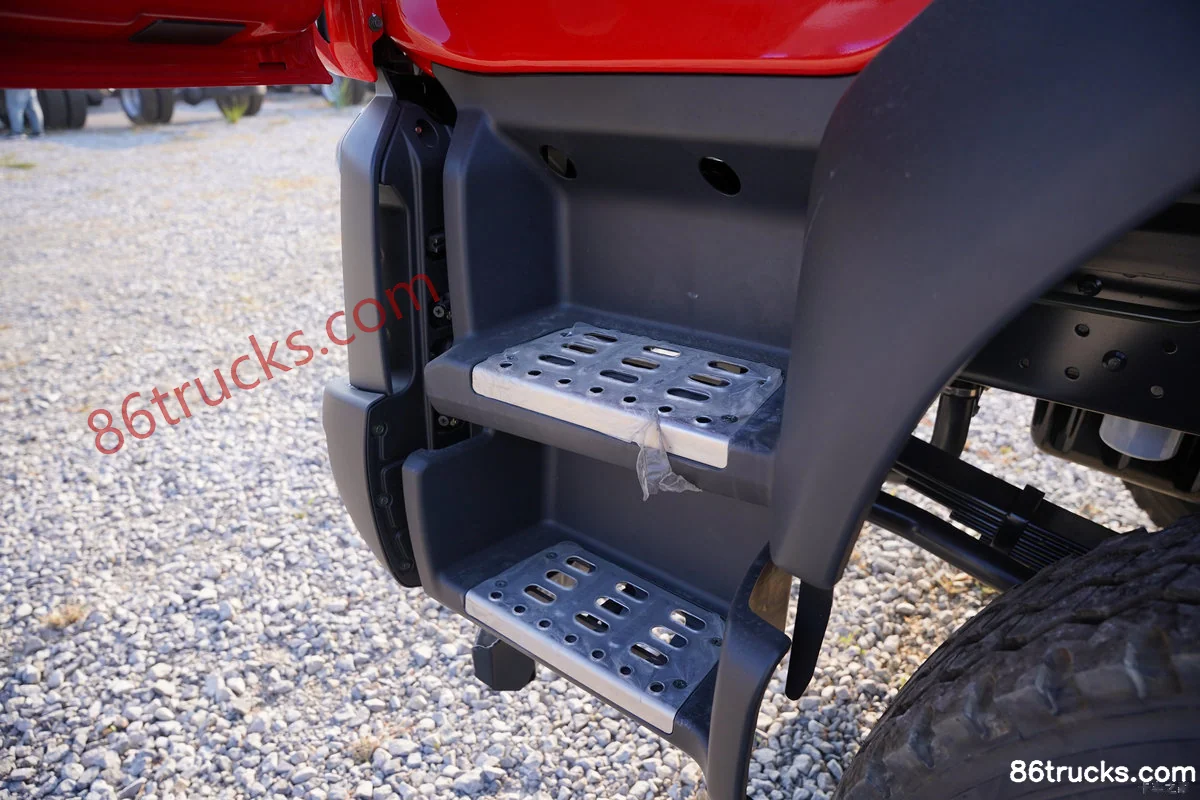

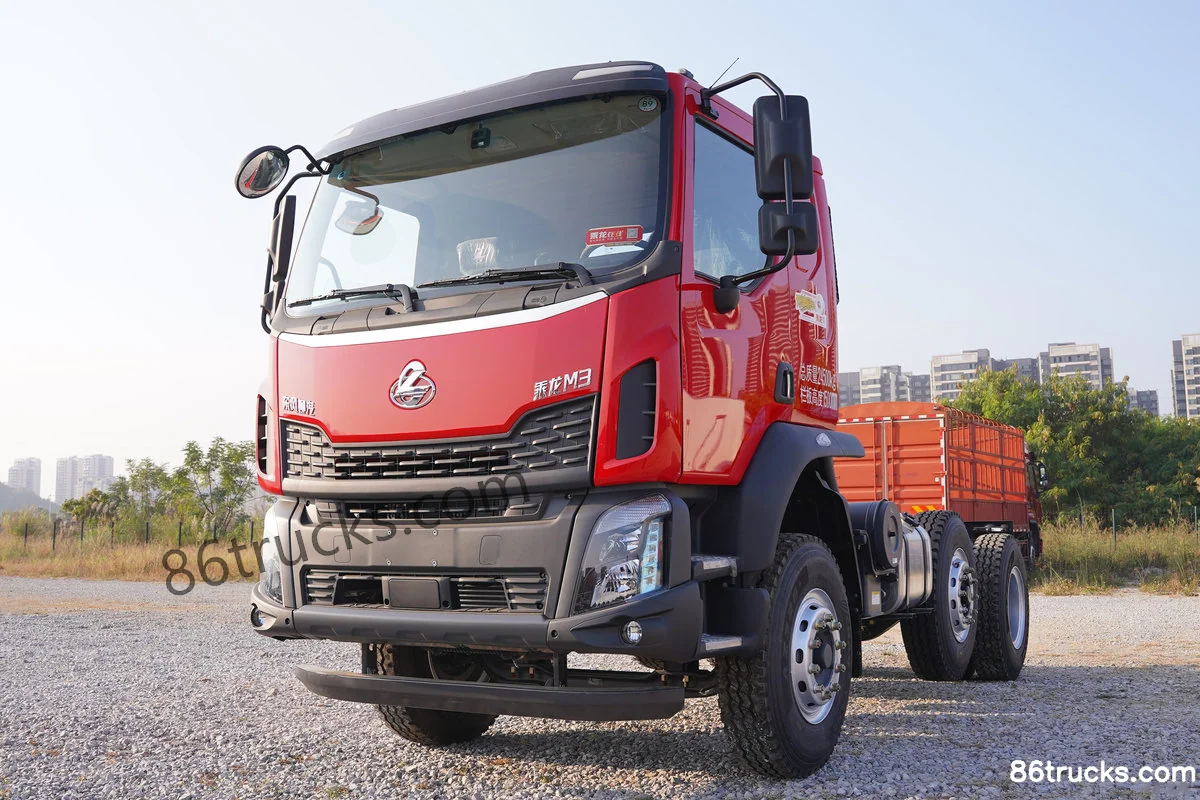

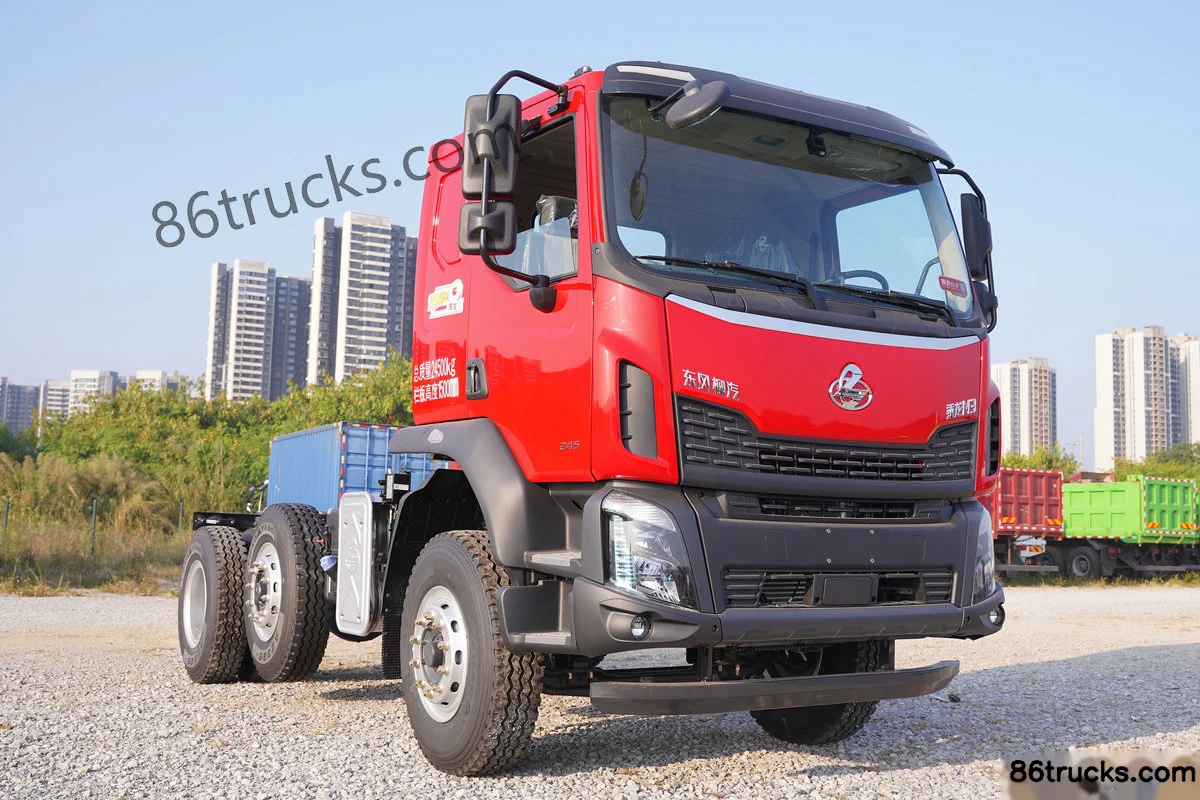

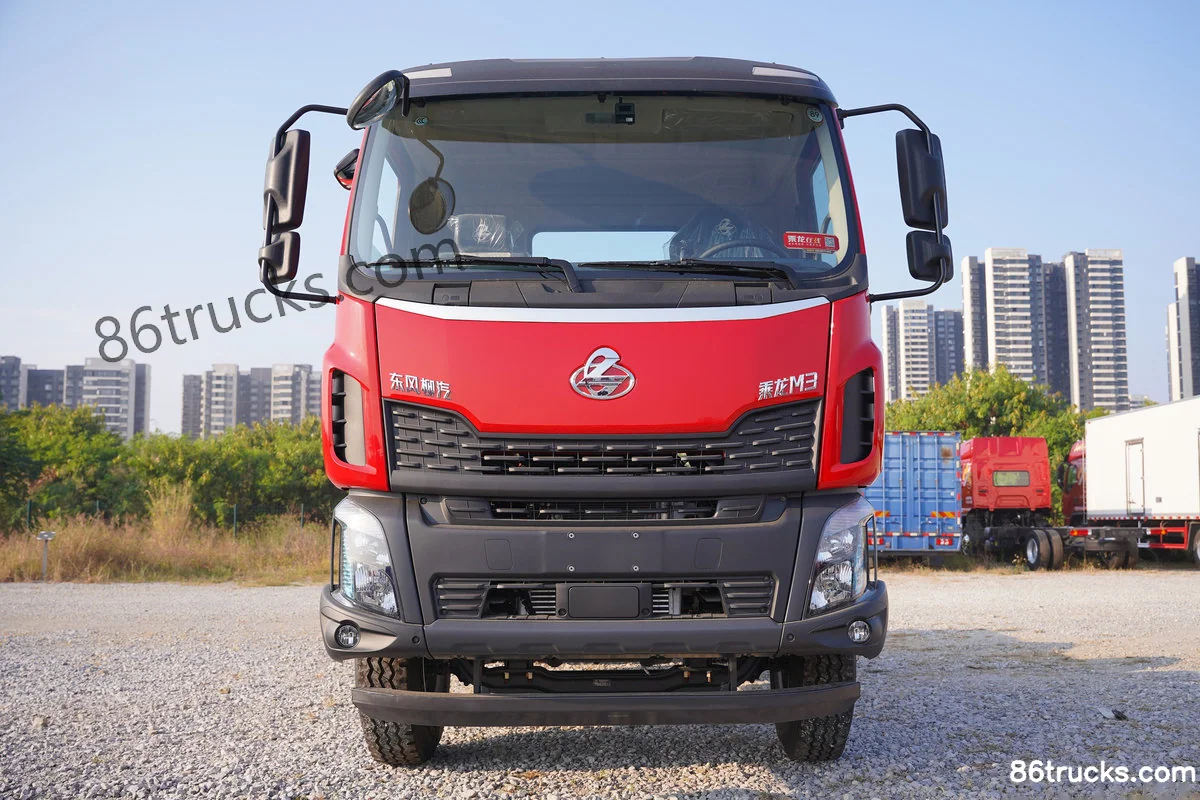

Exterior3

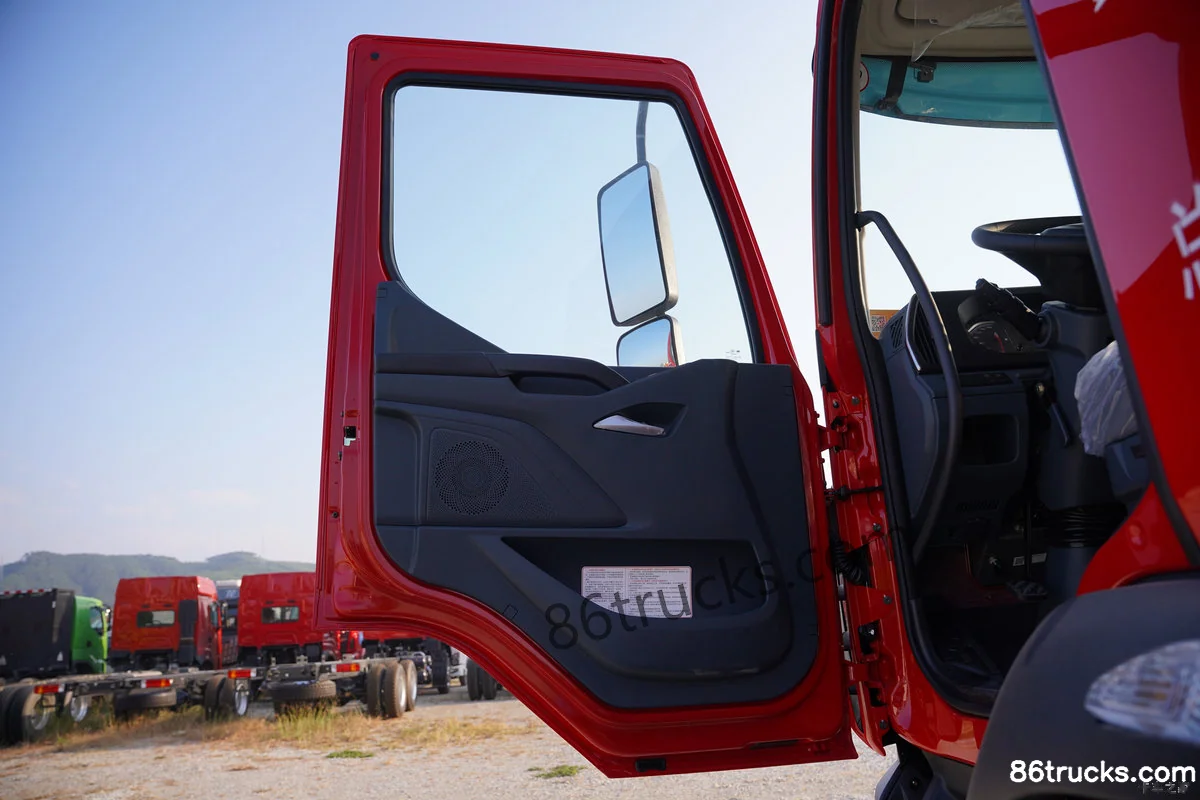

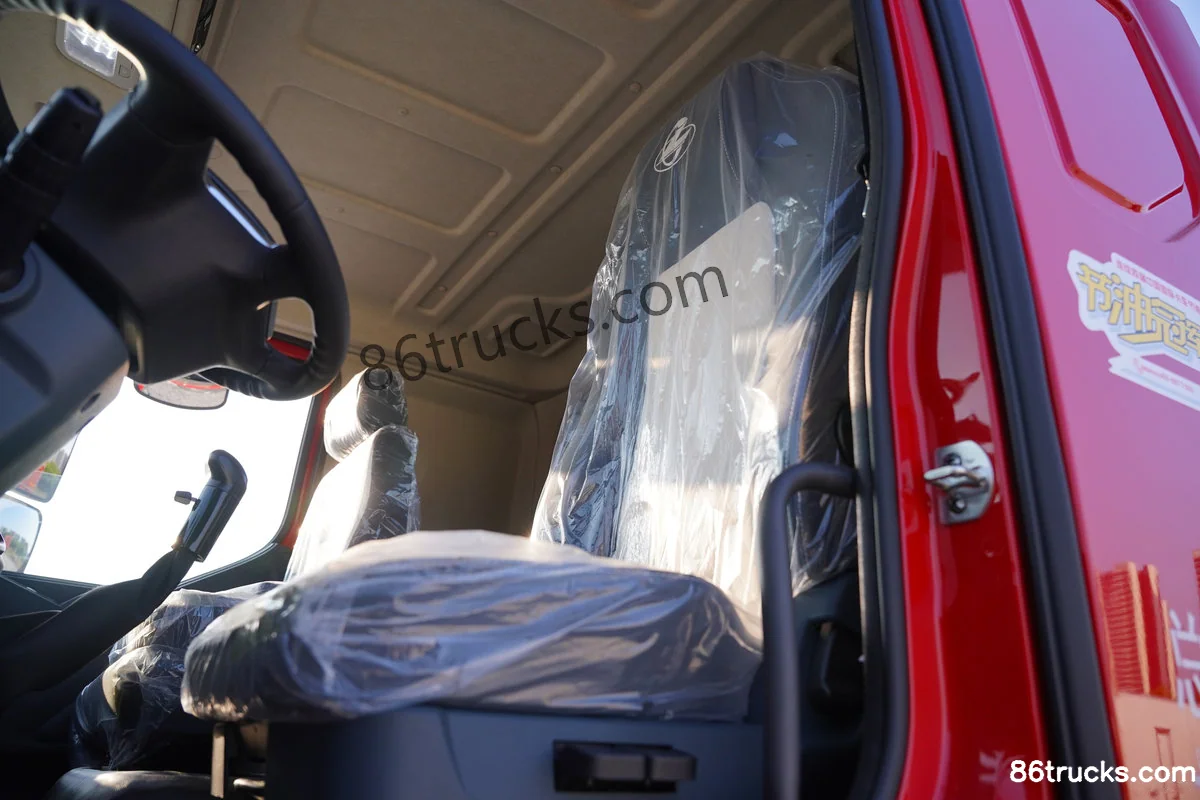

Cab3

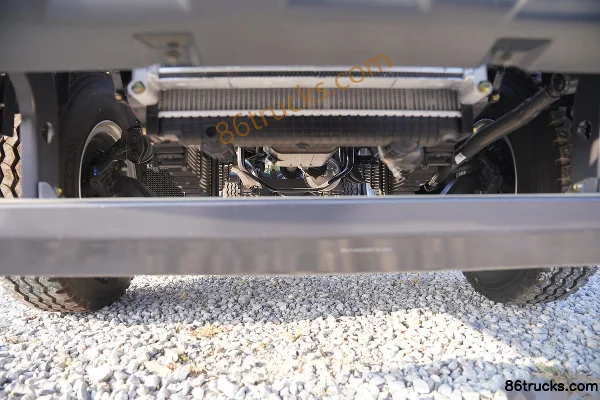

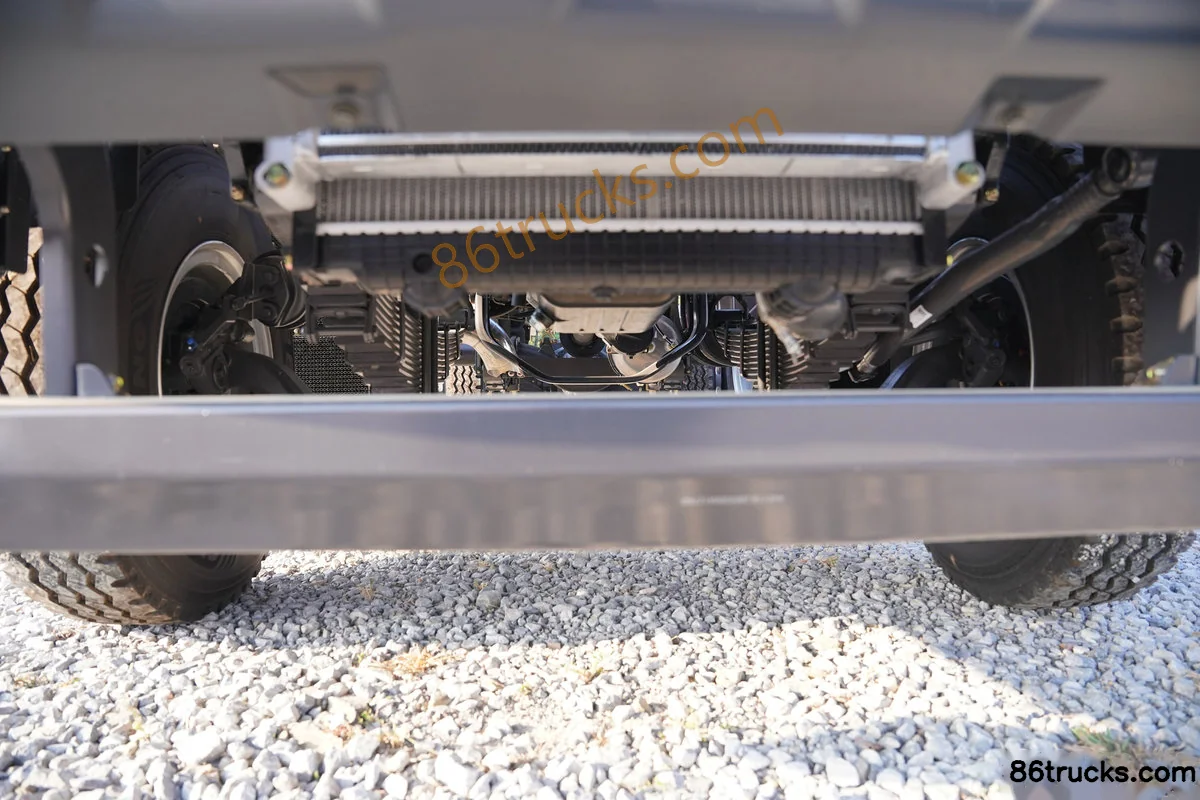

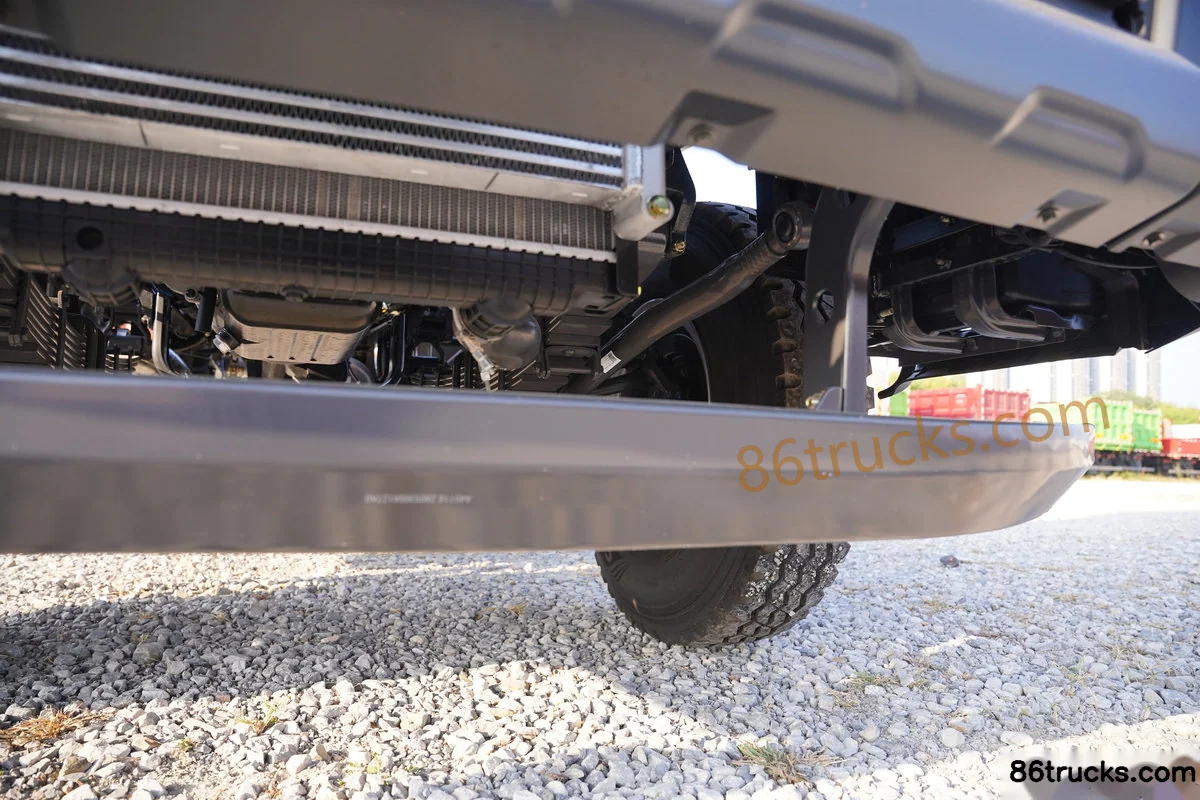

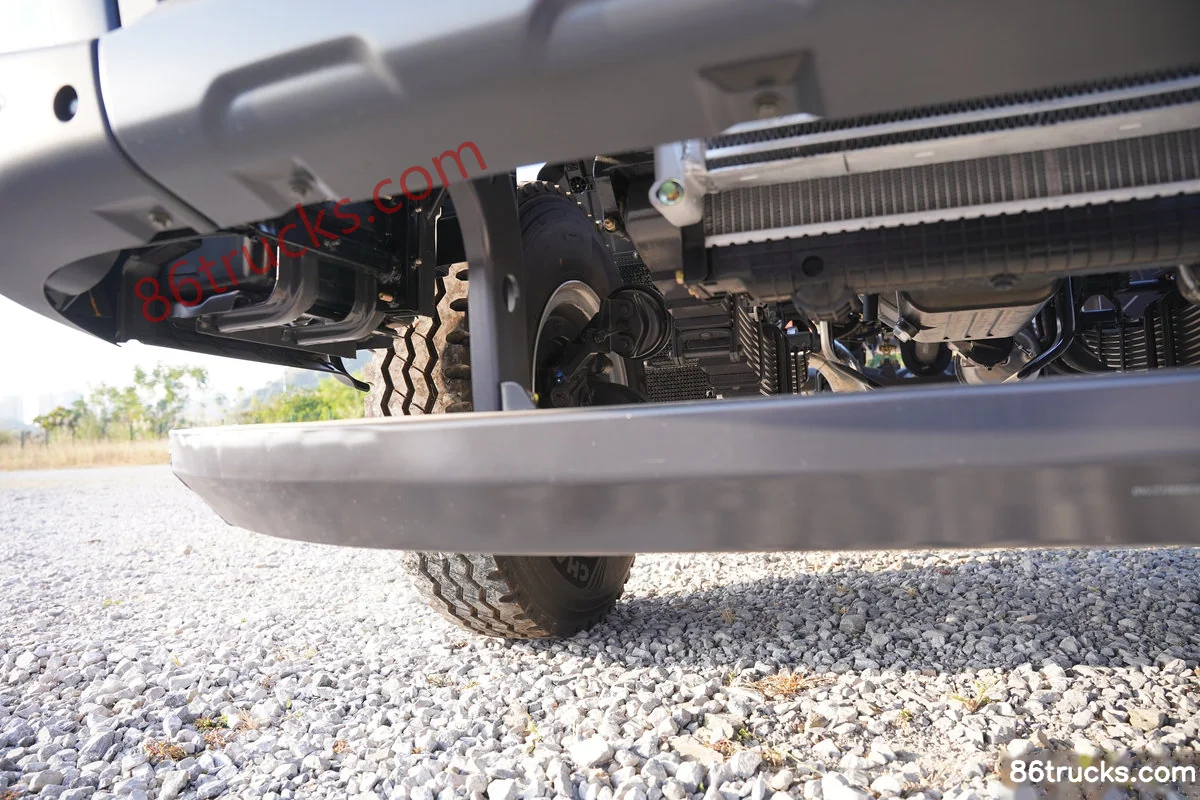

Chassis3

9 photos

FAQ

What is the export price of Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle), and what does it include?

Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) export reference is about From $36,097; MSRP is ¥25.99M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle)?

Key specs of Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle): Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) suited for?

Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) differ from other variants in the same series?

Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle) belongs to Dongfeng Chenglong M3V Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng M3V 245 hp 6X2(8 wheels) 5m Dump Truck (Lift Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
