SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck

Export reference
From $18,153
MSRP ¥13.07M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.2ton
Wheelbase:: 2800mm
Tire Size:: 245/70R17.5/18PR
Rated payload: 7.785ton
Drive 4X2 (6 wheels)
Horsepower 155
Cargo box type: Dump type

Overview

The SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck is a Medium-duty truck featuring 7.785t payload, 11.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN25PLUS160A engine, 155 hp, China VI emissions and Fast Gear transmission.

China VI 155 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3120DD6281
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerYN25PLUS160A
transmission: Fast GearC8J45TB
Rear Axle Ratio: 5.833
Cab length: 5.24m
Cab width: 2.2m
Cab height: 2.2m
Front track width: 1610mm
rear track: 1590mm
Curb Weight: 4.2ton
Rated payload: 7.785ton
GVWR: 11.995ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 20°
Remarks: Optional 1.6t/6.333 drive axle; optional 120L aluminum fuel tank
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: YN25PLUS160A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 114kW
Max hp: 155Horsepower
Max torque: 420N·m
Rated speed: 3300rpm
Transmission Parameters
Transmission Model: C8J45TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab width: 1750mm
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.5t
Front axle allowable load: 3995kg
rear axle description: 6t/single-reduction single axle
rear axle allowable load: 8000kg
Axle ratio: 5.833
Leaf spring count: 3/8+6
Tire
Tire Size: 245/70R17.5/18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:

Photos

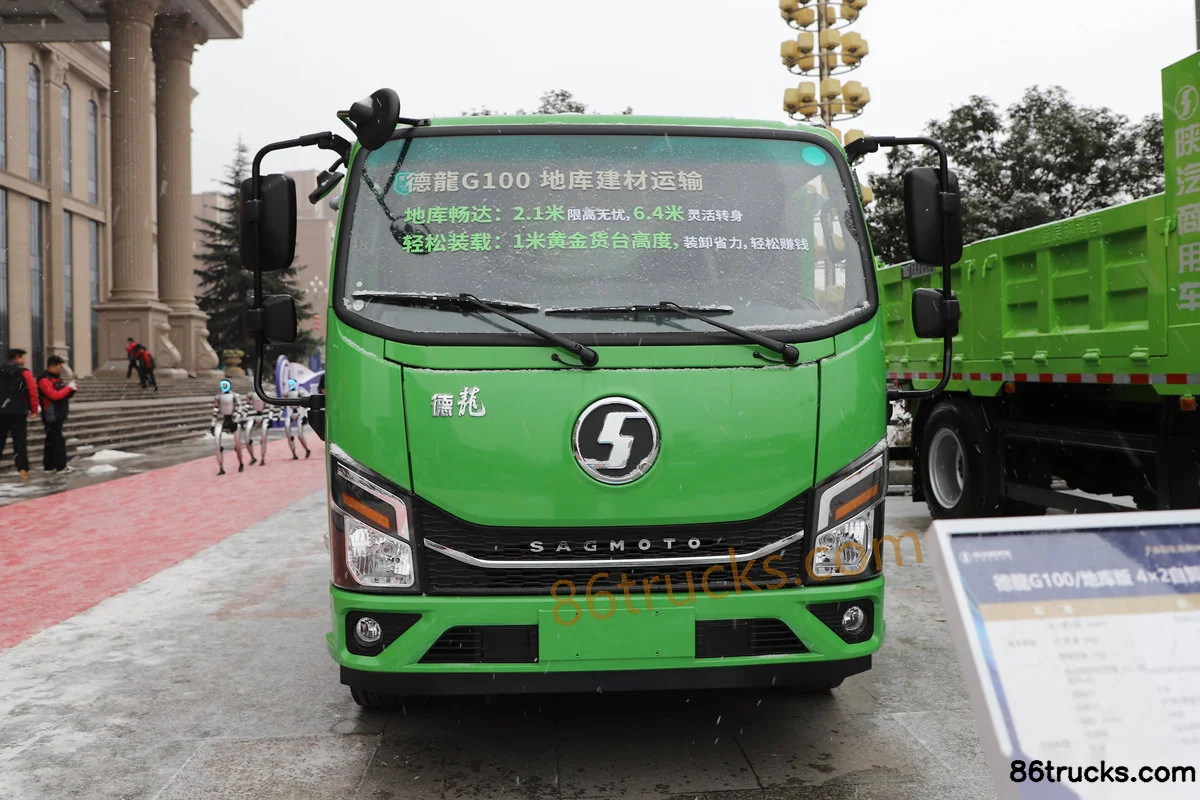

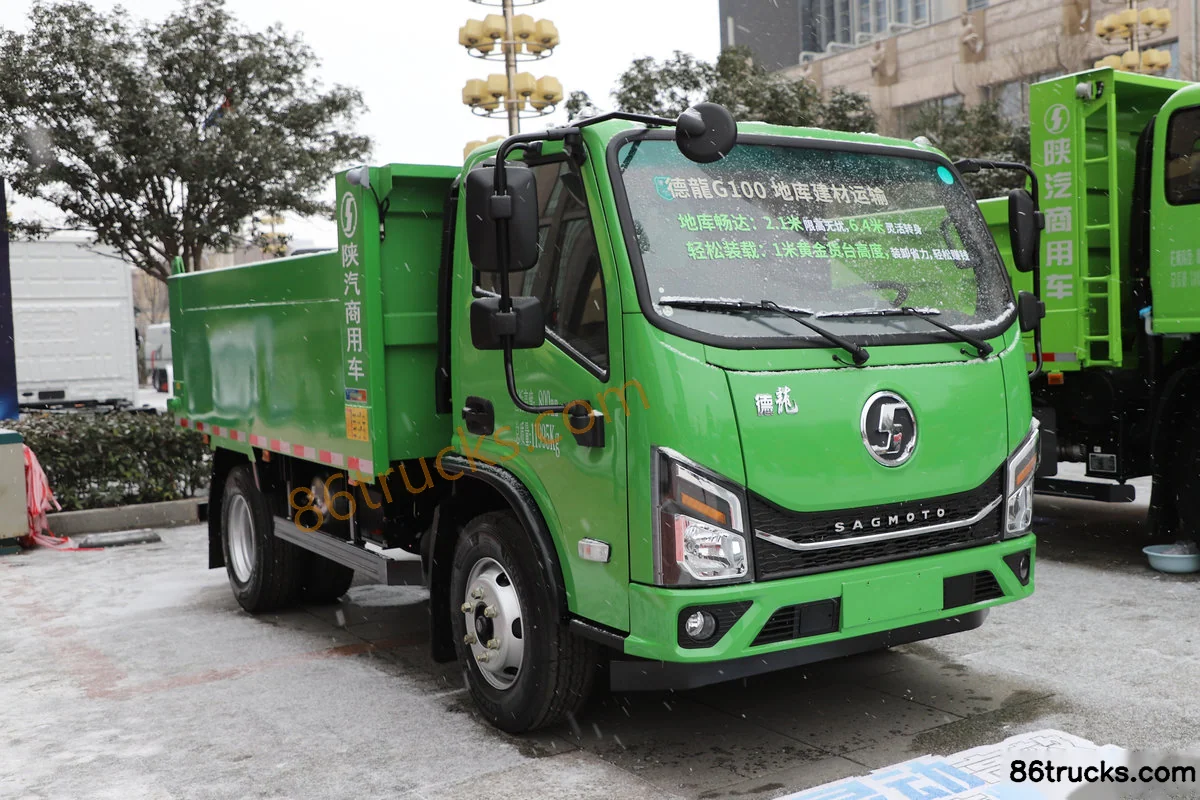

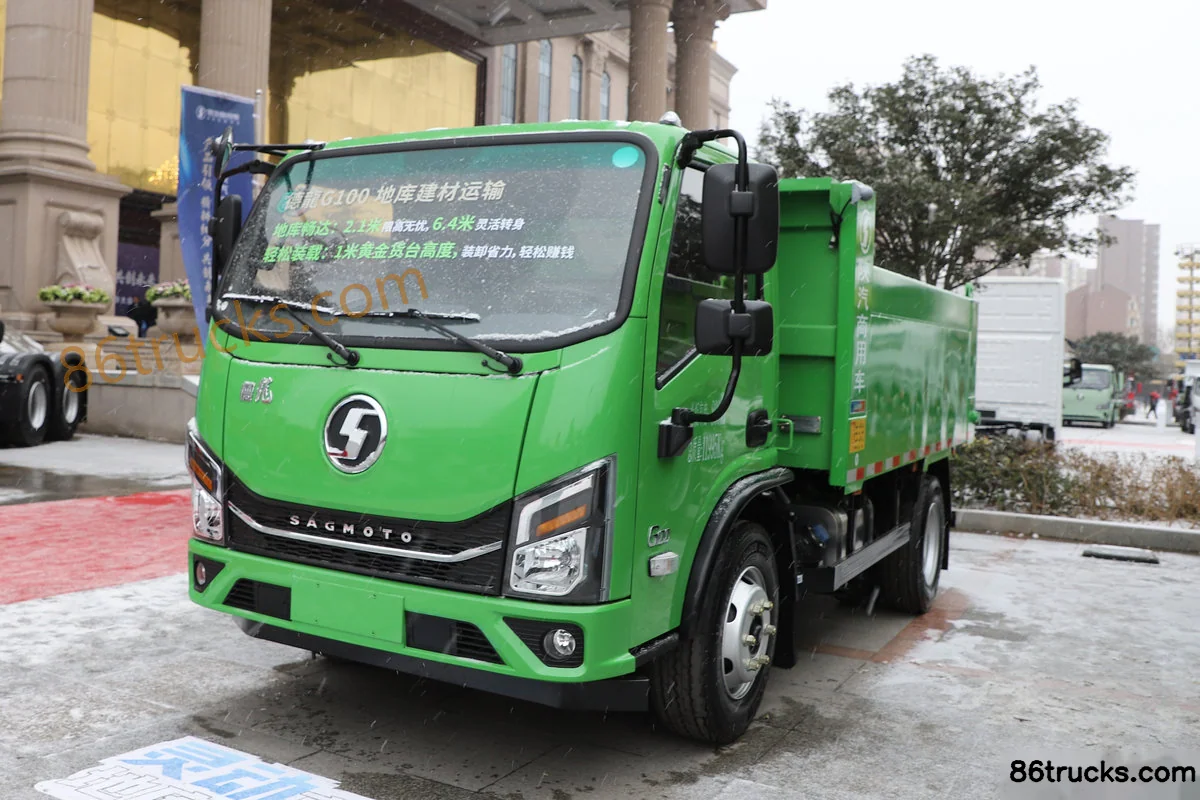

Exterior3

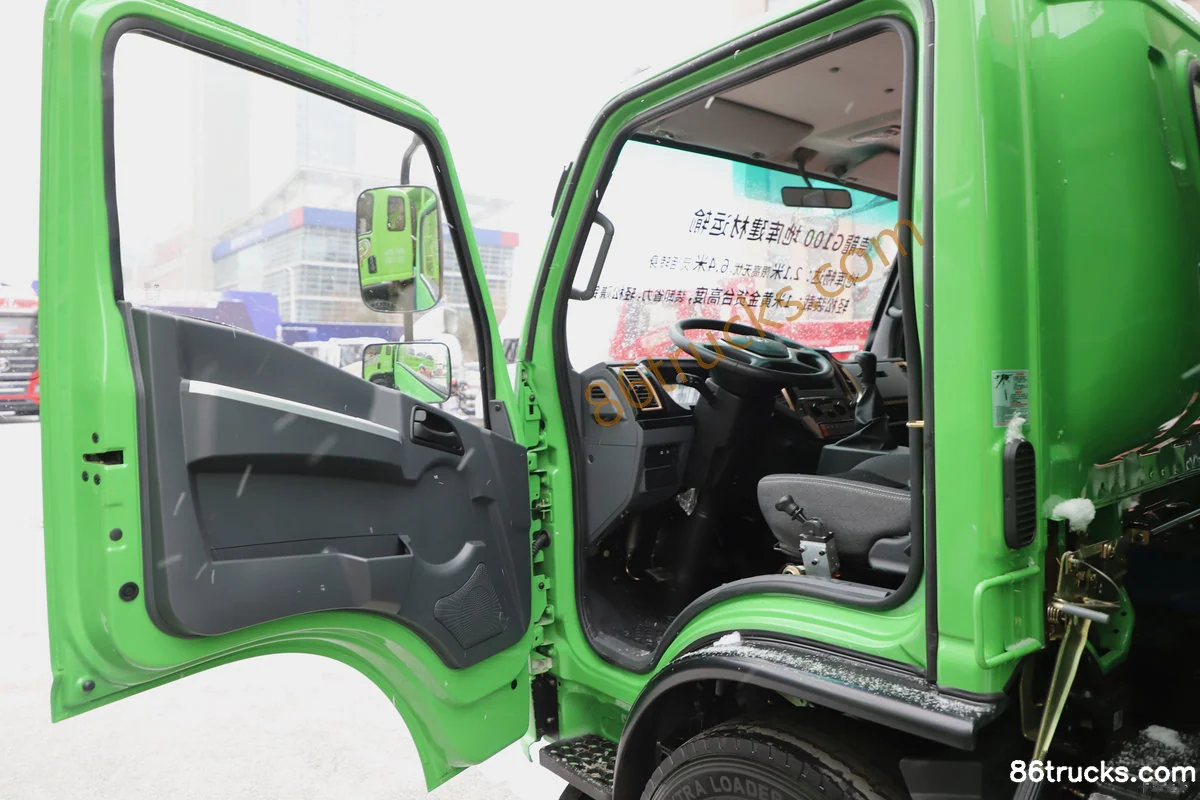

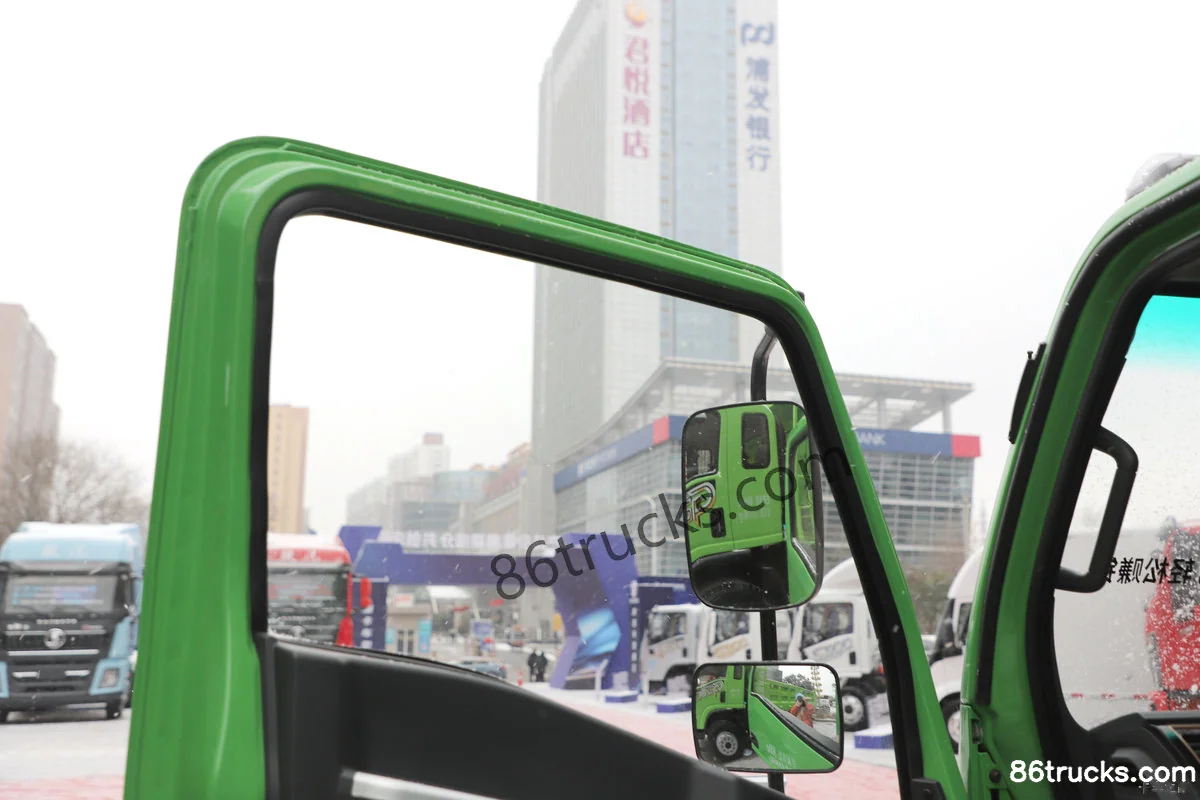

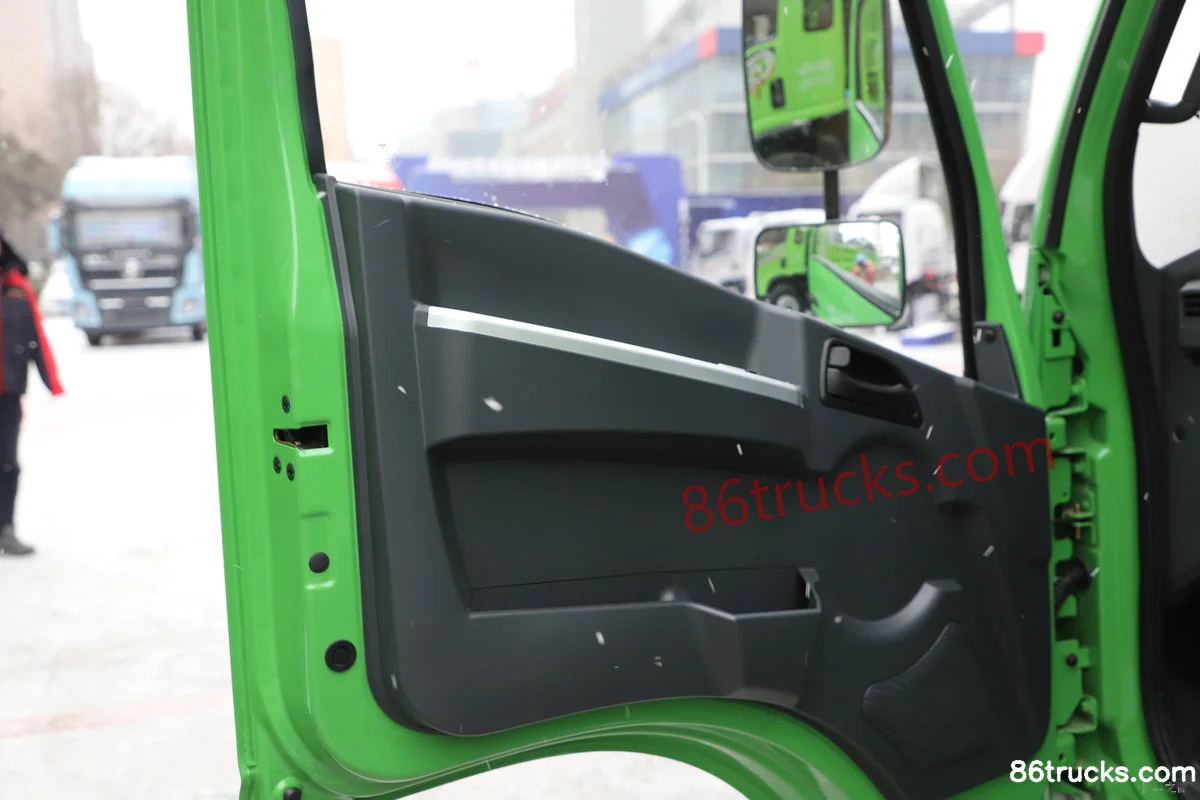

Cab3

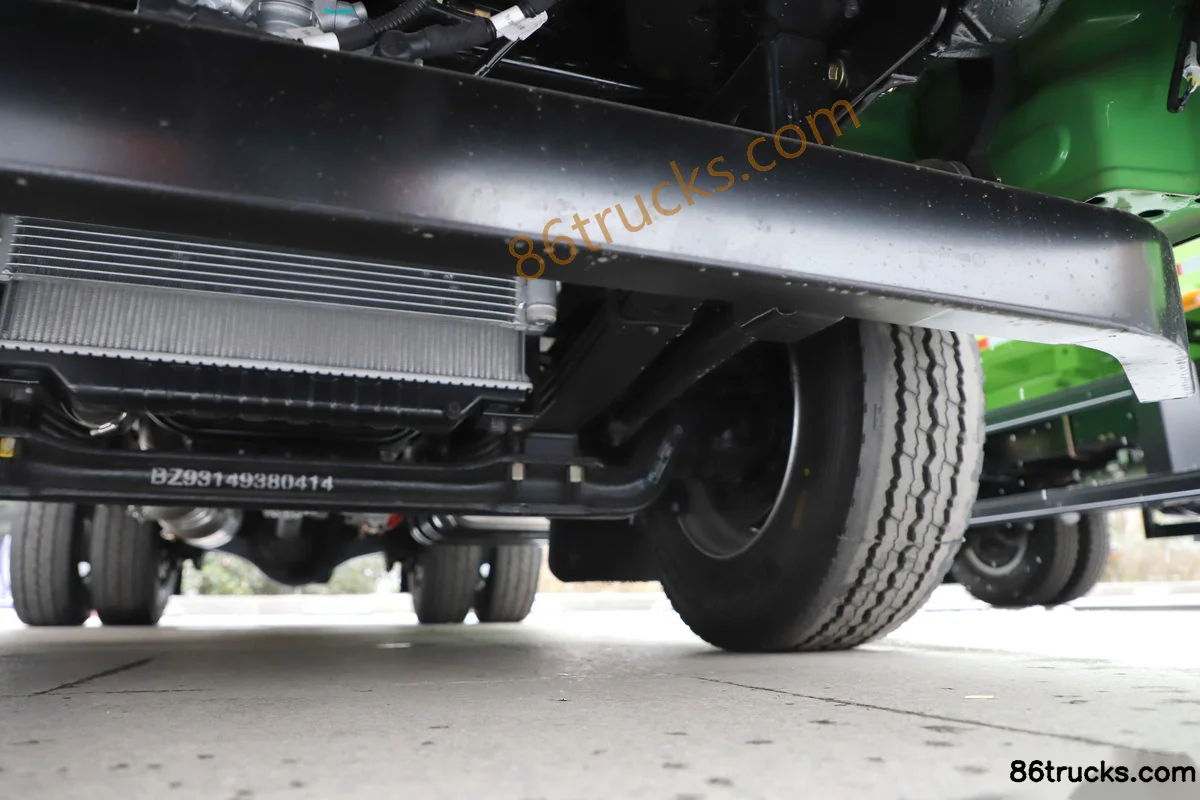

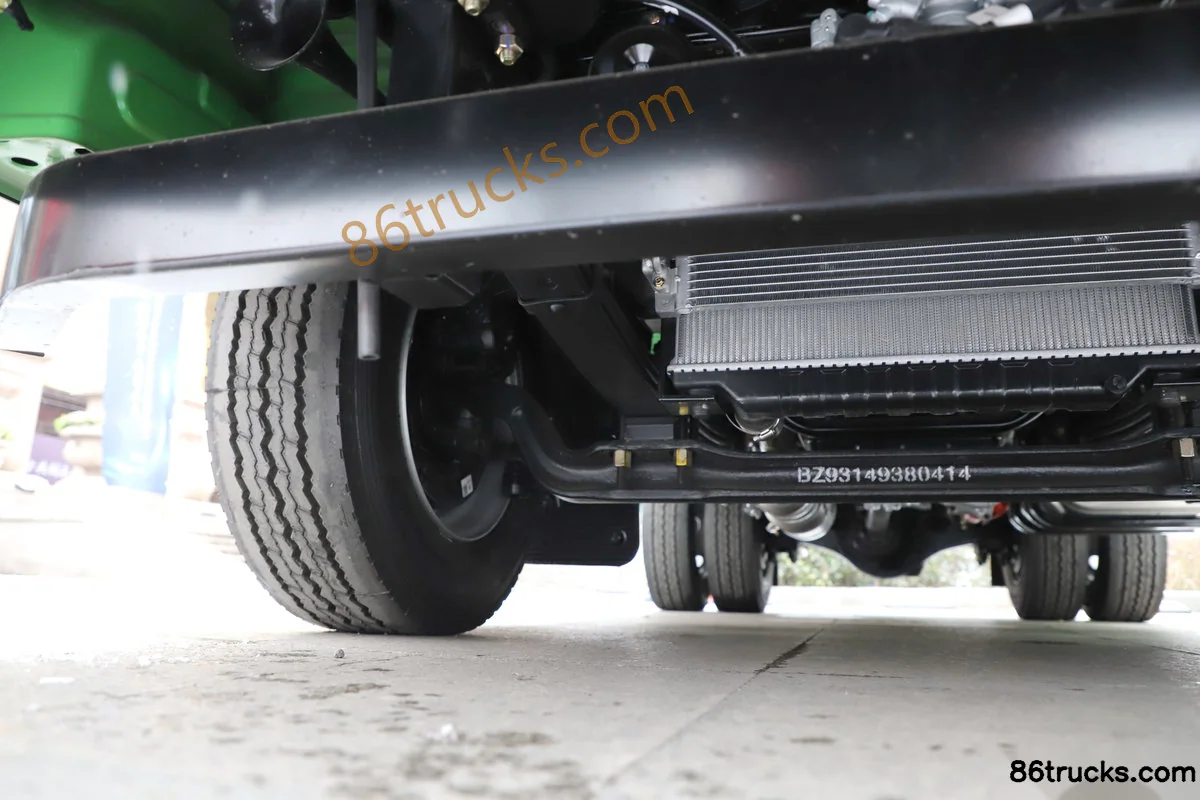

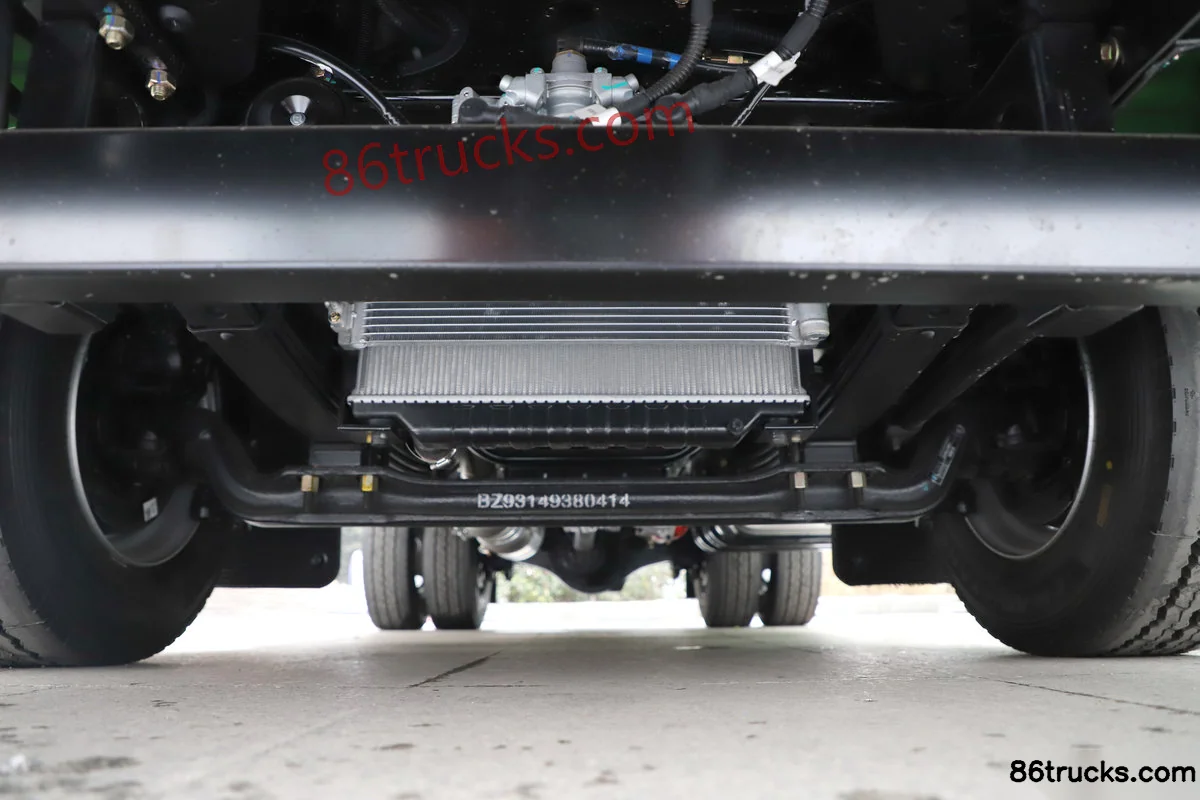

Chassis3

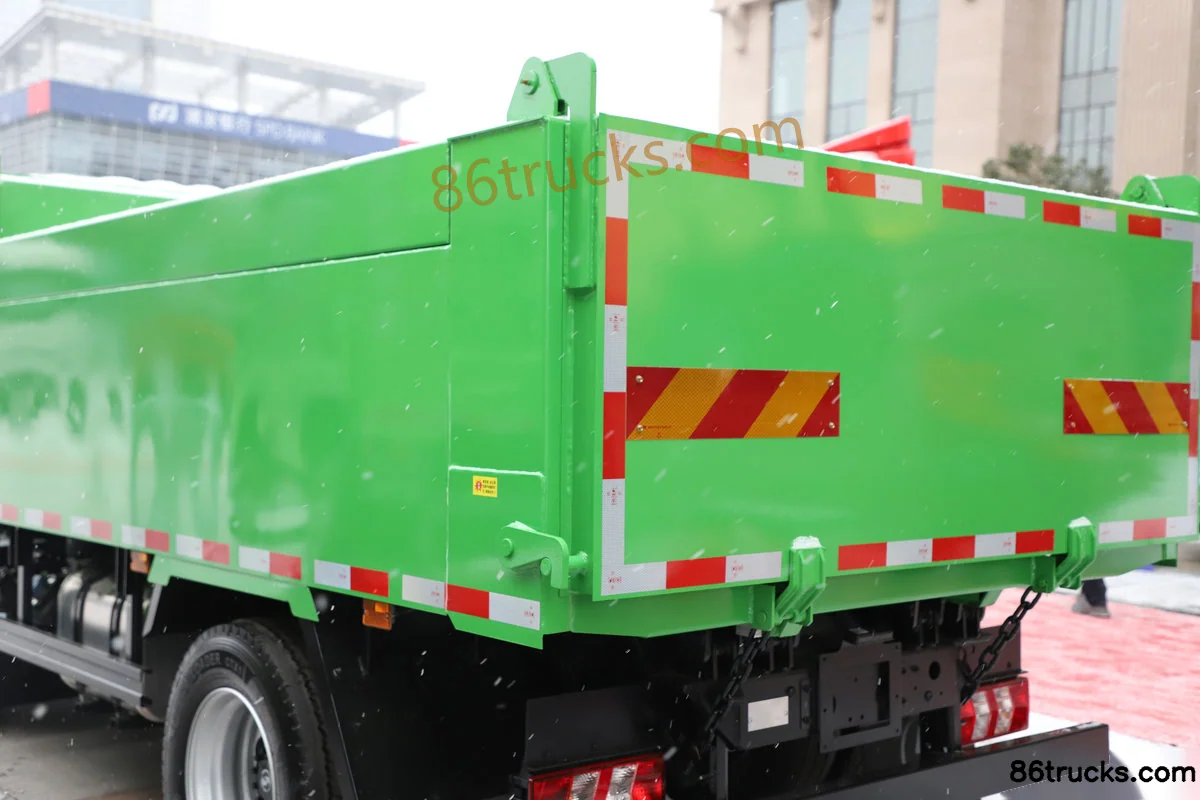

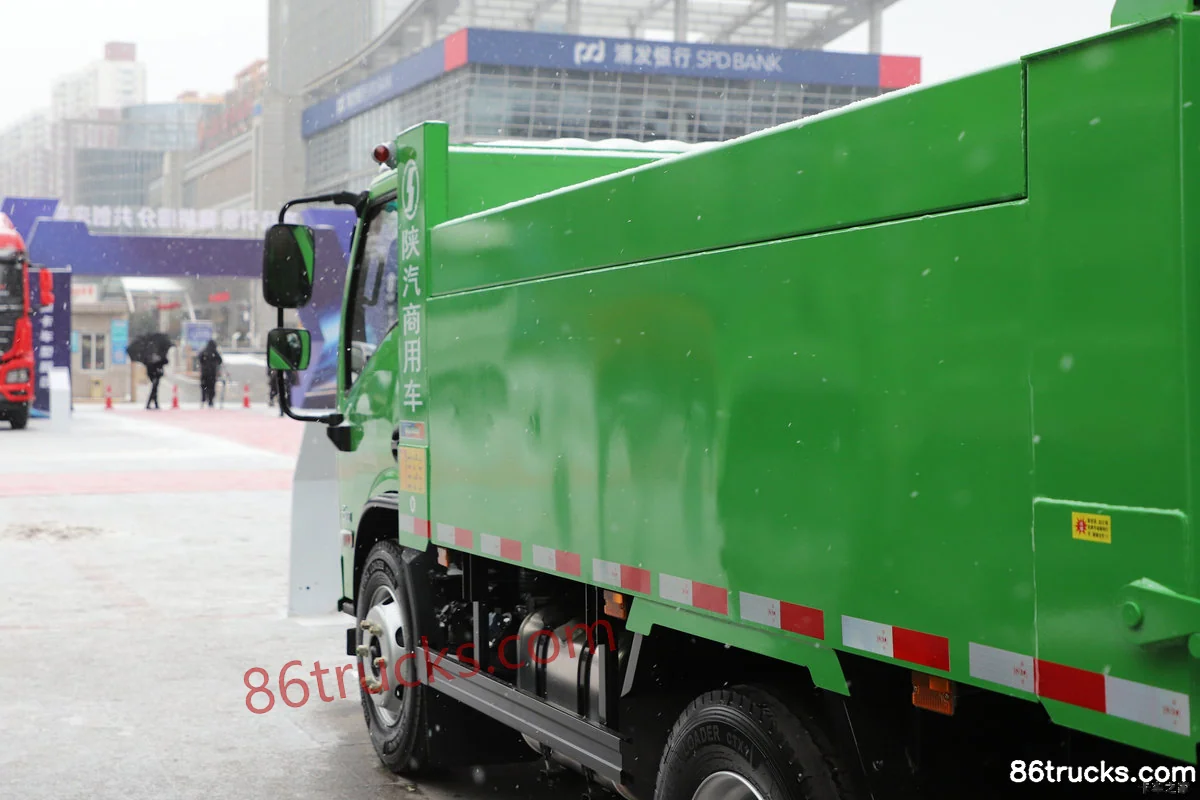

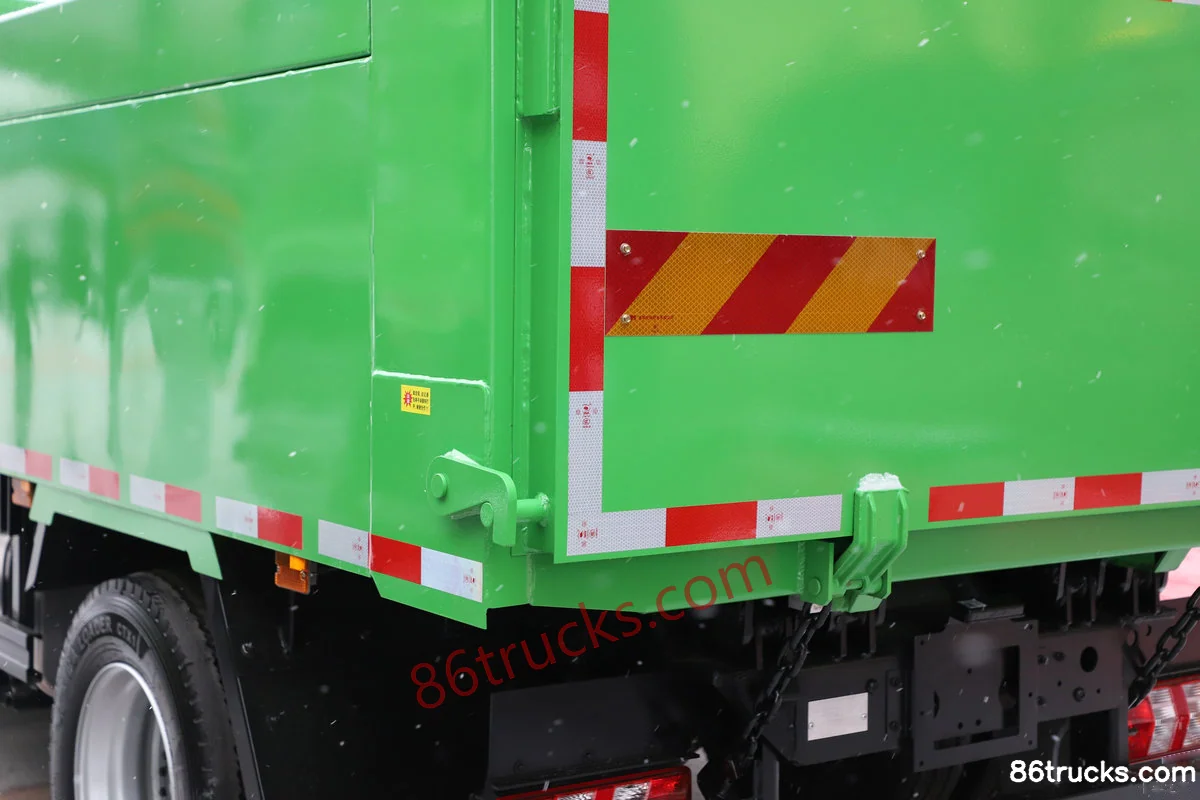

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck, and what does it include?

SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck export reference is about From $18,153; MSRP is ¥13.07M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck?

Key specs of SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck: Drive: 4x2; Horsepower: 155 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck suited for?

SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck belongs to SHACMAN Commercial Vehicle Delong G100 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Delong G100 2.5L Diesel 155hp 4X2(6 wheels) Fast Gear 8-speed 3.3m single-row dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
