Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh

Export reference
From $108,333
MSRP ¥78M CNY
Rated payload:: 7.17ton
Wheelbase:: 1800+4825+1350mm
Cargo box type:: Dump type
Model code (announced):: ZZ3314V4861Z1BEV
Cab length:: 11.7m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Sinotruk王牌
Curb Weight: 23.7ton

Overview

The Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh is a Heavy truck featuring CATL battery/range, Sinotruk王牌 motor, 8X4 (12 wheels) drive and 7.17t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3314V4861Z1BEV
Drive type: 8X4
Wheelbase: 1800+4825+1350mm
Cab length: 11.7m
Cab width: 2.55m
Cab height: 3.85m
Curb Weight: 23.7ton
Rated payload: 7.17ton
GVWR: 31ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk王牌
Motor 1 Model: TZ460XSCDW16
Motor Type: Permanent magnet synchronous motor
total rated power: 375kW
Peak power: 550kW
Motor 1 Peak Power: 550kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 601kWh
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 8.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 17500 (two-axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

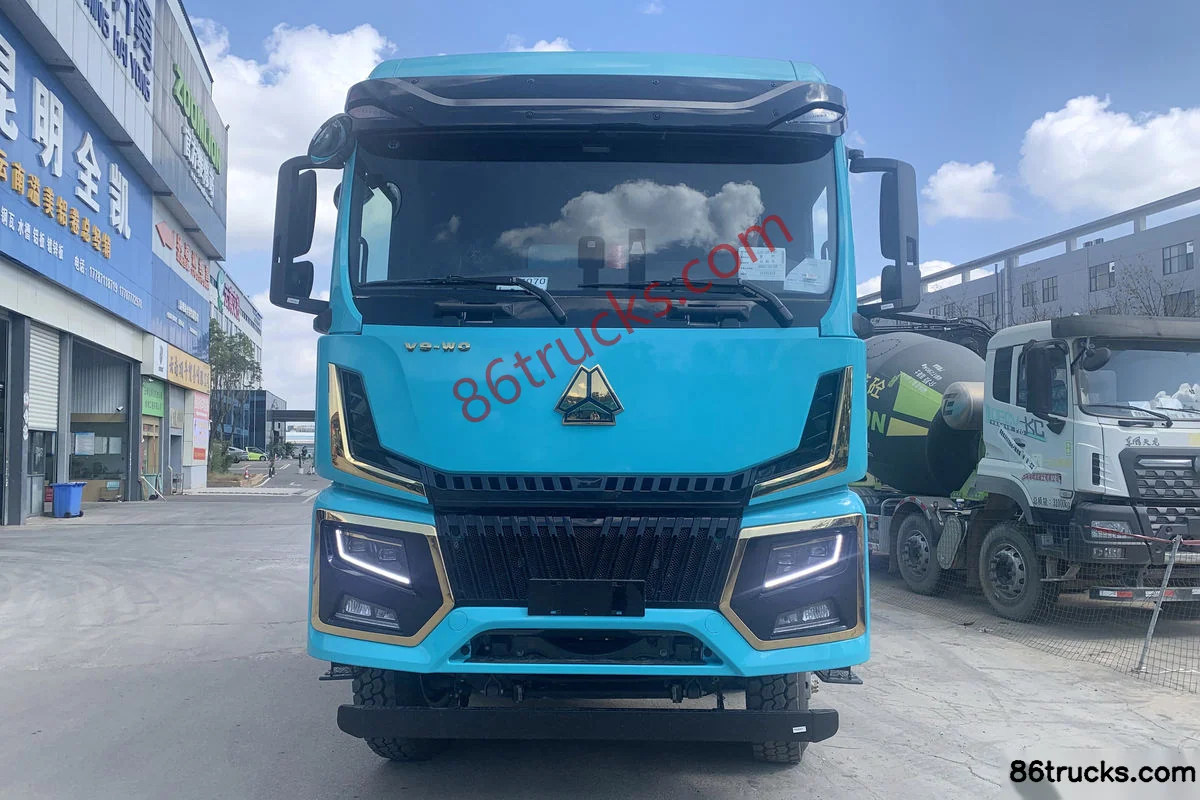

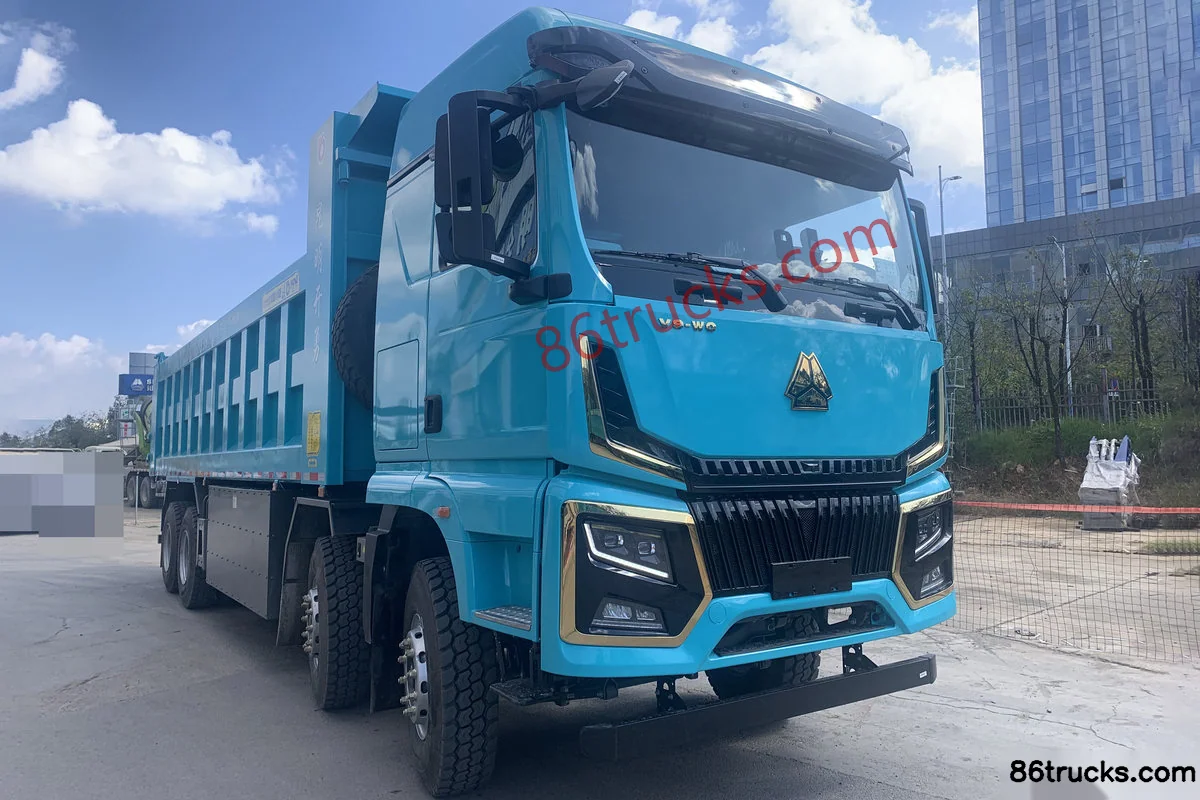

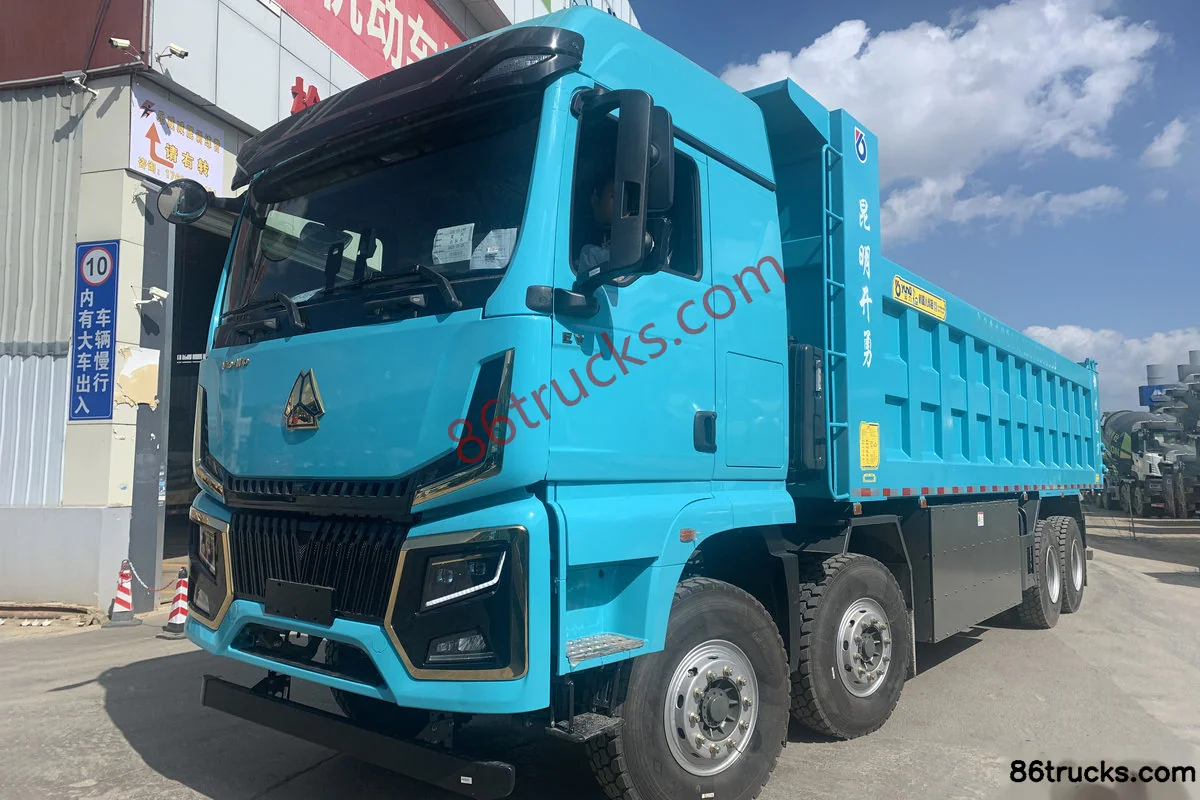

Exterior3

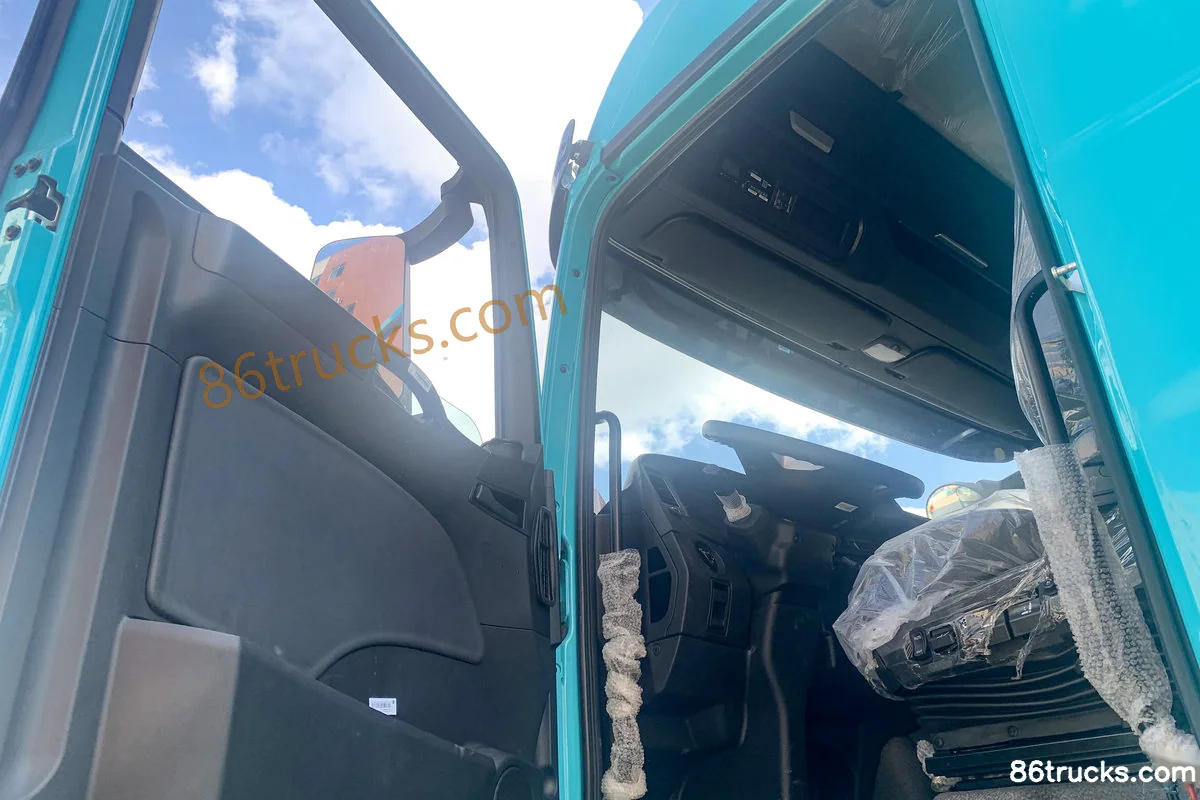

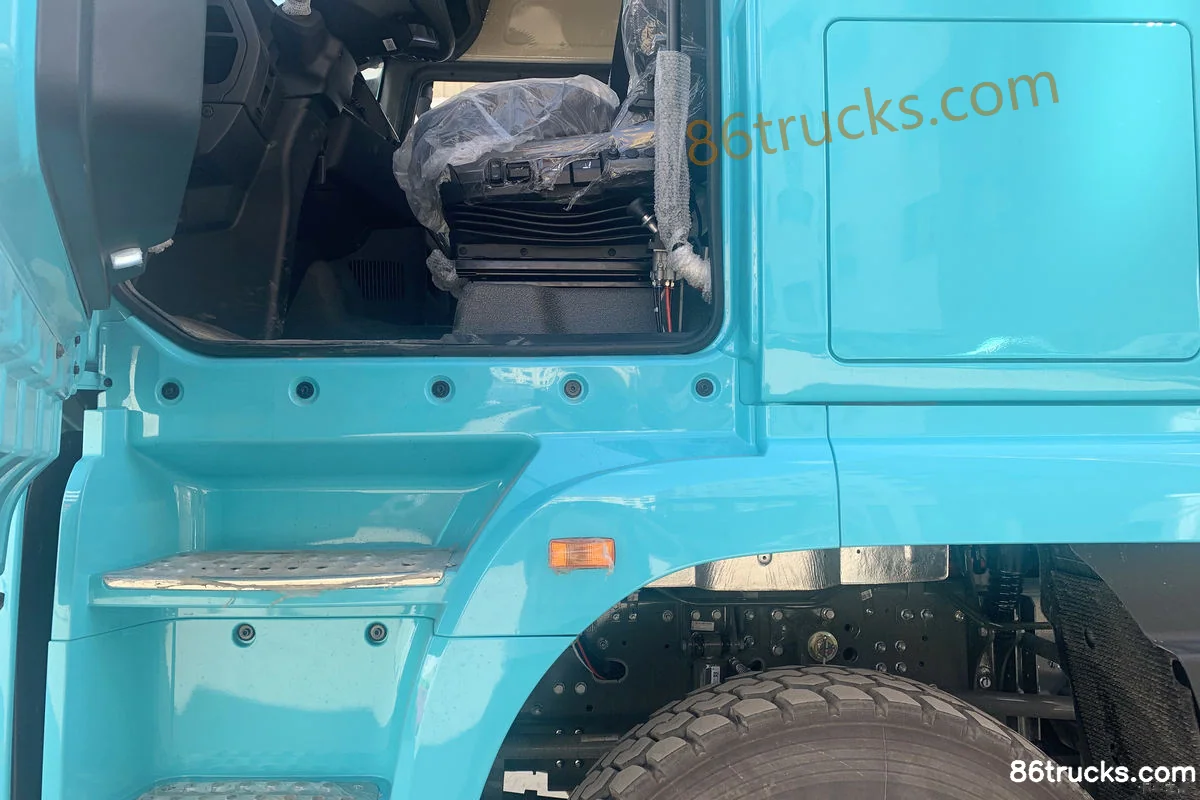

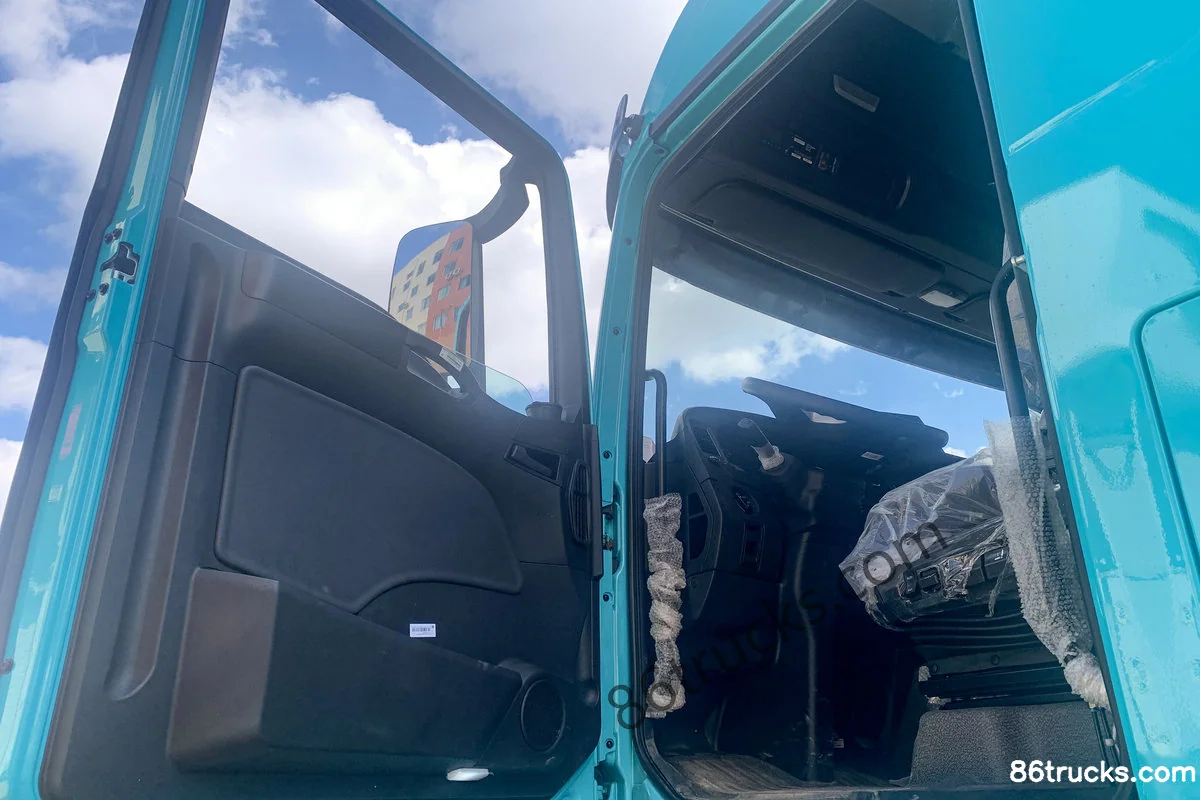

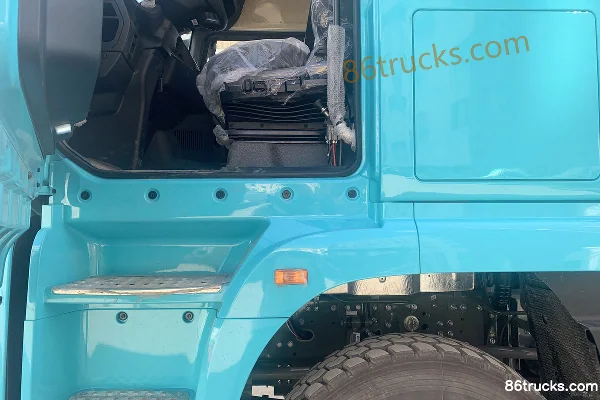

Cab3

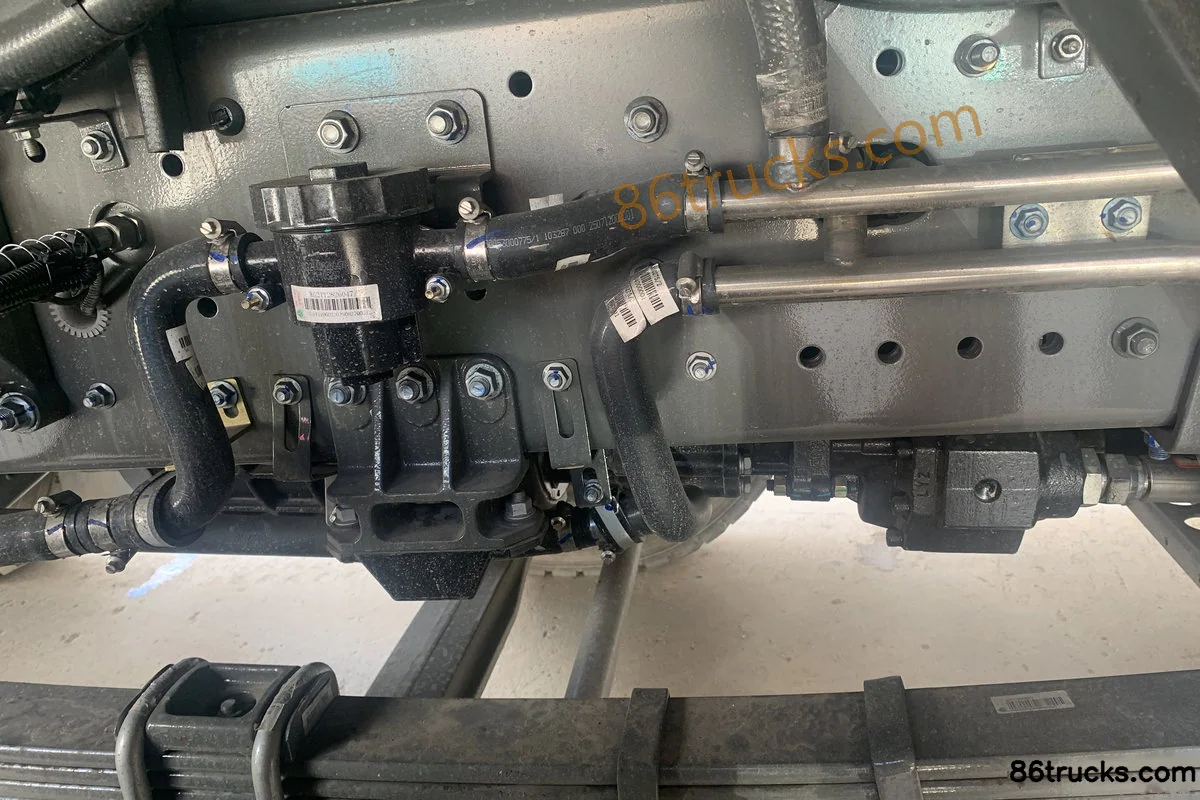

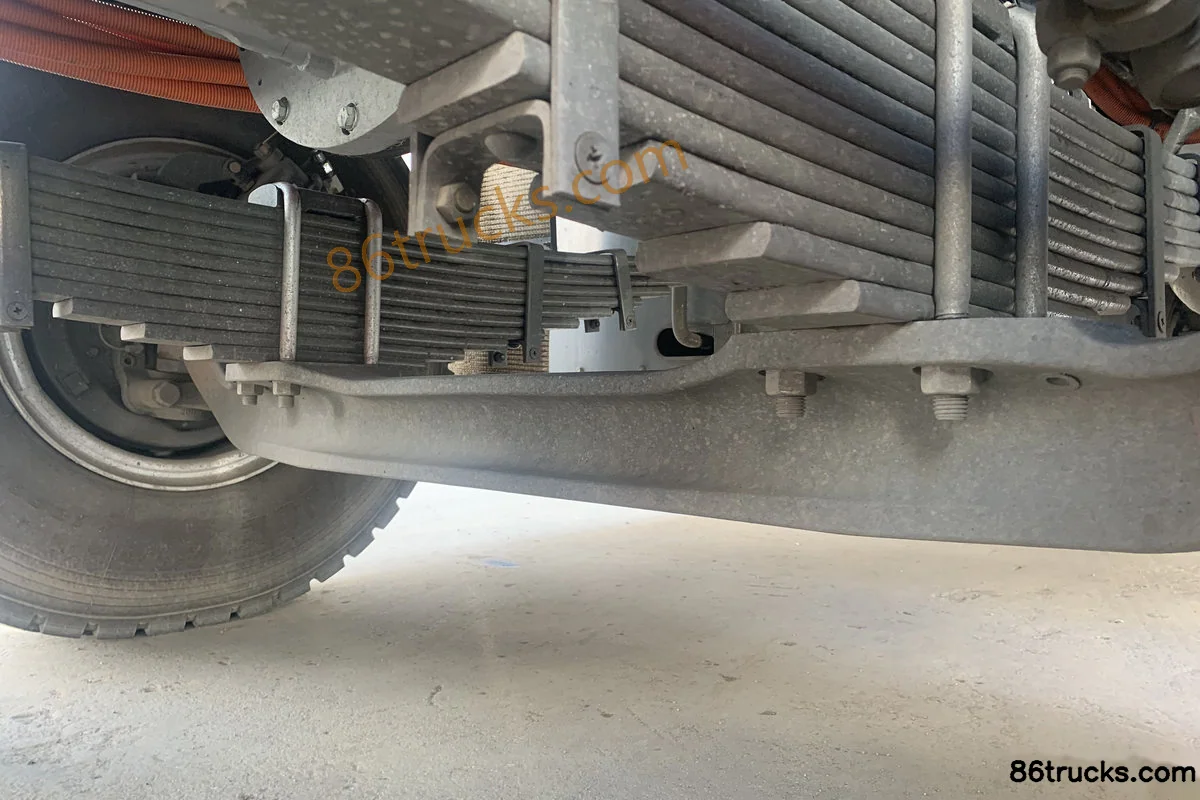

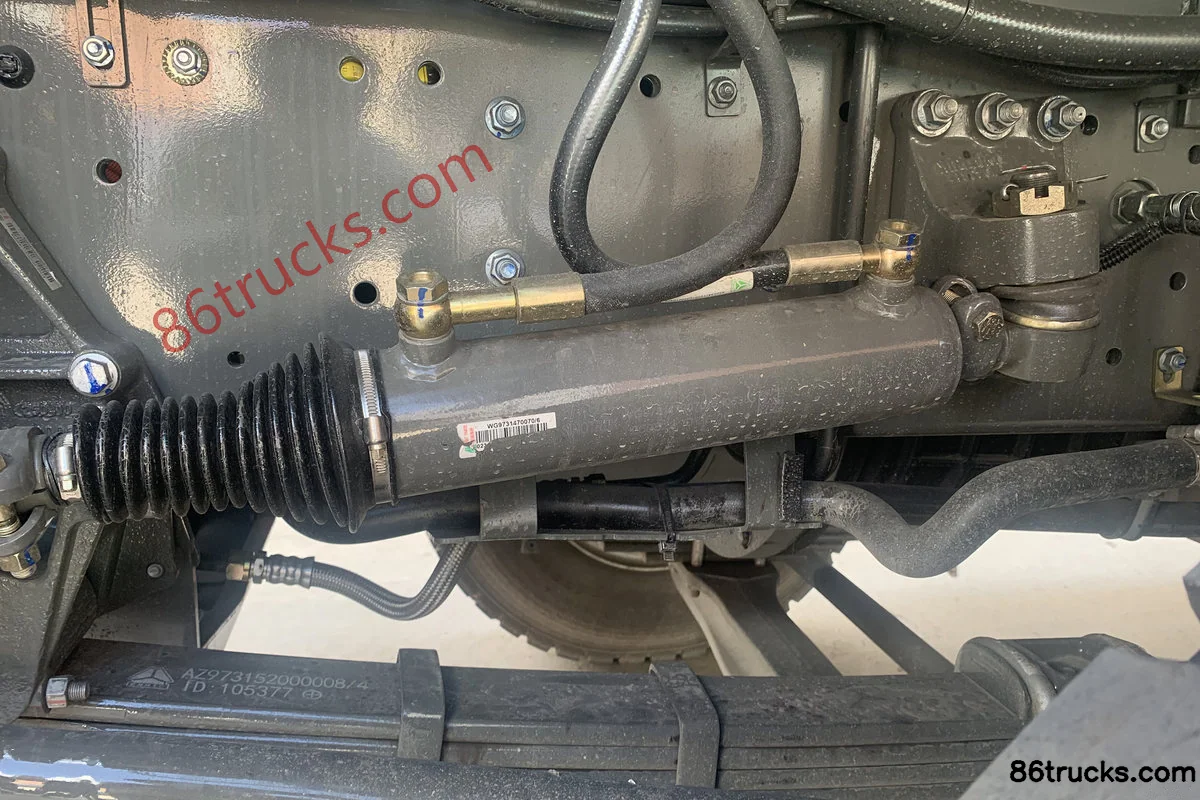

Chassis3

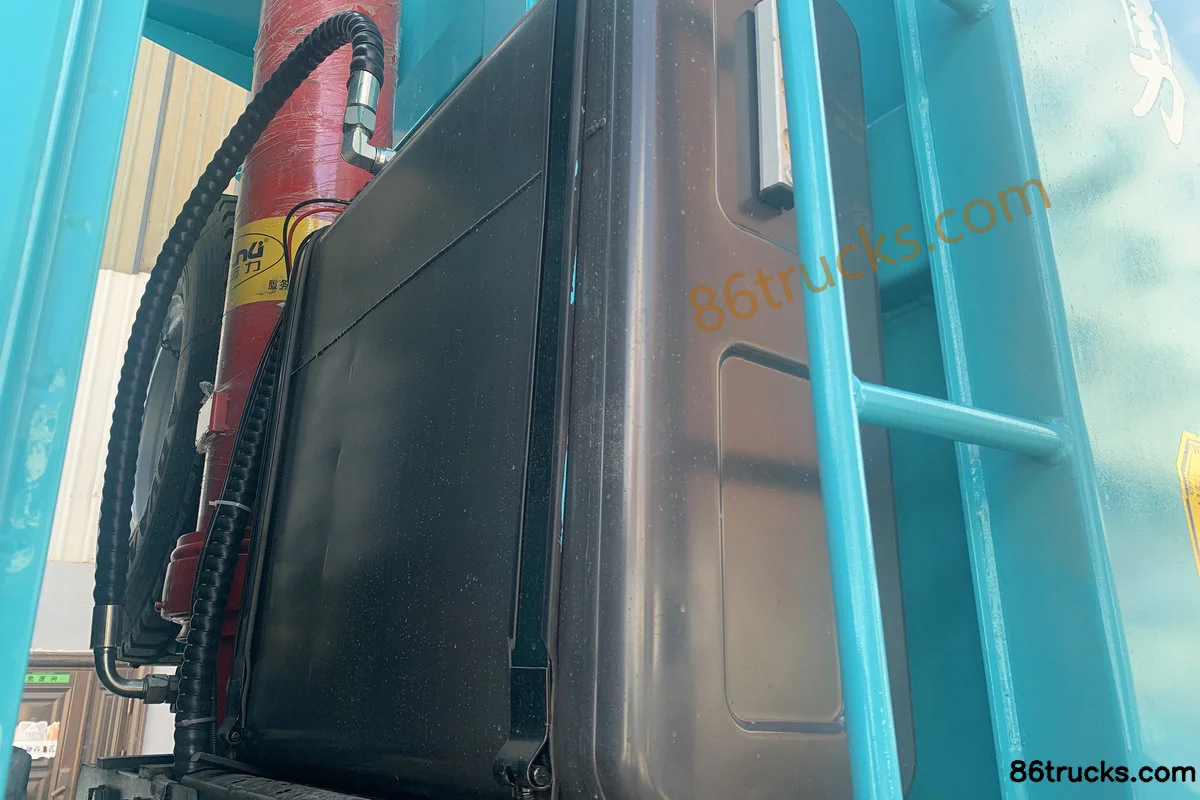

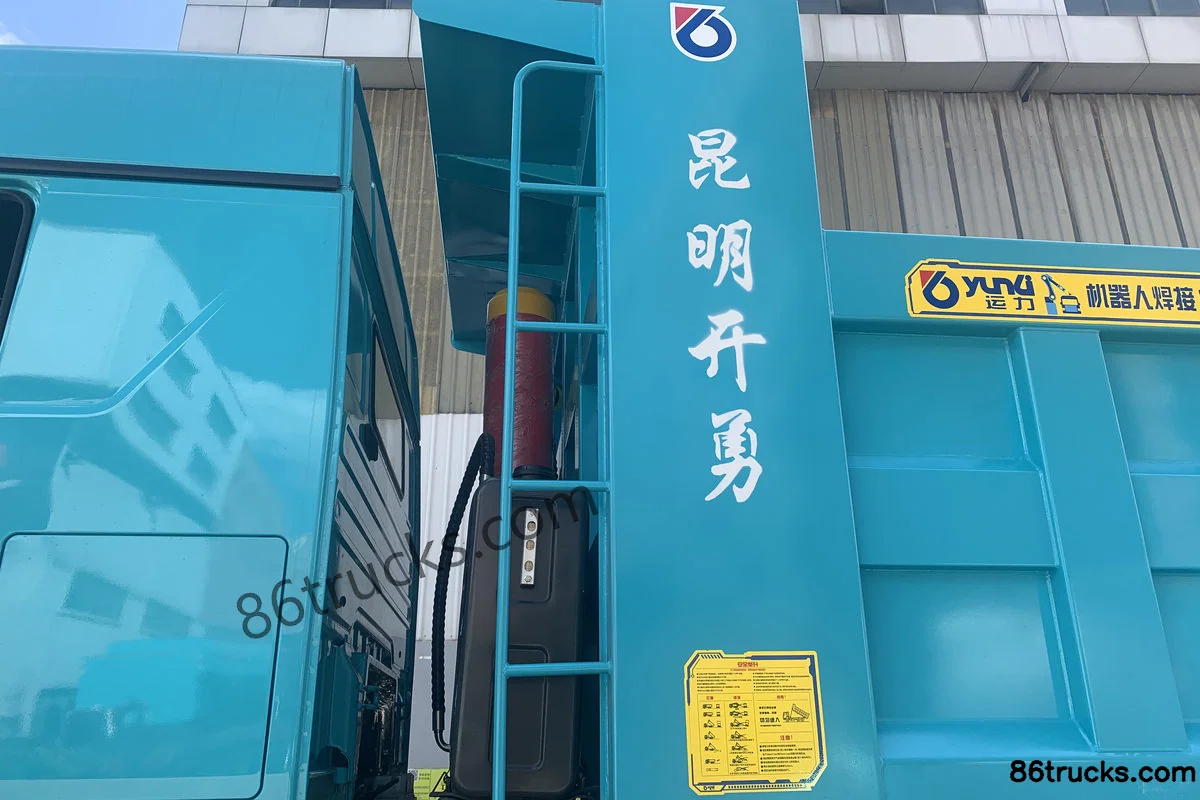

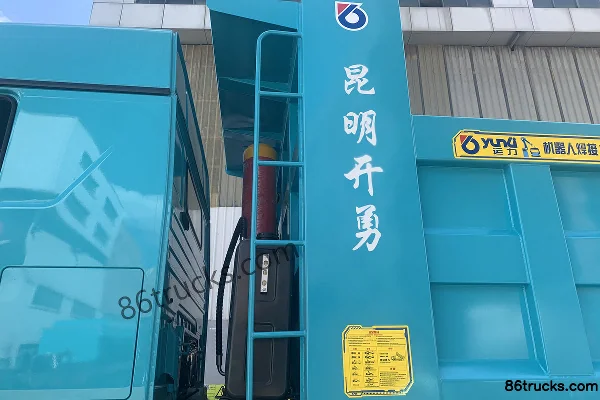

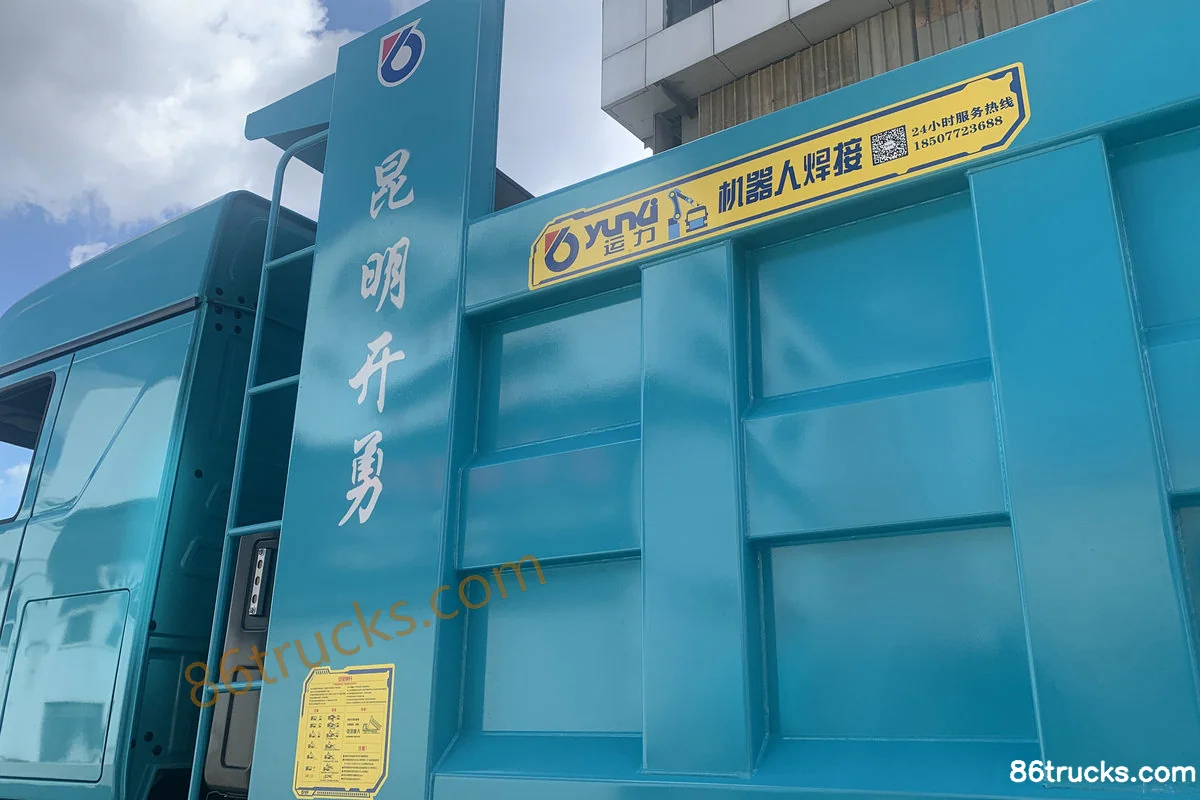

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh, and what does it include?

Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh export reference is about From $108,333; MSRP is ¥78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh?

Key specs of Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh suited for?

Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh differ from other variants in the same series?

Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh belongs to Sinotruk V9 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO V9 8X4(12 wheels) 8.8m Raised Roof Pure Electric Dump Truck CATL 601kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
