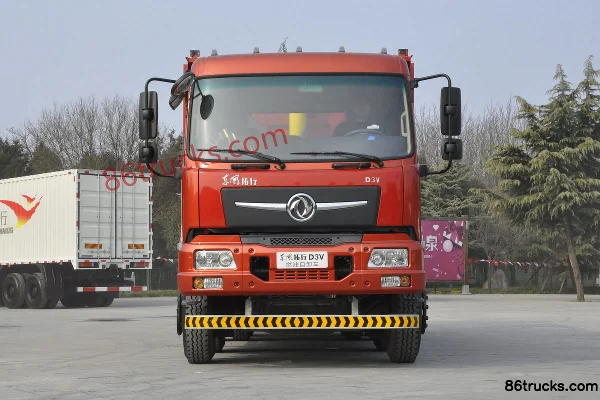

Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck

Export reference
From $38,153
MSRP ¥27.47M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.55ton
Wheelbase:: 1850+2200+1300mm
Tire Size:: 295/80R22.5 18PR
Rated payload: 19.32ton
Drive 8X2 (10 wheels)
Horsepower 270
Cargo box type: Dump type

Overview

The Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck is a Heavy truck featuring 19.32t payload, 31t GVW, Dump type cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06270-60 engine, 270 hp, China VI emissions and Fast Gear transmission.

China VI 270 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3313GP6DT
Drive type: 8X2
Wheelbase: 1850+2200+1300mm
engine: YuchaiYCS06270-60
transmission: Fast Gear10JSX110A
Rear Axle Ratio: 5.83
Cab length: 8.7m
Cab width: 2.5m
Cab height: 3.25m
Front track width: 1810/1810mm
rear track: 1985/1880mm
Curb Weight: 11.55ton
Rated payload: 19.32ton
GVWR: 31ton
Origin: Urumqi
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSX110A
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab width: 2200mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280*80/8+4mm
rear axle description: 13T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.83
Leaf spring count: 9/9/7/10+8
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck, and what does it include?

Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck export reference is about From $38,153; MSRP is ¥27.47M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck?

Key specs of Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck: Drive: 8x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck suited for?

Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck differ from other variants in the same series?

Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck belongs to Dongfeng Tuoxing D3 medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D3V 270 hp 8X2(10 wheels) 8×2R 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
