SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.4ton
Wheelbase:: 3775+1400mm
Tire Size:: 12.00R20
Rated payload: 12.47ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck is a Heavy truck featuring 12.47t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX32565R384
Drive type: 6X4
Wheelbase: 3775+1400mm
engine: WeichaiWP10.336E40
transmission: Fast Gear10JS160T
Rear Axle Ratio: 5.262
Cab length: 8.354m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2036mm
rear track: 1860/1860mm
Curb Weight: 12.4ton
Rated payload: 12.47ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 27°
departure angle: 16°
Version: Urban Construction & Muck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JS160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.15m
fuel tank
Fuel tank capacity: 400L
Chassis Specs

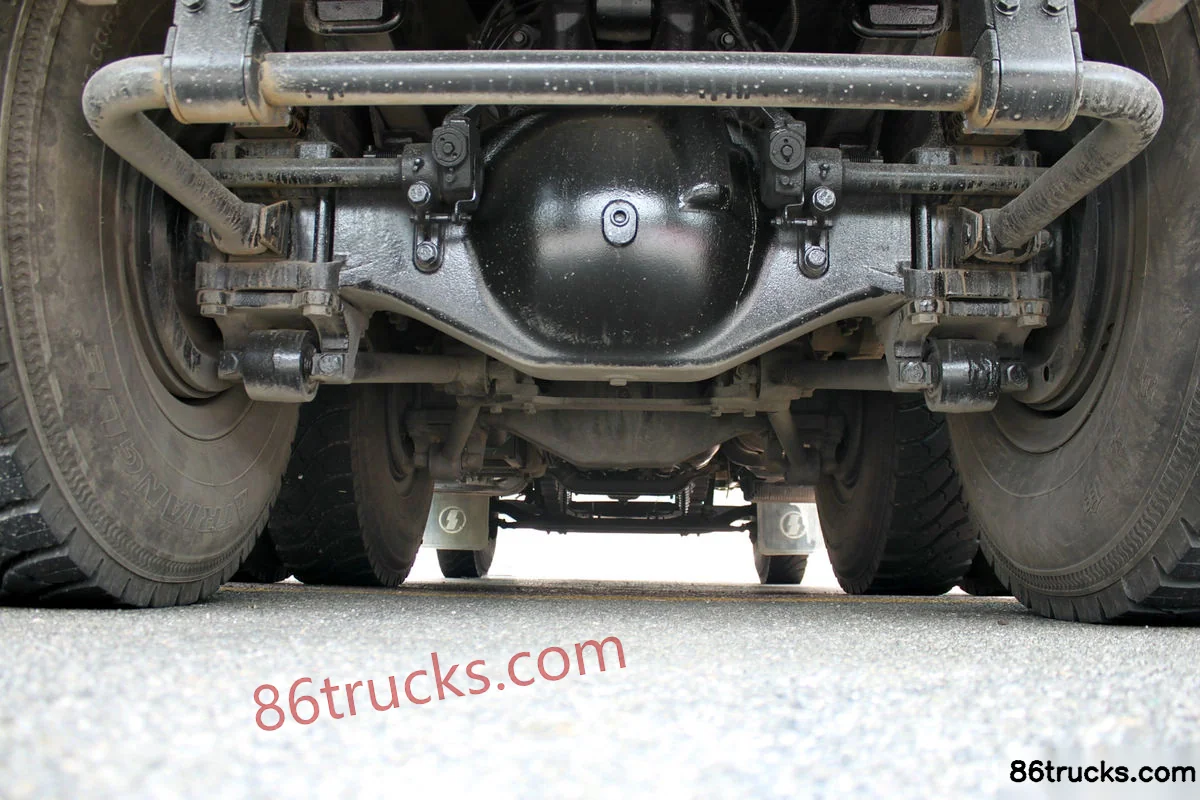

rear axle description: Hande 16t MAN double reduction cast axle
rear axle allowable load: 18000kg
Axle ratio: 5.262
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

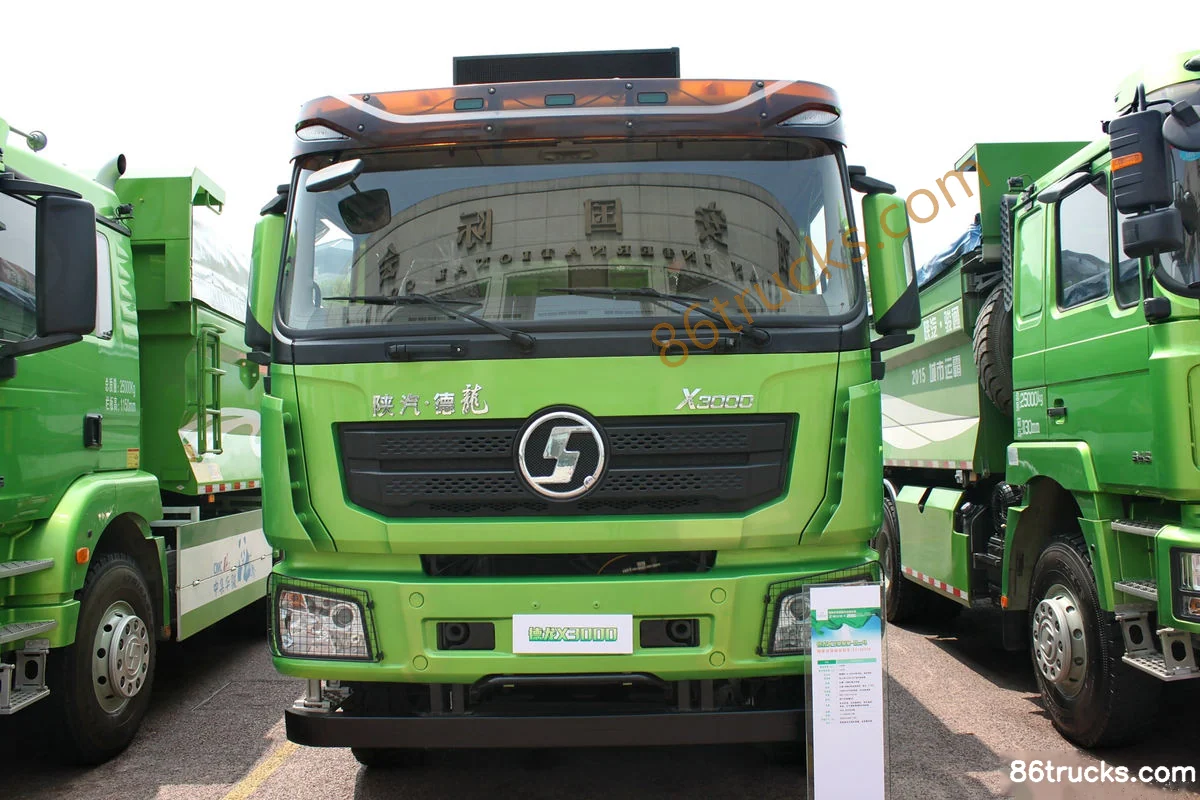

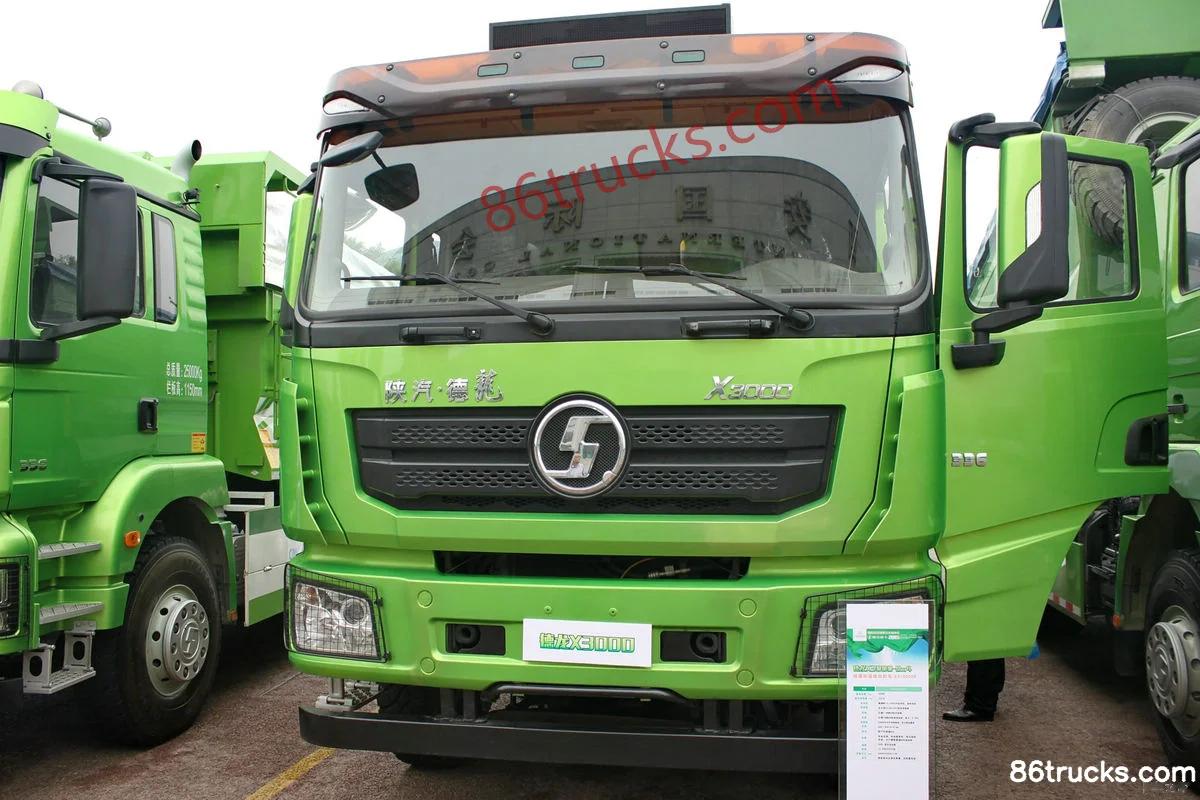

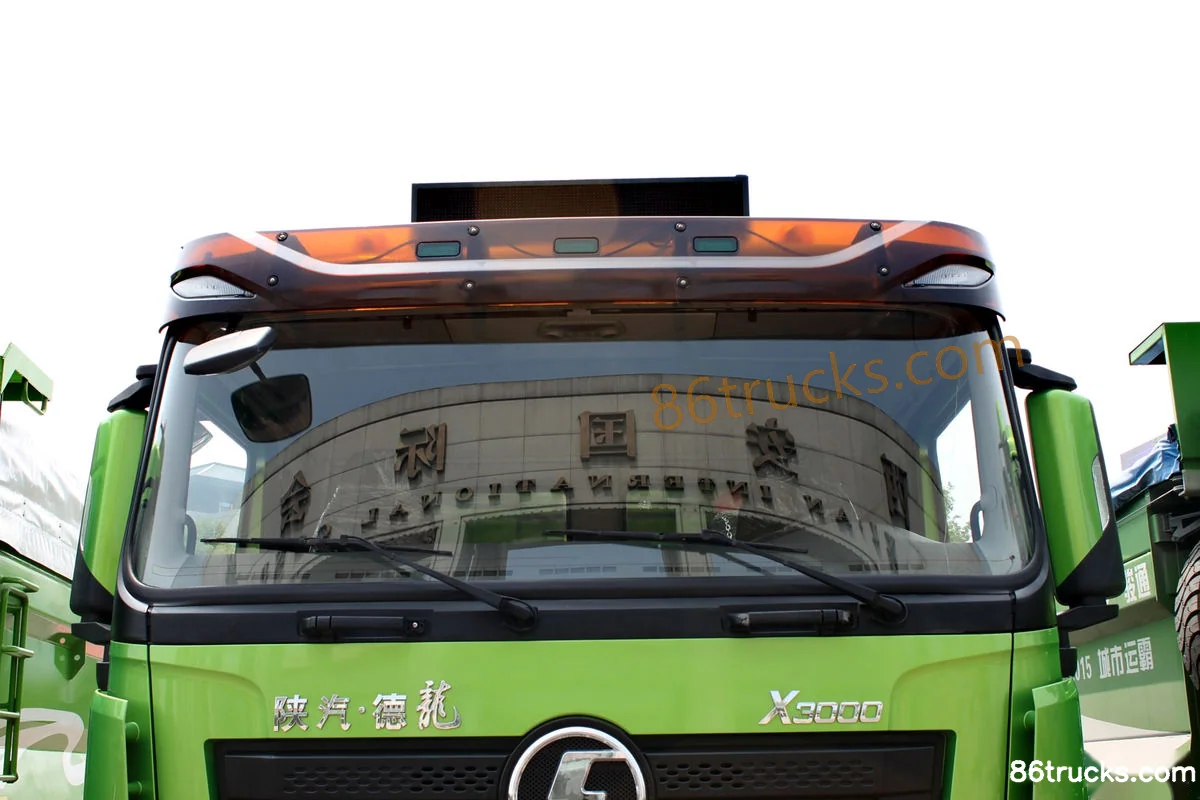

Exterior3

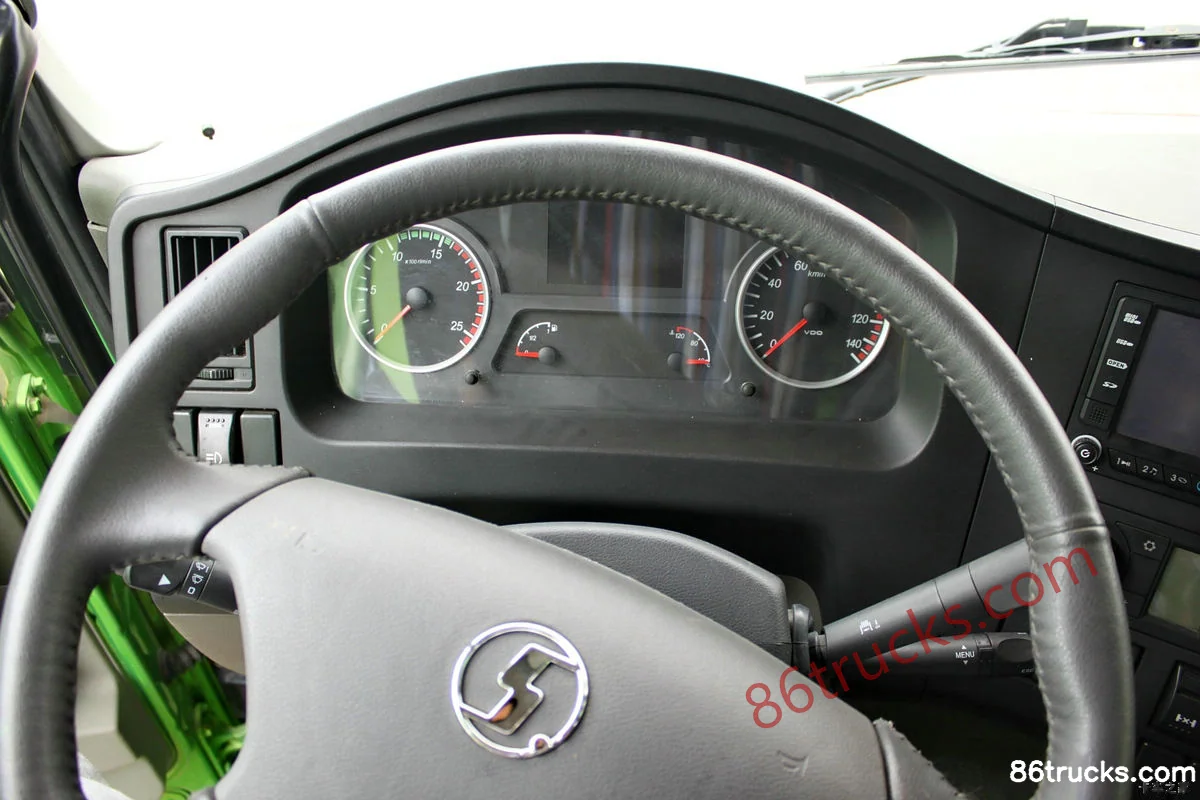

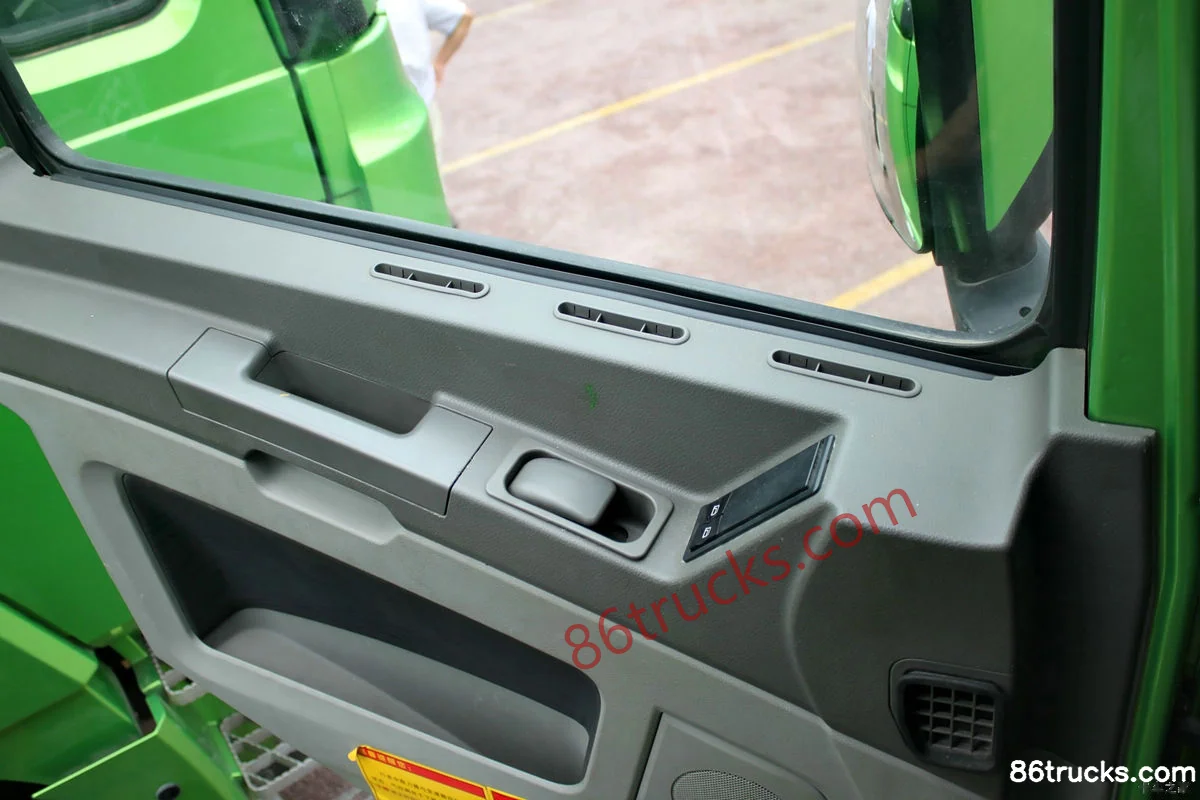

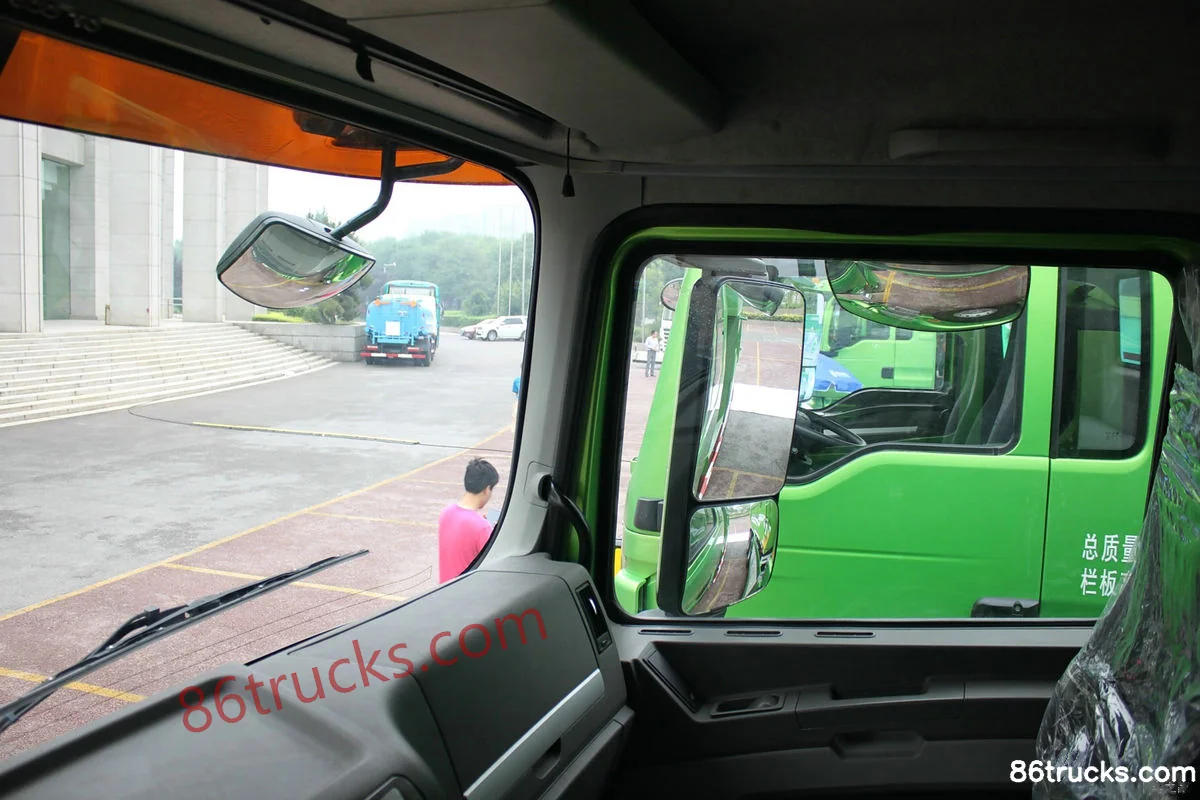

Cab3

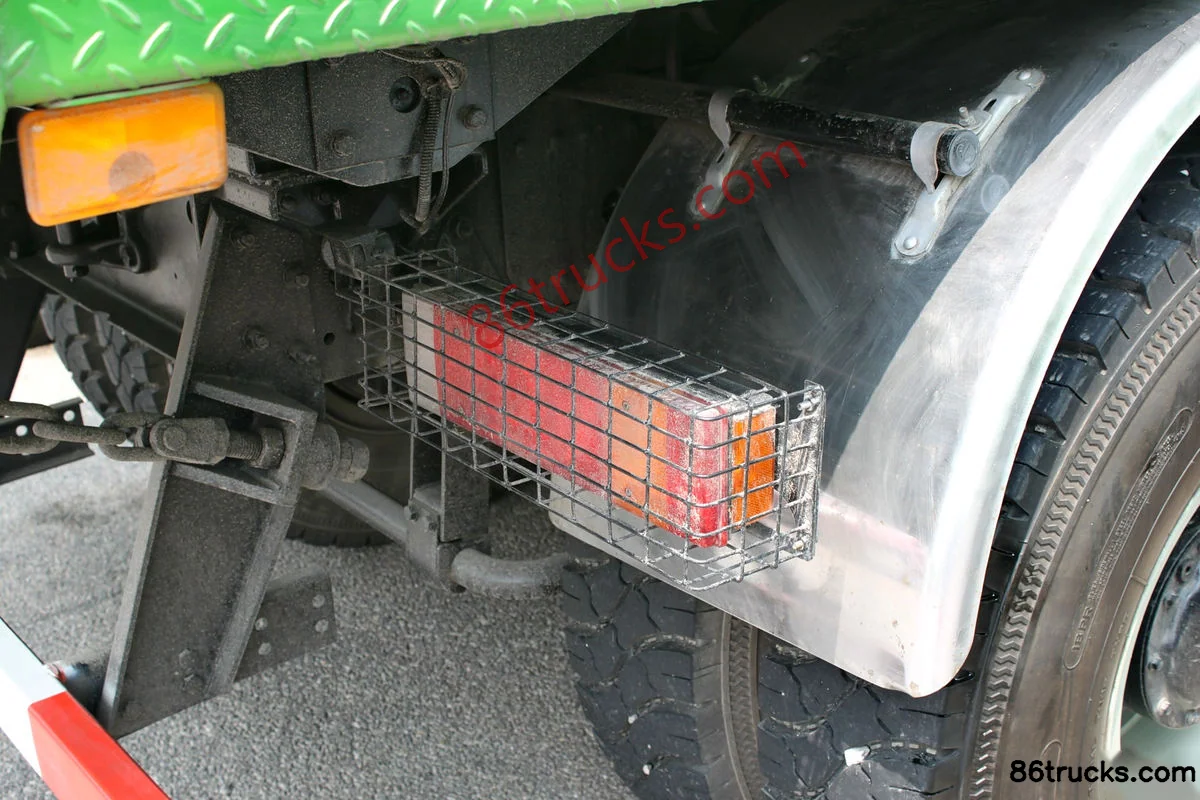

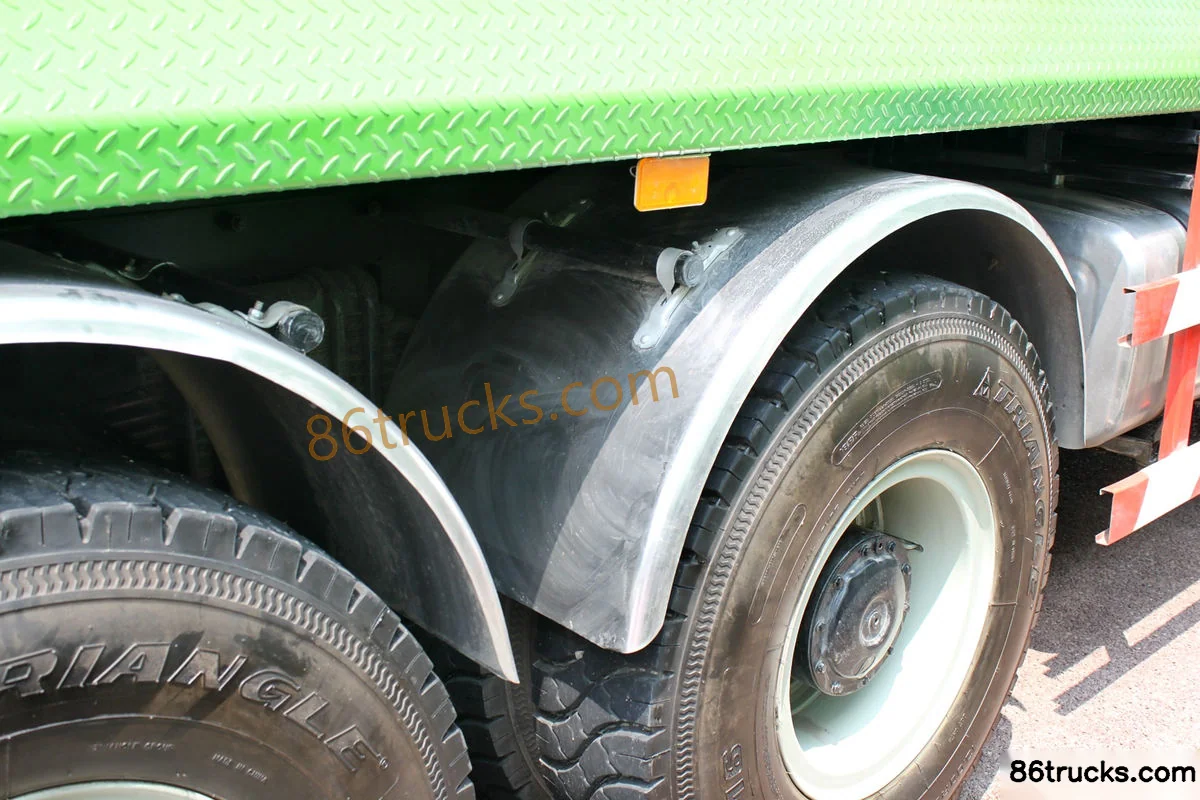

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck?

Key specs of SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck suited for?

SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck differ from other variants in the same series?

SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck belongs to SHACMAN Delong X3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 336hp 6X4(10 wheels) 5.6m new-type dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
