Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 3600mm
Model code (announced):: DYZ5131THBD6AC
Overall Dimensions: L×W×H:: 7.23x2.27x3.37m
Max. travel speed:: 89km/h
Curb Weight: 13ton
Horsepower 170
Max output power: 125kW
Emission China VI

Overview

The Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) is a concrete pump truck featuring 13ton GVW, 170 hp, 125kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China VI emissions and Diesel fuel.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYZ5131THBD6AC
Drive type: 4X2
Wheelbase: 3600mm
Overall Dimensions: L×W×H: 7.23x2.27x3.37m
Max. travel speed: 89km/h
Curb Weight: 13ton
Chassis Specs
Axle Count: 2
Chassis Series: Yuntu
Chassis Model: DYQ1141D6AA
Frame Dimensions: 800×232×(7+4)mm
rear axle description: 145 shortened axle/8t
Axle ratio: 5.286
Engine parameters
Engine Model: Yunnei PowerD30TCIF1
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Rated speed: 2800rpm
Transmission Parameters
Number of gears: 7Gear
Transmission Model: WLYWLY7TS60
Tire
Tire Size: 8.25R20 16PR

Photos

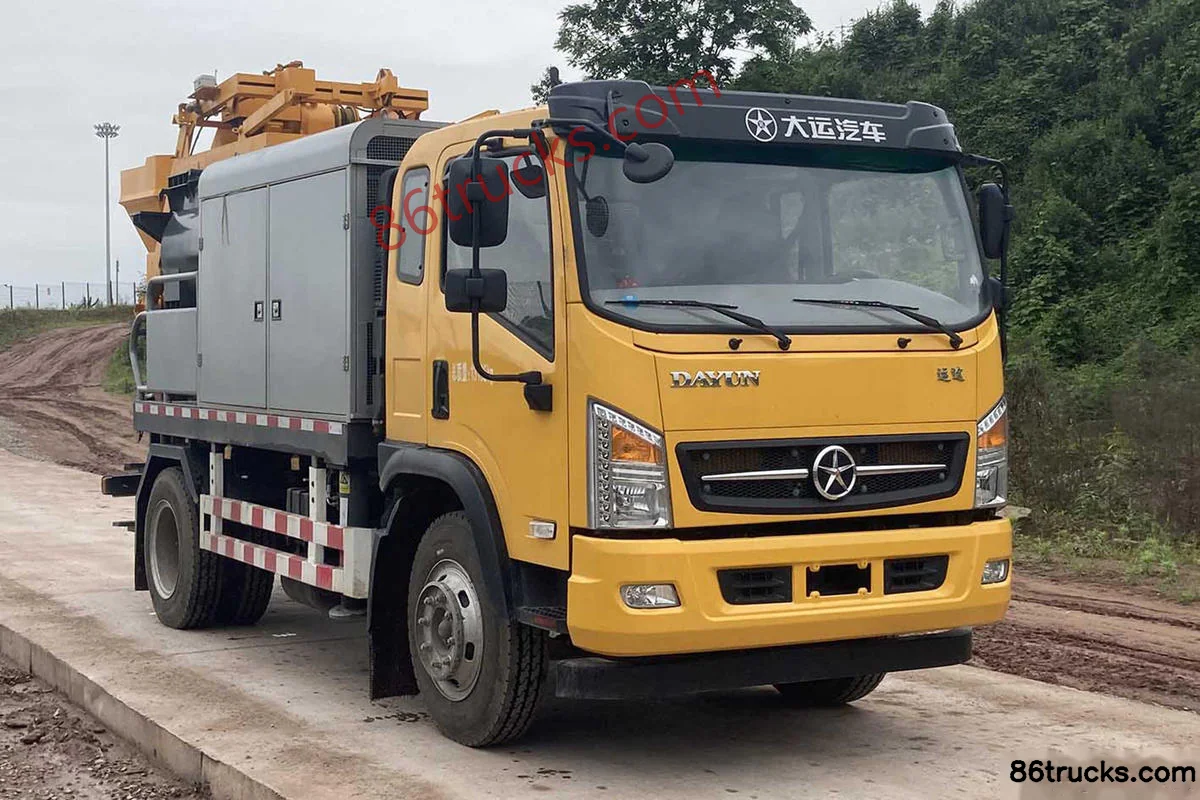

Exterior1

1 photos

FAQ

What emission standard does Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI)?

Key specs of Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI): Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) suited for?

Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) differ from other variants in the same series?

Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI) belongs to Dayun Yuntu medium-duty truck (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Yuntu 170hp 4X2(6 wheels) Truck-mounted Concrete Pump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
